| Specifications | G206E | ||
|---|---|---|---|
| Main axis (MAIN) configuration | Inner diameter 22 | ||
| Max Processing material diameter | 21mm | ||
| Feeding length at one time | 140mm | ||
| Spindle setting working speed | 8000 Rpm | ||
| Turning tool | Number of tools | 5pcs | |
| Tool Specifications | 12x12mm | ||
| End processing | Number of tools | Front Fixing Tool | 4pcs |
| drilling capacity | Fixed Tool | Φ7mm | |
| Maximum cutting and tapping capacity | Fixed Tool | M6 | |
| Lateral Rotation Tool | Number of tools | 4pcs | |
| Tool Specifications | ER16*2+ER11*2 | ||
| Drilling Capacity | φ8mm | ||
| Tapping Capacity | M6 | ||
| Milling Capacity | φ10mm | ||
| Max.saw blade milling cutter diameter | 30 mm | ||
| Max.speed | 5000min-1 | ||
| power | 0.75Kw | ||
| Rapid speed | Z1 | 24m/min | |
| X1 | 30m/min | ||
| Y1 | 30m/min | ||
| Spindle maximum working revolutions | 8000min-1 | ||
| Spindle positioning accuracy | C-axis control (0.001º) | ||
| Spindle power | 3.7/2.2kw | ||
| Spindle through hole diameter | φ22mm | ||
| Coolant capacity | 100L | ||
| Cooling motor power | 0.85kw | ||
| Dimensions (L*W*H) | 2100*1100*1780mm | ||
| Machine weight | 2800kg | ||
| Sub-spindle (SUB) configuration | |||
| Max.machining diameter | φ20mm | ||
| Max.discharge part length | 80mm (the rear discharge length is not limited) | ||
| Max.clamping protrusion length | 50mm | ||
| Fixed processing tool holder and driven tool holder | ER11/ER16 | 5 pieces (2 power knives and 3 fixed knives can be selected) or 4 power knives | |
| Rapid speed | Z2 | 24m/min | |
| X2 | 30m/min | ||
| Max.number of revolutions of the second spindle | 8,000min-1 | ||
| Positioning accuracy of the second spindle | C-axis control (0.001º) | ||
| Second spindle power | 2.2/1.1kw | ||

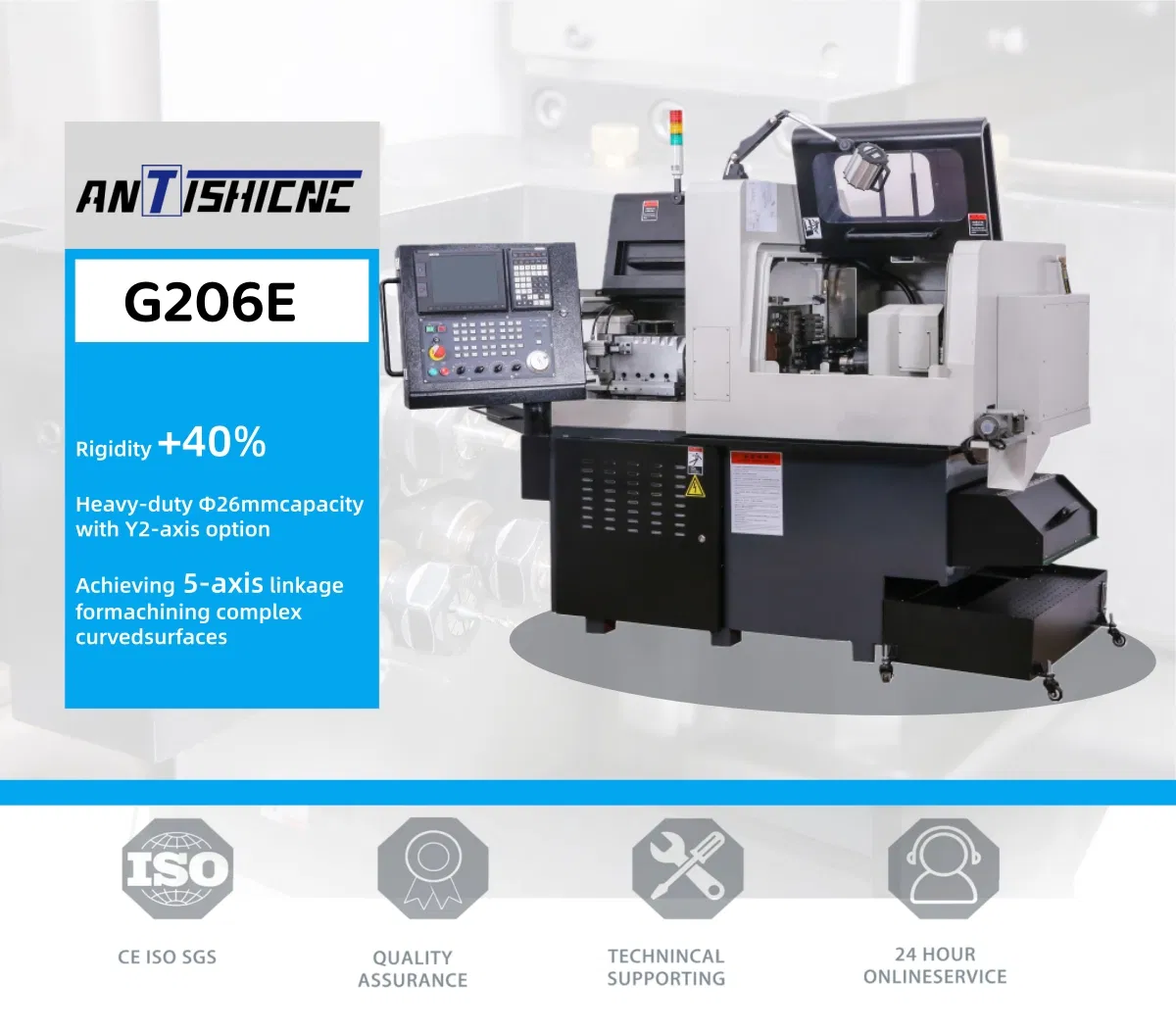

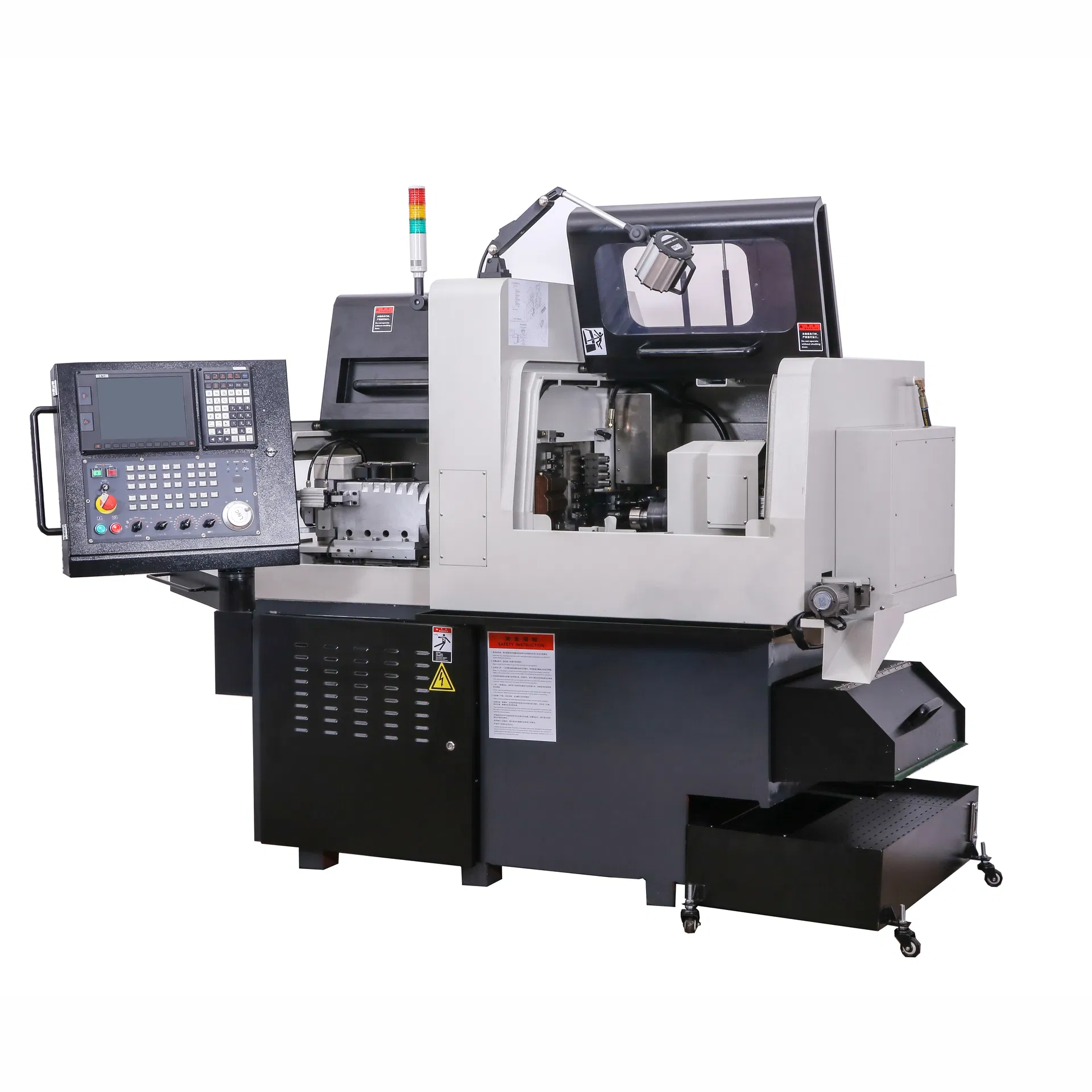

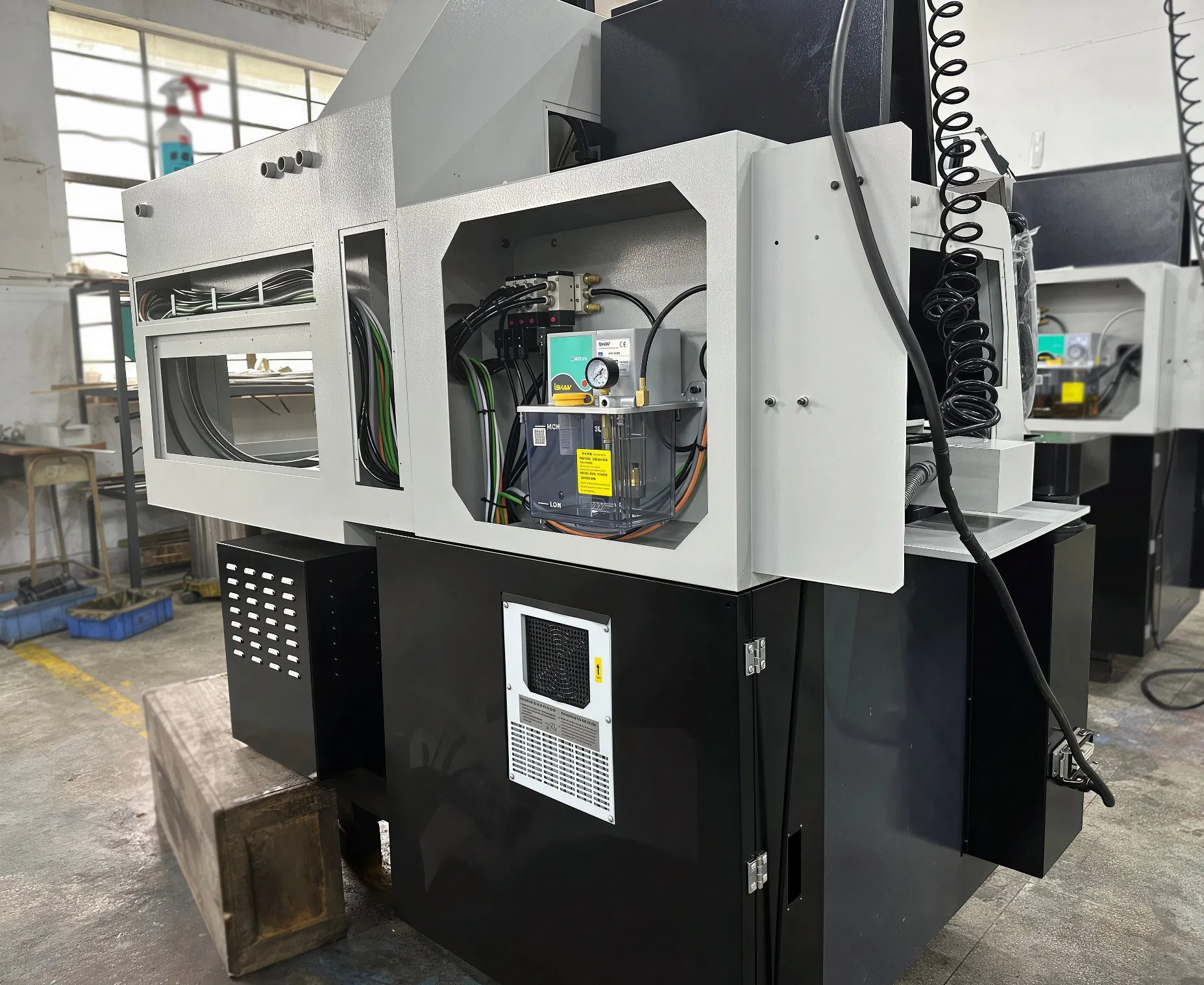

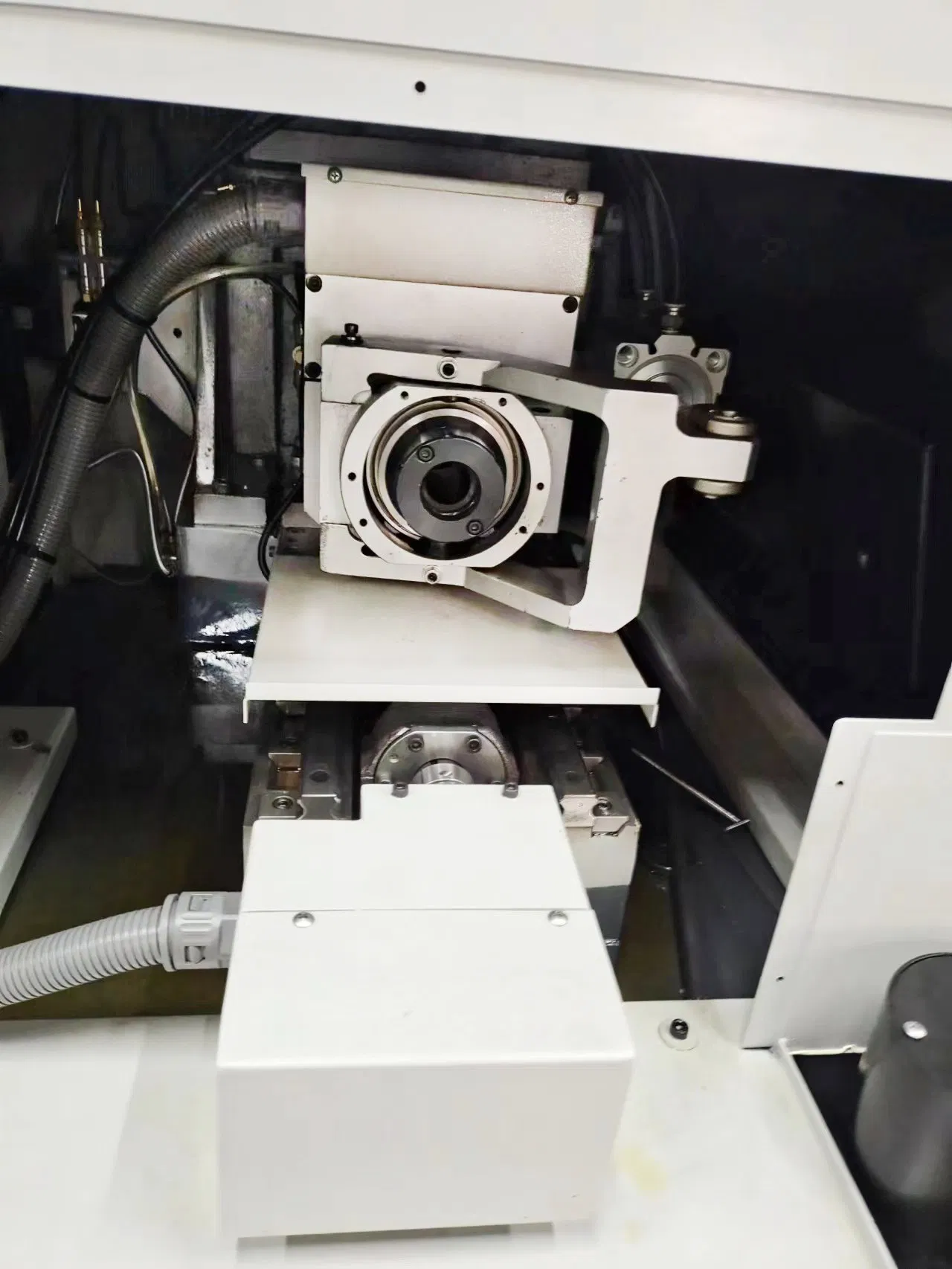

Swiss Type CNC Automatic Lathe G206E Product Introduction :
G206E Swiss-type CNC longitudinal cutting machine tool can meet all processing procedures such as cutting, milling, drilling, and grinding for the above products. If there are products with more changeable process and process requirements, our company can provide other types of machine tools for customers to choose according to customers' processing requirements.

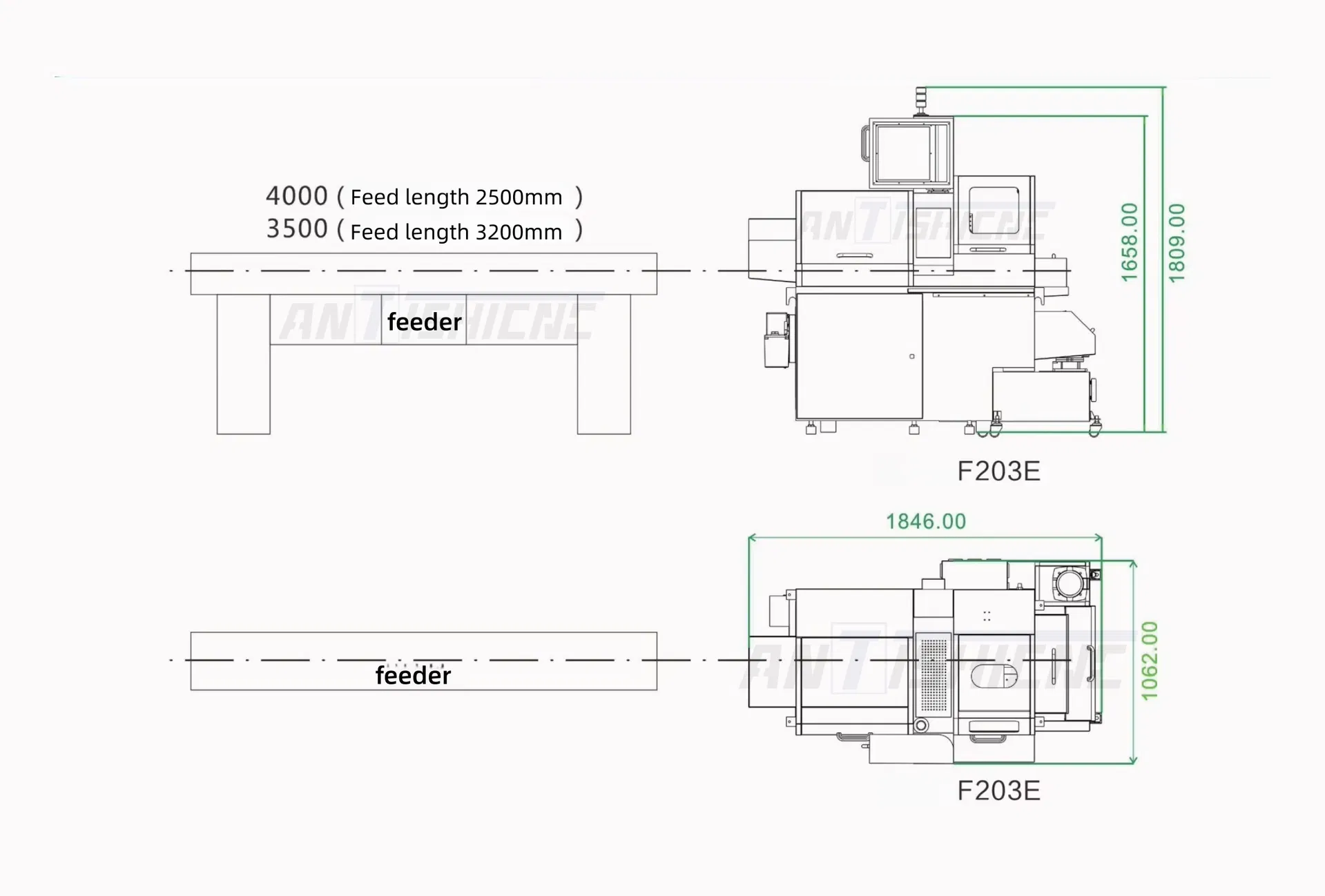

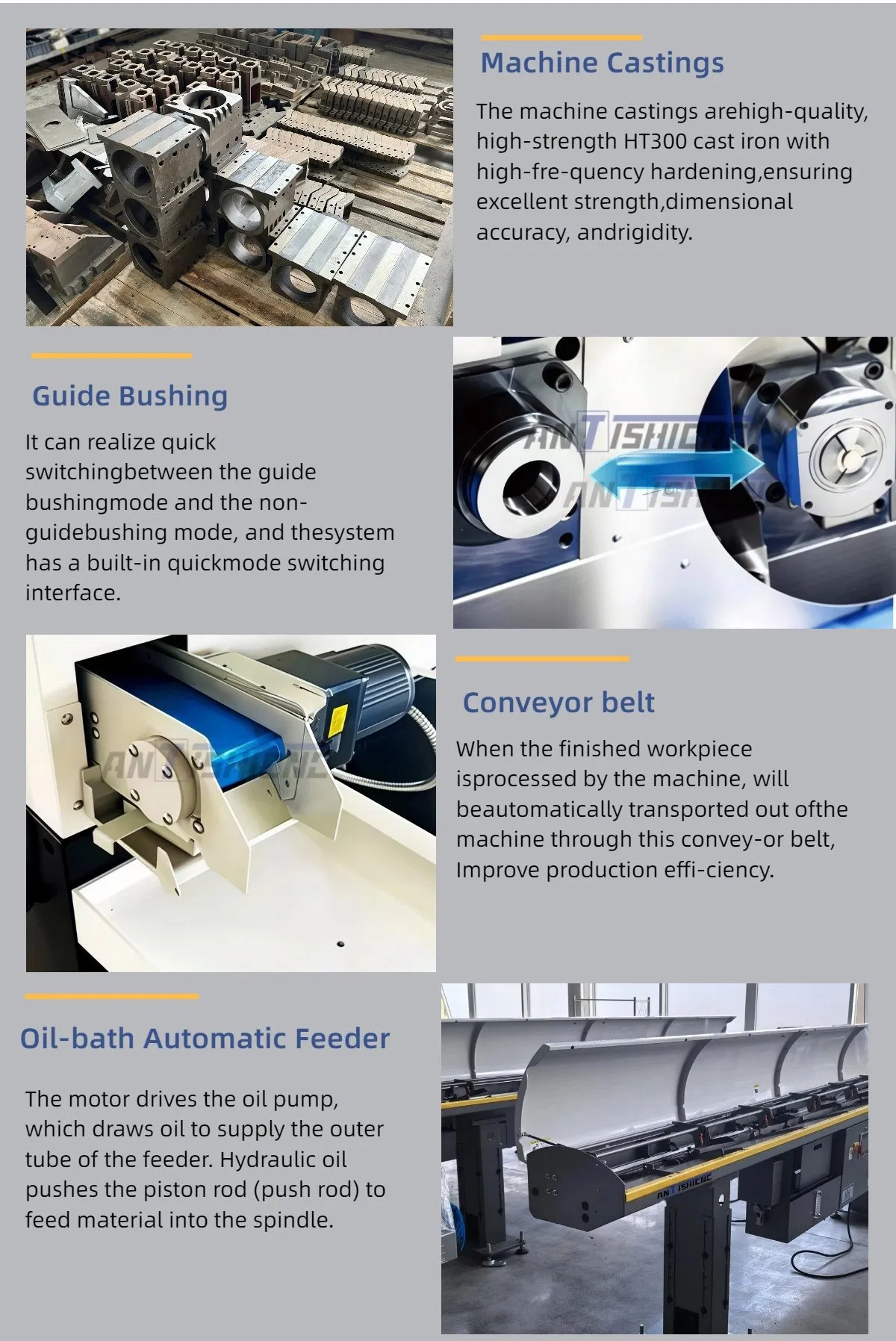

Operates with minimal vibration and noise, making it particularly suitable for processing copper bars, aluminum bars, and precision workpieces. The oil bath feeder can be integrated with various lathes to perform automatic feeding operations. Once the bar stock is fully fed, the lathe automatically enters a loading-ready state and alerts the operator via a warning device to replenish materials.
Maximum feed length: ≤2.5 meters
Feeder length: 3800mm
Applicable bar stock diameter: 3-45mm
Additionally, we offer CNC lathe automation, loading/unloading robotic arms, automation systems, robots, and more. We can customize production based on your workpiece dimensions and drawings, providing tailored automation solutions.

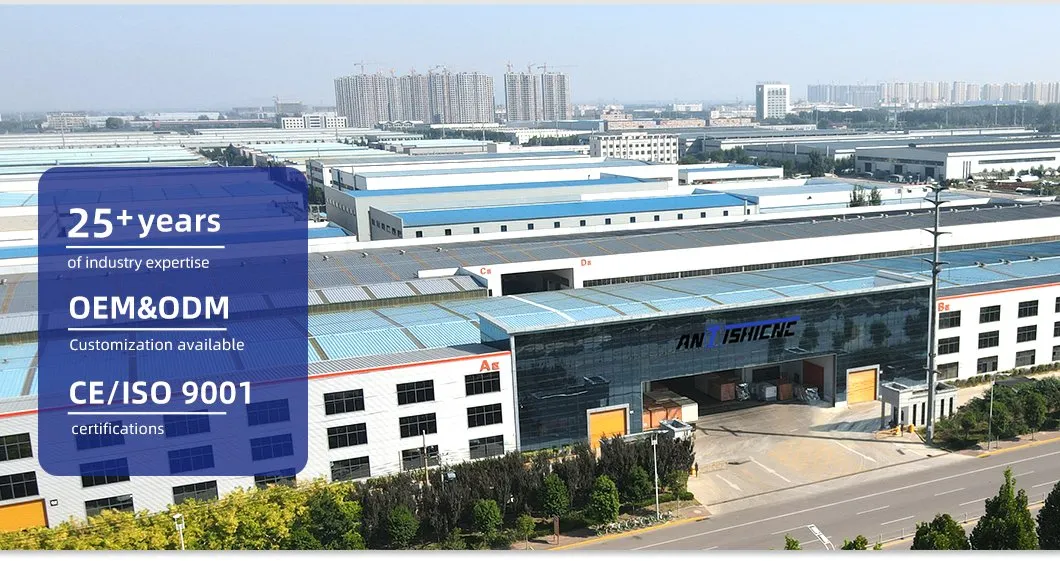

We are a global brand service provider specializing in metal processing equipment exports. Such as metal bandsaw machine, CNC lathe, Turning & milling machine centers, EDM machines, Laser cutting machines, Press break and Hydraulic machines, Pipe processing equipments, Metal-forming machines, Drill & mill machines; Metal grinding machines and etc.
With 25+ years of industry expertise, quality control is the absolute cornerstone of our brand, backed by CE/ISO 9001 certifications. We've built an integrated ecosystem of "brand operation + R&D + customized production + cross-border full-chain services", delivering solutions to manufacturing enterprises in over 100 countries worldwide.
Core Competitiveness: Industry-Leading Quality Control
Widely used in machinery, aerospace, auto parts, medical devices, etc., we are a trusted long-term partner for nearly 1,000 global enterprises. We focus on intelligent and energy-saving upgrades to empower the global metal processing industry's digital transformation.
Our products are certified with CE/ISO 9001. We provide a full compliance package (including COO and multilingual documentation) and can tailor equipment to local standards such as CE, ATEX, NR, RoHS, and OHSAS for global market access.
Yes, we support customization including 110V-480V universal voltage configurations, ±0.001mm precision adjustments, specific material/process adaptations, and multilingual operating systems compliant with EMC and environmental norms.

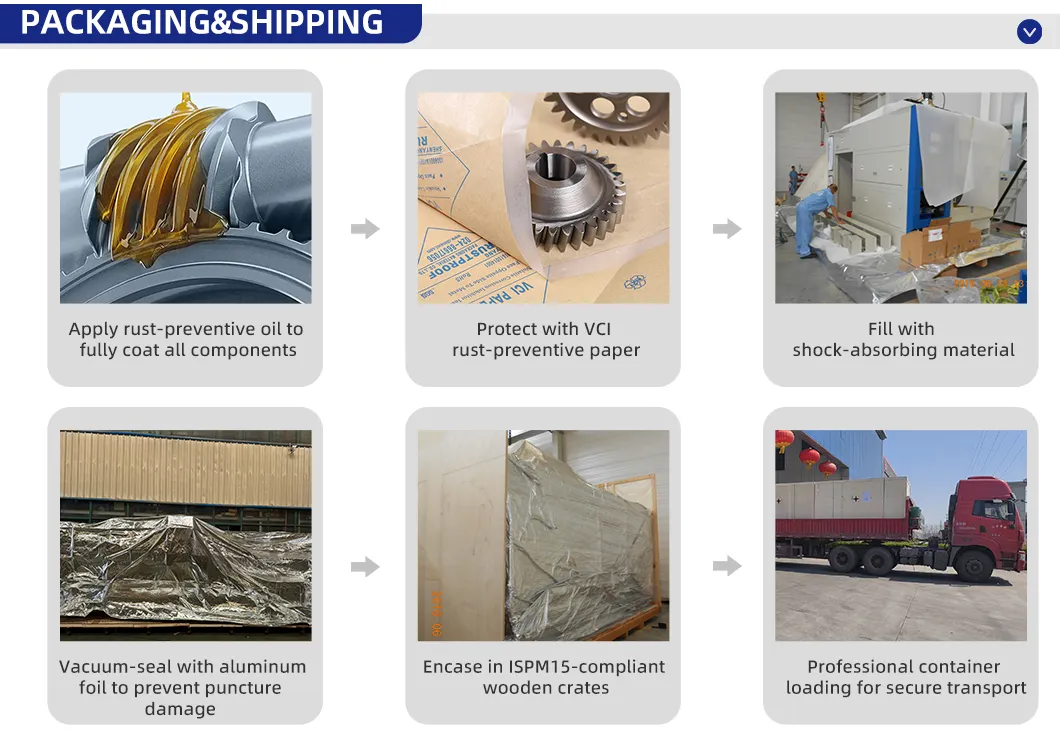

We offer door-to-door delivery services via reputable international carriers. We provide full customs documentation support to ensure smooth import clearance, alongside real-time shipment tracking.
We support our global clients through 3 regional service centers, 24/7 multilingual remote assistance, 48-hour on-site service dispatch, and a lifetime warranty on core machine components.
Yes, we provide comprehensive technical support including multilingual manuals and instructional videos, on-site "theory + practice" operator training, and 24/7 remote guidance.
Our standard delivery times are: Standard configurations in 7-15 business days; Light customization in 15-30 business days; Deep customization in 30-60 business days. Emergency orders can be delivered in as little as 10 days via expedited production and air shipping.
