High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1

Customization: Available
After-sales Service: Online After-Sale Service
Warranty: 1 Year

Product Description

  • Overview
  • Tool Configuration
  • Machine Configuration
Basic Info
Model NO. SLM386-1
Application Metal
Process Usage Metal-Cutting CNC Machine Tools
Movement Method Contour Control
Control Method Closed-Loop Control
Numerical Control CNC/MNC
Processing Precision Enquiry Us
Performance Classification High-End CNC Machine Tools
Certification CE, ISO 9001
Condition New
Nc System Syntec 220tb
Lathe Rated Power 25kw
Max Machining Diameter 38mm
Max Machining Length (with Guide Bush) 320mm
Max Machining Length (Non Guide Bush) 85mm
Max Tool Installed Qty 31PCS
Main Spindle Power 10kw
Sub Spindle Power 10kw
Main Spindle Max Through Hole Dia 42mm
Main/Sub Spindle Rev Speed 6000rpm
Sub Spindle Max Clamping Dia 38mm
Sub Spindle Max Through Hole Dia 42mm
Air Pressure Device 0.6MPa
Weight 4500kg
Dimensions 3000*1450*2200mm
Transport Package Wooden Pallet and Wooden Case
Specification 3000*1450*2200mm
Origin China
HS Code 8457101000
Production Capacity 300
Packaging & Delivery
Package Size 300.00cm * 145.00cm * 220.00cm
Package Gross Weight 4500.000kg
Product Description

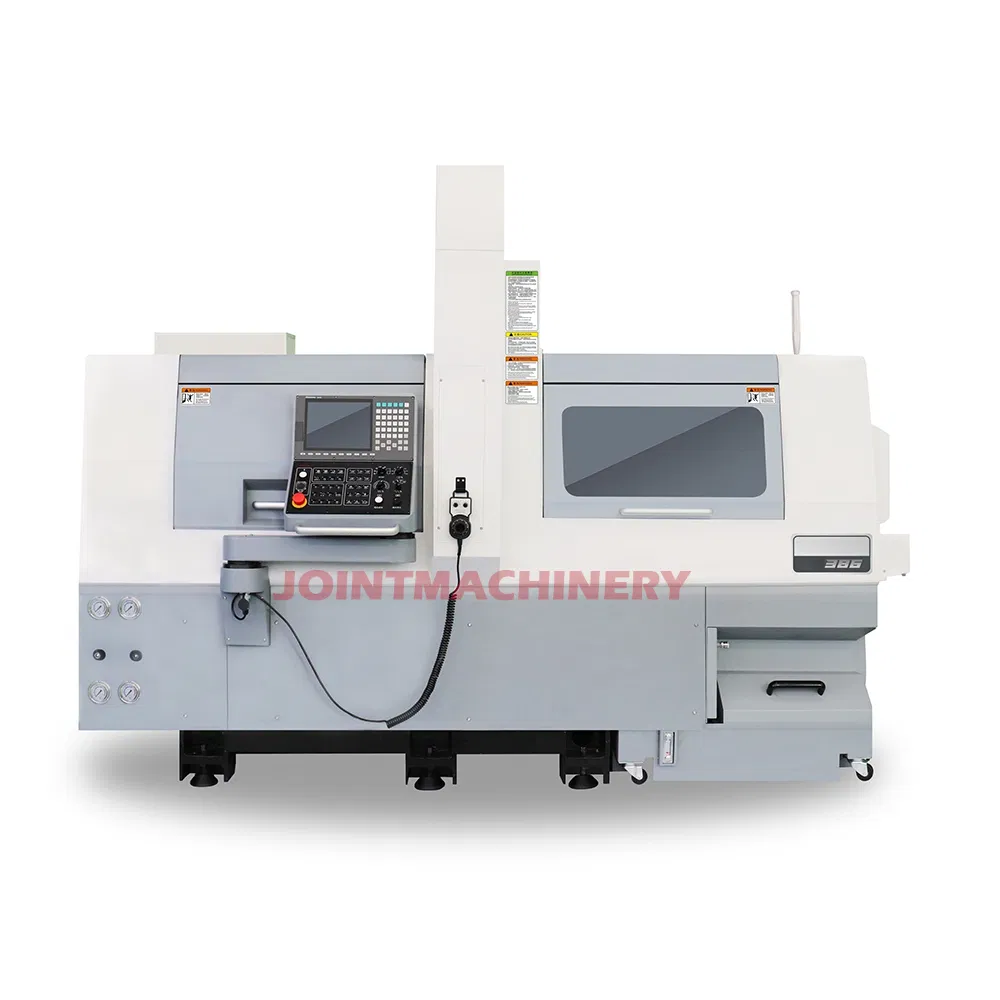

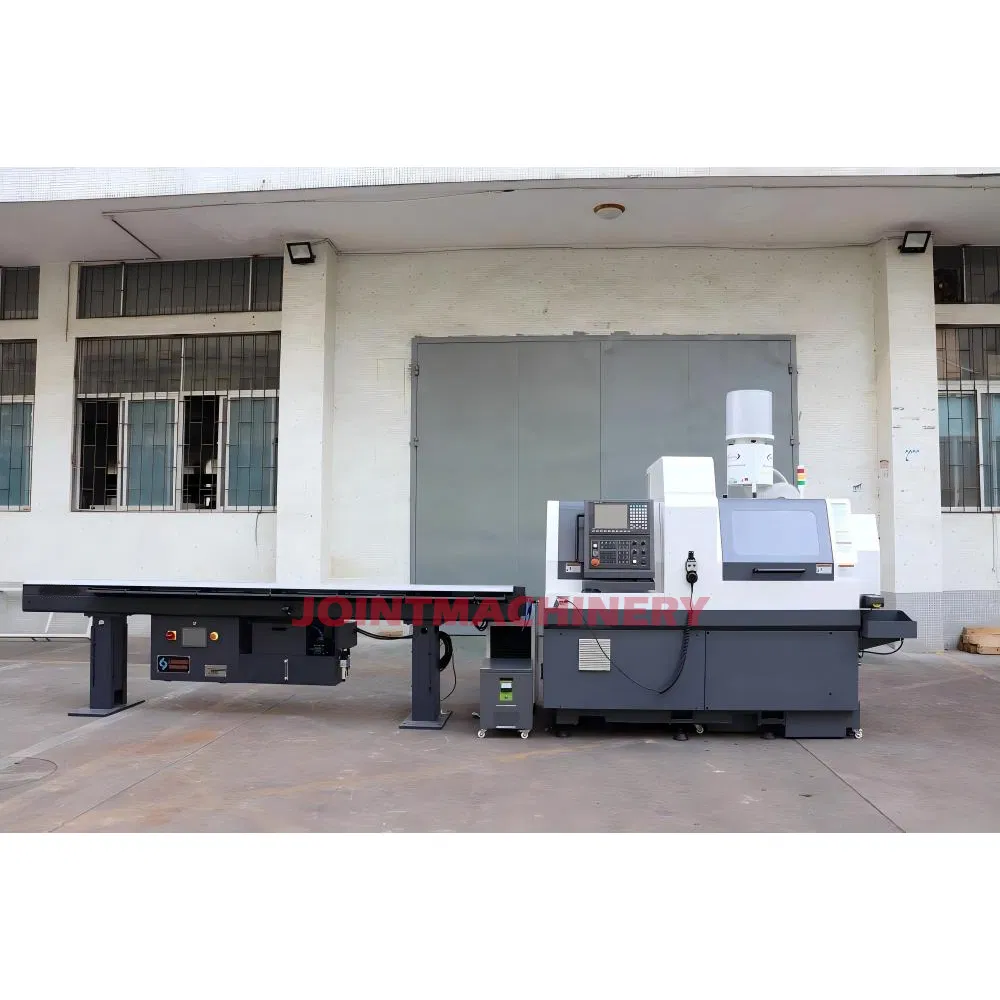

High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1 High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1 High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.
Built in electric spindle, hydraulic clamping, ensure high precision machining.
Main spindle clamping is compatible with two clamping forms: forward push and backward pull, no need for large diameter grinding materials.
The primary processing length of the main spindle with guide bush is 320mm.

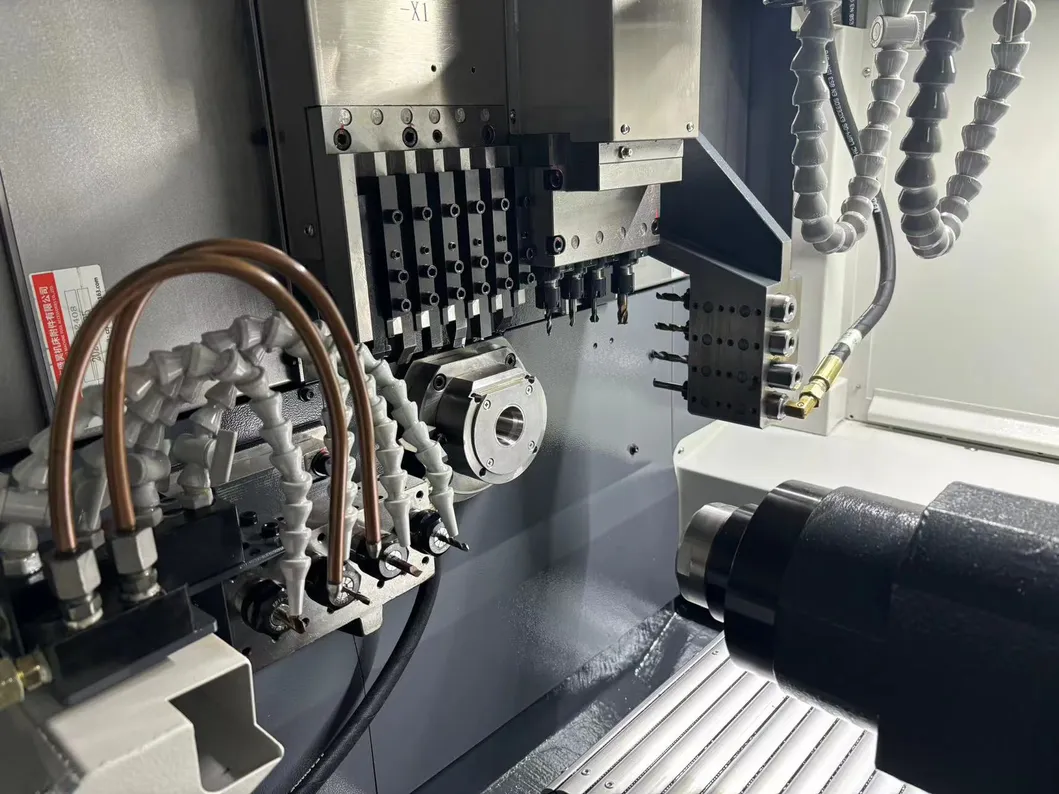

Main spindle side milling adopts ER25+ER20 with 2.3 high-power motors, combined with the spindle hydraulic brake, to improve milling efficiency and rigidity.
Main spindle tool holder adopts rectangular-ambulatory-plane layout, reduce machine volume, enhance the rigidity of the tool holder structure, and achieve fast tool change speed.
According to requirements, up to 12 tools can be configured for the 6 axis section.
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1

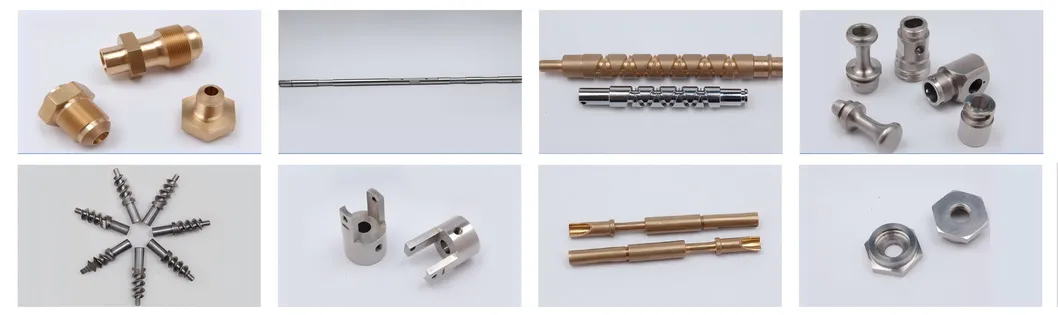

This sophisticated series of machines is designed for precision processing, capable of executing composite tasks like turning, milling, drilling, boring, tapping, and engraving simultaneously. These machines excel in batch processing of precision hardware and uniquely shaped non-standard shaft parts.
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1 High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1

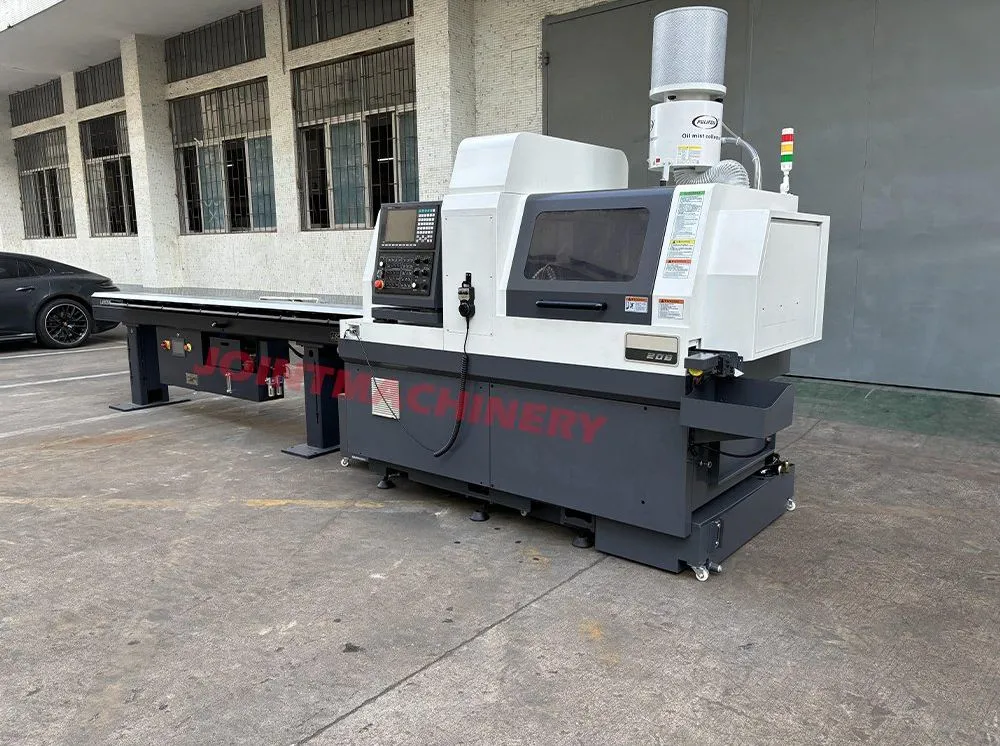

High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine SLM386-1
Model Unit SLM386-1
Config - 6 axis, dual spindle
NC system - SYNTEC 220TB
Lathe rated power kw 25
Machining Range
Max machining diameter mm Φ38
Max machining length (one-time clamping) With guide bush mm 320
Max machining length (one-time clamping) Non guide bush mm 85
Max tool installed qty pcs 31
Main/Sub Spindle
Main spindle power kw 10
Sub spindle power kw 10
Main spindle max through hole dia mm Φ42
Main/Sub spindle rev speed rpm 6000
Sub spindle max clamping dia mm Φ38
Sub spindle max through hole dia mm Φ42

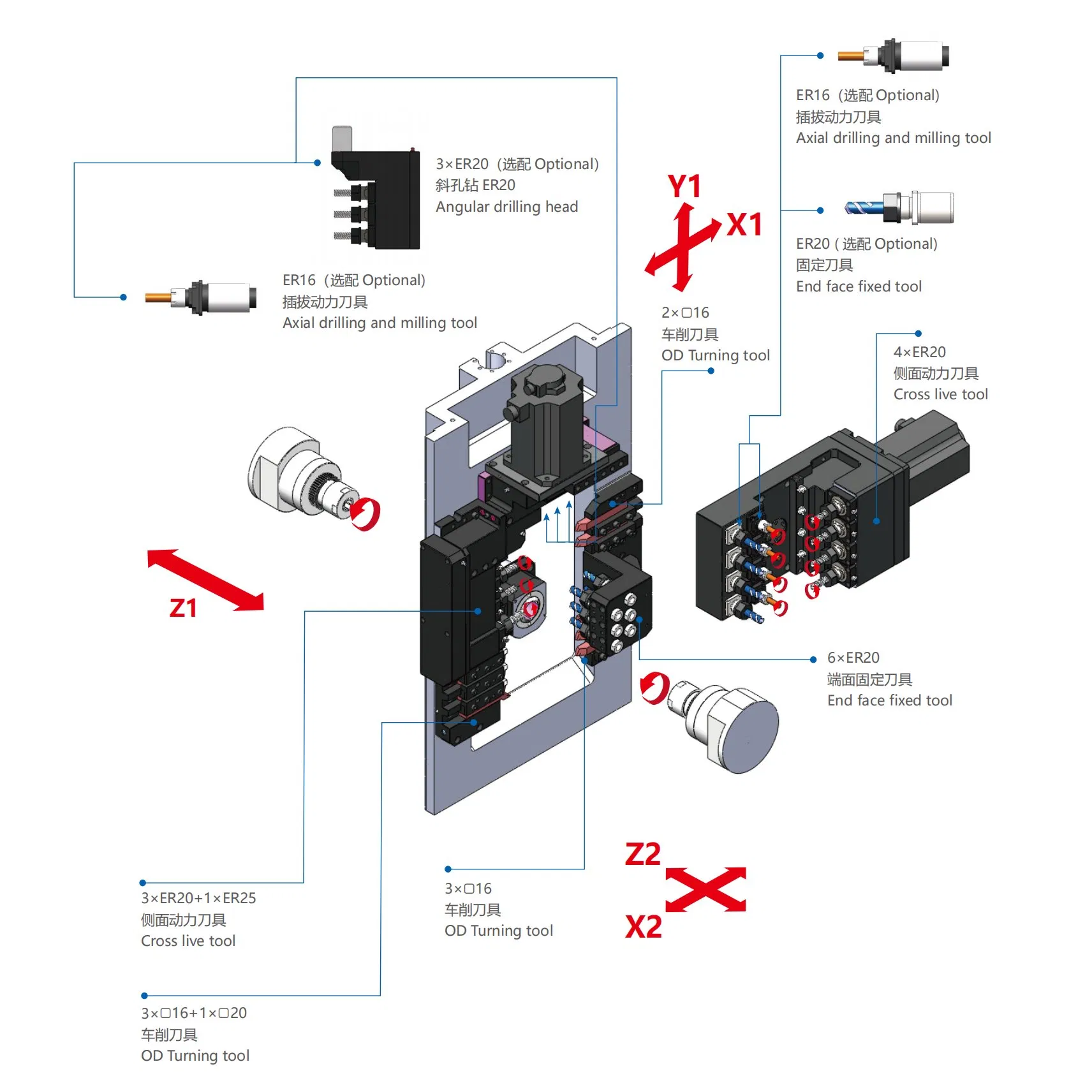

Main Spindle Tool
1. OD turning tool Qty*Model - 8*16 + 1*20
2. Side-live tool Qty*Model - 3*ER20 + 1*ER25
Drilling dia mm Φ16
Tapping/Threading die dia - M8
Live tool rev speed rpm 5000
Live tool power kw 2.3
3. End face fixed tool Qty*Model - 6*ER20
Drilling dia mm Φ13
Tapping/Threading die dia - M10
4. Angular drilling head mm -
5. Axial drilling and milling tool mm -
Sub Spindle Tool
1. End face fixed tool Qty*Model mm 4*ER20
Drilling dia mm Φ13
Tapping/Threading die dia - M10
2. Side-live tool Qty*Model mm 4*ER20
Drilling dia mm Φ13
Tapping/Threading die dia - M8
Live tool rev speed rpm 5000
Live tool power kw 2.3
3. Axial drilling and milling tool - 4*ER16
Other Information
Rapid feed speed m/min 18(X1/Y2)   24(X2/Y1/Z1/Z2)
Feed motor power kw 1.2
The power capacity vac 380
Air pressure device mpa 0.6
Weight T 4.5
Dimensions mm 3000*1450*2200
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
Tool Configuration
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
Machine Configuration
Standard Configuration
  • SYNTEC numerical control system
  • Main pneumatic chucking device
  • Movable guide bush
  • Synchronal rotary guide bush device
  • Live tool
  • Workpiece belt conveyor
Optional Configuration
  • Non guide bush
  • MITSUBISHI numerical control system
  • FANUC numerical control system
  • High pressure pump
  • Oil mist collector
  • Y2 tool holder
  • Chip conveyor
  • Long workpiece collector
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1

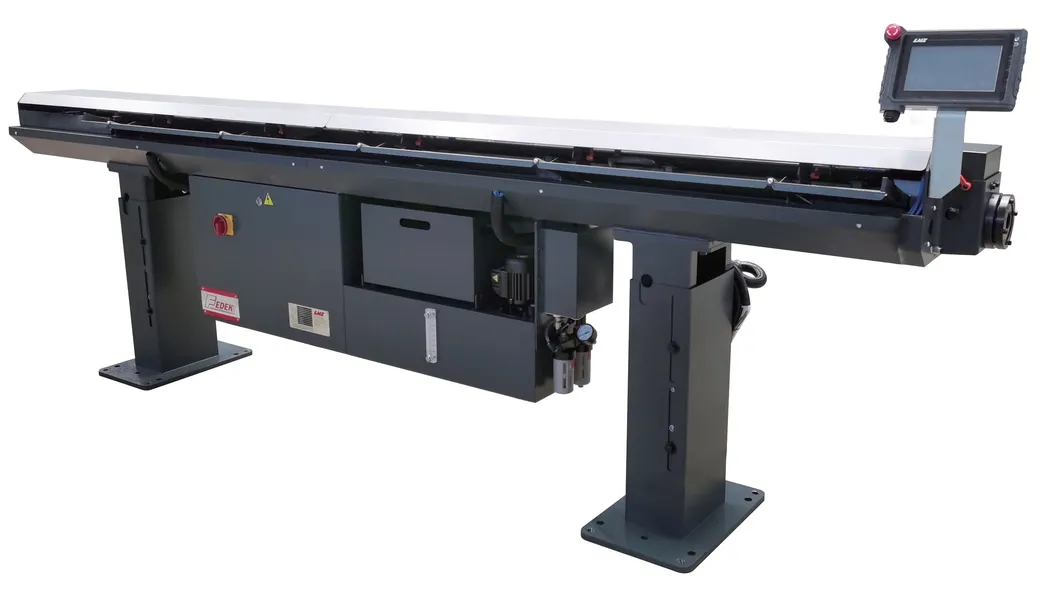

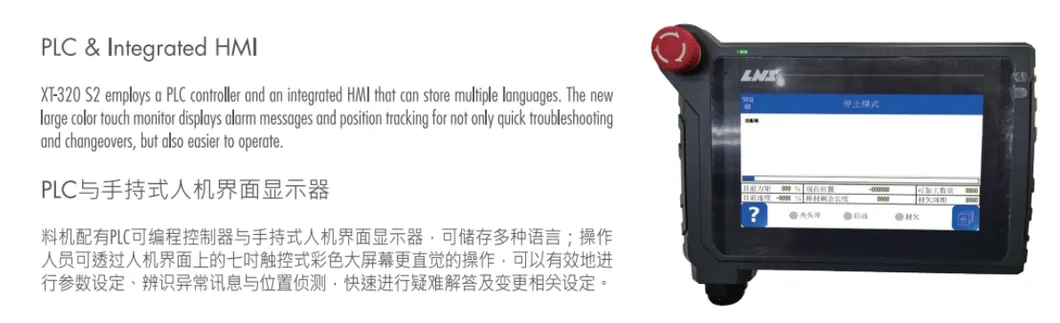

Bar Feeder SLM-320/S2 Technical Specifications
Diameter mm Φ3- (Φ20) Φ26  (May vary depending on applications)
Model m 2.5 3.2 3.7 4.0
Magazine capacity - Φ5mm*52pcs
Overall length mm 3355 3949 4505 4855
Overall width mm 720
Max bar length mm 2600 3200 3750 4100
Weight kg 378 393 435 440
Air pressure kg/cm² 5~7
Power supply - 220V 3P  (Varying power supply is available depending on applications)
Spindle height mm 900~1200
Headstock type - Fixed/Sliding
Options - Telescopic Tube, Synchronization Device
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1 We stand as a beacon of professionalism and expertise in the manufacture and export of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. We are steadfast in our mission to deliver supreme quality machines alongside outstanding service to our global clientele. Focusing on stringent quality control and continuous quality enhancement, we ensure our products are at the pinnacle of industry standards. Integrating cutting-edge technologies with advanced production equipment and methodologies, we offer products that epitomize precision, stability, and reliability. Our machines are revered for handling intricate and demanding machining requirements with aplomb. With a worldwide export reach, our products have garnered immense recognition and popularity among customers. Our expansive market footprint spans Asia, Europe, South America, North America, and beyond. We have forged enduring partnerships with clients across various nations, collaboratively creating substantial business value.
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
High Precision Swiss Type Twin Spindle Automatic CNC Turning Lathe Machine Slm386-1
Frequently Asked Questions (FAQ)
Q What is the maximum machining diameter supported by the SLM386-1 CNC lathe?
The machine supports a maximum machining diameter of 38mm (Φ38).
Q What are the maximum machining lengths with and without a guide bush?
With a guide bush, the maximum machining length is 320mm. Without a guide bush, the maximum machining length is 85mm.
Q Which numerical control systems are compatible with this machine?
The standard system configured is the SYNTEC 220TB. Optional configurations are available for MITSUBISHI and FANUC numerical control systems.
Q How many tools can be installed on the SLM386-1?
The machine can accommodate a maximum installed tool quantity of 31 pieces.
Q What materials and applications are best suited for this lathe?
This lathe is designed for metal cutting. It excels in the batch processing of precision hardware and uniquely shaped non-standard shaft parts, executing tasks like turning, milling, drilling, boring, tapping, and engraving simultaneously.
Q What are the physical dimensions and weight of the SLM386-1?
The machine dimensions are 3000 * 1450 * 2200 mm, and it has a gross weight of approximately 4500 kg (4.5 tons).
