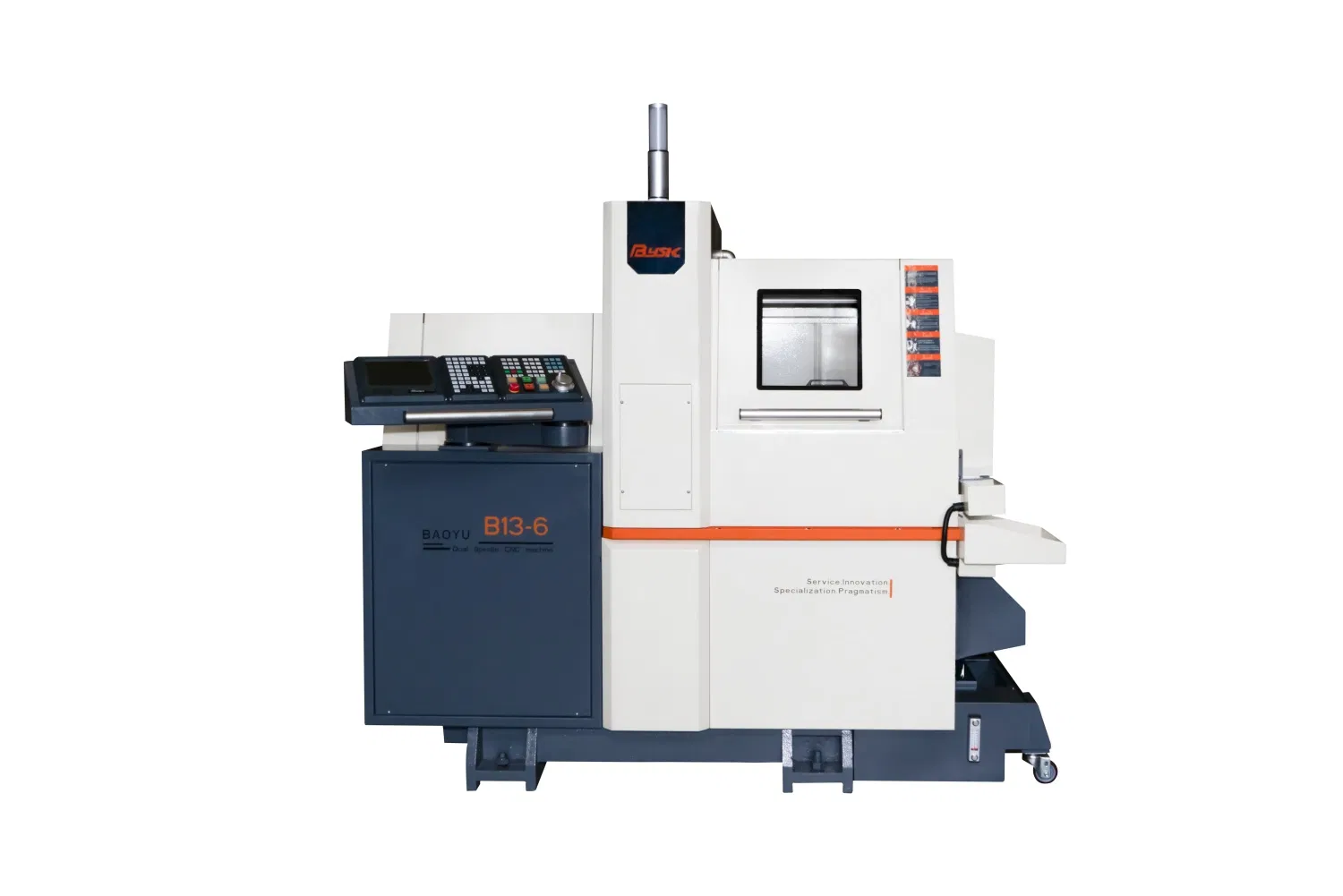

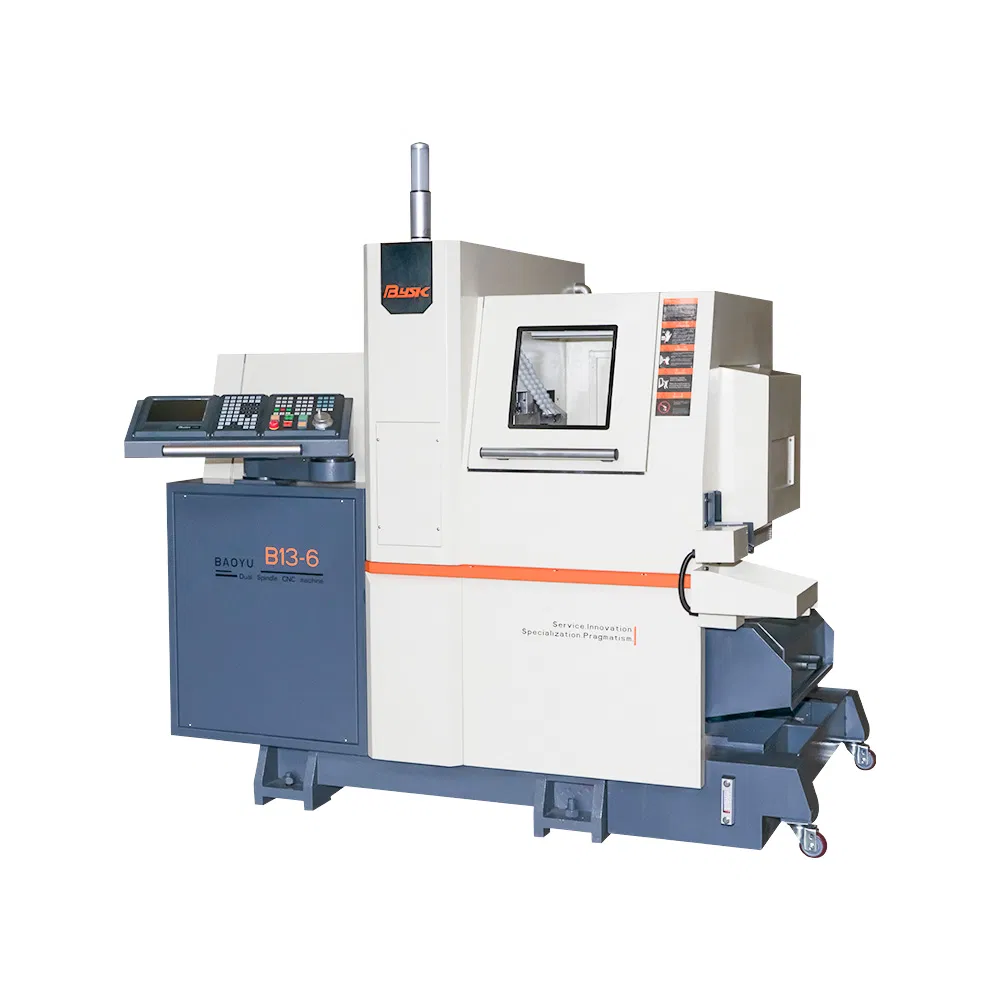

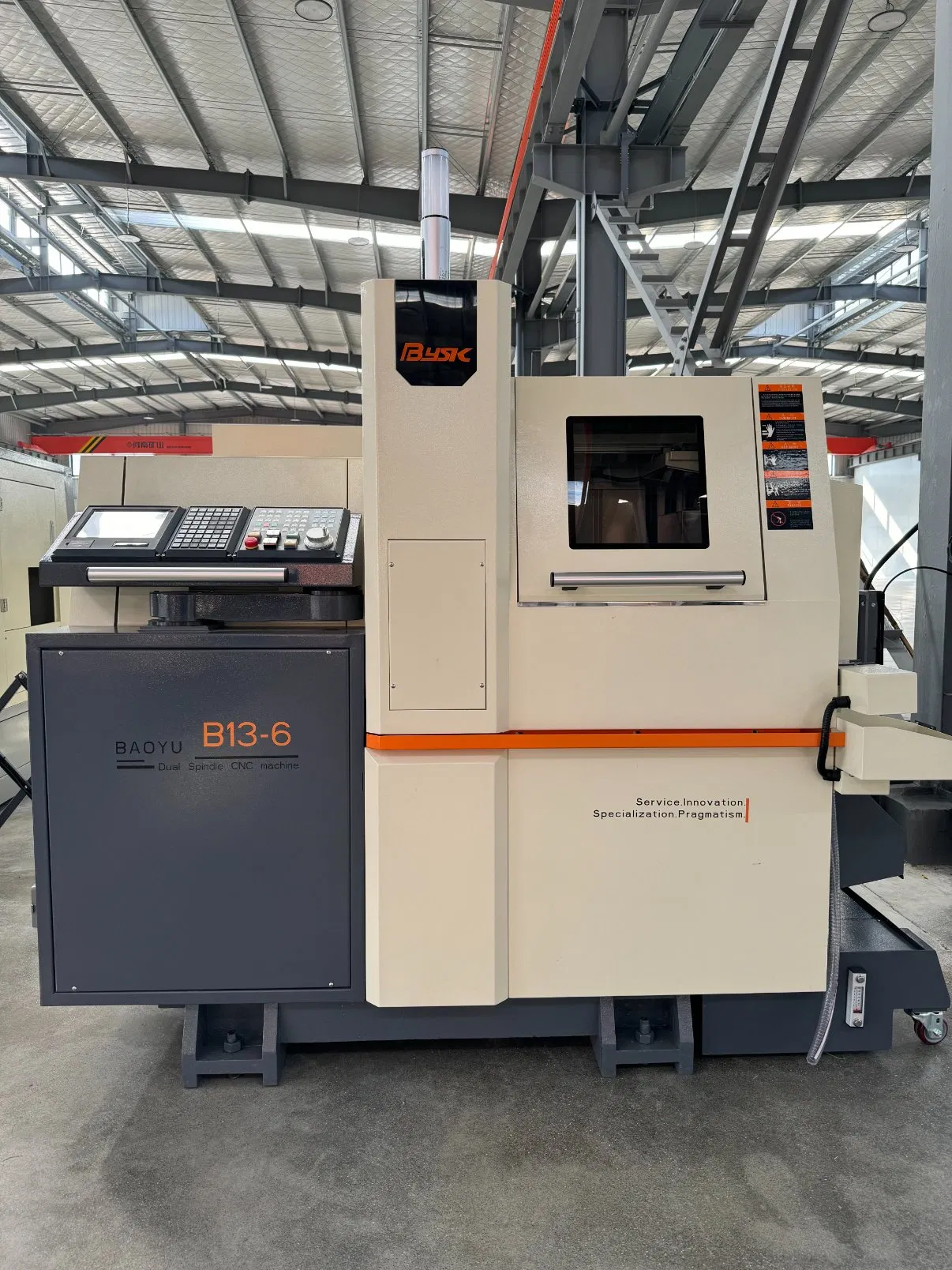

The B13 double-spindle sliding headstock CNC lathe has turning and milling combined processing capabilities and is a high-precision, wide-range and practical processing equipment.

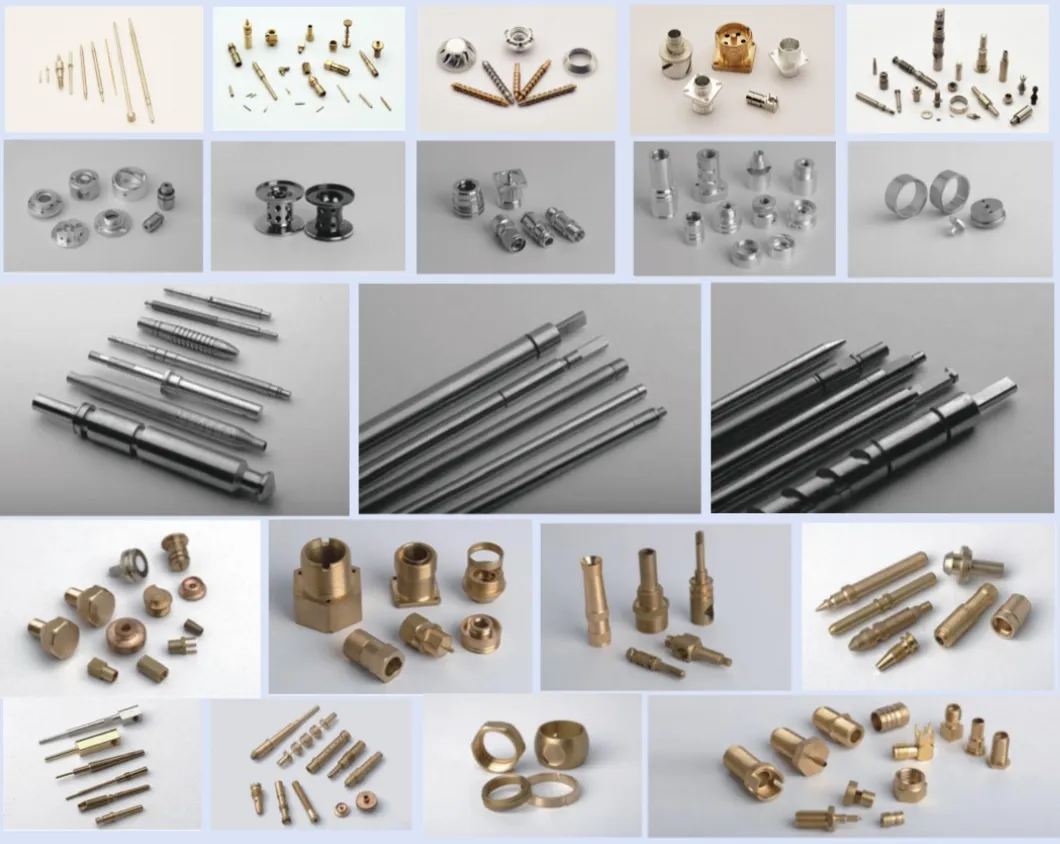

It is suitable for large-volume, multi-purpose production of "slender shaft" parts with a large length-to-diameter ratio, as well as "small" and "special-shaped" parts. This machine tool is widely applicable to various high-end products in medical, aviation, aerospace, military, automobiles, motorcycles, communications, refrigeration, optics, home appliances, microelectronics, electronics, watches, mobile phones and other industries. It allows for the comprehensive processing of precision, multi-batch, complex-shaped shaft parts and precision small parts.

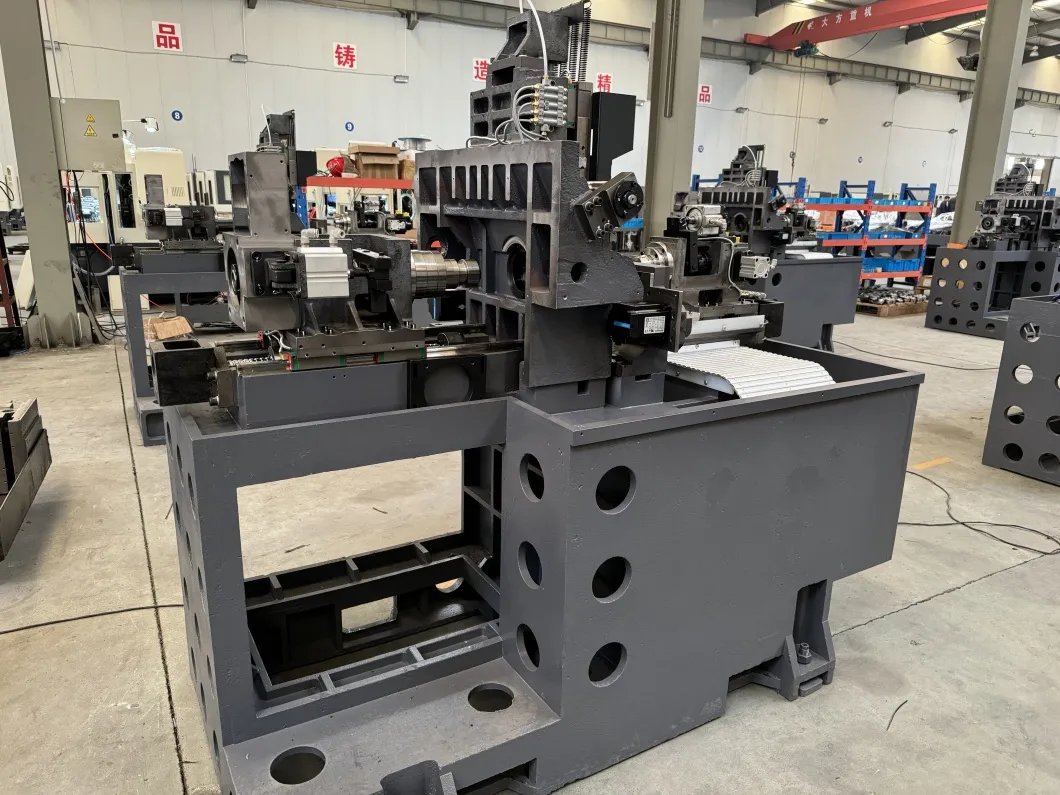

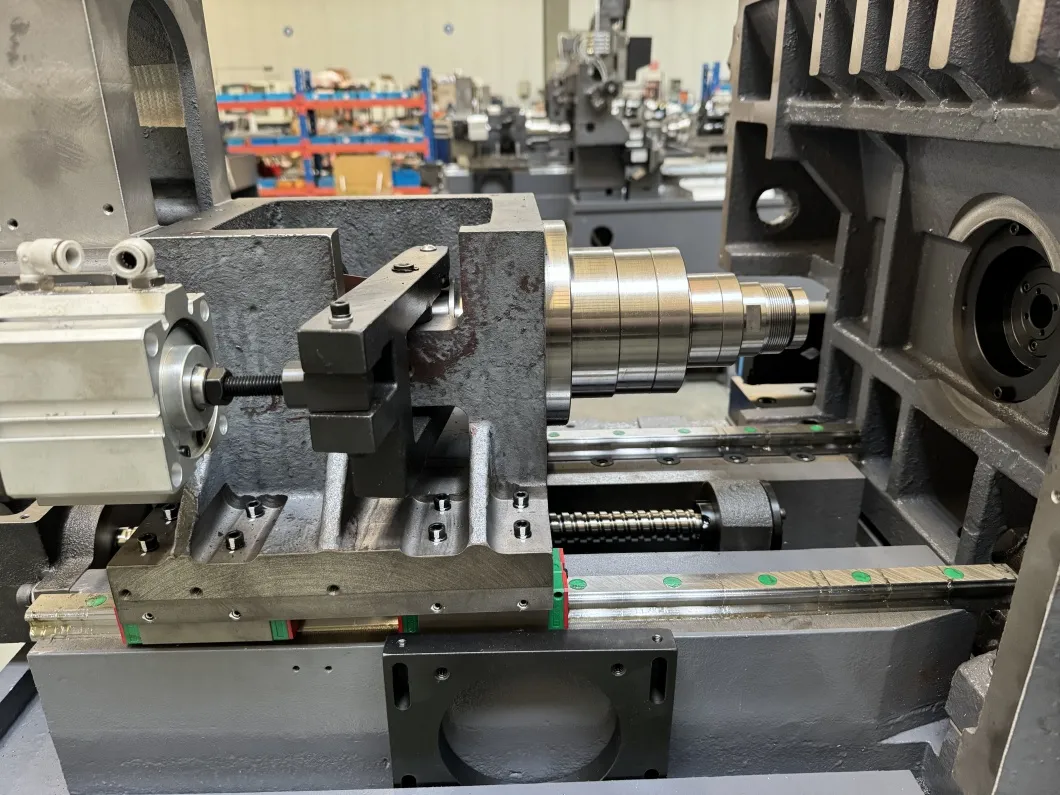

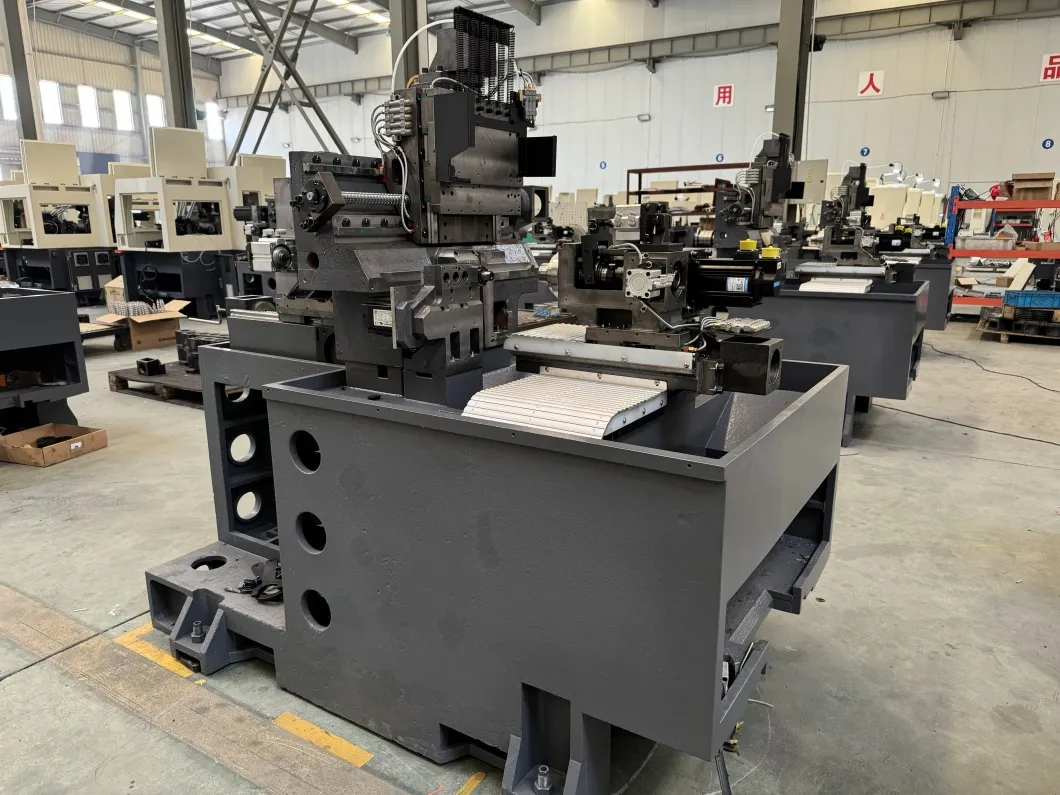

Body Materials

Body made with high quality resin sand. The base bed is made with integrally cast iron.
It features high rigidity, excellent shock absorption performance, and high strength to ensure overall stability.

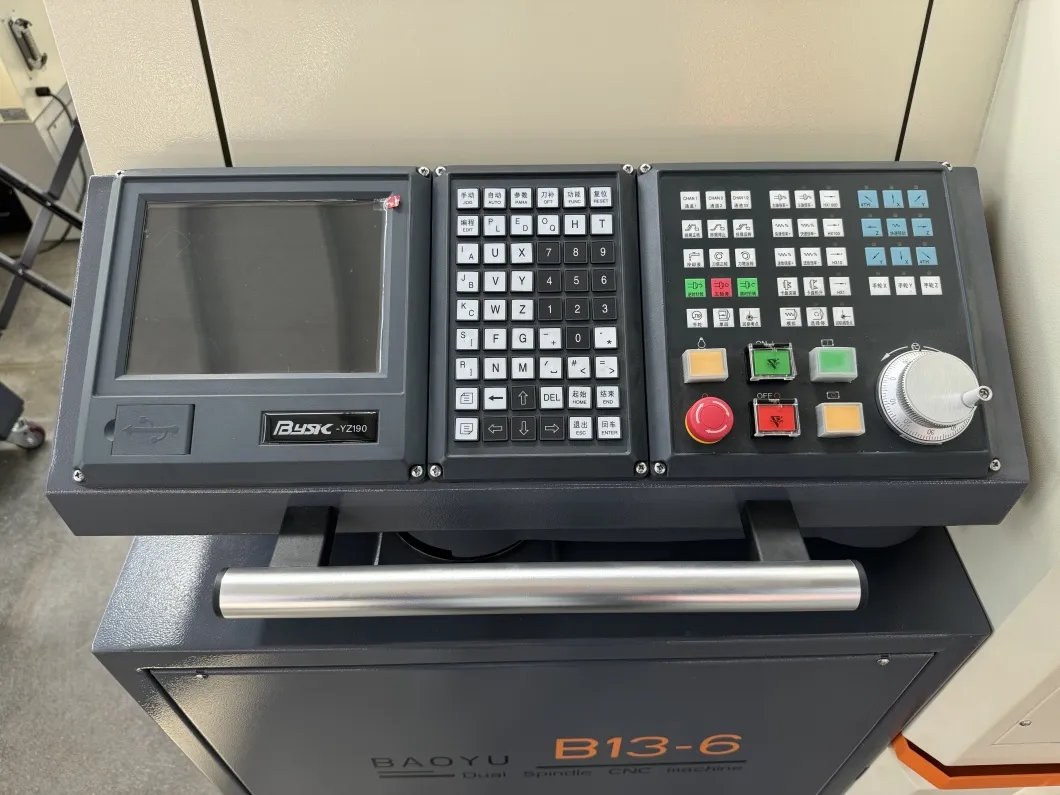

CNC Control System

Operation System: Taiwan LNC T6850
Widely used across multiple industries. Easy to operate, quick setup, high quality, practical, and highly stable.

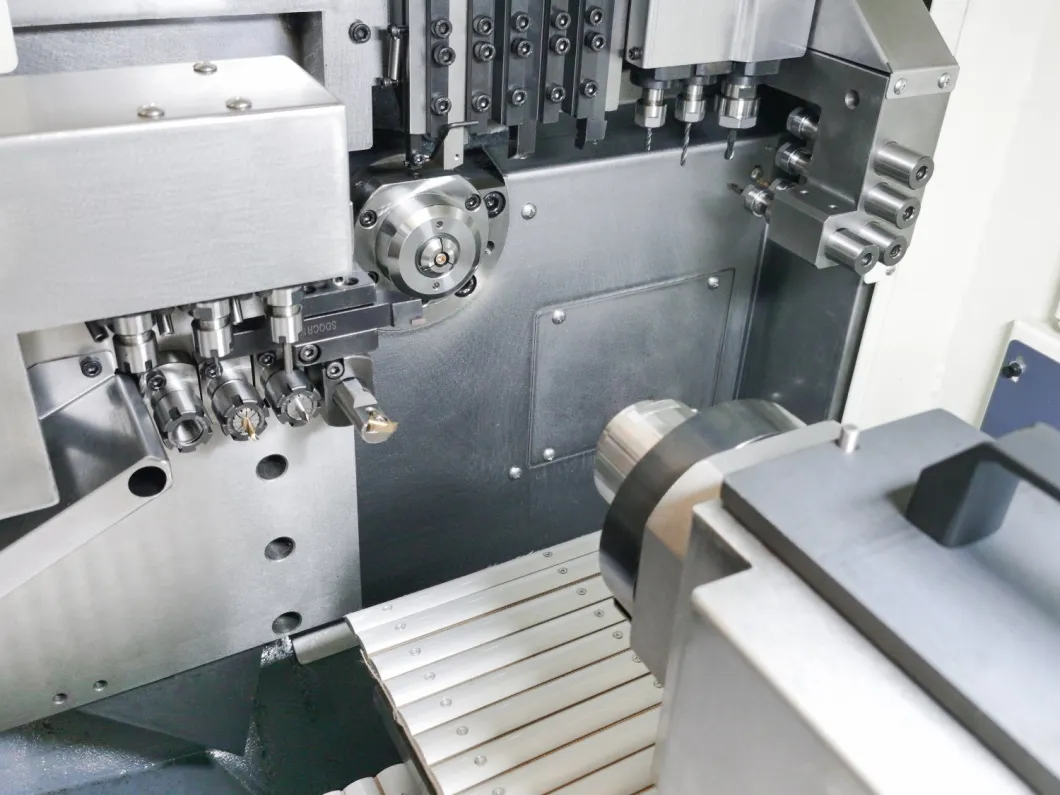

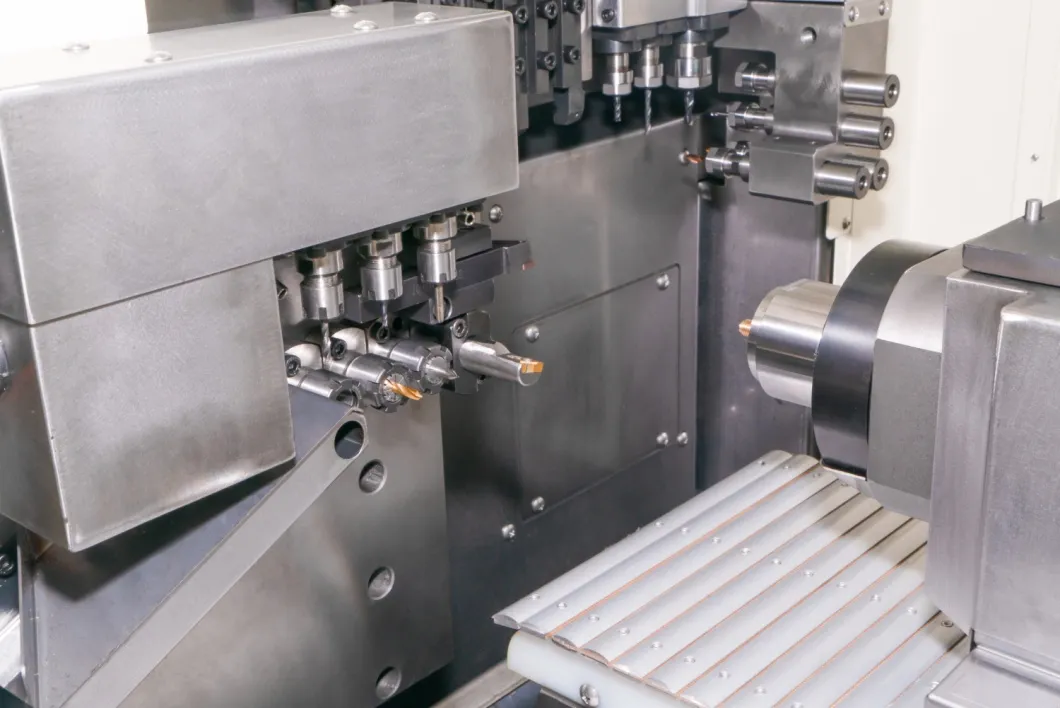

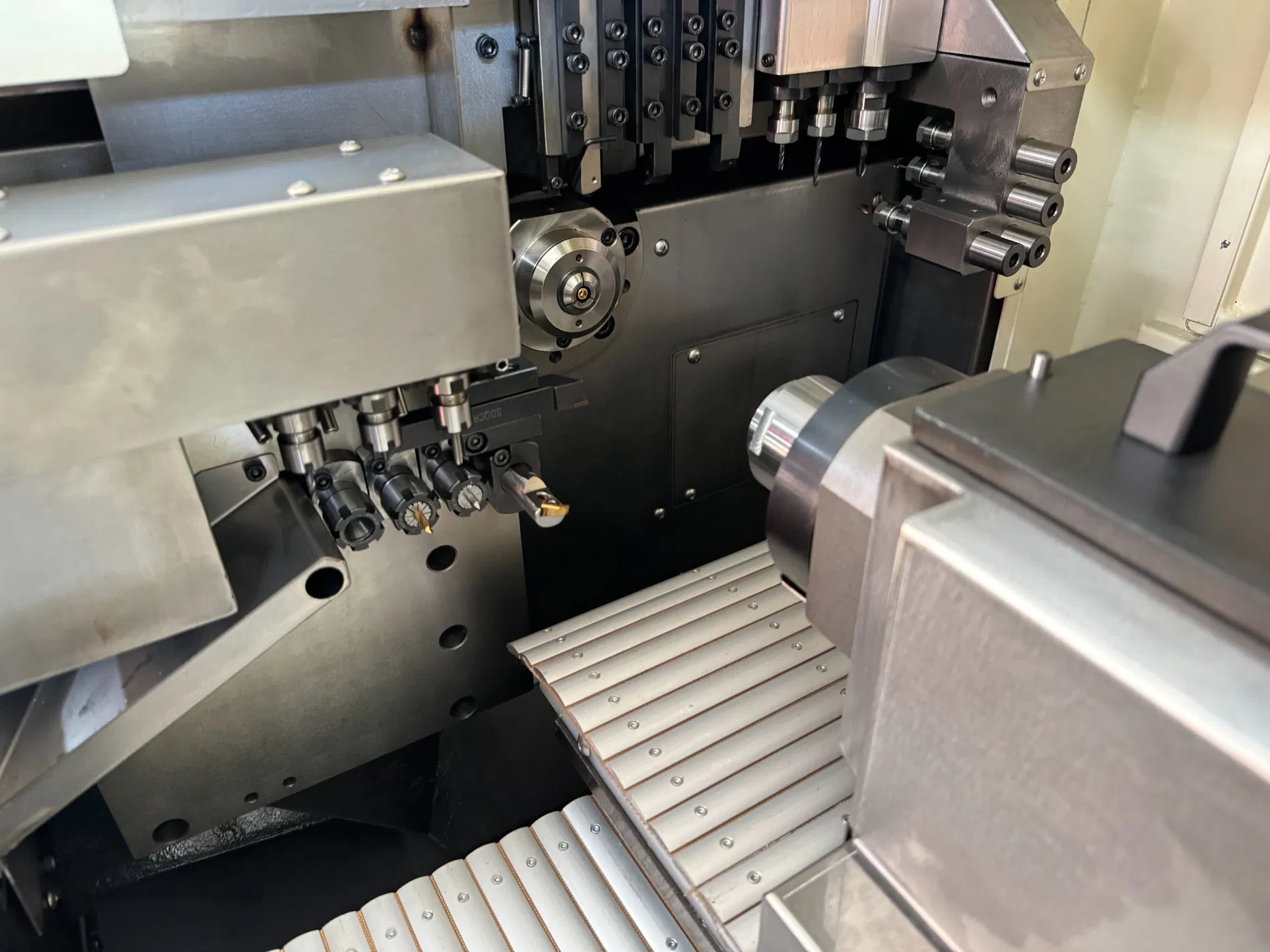

Inner Structure

• With the addition of the Y2 axis, composite processing on both the front and back can be successfully achieved.
• Equipped with 3 axes: transverse power head, transverse rigid tapping, front rigid tapping, and back rigid tapping.
• Equipped with a guide bushless device, most suitable for high-precision processing of short workpieces.
• Adjust chucks easily to clamp fine precision parts using the clamping force of the main shaft and back shaft.
• Cornerless cooling at high speed ensures even heat dissipation and stronger overall performance. The machine adopts absolute dry operation, eliminating the need to return to the origin when switching on and off.
• Fixed guide bushings and linked guide bushes are highly efficient and ideal for high-precision processing.

• Max profile diameter within 7mm: Model B07 (dual spindle type) or CK1107 (single spindle type) is recommended.
• Max profile diameter within 13mm: Model B13 or CK1113 is recommended.
• CK0620A2: Suitable for processing complex-shaped parts such as linear, taper, and arc threads. Configured with a center frame, it can process slender shaft parts.
• CK0625A: Suitable for processing various precision parts such as instruments, meters, electronic connectors, optics, automotive and motorcycle parts, and small hardware.
• CK32A3: Multi-functional Turning & Milling CNC Lathe. The CK32A3-B version comes with dual spindles.
• X42: Slant-bed CNC lathe designed for processing shaft and disc parts with complex geometries, variable sizes, and high precision requirements.

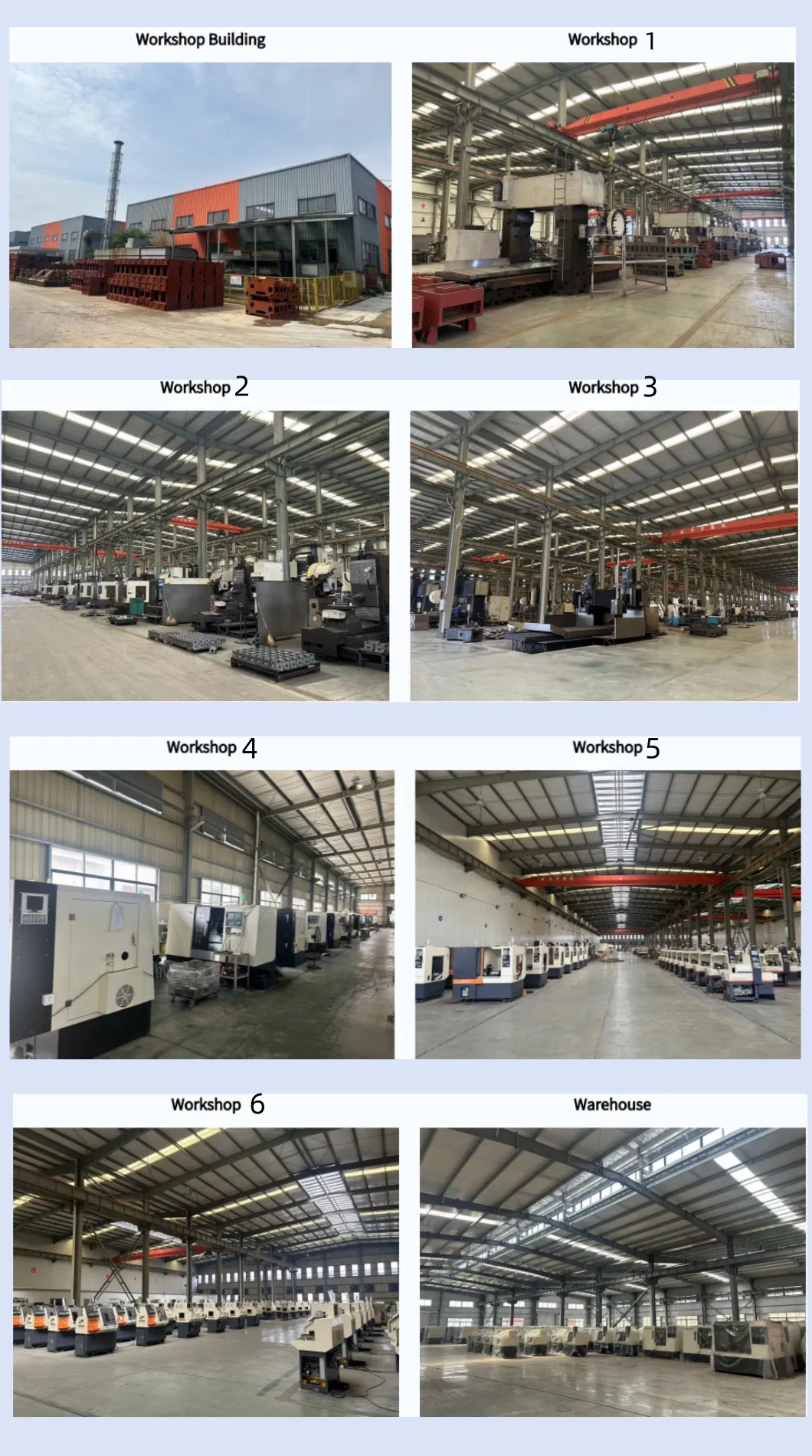

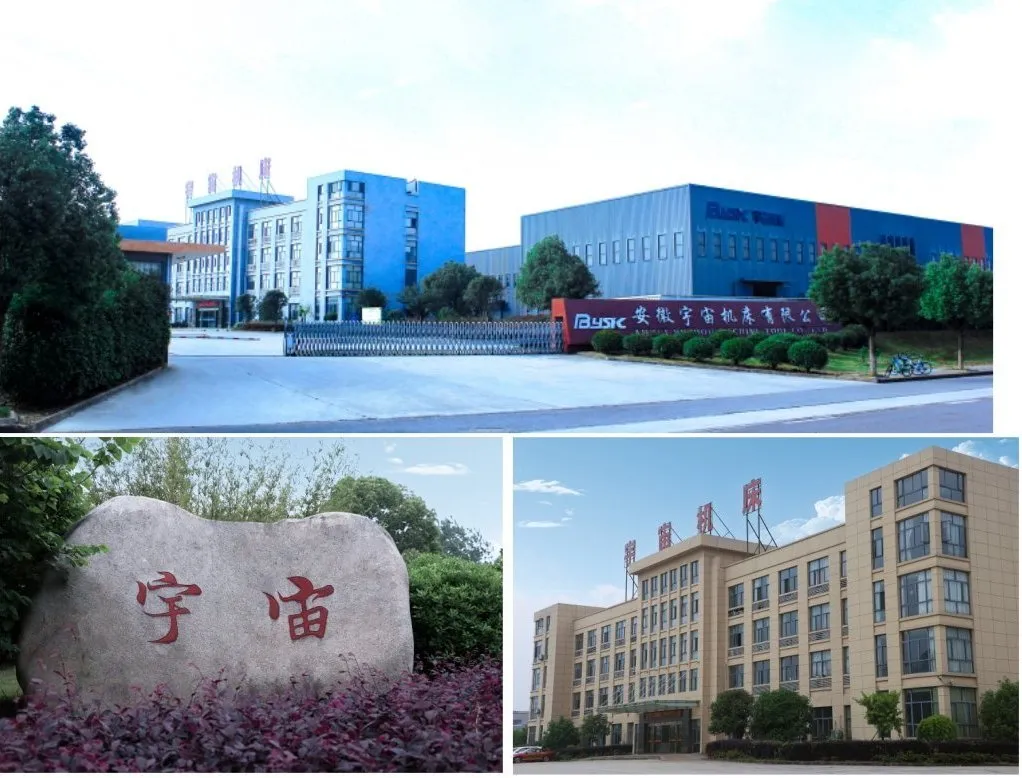

Our comprehensive high-tech enterprise integrates the R&D, production, sales, and service of CNC systems, CNC machine tools, automatic production lines, industrial robots, and the Internet of things. The manufacturing base covers an area of 35,000 square meters, supported by a dedicated R&D hub. Our expanded facility covers an additional 100,000 square meters.

We specialize in the production of CNC Swiss-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Flat Bed CNC Lathes, Slant-Bed CNC Lathes, Horizontal and Vertical CNC Lathes, Single Spindle CNC Machinery, and Automatic Double-Spindle Lathes. All lathes utilize absolute value servo control and bus connections, supported by multiple invention patents, utility models, and design patents. The products are widely applied in communication equipment, connectors, 5G products, mobile phones, household appliances, spaceflight components, medical devices, automotive parts, timepiece mechanisms, and hardware accessories.

Operating under modern management concepts, the enterprise has successfully passed ISO9001 (Quality Management System) and ISO14001 (Environmental Management System) certifications. Our products conform to standard CE certifications and other authoritative certifications.
