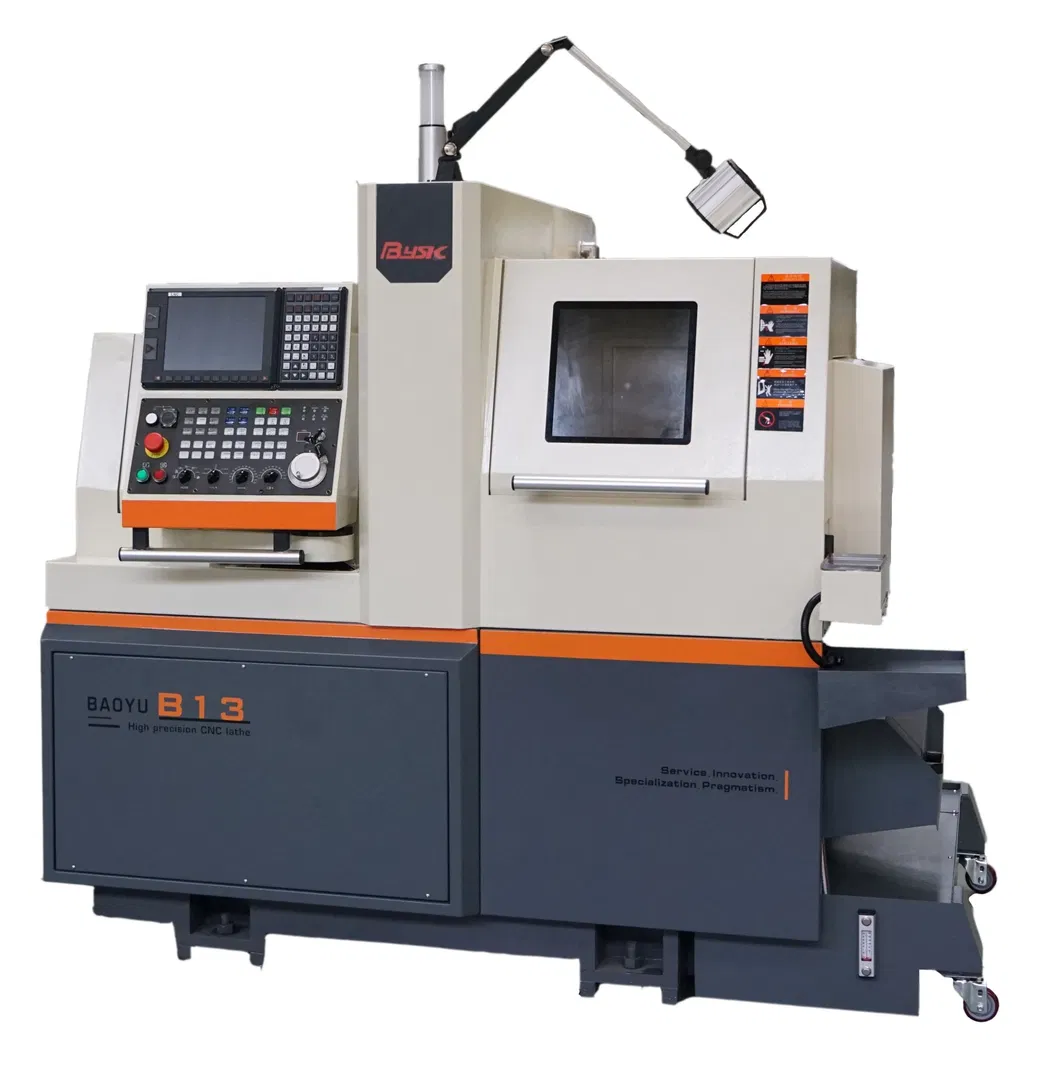

Customizable B13 Double Spindle Swiss Type Automatic CNC Lathe with 2 Spindle

Customization:	Available
After-sales Service:	Always Valid
Warranty:	1 Year

Overview - Basic Info

Model NO.

B13

Type

Multi-Axis Automatic and Semi-Automatic Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

Double-tool Holder CNC Lathe

Power Source

Hydraulic Pressure

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001, ISO14001

Condition

New

After-Sale Service

Video Technical Support, Online Support

CNC Operate System

Lnc T6850

Absolutely Value Servo

with Position Function

Application Range

Metal-Cutting CNC Machine Tools

Max Bar Diameter

13 mm

Main Spindle

Maximum Bar Diameter 13mm

Sub Spindle

Maximum Bar Diameter 13mm

Main Spindle Through-Hole

14mm

Main Spindle Center Height

1010mm from Ground

Maximum Clamping Dia.

13mm

Travel

X1, Y1, Z1, X2, Z2

Cooling System

Oil Cooling

Guide Bush

Fixed Guide Bush, Rotary Guide Bush Optional

Guideway

Hiwin/PMI

Screw Rod

Hiwin/PMI

Trademark

BYSK

Production Capacity

1000 Units Per Year

Packaging & Delivery

Package Size

2400.00cm * 1600.00cm * 1900.00cm

Package Gross Weight

5000.000kg

Transport Package

Standard Wooden Case

Product Description

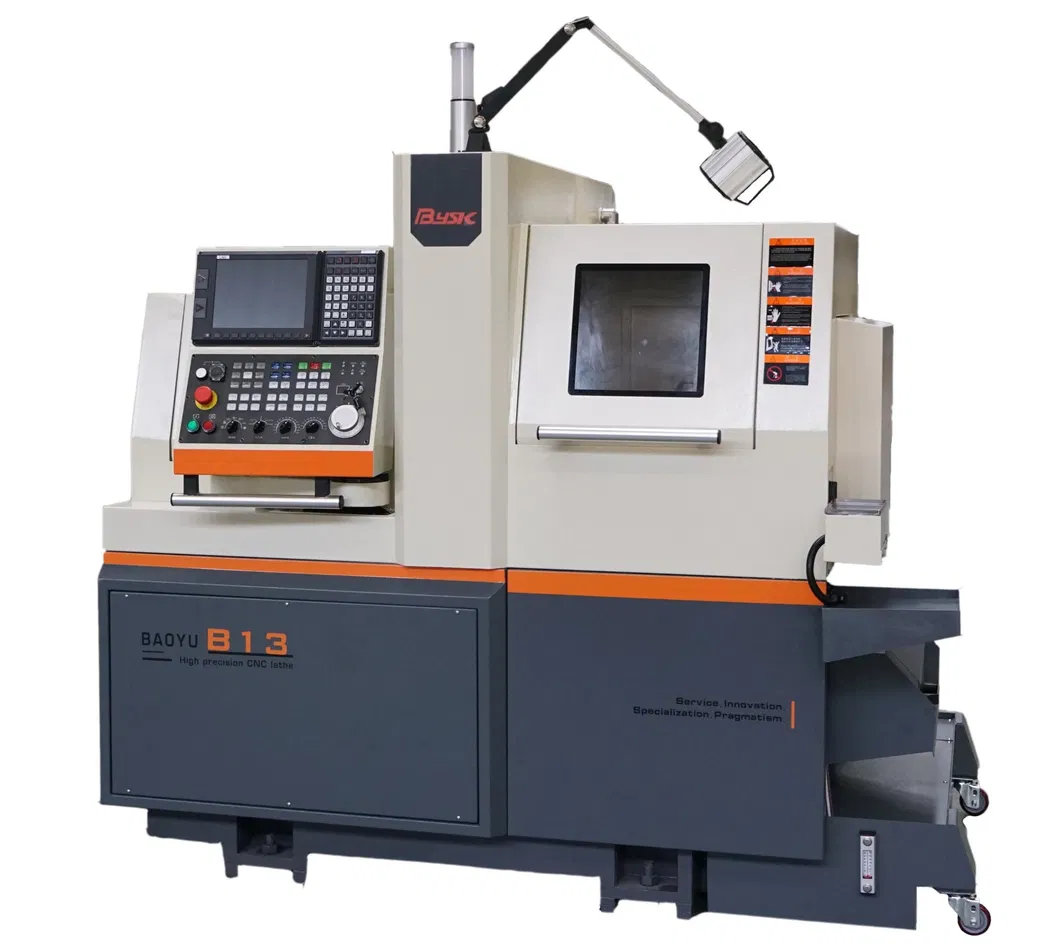

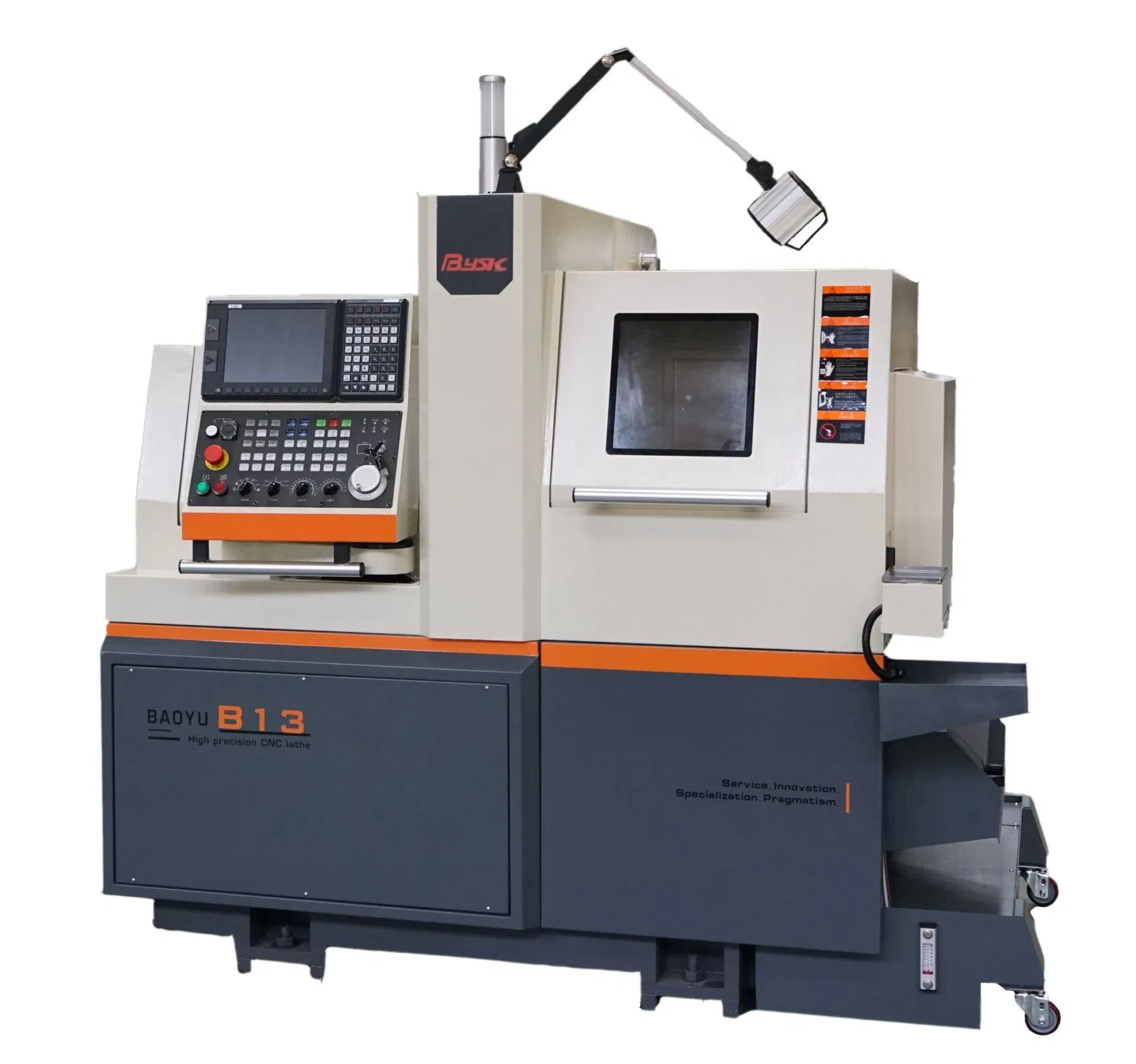

Customizable B13 Double Spindle Swiss type Automatic CNC Lathe with 2 Spindle

B13 is a 5 axis sliding headstock lathe with dual spindle.
With the function of turning and milling composite.
Main Spindle and sub spindle can process at the same time.
Suitable for processing profile diameter ≤ Φ 13mm.
Mainly suitable for Large-scale, Multi-variety and high-precision processing of slender shaft parts with large length/diameter ratio and small, special-shaped parts.

B13 Suitable for processing these parts:

Product Parameters

B13 Dual Spindle Swiss CNC Lathe Machine

Category	Specification Item	Parameters
Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	10kW
CNC System	System Model	LNC T6850
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Cutting Speed	1-4000mm/min
	X Axis Rapid Feed Speed	20000mm/min
	Y Axis Rapid Feed Speed	20000mm/min
	Z Axis Rapid Feed Speed	20000mm/min
Main Spindle	Maximum Bar Diameter	Φ13mm
	Main Spindle Through-hole Diameter	Φ14mm
	Main Spindle Center Height from Ground	1010mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Sub Spindle	Maximum Clamping Diameter	Φ13mm
	Sub Spindle Speed	0-5000r/min
	Sub Spindle Motor Power	2kW
Travel	X1 Axis Travel	60mm(Diameter)
	Y1 Axis Travel	230mm
	Z1 Axis Travel	180mm
	X1 Axis Servo Motor Power	0.75kW
	Y1 Axis Servo Motor Power	1kW
	Z1 Axis Servo Motor Power	1kW
	Guide Rail Form	Linear Guide Rail

Category	Specification Item	Parameters
Additional Travel	X2 Axis Travel	380mm(Diameter)
	Z2 Axis Travel	160mm
	X2 Axis Servo Motor Power	1kW
	Z2 Axis Servo Motor Power	1kW
Cooling System	Cutting Oil Motor Power	0.48kW
Cooling System	Cooling Box Capacity	150L
Lubrication System	Motor Power	35W
Lubrication System	Capacity	2L
Main Spindle Tools	10*10 Square Tool + ∮16 Hole Cutter	5pcs + 4pcs
Power Head (Main Spindle Side)	Chuck ER11 + ER16	2pcs + 1pc
	Power	0.4kW
	Speed of Rotation	5000r/min
Sub Spindle Tools	∮16 Hole Cutter	4pcs
Machine Dimensions	Length * Width * Height	203013601960 MM
Machine Dimensions	Machine Weight	1700KG

B13 Configurations
Item	Specification	Origins
CNC System	LNC T6850	Taiwan LNC
Main Spindle	High-precision spindle	BYSK
X1 Axis Motor	0.75KW Absolute Value Servo Motor	Inovance+ Lines
Y1 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Z1 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
X2 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Z2 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Screw Rod	Precision Ball Screw	HIWIN/PMI
Guide Rail	Linear Guide Rail	HIWIN/PMI

Optional Configurations
Servo Rotating Center Frame	Z-axis travel after adding rotating center frame	100mm
Servo Rotating Center Frame	Power	0.75kW

Detailed Photos

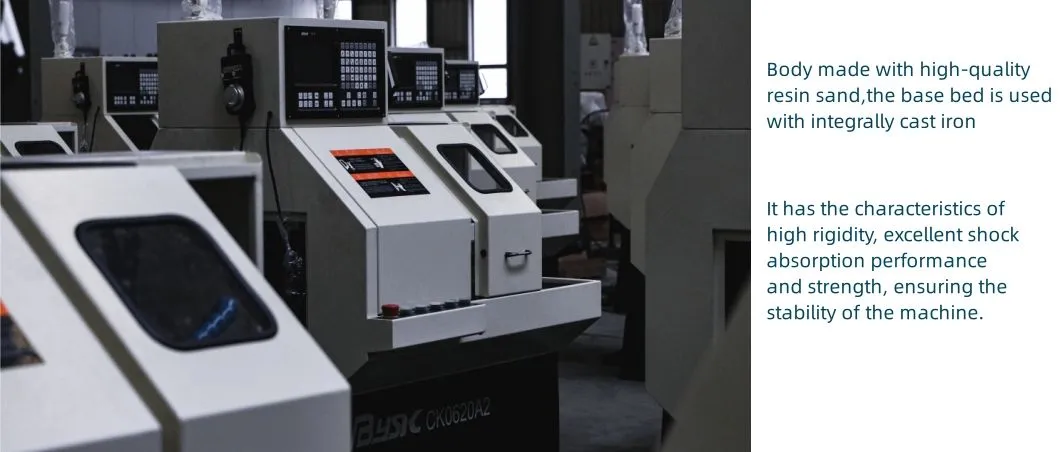

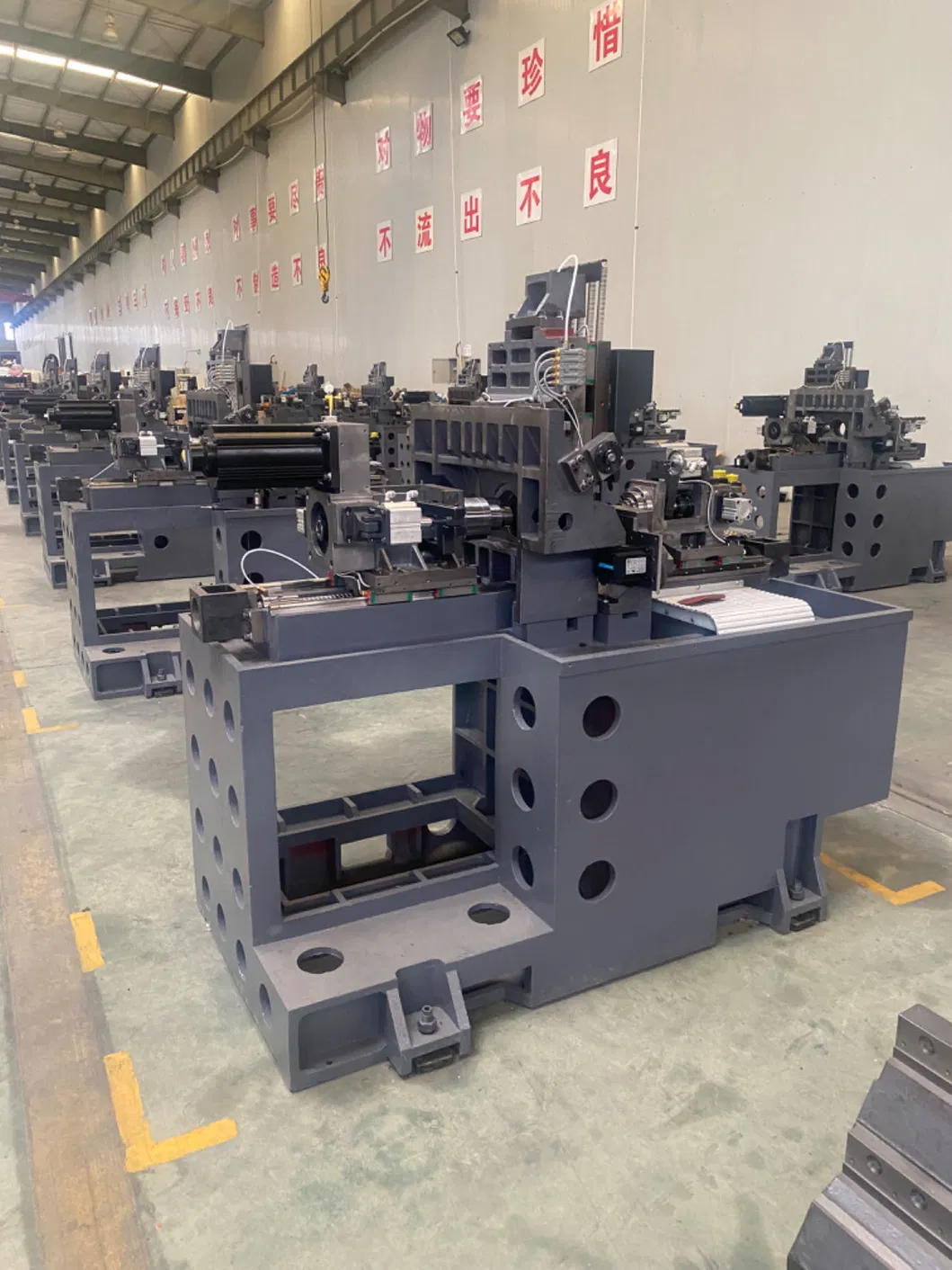

Body Materials

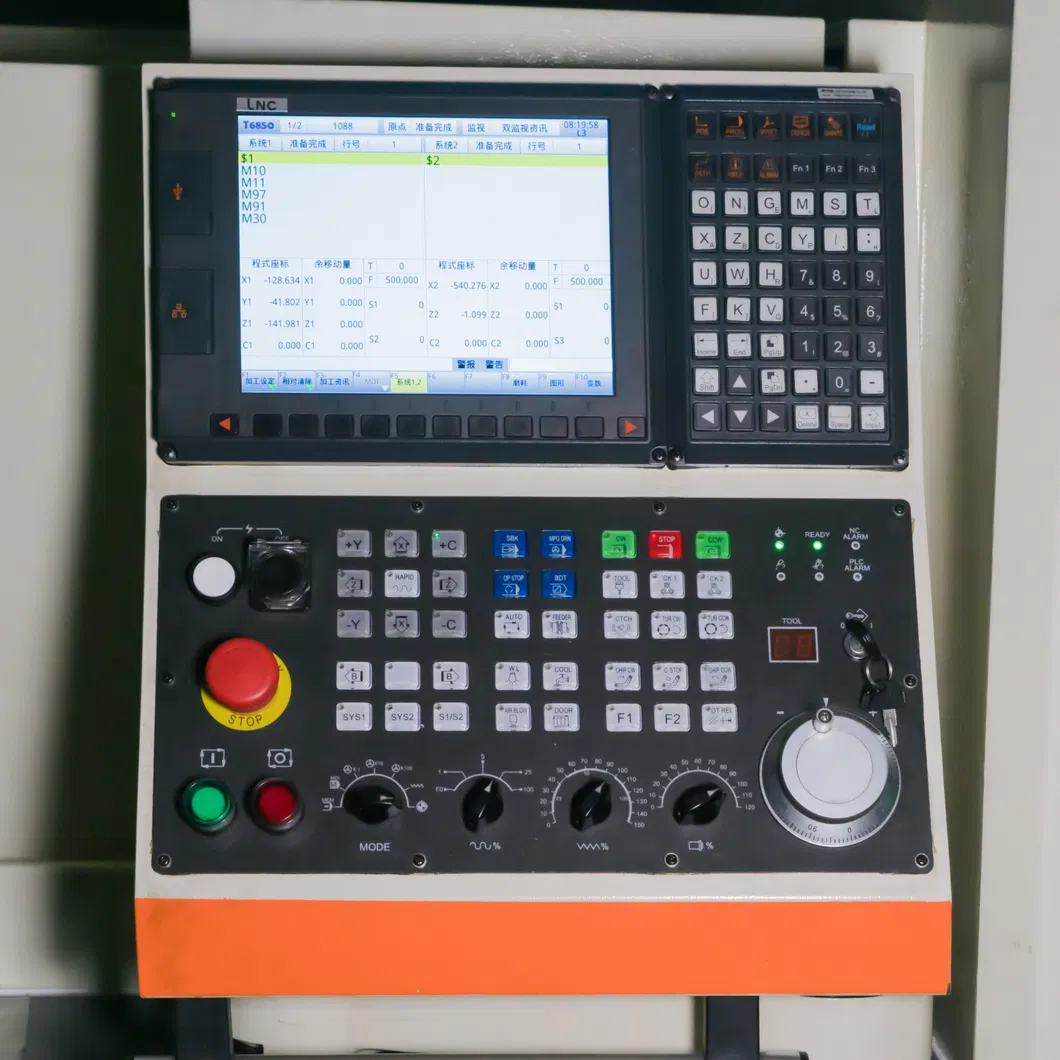

CNC Control System
Operation System: Taiwan LNC T6850 | High Quality, Practical, Stabilized

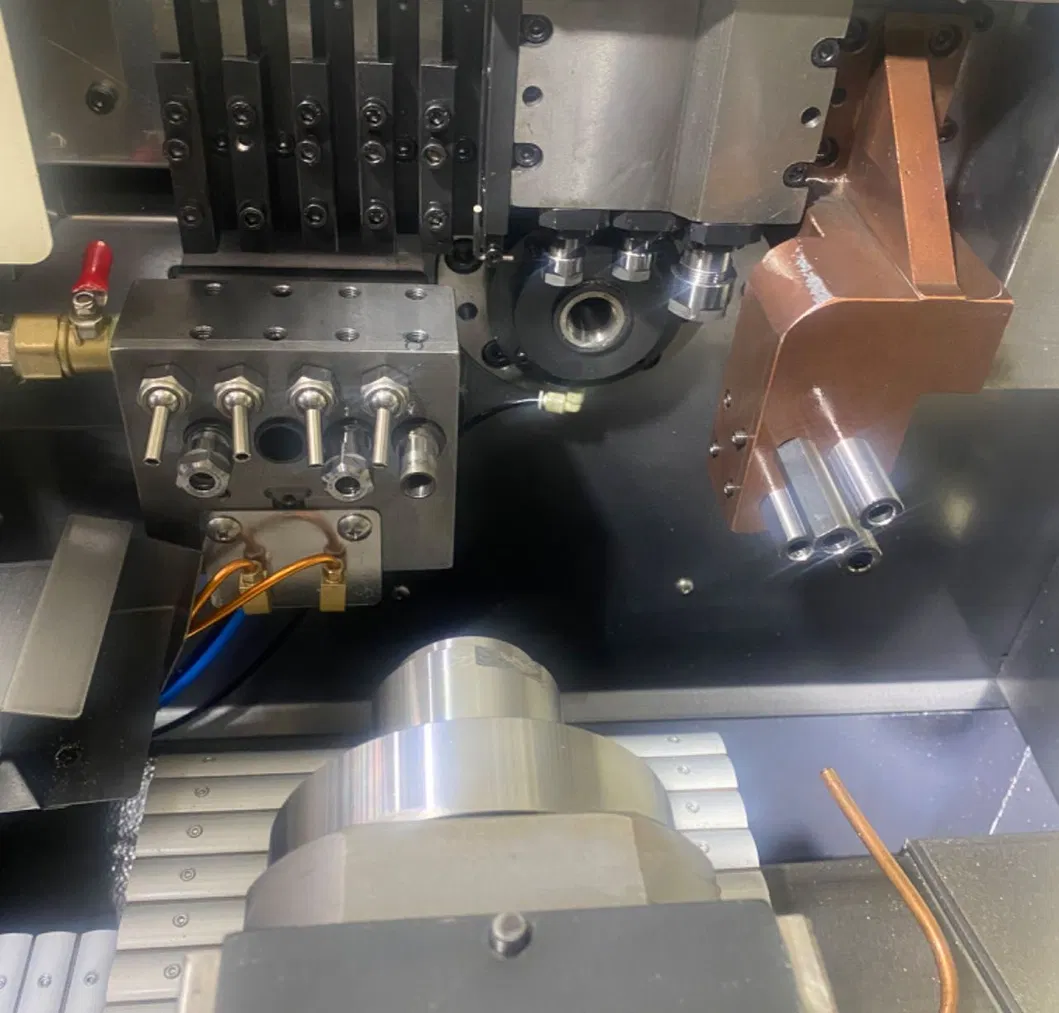

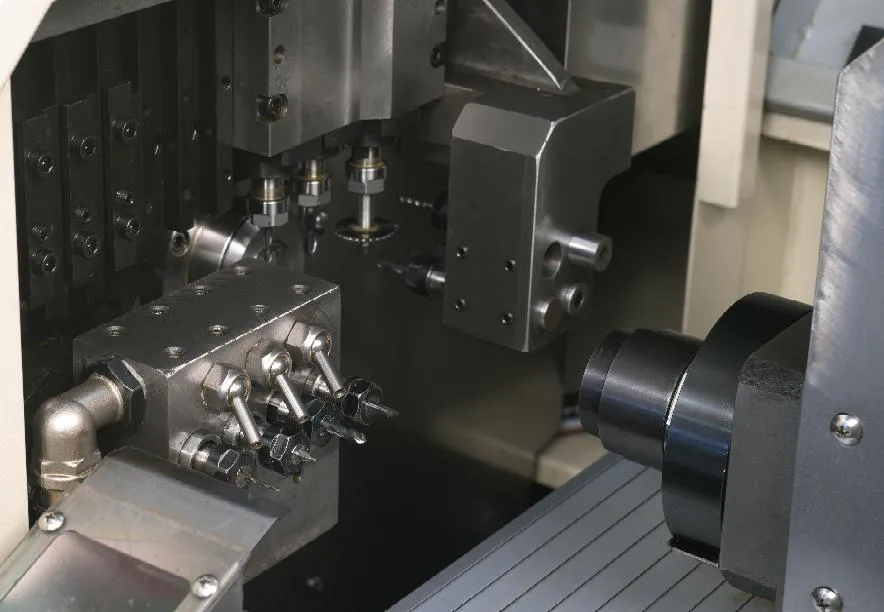

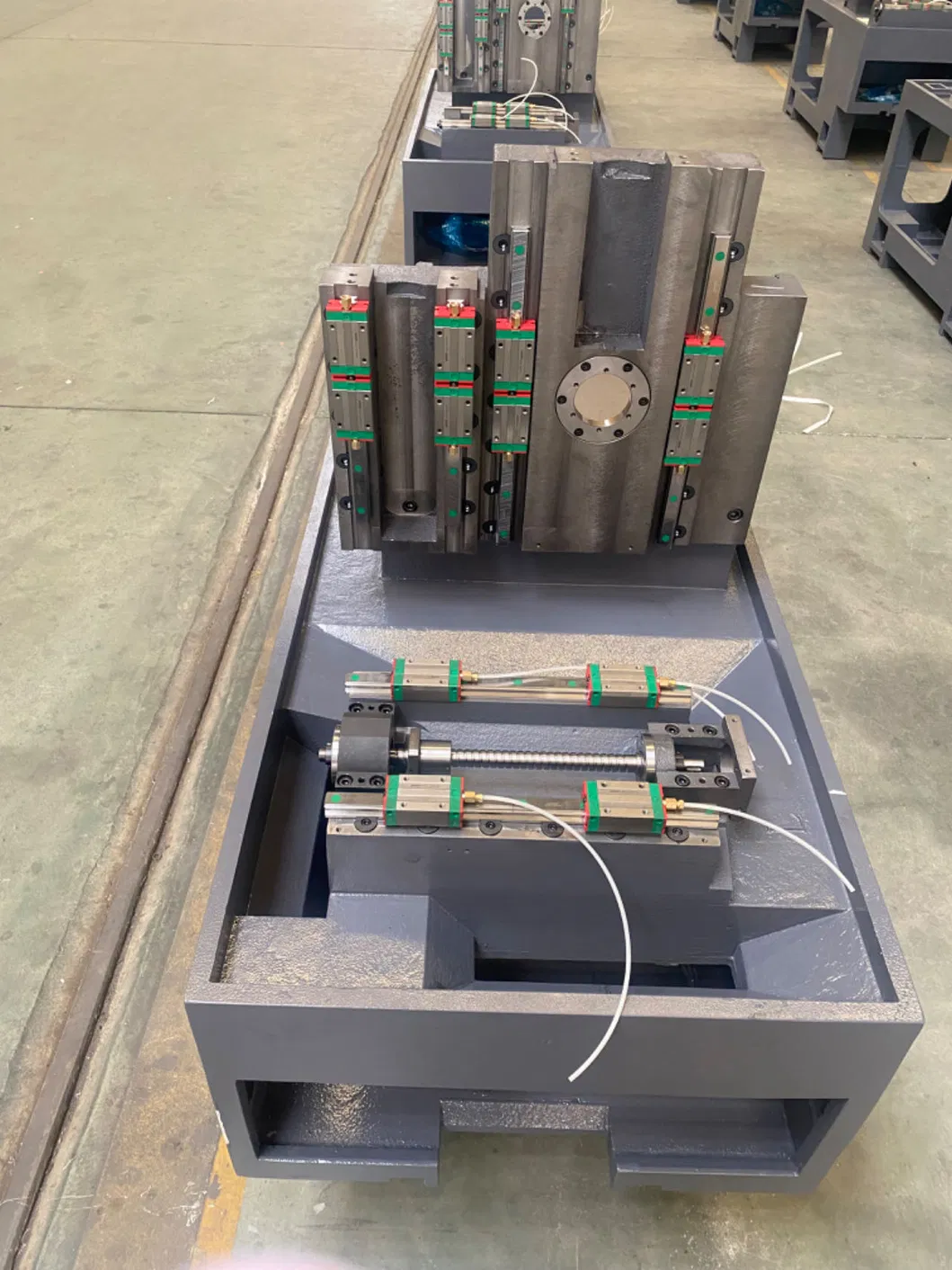

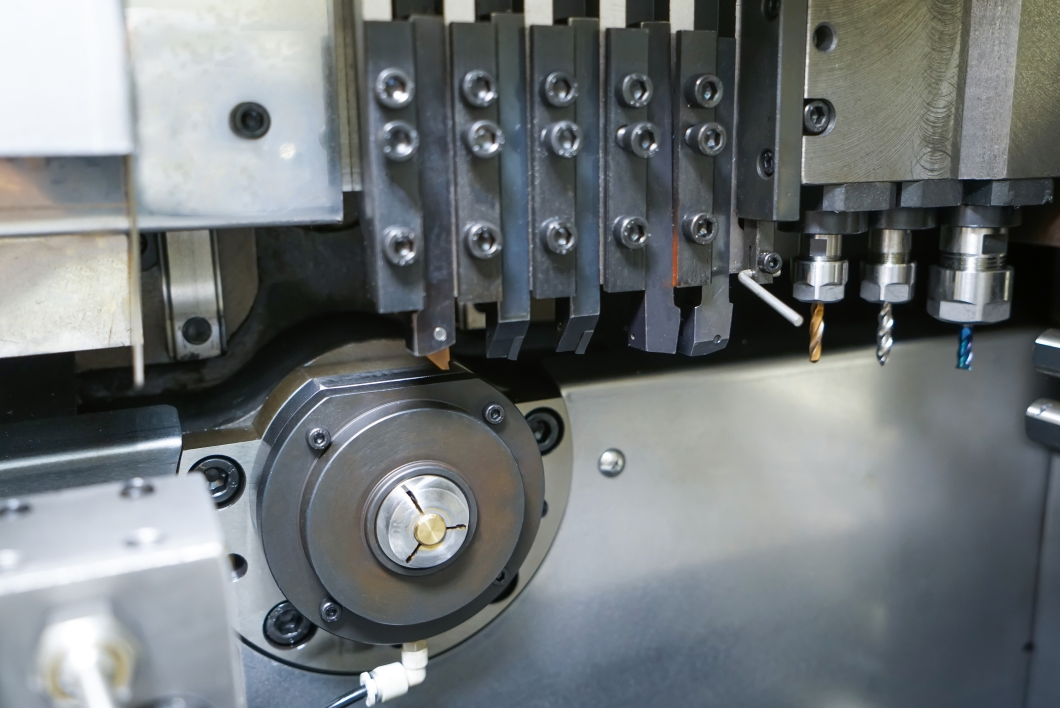

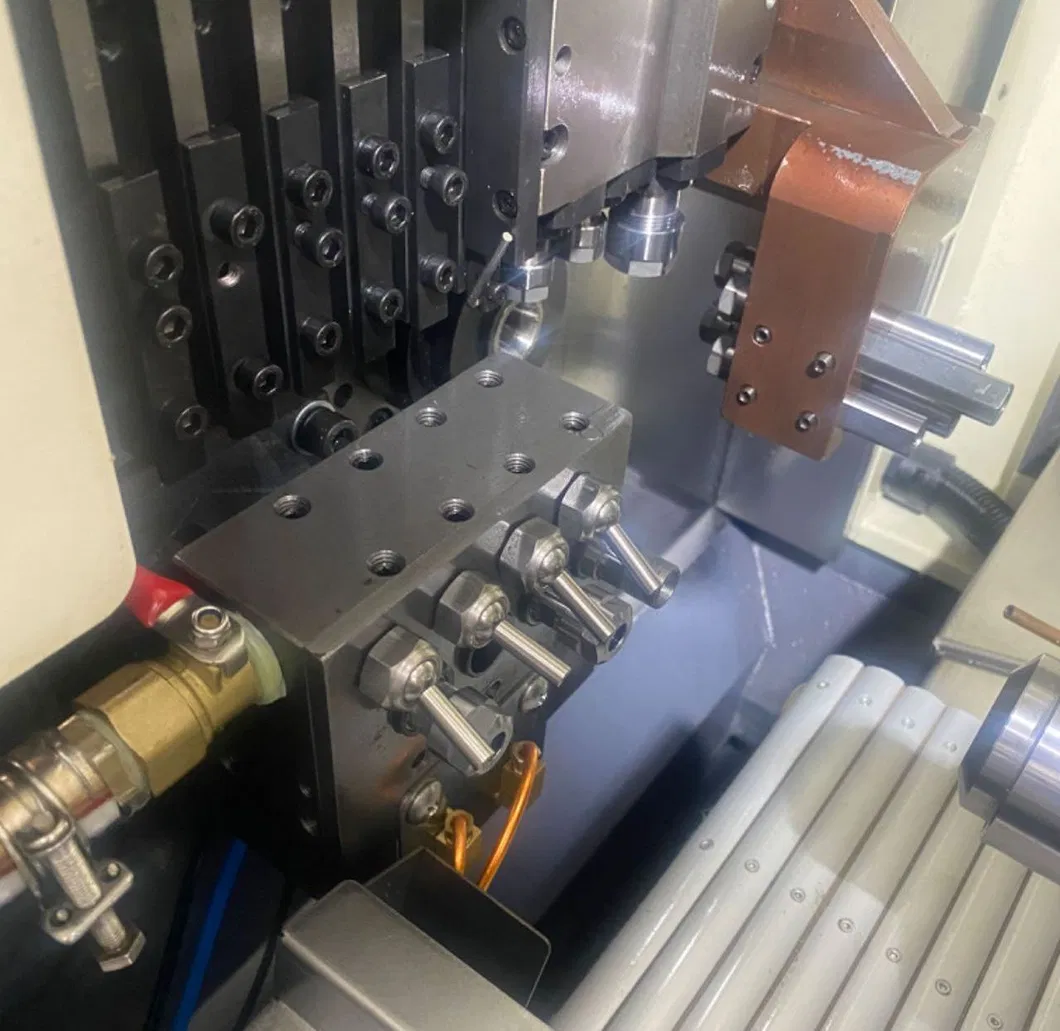

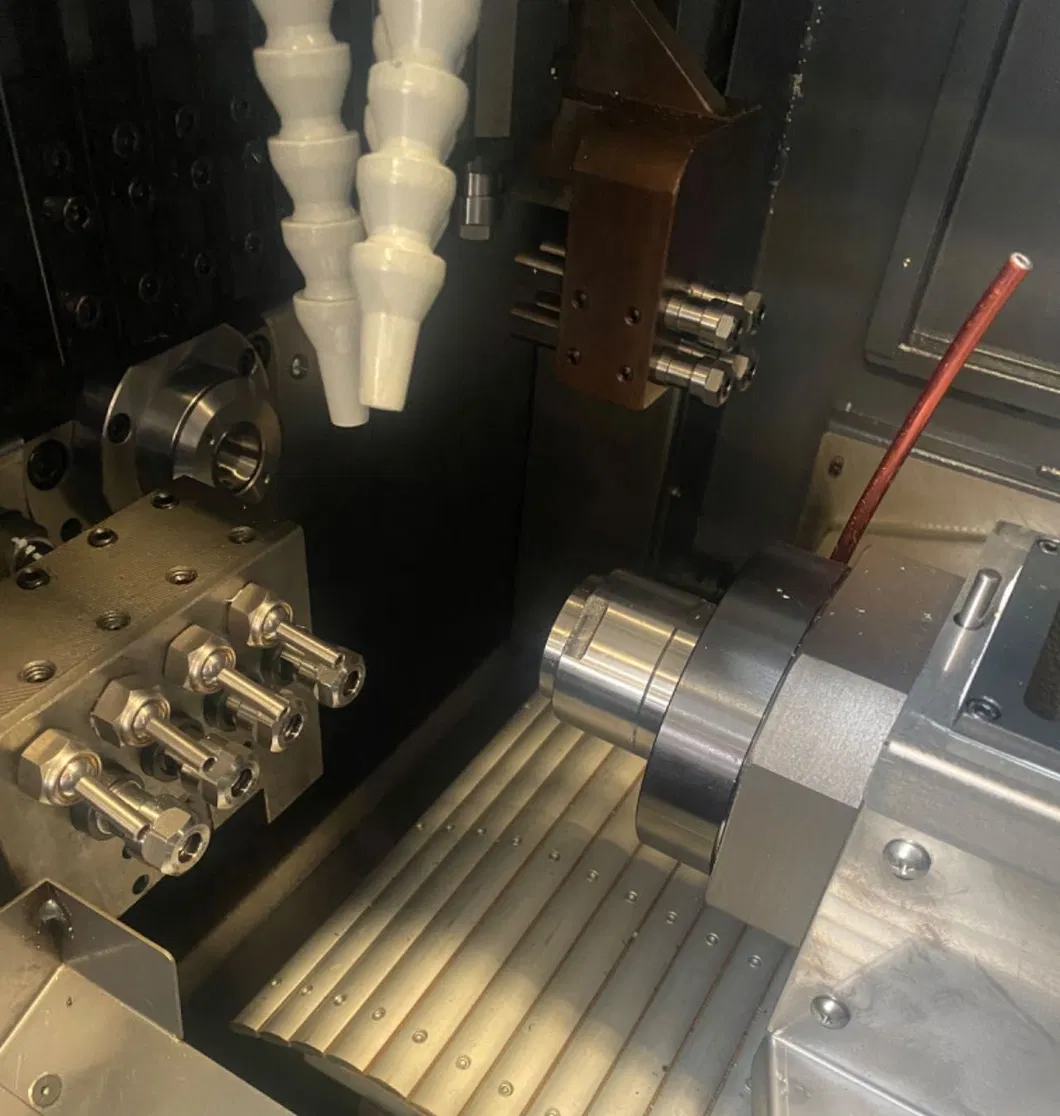

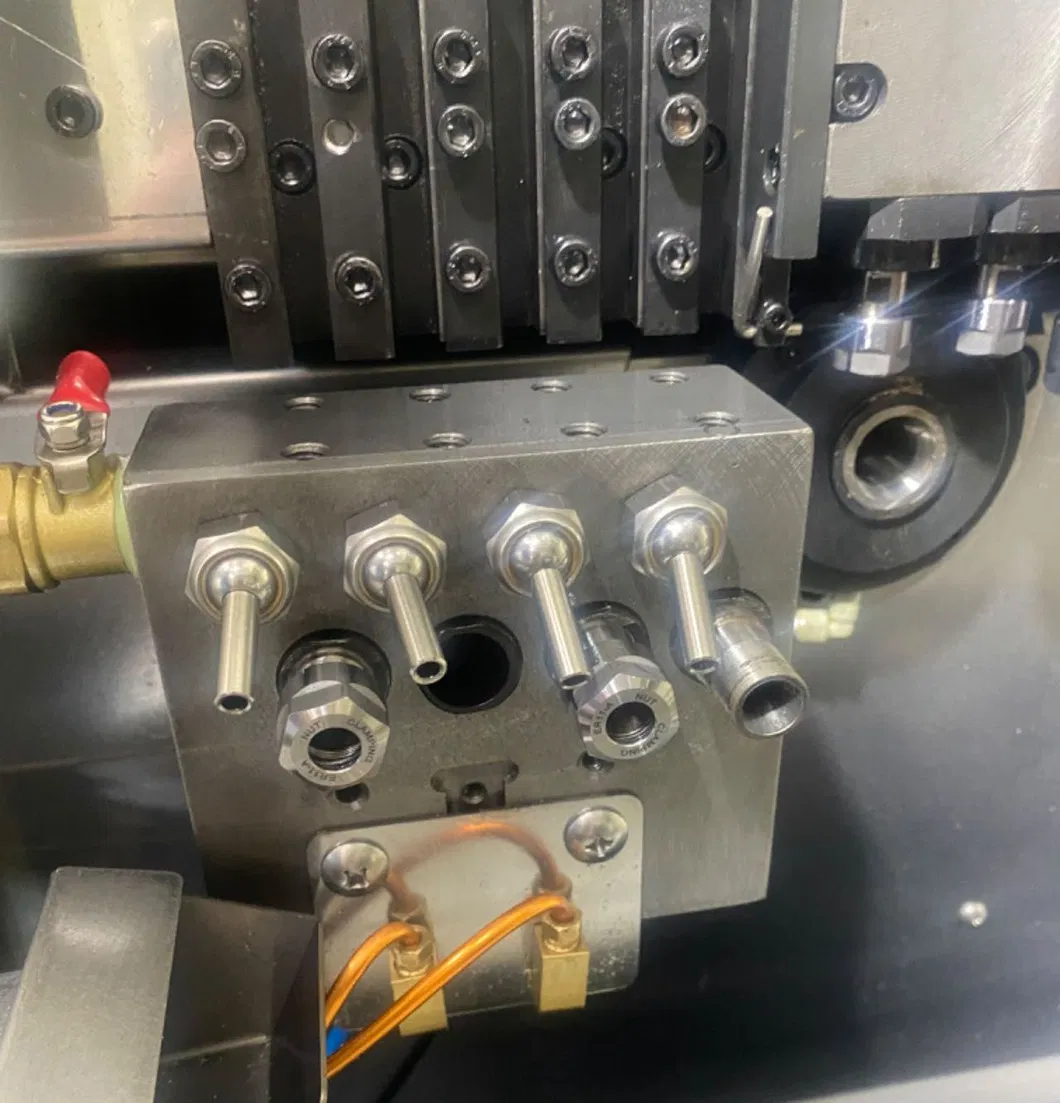

Inner Structure & Details

1. Simultaneous Processing: By using the sub spindle and back cutter table, front and back machining can be carried out at the same time.
2. Multiple Power Heads: Equipped with a 3-axis transverse power head, enabling transverse rigid tapping, front rigid tapping, and back rigid tapping.
3. Small Precision Clamping: The main spindle and sub spindle adjust the chuck easily to clamp small precision parts.
4. Absolute Servo Operation: B13 adopts absolute servo operation to save setup time, labor, and cost with 24-hour constant power and high efficiency.
5. Dual Bushing Options: Fixed guide bushing and coupling guide bushing configurations to optimize long workpiece high-precision processing.

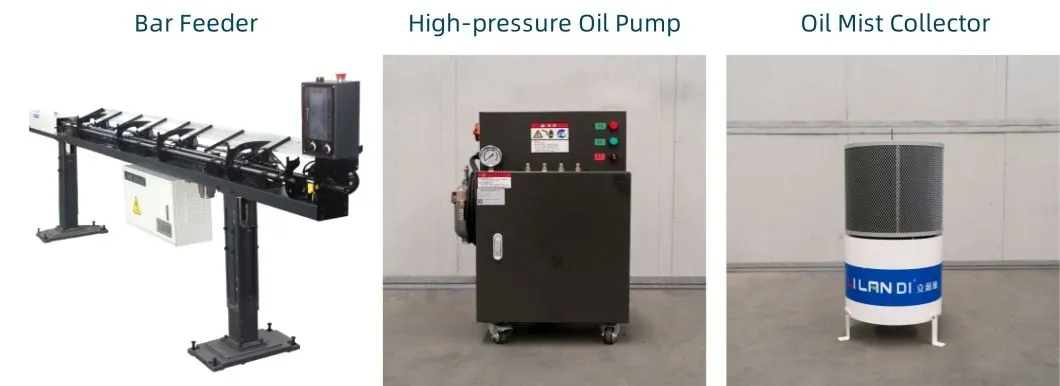

Configured Accessories

The B13 CNC Lathe can be configured with an oil film bar feeder, high-pressure oil pump, and oil mist collector to optimize the performance and extend the service life of the machine.

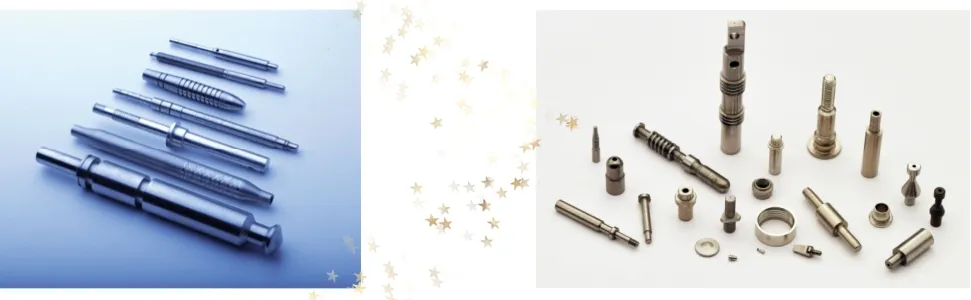

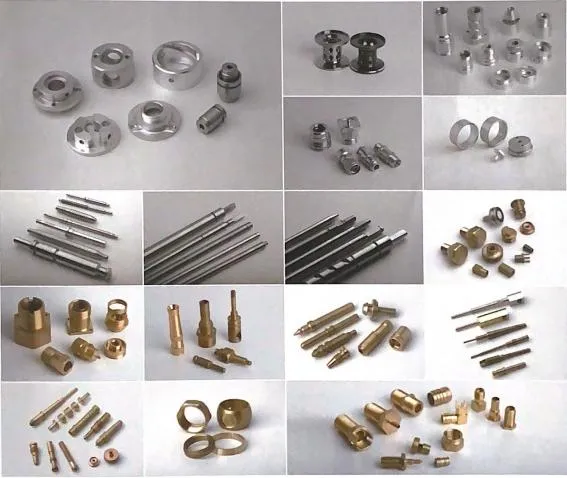

Processed Product Display

Please contact us and send your drawings to find the most suitable CNC machine setup.

Model Selection Suggestions:

Max profile diameter within 7mm: Recommended models B07 (dual spindle) or CK1107 (single spindle).
Max profile diameter within 13mm: Recommended models B13 or CK1113.
Complex-shaped parts (linear/taper/arc threads): CK0620A2 is highly suitable. Configuring it with a center frame enables processing of slender shaft parts.
Precision small hardware & electronic connectors: CK0625A is designed for instruments, meters, optical parts, and automotive/motorcycle components.
Multi-functional Turning & Milling: CK32A3, or the CK32A3-B which adds a dual spindle system.
Complex shaft/disc parts with high precision: X42 slant-bed CNC lathe is ideal.

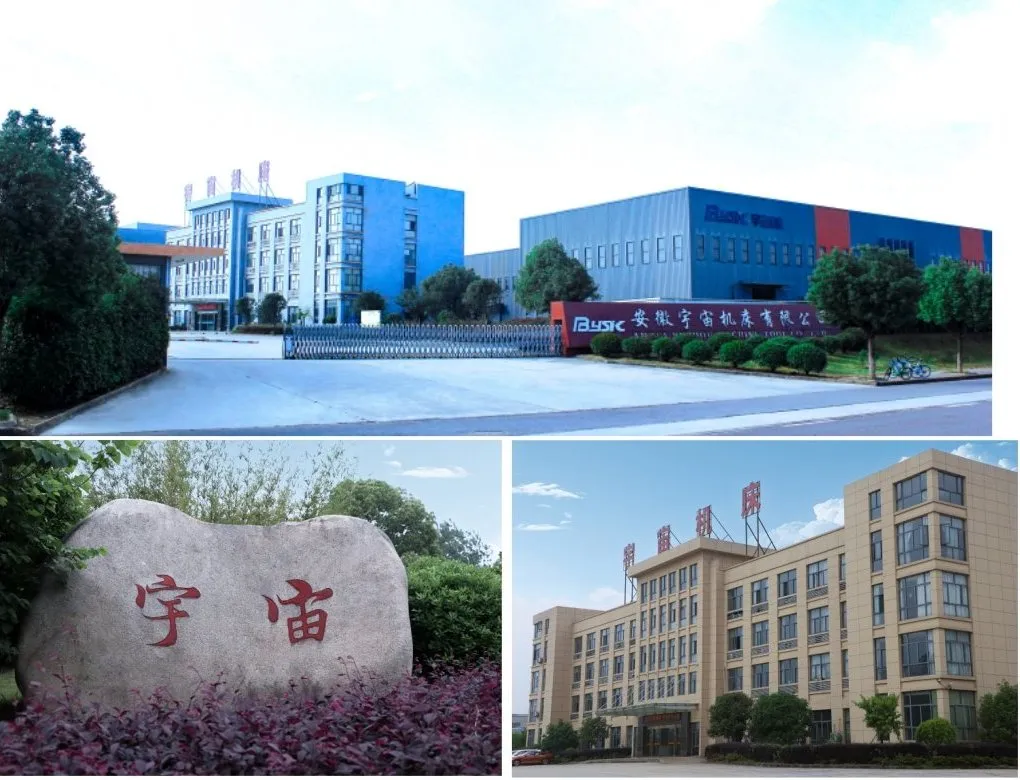

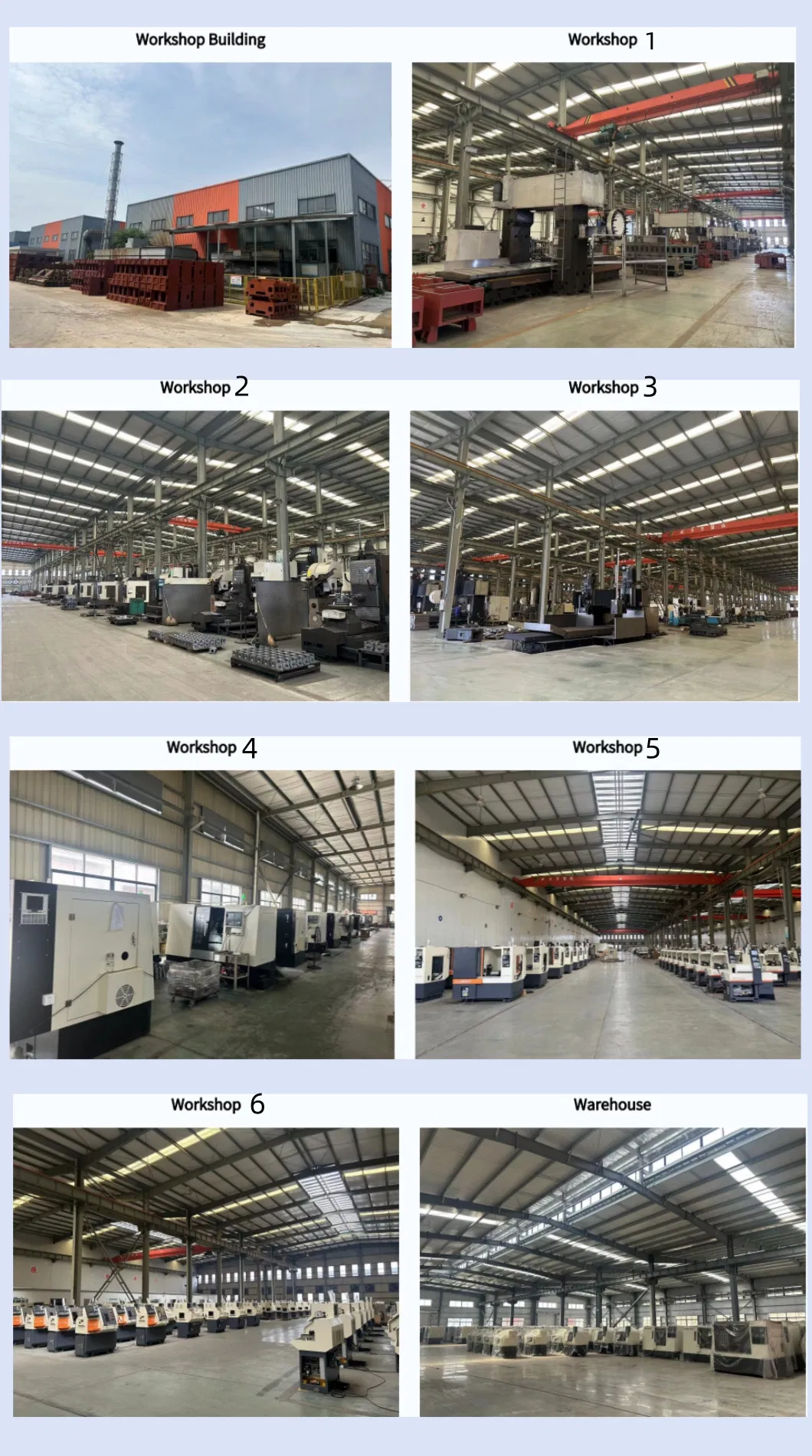

Company Profile

We are a comprehensive high-tech enterprise integrating the R&D, production, sales, and service of CNC systems, CNC machine tools, automatic production lines, industrial robots, and IoT solutions. Our manufacturing infrastructure spans multiple specialized bases to support state-of-the-art technical output.

We specialize in the production of CNC Swiss-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Vertical CNC Lathes, Horizontal CNC Lathes, Flat Bed CNC Machines, Slant-Bed CNC Lathes, Single-Spindle CNC Lathes, and Automatic Double-Spindle Lathes. Our lathes feature absolute value servo systems and bus connections. We hold over 10 invention, utility model, and design patents. Our machinery is widely used in communication equipment, connectors, 5G products, mobile devices, home appliances, defense, spaceflight, medical devices, automotive systems, plumbing, miniature shafts, optical instruments, timepieces, eyewear, and hardware accessories.

Operating under rigorous management processes, we have successfully obtained ISO9001 (Quality Management System) and ISO14001 (Environment Management System) accreditations, alongside CE certifications for our core equipment lines. We maintain a strong focus on cost-performance, delivering reliable manufacturing systems to automated production facilities worldwide.

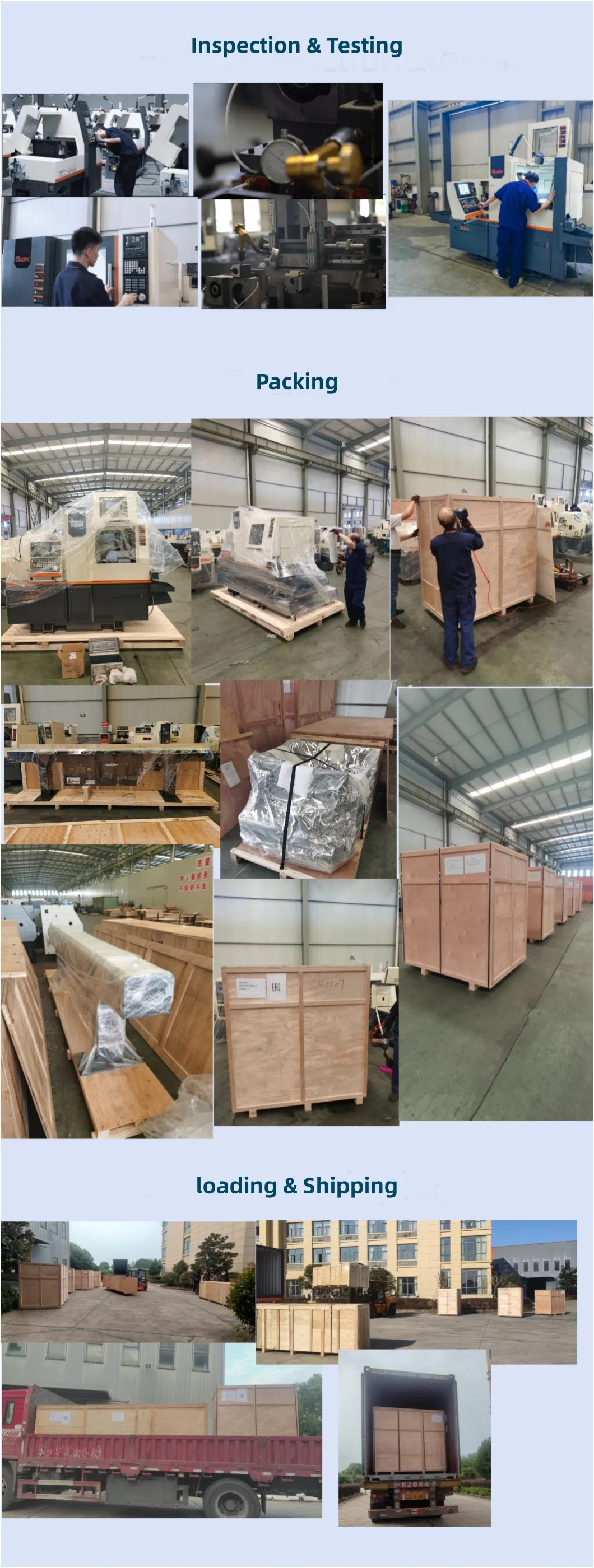

Packaging & Shipping

Frequently Asked Questions

Do you accept OEM/ODM?

Yes, OEM and ODM customization services are welcomed.

How many years of production experience do you have?

We have over 10 years of experience. We provide access to professional and experienced technical instructors to guide you through installation and after-sales setup.

What is the typical delivery schedule?

Under standard conditions, the lead time for machinery production and testing is approximately 30 to 45 working days.

What after-sales services are provided?

We offer access to a professional technical support team, capable of resolving operation queries 24 hours online.

What specific customization aspects are available?

Customization requests such as specific colors, functional accessories, custom shapes, sizes, and logo prints are fully supported.

What is the minimum order quantity (MOQ)?

We accept small-quantity orders. The minimum order quantity is 1 set of the machine.
