Explore our high-performance manual milling models, heavy-duty turret mills, and precision components designed for structural rigidity and production excellence.
Shandong AcuTek CNC Co., Ltd. is a professional CNC machine tool manufacturer with its own modern production facility covering an area of over 60,000 square meters. The company is dedicated to the design, manufacturing, and global supply of high-performance CNC equipment, supported by strong engineering capability and advanced production resources.
The factory is equipped with a full range of precision manufacturing and processing equipment, including CNC machining centers, CNC lathes, conventional lathes, milling machines, gantry-type CNC machining centers, grinding machines, and radial drilling machines. With a strict quality control system in place, the company ensures high precision, stable performance, and long service life across all product lines.
The product portfolio includes CNC machining centers, CNC lathes, conventional machine tools, milling machines, gantry machining centers, grinding machines, and drilling machines. These machines are widely used in automotive parts manufacturing, mold processing, machinery production, and general industrial applications.
Shandong AcuTek CNC Co., Ltd. has developed a strong international presence, with its products exported to Russia, India, South Africa, Vietnam, Peru, the United States, and other countries and regions. To enhance global service capabilities, the company has established sales and after-sales service networks in the United Kingdom, Germany, Poland, Australia, and several other countries, with its international support system continuing to expand.
Many of the company’s products have obtained relevant international certifications, ensuring compliance with different market standards and customer requirements. At the same time, the company places great importance on customer service, offering 24/7 technical support and a 2-year warranty on all machines, ensuring reliable operation and timely assistance throughout the product lifecycle. Guided by the business philosophy of "integrity first and customer foremost," Shandong AcuTek CNC Co., Ltd. is committed to continuous innovation, improved manufacturing capabilities, and long-term value creation. The company aims to provide reliable, efficient, and cost-effective CNC solutions to global customers and to build sustainable partnerships worldwide.
Unlocking industrial advantages, technological depth, and cost efficiencies within the global supply chain.
Chinese factories like Shandong AcuTek utilize high-grade Meehanite-style cast iron. Bed castings undergo rigorous natural and artificial aging processes to relieve internal stresses, guaranteeing lifetime geometric accuracy.
From Taiwan-designed high-speed milling heads (up to 3HP/5HP) to integrated 3-axis Digital Readouts (DRO), we combine premium mechanical structures with smart PLC and servo-driven feeding motors for micro-precision.
By optimizing local industrial supply chains, raw material sourcing, and efficient tooling, we deliver industrial-grade vertical and horizontal turret milling systems at a fraction of the cost of European equivalents.
In the modern manufacturing landscape, sourcing from a dedicated universal milling machine factory in China provides a significant competitive edge. With the rapid expansion of technology-driven infrastructure, Chinese manufacturers have moved past standard low-cost manufacturing to embrace high-precision machining centers. Factories utilize state-of-the-art coordinate measuring machines (CMM) and laser interferometers to verify the pitch, yaw, and positioning errors of each axis prior to container shipment.
Furthermore, the comprehensive vertical integration within China's industrial zones allows for instant access to high-grade hardened gears, robust spindle bearings (NSK or equivalent), and premium electrical components (Schneider or Siemens). This guarantees that every turret mill, vertical/horizontal combo unit, or customized OEM component matches or exceeds international ISO 9001 and CE directives.
Choosing the correct milling configuration requires a solid understanding of structural architecture and mechanical kinematics. Below is an engineering overview of the primary systems produced in our factories:

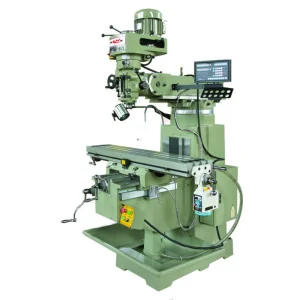

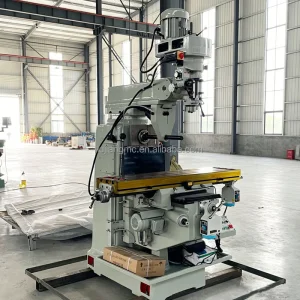

Often referred to as Bridgeport-type mills, models such as the X6325 and 5H/5S feature a stationary column with a moveable ram. The spindle head is mounted on a tilting knuckle, allowing for multi-angle machining. This layout is ideal for mold-making shops, tooling fixtures, and precision engineering labs. Our Taiwan-designed high-speed spindle heads feature hard chrome-plated quill movements, ensuring minimal runout (less than 0.005mm).
For heavy gear cutting, slotting, and deep steel profiling, horizontal configurations like the X5032 provide incomparable rigidity. The arbor is supported by an overarm, shifting cutting loads directly down the column to the base. Hardened rectangular slideways (X, Y, and Z axes) ensure that heavy workpieces do not deflect under maximum chiploads.

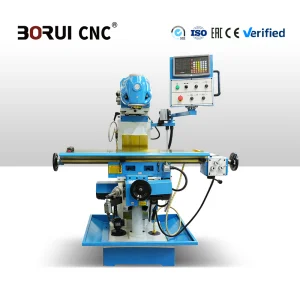

Combining the capabilities of both vertical and horizontal spindles, machines like the X6332 or the X6226 represent the peak of workshop versatility. Equipped with an independent horizontal spindle and a swivel vertical head, operators can machine five faces of a workpiece in a single setup. Additionally, integration of PLC smart servo motors allows for smooth, infinite variable feeds across all axes, reducing mechanical wear and enhancing surface finishes.
| Machine Model | Spindle Taper Options | Spindle Speed Range | Table Dimensions | Ideal Application Fields |
|---|---|---|---|---|
| X6325 / X6328 | R8 / ISO30 / ISO40 | 80 - 5440 RPM (Hi-Lo Gear) | 1270 * 254 mm | Mold Tooling, Precision Labs, Small Parts |
| X5032 (Horizontal) | ISO50 / ISO40 | 30 - 1500 RPM (Gearbox) | 1320 * 320 mm | Heavy Gear Cutting, Steel Slab Profiling |
| X6332 (Combination) | ISO40 (Vert) / ISO40 (Horiz) | Variable Speed / 12-Steps | 1320 * 320 mm | General Machining, Maintenance Shops |
| ZAY7045FG (Bench) | MT4 / R8 / ISO30 | 50 - 2500 RPM (Gear Drive) | 800 * 240 mm | DIY Workshops, Education, Light Metals |
Milling machines are the backbone of modern physical production. Depending on the industrial sector, AcuTek CNC offers tailored solutions to optimize workshop throughput and extend tool life:
Our heavy-duty conventional and CNC milling machines are used to draft prototype engine manifolds, custom brackets, and control fixtures. Hardened and ground box ways sustain structural loads, ensuring zero geometric deviation.
For engineering universities and trade academies, machines like the DIY mini-vertical and conventional turret mills offer a safe, intuitive environment to teach fundamental principles of chip load, spindle feeds, and coordinate alignment.
Every heavy machinery repair shop requires immediate turnaround capability. Having a universal head mill allows technicians to switch from slotting keyways to drilling and boring operations without repositioning complex setups.
Following strict quality controls from raw material preparation down to final mechanical assembly and dynamic testing.
Purchasing capital equipment internationally requires a clear framework of verification. At AcuTek CNC, we simplify the path from PO (Purchase Order) to final factory commissioning:
Answering the most critical procurement, mechanical, and logistical questions asked by production engineers.
The spindle taper determines tool retention capacity and torque transmission. R8 is standard for smaller turret mills (e.g. X6325) and light manual applications. ISO30 offers a middle ground, while ISO40/ISO50 tapers provide a larger cross-section and positive drive keys, which are ideal for large cutter diameters and heavy chip removals on combined knee-type mills.
We cast all structural components (beds, columns, knees, and tables) from high-tensile cast iron. The castings undergo thermal annealing to relieve internal mechanical stress, followed by precision grinding and scraping of the guideways to maintain accuracy over decades of heavy service.
Yes, our machines can be fitted with electrical configurations matching local requirements (e.g., 220V/380V/440V, 50Hz/60Hz). Control panels use CE/UL-listed components (Schneider, Siemens) and incorporate emergency stops and interlocking safety guards.
Shandong AcuTek provides a comprehensive 2-year warranty on all machines. We offer 24/7 technical support, with spare parts shipped globally via DHL/FedEx. Local technicians in countries like Germany, Poland, the UK, and Australia are available to assist with installations and servicing.
Discover heavy milling tools, mini drill-taps, smart PLC systems, and precision machining services for industrial scaling.
