Precision Swiss Type CNC Lathe Machine - Jsl- 20rb Model

After-sales Service:	Provided
Warranty:	1 Year
Application:	Metal

Overview

Model NO. JSL-20RB

Process Usage Metal-Cutting CNC Machine Tools

Movement Method Linear Control

Control Method Semi-Closed Loop Control

Numerical Control CNC

Performance Classification High-End CNC Machine Tools

Certification CE, ISO 9001

Condition New

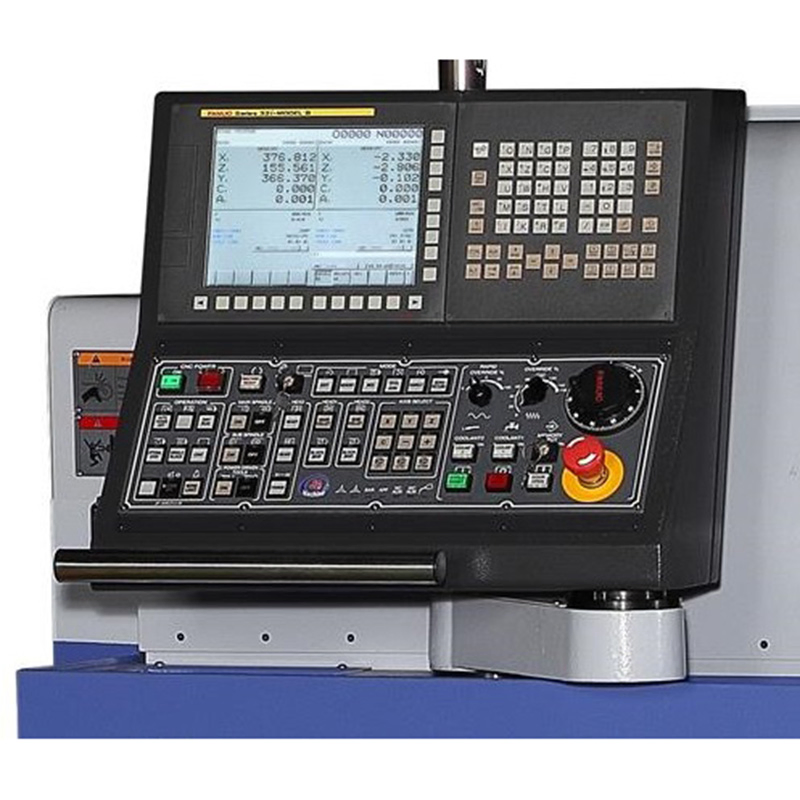

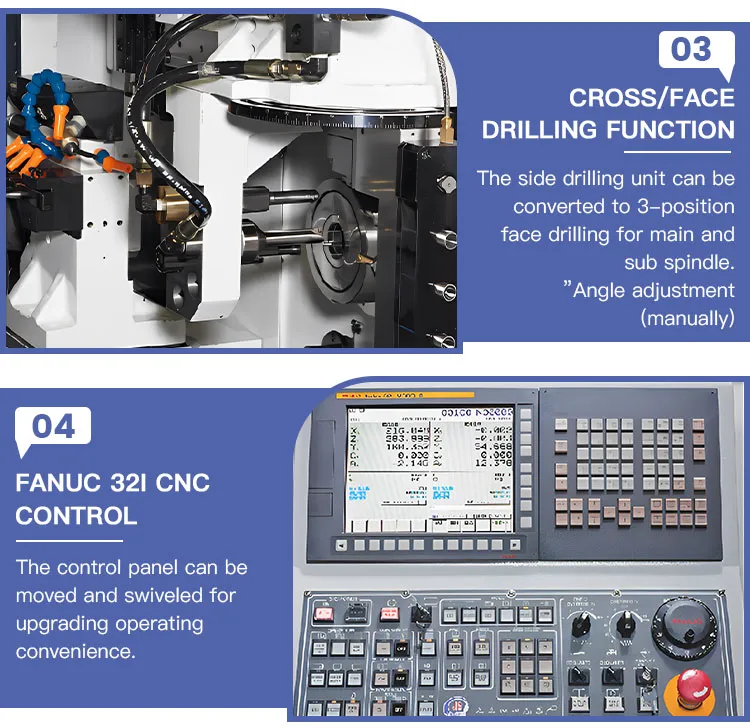

CNC Control System Fanuc Mitsubishi

Machining Capacity Light Duty

Number of Tools 21

Z-Axis Travel 280

Width of Guide Rail(mm) 20

Number of Spindles 2 Spindle

Max. Spindle Speed(r.p.m) 10000

Spindle Bore(mm) 26.6

Spindle Motor Power(Kw) 2.2/3.7

Number of Axis 7

Positioning Accuracy(mm) ±0.008

Dimension(L*W*H)(mm) 2846× 1284 ×2024

Weight (Kg) 2670

Voltage 220V/50Hz

Maximum Turning Length 190 mm

Transport Package Standard Marine Wooden Pallet Packaging

Specification Customized Available

Origin Taiwan China

Production Capacity 200 Set/Sets Per Year

Packaging & Delivery

Package Size 300.00cm * 300.00cm * 300.00cm

Package Gross Weight 100.000kg

Product Description

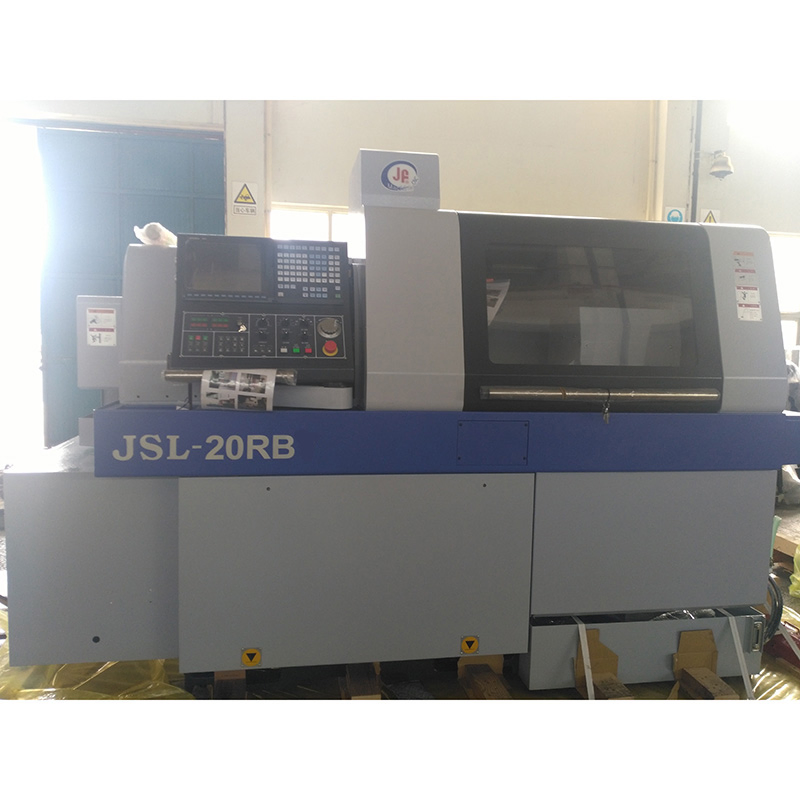

Precision Swiss Type CNC Lathe Machine - Jsl- 20rb Model

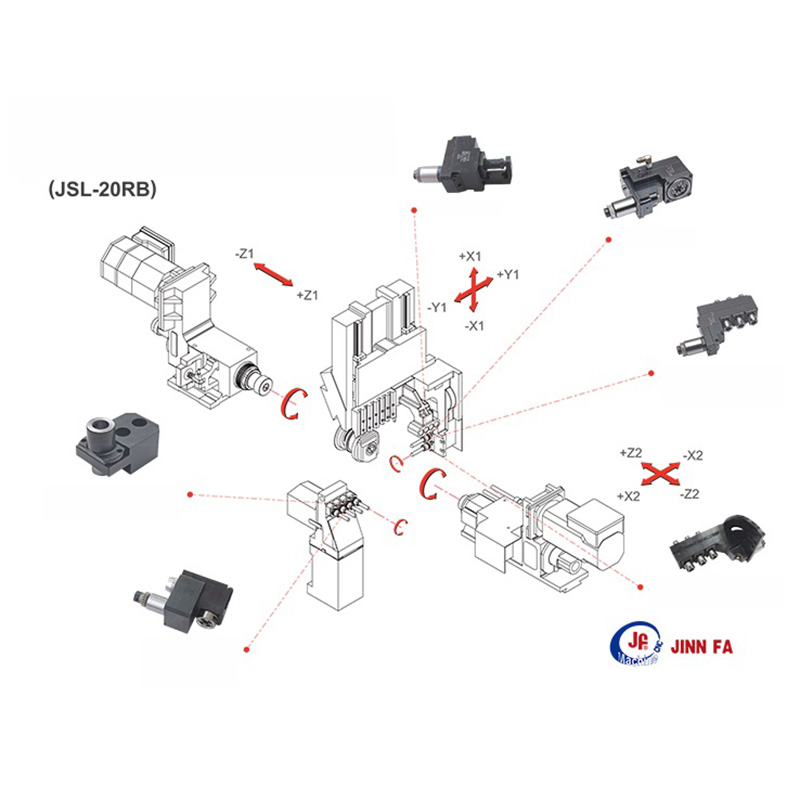

Key features of the JSL-20RB sliding head lathes include:

Max Turning Diameter: 20mm

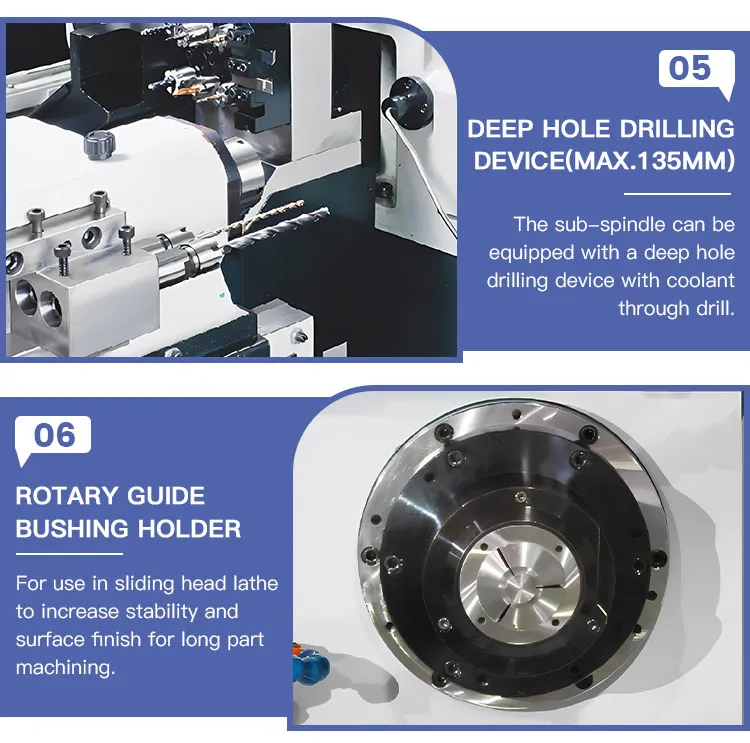

Max Turning Length (Collet open once): Up to 250mm with a rotary guide bush mode
Spindle Speeds: Main spindle up to 10,000 rpm, sub-spindle up to 8,000 rpm

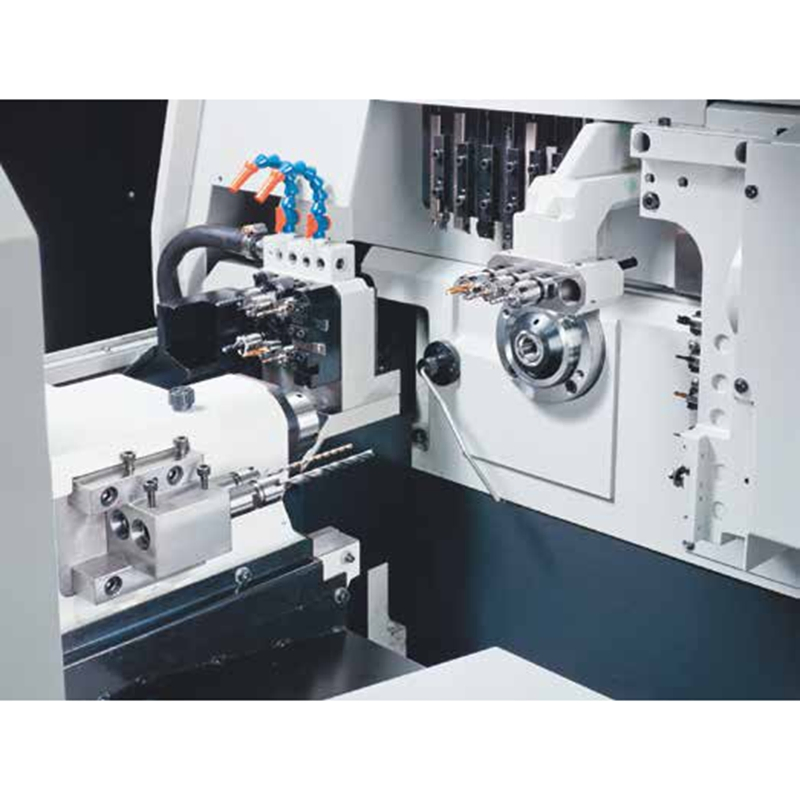

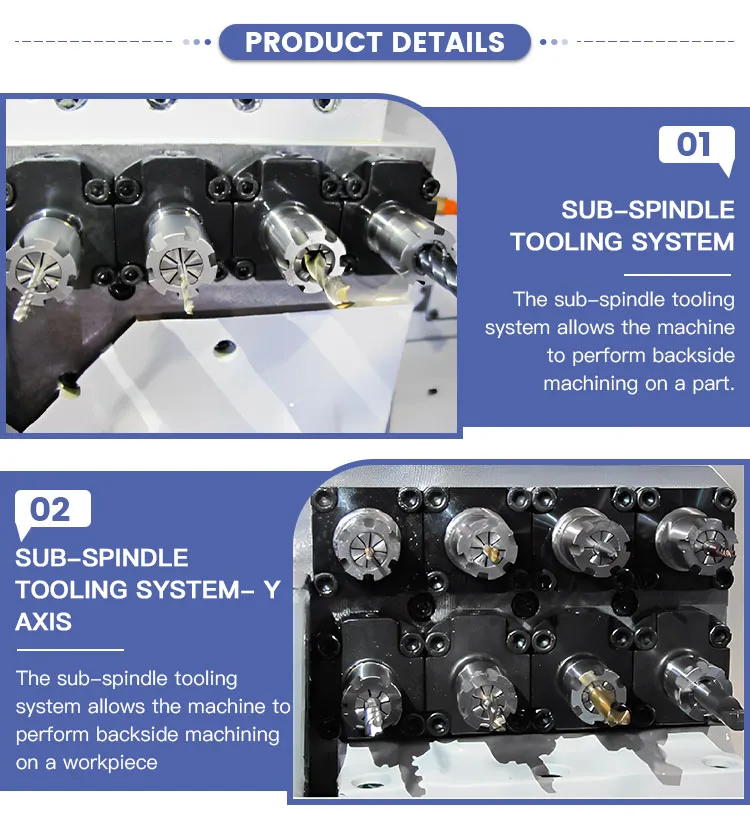

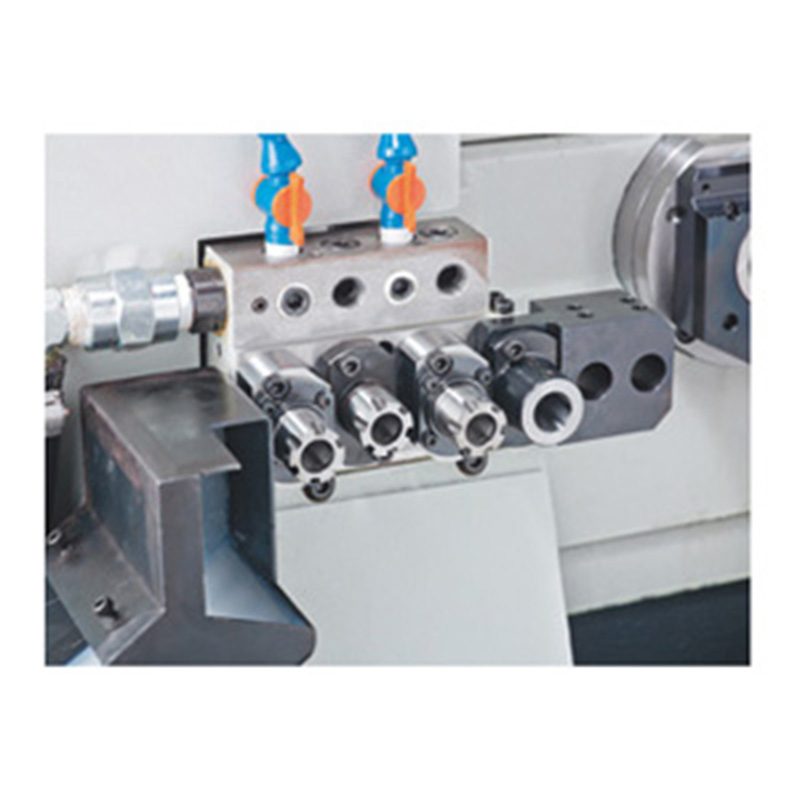

Tooling Capacity: OD tool holder (6 tools), ID tool holder (4 tools), cross live tool holder (5 tools)
Rapid Traverse: 24 m/min for X1/Z1/Y1/X2/Z2/Y2 axes
Motor Power: Main and sub-spindle motors at 2.2/3.7 kW

Product Parameters

Here are two types parameters of different CNC system.

Content			FANUC Parameter	Mitsubishi Parameter
Basic specifications	Maximum machining diameter of positive spindle		20mm	20mm
	Maximum machining diameter of auxiliary main shaft		20mm	20mm
	Maximum bore diameter of positive main shaft		10mm	10mm
	Maximum bore diameter of auxiliary main shaft		8mm	8mm
	Maximum tapping of positive main shaft		M10	M10
	Maximum tapping of auxiliary main shaft		M8	M8
	Bore diameter of deep hole in front of main shaft		8mm	8mm
	Maximum bore diameter of side drill		8mm	8mm
	Maximum tapping of side drill		M6	M6
	Maximum bore diameter of end drill		5mm	5mm
	Maximum tapping of end drill		M4	M4
	Maximum machining length	Fixed guide sleeve	280mm	280mm
		Rotating guide sleeve	190mm	190mm
		Tool type	60mm	60mm
	Number of tools	Outside diameter knife	6	6
		Inner hole cutter	4	4
		Sidetrack cutter	5(4)	5(4)
		Spindle front deep hole cutter	2	2
		Auxiliary spindle end drill	4	4
	Tool size		12*12mm/∮ 22mm	12*12mm/∮ 22mm
	Rapid feed		24M/min	24M/min
	Number of control axes		9	9

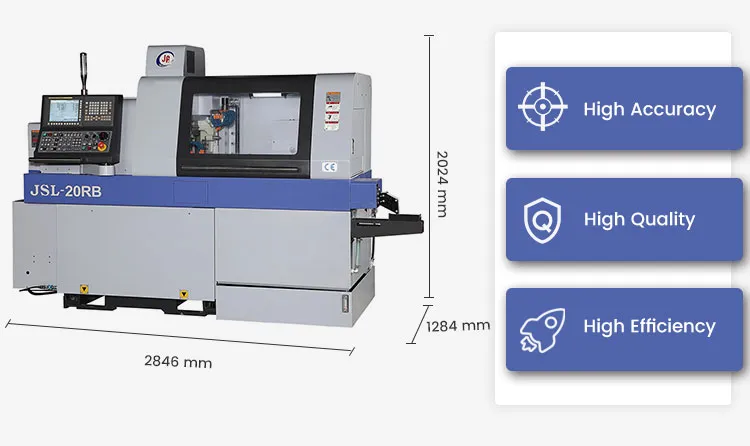

	Mechanical appearance (length * width * height)		2846x1284x2024	2846x1284x2024
	Total weight of machinery (Kg)		2670kg	2670kg
Spindle	Motor model and manufacturer		α i1 2/10000	SJ-V3.7
	Transmission mode		Belt drive	Belt drive
	Motor power		2.2/3.7KW	2.2/3.7KW
	Speed range		15~10000rpm	15~10000rpm
	Maximum torque		14/27NM	14/23.5NM
	Main shaft through hole diameter/push tube through hole diameter		ψ 26.6/ ψ24	ψ 26.6/ ψ24
	Spindle collet		Star20	Star20
	Model of front bearing of main shaft		50BNR10S	50BNR10S
	Model of rear bearing of main shaft		7007	7007
	Diameter of front bearing of main shaft		ψ 50	ψ 50
	Lubricating medium		NBU15 KLUBER	NBU15 KLUBER
	Spindle cooling mode		Air cooling	Air cooling
	Spindle bearing accuracy		P4	P4

NOTE: For more detailed parameters, please feel free to consult our technical team.

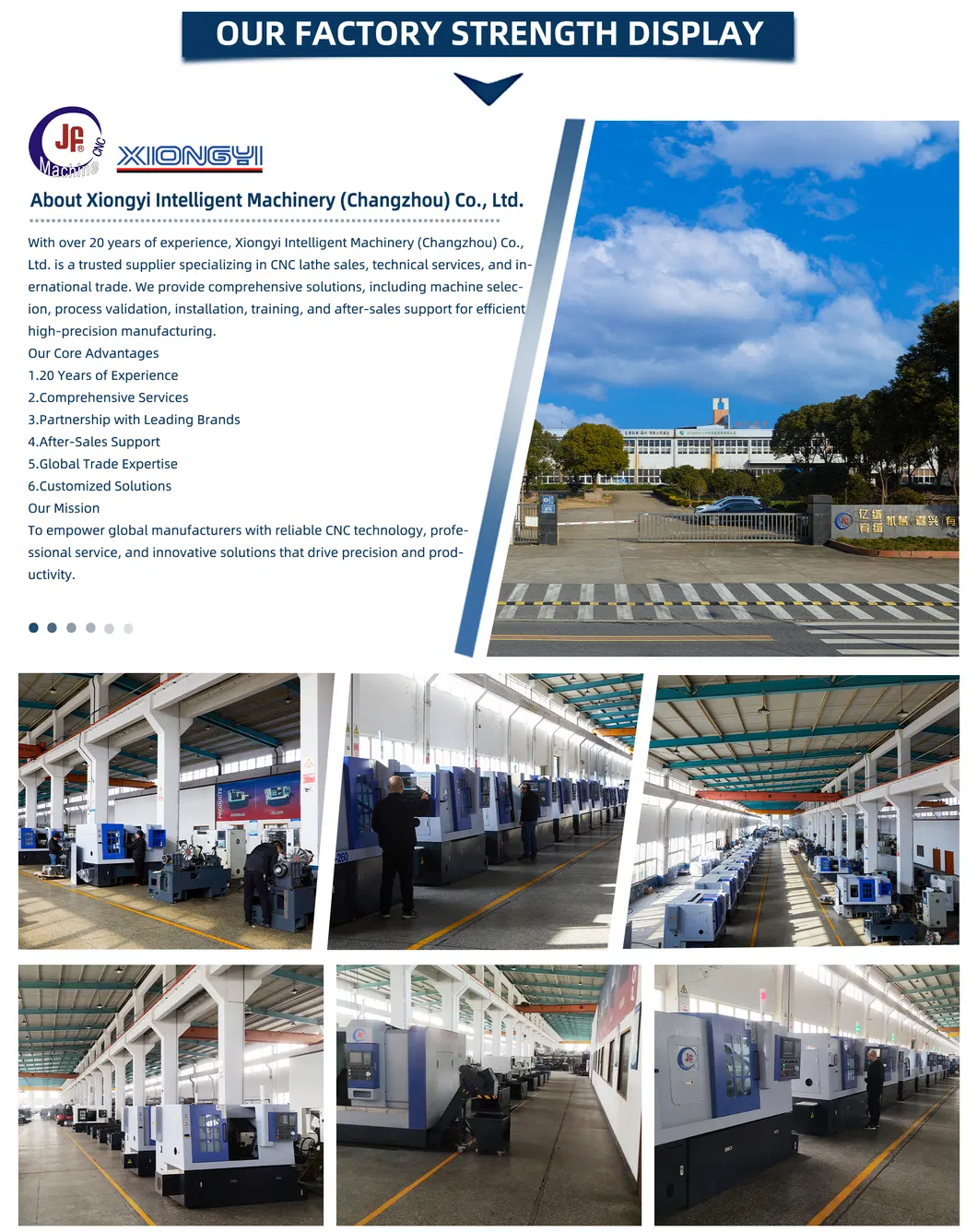

Company Profile

Our Advantages

Our Eight Competitive Advantages

Advantage 1

20 Years of Industry Experience

Two decades of focused CNC machine tool sales and project implementation have accumulated a wealth of successful cases and process libraries, enabling us to quickly provide mature solutions for various industries.

Advantage 2

System-Level Selection Capabilities

We excel at recommending or customizing the most suitable machine tools and automated peripheral equipment based on production capacity, materials, machining accuracy, and cost targets, avoiding trial and error for our clients and reducing TCO.

Advantage 3

Strong Technical Service Team

From on-site equipment installation and commissioning, tooling and fixture optimization, process trial production to personnel training, we provide a one-stop service. We offer remote diagnostics and on-site repair to minimize downtime.

Advantage 4

Comprehensive Spare Parts Guarantee

We maintain a stock of critical spare parts and high-turnover consumables, establishing rapid supply channels to ensure production continuity and reduce production risks caused by spare parts shortages.

Advantage 5

Extensive International Trade Experience

Familiar with export processes, international logistics, customs clearance, and overseas installation coordination; supports multilingual communication, reducing barriers to cross-border procurement and after-sales communication.

Advantage 6

Process Implementation Capabilities

Provides a complete path from sample cutting and process parameter optimization to batch verification; supports fixture/tool customization and production line layout suggestions, ensuring stable project operation.

Advantage 7

Multi-Industry Application Experience

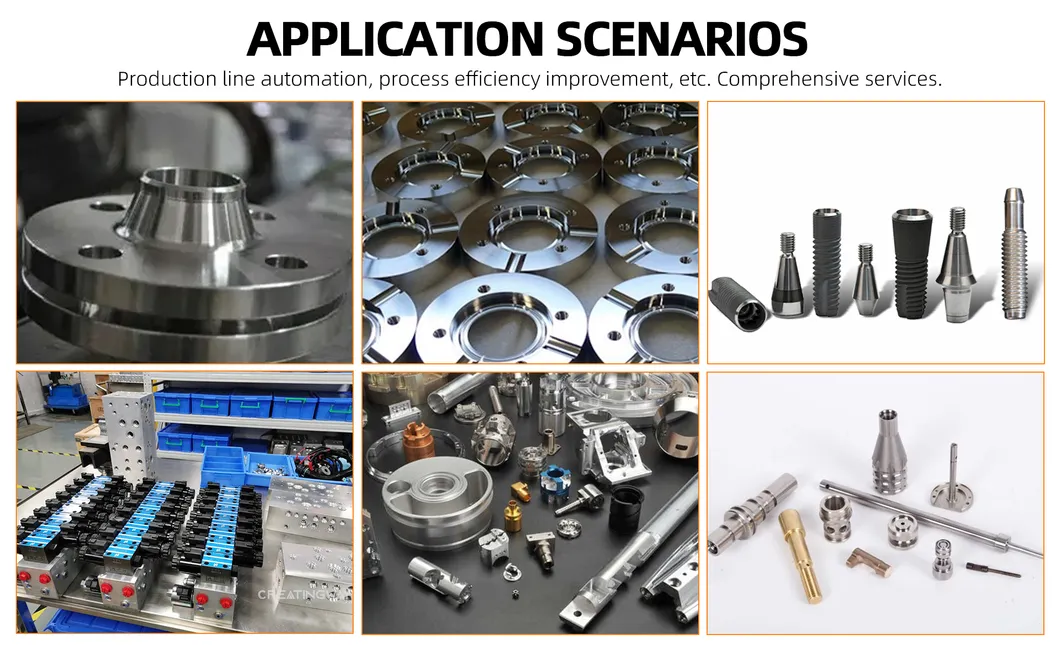

Extensive case studies in automotive, hydraulic components, medical devices, electronic connectors, and aerospace components; able to quickly understand industry-specific key quality points and compliance requirements.

Advantage 8

Customer-Centric & Transparent Cooperation

Clear project contracts and after-sales service terms, traceable progress, regular follow-ups and improvement suggestions, building long-term trusting partnerships with customers.

What We Can Offer You?

Shorten equipment implementation time and reduce defect rates;
Reduce manufacturing costs and energy consumption;
Improve automation and production stability;
Provide reliable process assurance and personnel training for new product introductions.

Certifications

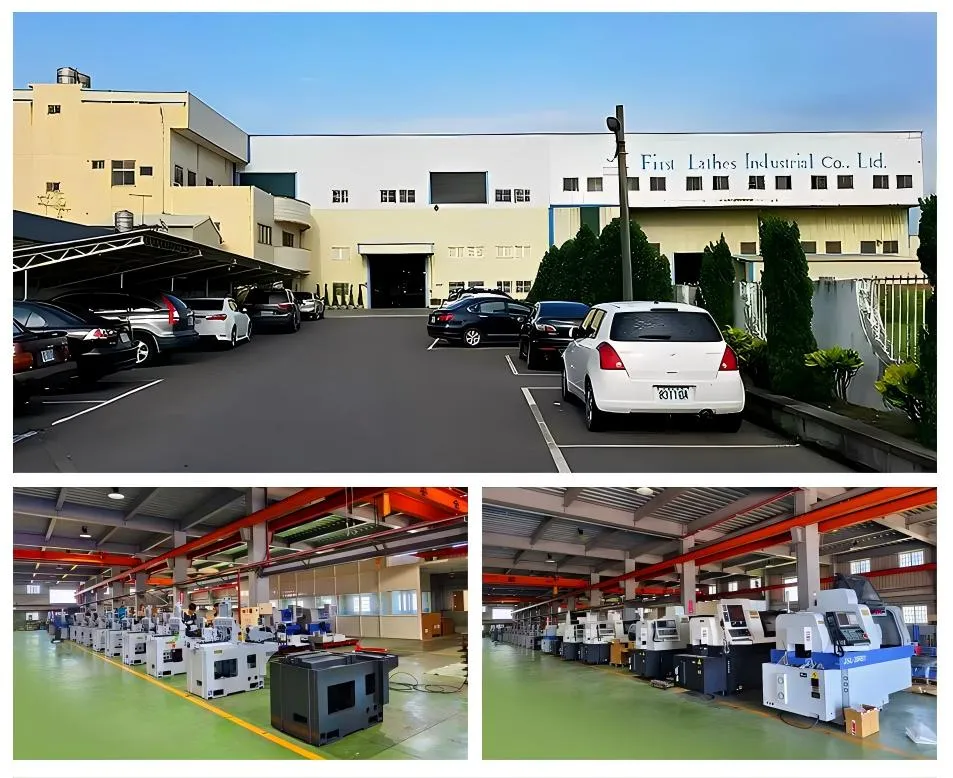

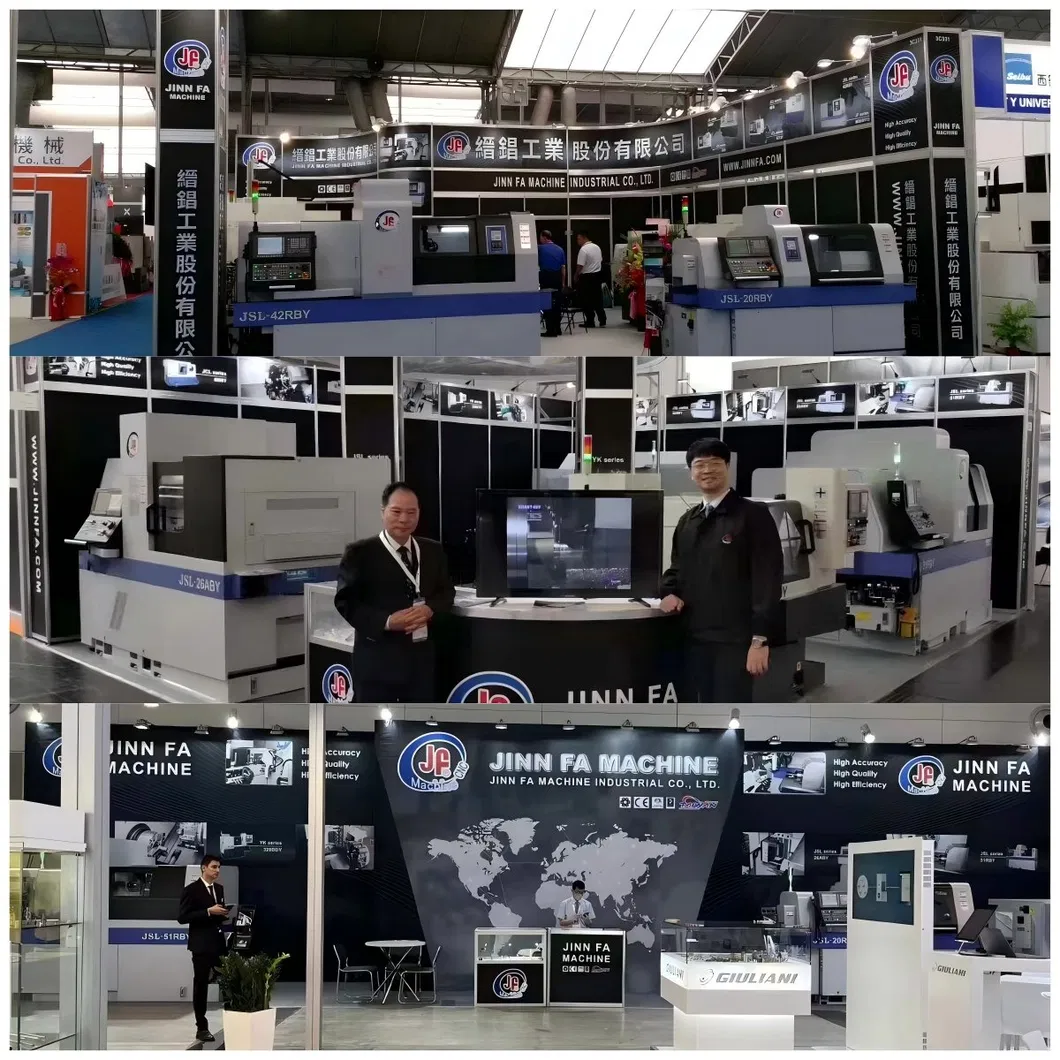

Company Exhibition

Customer Visit and Acceptance

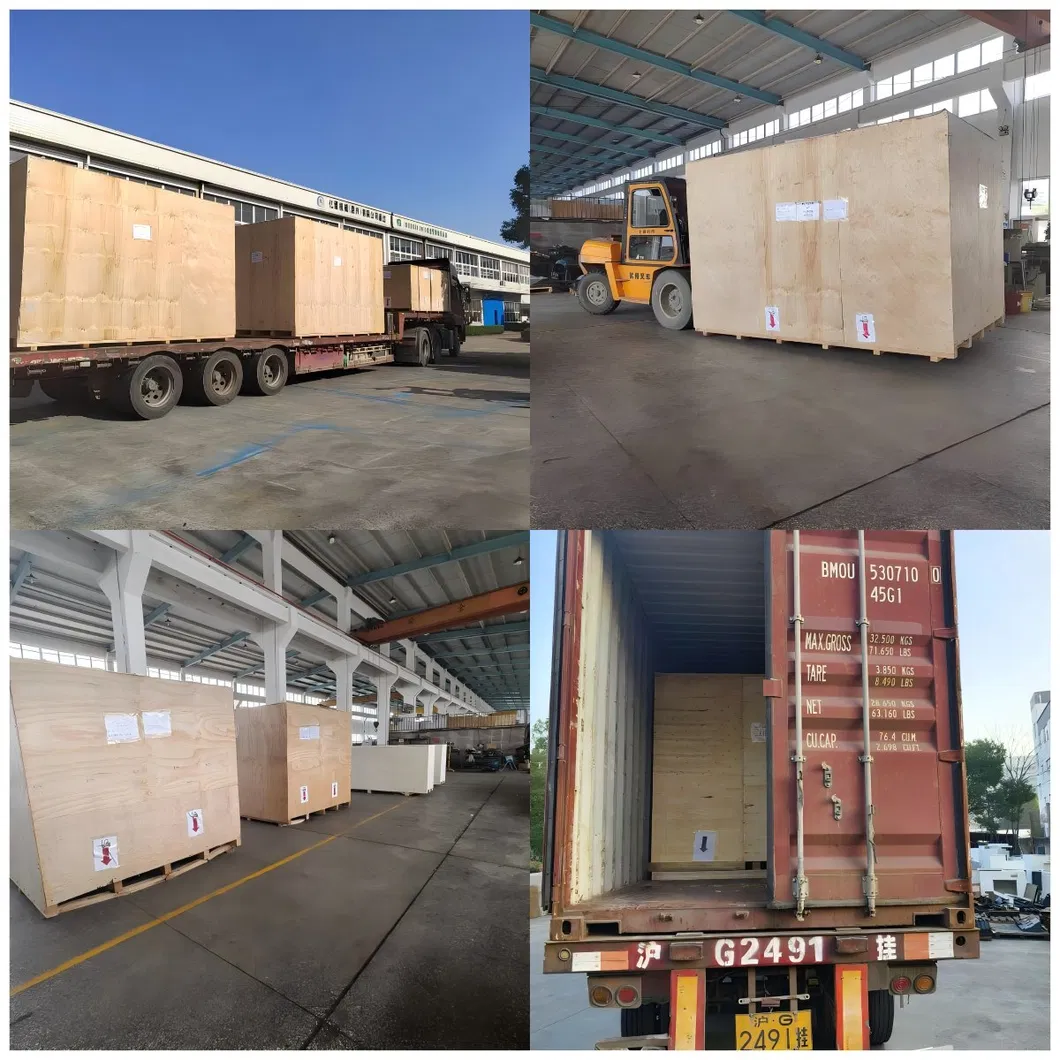

Packaging & Shipping

Frequently Asked Questions

What is your minimum order quantity and warranty?

The MOQ is one set, and the warranty period is one year.

What CNC systems do you support?

We offer systems from FANUC, Siemens, Mitsubishi, GSK, and Syntec, depending on your choice.

How can I choose the most suitable machine?

Please provide your technical specifications or share your product drawings. Our engineering team will analyze your requirements and recommend the most appropriate machine model for you.

What are the main products available?

We specialize in a wide range of machine tools, including CNC lathes, CNC milling machines, vertical machining centers, Swiss-type lathes, grinding machines, special fixtures, non-standard tools, and custom workholding systems.

What are your accepted trade terms?

We accept FOB, CFR, and CIF trade terms.

What are the standard payment terms?

We accept T/T (30% initial deposit payment when ordering, and 70% balance payment paid before shipment) as well as irrevocable L/C at sight.
