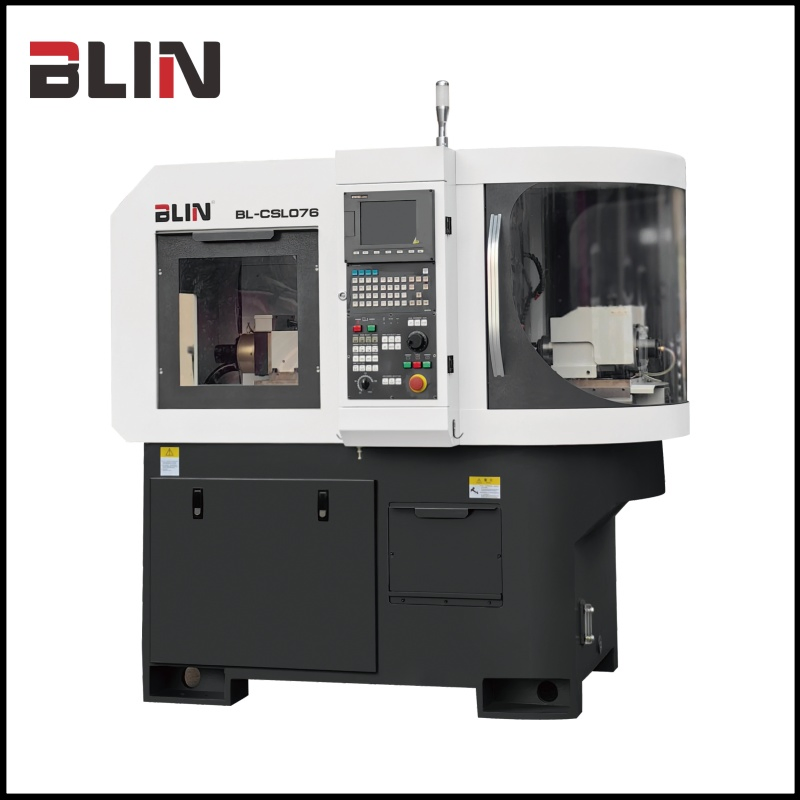

Blin Swiss Type Autoamtic Lathe CNC Lathe (BL-CSL075/076)

1 / 5

Blin Swiss Type Autoamtic Lathe CNC Lathe (BL-CSL075/076)

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Overview
Company Profile

Basic Info.

Model NO. BL-CSL075/076

Type Horizontal Lathe

Processing Accessory Centre CNC Lathe

Guide Rail Horizontal Guide Rail

Tool Holder Multil Tools

Power Source Electric

Controlling Mode CNC

Automatic Grade Automatic

Setting Mode Floor-type

Precision High Precision

Certification CE, ISO 9001

Condition New

Max. Machineable Bar Dia. φ7 (Can Extend to φ10)

Min. Spindle Bore φ1 (Need to Mount Especial Option)

Main Spindle Bore φ14mm

Max. Machineable Length(1) Fixed Guide Bushing: 120mm

Max. Machineable Length(2) Rotary Guide Bushing: 55mm

Max. Machineable Length(3) Guide Bushless: (2~3)×φD, Max. 15~20

Main Spindle Type Servo Oil-Cooling Electro-Spindle

Main Spindle Max Speed 15000 rpm (Regular Using: <12000)

Main Spindle Power 2kw

Main Spindle Index CS Axes (Continuation), Electromagnetic Brake

Main Spindle Axial Static Type Drilling 4×ER11

Main Spindle Max. Face Drilling Dia. φ5 (Alloy Copper)

Main Spindle Max. Face Tapping Dia. 3×Square 10

Rapid Moving Speed 30m/Min

X1/Y1/Z1/X2/Y2/Z2 Axes Motor 0.75/0.75/0.75/0.75/0.75/0.4 (Syntec)

Transport Package Wooden Case

Specification 1790×1260×1700

Origin China

HS Code 8458110090

Production Capacity 480 Units/Year

Product Description

SWISS-TYPE AUTOMATIC LATHE CSL PRECISE SERIES

BL-CSL075/076

SWISS TECHNOLOGY, 5/6 AXES, FOR MICROMINIATURE WORKPIECE

Especially suitable for microminiature workpiece machining (1~10mm)
Adopt similar structure as SWISS & JAPANESE machine
Adopt SWISS technology, most parts adopt GERMANY/JAPAN/TAIWAN brand

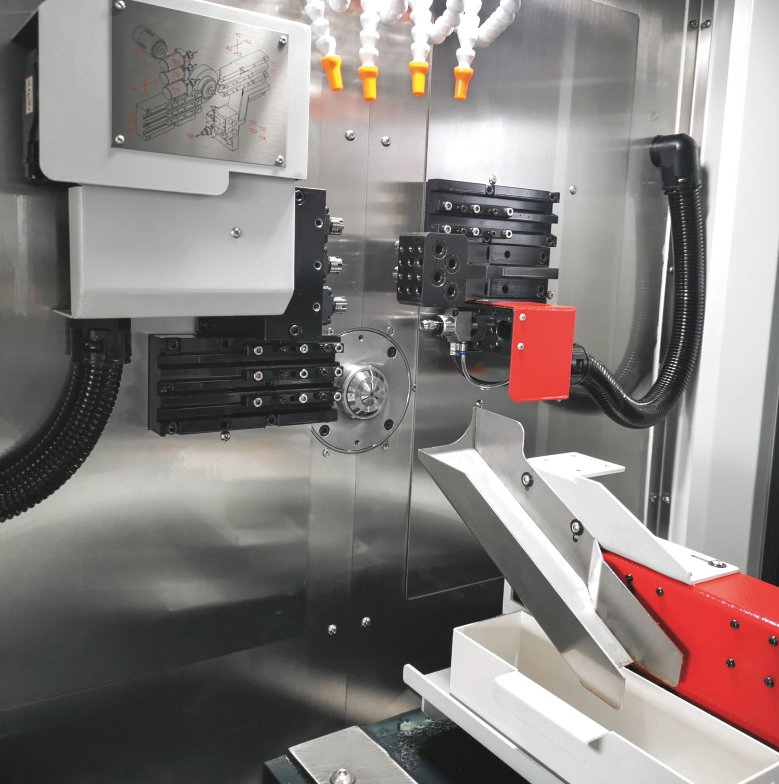

X1/Y1 and X2/Y2 axes can work independently, can realize simultaneous rough & finish turning
Can easily shift between "fixed guide bushing" and "rotary guide bushing", only need approximate 15 minutes

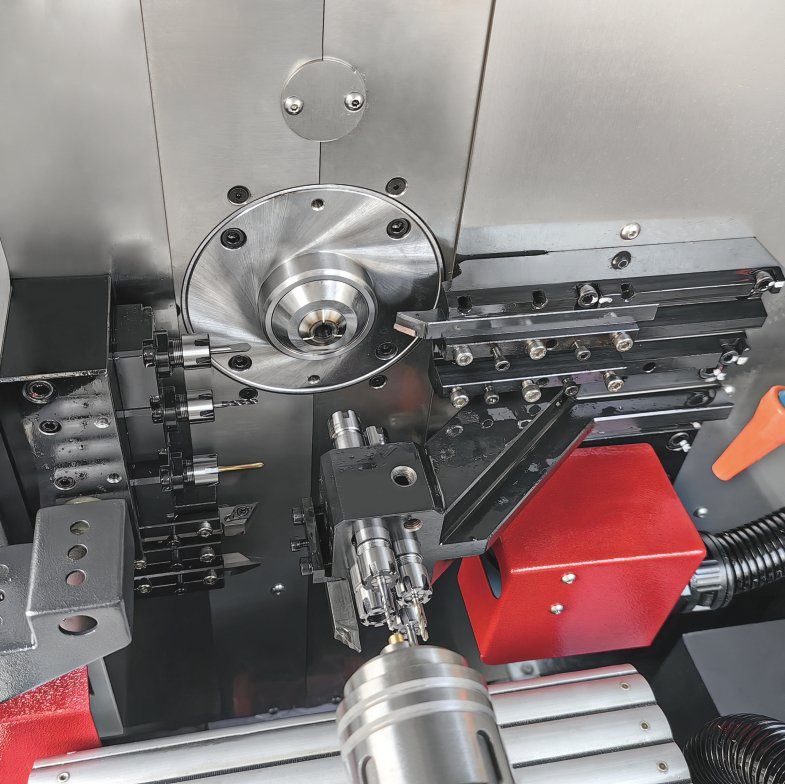

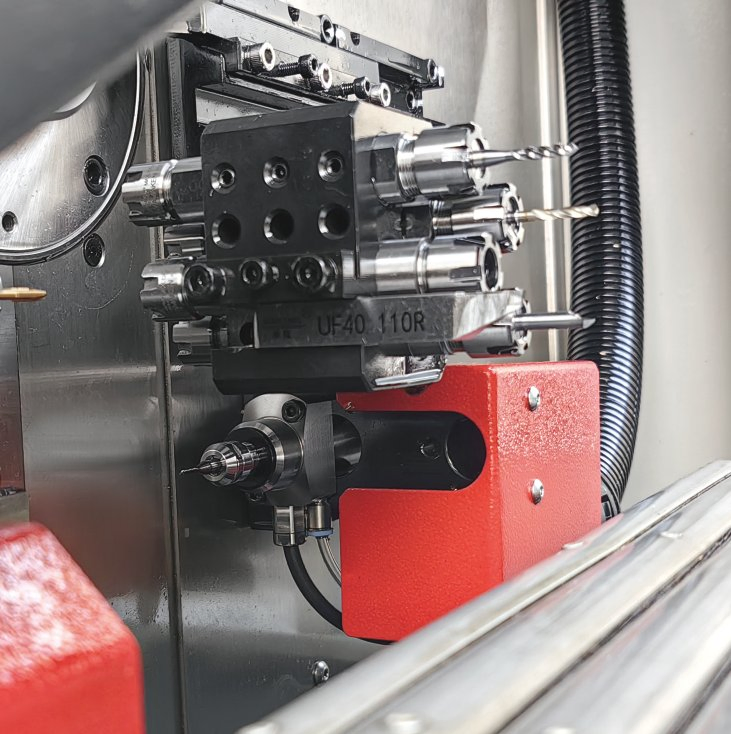

Main spindle standard mount 3pcs high speed (12000rpm) radial type live tools
Leave installment position for 5000~60000rpm super high speed live tool (brushless high speed electro-spindle)

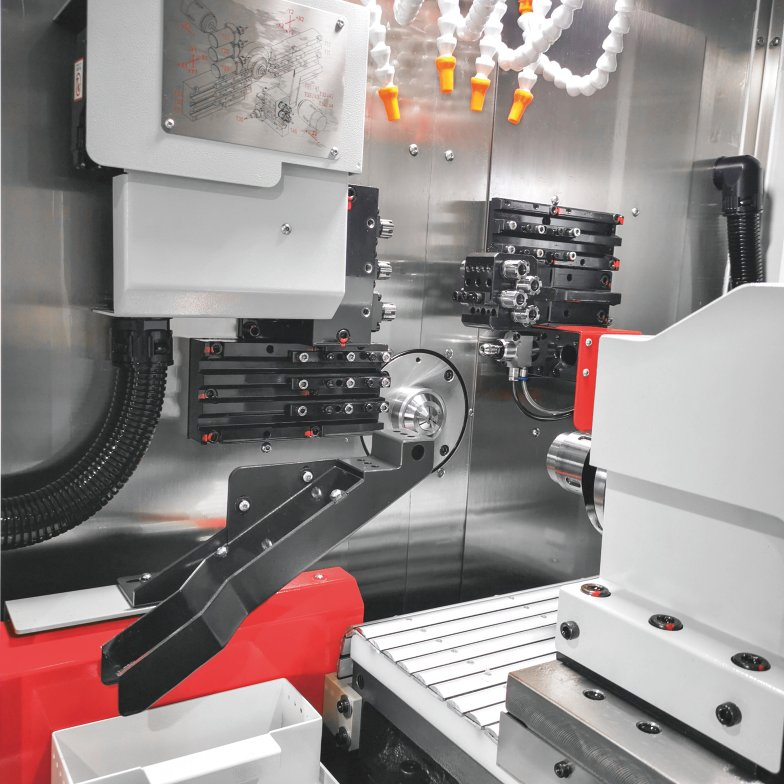

Adopt patent design for parts catching: oil mist & air blowing mixed
Adopt patent design for clamping by built-in type hollow air cylinder
Adopt compact hanging type oil coolant system for spindle coolant
Adopt high precision built-in electro-spindle, NSK super high precise angle bearing, achieve spindle's high precision retention
After mount automatic bar feeder, can realize automatic machining

Technical Specifications

Item	Specification		Unit	BL-CSL075	BL-CSL076
Capacity	Max. machineable bar dia.		mm	Φ7 (can extend to Φ10 for alloy copper & alloy aluminium)
	Min. machineable bar dia.		mm	Φ1 (need to mount especial option)
	Main spindle bore		mm	Φ14
	Max. machineable length	Fixed guide bushing	mm	120
		Rotary guide bushing	mm	55
		Guide bushless	mm	(2~3)×ΦD, max.15~20
Main spindle	Main spindle type		/	Servo oil-cooling electro-spindle
	Main spindle max speed		rpm	15000 (regular using: <12000)
	Main spindle power		kw	2
	Main spindle index		/	CS axes (continuation), electromagnetic brake
	Main spindle axial static type drilling tool		mm	4×ER11
	Main spindle max. face drilling dia.		mm	Φ5 (alloy copper)
	Main spindle max. face tapping dia.		mm	M4 (alloy copper)
X1 axes (left side)	O.D. turning tool		mm	3×square 10
	Radial type live tool		mm	2×ER11 (shifting 2.5mm, max. clamping dia.:4mm, suitable for tapping) + 1×ER11 (shifting 13.5mm, max. clamping dia.:4mm, suitable for Φ24~25mm groove sawing)
	Radial type live tool max speed		rpm	12000 (regular using: <10000)
	Radial type live tool power		kw	0.4
	Radial type live tool max. drilling dia.		mm	Φ4 (alloy copper)
	Radial type live tool max. tapping dia.		mm	M3 (alloy copper)
X2 axes (right side)	O.D. turning tool		mm	2×square 10
	Radial type live tool		mm	1×ER8 (suitable for microholes drilling, tapping, and groove sawing)*
	Radial type live tool max speed		rpm	5000~60000 (brushless high speed electro-spindle)*
	Radial type live tool power		kw	0.15*
	Radial type live tool max. drilling dia.		mm	≤Φ1*
	Axial type live tool max speed		rpm	5000~60000 (brushless high speed electro-spindle)*
	Axial type live tool power		kw	0.15*
Back spindle (Z2 axes)	Back spindle type		/	/	Servo oil-cooling electro-spindle
	Back spindle max speed		rpm	/	15000 (regular using ≤12000)
	Back spindle power		kw	/	1
	Back spindle index		/	/	CS axes (continuation), electromagnetic brake
	Back spindle axial static type drilling tool		mm	/	4×ER11 (share with main spindle)
	Back spindle max. face drilling dia.		mm	/	Φ5 (alloy copper)
	Back spindle max. face tapping dia.		mm	/	M4 (alloy copper)
	Back spindle O.D. turning tool		mm	/	1×square 10
	Back spindle max. workpiece insert length		mm	/	15
	Back spindle max. workpiece catching length		mm	/	40
Others	Rapid moving speed		m/min	30
	Repeat positioning accuracy		mm	≤0.003
	X1/Y1/Z1/X2/Y2/Z2 axes motor		kw	0.75/0.75/0.75/0.75/0.75/None (SYNTEC)	0.75/0.75/0.75/0.75/0.75/0.4 (SYNTEC)
	Coolant pump		kw	0.2
	Lubrication pump		w	25
	Total power		KVA	6
	Overall size		mm	1790×1260×1700
	N.W.		kg	1300	1600

* As option

Main Parts List

Item	Brand
CNC controller	TAIWAN-SYNTEC
Servo motor & driver	TAIWAN-SYNTEC
Spindle encoder	TAIWAN-SYNTEC
Spindle bearing	JAPAN-NSK
Ball screw bearing	JAPAN-NSK
Ball screw	JAPAN-THK
Linear guideway	TAIWAN-CSK
Lubrication system	JAPAN-HERG
Main electricity parts	FRANCE-SCHNEIDER
Pneumatic parts	TAIWAN-AIRTAC

Standard Configuration

SYNTEC 210TB-E/220TB CNC controller
Fixed guide bushing
Parts catcher
Spindle oil cooler

Optional Configuration

Oil mist collection system
Rotary guide bushing
Bar feeder

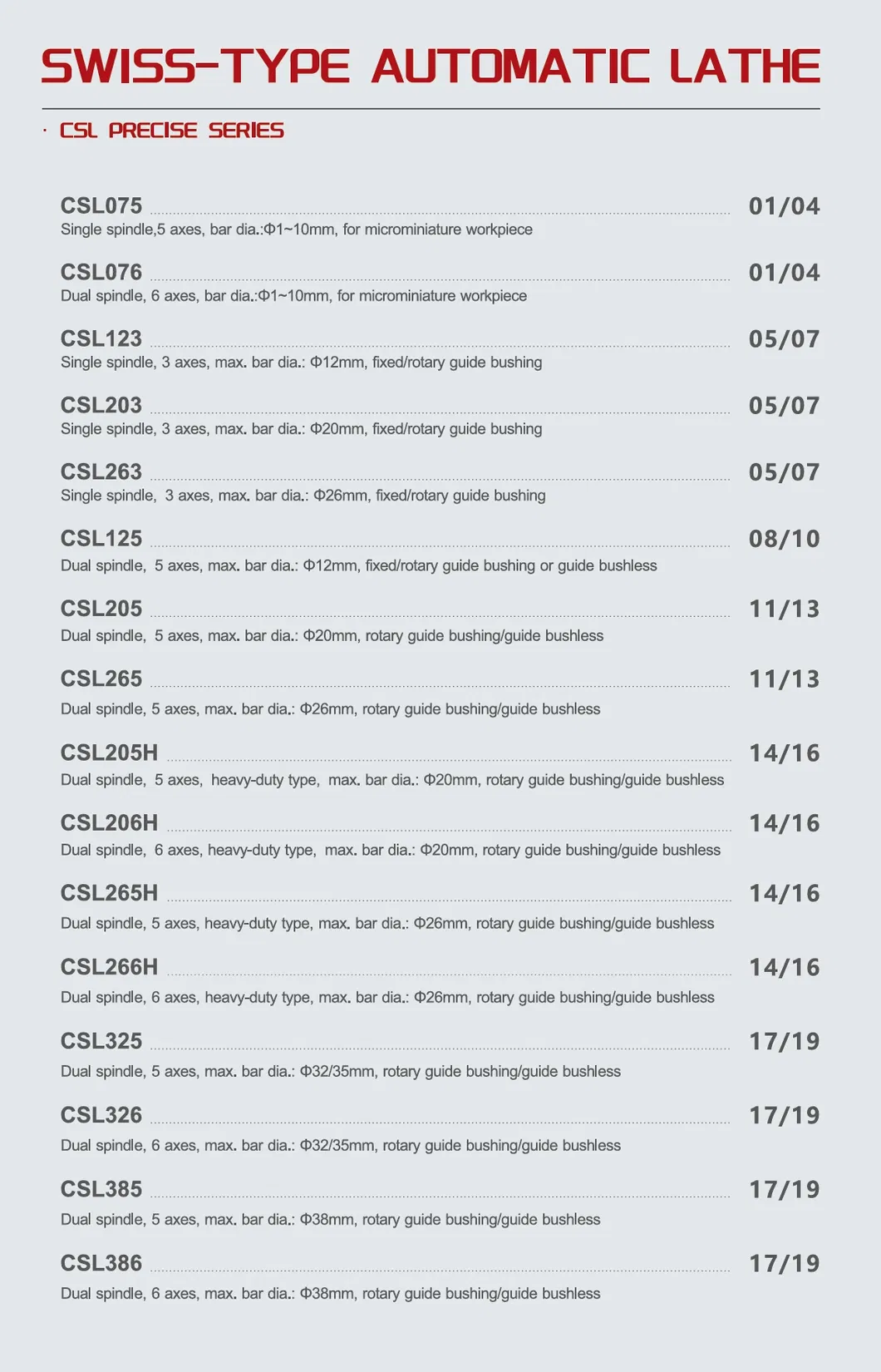

Other Models Choice

All Our Machines Range

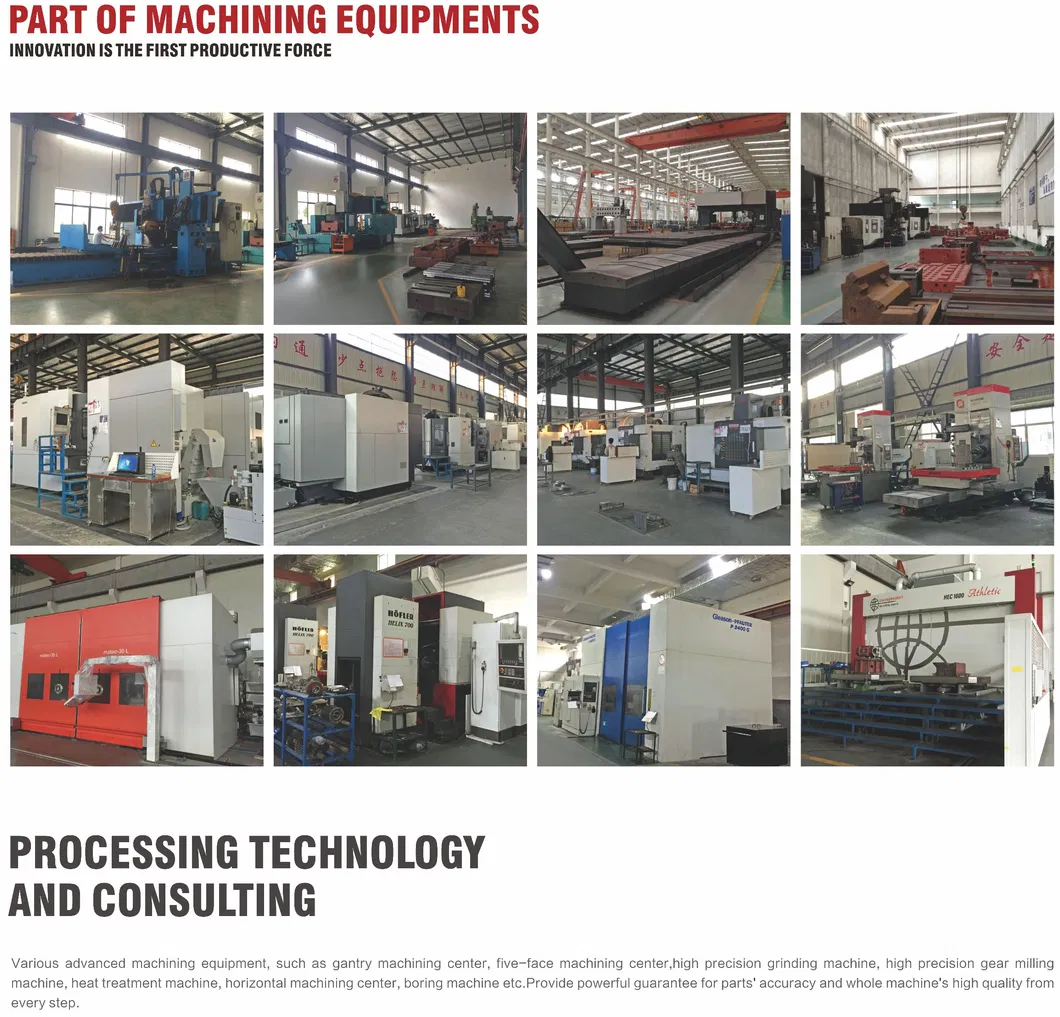

Gallery & Capabilities

Frequently Asked Questions

Q1: What materials are best processed using the CSL precise series CNC lathe?

A1: These Swiss-type automatic lathes are highly optimized for processing microminiature workpieces (1mm to 10mm in diameter). They deliver outstanding performance and accuracy when machining alloy copper, alloy aluminum, stainless steel, and other precision hardware parts.

Q2: How quickly can the machine switch between fixed and rotary guide bushings?

A2: The innovative design allows for rapid switching between fixed guide bushing mode and rotary guide bushing mode in approximately 15 minutes, offering excellent setup flexibility for different production requirements.

Q3: What brand of CNC controller is equipped on this machine series?

A3: The machines are standard-equipped with high-quality TAIWAN-SYNTEC CNC controllers (SYNTEC 210TB-E/220TB), providing stable and highly responsive system performance.

Q4: Does the spindle design protect against thermal expansion and wear?

A4: Yes, the lathe features a built-in servo oil-cooling electro-spindle with a compact hanging oil coolant system. Coupled with Japanese NSK super-precise angular contact bearings, it effectively minimizes heat generation and ensures high accuracy retention during long cycles.

Q5: Can the lathe support unattended or automatic operations?

A5: Absolutely. By integrating the optional automatic bar feeder, the lathe can run high-volume production batches completely unattended, substantially increasing output and reducing labor costs.

Q6: What is the repeat positioning accuracy of the BL-CSL075/076?

A6: Thanks to precision ball screws from Japan-THK and linear guideways from Taiwan-CSK, both models achieve a repeat positioning accuracy of ≤0.003 mm with rapid traverse speeds of up to 30 m/min.
