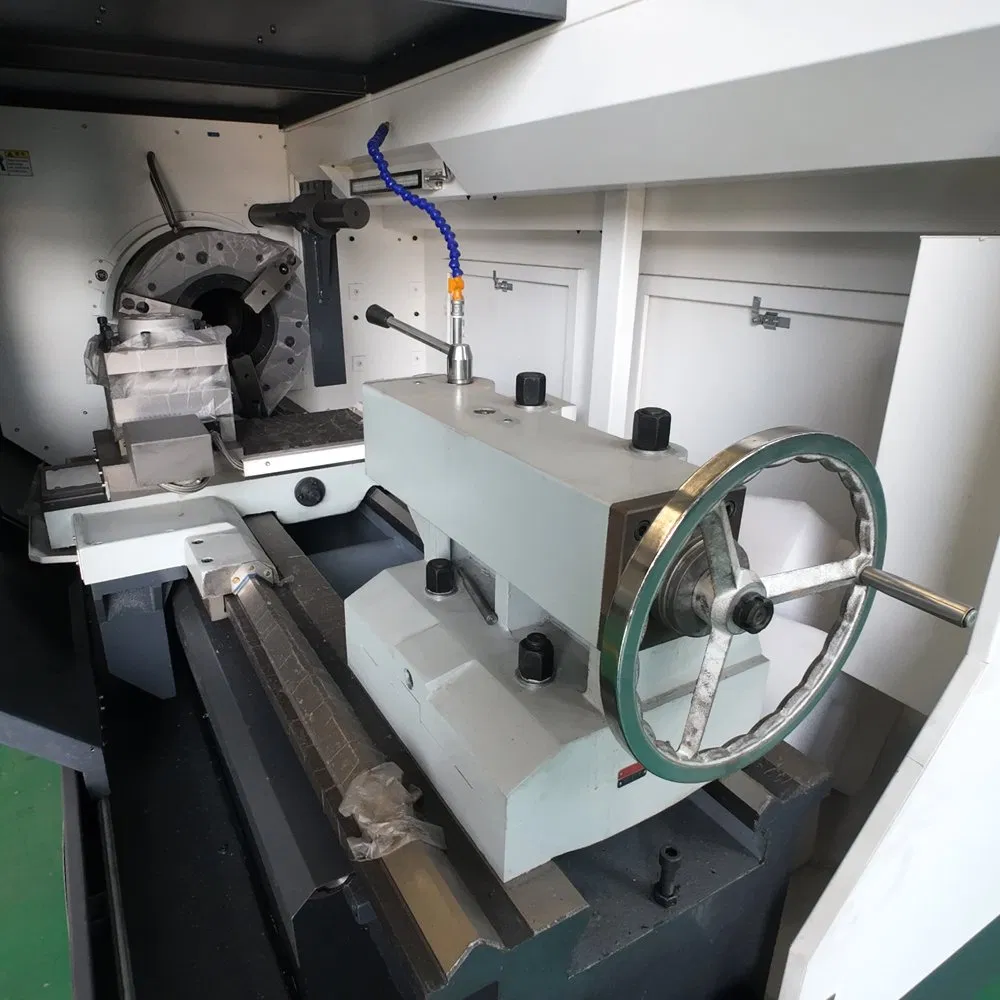

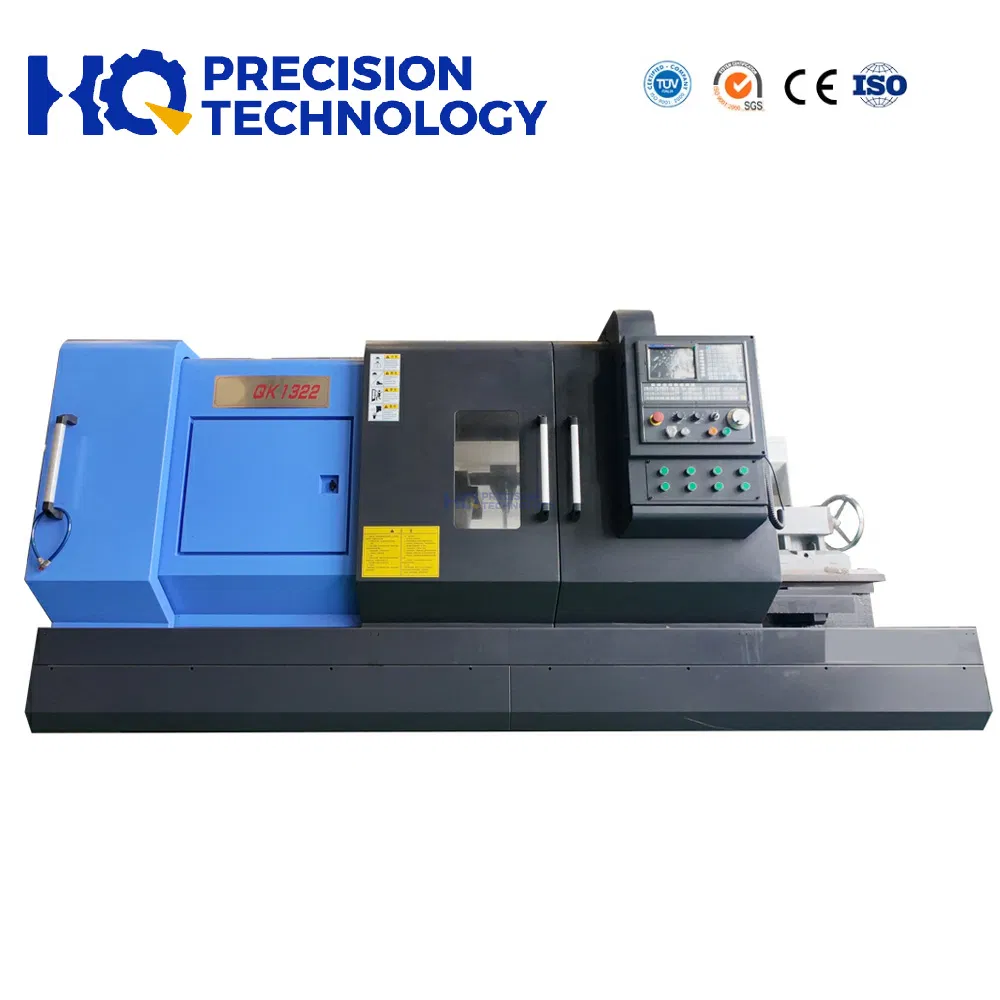

This series of CNC pipe thread lathe is primarily designed for machining internal and external threads on pipeline workpieces. Additionally, it incorporates the functionalities of a standard CNC lathe, enabling the machining of outer diameters, inner holes, and end faces for shaft-type and disc-type workpieces. These machines are widely used in the petroleum industry for processing and repairing workpieces such as drill pipes, couplings, and casings. They are also applicable in industries including geological exploration, mineral mining, chemical smelting, pipeline network construction, mechanical manufacturing, and shipbuilding.

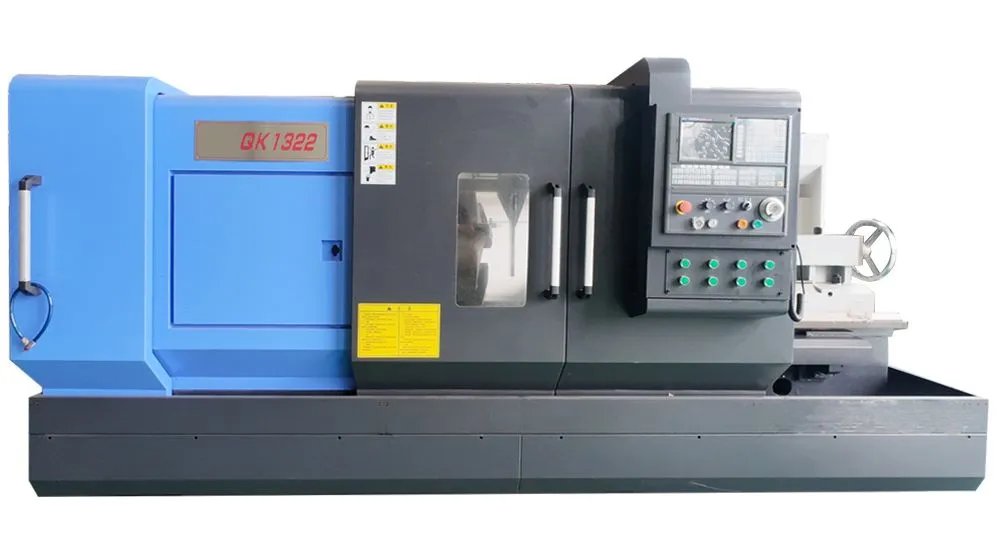

| SPECIFICATION | UNIT | QK1313 | QK1319 | QK1322 | |||
|---|---|---|---|---|---|---|---|
| Manual | Manual | HYD | Manual | Manual | |||
| Capacity | Swing over bed | mm | 630/800 | 630/800 | 630/800 | ||
| Swing over cross slide | mm | 340/520 | 340/520 | 340/520 | |||
| Distance between centers | mm | 1000-6000 | 1000-6000 | 1000-6000 | |||
| Pipe threading range | mm | 30-126 | 50-193 | 50-220 | |||
| Guideway width | mm | 550 | 550 | 550 | |||
| Max. load capacity | T | 3 | 3 | 3 | |||
| Spindle | Spindle bore | mm | 130 | 206 | 225 | ||
| Spindle speed steps | - | F.3steps | NF.4 steps / HYD.4 steps | F.4steps | HYD.4steps | ||
| Spindle speed range | rpm | 30-800 | 20-500 | 20-500 | |||

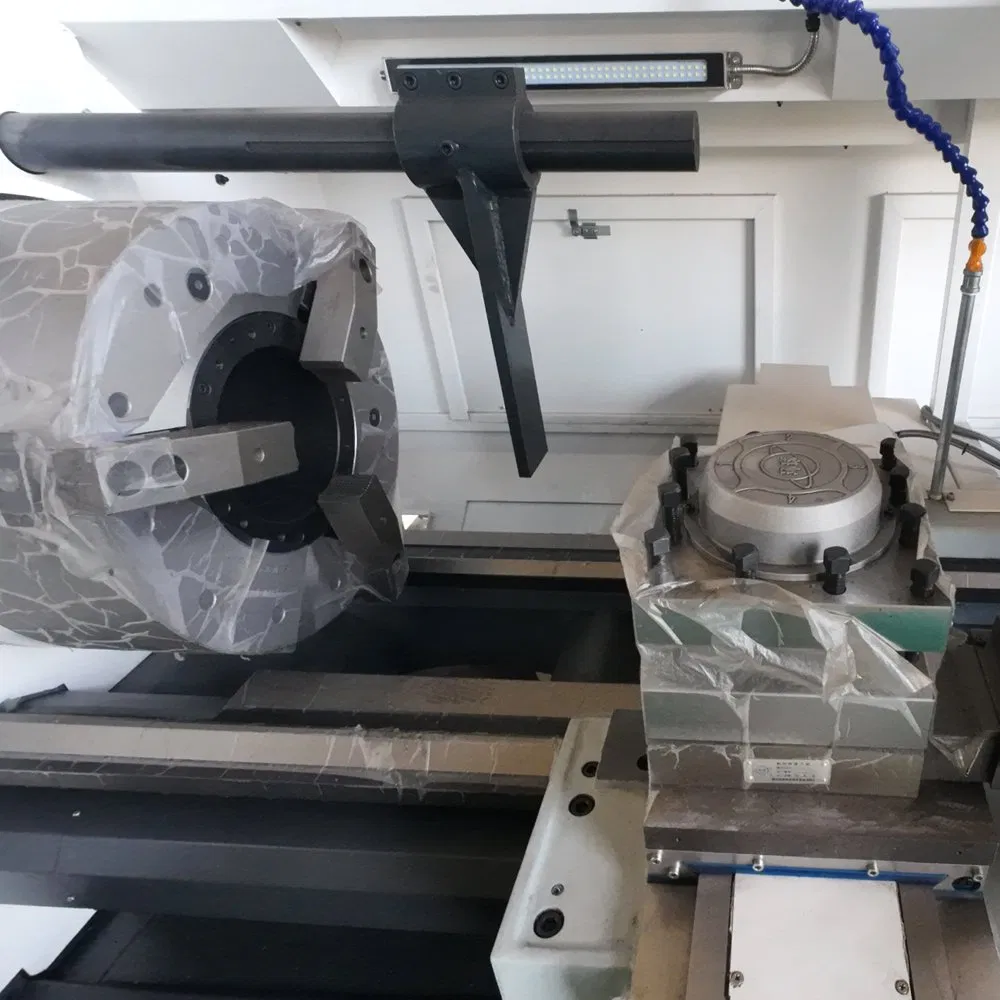

| Chuck | mm | φ400 3-jaw manual | φ500 3-jaw manual | φ500 3-jaw manual | |||

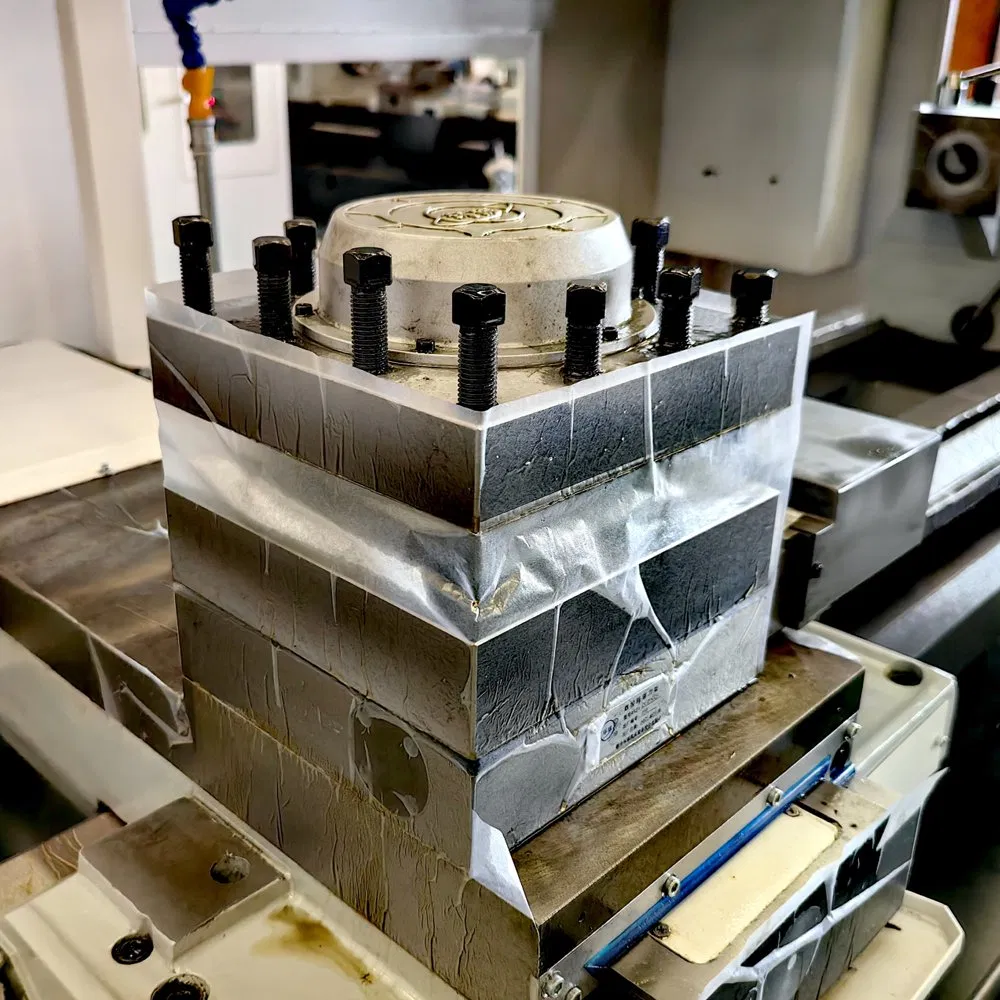

| Turret | Turret/tool post | - | NC turret 4 position | NC turret 4 position | NC turret 4 position | ||
| Tool shank size | mm | 32×32 | 32×32 | 32×32 | |||
| Feed | X axis travel | mm | 340/420 | 340/420 | 340/420 | ||
| Z axis travel | mm | 1000-6000 | 1000-6000 | 1000-6000 | |||
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | |||
| Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | |||
| Tailstock | Tailstock quill diameter | mm | φ100 | φ100 | φ100 | ||
| Tailstock quill taper | - | MT6 | MT6 | MT6 | |||
| Tailstock quill travel | mm | 250 | 250 | 250 | |||
| Motor | Main spindle motor | kW | 11 | 11 | 11 | ||
| Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | |||
| Dimension | Width x Height | mm | 1800×1850 | 1880×1850 | 1880×1850 | ||
| Length | mm | 3000/8300 | 3000/8300 | 3000/8300 | |||
| Weight | Net weight | T | 4-8 | 4.6-8.6 | 4.7-8.7 | ||
| Please note: machine bed length can customize according to real work demand, machine on this page can choose servo motor direct driving structure turning center with C axis. | |||||||
CNC pipe threading lathes can machine high-precision threads, ensuring the tightness and reliability of pipeline connections, and meeting the usage requirements under harsh working conditions such as high pressure and high temperature.
CNC pipe threading lathe can efficiently and precisely machine threads that meet the standards of the automobile industry, improving production efficiency and product quality.
High-precision threaded pipe fittings are required for the hydraulic system, fuel system, oxygen system, etc. of aircraft. CNC pipe threading lathes can machine high-precision threads that meet aerospace standards, ensuring safe operation in complex flight environments.
CNC pipe threading lathes can machine various specifications of threads according to different pipe materials and threading requirements, meeting the diverse needs of the mechanical manufacturing industry.
CNC pipe threading lathes can machine beautiful and high-precision threads, which not only ensure the tightness of the products but also improve the overall quality and appearance.
CNC pipe threading lathes can machine threaded pipe fittings with high precision and resistance to seawater corrosion, ensuring the safe operation of the pipeline systems of ships in marine environments.
CNC pipe threading lathes can machine threads of different specifications, meeting the requirements for tightness and stability of pipeline connections in construction projects.
We understand that every industry and customer has unique requirements. With over 70 years of expertise in manufacturing medium and large lathes, we specialize in providing tailored solutions to meet the diverse needs of our global clients.
Whether you are in automotive, aerospace, oil & gas, or precision engineering, we design and manufacture lathes that align with your specific operational demands.
With over 5% of our annual revenue invested in R&D, 30+ patents, and collaborations with top research institutions, we deliver innovative, high-performance solutions.

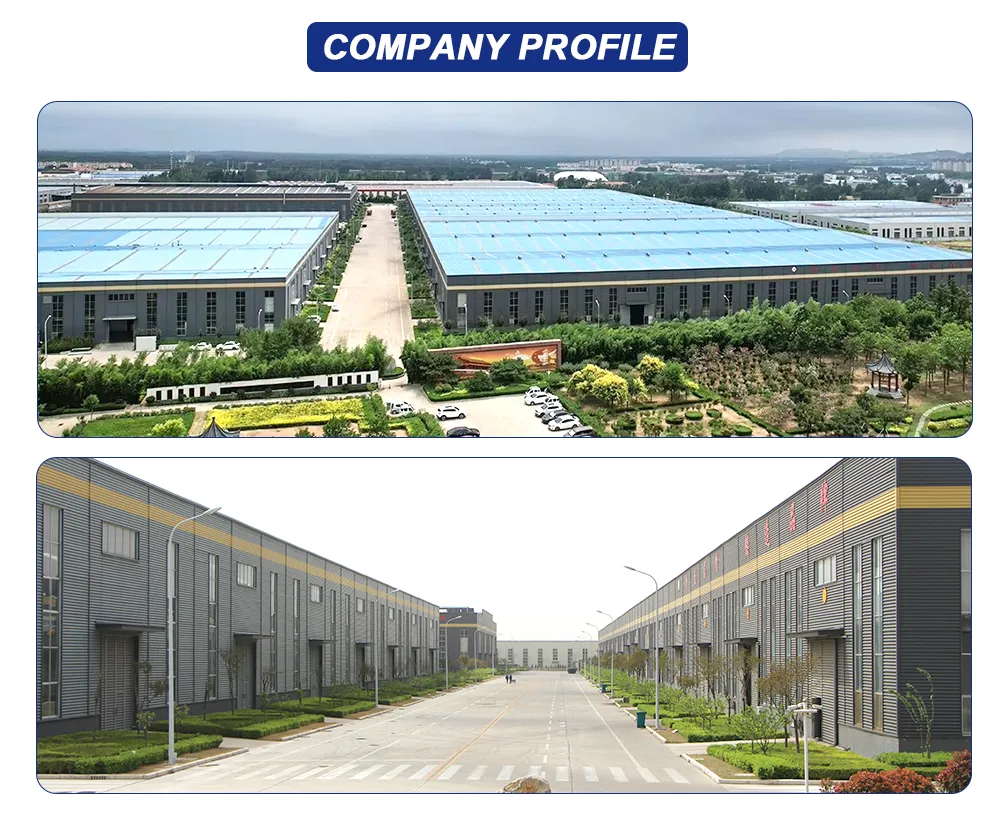

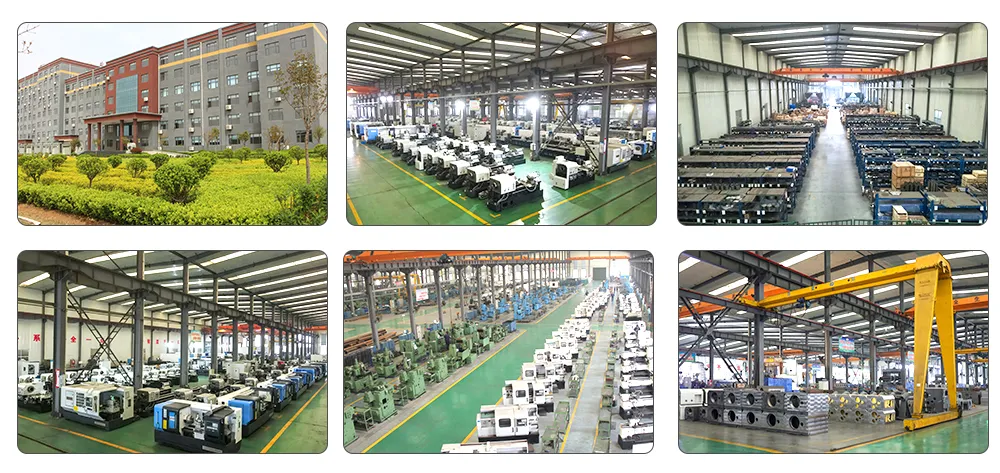

Our state-of-the-art facility, equipped with 500+ production and precision testing devices, allows us to customize CNC lathes, pipe thread lathes, and machining centers etc. to your exact specifications.
We ensure our customized products meet international standards, including ISO9001 certification, and comply with regional regulations for seamless integration into your operations.
From initial consultation to design, production, and after-sales service, our team of 50+ engineers and technicians provides comprehensive support to ensure your satisfaction.
We work closely with you to understand your technical needs, production goals, and industry challenges.
Our R&D team creates customized designs using advanced CAD/CAM tools, ensuring precision and efficiency.
We build prototypes and conduct rigorous testing to validate performance and reliability.
With an annual production capacity of 1,000 units, we ensure timely delivery without compromising quality.
Our 365/24 online support and on-site technical assistance guarantee smooth operation and minimal downtime.
"Precision crafted, globally trusted" - We are committed to delivering customized solutions that drive your success. Contact us today to discuss how we can meet your unique requirements and help you achieve your production goals.
Your Needs, Our Expertise - Customized for Excellence.
A complete quality management system has been established, and strict quality inspection and control are carried out in every link, from raw material procurement, component processing, assembly to the whole machine debugging. By introducing advanced inspection equipment and quality control methods, such as coordinate measuring machines and laser interferometers, comprehensive inspection of products is carried out to ensure that product quality meets national standards and industry requirements.
We prioritize understanding your needs to provide the best solutions:
Technical Consultation: Our expert team offers tailored advice to help you select the right lathe for your industry and application.
Customization Support: We analyze your requirements and design customized solutions to meet your specific production goals.
Quotation & Planning: Transparent pricing and detailed project timelines ensure clarity and alignment with your expectations.
We ensure a seamless experience from order to delivery:
Efficient Production: With 500+ advanced production and testing devices, we maintain high-quality standards while meeting deadlines.
Real-Time Updates: Stay informed with regular progress reports and photos of your order during production.
Global Logistics: We handle shipping, customs clearance, and documentation for hassle-free delivery to your location.
Our commitment extends beyond delivery to ensure your long-term success:
Installation & Training: Our engineers provide on-site installation and operator training for smooth machine integration.
365/24 Support: Access our technical support team anytime for troubleshooting and operational guidance.
Maintenance & Spare Parts: We offer scheduled maintenance guide services and a readily available inventory of genuine spare parts to minimize downtime.
