Product Detail
Home
>
Swiss-Type CNC Lathe
>
Swiss type CNC lathe machining case or part
❮
❯
1
/
5
Swiss type CNC lathe machining case or part
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Send Inquiry
Product Description
Basic Info.
Model NO.
SZ-205E2
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Control System
FANUC (OP Mitsubishi)
Guide Bush Mode
Switchable
Transport Package
Standard Export Wooden Case
Specification
2180mm*1280mm*1865mm
Origin
China
HS Code
8458110090
Production Capacity
500
Product Description
Brief Description of Model SZ-205E2:
Origin: Shenzhen, China
Certification: CE
Max Machining bar diameter: Φ20mm
Dual spindles
Main spindle: HAOZHI (China)
FANUC 0i-TF Plus system (Japan)
Accuracy: 0.01mm (Depend on specific workpiece)
Electrical components: Schneider
X1 travel: 90mm; X2 travel: 350mm; Y1 travel: 340mm; Y2 travel: 60mm; Z1 travel: 240mm; Z2 travel: 220mm;
Suit for solving of Complicated, High-precision and Mini Parts
High Efficient and Diversified Machining, Compound Machining: Turning, Milling, Drilling, Tapping
Modular Tools Layout, Multi-axis Combined Operation; Stable, High-speed, Highly-efficient, Easy Operation

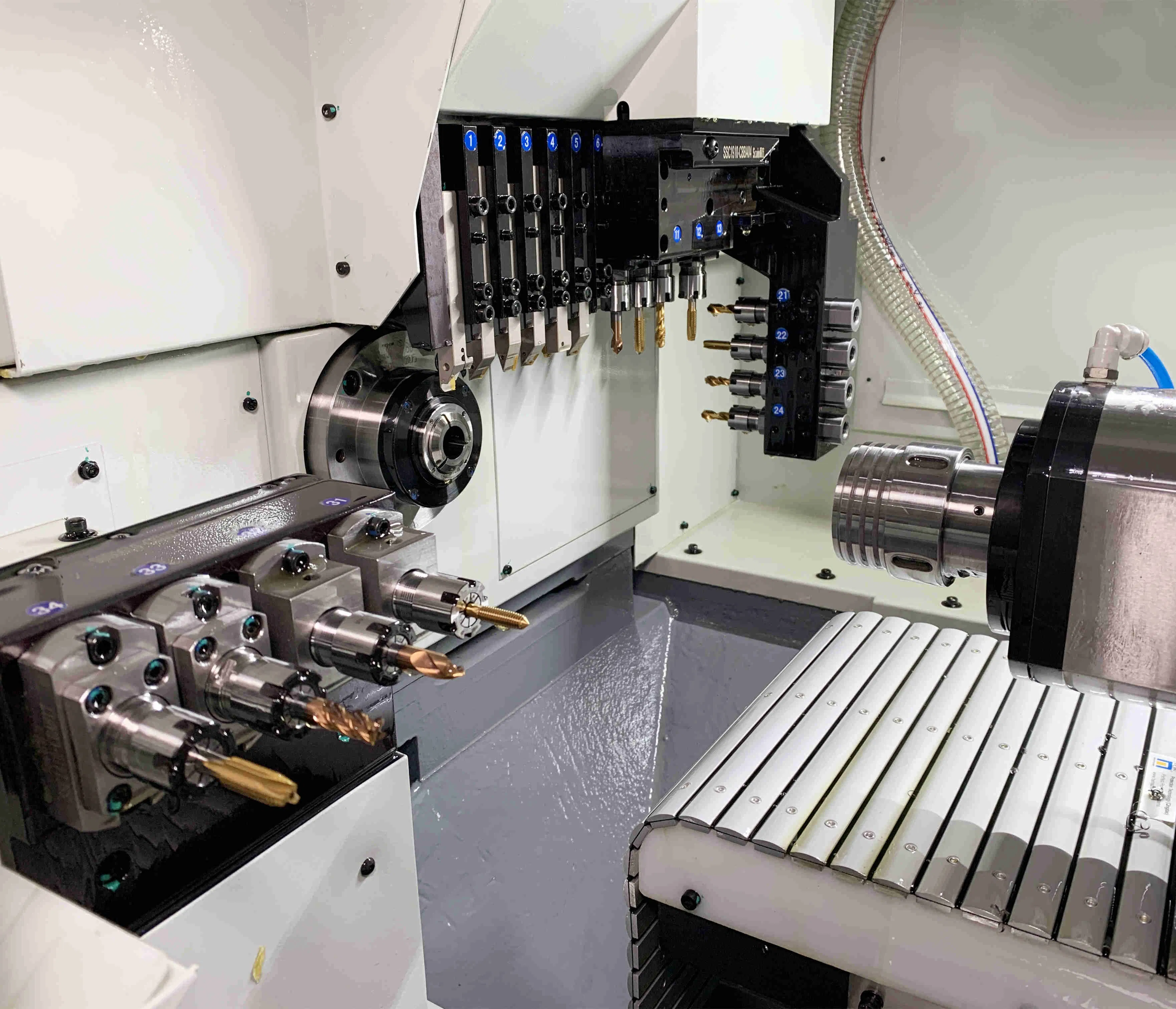

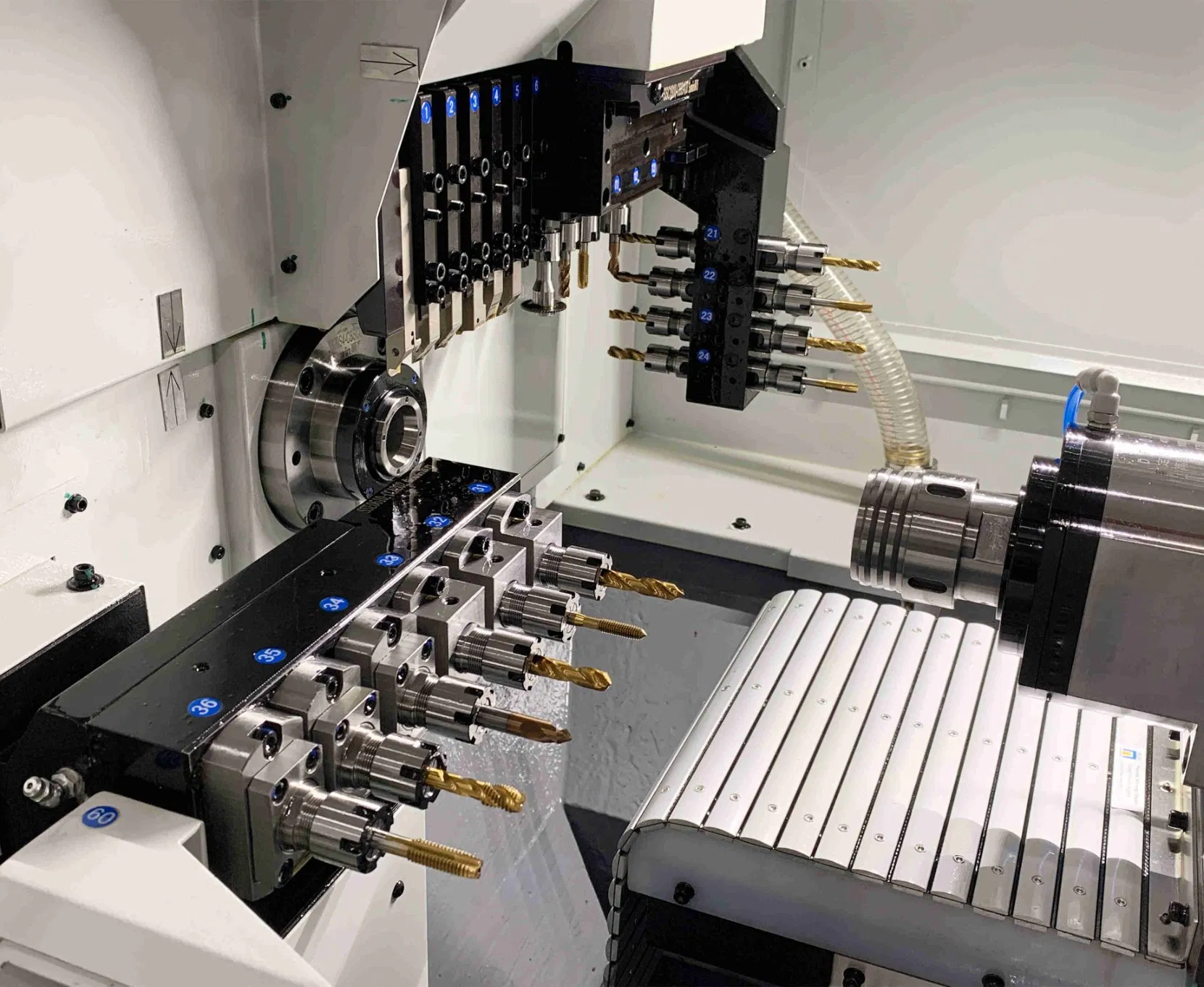

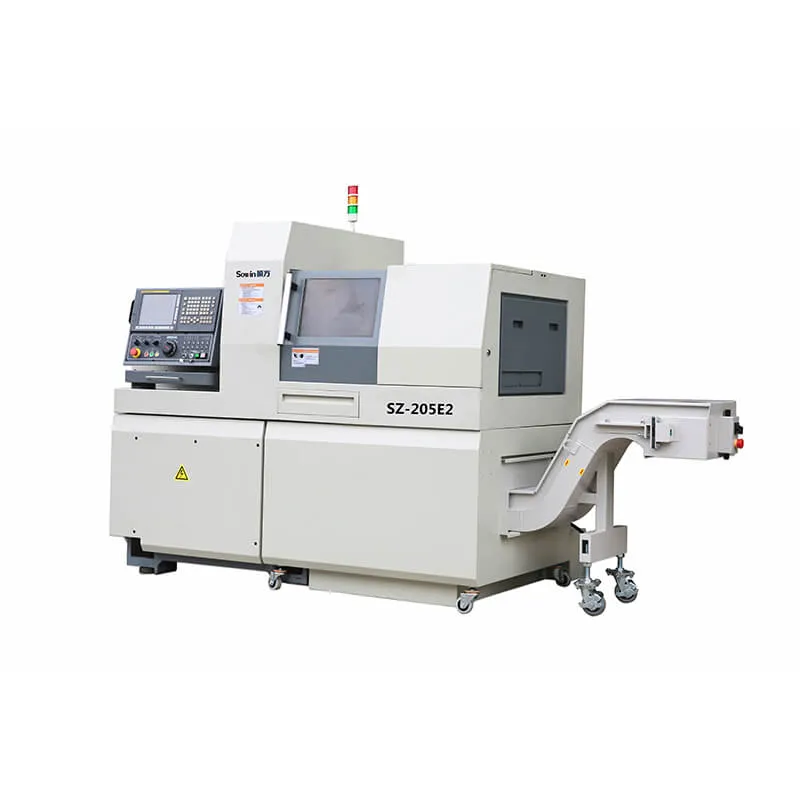

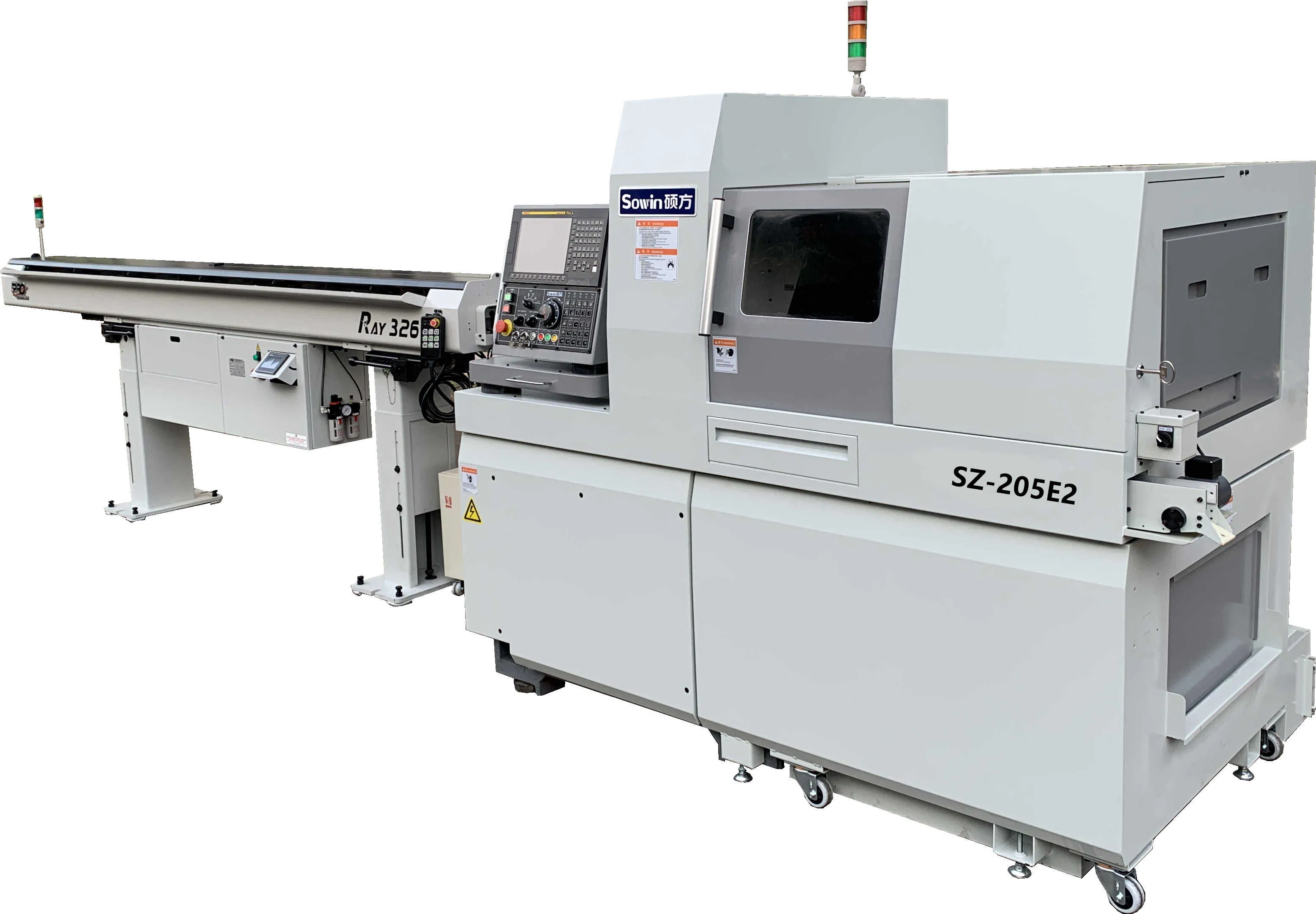

Product Photo

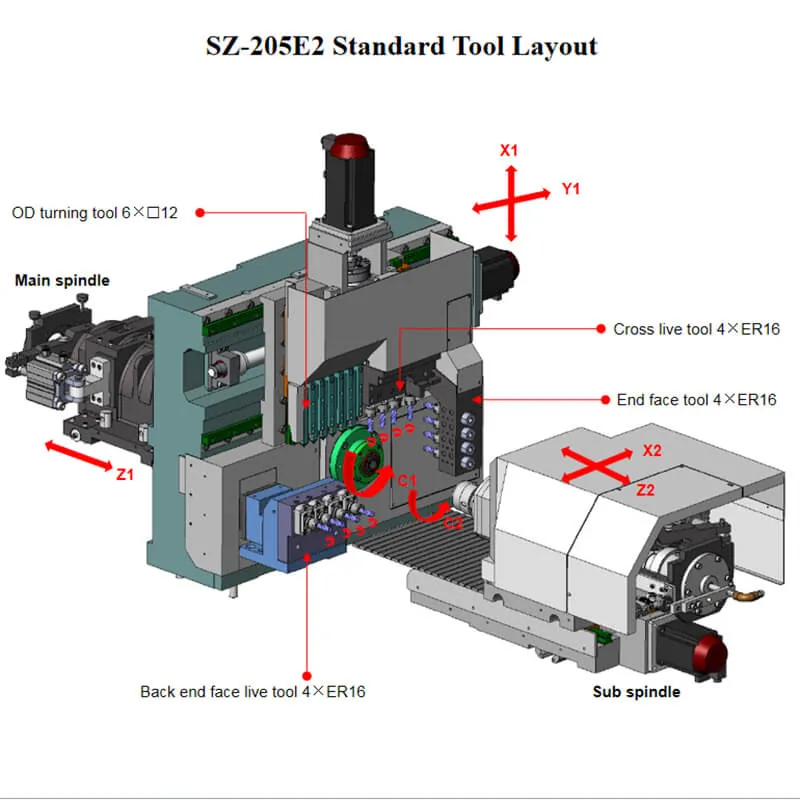

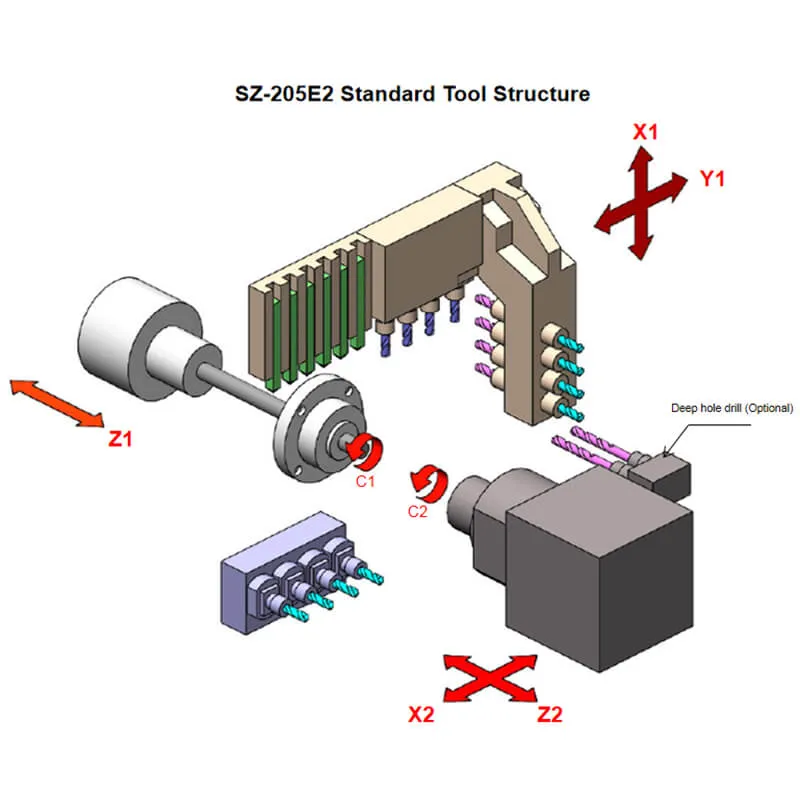

Cutting Tool Layout

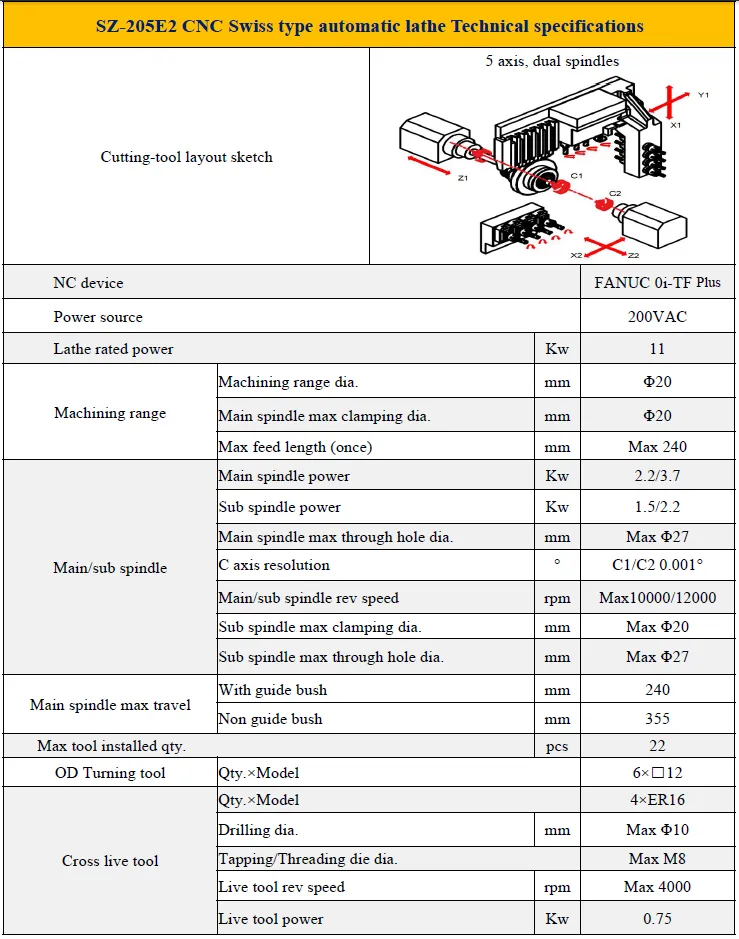

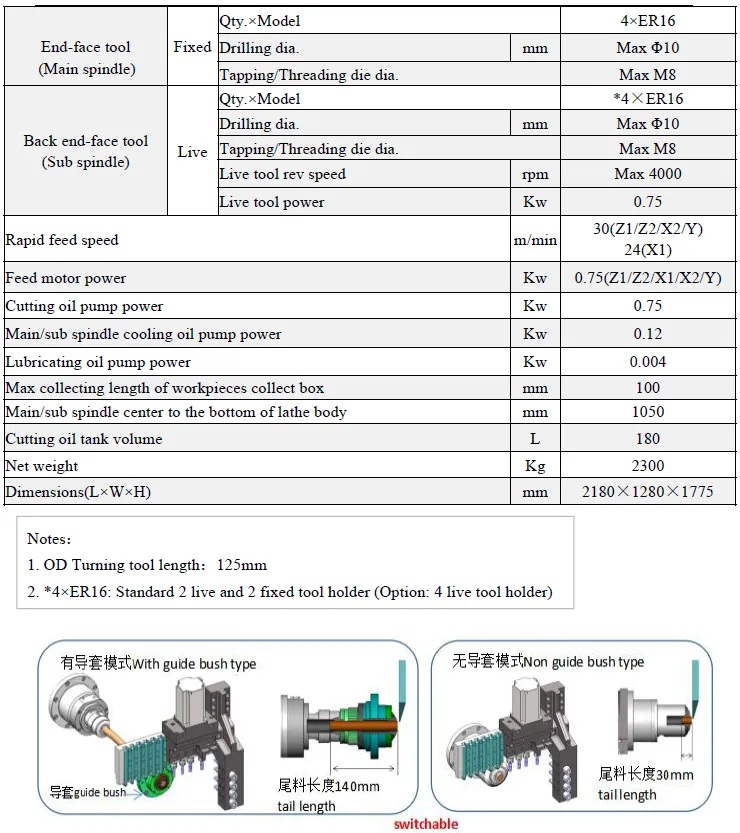

Technical Parameter

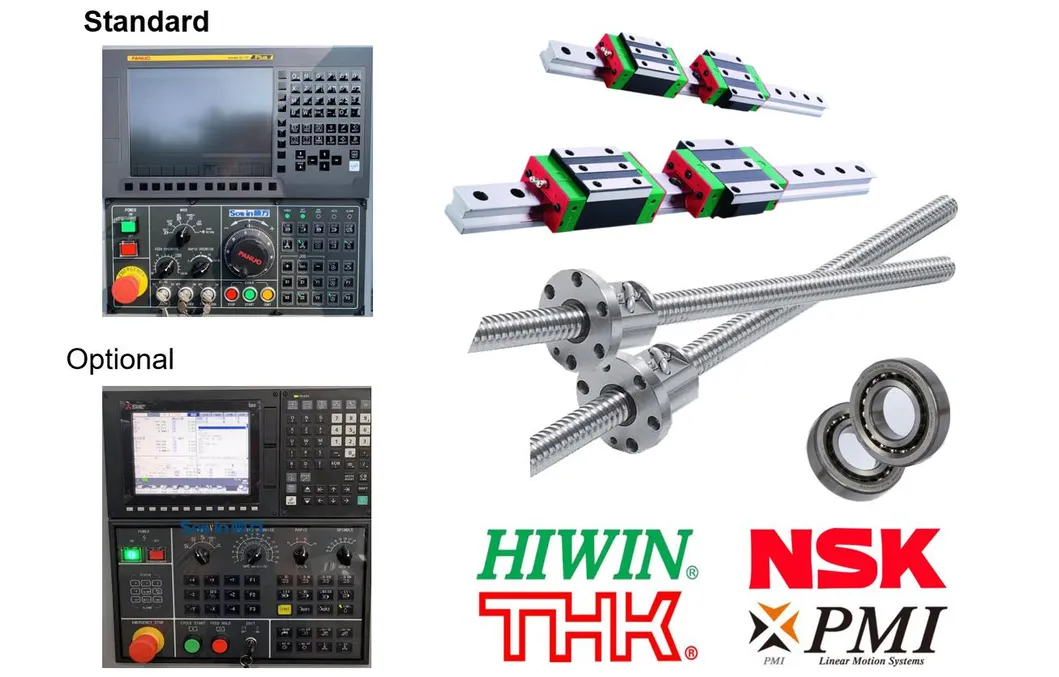

Components
Certificate
Customers Photo
Packing and Shipping
Frequently Asked Questions
Q
What is the maximum machining bar diameter for the SZ-205E2?
The maximum machining bar diameter for the SZ-205E2 CNC lathe is Φ20mm.
Q
What is the processing precision of this machine?
This machine achieves a high processing precision of 0.01mm, depending on the specific workpiece configuration.
Q
Can this machine switch between guide bush and non-guide bush modes?
Yes, the guide bush mode and non-guide bush mode are switchable, allowing for versatile machining operations.
Q
What control systems are compatible with the SZ-205E2?
The machine features the FANUC 0i-TF Plus system (Japan) as standard, with Mitsubishi available as an option.
Q
What compound machining functions does it support?
It supports complex, high-efficiency, and diversified compound operations, including turning, milling, drilling, and tapping.
Q
What type of transport packaging is provided?
The machine is securely packaged using a Standard Export Wooden Case for safe international transport.
