Precision Swiss Type Ck1107D 7mm Sliding Head CNC Lathe Machine

1 / 5

Precision Swiss Type Ck1107D 7mm Sliding Head CNC Lathe Machine

Customization:	Available
After-sales Service:	Always Valid
Warranty:	1 Year

Send Inquiry

Product Description

Overview
Product Description
Product Parameters
Detailed Photos
Processed Display
Company Profile
Packaging & Shipping
FAQ

Basic Info.

Model NO.CK1107D

ApplicationMetal

Process UsageMetal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Movement MethodLinear Control

Control MethodClosed-Loop Control

Numerical ControlCNC/MNC

Processing Precision0.01~0.02(mm)

Performance ClassificationEconomical CNC Machine Tools

CertificationCE, ISO 9001, ISO14001

ConditionNew

CNC SystemBYSK YZ150

Max Bar Diameter7 mm

Type3 Axis CNC Swiss Lathe

TravelX, Y, Z

FunctionMetal Turning, Milling, Drill

Main Spindle Through-Hole Diameter8mm

Main Spindle Center Height From Ground890mm

Guide Rail FormLinear Guide Rail

Tools Arrangement12PCS

Turning & Milling Tools8PCS

Front DrillingChuck 3PCS

Cooling SystemOil Cooling

Motor TypeAbsolute Value Servo Motor

Screw RodTaiwan Joint Venture

GuidewayHiwin/PMI

Specification1415*700*1680mm

HS Code8458110090

Production Capacity1000 units Per Year

Packaging & Delivery

Package Size2400.00cm * 1600.00cm * 1900.00cm

Package Gross Weight5000.000kg

Product Description

Precision Swiss Type

CK1107D 7mm Sliding Head CNC Lathe Machine

CK1107D is a 3 axis sliding headstock lathe
Suitable for processing profile diameter ≤ Φ 7mm
Mainly suitable for Large-scale, Multi-variety and high-precision processing of slender shaft parts with large length/diameter ratio and small, special-shaped parts.

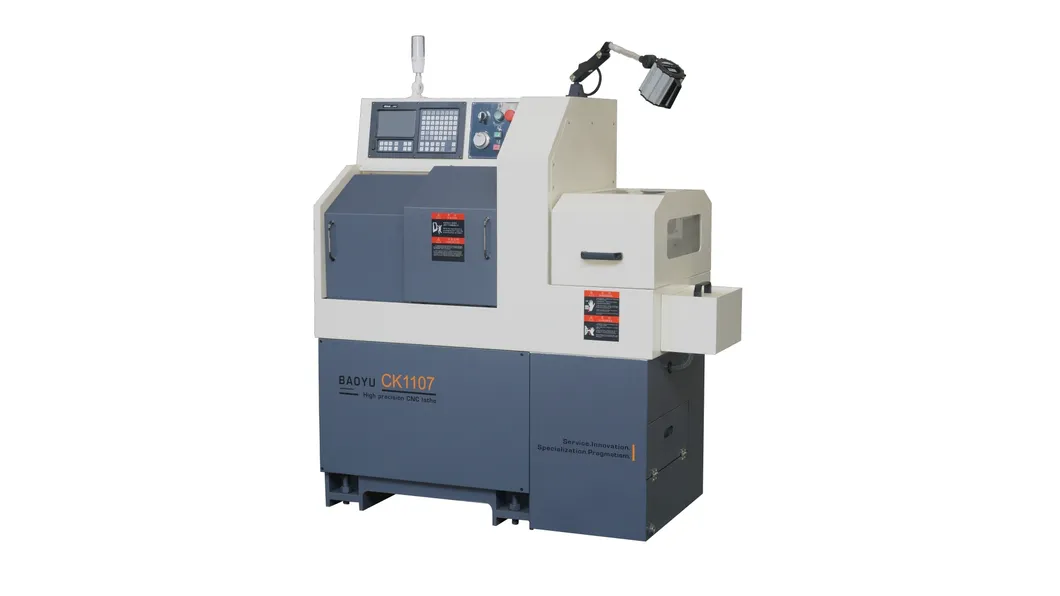

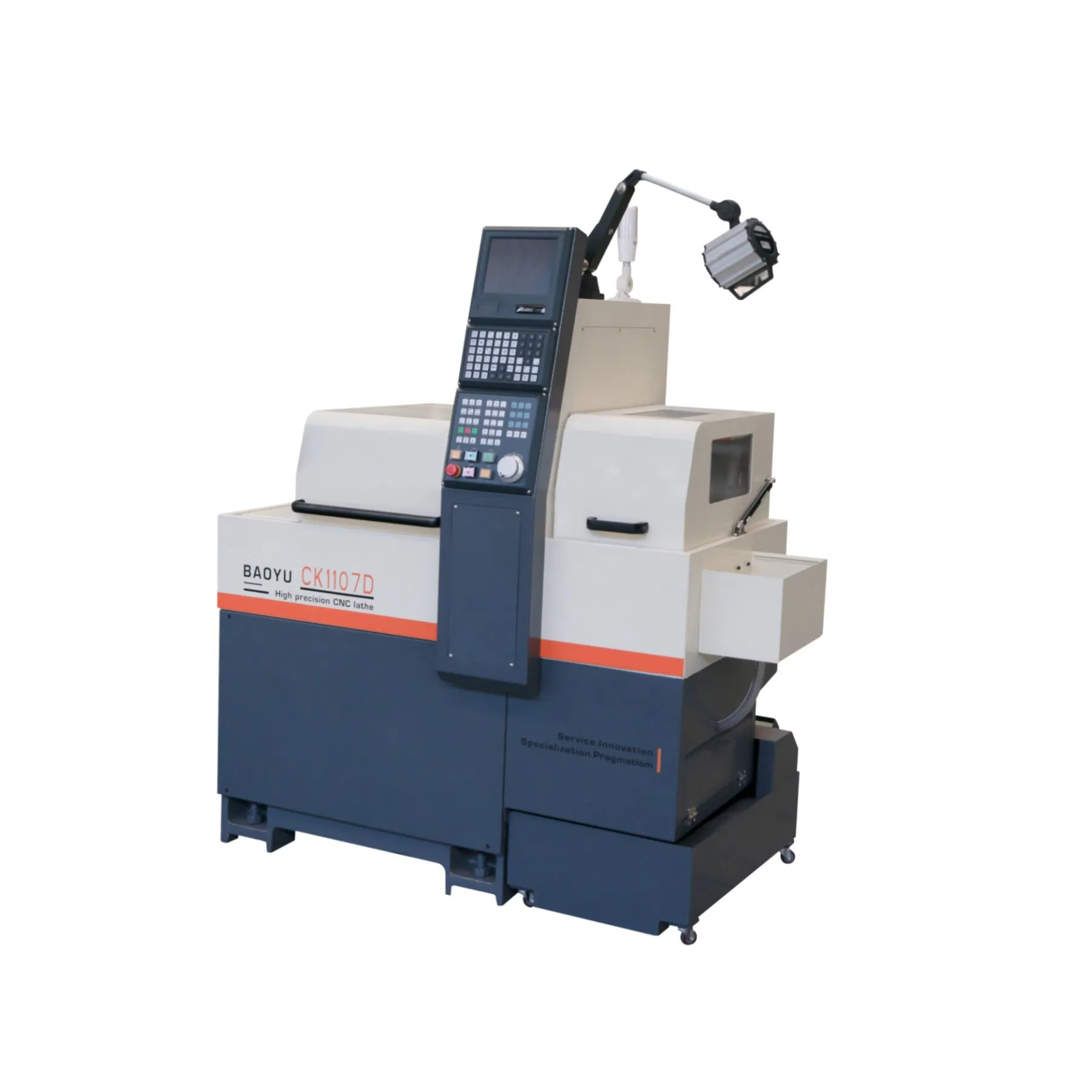

Precision Swiss Type CNC Lathe Detail View

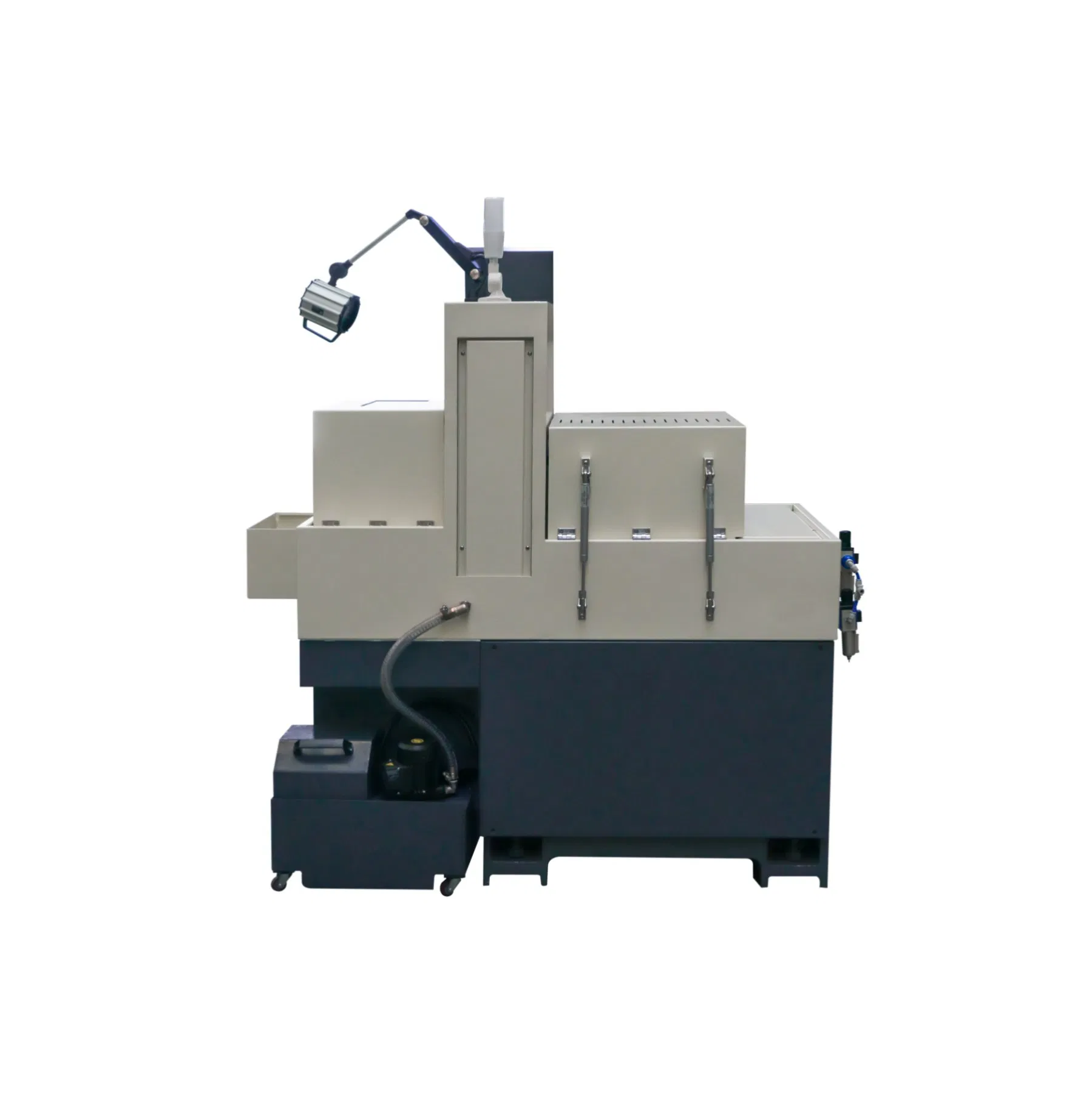

Precision Swiss Type CNC Lathe Side View

Product Parameters

CK1107 Swiss CNC Lathe Specifications
Power
Power	Rated Voltage	Three-phase AC 380V
Power	Rated Frequency	50HZ
Power	Total Input Power	4.5kW
CNC System
CNC System	BYSK	YZ150
CNC System	Minimum Set Unit	0.001mm
CNC System	X Axis Pulse Equivalent	0.0005mm
CNC System	Y Axis Pulse Equivalent	0.001mm
CNC System	Z Axis Pulse Equivalent	0.001mm
CNC System	Maximum Programming Size	±9999.999
CNC System	Cutting Speed	1--4000mm/min
CNC System	X Axis Rapid Feed Speed	15000mm/min
CNC System	Y Axis Rapid Feed Speed	15000mm/min
CNC System	Z Axis Rapid Feed Speed	15000mm/min
Main Spindle
Main Spindle	Maximum Bar Diameter	Φ7mm
Main Spindle	Main Spindle Through-hole Diameter	Φ8mm
Main Spindle	Main Spindle Center Height from Ground	890mm
Main Spindle	Main Spindle Speed	0-5000r/min
Main Spindle	Main Spindle Motor Power	2kW
Travel
Travel	X Axis Travel	38mm(Diameter)
Travel	Y Axis Travel	80mm
Travel	Z Axis Travel	150mm
Travel	X Axis Servo Motor Power	0.4kW
Travel	Y Axis Servo Motor Power	0.4kW
Travel	Z Axis Servo Motor Power	0.4kW
Travel	Guide Rail Form	Linear Guide Rail
Gang Tooling System
Gang Tooling System	Tools Arrangement	12pcs
Gang Tooling System	Turning & Milling Tools	8pcs
Gang Tooling System	Tool Size	8*8mm
Gang Tooling System	Front Drilling	6104 Chuck 3pcs
Cooling System
Cooling System	Cutting Oil Motor Power	0.18kW
Cooling System	Cooling Box Capacity	80L
Lubrication System
Lubrication System	Motor Power	35W
Lubrication System	Capacity	1.5L
Pneumatic System
Pneumatic System	Input Compressed Air Pressure	0.4--0.6Mpa
Machine Size
Machine Size	Length * Width * Height	14157001680
Machine Size	Machine Weight	750kg

CK1107 Configurations
Item	Specification	Origins
CNC System	BYSK150 System	Domestic Top Brand
Main Spindle Motor	2KW Absolute Value Servo Motor	Inovance+Lines
X Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
Y Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
Z Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
X Axis Screw Rod	185*2006	Taiwan Joint Venture
Y Axis Screw Rod	221*2006	Taiwan Joint Venture
Z Axis Screw Rod	300*2006	Taiwan Joint Venture
X Axis Guide Rail	HGH15	HIWIN/PMI
Y Axis Guide Rail	HGH15	HIWIN/PMI
Z Axis Guide Rail	HGH15	HIWIN/PMI

Detailed Photos

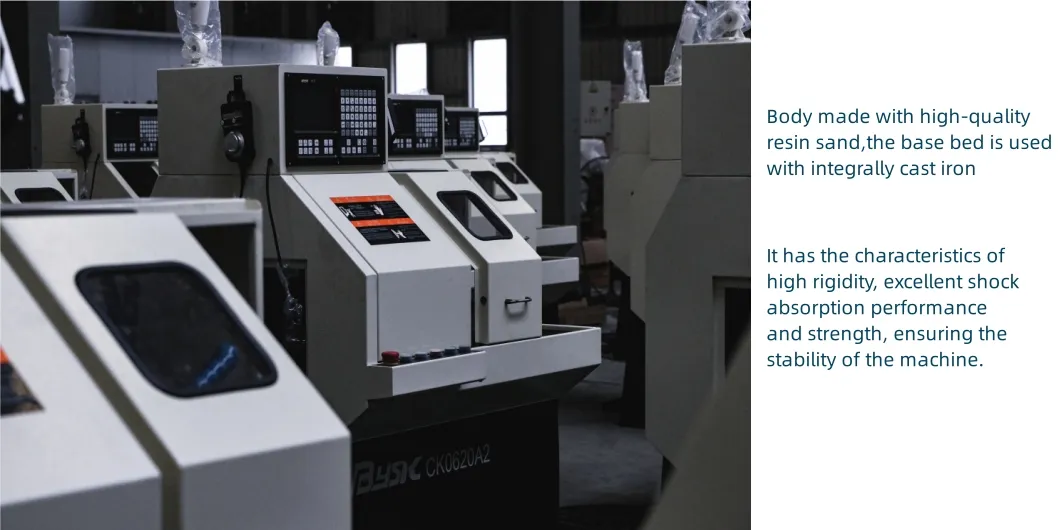

Body Materials

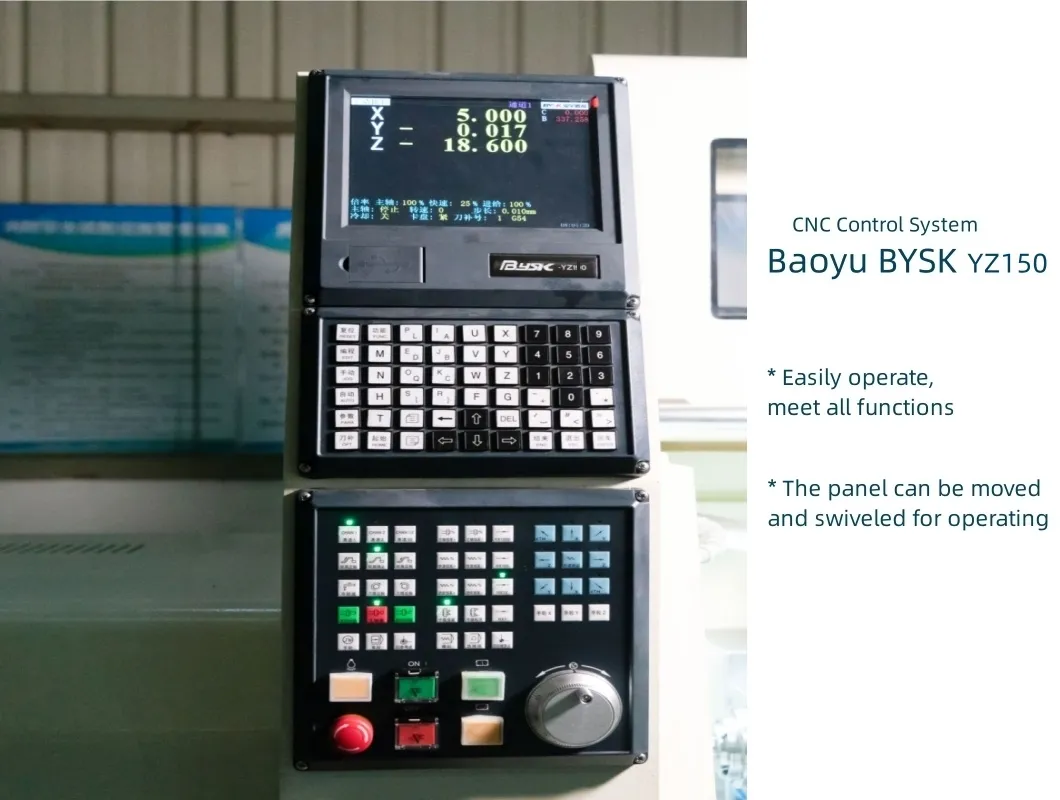

CNC Control System: Complete functions, Easy operation, Highly cost-effective.
The panel can be moved and swiveled for operating ease.

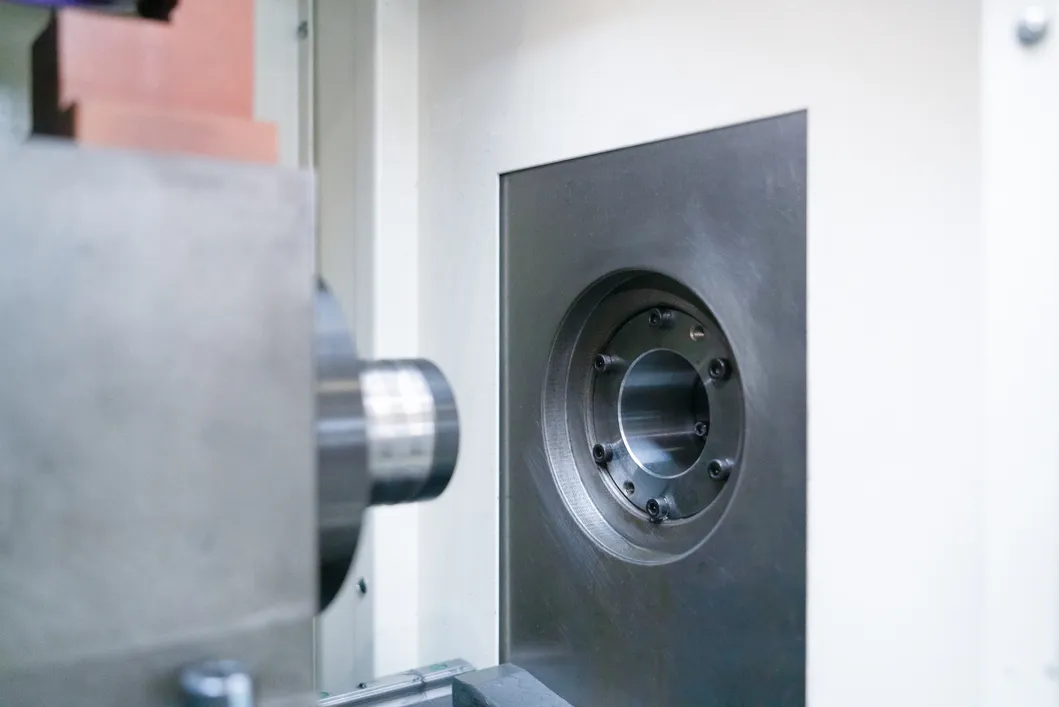

Inner Structure

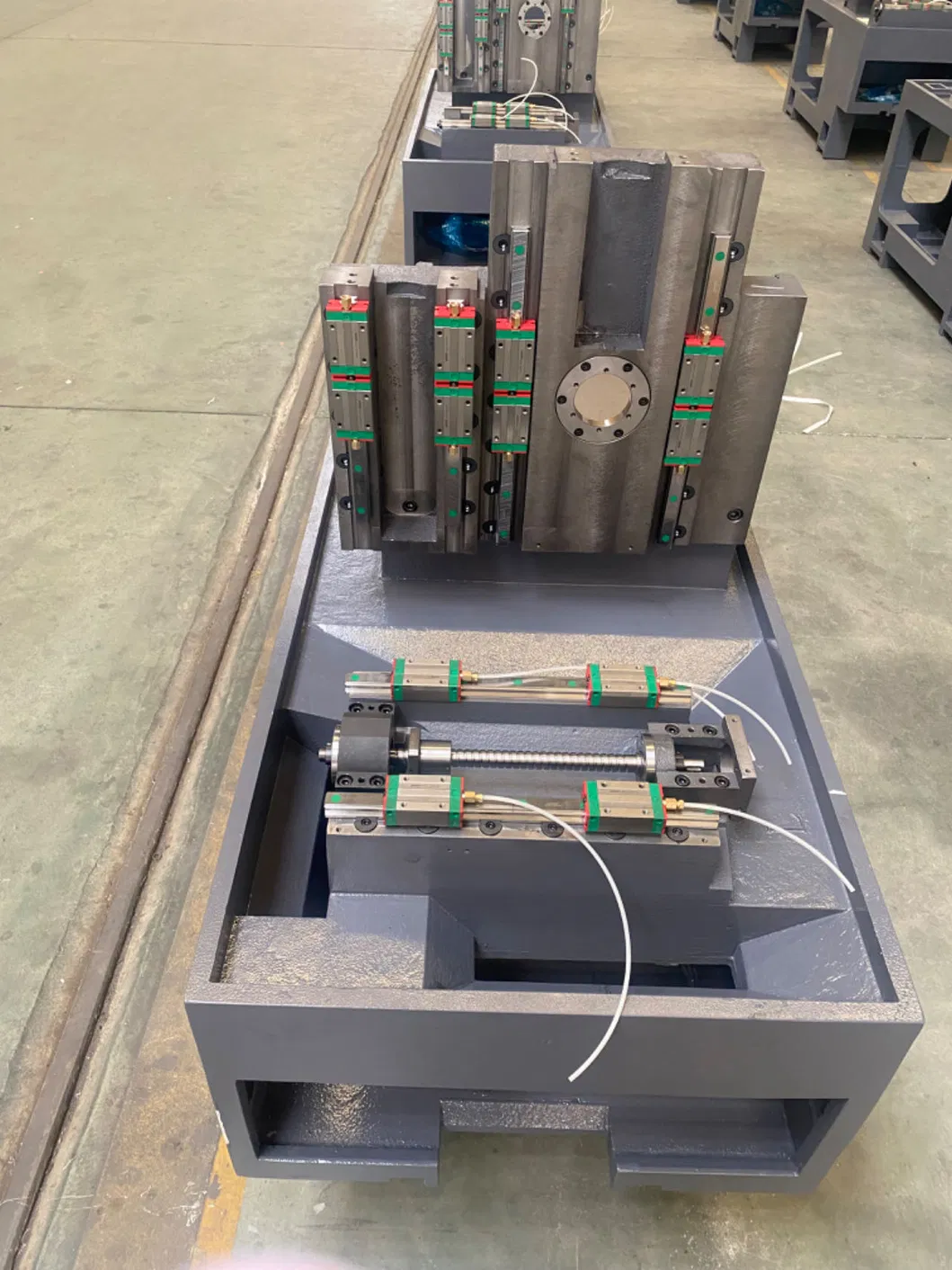

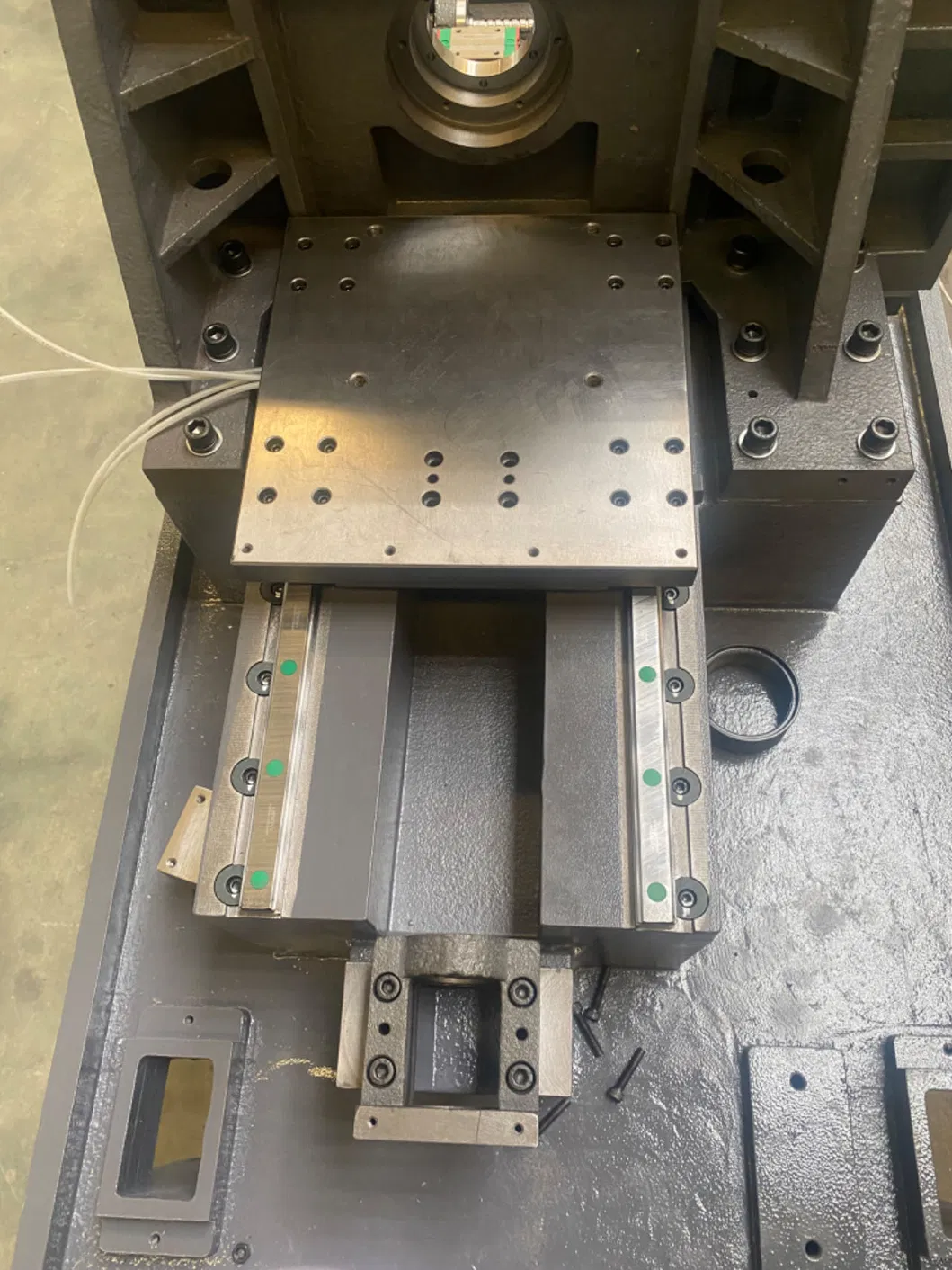

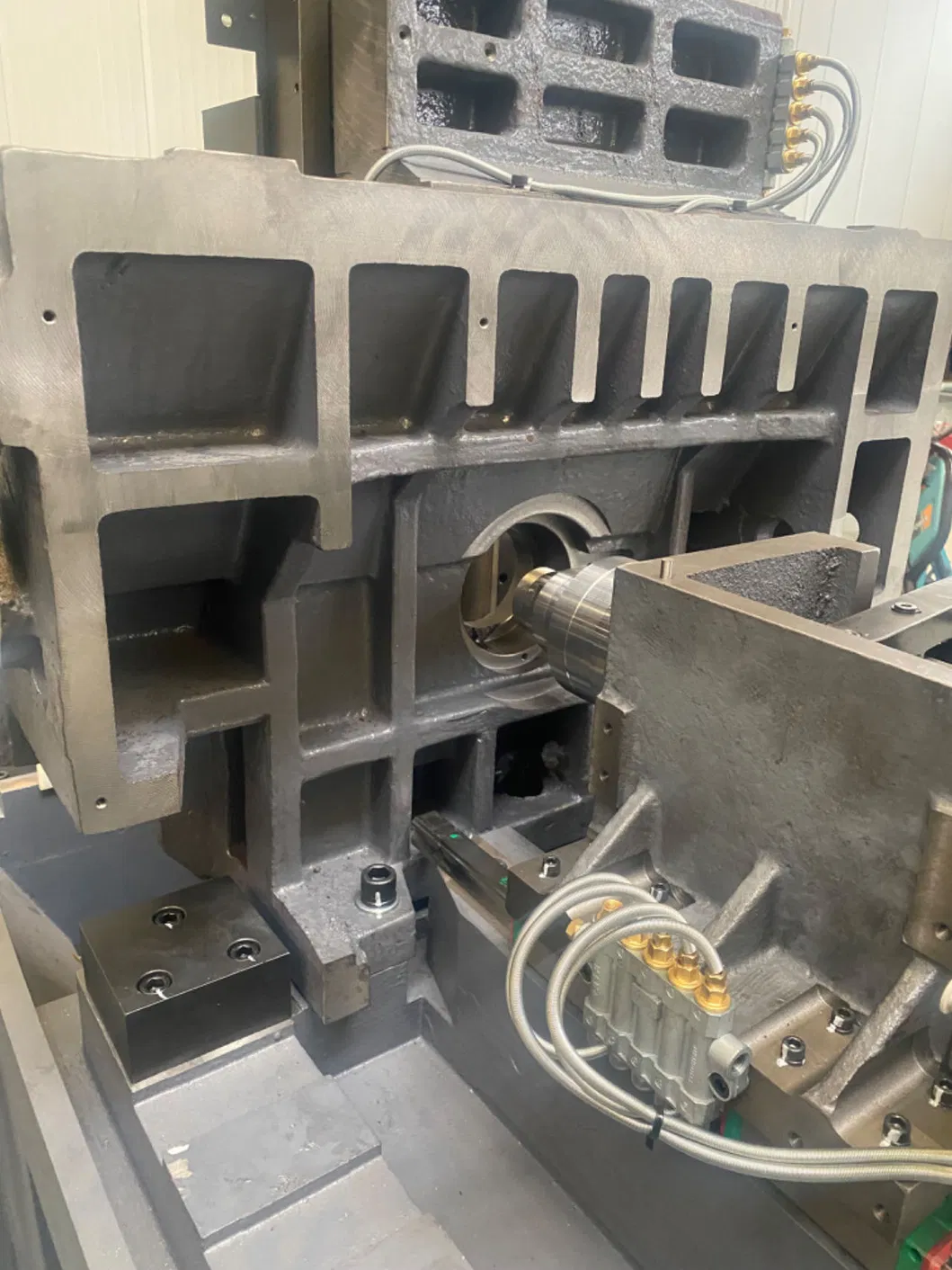

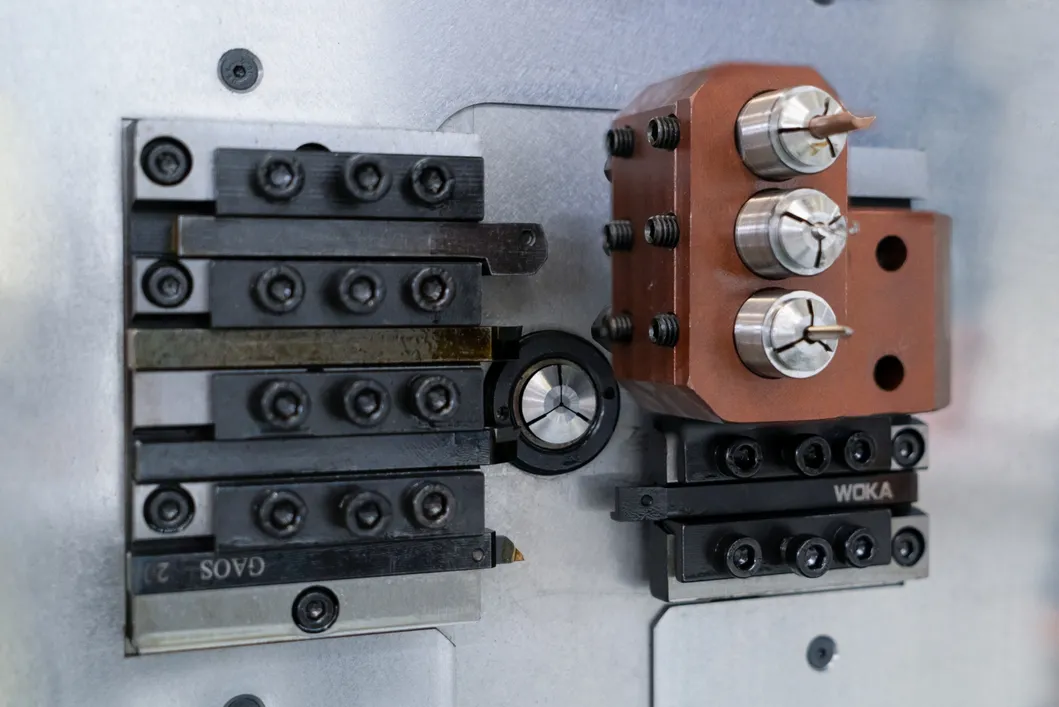

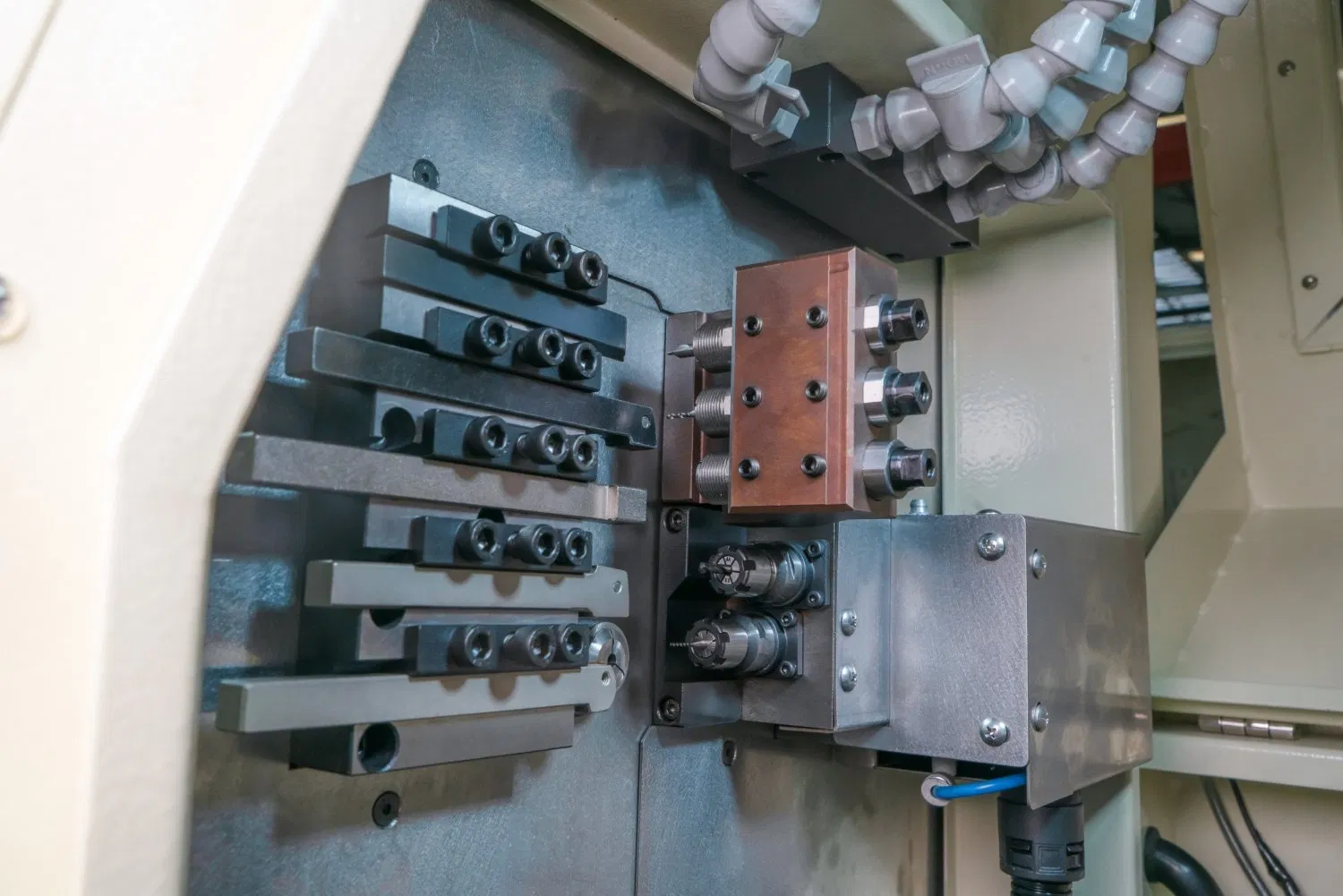

Left and right gang tooling structure: Large quantity, fast tool change speed, and exceptional rigidity.
Versatile Processing: Optimized to process all kinds of super slender parts.

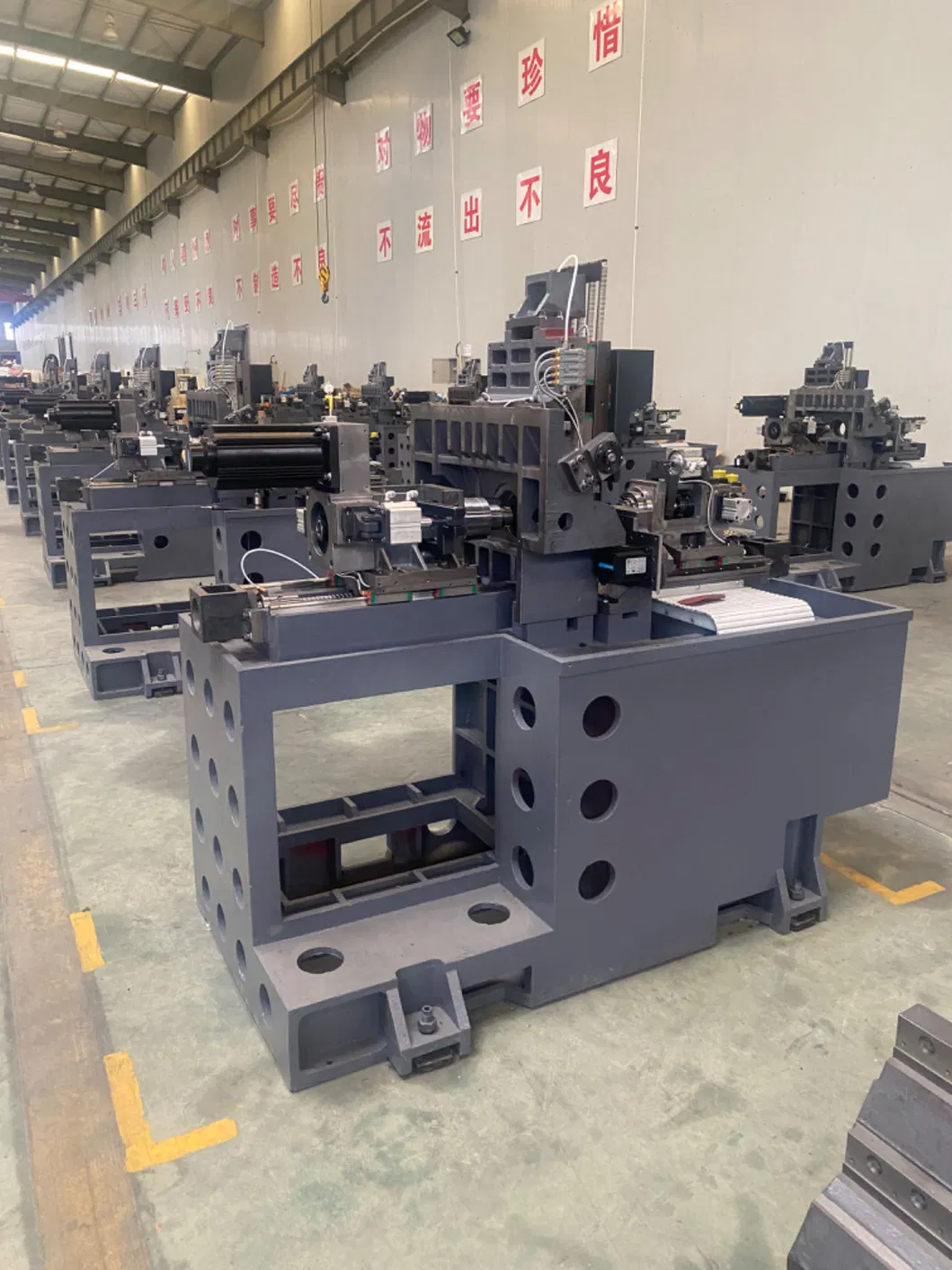

Space-saving Design: Reasonable layout, small dimensions, and minimal floor area requirement.

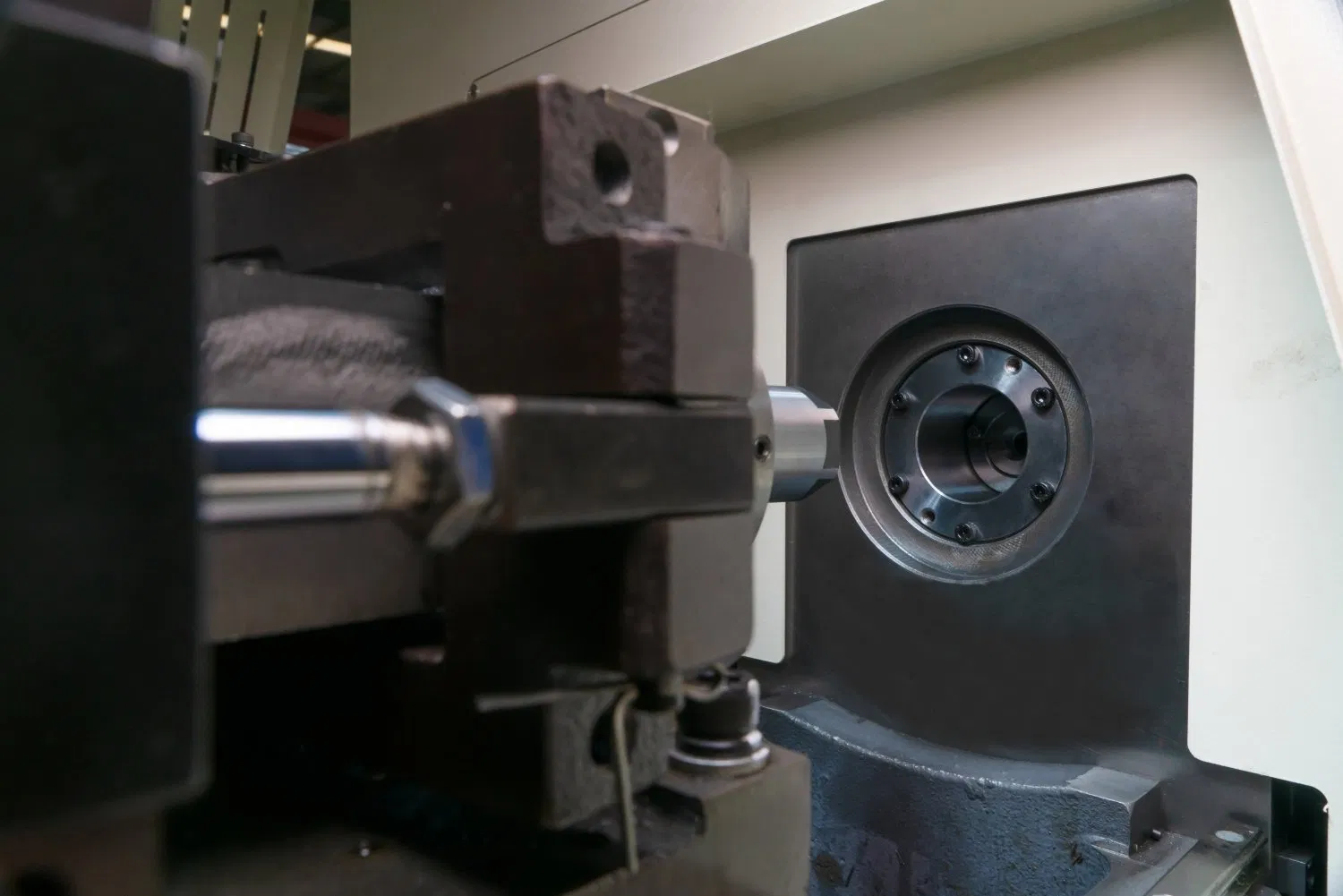

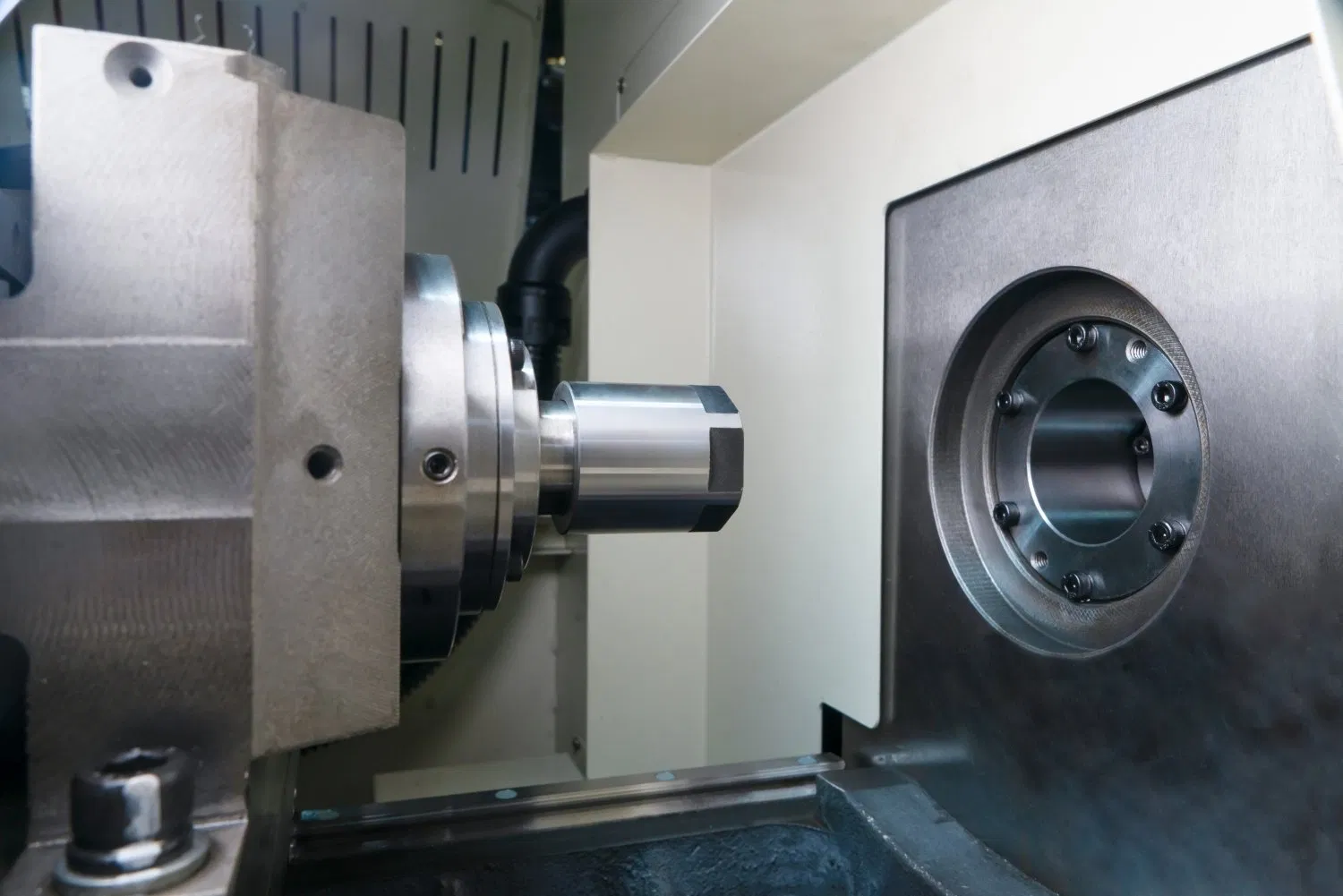

Fixed Guide Sleeve: Can process slender shafts with a length under 150mm, ensuring the workpieces maintain high coaxiality and finish. Ideal for high length-to-diameter ratio turning.

With Configurations

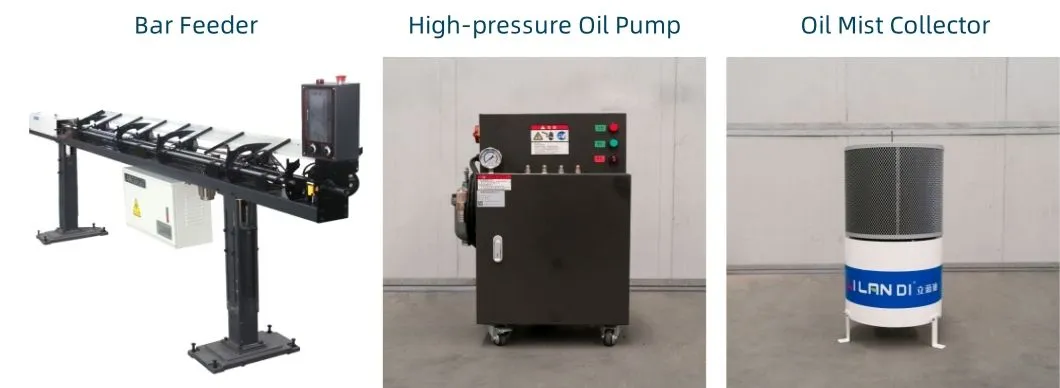

CK1107 CNC Lathe can be configured with an oil film bar feeder, high-pressure oil pump, and oil mist collector to enhance performance and extend the machinery's operational life.

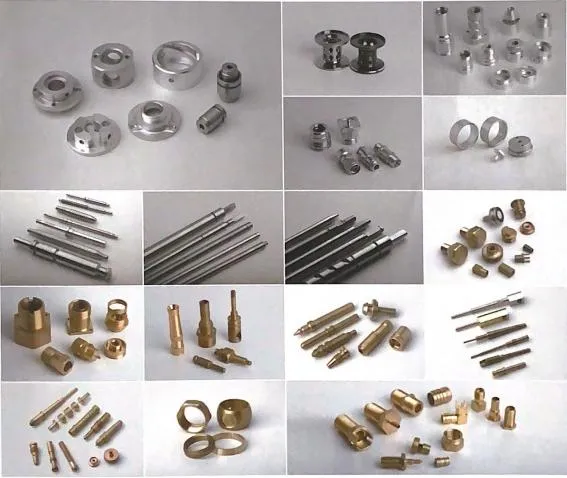

Processed Product Display

Model Selection Guidance:

For maximum profile diameters within 7mm: Suggest models B07 (dual spindle type) or CK1107 (single spindle type).
For maximum profile diameters within 13mm: Suggest models B13 or CK1113.
CK0620A2: Particularly suitable for processing complex-shaped parts (linear, taper, and arc threads). Configured with a center frame, it easily handles slender shaft parts.
CK0625A: Well-suited for precision parts processing including meters, electronic connectors, optics, automotive/motorcycle components, and small hardware.
CK32A3: Multi-functional Turning & Milling CNC Lathe. CK32A3-B is the dual spindle variation.
X42: Slant-bed CNC lathe designed for complex, high-precision shaft and disc parts with a variety of sizes.

Profile Overview

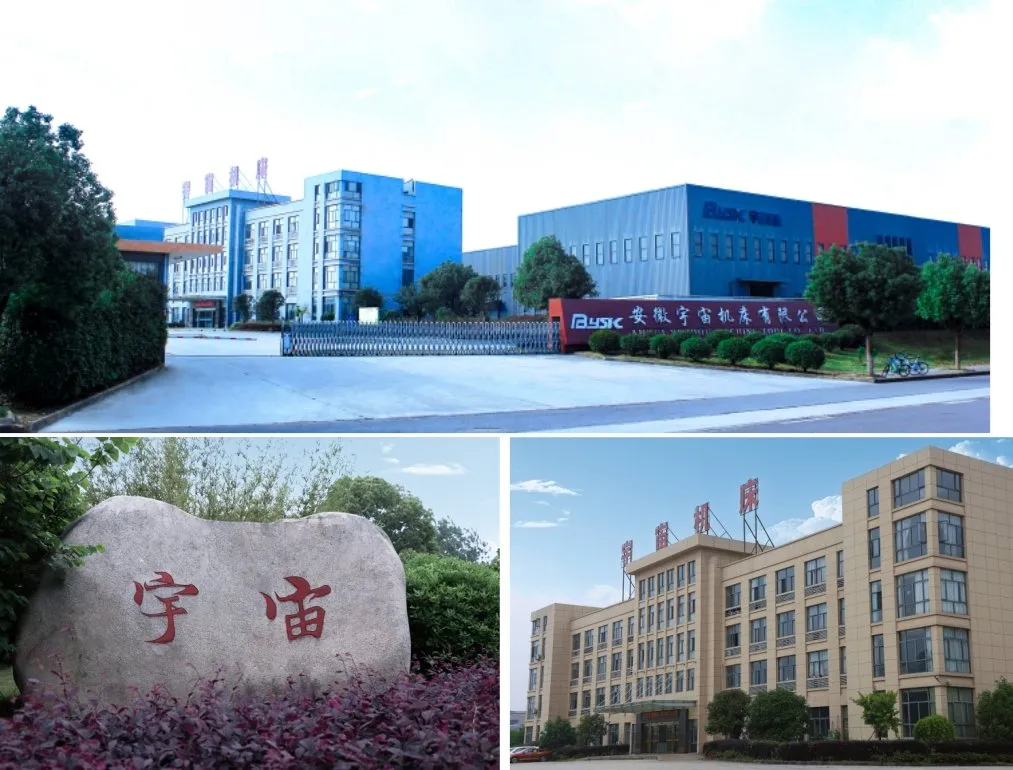

The manufacturer is a comprehensive high-tech enterprise integrating R&D, production, sales, and service of CNC systems, CNC machine tools, automated production lines, industrial robots, and IoT integrations. The manufacturer maintains major production facilities covering up to 100,000 square meters.

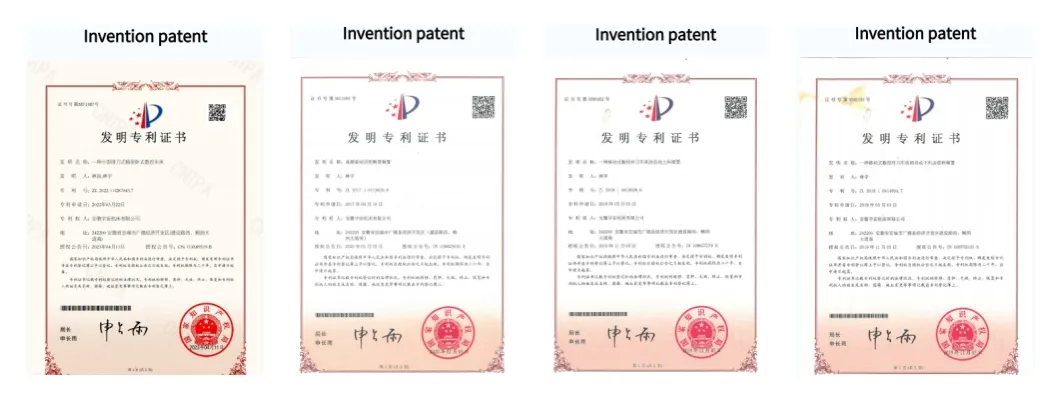

Specializing in the production of CNC Swiss-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Flat Bed CNC Lathe Machines, Slant-Bed CNC Lathes, Horizontal/Vertical CNC Lathes, Single Spindle CNC Machinery, and Automatic Double-Spindle Lathes. All lathes adopt absolute value servo systems and bus connections, supported by multiple invention patents and utility designs.

The products are widely applied in Communication Equipments, Connectors, 5G Products, Mobile Phones, Household Applications, Aerospace, Medical Devices, Automotive, Water Heating, Miniature Shafts, Optical Instruments, Timepieces, Eyewear, and various hardware accessories.

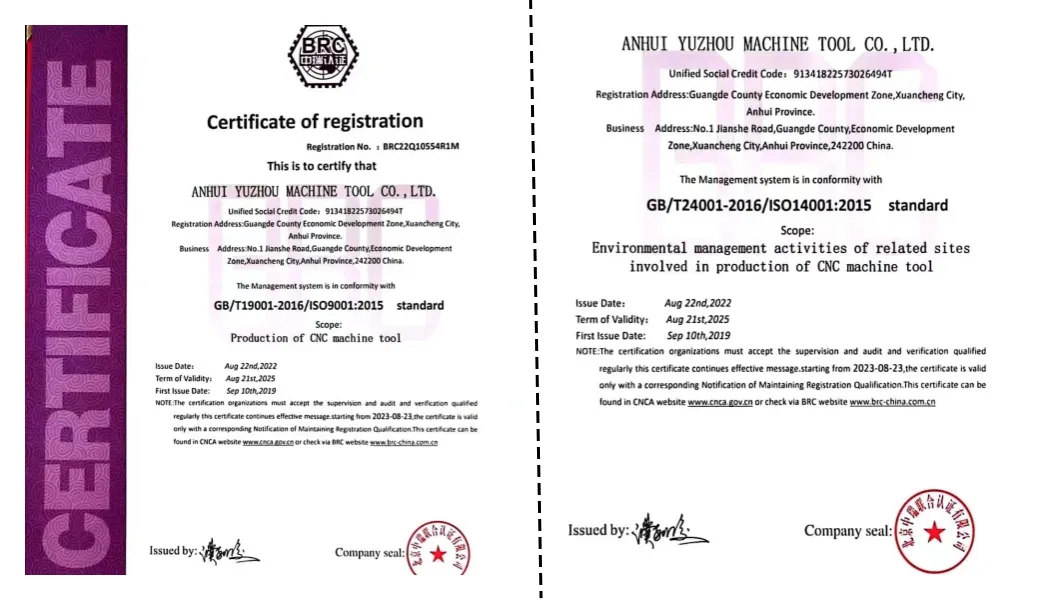

Adopting modern management practices, the company has successfully passed ISO9001 Quality Management System, ISO14001 Environment Management System, and CE Certificate certifications.
