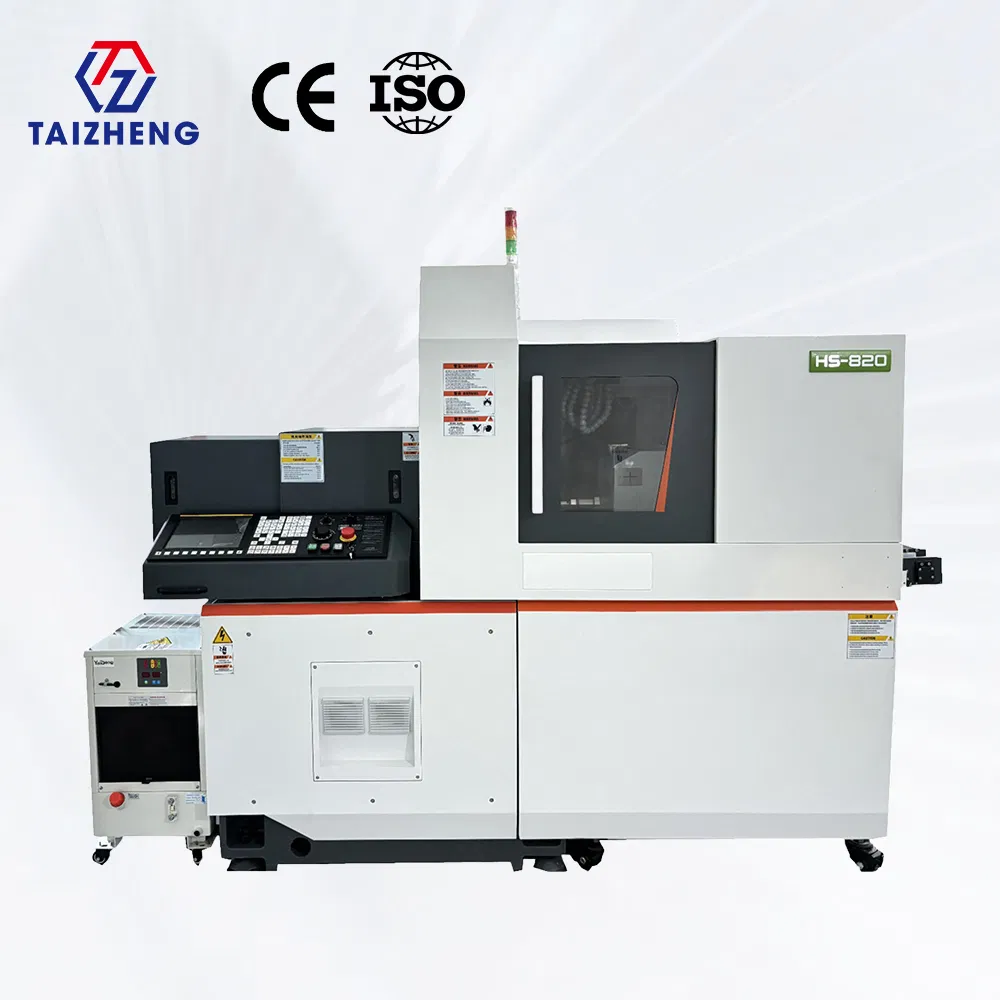

Precision Dual Spindle Swiss Type CNC Lathe for High-Quality Machining

Customization:	Available
After-sales Service:	on Site Sevice
Warranty:	on Site Sevice

Basic Info.

Model NO. HS-820

Application Metal

Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Movement Method Linear Control

Control Method Closed-Loop Control

Numerical Control CNC/MNC

Processing Precision 0.03~0.04(mm)

Performance Classification High-End CNC Machine Tools

Certification CE

Condition New

Processing Material Hard Metals, Soft Metals, Alloys, Steel Structure

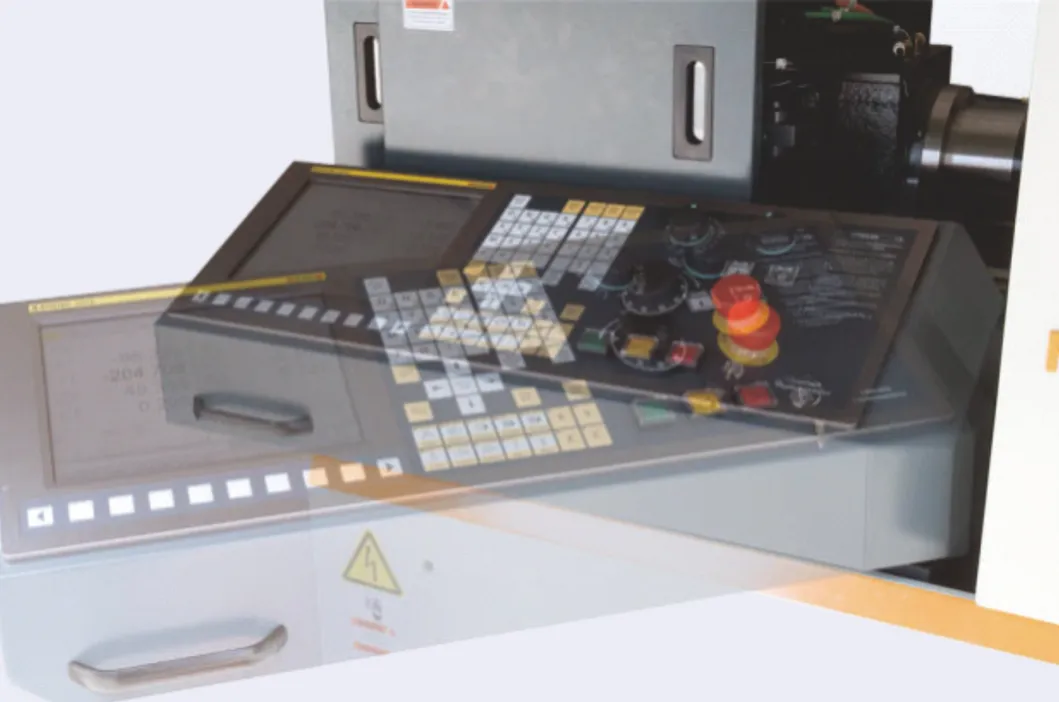

System Device Fanuc Oi-TF Plus

Z1 / X1 / Z2 / X2 Axis Feed Speed 30m/Min

Y1 Axis Feed Speed 24m/Min

Electric Spindle Motor 3.7 Kw

Auxiliary Spindle Motor 5.5 Kw

Spindle Speed Max.10000r/Min

Transport Package Plywood Case

Specification 2440*1602*2300

Origin China

HS Code 8457101000

Production Capacity 2000 Sets Per Month

Packaging & Delivery

Package Size 2500.00cm * 1400.00cm * 2130.00cm

Package Gross Weight 7000.000kg

Product Description

Precision Dual Spindle Swiss Type CNC Lathe for High-Quality Machining

Increased Production Flexibility

Customized Production: Quickly adapts to different product manufacturing needs, making it suitable for small-batch and multi-variety production modes.
Reduced Tool Change Time: The Y2 axis allows multiple tools to be installed and used simultaneously, reducing tool change time and increasing production efficiency.

Reduced Auxiliary Time

Automatic Tool Setting: Many modern Swiss-type CNC lathes are equipped with automatic tool setting systems, reducing manual tool setting time and improving overall machining efficiency.
In-Line Measurement: Integration of in-line measurement systems enables real-time monitoring and adjustment during machining, ensuring product quality.

Improved Machining Stability

Consistent Machining Conditions: The dual spindle design and Y2 axis stability maintain consistent machining conditions, reducing errors caused by changes in workpiece position.
Advanced Cooling System: Many Swiss-type CNC lathes feature advanced cooling systems that effectively control temperature during machining, preventing thermal deformation.

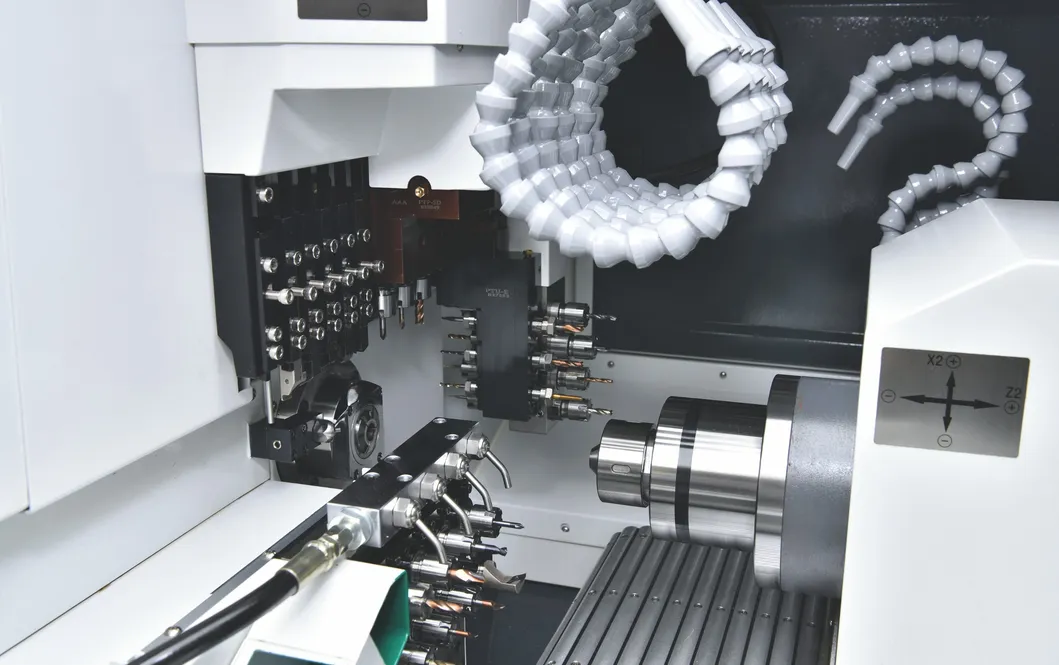

Mechanical Structure

	Project
Processing references	Max machining diameter	Φ20mm
	Max machining length	190mm
	Axial maximum drilling diameter	Φ10mm
	Maximum axial tapping size	M8
	Maximum spindle speed	10000rpm
	Radial maximum drilling diameter	Φ7mm
	Maximum radial tapping size	M6
	Maximum speed of radial power head	ER11:10000/ER16:8000
	Rated speed of radial power head	ER11:8000/ER16:6000
	Maximum extraction length of workpiece	100mm
Tool size	Number of knifes installation	6
	Tool (turning tool)	12X12
	Sleeve	Φ25.0 X 4
Collet guide sleeve	Spindle spring collet	TSUGAMI B0265CCR
	Power head collet	ER11,ER16
	Guide sleeve	TSUGAMI BS-20#-B
Feed rate	Z1/Z2/X2/Y-axis feed speed	30m/min
Feed rate	X1	24m/min
Electrical machinery	Spindle drive power	2.5/3.7KW
	Power head drive power	1KW
	For cutting fluid	0.4KW
	For spindle cooling	0.075KW
	For lubricating oil	0.01KW
Others	Spindle center height	1060mm
	Barometric flow rate	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	9.6KW
	Weight	2.6

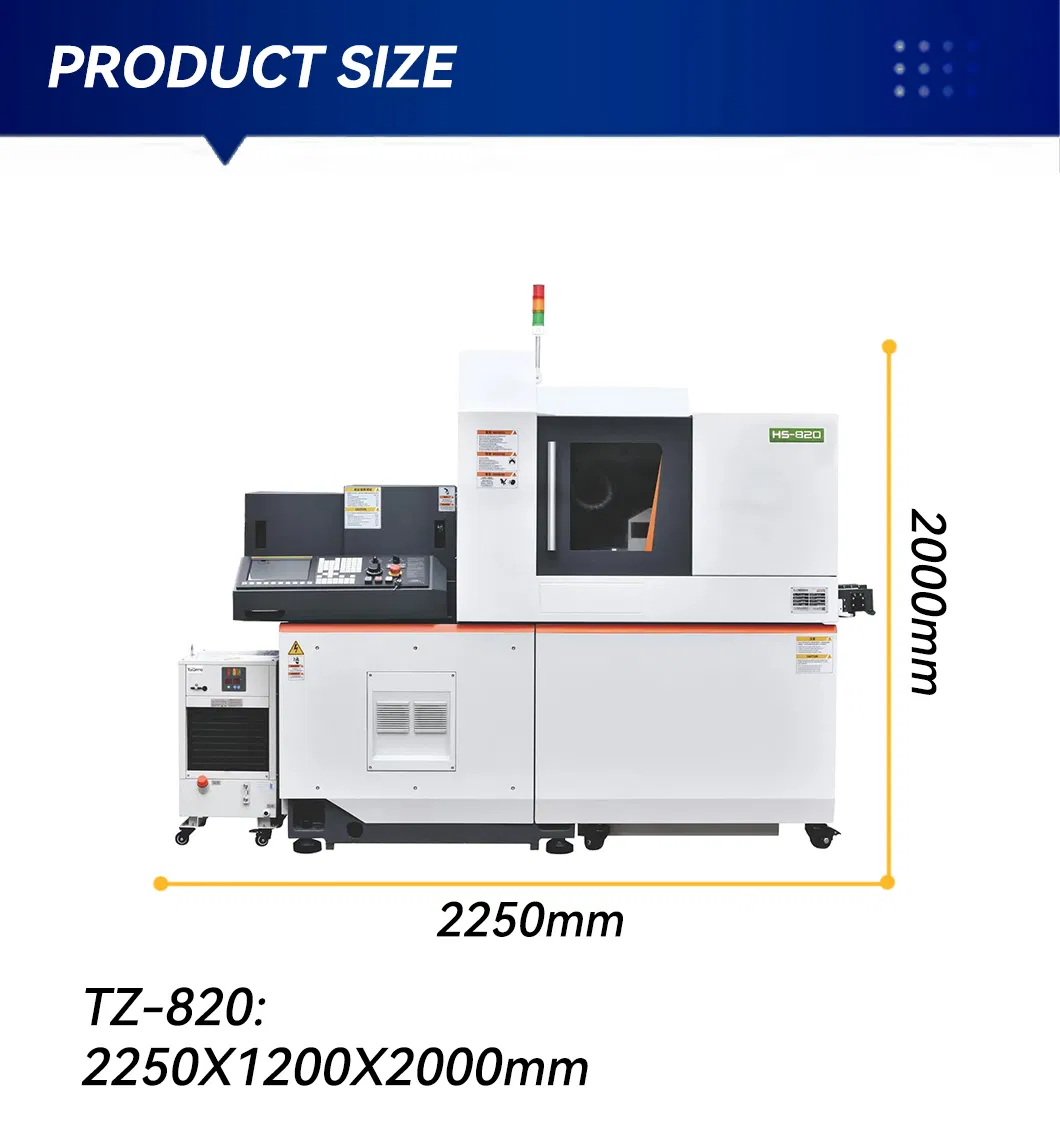

	Overall size	2250X1200X2000mm

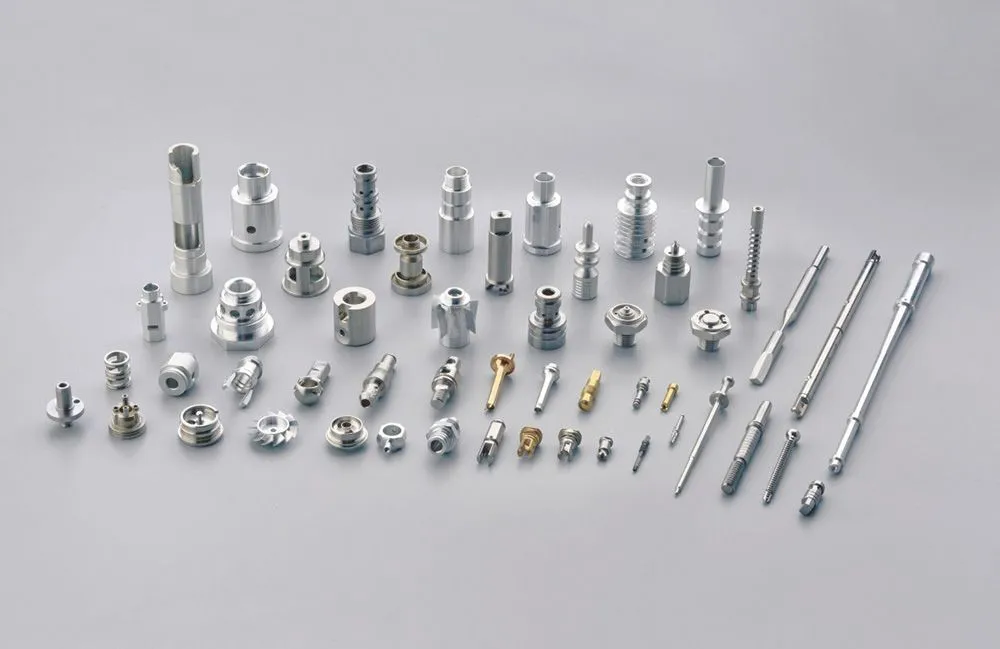

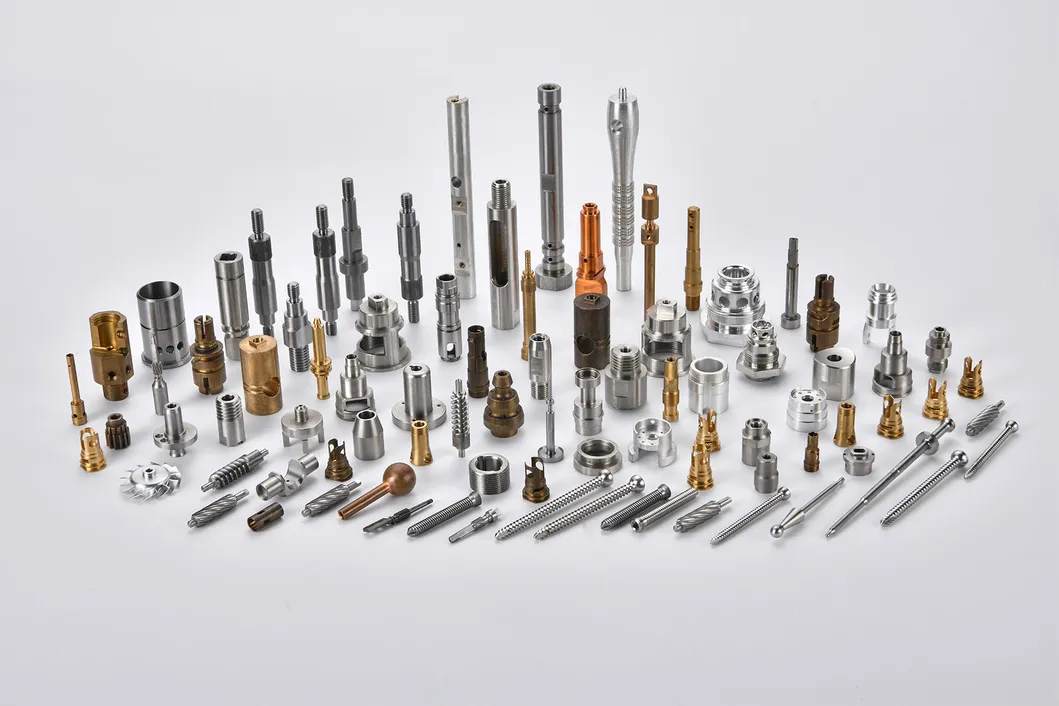

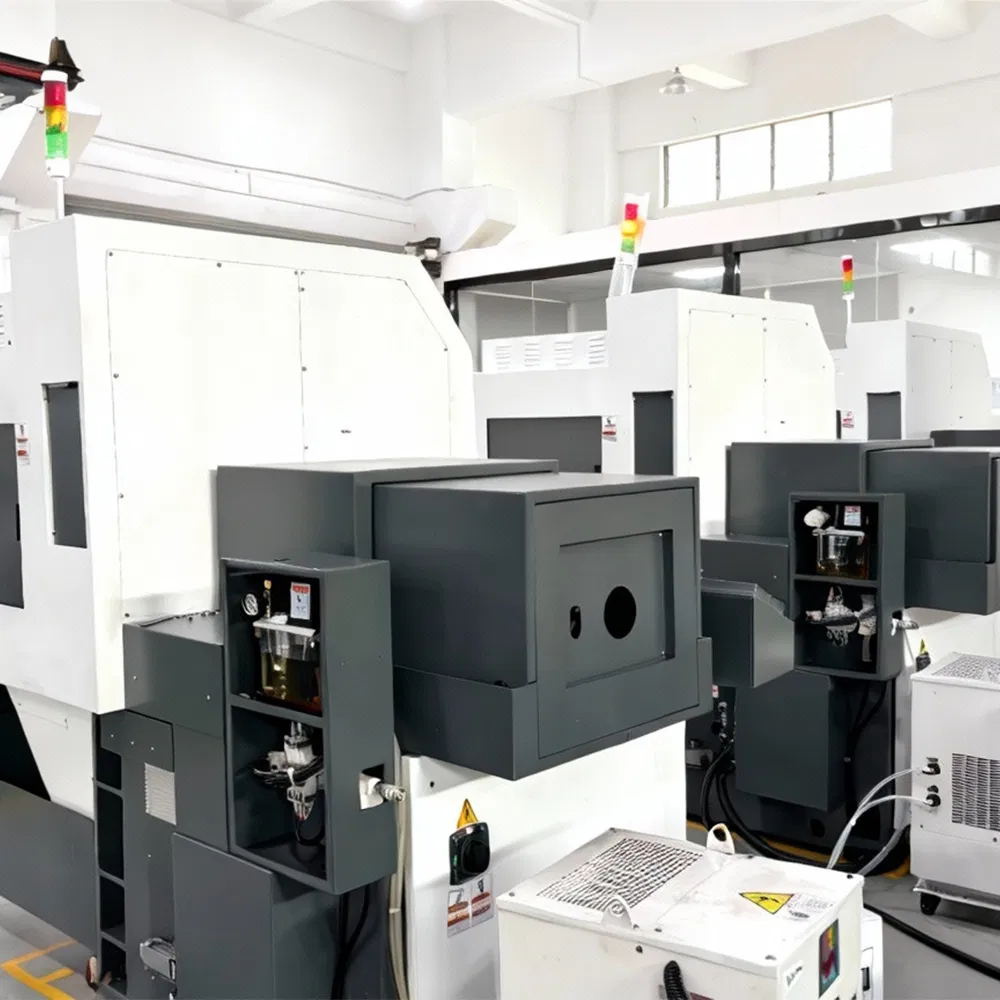

Sample Display

FAQ

Q1. Are you a manufacturer or trading company?

A. We are a professional machine tool manufacturer. We have our export sales center & showroom. Welcome to visit.

Q2. How can I place an order and get more details about the machine?

A. You can contact us by email or online. Let us know which details you need, and we will send you processing videos and photos.

Q3. Can you offer a favorable or best price?

A. We have different machine series, and we will recommend the most suitable machine according to your products. Our goal is long-term cooperation, so we will offer a favorable price for you.

Q4. Can you provide certificates?

A. Yes. Depending on your country, we can provide the specific certificates you require.

Q5. What kind of products can your machine process?

A. The maximum processing diameter is 46 mm, and the minimum is 3 mm. You can send us your product drawings, and our engineers will evaluate them.

Q6. How will the machine be transported?

A. We transport the machines by sea.
