| Parameter Specifications | Details | |
|---|---|---|
| Power | Rated voltage | Three-phase AC 380V |
| Rated frequency | 50HZ | |
| Total Input Power | 15kW | |
| CNC System | LNC | T6850 |
| Minimum Set Unit | 0.001mm | |
| X Axis Pulse Equivalent | 0.0005mm | |
| Z Axis Pulse Equivalent | 0.001mm | |
| Cutting Speed | 1--4000mm/min | |
| X Axis Rapid Feed Speed | 28000mm/min | |
| Y Axis Rapid Feed Speed | 28000mm/min | |
| Z Axis Rapid Feed Speed | 28000mm/min | |
| Main Spindle | Maximum Bar Diameter | Φ20mm |
| Main Spindle Through-hole Diameter | Φ21mm | |
| Main Spindle Center Height from Ground | 1050mm | |
| Main Spindle Speed | 0-5000r/min | |
| Main Spindle Motor Power | 5kW | |
| Sub Spindle | Maximum Clamping Diameter | Φ20mm |
| Sub Spindle Speed | 0-5000r/min | |
| Sub Spindle Motor Power | 2kW | |
| Travel | X1 Axis Travel | 140mm(Diameter) |
| Y1 Axis Travel | 300mm | |
| Z1 Axis Travel | 330mm | |
| X Axis Servo Motor Power | 0.75kW | |
| Y Axis Servo Motor Power | 1kW | |
| Z Axis Servo Motor Power | 1kW | |
| Guide Rail Form | Linear Guide Rail | |
| Travel Continued | X2 Axis Travel | 500mm(Diameter) |
| Z2 Axis Travel | 200mm | |
| X2 Axis Servo Motor Power | 1kW | |
| Z2 Axis Servo Motor Power | 1kW | |
| Cooling System | Cutting Oil Motor Power | 0.48kW |
| Cooling Box Capacity | 250L | |
| Lubrication System | Motor Power | 35W |
| Capacity | 2L | |

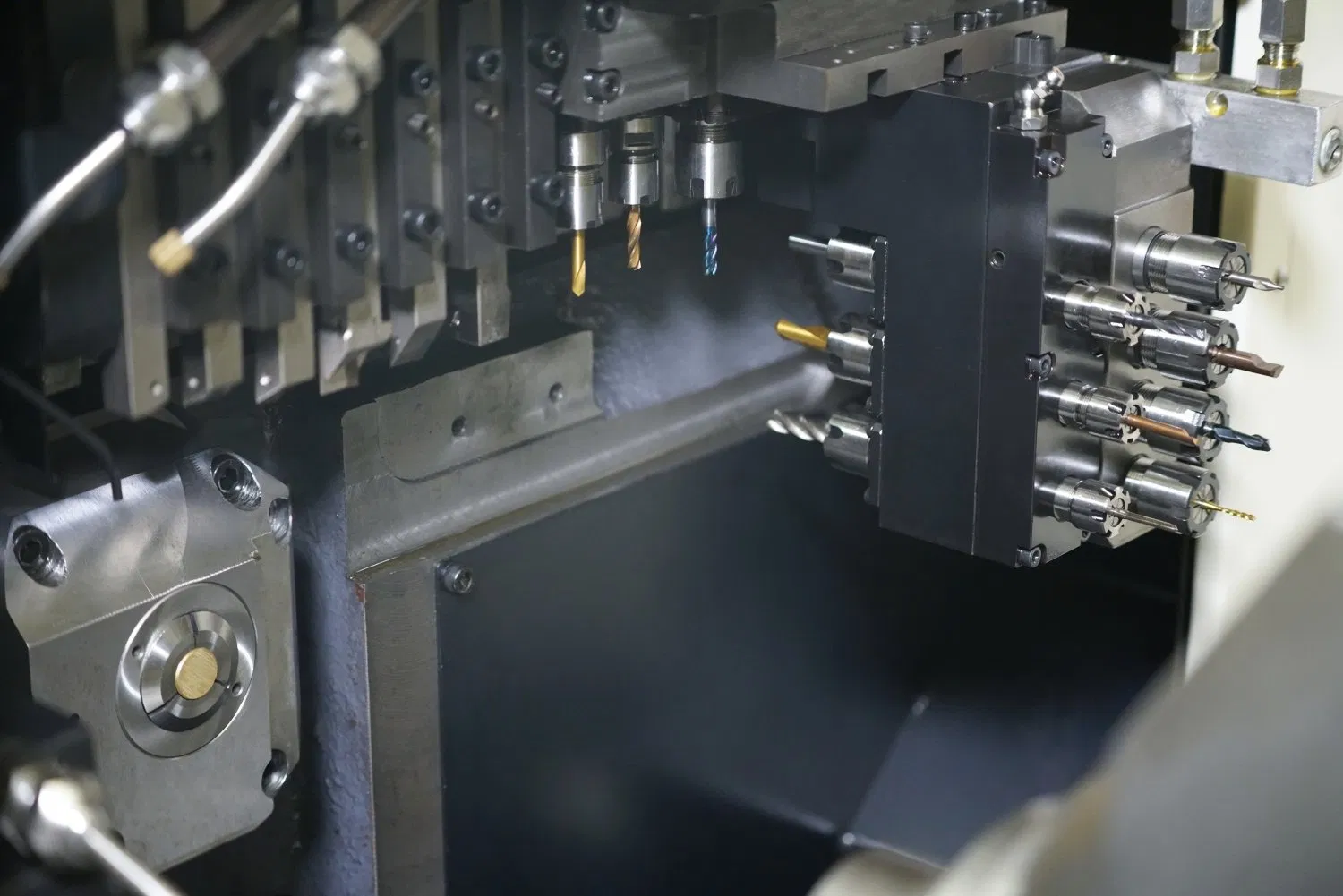

| Main Spindle Tools | 12*12Square Tool+∮20Hole Cutter | 6pcs+4pcs |
| Sub Spindle Tools | ∮16Hole Cutter | 1pc |
| ∮20Hole Cutter | 1pc | |
| ER16 Tool Rest | 2pcs | |
| 12*12Square Tool | 1pc | |
| Machine Size | Length * Width * Height | 2560*1440*2000 |
| Machine Weight | 2100KG | |
| B20 Configurations | ||
|---|---|---|
| Item | Specification | Origins |
| CNC System | LNC T6850 | Taiwan |
| Main Spindle | Standard Specification | Standard |
| Main Spindle Motor | 5kW Absolute Value Servo Motor | Inovance+ Lines |
| Sub Spindle Motor | 2kW Absolute Value Servo Motor | Inovance+ Lines |
| X1 Axis Motor | 0.75kW Absolute Value Servo Motor | Inovance+ Lines |
| Y1 Axis Motor | 1kW Absolute Value Servo Motor | Inovance+ Lines |
| Z1 Axis Motor | 1kW Absolute Value Servo Motor | Inovance+ Lines |
| X2 Axis Motor | 1kW Absolute Value Servo Motor | Inovance+ Lines |
| Z2 Axis Motor | 1kW Absolute Value Servo Motor | Inovance+ Lines |
| Screw Rod | Precision Ball Screw | Taiwan HIWIN/PMI |
| Guide Rail | Linear Guideway | Taiwan HIWIN/THK |
| Optional Configurations | ||
|---|---|---|
| Main Spindle Plus Side Power Head | Chuck(ER11+ER16) | 2pcs+2pcs |
| Power | 0.75kW | |
| Speed of Rotation | 5000r/min | |
| Sub Spindle Plus End Face Power Head | Chuck(ER16) | 4pcs |
| Power | 0.75kW | |
| Speed of Rotation | 5000r/min | |
| Servo Rotating Center Frame | Z-axis travel after adding rotating center frame | 210mm |
| Power | 0.75kW | |

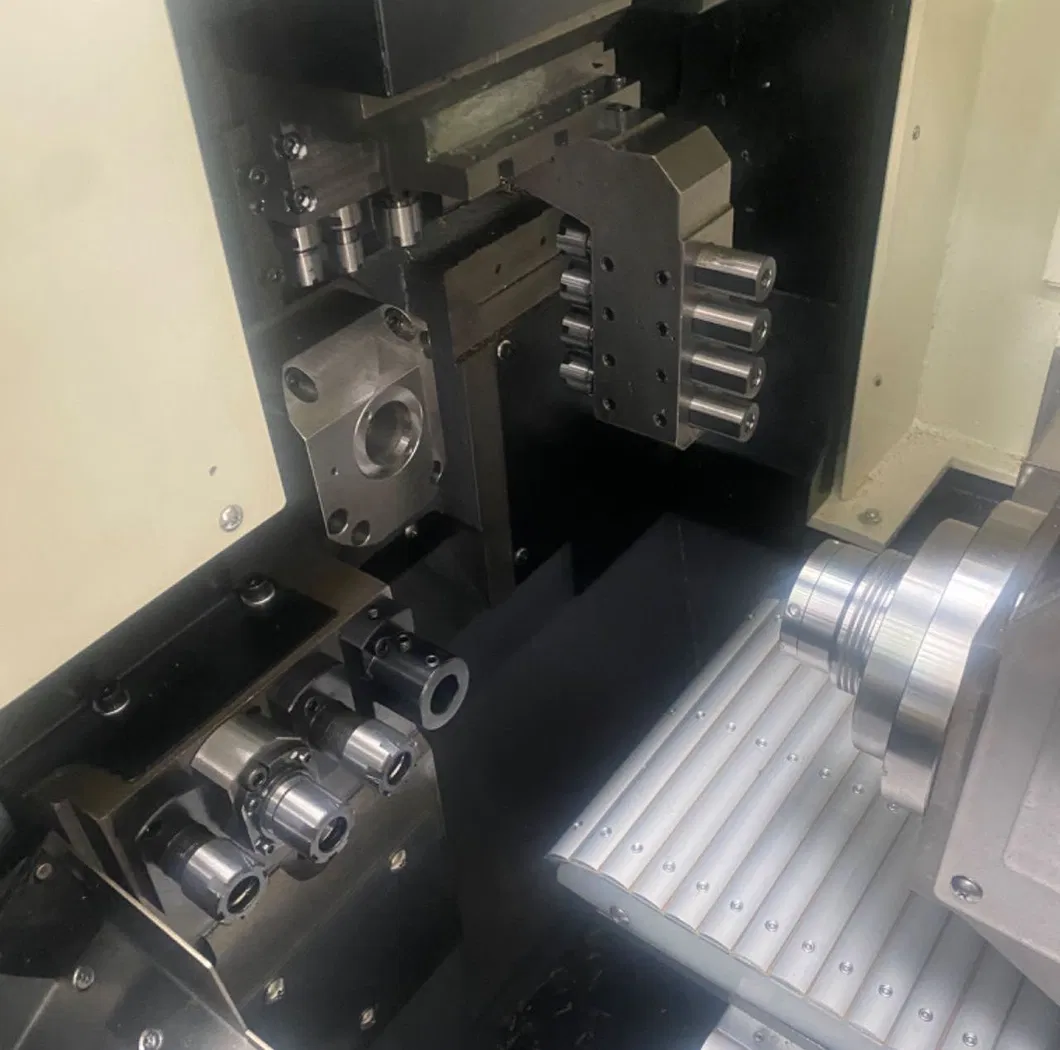

| Fixed guide bush Z-axis travel 270/Without guide bush Z-axis travel 330 | ||

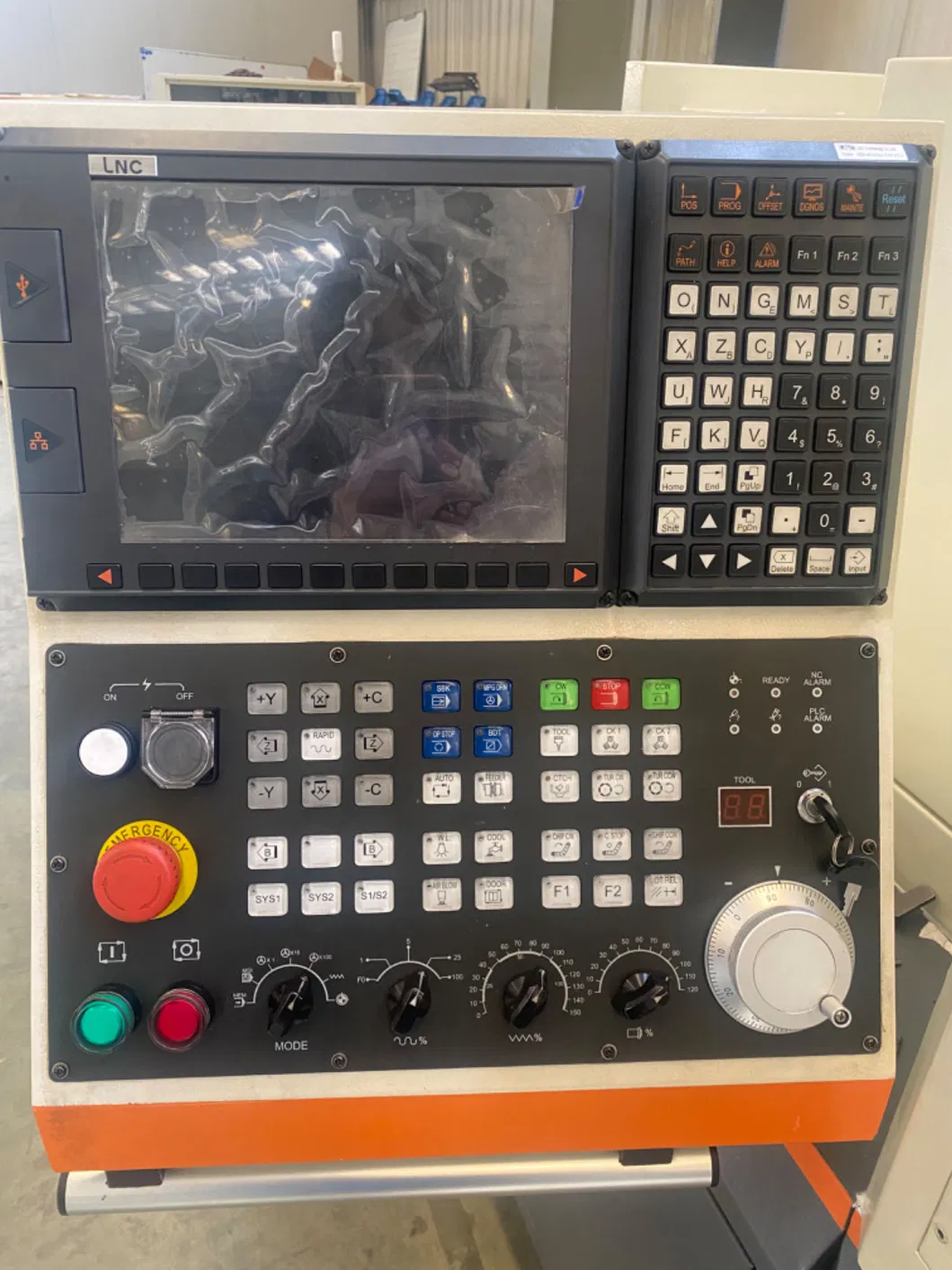

Operation System: Taiwan LNC T6850
Widely used by all industries - High quality, Practical, Stabilized

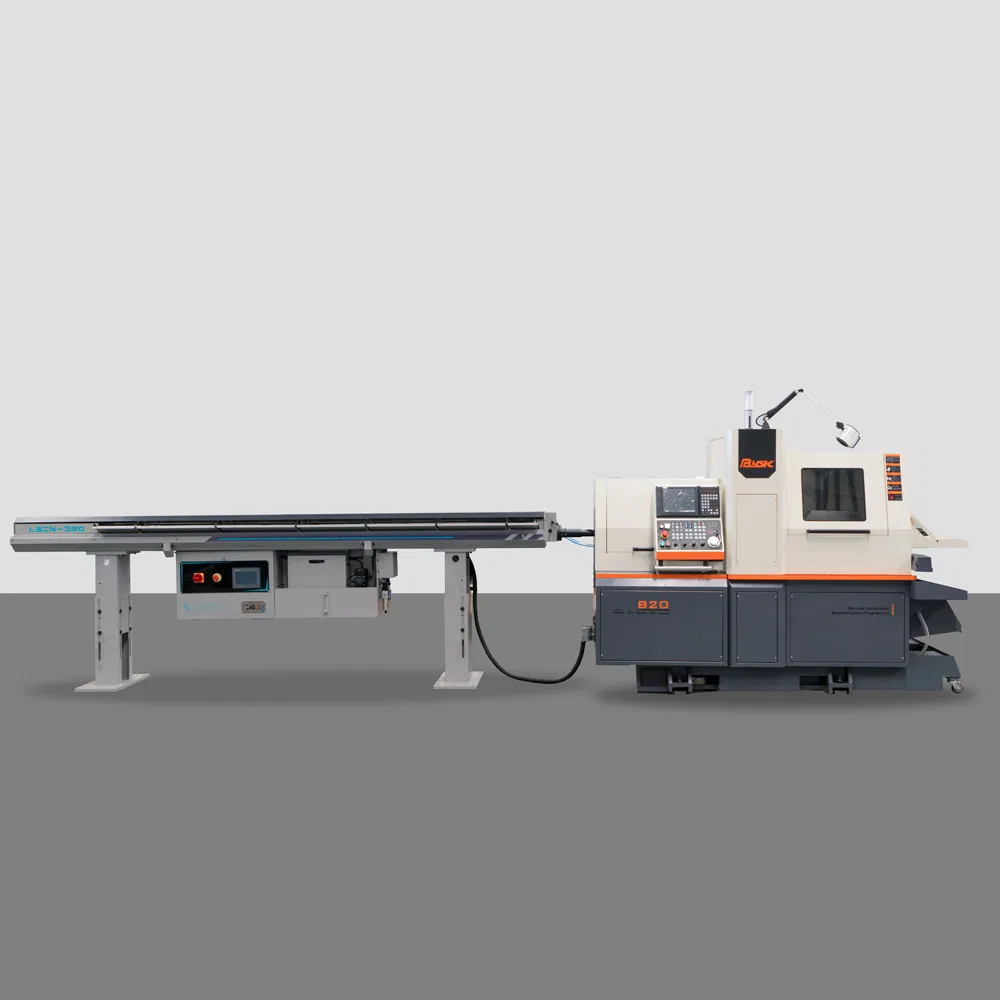

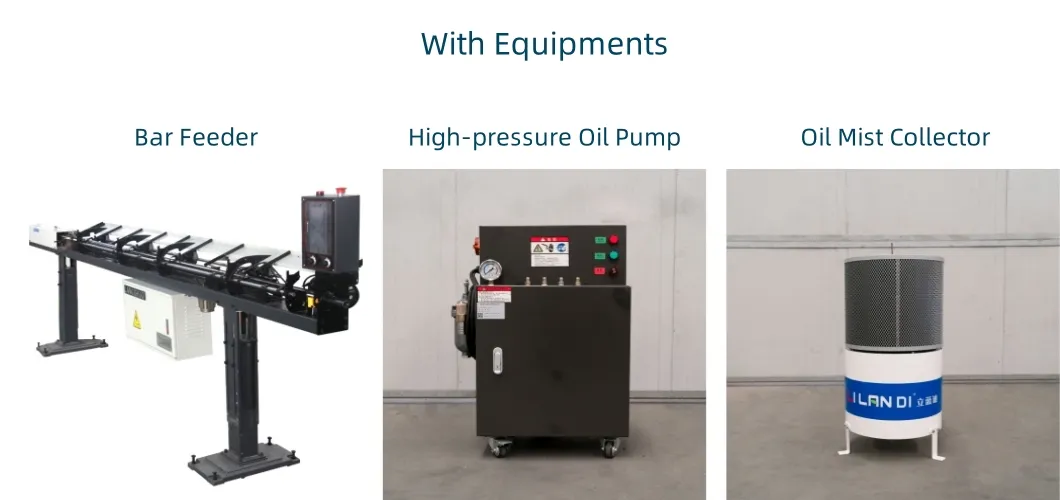

B20 CNC Lathe will be configured with oil film bar feeder, with high-pressure oil pump, oil mist machine, improve the performance of lathe, extend the life of lathe.
We are a comprehensive high-tech enterprise integrating R&D, Production, Sales & services of CNC system, CNC machine tool, automatic production line, Industrial robot, Internet of things and other products.
We specialize in the production of CNC SWISS-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Flat Bed CNC Lathe Machines, Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes, Single spindle CNC Machinery, Automatic Double-Spindle Lathes etc. Our Lathes all adopts absolute value servo and bus connection. It has over 10 invention patents, utility models and design patents. Our products are widely applied in Communication Equipments, Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories. Cost-effective products are ideal equipment for automatic batch production in all fields.
We adopt modern management concepts, deepen internal management, continuously improve the manufacturing process and services of products, successfully passing ISO9001 (Quality Management System), ISO14001 (Environment Management System), Measurement Management System Certificate, and obtaining Good Standardization Certificate. Otherwise, our products also have passed CE Certificate and other authoritative certifications.
"Provide high-quality products and best services, and create the highest value for our customers", carrying out the business philosophy of "Service, Innovation, Specialization, Pragmatism", to realize our vision to "Provide the most cost-effective machine tools for the world."
Yes, OEM and ODM projects are welcome.
In common conditions, our standard delivery lead time is approximately 30 to 45 working days.
We have a professional technical support team ready to assist you. Solutions are provided via our 24-hour online technical service support channel.
Yes, customization service is available, including specific options such as printing your logo on the machine body.
Our Swiss type CNC lathes offer quality comparable to European counterparts, featuring high cost-effectiveness. In addition, our independent research and development team holds multiple domestic design and innovation certificates.

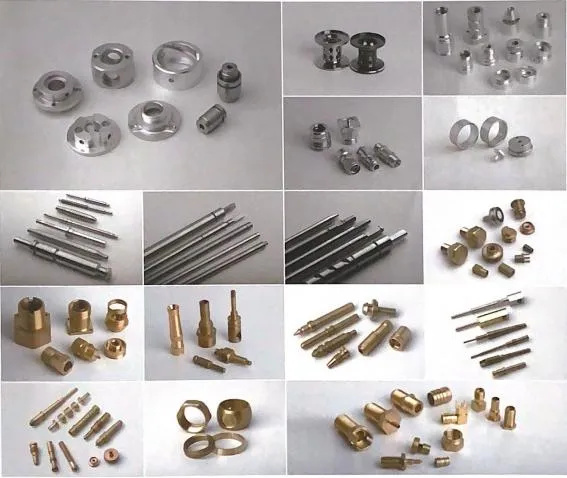

It is widely used in production settings for communication equipment, connectors, 5G components, mobile devices, household applications, aerospace, medical instruments, automotive parts, miniature shafts, timepieces, glasses, and high-precision hardware parts.
