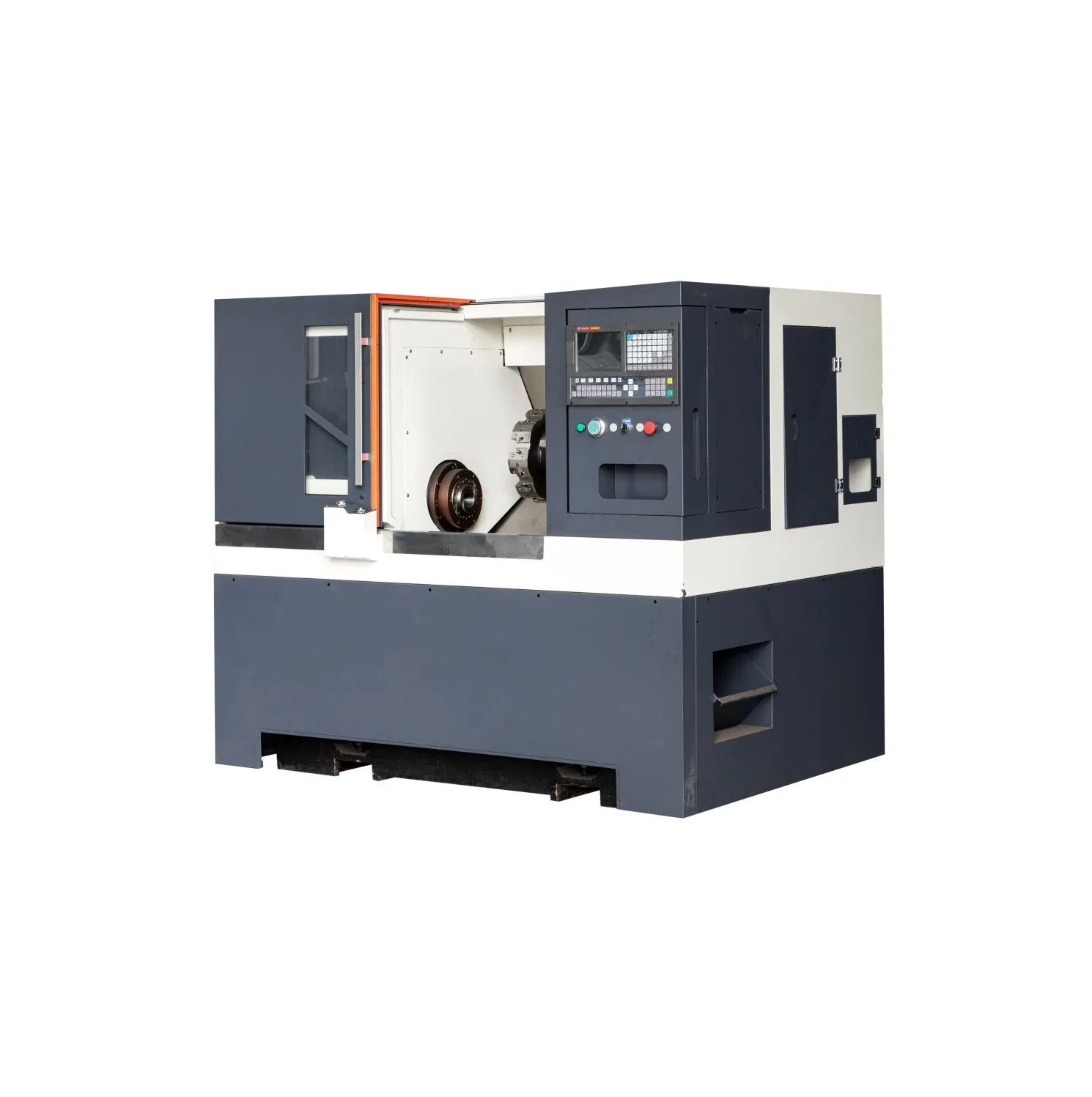

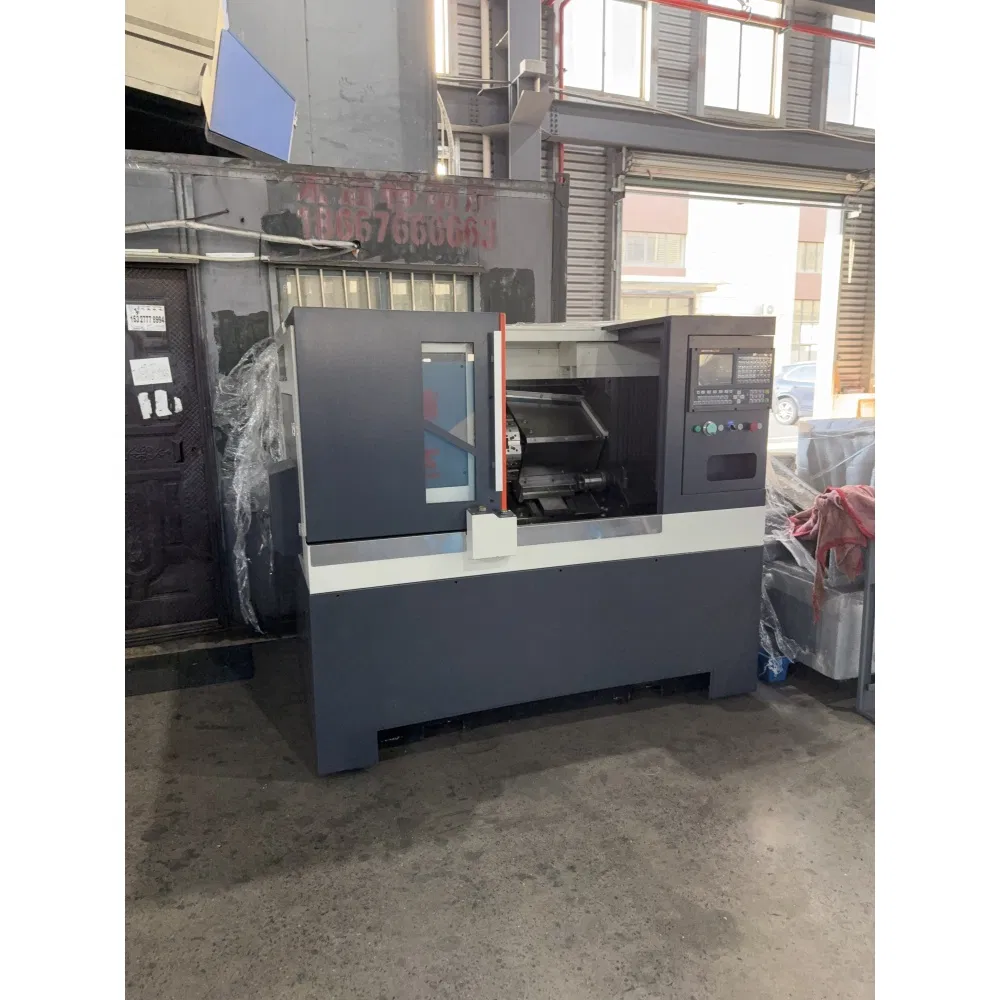

Hyundai Mazak Hit 18s Vertical & Horizontal Universal Swiss Type 6 Spindle Multi-Spindle Small Mini Heavy Wood CNC Lathe

Universal Swiss Type 6 Spindle Multi-Spindle CNC Lathe

Product Description

Smart Manufacturing Future Bed

Founded with the vision of replacing imported machine tools with competitive domestic alternatives, these machines match German and Japanese counterparts in operational speed, machining precision, and high-speed cutting capabilities. By integrating design features from Japanese and German frame structures while optimizing manufacturing processes according to international standards, the production line delivers efficient solutions tailored for modern machine tool manufacturing. This commitment ensures high-value equipment for clients. In today's fiercely competitive manufacturing landscape, only through continuous innovation can survival be secured.

Specification

Project	Specification		LA400A-B-300
Processing capacity	Knife holder specifications	—	80825
	Maximum rotary diameter	mm	400
	Standard processing diameter	mm	160
	maximum machining diameter	mm	280
	maximum machining length	mm	300
	Diameter of bar mill	mm	35/45
Mobile volume	X-axis movement	mm	180
Mobile volume	Z-axis movement	mm	350
Principal axis	speed	RPM	A2-5:4500, recommended within 3000 A2-6:4000, recommended within 2500
	Minimum division Angle (Cs axis control)	deg	—
	Shaft end (common name)	—	A2-5/A2-6
	Piercing diameter	mm	48/56
	Bearing inner diameter	mm	85/90
Blade adapter	Type of blade	—	Direct insertion
	Number of tool clamps	individual	12
	Rectangular handle height	mm	25
	Bore diameter of boring rod	mm	32
Tailstock	Mobility of the tail	mm	140
	Cylinder tail diameter	mm	75
	Taper of tail seat sleeve cone hole	—	MT.5
	Shaft sleeve movement	mm	95
Feed rate	Fast feed speed	m/min	X:30 / Z:30
Power System	Drive motor (30 minutes 60%/ continuous)	kW	7.5/11
	Rotating tool motor (15 minutes/continuous)	kW	—
	Feed shaft motor	kW	X: 1.5 / Z: 1.5
	Hydraulic pump motor	kW	1.5
	Cutting fluid pump motor	kW	0.4
Power supply	Power supply	kVA	11
Fuel tankage	Used in hydraulic devices	L	50
	Used lubricants	L	2
	Used for cutting fluid	L	60
Machine volume	Height of machine tools	mm	1650
	Height from the ground to spindle centerline	mm	980
	Floor space (standard specification) x3	mm x mm	2000 x 1400
	Weight of machine tools	kg	2300

Configuration List

Order Number	Name	Quantity	Manufacturer	Remarks

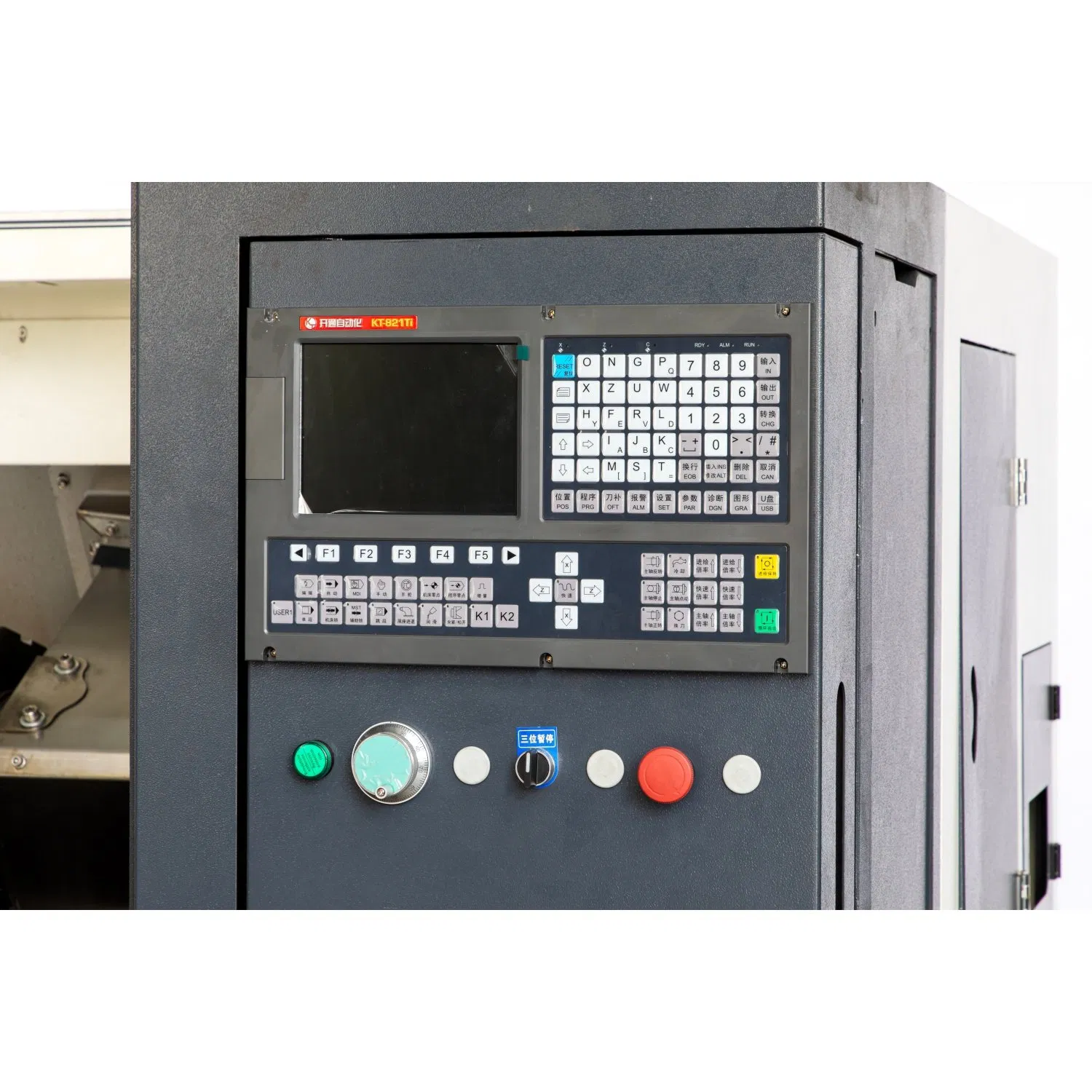

1	Numerical control system	1 cover	Guangzhou 980TB3i	6TA-E
2	Main shaft power	1 cover	VEICHI / GROSSTON	Electric spindle 7.5/11KW
3	Dual-shaft motor	1 set each	Guangzhou Original	X axis 1.5kw break, Z axis 1.5kw
4	Front main shaft bearing NN3017K/3018K	1 group	GROSSTON Japan	GROSSTON High rigidity NN structure spindle
5	Main shaft rear bearing 7214/7216	1 group	GROSSTON Japan	Chongqing Precision Machinery
6	X, Z-axis screw bearings	1 group	GROSSTON Japan	—
7	X, Z axis ball screw	1 group	GROSSTON Japan	—
8	X-axis linear guide	2 twigs	GROSSTON Japan	35 pin roller
9	Z-axis linear guide	2 twigs	GROSSTON Japan	35 pin roller
10	Principal axis	1	GROSSTON	A2 - 5 / A2 - 6 (48/56 Holes)
11	DOTA	1	Taiwan SWIFT	80--8T--330
12	Cutting fluid pump	1	LIEU	—
13	Automatic lubrication system	1	Taizhou Qian Tong	—
14	X, Z-axis couplings	1	Taizhou Qian Tong	—
15	Oil chuck	1	GROSSTON Japan	—
16	Hydraulic tail seat	1	GROSSTON	Moss 5
17	Foundry goods	1	HT250	Structure of Japanese Takizawa model

Profile

Your One-Stop CNC Machine Manufacturer with 20+ Years of Integrated Expertise

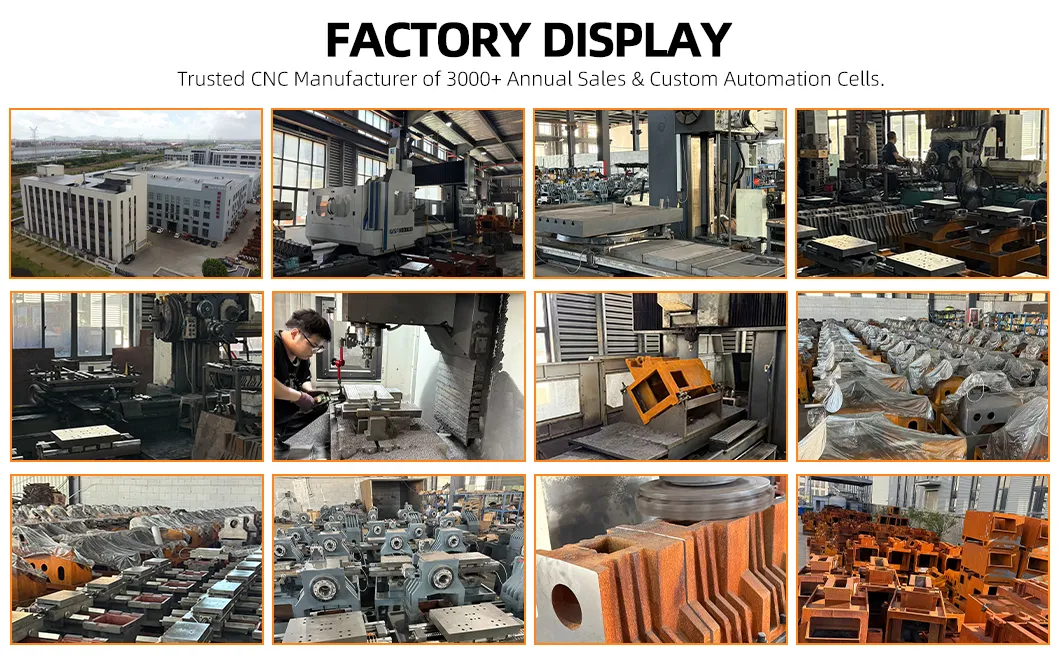

We are a professional CNC machine tool manufacturer integrating R&D, production, and sales. With over 20 years of deep industry experience, we operate from a modern 10,000-square-meter production facility and maintain a complete, well-defined manufacturing ecosystem.

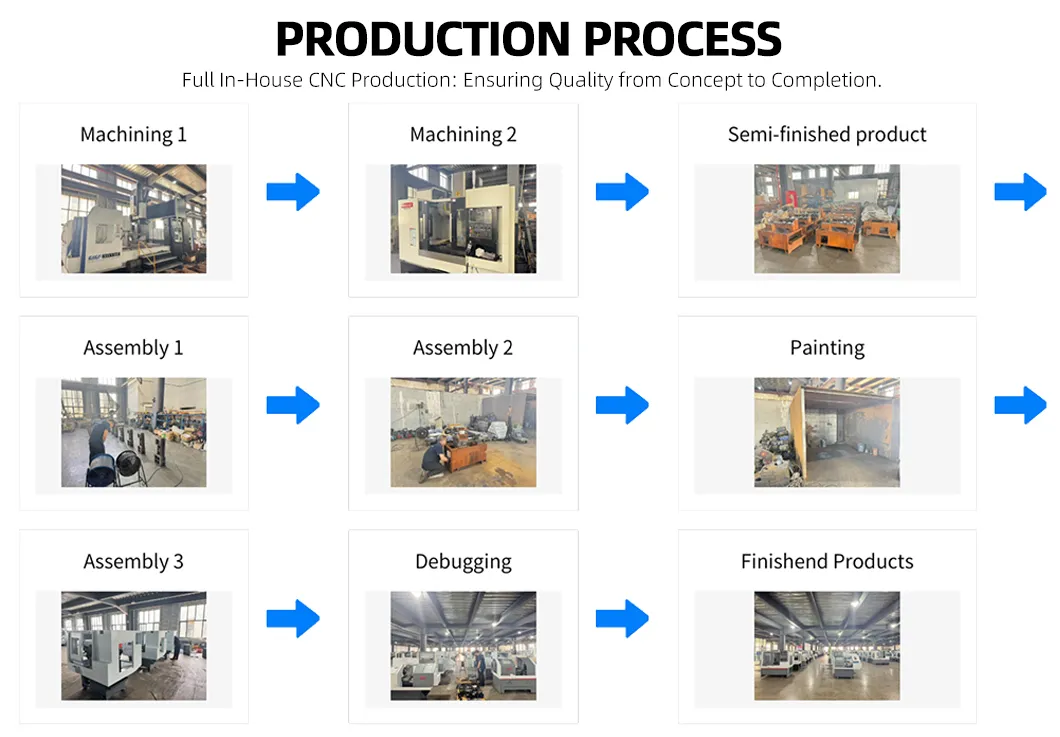

Our core strength lies in our comprehensive in-house manufacturing and quality control capabilities. We autonomously manage the entire production process: from the precision machining of base castings and the critical installation of ball screws and guideways to sheet metal fabrication, CNC system integration, electrical assembly, and final machine calibration and testing. This end-to-end control guarantees the outstanding reliability and stability of every machine, ensuring strict compliance with national standards.

We boast a diverse and extensive product portfolio, including hard rail machines, linear rail machines, slant bed lathes, high-low rail models, turret-tailstock machines, and 855 series vertical machining centers (VMCs). Beyond offering standard models, we specialize in providing highly flexible customized and non-standard design solutions tailored to your specific machining requirements, product materials, and process preferences.

Furthermore, we are committed to delivering integrated automation solutions. We can equip your production lines with auxiliary equipment such as vibratory feeders, gantry robots, automatic feeding systems, and industrial robotic arms, facilitating significant enhancements in production efficiency and substantial reductions in labor costs.

Thanks to our superior product quality and powerful customization capabilities, we consistently achieve an annual sales volume of 2,000 to 3,000 units across China, earning the trust of a wide range of enterprises.

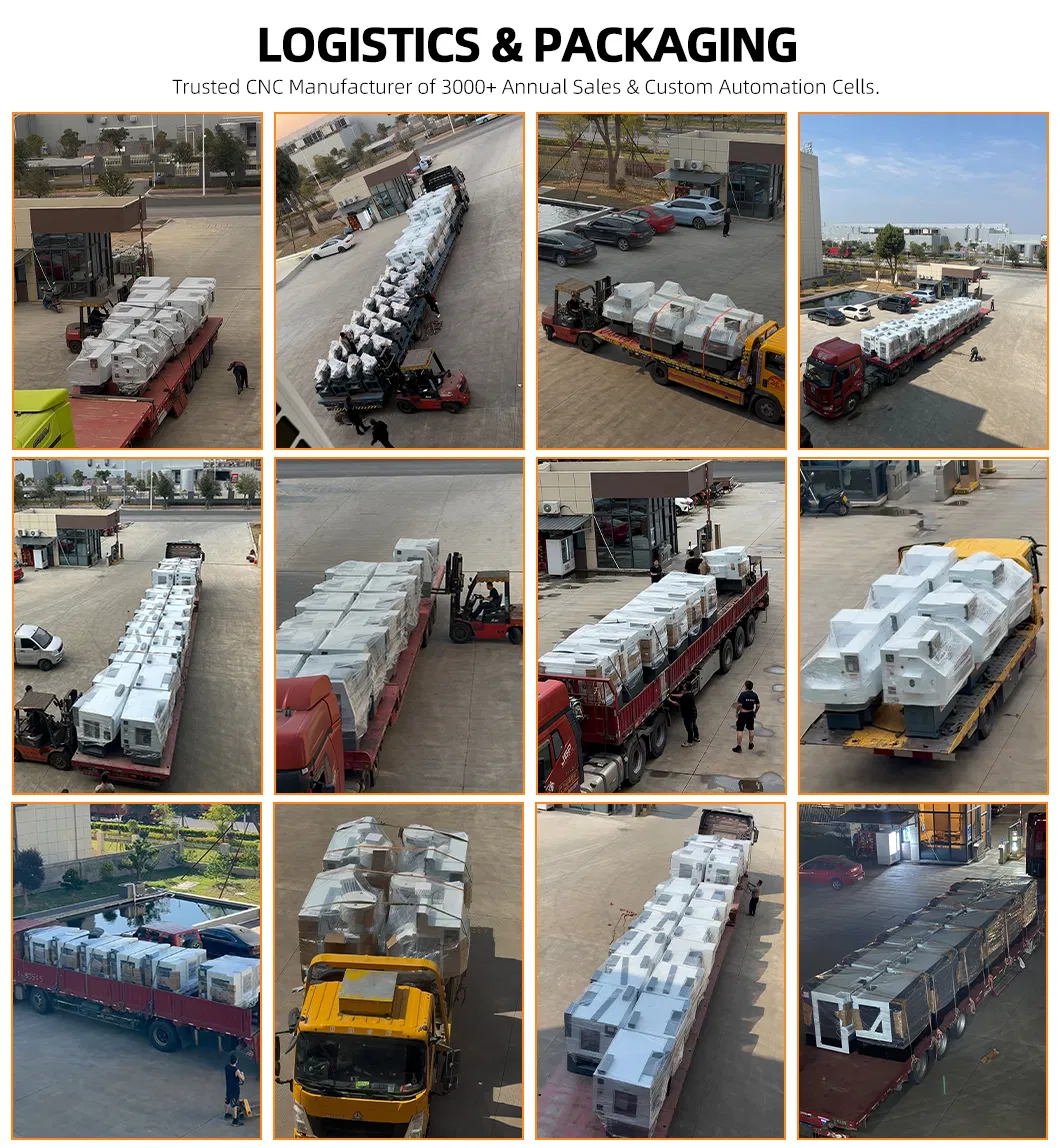

Packaging & Shipping

Certifications

Frequently Asked Questions

1. What is your product range?

We boast a diverse and extensive product portfolio, including hard rail machines, linear rail machines, slant bed lathes, high-low rail models, turret-tailstock machines, and 855 series vertical machining centers (VMCs).

2. What are your trade terms?

EXW, FOB, CFR, and CIF are all acceptable trade options.

3. How can I choose the most suitable machine?

Please provide the model or technical parameters you need and tell us what applications you intend to perform using the CNC machining center. This allows us to offer the machine with the best price and quality. Alternatively, you can send us product images or drawings, and we will choose the most suitable machine for you.

4. What about the after-sale service?

We provide a one-year warranty. If any parts break during this period, we will send you a new replacement part for free.

5. What information should I provide before sending an inquiry?

It is highly recommended to provide:
1) Your metal workpiece size, as we supply different models based on working area dimensions.
2) Your workpiece materials (e.g., Aluminum, Steel, Iron, Titanium Alloy, etc.).
3) You can also send us drawings of your workpiece, enabling us to conduct a detailed review and provide more accurate recommendations.
