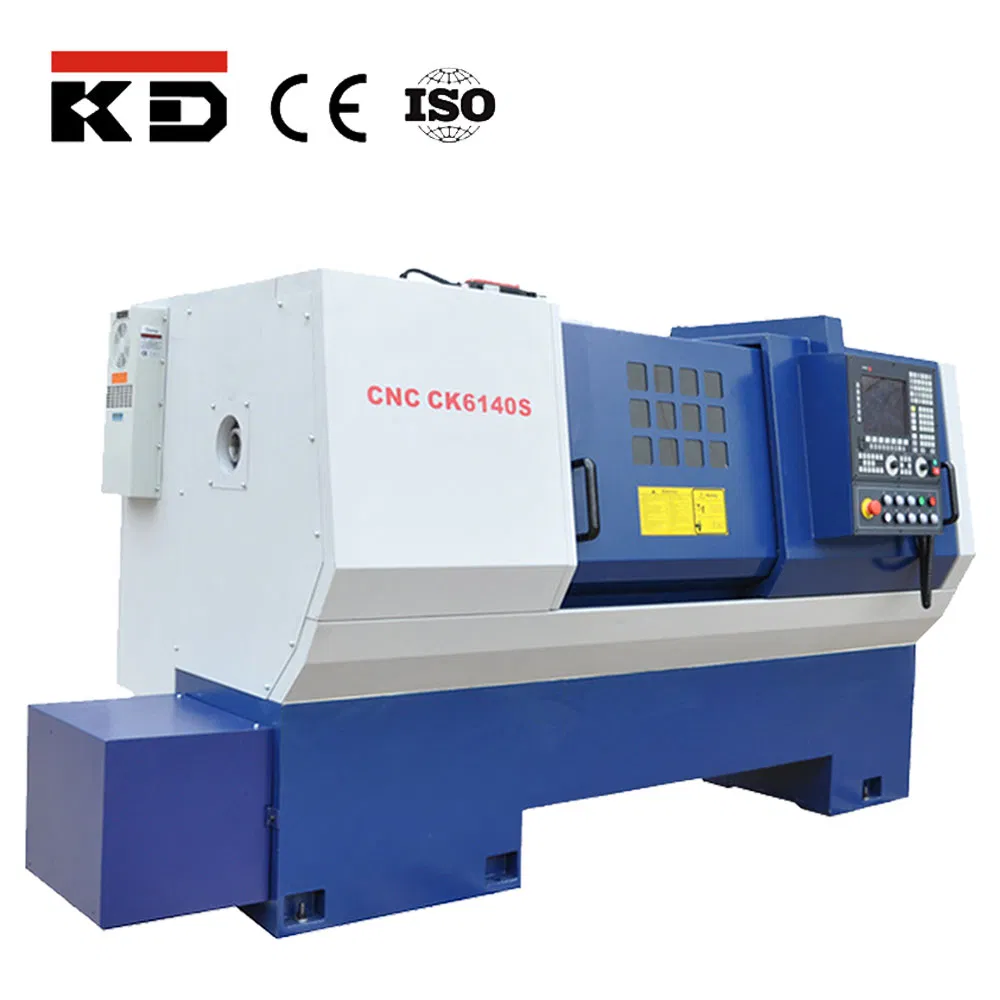

High Precision Swiss Type CNC Automatic Lathe with CE Ck6140s/1000

Customization:	Available
Application:	Metal
Process Usage:	Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Send Inquiry

Product Description

Basic Info.

Model NO.

CK6140S

Movement Method

Linear Control

Control Method

Semi-Closed Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Performance

High-End CNC Machine Tools

Certification

GS, CE, ISO 9001

Condition

New

Max Swing Over Bed

400mm

Spindle Bore

52mm

Spindle Speed

20-2800rpm

Transport Package

2870X1500X1900mm

Specification

400mm

HS Code

8458110000

Production Capacity

1100

Product Description

Product Specifications

MODELS	CK6130S	CK6140S
CAPACITY
Max.swing over bed	Ф300mm	Ф400mm
Max.swing over carriage	Ф135mm	Ф225mm
Max. length of workpiece	500mm	750/1000mm
Max.turning length	390mm	700/950mm
6-way turret max turning length	340mm	590/840mm
6-way turret max turning diameter	Ф185mm	Ф300mm
TRAVEL
Max.cross travel(X)	165mm	235mm
Max.longitudinal travel(Z)	460mm	740/990mm
FEED
Rapid feed for axis X	8m/min	8m/min
Rapid feed for axis Z	10m/min	10m/min
SPINDLE
Spindle nose	D4	C6
Spindle bore	Ф38	Ф52mm
Taper bore of spindle	M.T.NO.5	M.T.NO. 6
Steps of spindle speed (manual)	Variable	Variable
Range of spindle speed	200~3500rpm	200~2800rpm

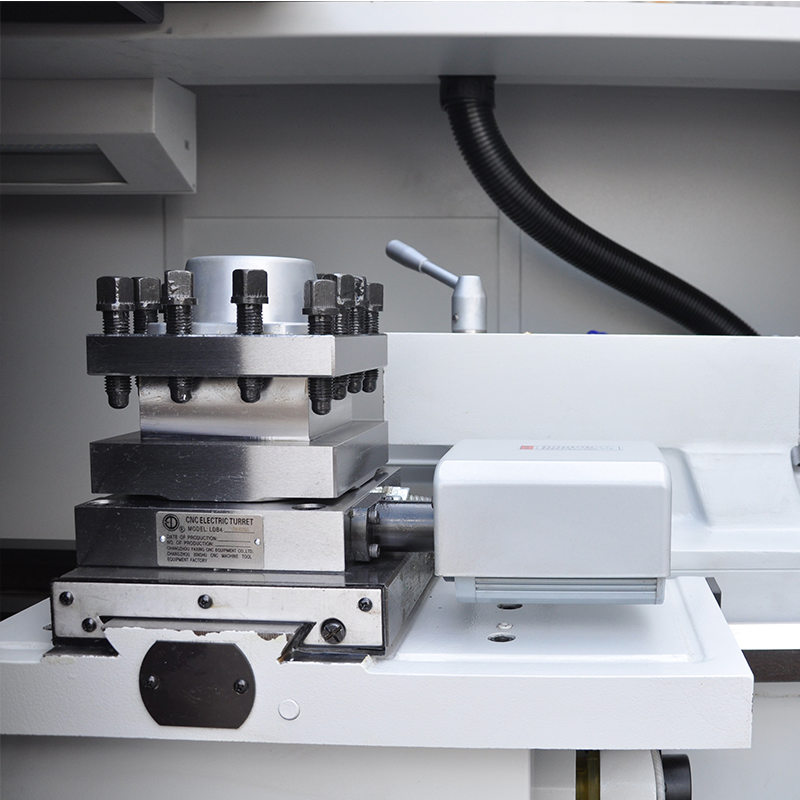

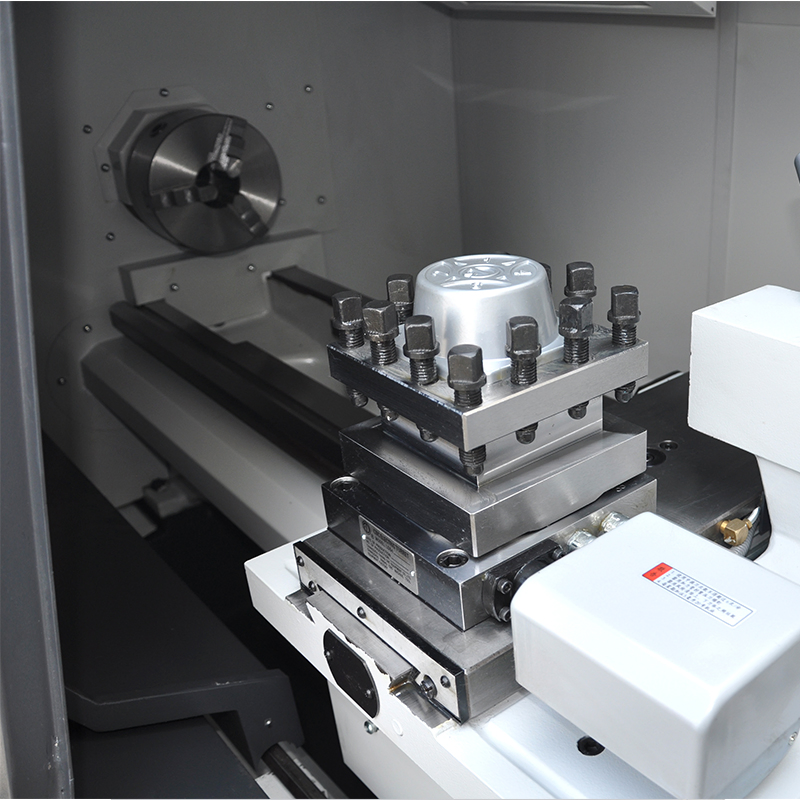

TOOL POST
Tool post stations	4-way	4-way
Tool cross section	16×16mm	20×20mm
TAILSTOCK
External diameter of tailstock sleeve	Ф50mm	Ф60mm
Taper bore of tailstock sleeve	M.T.NO.3	M.T.NO.4
Max.travel of tailstock sleeve	130mm	120mm
OTHERS
Min. input	0.001mm	0.001mm
Main motor power	3kw	3.7kw (optional: 5.5kw)
Coolant pump power	75w	75w
Overall dimensions(L×W×H)	1500×945×1380mm	2370×1200×1415mm
Net weight	1100kg	1800/2000kg

High Precision Swiss Type CNC Automatic Lathe Detail Features

Frequently Asked Questions

Q1: What are the primary differences between the CK6130S and CK6140S models?

The CK6140S features larger capacities compared to the CK6130S, including a larger maximum swing over bed (400mm vs. 300mm), a larger spindle bore (52mm vs. 38mm), and a greater maximum workpiece length limit (up to 1000mm vs. 500mm).

Q2: What is the processing precision capacity of this CNC lathe?

This high-end CNC machine tool provides a precise control method, achieving an exceptional processing precision range between 0.01 mm and 0.02 mm, with a minimum input increments support of 0.001 mm.

Q3: Does the lathe control support semi-closed loop setups?

Yes, this machine utilizes a semi-closed loop control method with a linear movement method, ensuring highly reliable stability and accurate positioning during automatic machining operations.

Q4: What type of certifications does this CNC machine tool hold?

Our CNC automatic lathes meet rigorous international standards and hold GS, CE, and ISO 9001 quality system certifications, ensuring reliable safety and performance quality.

Q5: What options are available for the spindle speed and motor power on the CK6140S?

The CK6140S spindle has a manual variable range of 200 to 2800 rpm (overall capability 20-2800 rpm). It comes standard with a 3.7kw main motor, with an optional upgrade to a more powerful 5.5kw motor depending on your configuration needs.
