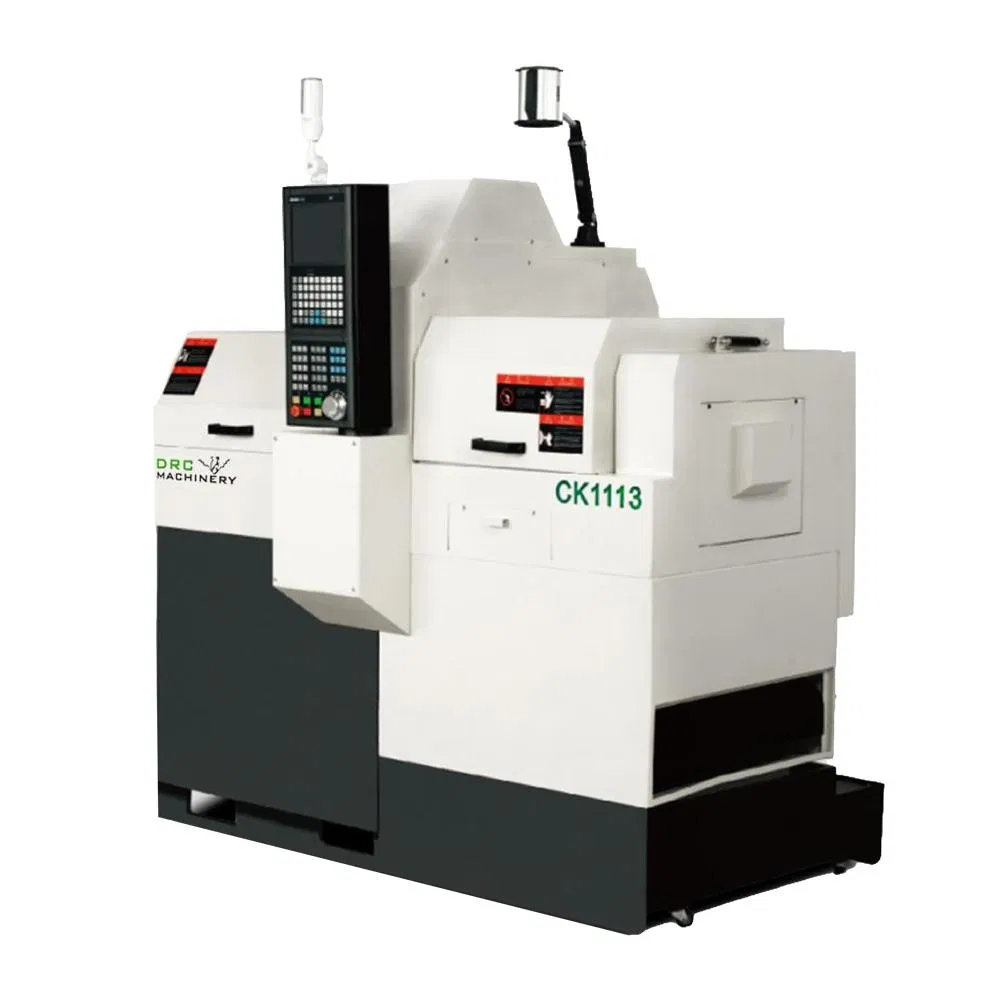

5 axis Swiss Machine CK1120 Have Sub Spindle Double Spindle Swiss Type Cnc Lathe Small Teaching Automatic Lathe

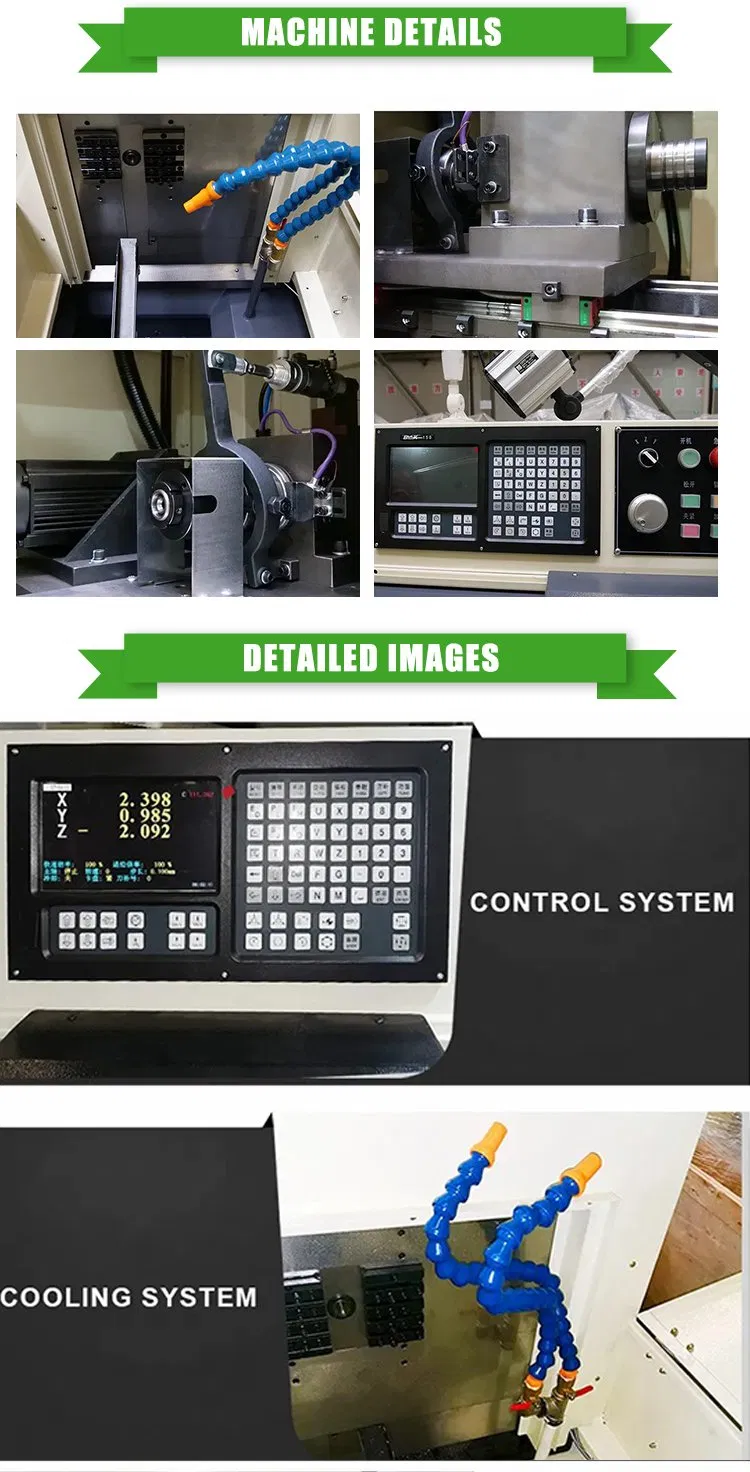

Machine description and use: CK1120 Spindle Movable Type CNC Lathes have features of high precision, high efficiency, and reasonable structure. The machine is equipped with three-axis linear motion guide that have long working life and high precision, and driven by high-end servo motor. The linear multiple cutter makes machine have fast tool changing speed, and functional CNC system make it easy to control.
The main structural features:

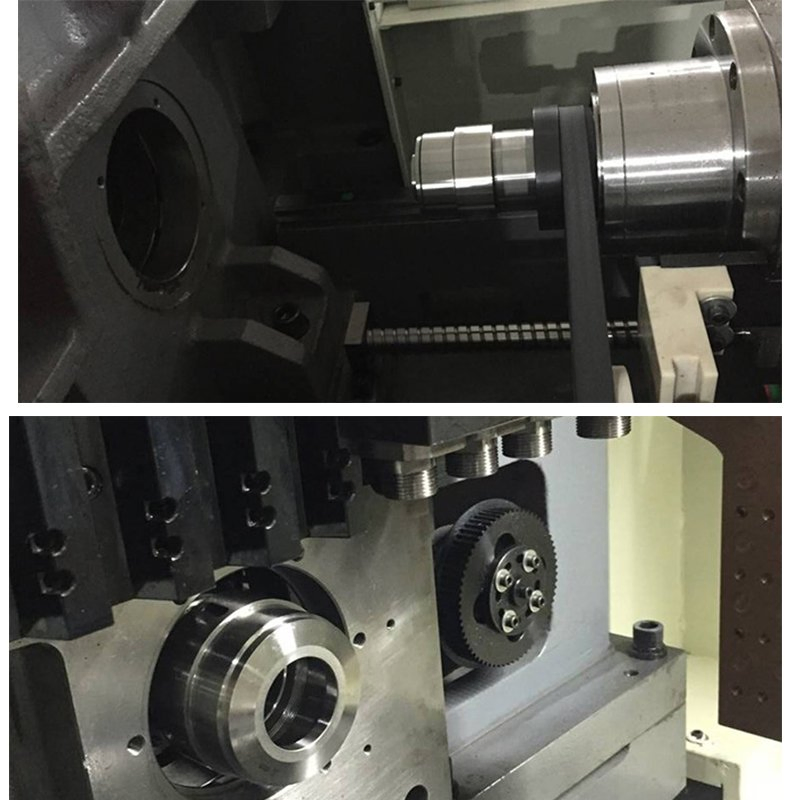

| Project | Model | CK1120 |
|---|---|---|
| Power Details | ||
| Power | Rated Voltage | Three Phase AC Current |
| Rated Frequency | 50Hz | |
| Total Input Power | 4.75kW | |
| Control System | ||
| CNC System | Domestic | YZ150 |
| Min Setting Value | 0.001mm | |
| X Axis Pulse Equivalent | 0.0005mm | |
| Y Axis Pulse Equivalent | 0.001mm | |
| Z Axis Pulse Equivalent | 0.001mm | |
| Max Programming size | ±9999.999mm | |
| Cutting Speed | 1--4000mm/min | |
| X Axis Fast Feed Rate | 18000mm/min | |
| Y Axis Fast Feed Rate | 18000mm/min | |
| Z Axis Fast Feed Rate | 18000mm/min | |
| Spindle Specifications | ||
| Spindle | Max Bar Diameter | Ø20mm |
| Spindle Hole Diameter | Ø21mm | |
| The height of spindle center from ground | 980mm | |
| Rotating Speed | 0-4000r/min | |
| Power | 2KW | |
| Axis Strokes & Motor Power | ||
| Stroke | X Axis Stroke | 80mm |
| Y Axis Stroke | 150mm | |
| Z Axis Stroke | 250mm | |
| X Axis Servo Motor Power | 0.75KW | |
| Y Axis Servo Motor Power | 0.75KW | |
| Z Axis Servo Motor Power | 0.75KW | |
| Slide guide mode | Linear Guide Rail | |
| Tooling System | ||

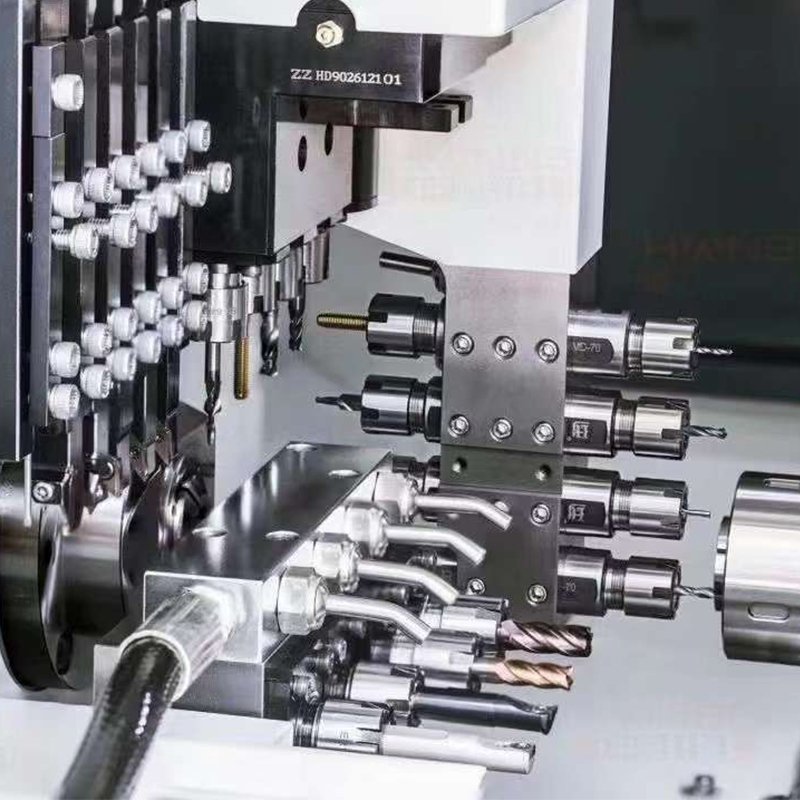

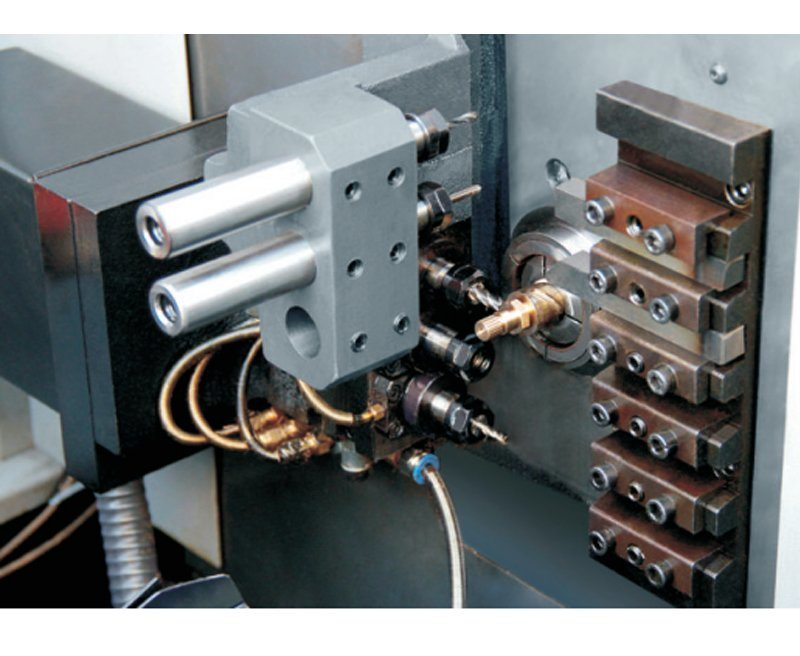

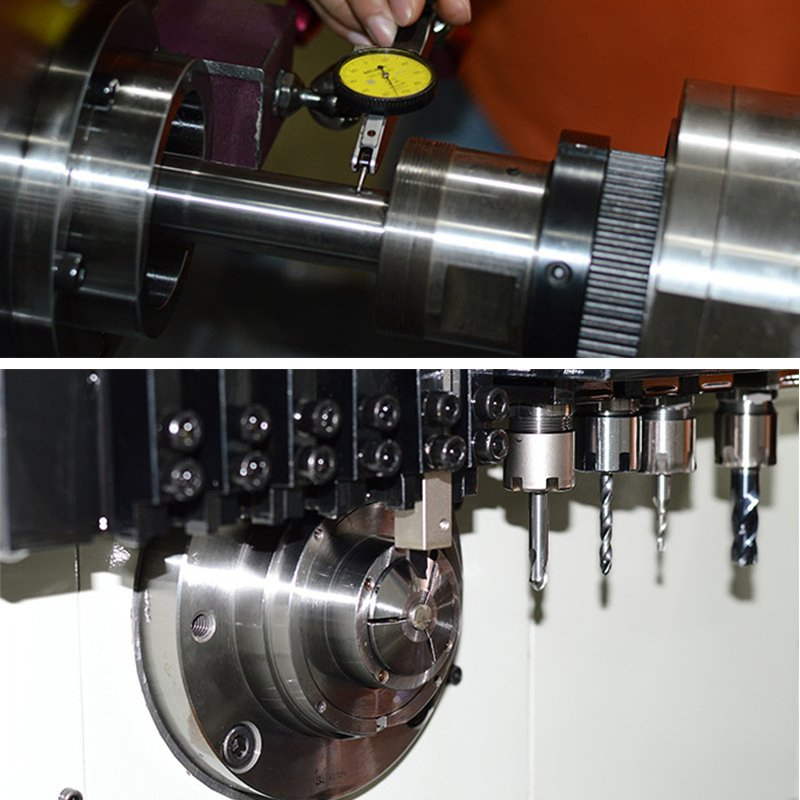

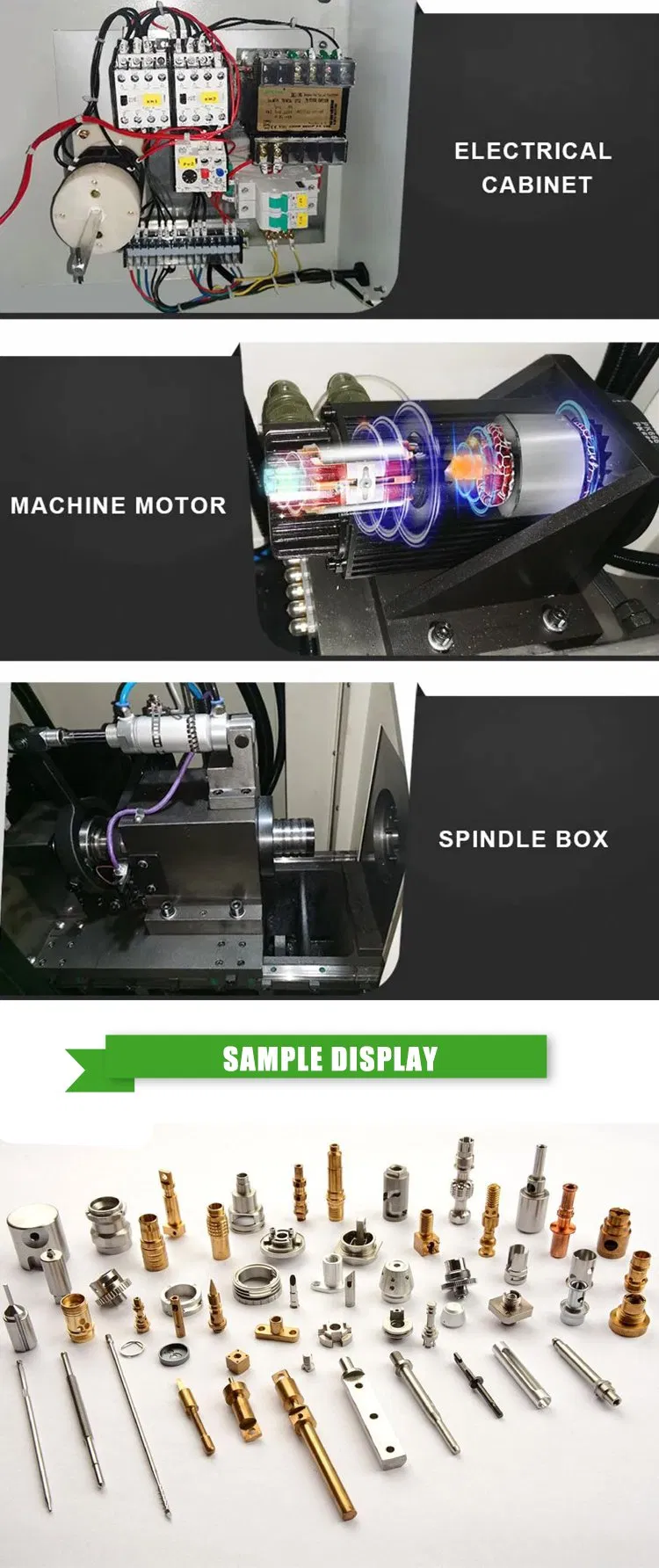

| Tool System | Gang Tool | 12 tools |
| Turning Tool | 6 tools | |
| Tool Size | 12*12mm | |
| Obverse Side Drilling Tool | 3 tools | |
| Drilling Spindle Size | ER11/20mm | |
| Power Cutting Tool Specifications | ||
| Power Cutting Tool | Number | 3 sets |
| Motor Power | 0.75kW | |
| Rotation Speed | 3000r/min | |
| Collet Size | ER11 | |
| Drilling Hole Size | Ø6mm | |
| Tapping Size | M6 | |
| Auxiliary Systems | ||
| Cooling System | Cutting Motor Power | 0.12kW |
| Capacity of Cooling Container | 150L | |
| Lubricating System | Motor Power | 25W |
| Capacity | 2L | |
| Pneumatic System | input Pressure of Compressed Air | 0.4--0.6MPa |
| Physical Dimensions | ||

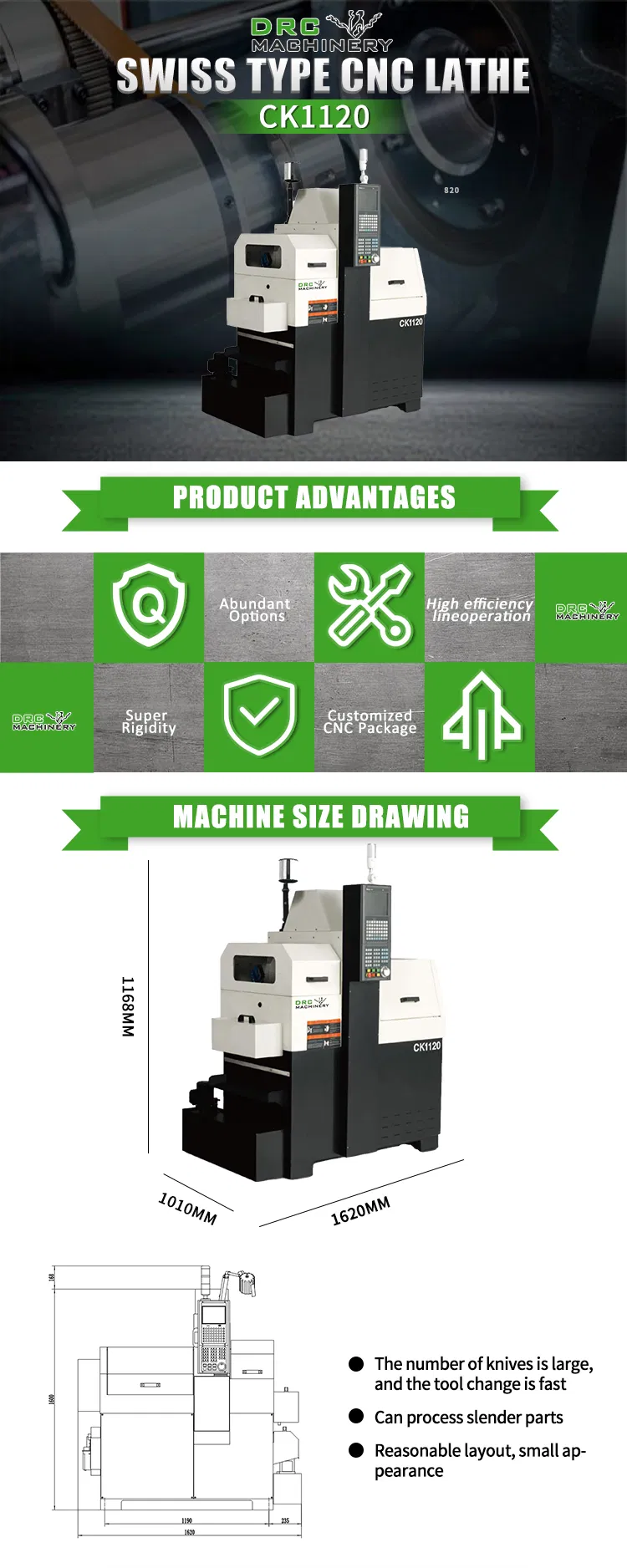

| Machine Size | L*W*H | 1450*850*1650mm |
| Weight | 1000kg | |
The maximum bar diameter that the CK1120 Swiss Type CNC Lathe can process is Ø20mm.
Yes, the CK1120 is designed to switch between guide sleeves and non-guide sleeves depending on workpiece length. Running without a guide sleeve reduces raw material waste, leaving a residual bar of only 30mm.
The machine utilizes a domestic YZ150 CNC control system, offering a minimum setting value of 0.001mm for high-precision operations.
It accommodates a total of 12 tools in its gang tool system, including 6 turning tools, 3 obverse side drilling tools, and 3 sets of power cutting tools.
The machine size is 1450*850*1650mm (L*W*H) and it has a net weight of approximately 1000kg.
The CK1120 Swiss Type CNC Lathe is fully certified with CE marking, meeting strict safety and quality standards.
