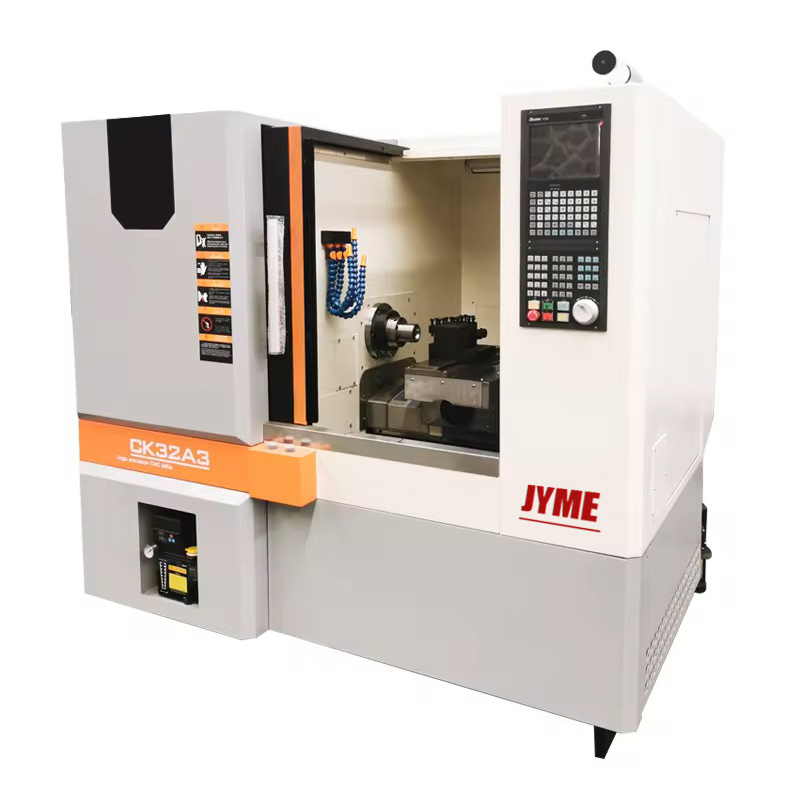

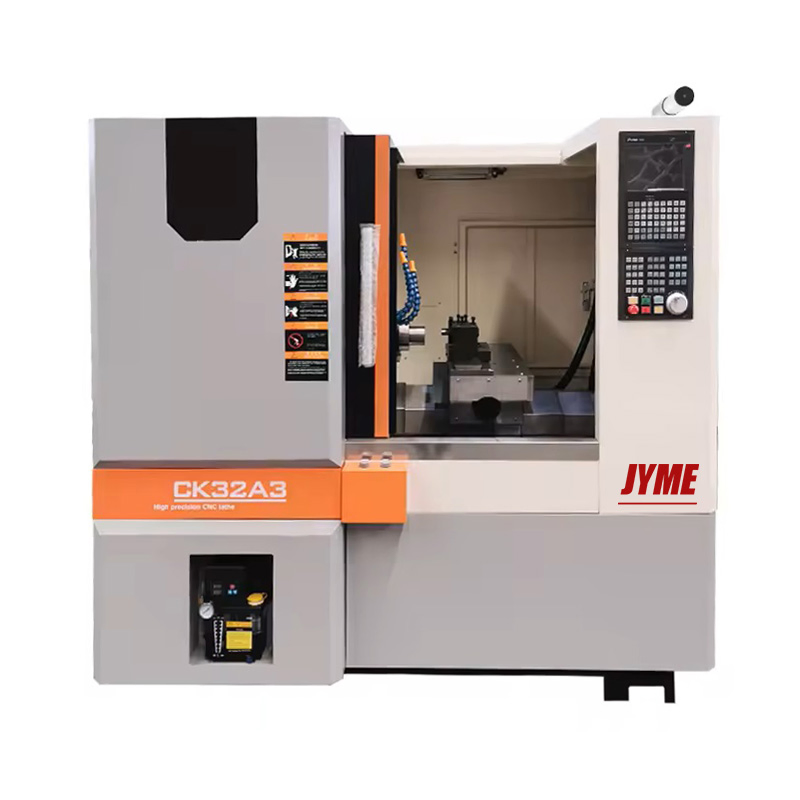

CNC Lathe Ck32A3 High Precision CNC Lathe Swiss Type for Metal Turning and Milling in China

1 / 5

CNC Lathe Ck32A3 High Precision CNC Lathe Swiss Type for Metal Turning and Milling in China

Send Inquiry

Product Description

Main Features

High rigidity casting bed;
High precision spindle bearing;
Bed guideways inductively hardened.

Application

It is capable of turning and milling combined processing.
It is a high-precision, wide-ranging and practical processing equipment.
This type of machine tool is suitable for large-scale and large-scale "slender shaft" parts with relatively large length and diameter, and "small" and "abnormal" parts.
Variety, high-precision processing tasks, its processing range is widely applicable to various high-tech industries such as medical, aviation, aerospace, automobiles, motorcycles, communications, refrigeration, optics, home appliances, microelectronics, electronics, watches, mobile phones, etc.
Compound processing of precision, multi-batch, complex shape shaft parts and precision small parts.

Parameters

Specification	CK32A3
Cutting speed	1-4000mm/min
X rapid travel speed	20000mm/min
Z rapid travel speed	20000mm/min
Spindle through diameter	Φ33mm
Max. bar throught hole	Φ32mm
Max. revolving dia.	Φ400mm
Spindle center height from the ground	1000mm
Spindle speed	0-4000r/min
spindle motor power	4kw
X stroke	600mm(Diameter value)
Z stroke	300mm
Guideway	Linear guideway
Machine size	160014101930mm

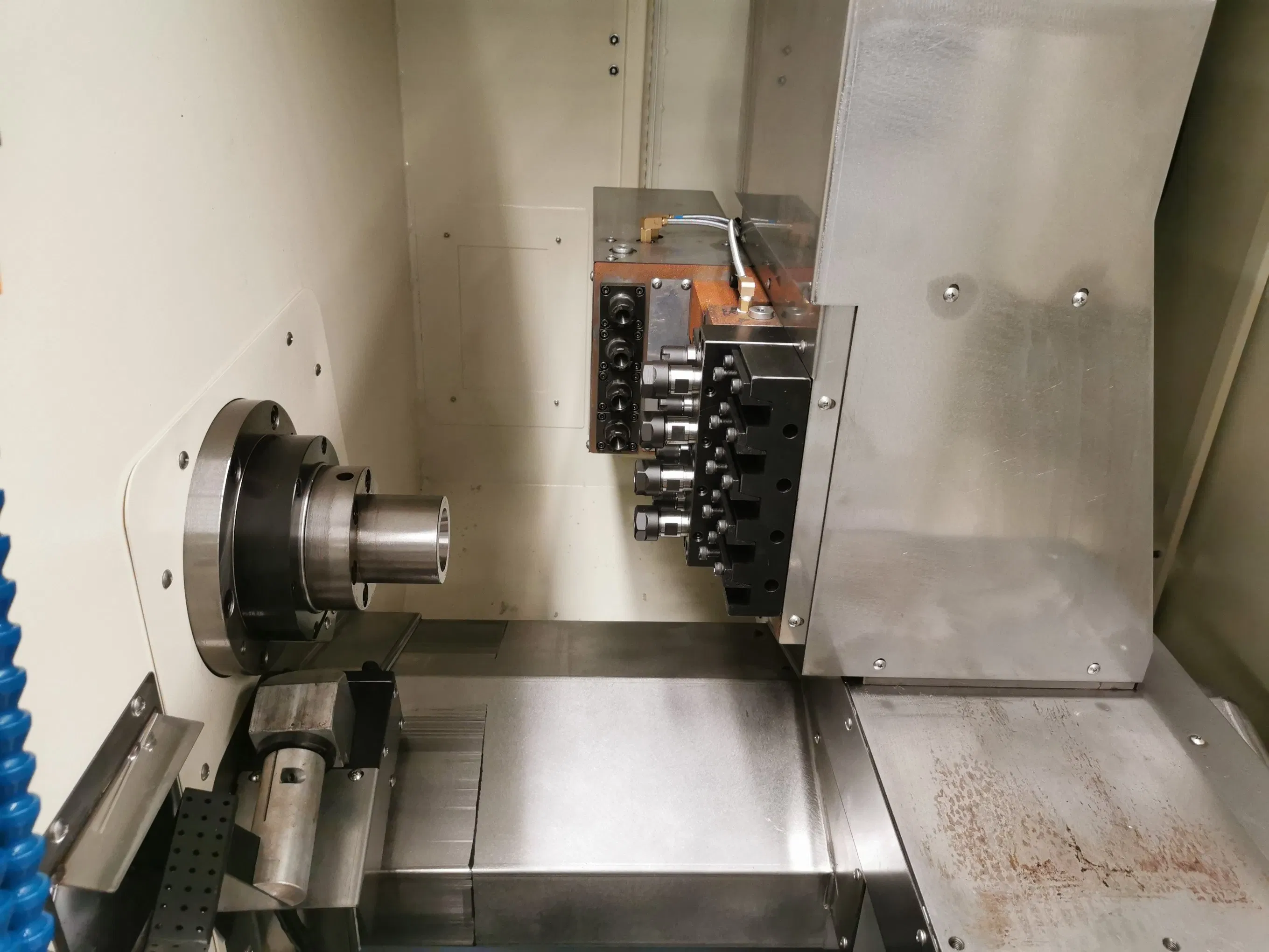

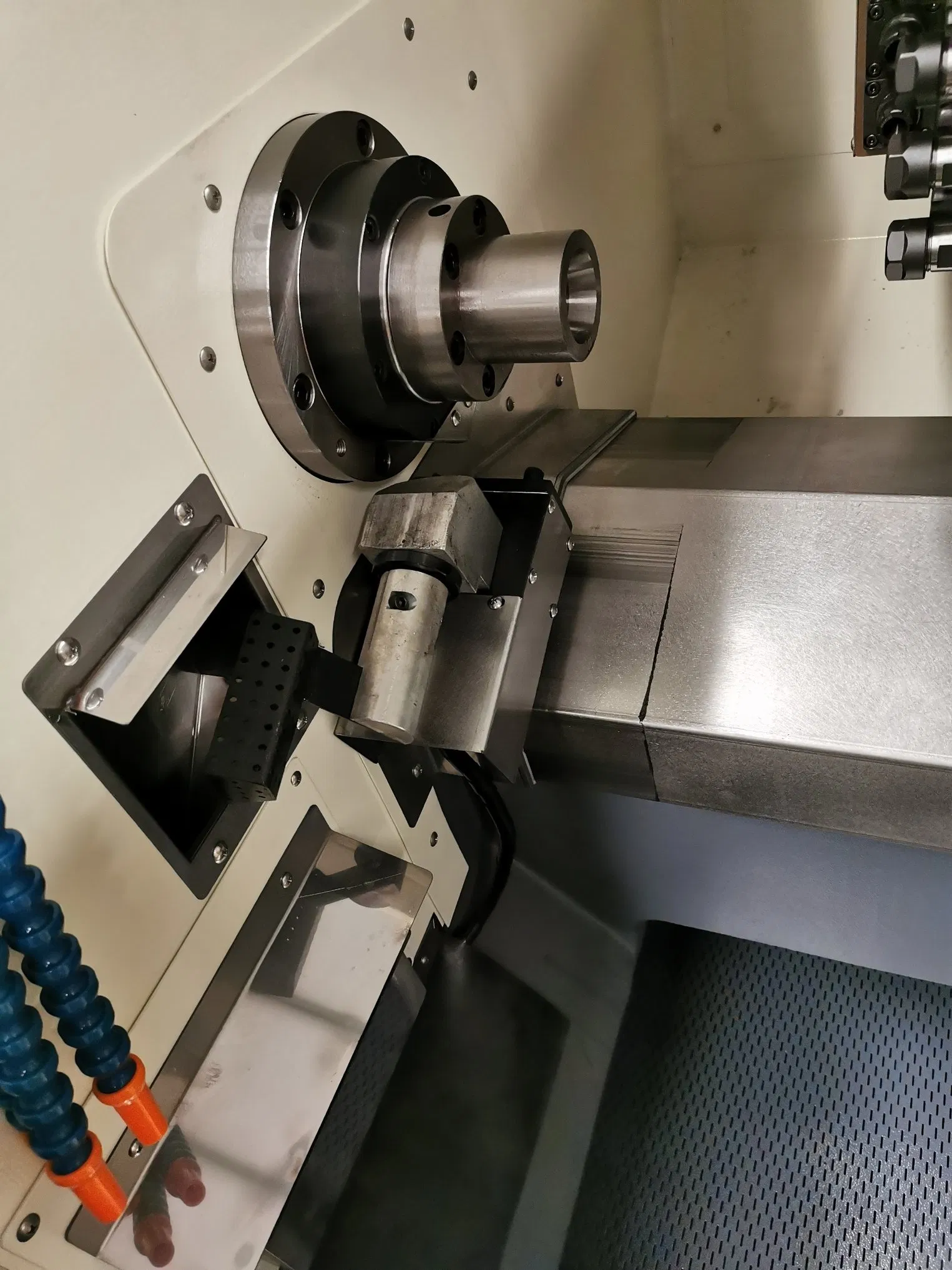

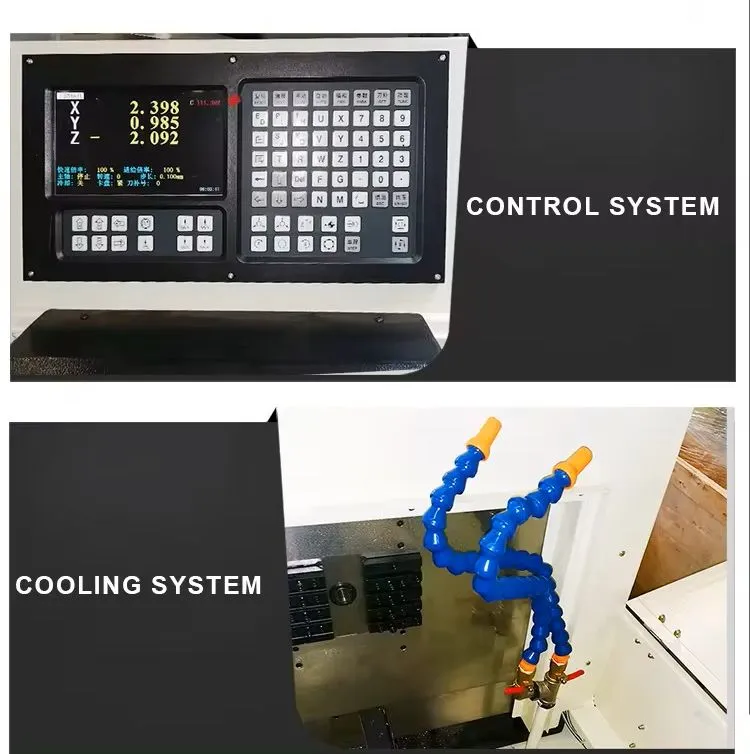

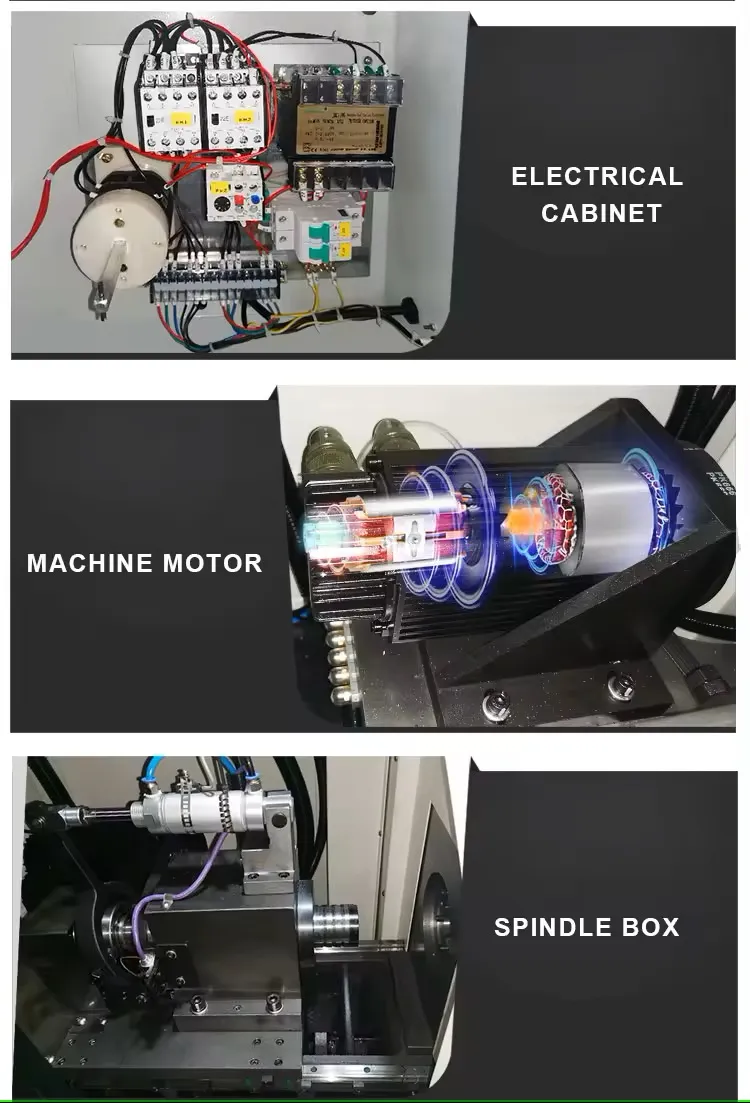

Machine details

Frequently Asked Questions

What are the primary applications of the CK32A3 CNC Lathe?

The CK32A3 CNC Lathe is designed for combined turning and milling processes. It is highly suitable for processing complex, precision, and multi-batch shaft parts, especially slender shafts and small or abnormal components.

Which industries can benefit from using this Swiss-type CNC lathe?

Due to its high precision and wide range, it is widely used in high-tech industries including medical, aviation, aerospace, automotive, communications, refrigeration, optics, electronics, home appliances, and mobile phone manufacturing.

What is the spindle speed and motor power of the CK32A3?

The CK32A3 features a spindle speed range of 0-4000 r/min and is equipped with a powerful 4kW spindle motor.

What are the travel speeds and travel strokes of the X and Z axes?

The rapid travel speed for both the X and Z axes is 20000 mm/min. The X-axis stroke is 600 mm (diameter value), and the Z-axis stroke is 300 mm.

What kind of guideways does the machine use?

The machine is built with high-quality linear guideways, and the bed guideways are inductively hardened to ensure long-term stability and high rigidity.

What is the maximum bar capacity and physical size of the machine?

The maximum bar through-hole diameter is Φ32mm, and the spindle through diameter is Φ33mm. The overall dimensions of the machine are 1600*1410*1930mm.
