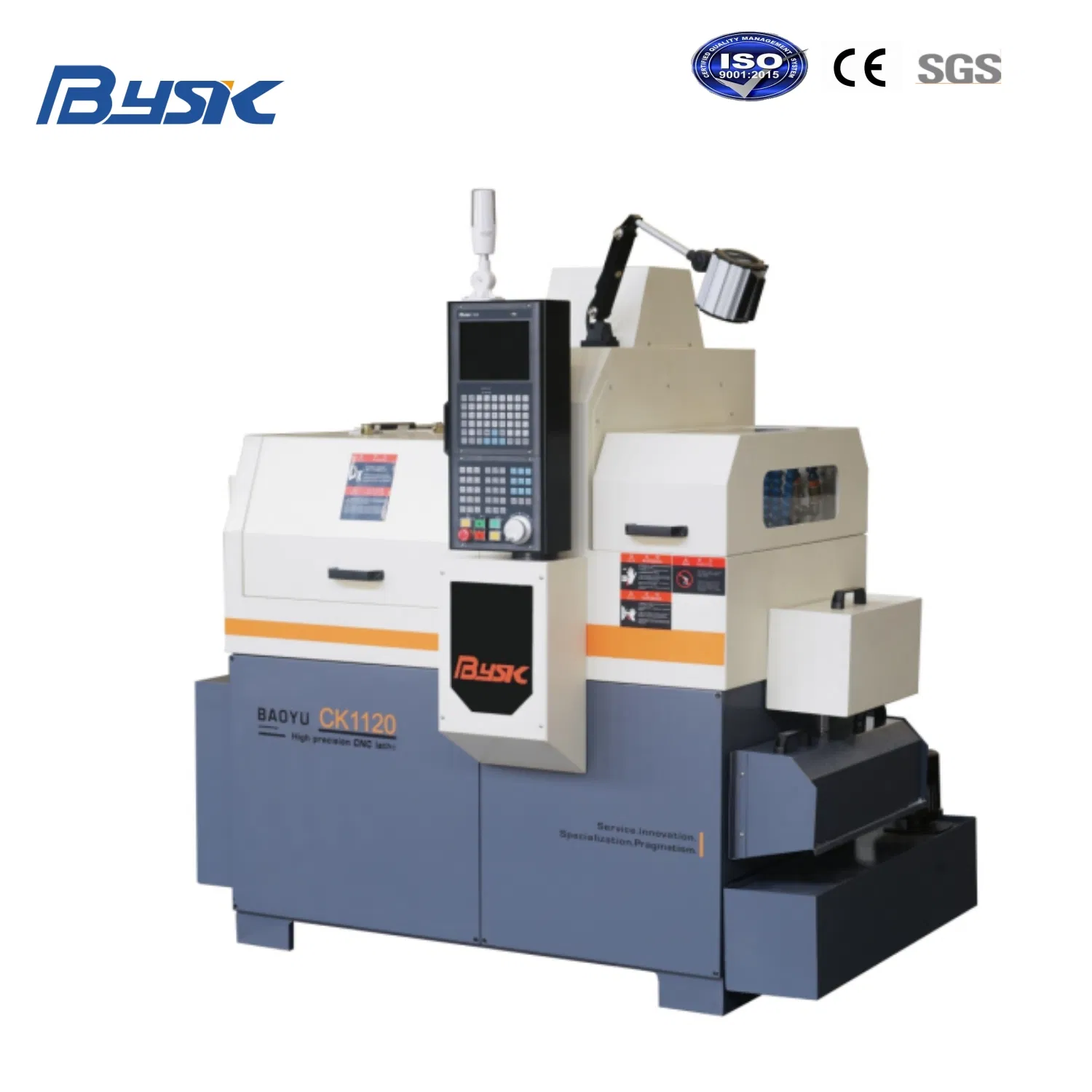

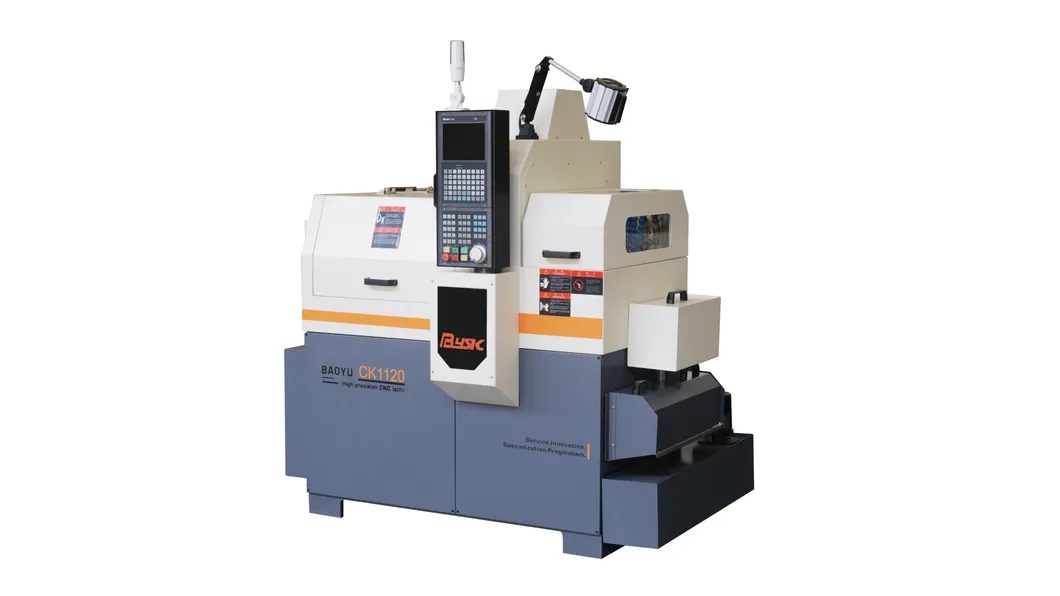

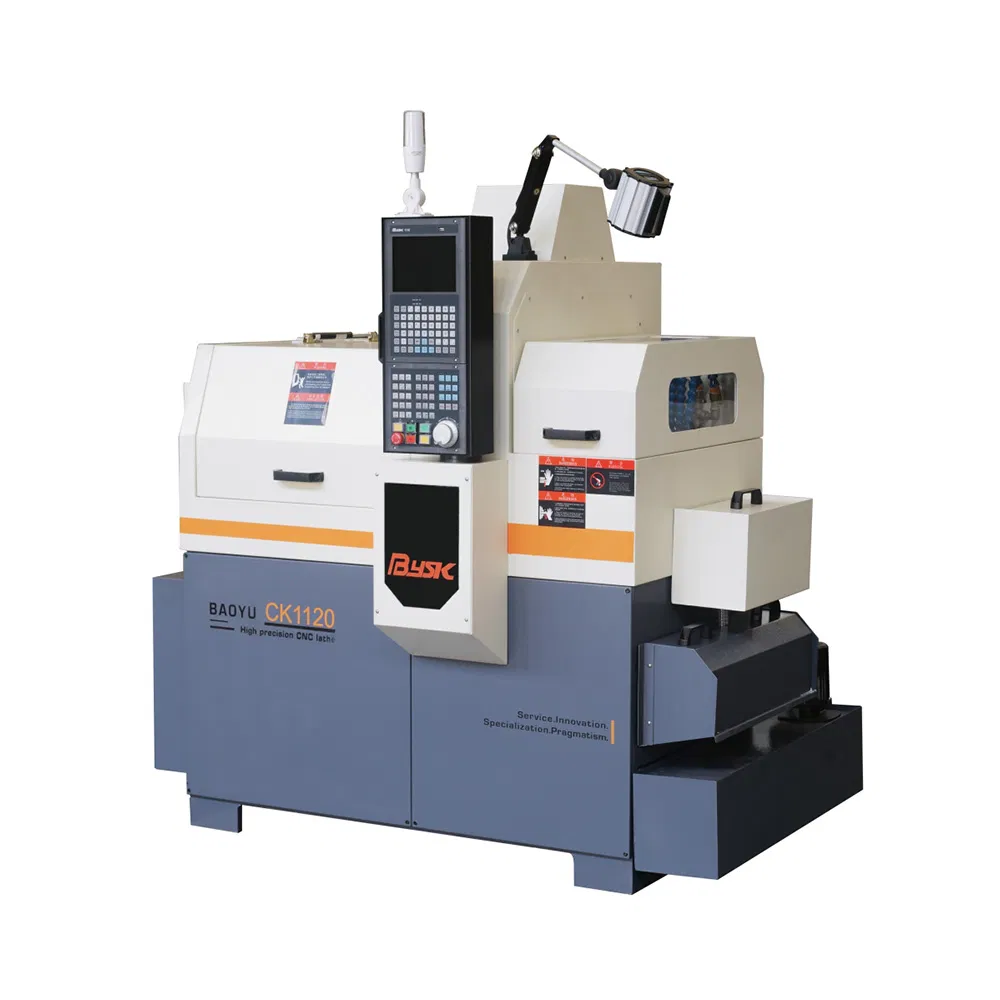

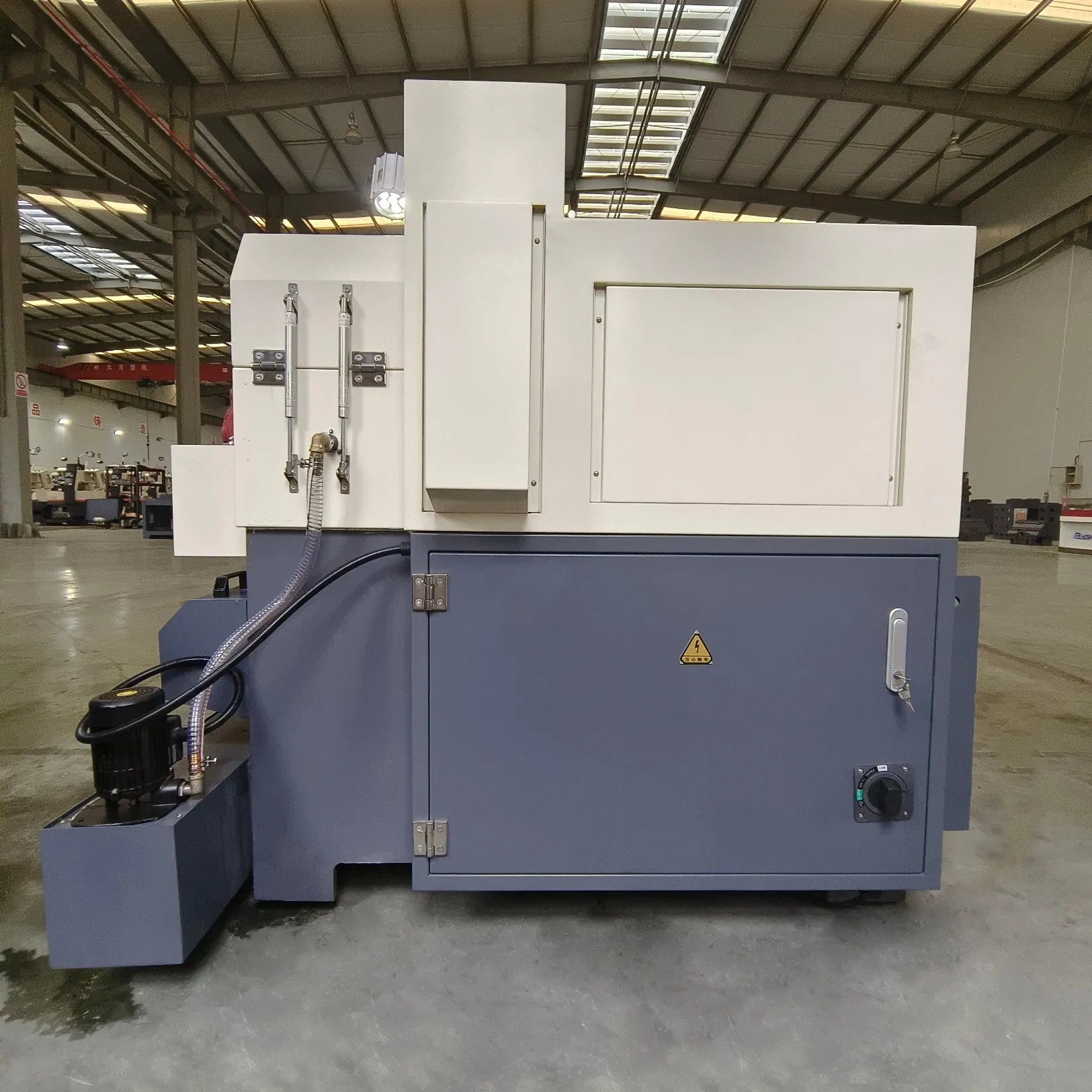

Small Metal Lathe CK1120 Swiss-type CNC Lathe With 3 Axes
-- CK1120 is a 3 axis sliding headstock lathe with single spindle
-- Suitable for processing profile diameter ≤ Φ 20mm
-- Suitable for process all kinds of super slender parts types
Product Parameters
CK1120 Swiss type CNC Lathe Specifications
Category
Parameter
Value
Power
Rated Voltage
Three-phase AC 380V
Rated Frequency
50HZ
Total Input Power
5kW
CNC System
System Model
YZ190
Minimum Set Unit
0.001mm
X Axis Pulse Equivalent
0.0005mm
Y/Z Axis Pulse Equivalent
0.001mm
Maximum Programming Size
±9999.999
Cutting Speed
1-4000mm/min
X Axis Rapid Feed Speed
20000mm/min
Y Axis Rapid Feed Speed
20000mm/min
Z Axis Rapid Feed Speed
20000mm/min
Main Spindle
Maximum Bar Diameter
Φ20mm
Main Spindle Through-hole Diameter
Φ21mm
Main Spindle Center Height from Ground
980mm
Main Spindle Speed
0-6000r/min
Main Spindle Power
2.2kW
Travel
X Axis Travel
80mm(Diameter)
Y Axis Travel
150mm
Z Axis Travel
330mm
X Axis Servo Motor Power
0.75kW
Y Axis Servo Motor Power
0.75kW
Z Axis Servo Motor Power
0.75kW
Guide Rail Form
Linear Guide Rail
Category
Parameter
Value
Gang Tooling System
Tools Arrangement
14pcs
Turning & Milling Tools
10pcs
Tool Size
12*12mm
Front Drilling
4pcs
Drilling Shaft Size
ER11 / 20mm
Cooling System
Cutting Oil Motor Power
0.18kW
Cooling Box Capacity
70L
Lubrication System
Motor Power
35W
Capacity
2L
Pneumatic System
Input Compressed Air Pressure
0.4--0.6Mpa
Machine Size
Length * Width * Height
1600*1170*1810
Machine Weight
1220kg
Configurations
Item
Specification
Origins
CNC System
YZ190
BYSK
Main Spindle Motor
Standard
BYSK
X/Y/Z Axis Motor
0.75kW Absolute Value Servo Motor
Inovance+Lines
X/Y Axis Screw Rod
190*2008 / 332*2008
Taiwan Joint Venture
Z Axis Screw Rod
584*2510
Taiwan Joint Venture
X/Y Axis Guide Rail
HGH20
HIWIN/PMI/THK
Z Axis Guide Rail
HGH25
HIWIN/PMI/THK
Optional Configurations
Rotating Center Frame (Z Axis Travel 200mm)
Fixed Guide Bushing (Z Axis Travel 250mm)
Without Guide Bushing (Z Axis Travel 330mm)
Side Milling Power Head
Chuck ER11+ER16
3pc+1pc
Power
0.75kW
Speed of Rotation
4000r/min
Detailed Photos

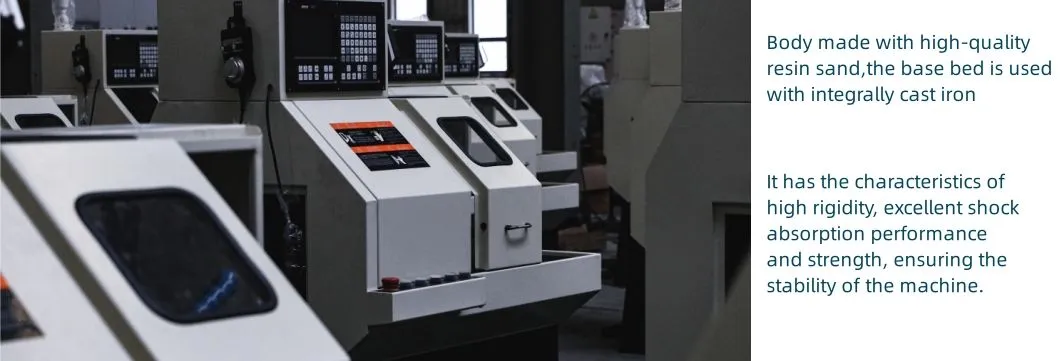

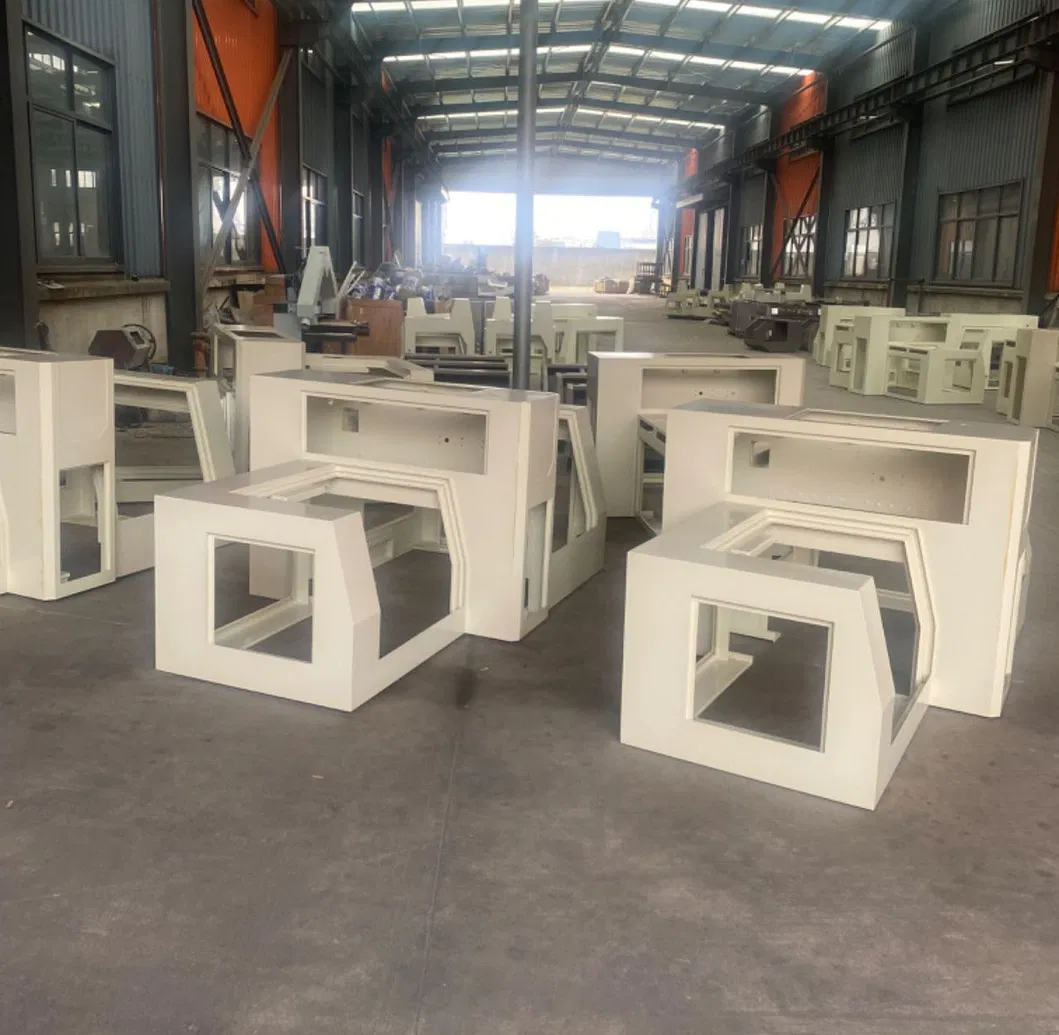

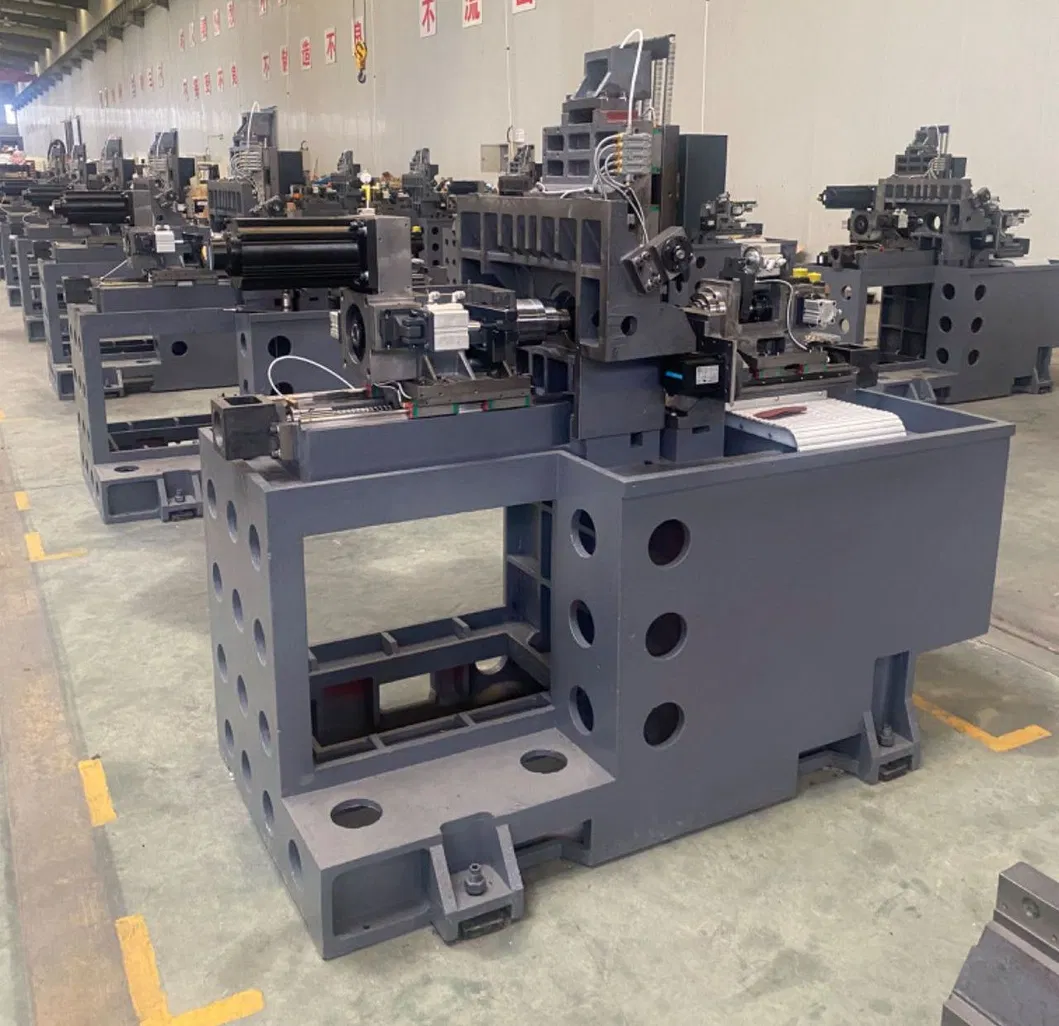

Body Materials

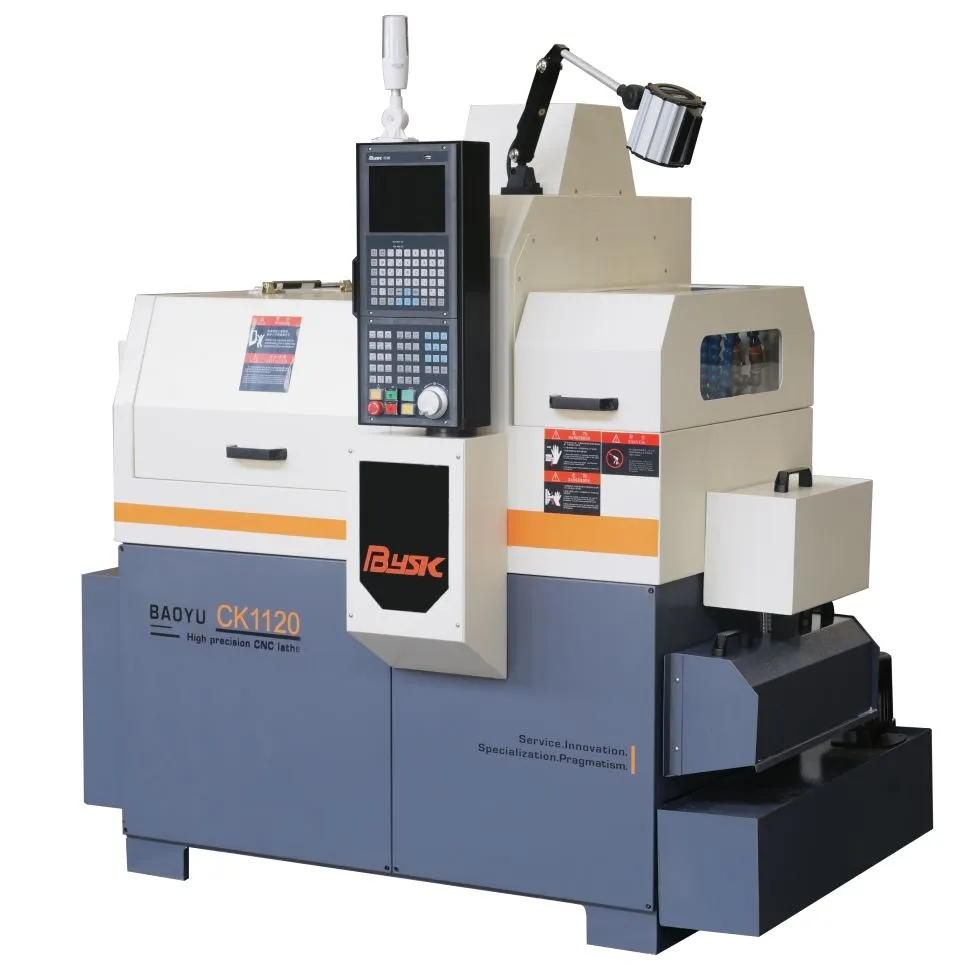

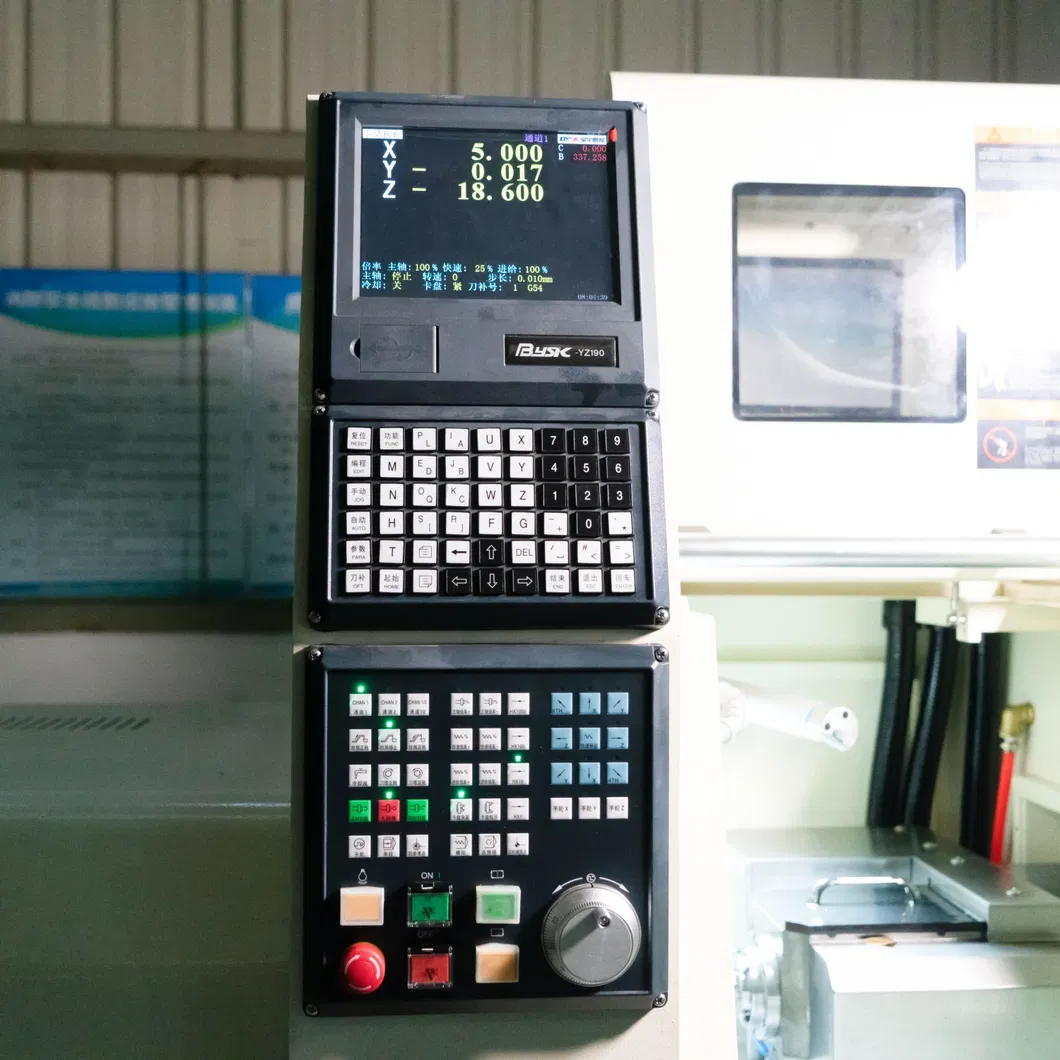

CNC Control System (BYSK190 Control System)
Easily operate, meet all functions. The panel can be moved and swiveled for operating.

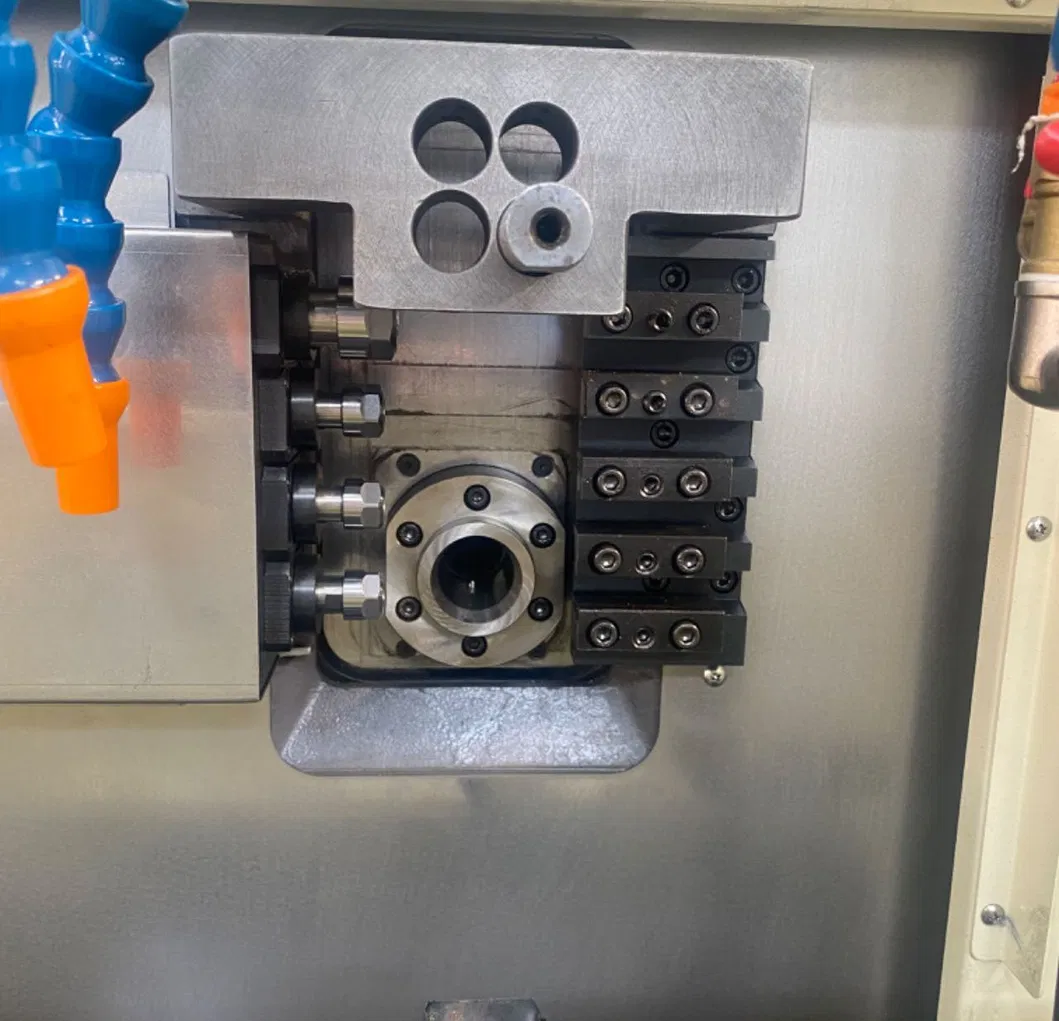

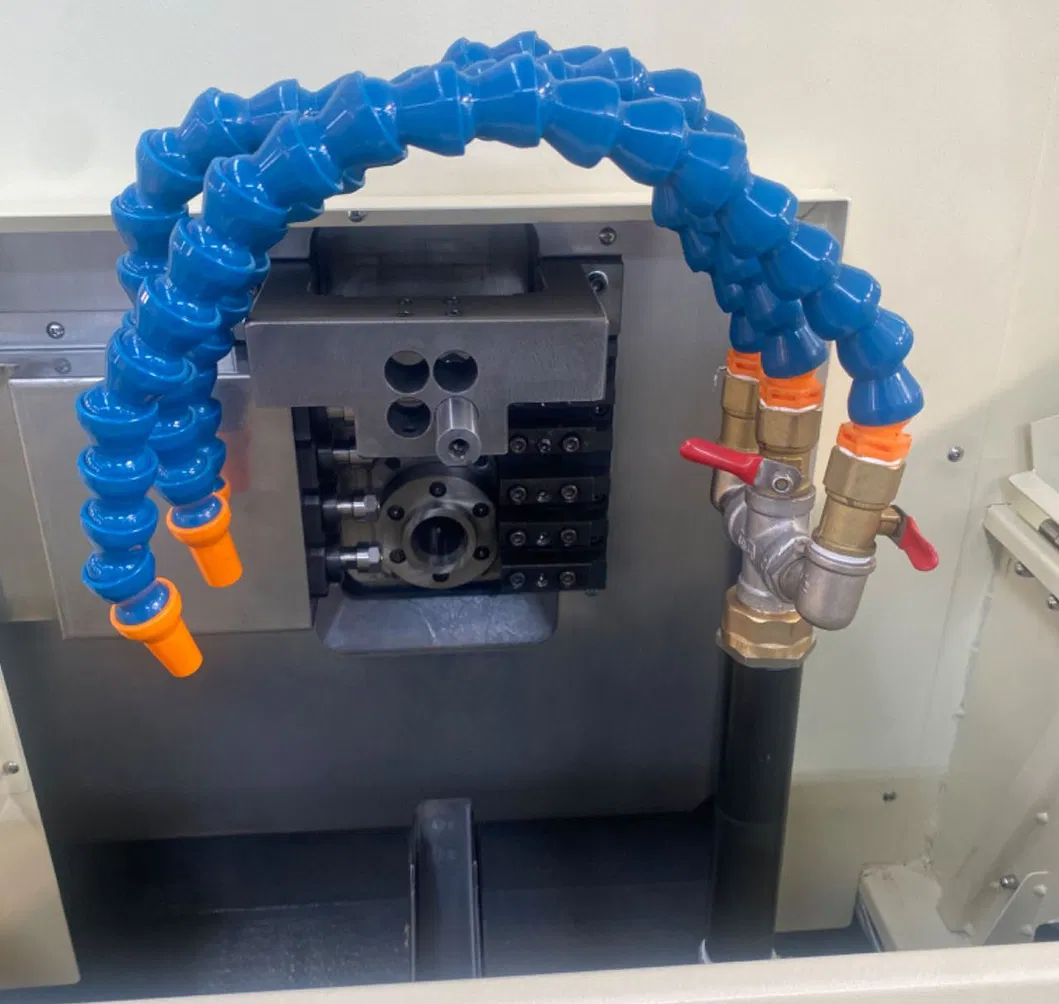

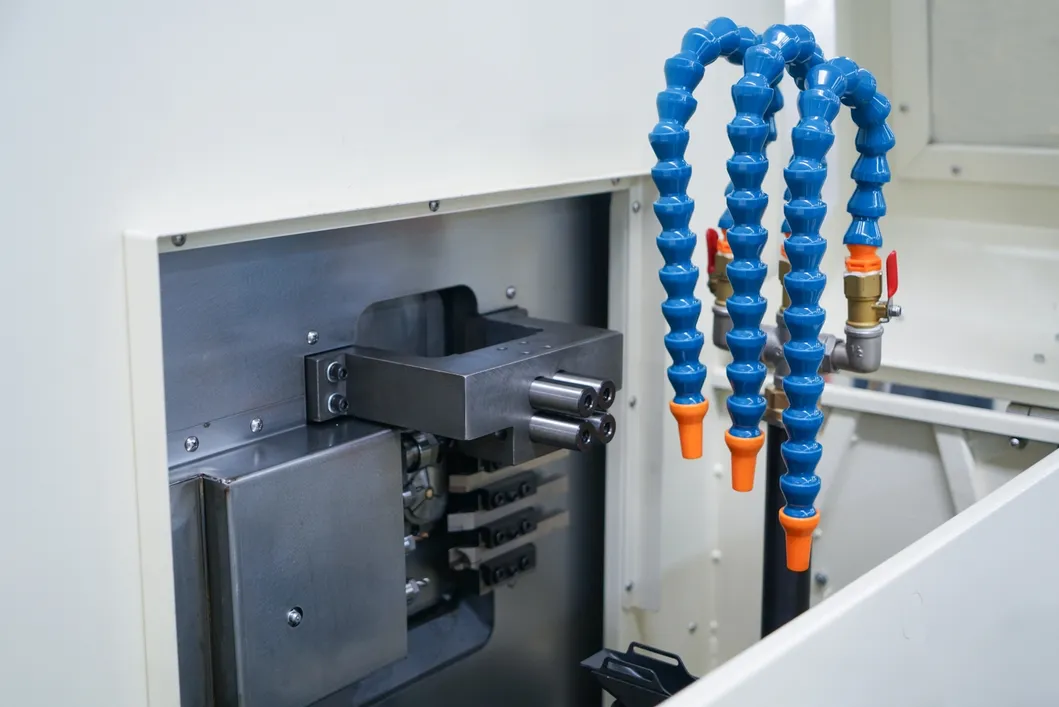

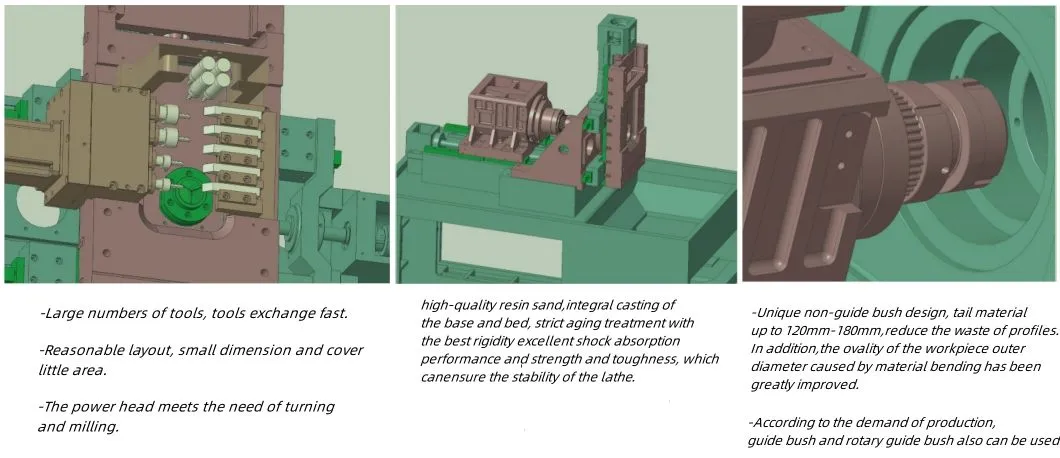

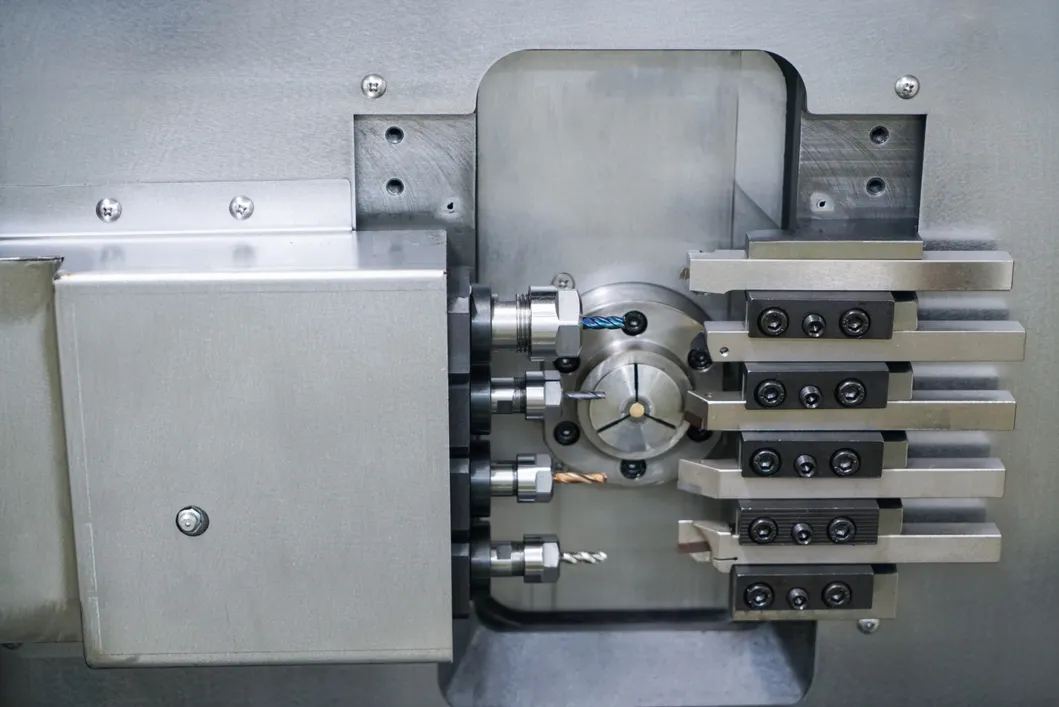

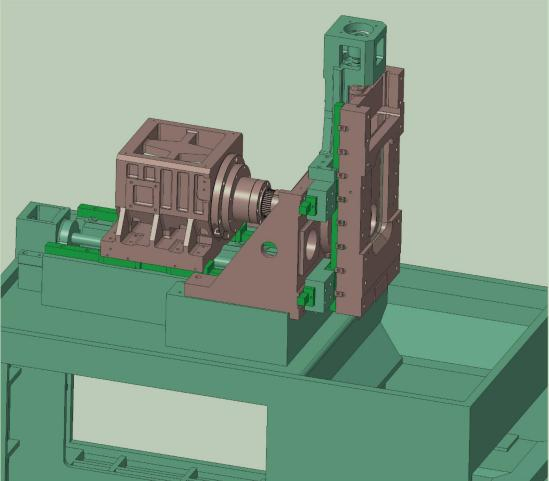

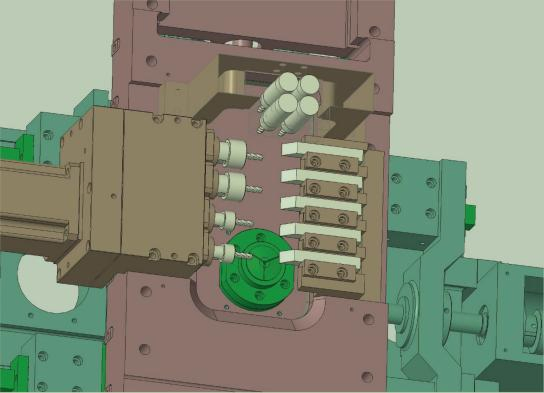

Inner Structure Details
The number of tools is multiple and the tool exchange is fast.
Mainly process all kinds of super slender parts.
The power head meets the needs of turning and milling complex processing (the live head can be selected).
Reasonable layout, small dimension and cover little area.
Non-guide bush, fixed guide bush, rotary guide bush all be optional.

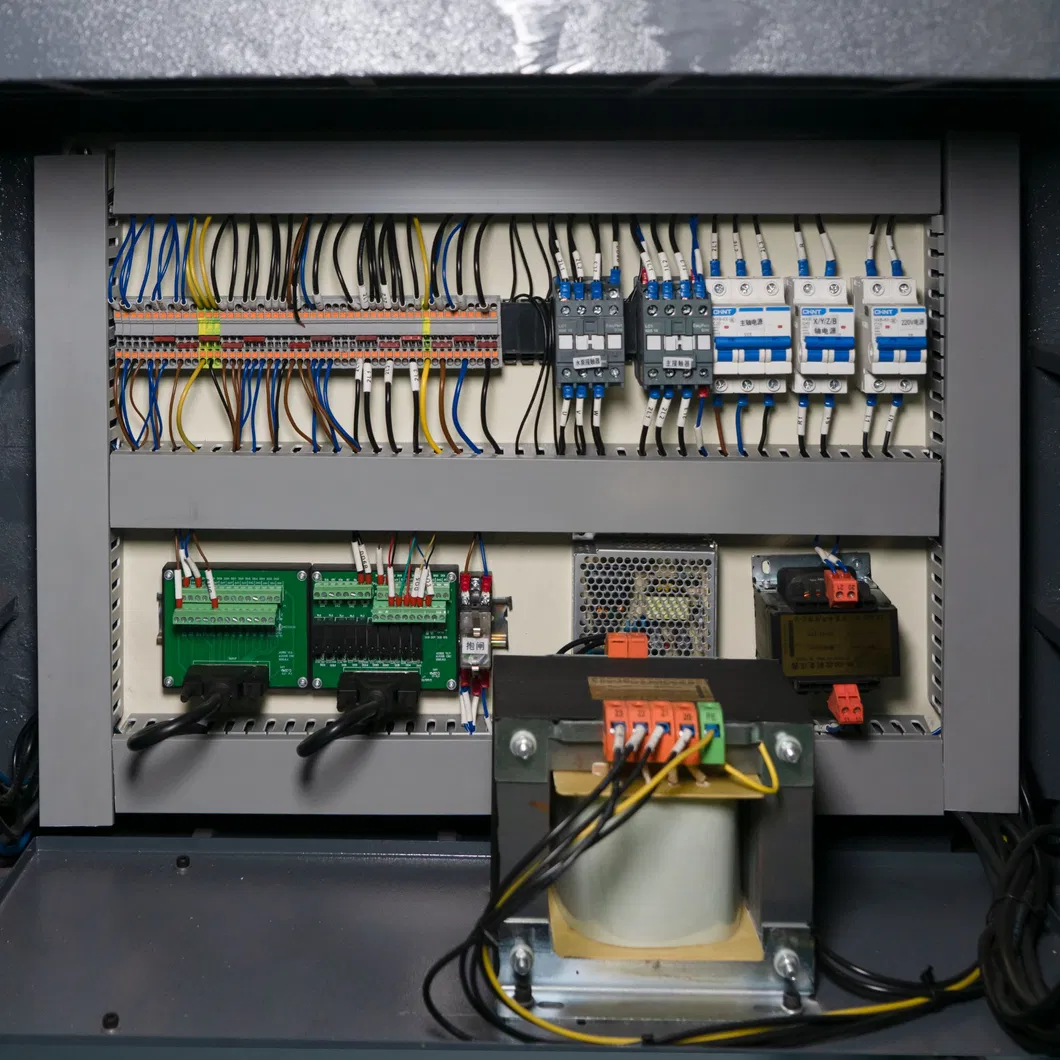

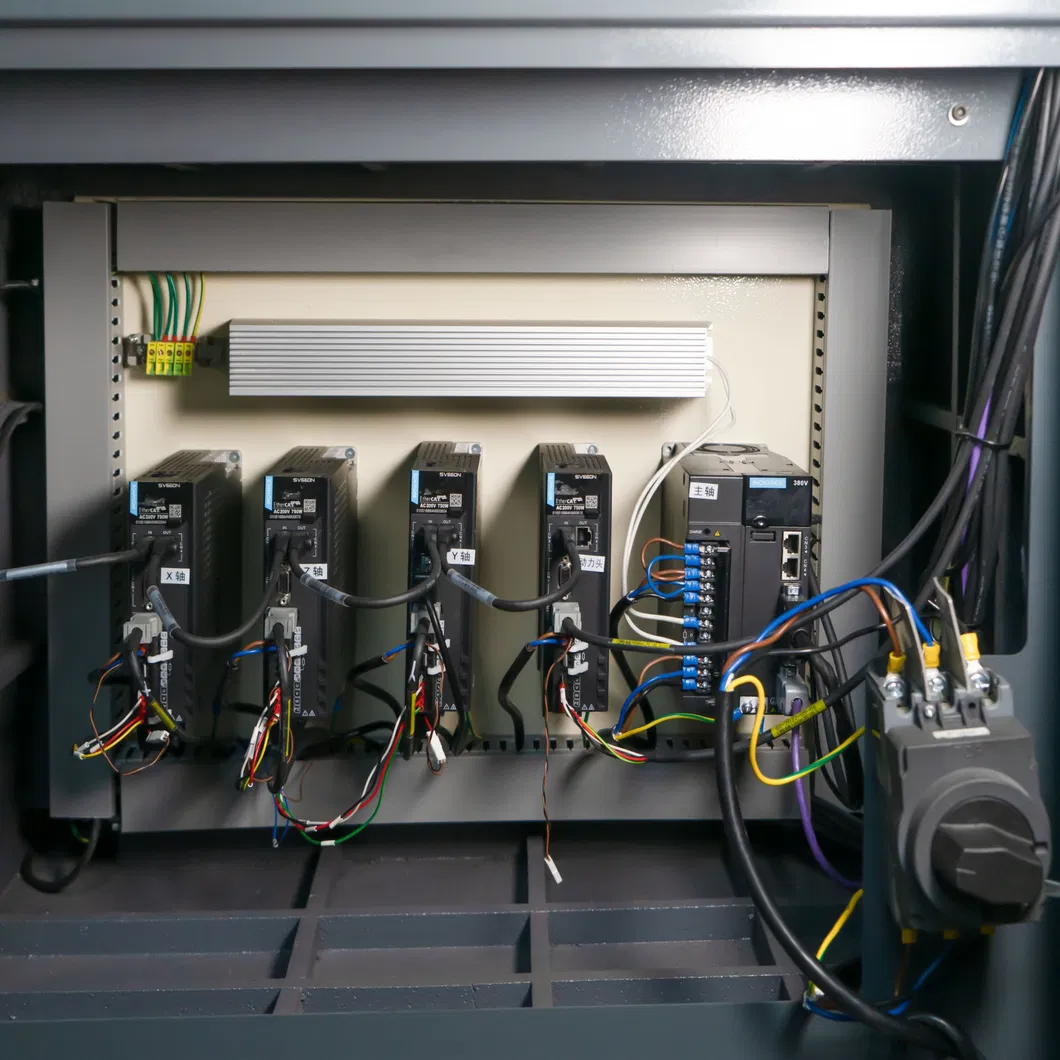

Electric Cabinet And Driver Cabinet
Configurations Overview

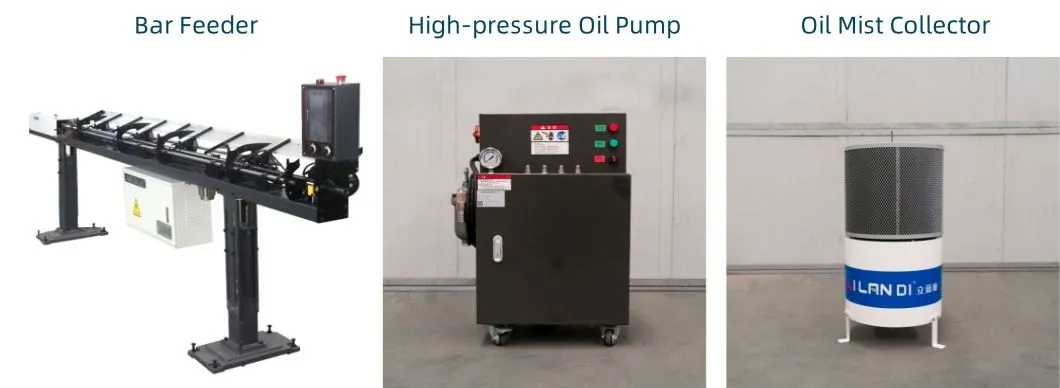

CK1120 CNC Lathe will be configured with oil film bar feeder, with high-pressure oil pump, oil mist machine, to improve the performance and extend the life of the lathe.

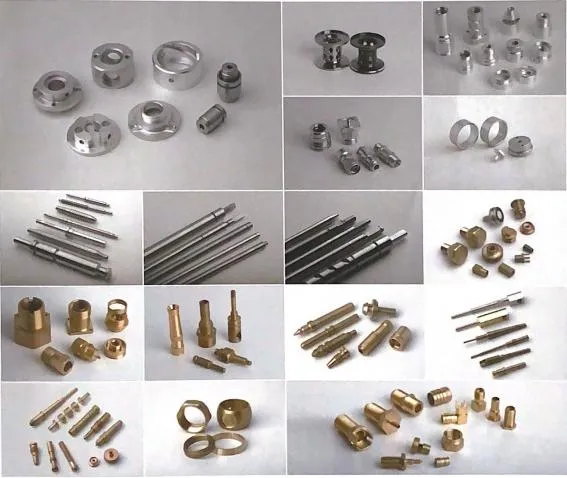

Processed Product Display
Model Selection Recommendations
Max profile diameter within 7mm, suggest model B07, CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
Max profile diameter within 13mm, suggest model B13, CK1113.
CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads. Configured with center frame can process slender shaft parts.
CK0625A is suitable for processing of various precision parts such as instruments, meters, electronic connectors, optics, automotive and motorcycle parts, and small hardware.
CK32A3 is multi-functional Turning & Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
X42 is slant-bed CNC lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
Please contact us for more details, or send your drawings of profiles, and we will give you professional recommendation.
Company Profile
We are a comprehensive high-tech enterprise integrating R&D, Production, Sales & services of CNC system, CNC machine tool, automatic production line, Industrial robot, Internet of things and other products. We possess a manufacturing base covering an area of 35,000 square meters and a dedicated R&D center, alongside a newer manufacturing facility spanning 100,000 square meters.
Our enterprise specializes in the production of CNC SWISS-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Flat Bed CNC Lathe Machines, Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes, Single spindle CNC Machinery, and Automatic Double-Spindle Lathes. All our lathes adopt absolute value servo and bus connection, supported by over 10 invention patents, utility models, and design patents. The products are widely applied in Communication Equipments, Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses, and various hardware accessories.
Adopting modern management concepts and deepening internal processes, we continuously improve product manufacturing and services. We have successfully passed ISO9001 Quality Management System, ISO14001 Environment Management System, and the Measurement Management System Certificate. Additionally, our products have obtained the CE Certificate and other authoritative standardizations.
Mission: "Provide high-quality products and best services, and create the highest value for our customers."
Business Philosophy: "Service, Innovation, Specialization, Pragmatism."
Vision: "Provide the most cost-effective machine tools for the world."

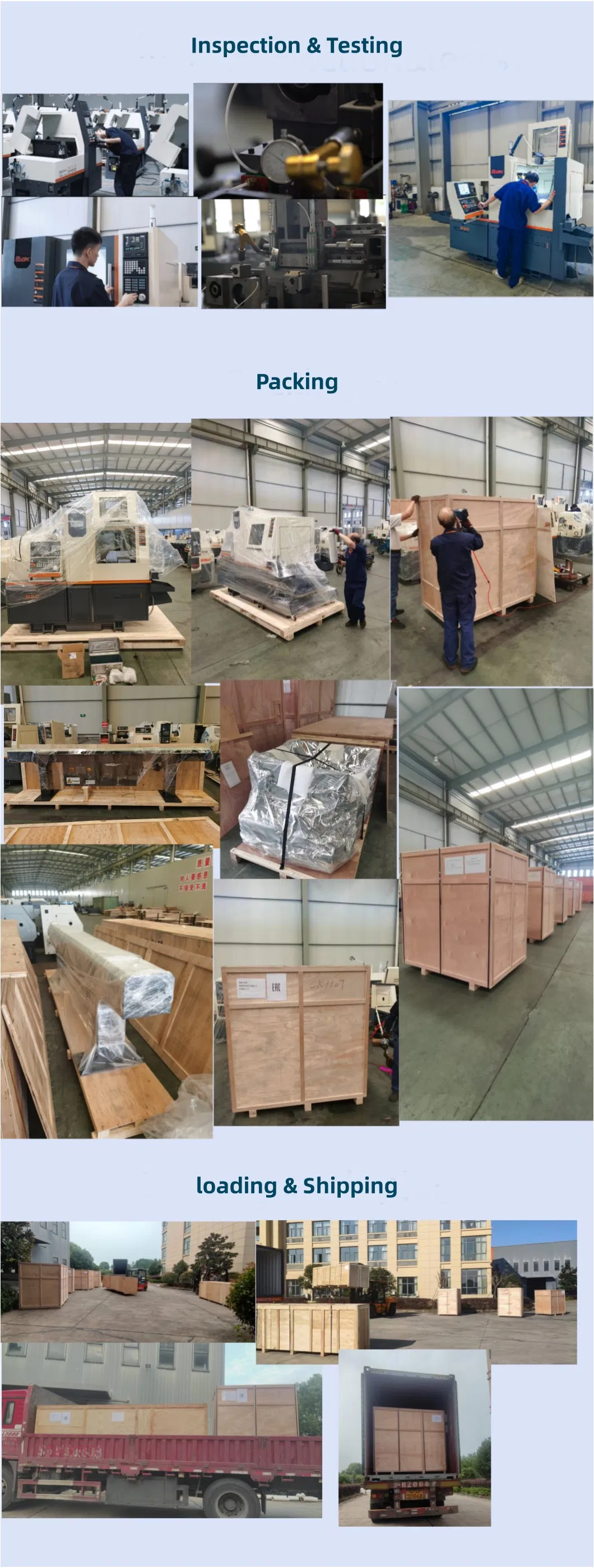

Packaging & Shipping
