Ck1113 High Accuracy Sliding Head Lathe Swiss Type CNC Lathe Machine

Customization:	Available
After-sales Service:	Always Valid
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info

Model NO.CK1113

ApplicationMetal

Process UsageMetal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Movement MethodLinear Control

Control MethodClosed-Loop Control

Numerical ControlCNC/MNC

Processing Precision0.01~0.02(mm)

Performance ClassificationEconomical CNC Machine Tools

CertificationCE, ISO 9001, ISO14001

ConditionNew

CNC SystemYZ190

Max Bar Diameter13 mm

Type3 Axis CNC Swiss Lathe

TravelX, Y, Z

Main Spindle Through-Hole Diameter14mm

Main Spindle Center Height From Ground980mm

Guide Rail FormLinear Guide Rail

Tools Arrangement10PCS

Turning & Milling Tools6PCS

Front Drilling4PCS

Functionswith Turning, Milling, Drilling

Cooling SystemOil Cooling

Motor TypeAbsolute Value Servo Motor

Screw RodTaiwan Joint Venture

Guide RailHiwin/PMI/THK

Transport PackageStandard Wooden Case

Specification1530*1150*1790 mm

OriginChina

HS Code8458110090

Production Capacity1000 units Per Year

Packaging & Delivery

Package Size2400.00cm * 1600.00cm * 1900.00cm

Package Gross Weight1000.000kg

Product Description

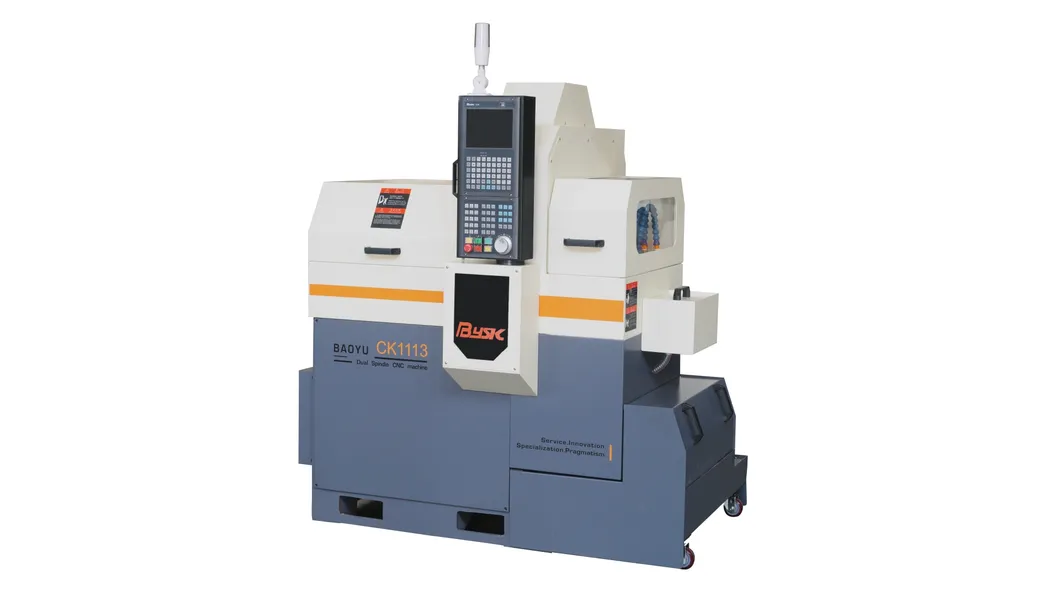

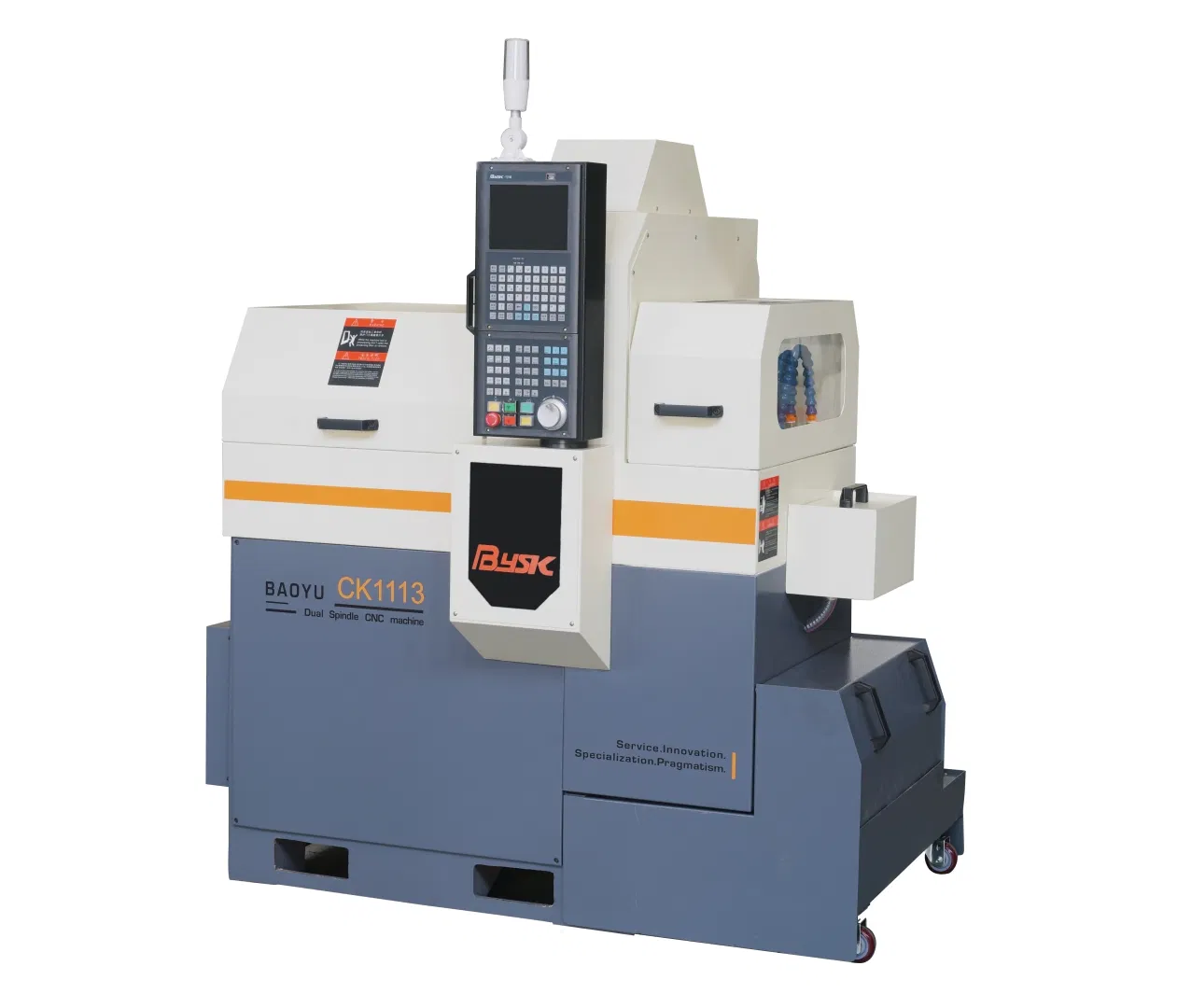

CK1113 Small Sliding Headstock Lathe Swiss type CNC Lathe Machine

-- CK1113 is a 3 axis sliding headstock lathe with single spindle.
-- Suitable for processing profile diameter ≤ Φ 13mm.
-- Mainly suitable for Large-scale, Multi-variety and high-precision processing of slender shaft parts with large length/diameter ratio and small, special-shaped parts.

Product Parameters

CK1113 Swiss Type CNC Lathe Specifications

Category	Parameter	Value
Power	Rated Voltage	Three-phase AC380V
	Rated Frequency	50HZ
	Total Input Power	5kW
CNC System	System Brand	YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Maximum Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	24000mm/min
	Y Axis Rapid Feed Speed	24000mm/min
	Z Axis Rapid Feed Speed	24000mm/min
Main Spindle	Maximum Bar Diameter	Φ13mm
	Main Spindle Through-hole Diameter	Φ14mm
	Main Spindle Center Height from Ground	980mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Travel	X Axis Travel	60mm(Diameter)
	Y Axis Travel	200mm
	Z Axis Travel	180mm
	X Axis Servo Motor Power	0.75kW
	Y Axis Servo Motor Power	0.75kW
	Z Axis Servo Motor Power	0.75kW
	Guide Rail Form	Linear Guide Rail

Category	Parameter	Value
Gang Tooling System	Tools Arrangement	10pcs
	Turning & Milling Tools	6pcs
	Tool Size	10*10mm
	Front Drilling	4pcs
	Drilling Shaft Size	ER11/16mm
Cooling System	Cutting Oil Motor Power	0.18kW
Cooling System	Cooling Box Capacity	55L
Lubrication System	Motor Power	35W
Lubrication System	Capacity	2L
Pneumatic System	Input Compressed Air Pressure	0.4--0.6Mpa
Lathe Size	Length * Width * Height	153011501790
Lathe Size	Machine Weight	800kg

CK1113 Configurations

Item	Specification	Origins
CNC System	YZ190	Standard Brand
Main Spindle Motor	2kW Absolute Value Servo Motor	Inovance+Lines
X Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+Lines
Y Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+Lines
Z Axis Motor	0.75kW Absolute Value Servo Motor	Inovance+Lines
X Axis Screw Rod	232*2005	Taiwan Joint Venture
Y Axis Screw Rod	408*2005	Taiwan Joint Venture
Z Axis Screw Rod	340*2005	Taiwan Joint Venture
X Axis Guide Rail	HGW20	HIWIN/PMI/THK
Y Axis Guide Rail	HGH20	HIWIN/PMI/THK
Z Axis Guide Rail	HGH20	HIWIN/PMI/THK

Optional Configurations

Configuration	Type/Details	Specification
Rotating Center Frame	Valid Traveling	100mm
Side Milling Power Head	Chuck ER11+ER16	2pcs+1pc
	Power	0.4kW
	Speed of Rotation	5000r/min

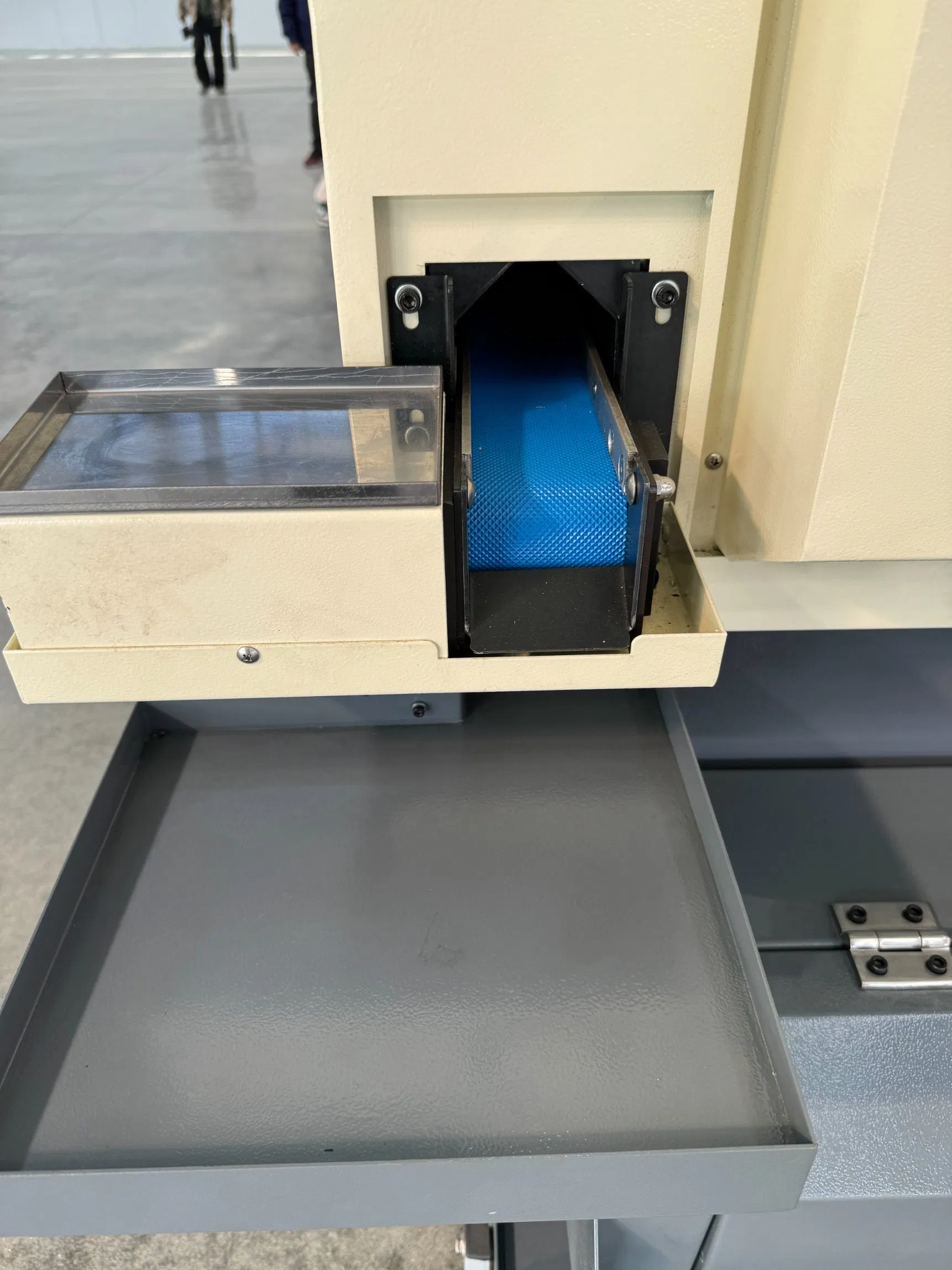

Detailed Photos

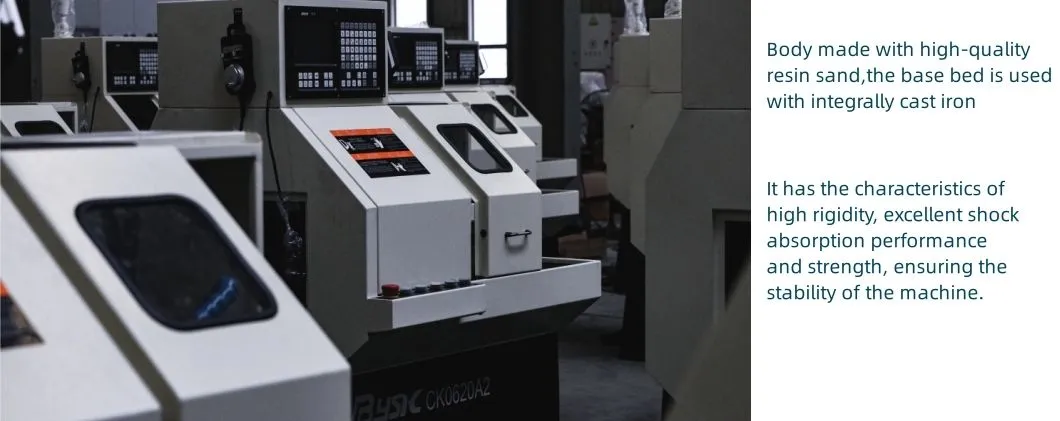

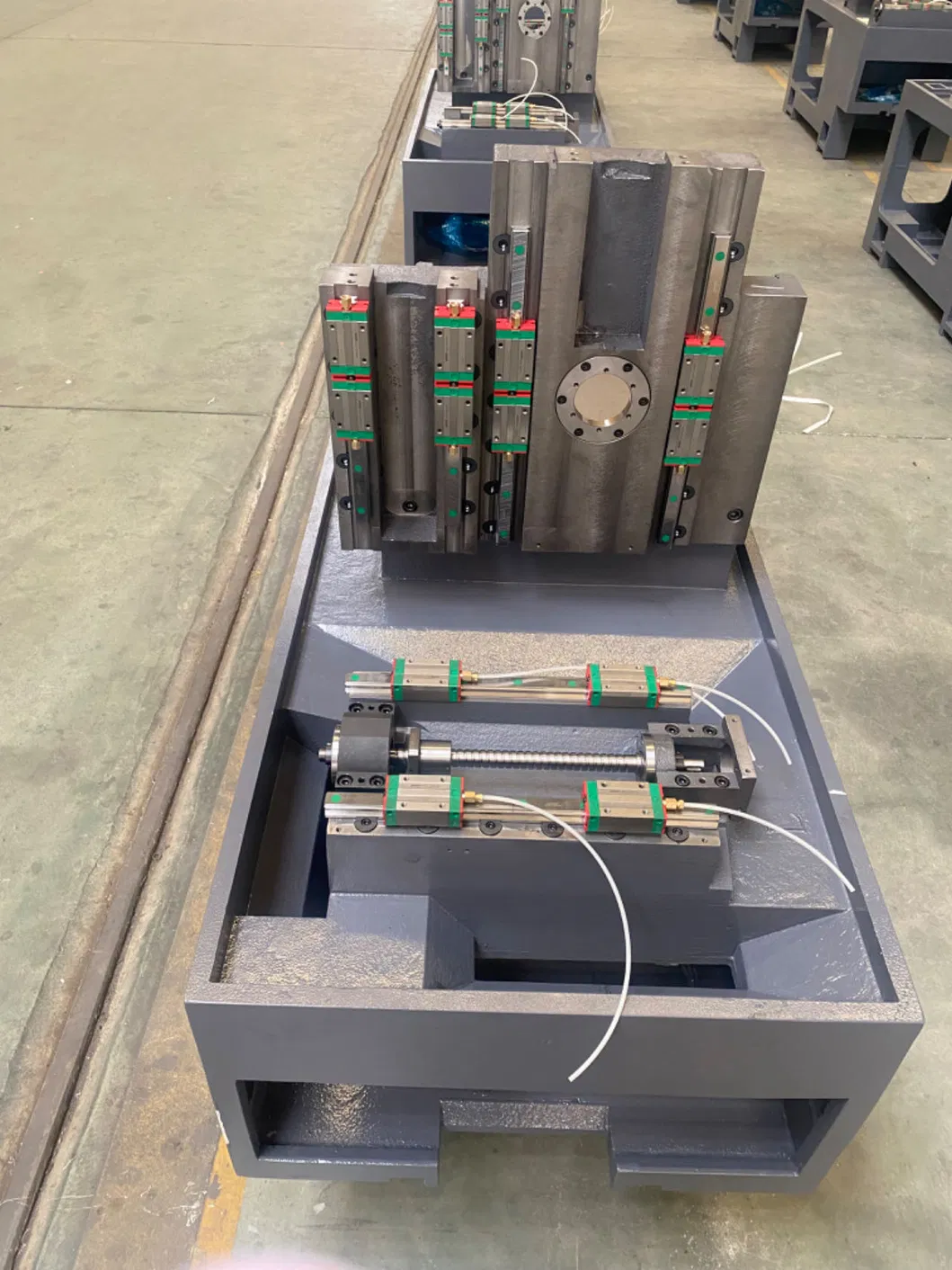

Body Materials

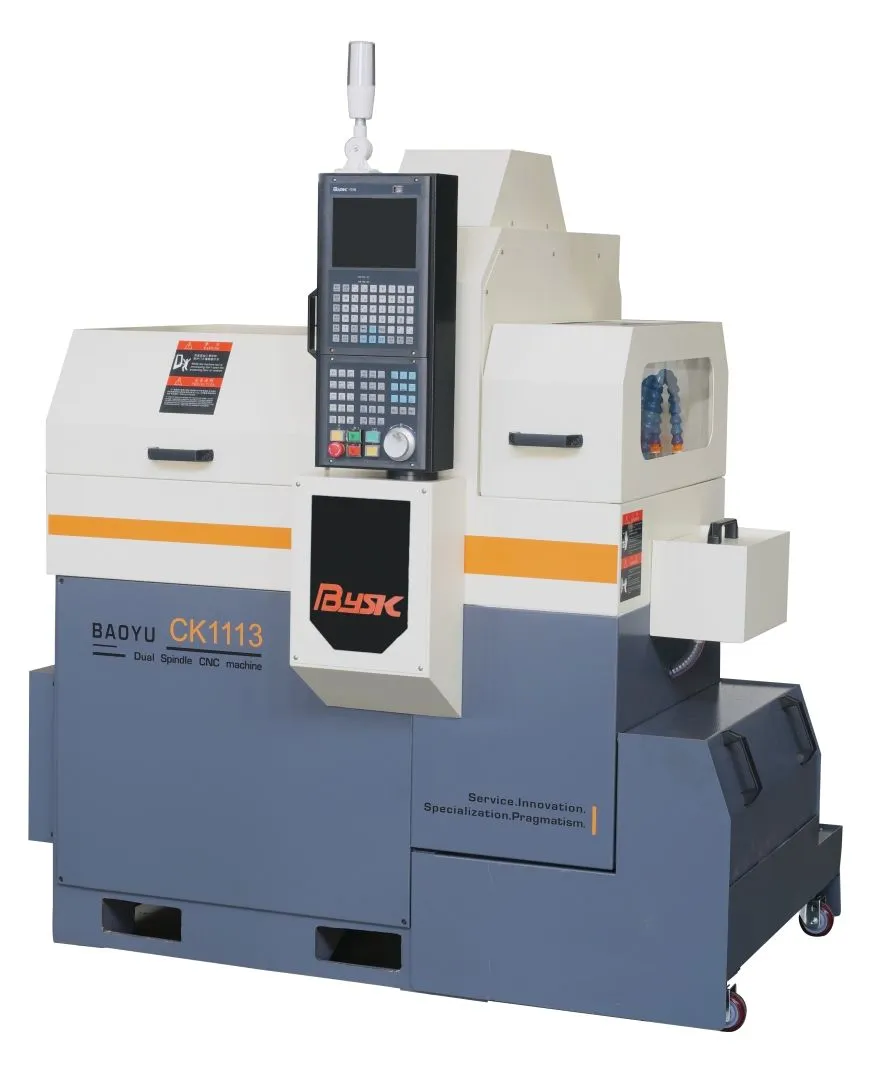

CNC Control System

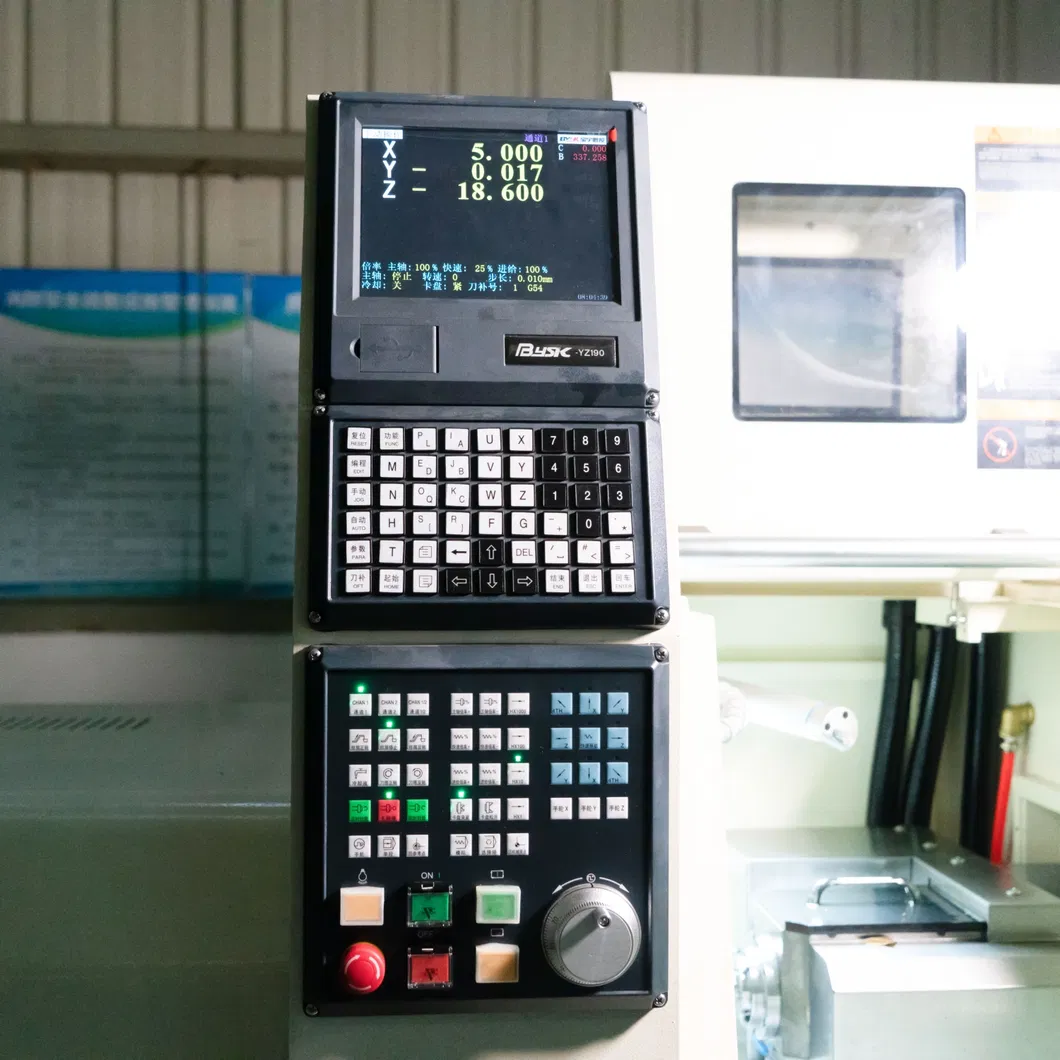

Easily operate, meet all functions. The panel can be moved and swiveled for operating.

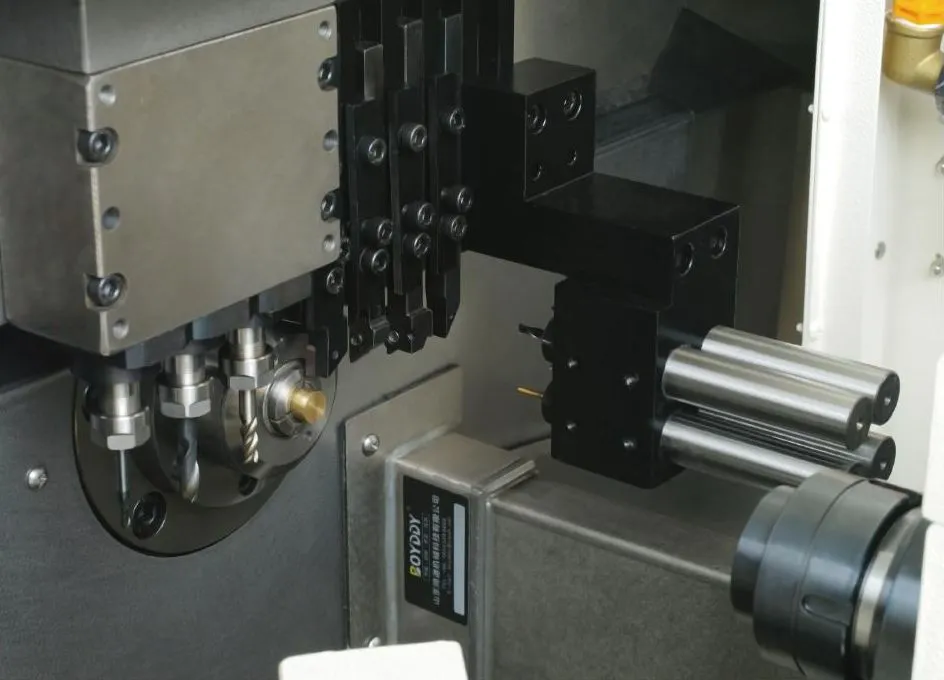

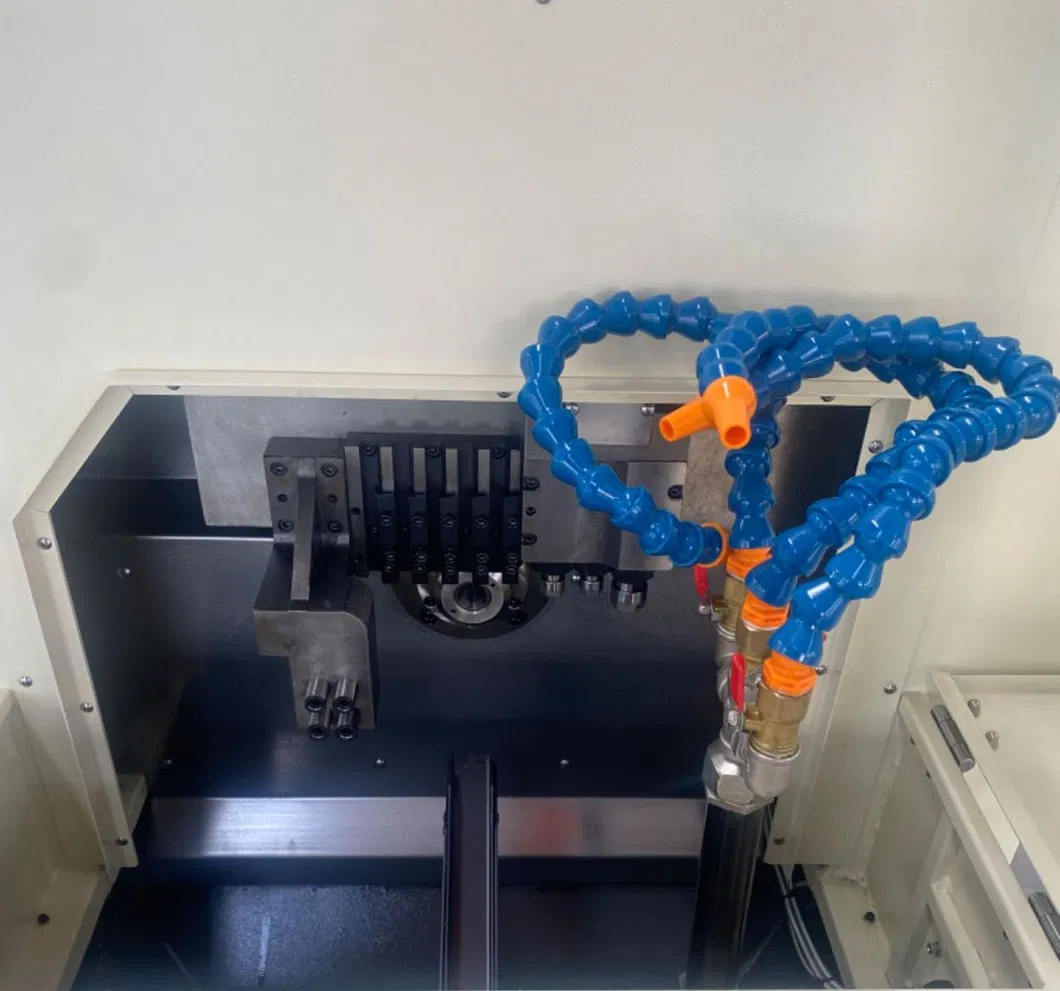

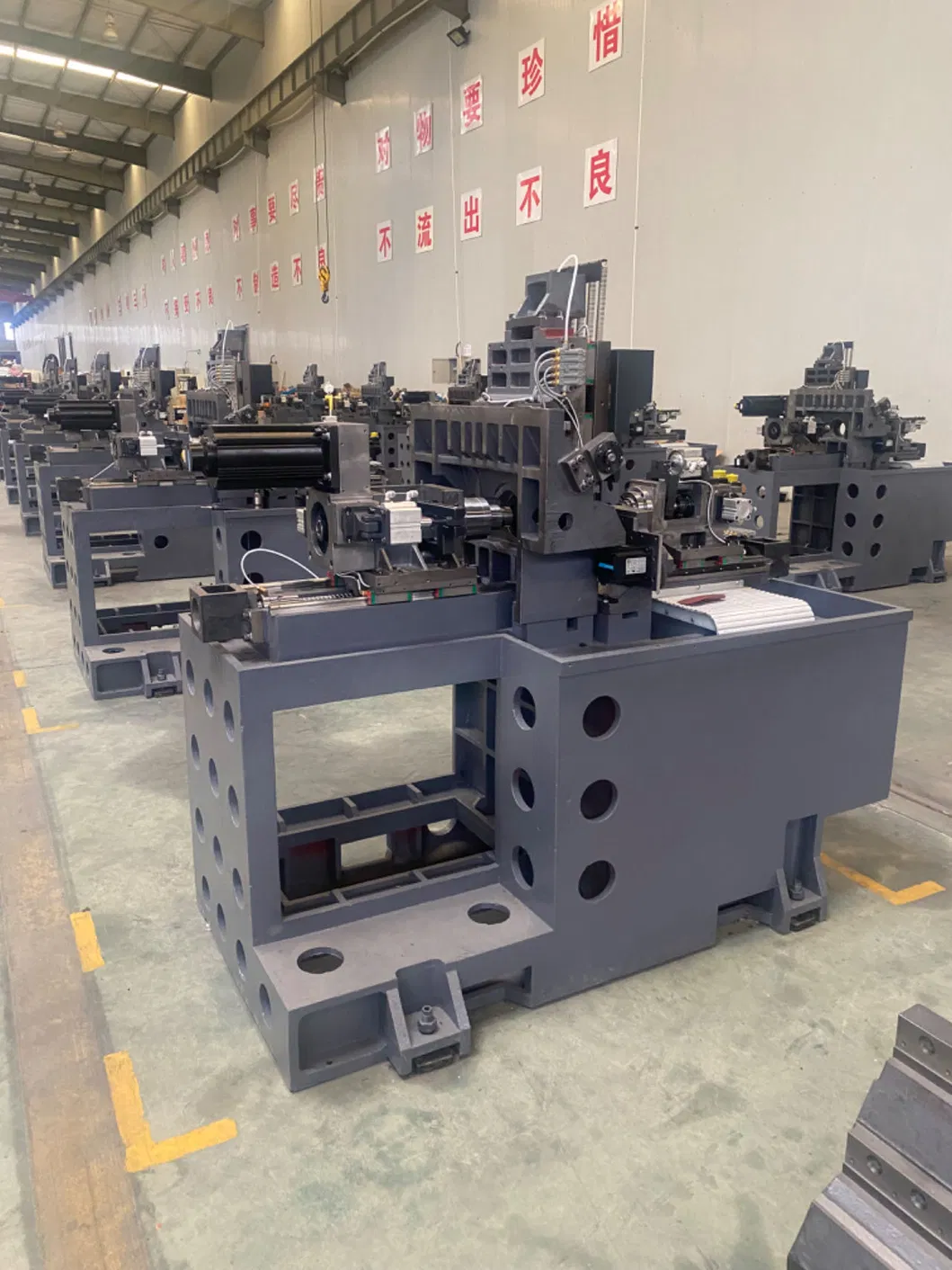

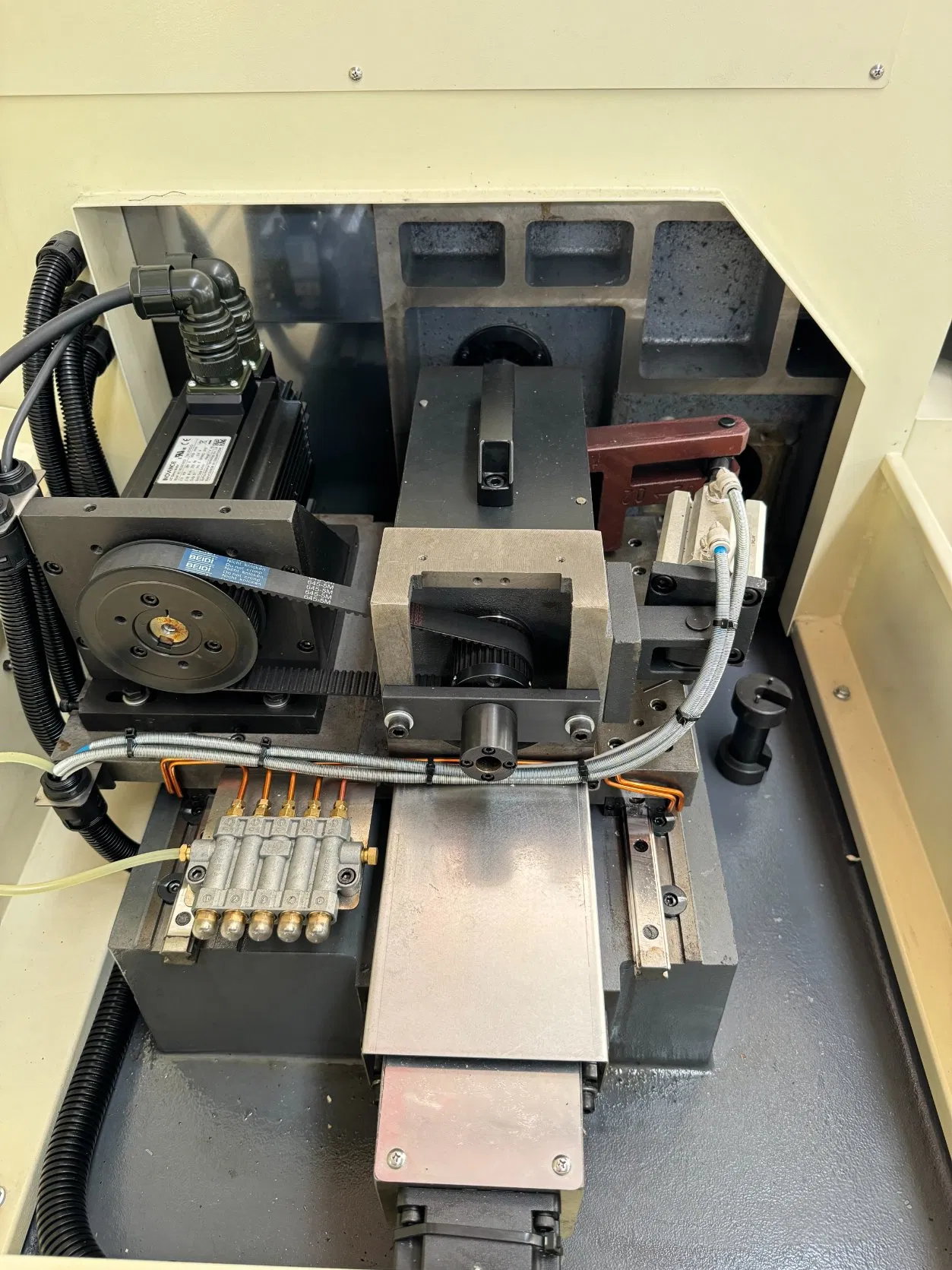

Inner Structure

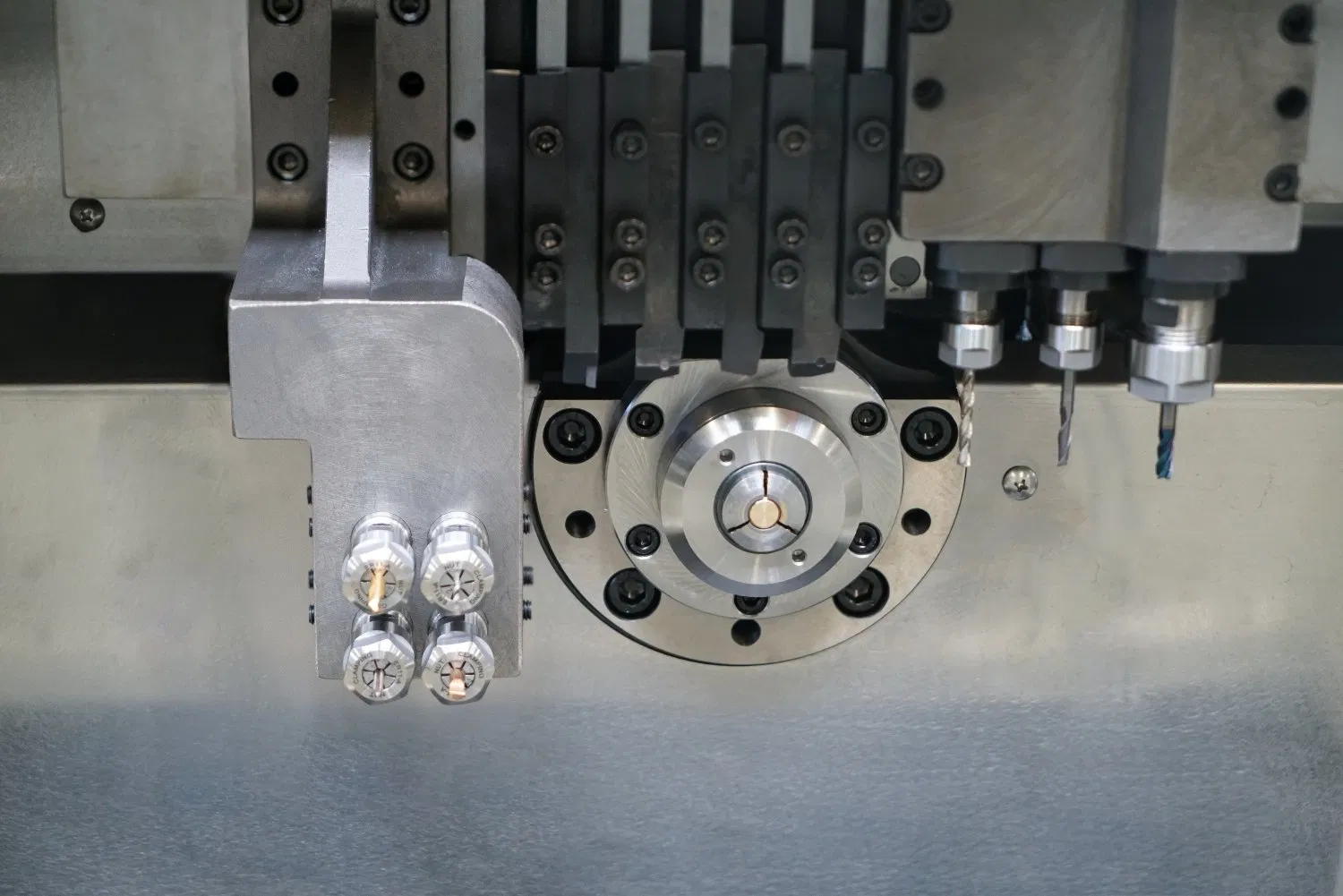

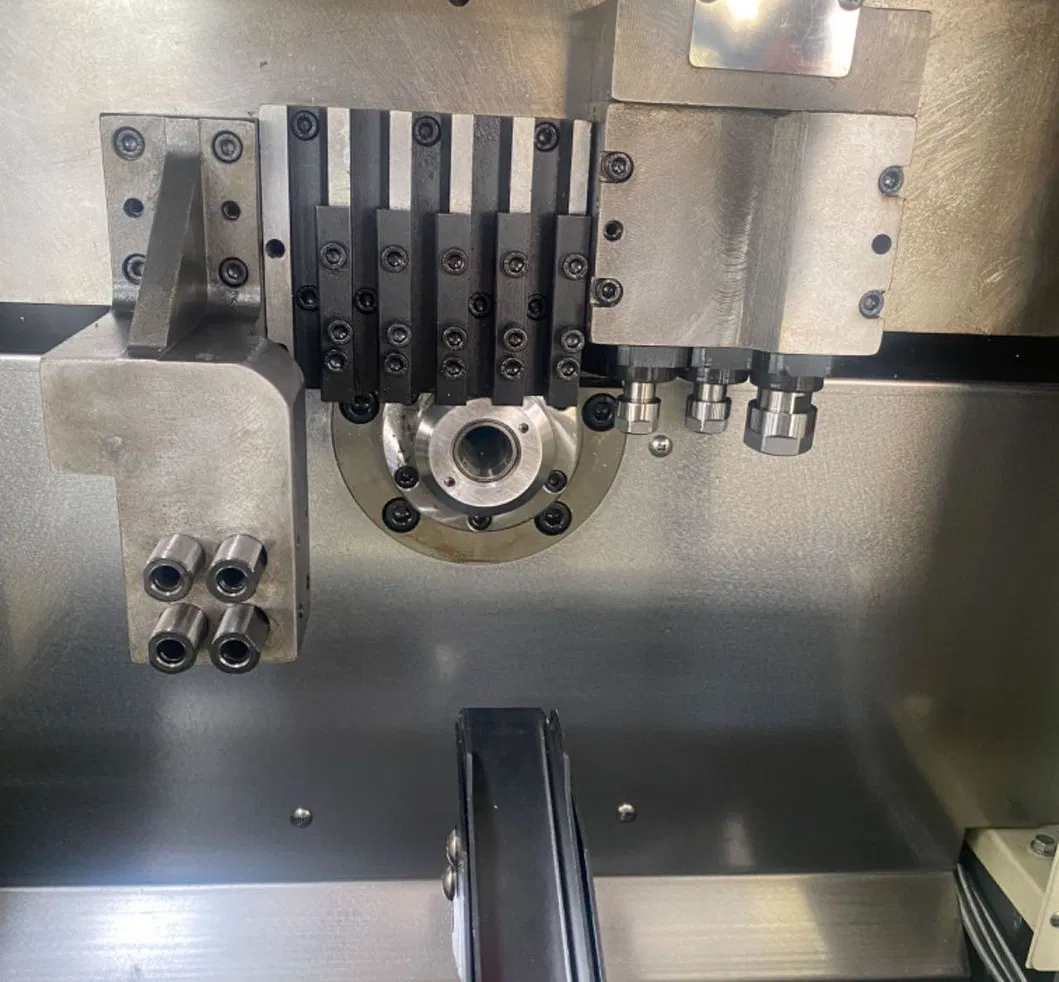

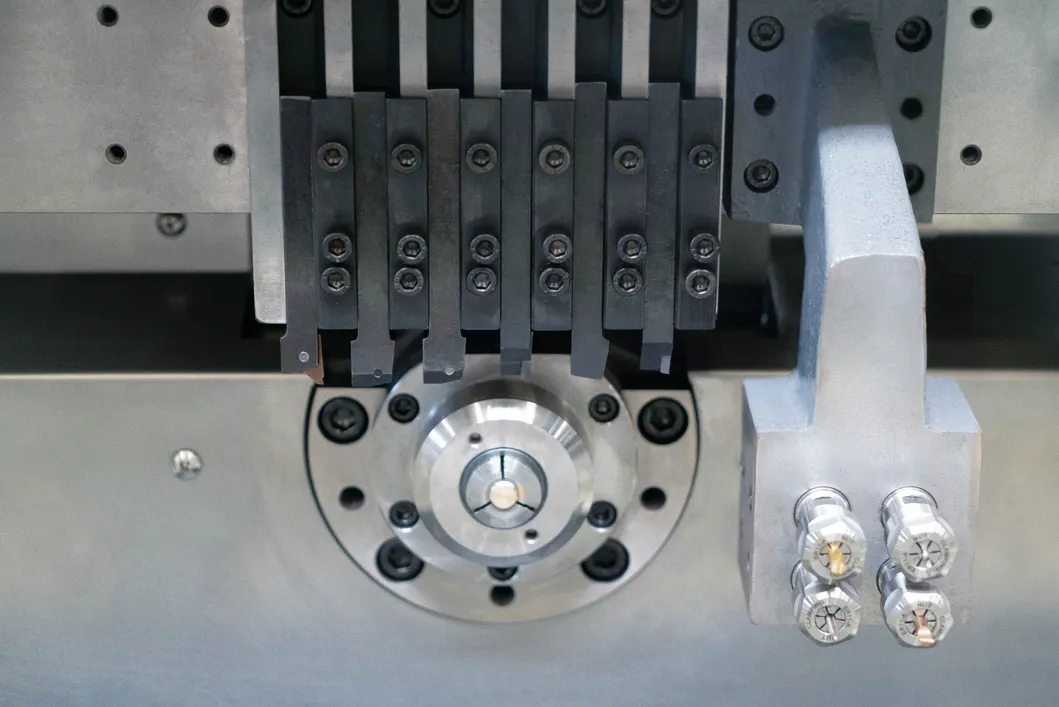

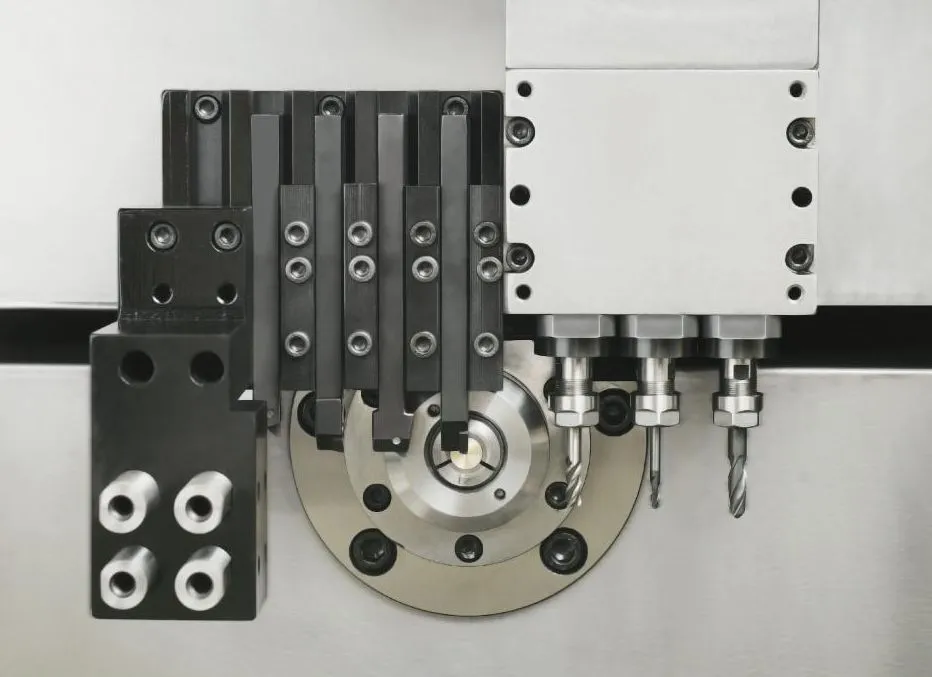

Inner Structure Features

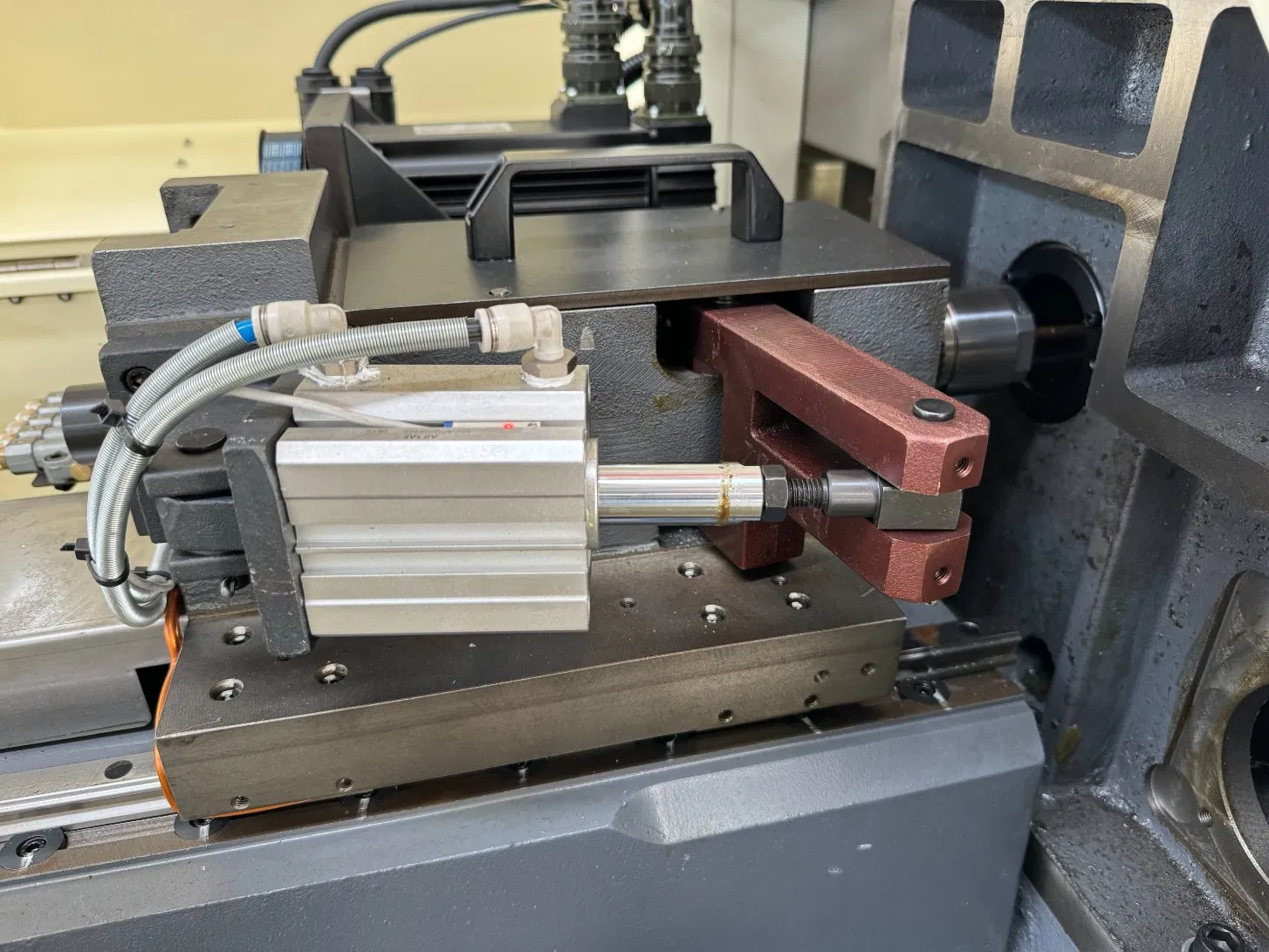

The number of tools is multiple and the tool exchange is fast.
Mainly process all kinds of super slender parts.
The power head meets the needs of turning and milling complex processing (the live head can be selected).
Reasonable layout, small dimension and covers little area.

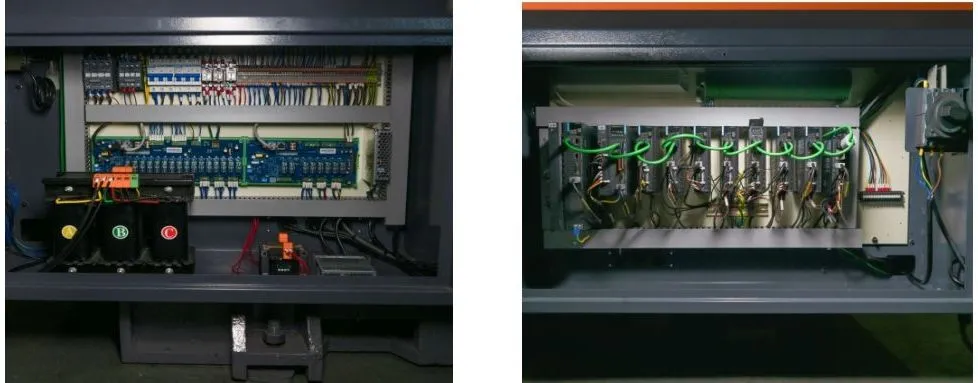

Electrical Cabinet And Driver Cabinet

With Configurations

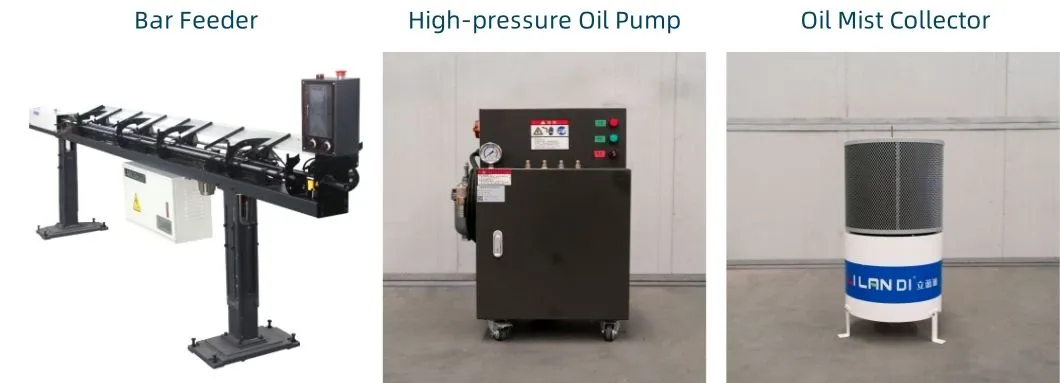

CK1113 CNC Lathe will be configured with oil film bar feeder, with high-pressure oil pump, oil mist machine, to improve the performance and extend the life of the lathe.

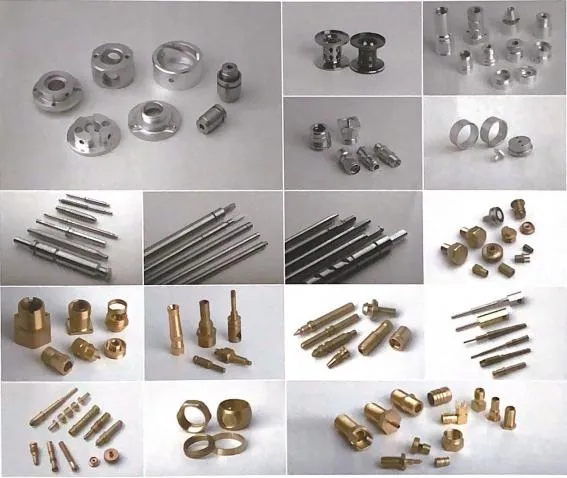

Processed Product Display

Some Suggestions

Max profile diameter within 7mm: Suggest model B07 or CK1107. B07 features a dual spindle type, while CK1107 is a single spindle type.
Max profile diameter within 13mm: Suggest model B13 or CK1113.
CK0620A2: Particularly suitable for processing complex-shaped parts such as linear/taper/arc threads. Configured with a center frame, it can process slender shaft parts.
CK0625A: Suitable for processing various precision parts such as instruments, meters, electronic connectors, optics, automotive and motorcycle parts, and small hardware.
CK32A3: Multi-functional Turning & Milling CNC Lathe. The CK32A3-B version is equipped with a dual spindle based on the CK32A3.
X42: Slant-bed CNC lathe, suitable for processing shaft/disc parts with complex sizes or high precision requirements.

For more details or to receive professional recommendations, please provide your profile drawings.

Profile Overview

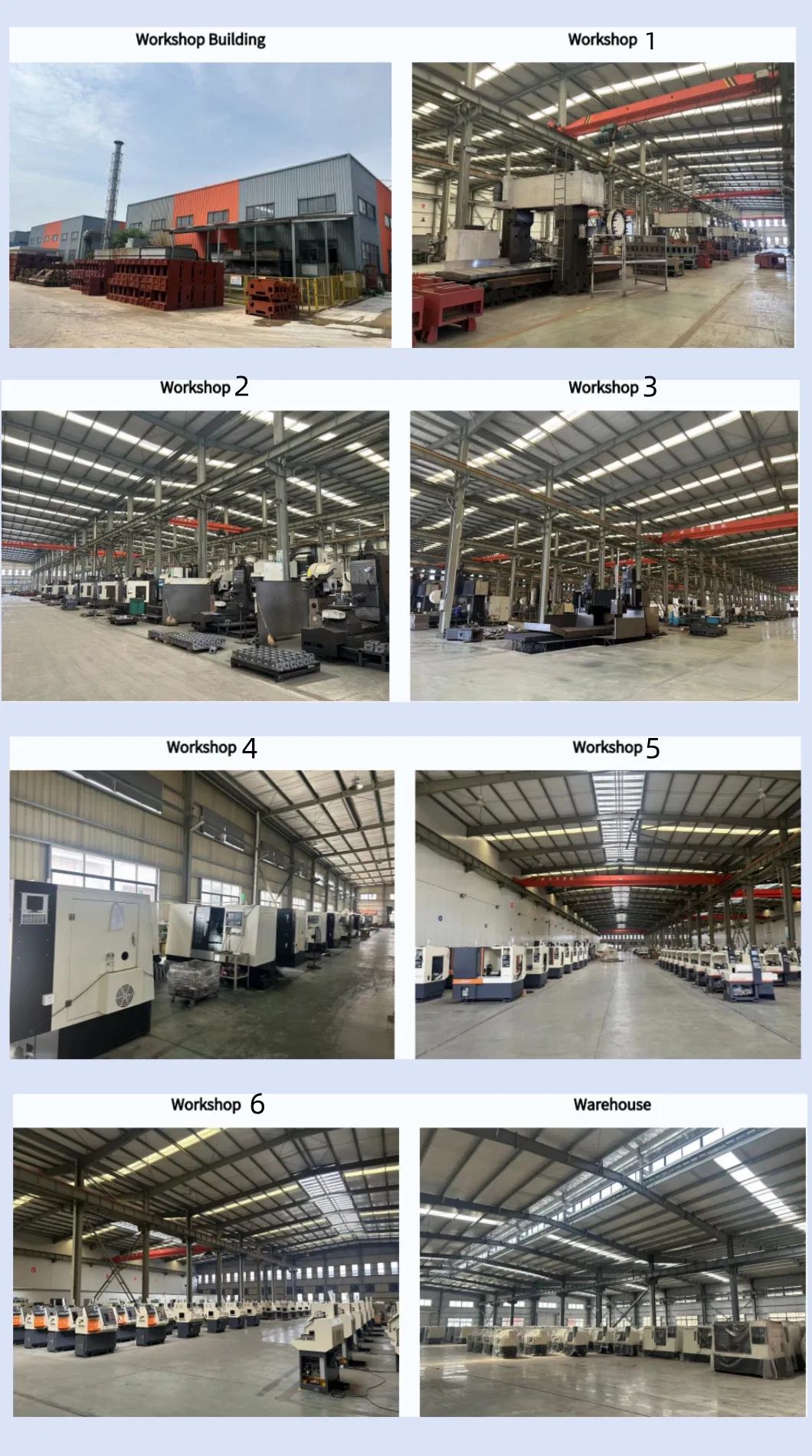

We are a comprehensive high-tech enterprise integrating the R&D, Production, Sales, and service of CNC systems, CNC machine tools, automatic production lines, industrial robots, the Internet of Things, and related products. The manufacturing base covers a modern, large-scale production area equipped with an independent R&D center focused on technology innovation.

Our specialization lies in the production of high-performance machinery, including CNC SWISS-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Flat Bed CNC Lathe Machines, Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes, Single spindle CNC Machinery, and Automatic Double-Spindle Lathes. All lathes adopt absolute value servo and bus connections.

With numerous invention patents, utility models, and design patents, our products are widely applied in Communication Equipments, Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Automotive, Water Heating, Miniature Shafts, Optical Instruments, Timepieces, Glasses, and various hardware accessories.

Adopting modern management concepts, we have continuously improved our manufacturing processes and customer support systems. Our operations have successfully obtained ISO9001 (Quality Management System) and ISO14001 (Environment Management System) certifications, alongside Measurement Management System Certificates and CE Certification.

We constantly implement the mission to "Provide high-quality products and best services, and create the highest value for our customers," carrying out the business philosophy of "Service, Innovation, Specialization, Pragmatism" to provide the most cost-effective machine tools to the global market.

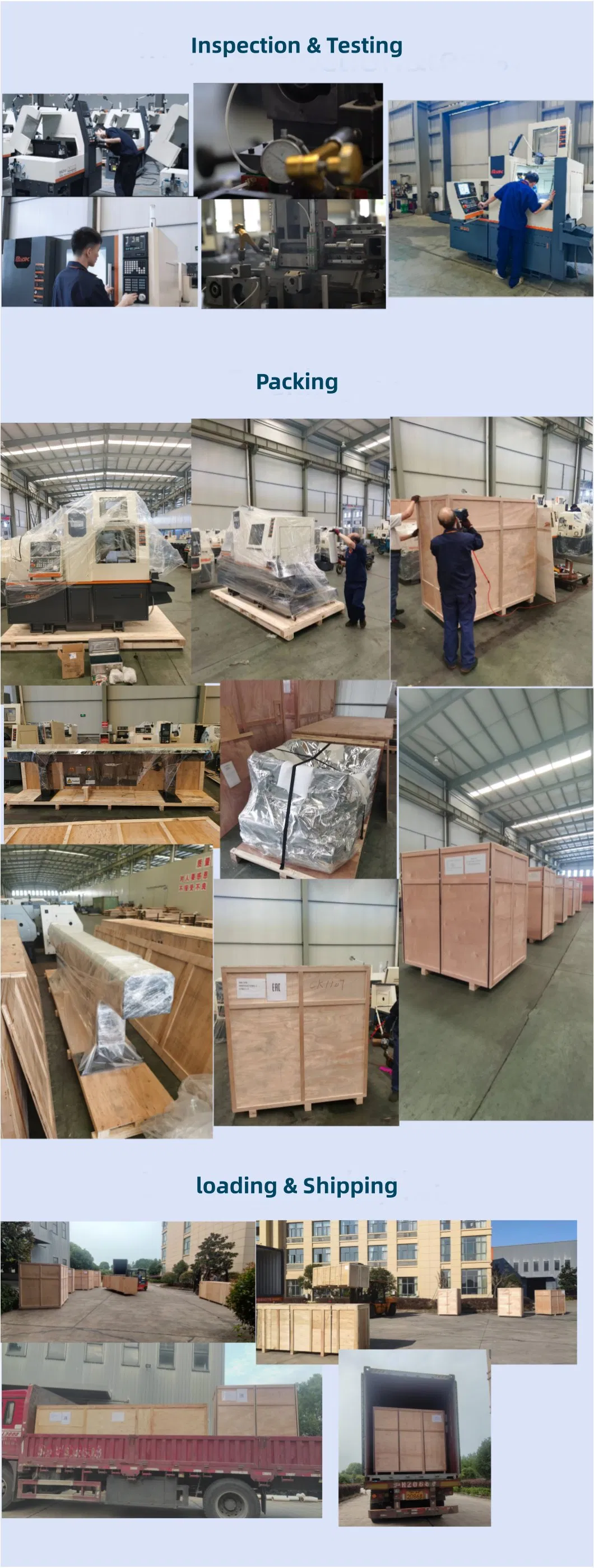

Packaging & Shipping

Frequently Asked Questions

Do you accept OEM/ODM?

Yes. OEM/ODM projects are welcomed to suit your production requirements.

What is your typical delivery lead time?

Under normal conditions, our standard delivery lead time is approximately 30 to 45 working days.

What kind of after-sales technical support do you provide?

We have a professional technical support team available 24 hours online to solve any operational or setup issues you may face.

Can these machines be customized with logos or special colors?

Yes, customization options are supported, including custom branding/logo placement on the machines.

What is the Minimum Order Quantity (MOQ)?

We accept small orders; the minimum order quantity is 1 set of machine.

What are the characteristics of the build materials and structural features?

Our machines are constructed using high-quality gray cast iron for maximum stability and carry official CE Certification. They are engineered to match European quality standards with high cost-efficiency, supported by our independent technical research team.
