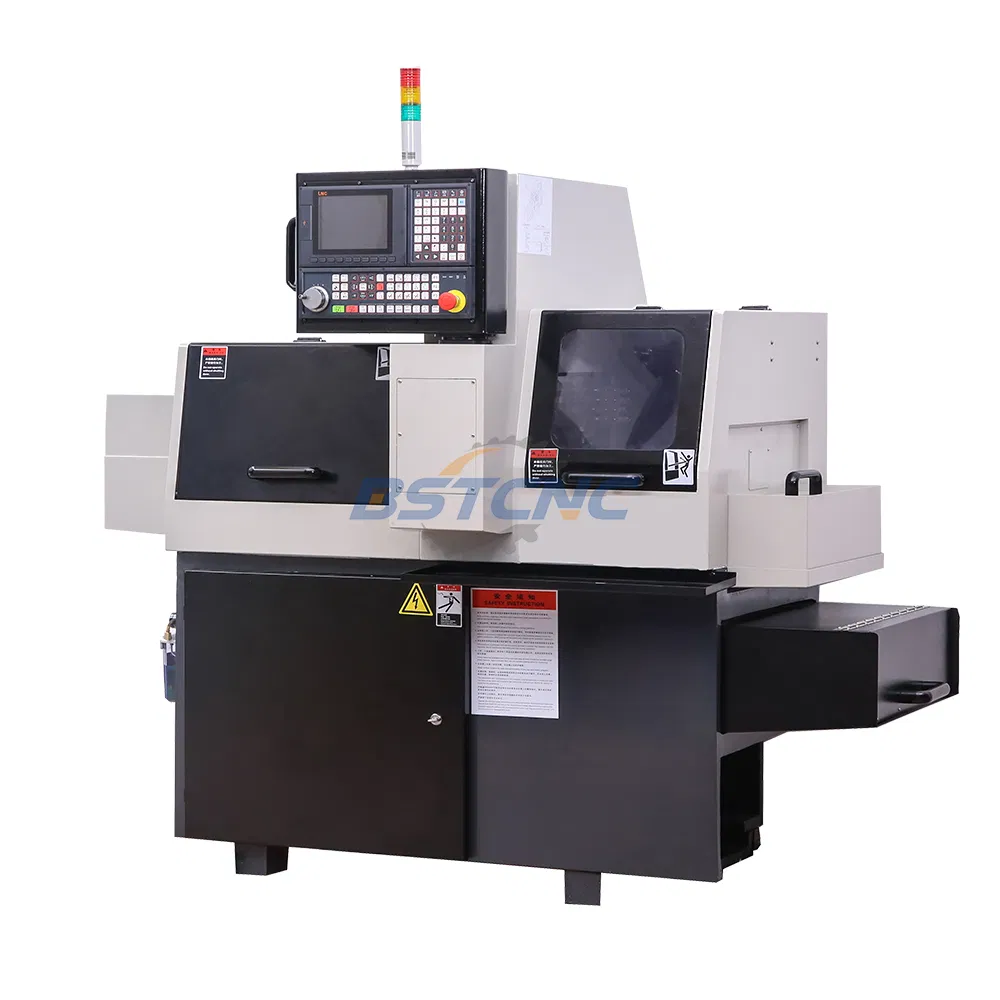

Bst-F263e Made in China Automatic Swiss Type Mini CNC Turning Lathe

After-sales Service:	24 Hours Online
Warranty:	One Year
Application:	Metal

Overview

Basic Specifications

Model NO.BST-F263E

Product NameAutomatic Swiss Type Mini CNC Turning Lathe

Process UsageMetal-Cutting CNC Machine Tools

Movement MethodLinear Control

Control MethodSystem

Numerical ControlCNC

Processing Precision0.01~0.02(mm)

PerformanceHigh-End CNC Machine Tools

CertificationGS, CE, ISO 9001

ConditionNew

Spindle Bore27mm

Max. Turning Diameter26mm

Spindle FormMotor Spindle

Main Spindle Power4.8kw

Spindle Speed8000rpm

Operation & Delivery Details

Spindle Stroke105

Cooling Pump0.85kw

ColletsCustomer Customization

Turret TypeGang Type Tool Post

OD Tools Number5 Pieces

Center Height1050mm

Net Weight1780kg

Gross Weight2180kg

Transport PackageWooden Case

Specification Volume4.4CBM

TrademarkBST

OriginChina

HS Code8458110090

Production Capacity2000/Year

Package Size195.00cm * 116.50cm * 190.00cm

Product Description

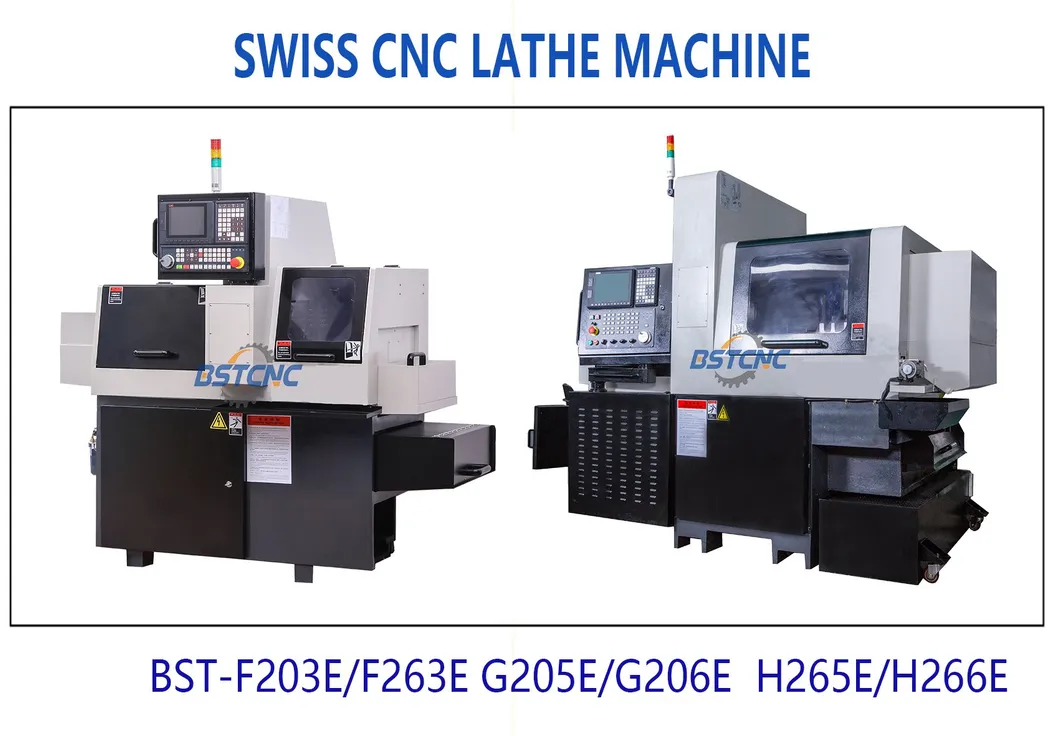

Bst-F263e Automatic Swiss Type Mini CNC Turning Lathe

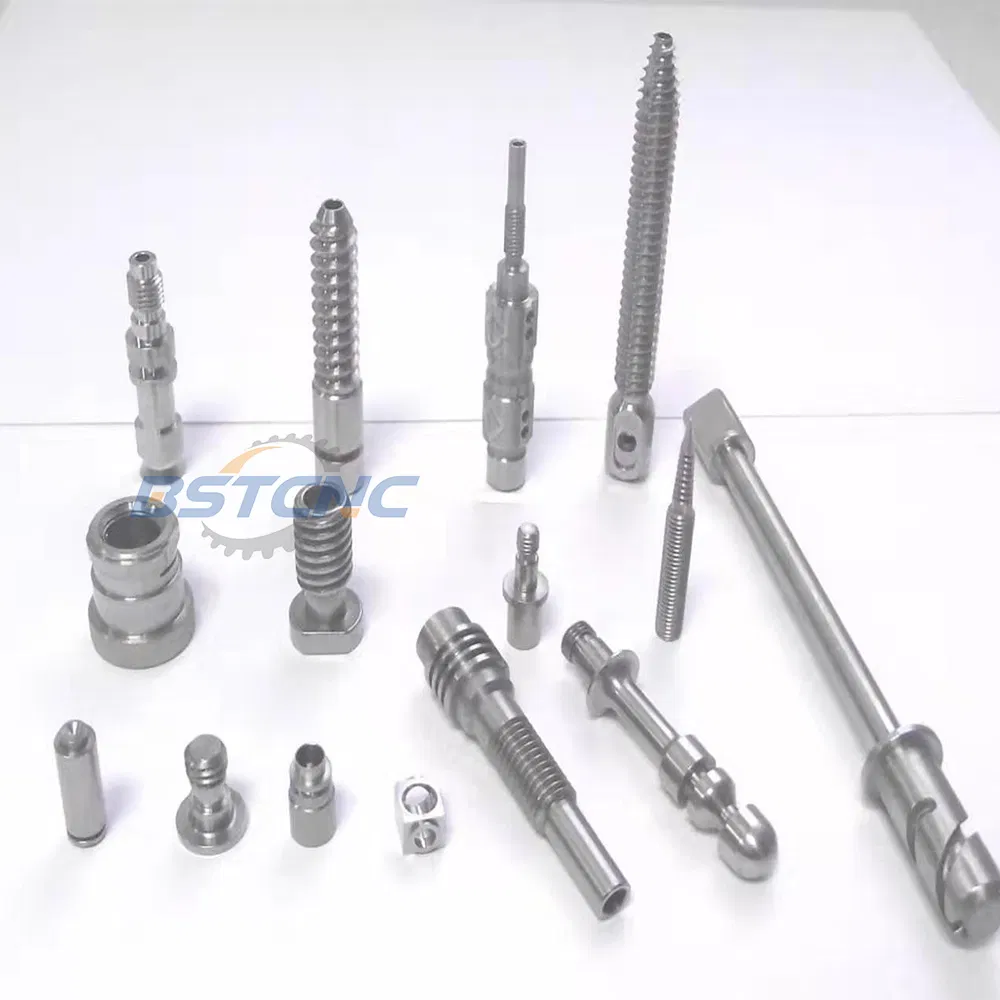

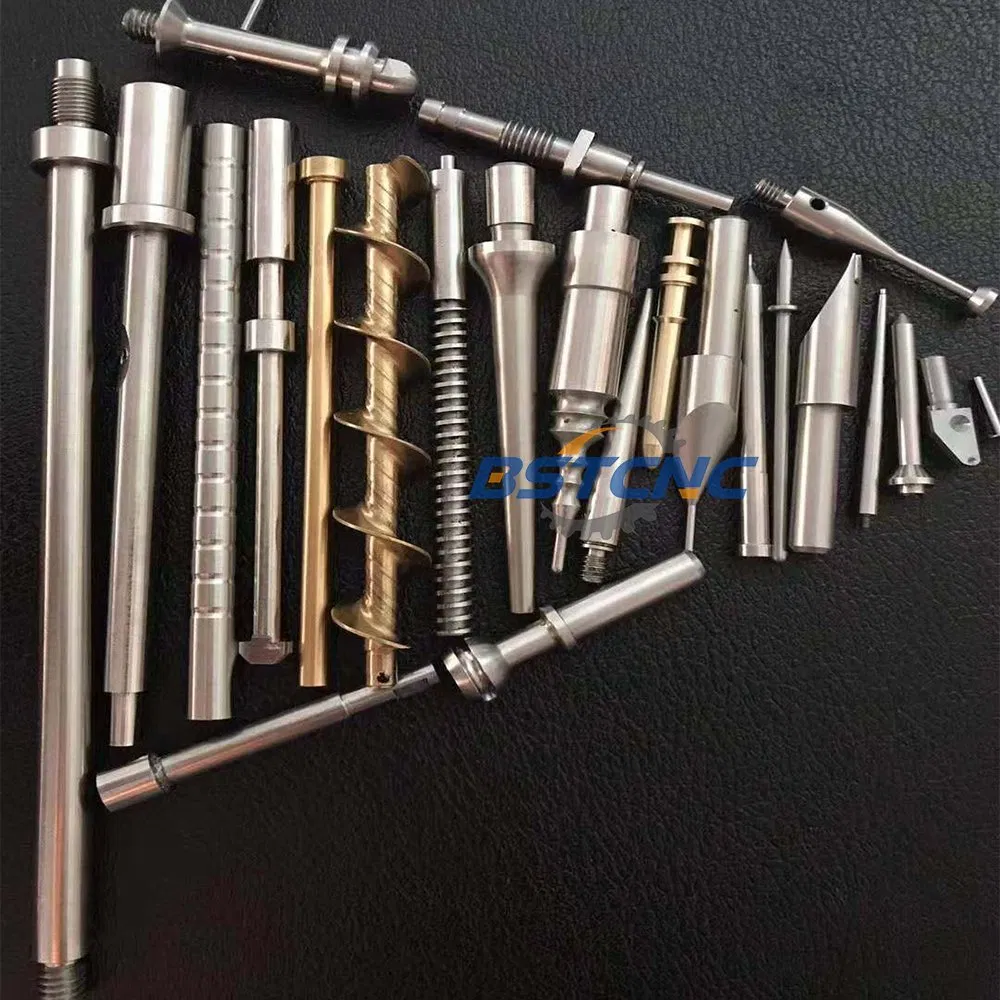

This Swiss-type machine integrates turning and milling compound functions, adapting to various CNC systems for complete automatic control. It is designed for executing complex machining tasks and is ideal for processing slender shaft parts with large length-to-diameter ratios, as well as small, custom-shaped high-precision parts. It is highly suitable for mass production in automotive, electronics, medical devices, micro-axes, pneumatic tools, and clock-making industries.

The machine tool bed is integrally cast with resin sand, ensuring outstanding seismic resistance, minimized deformation, high rigidity, and long-term operational precision.
Widely implemented in telecommunications, electronics, medical appliances, and automotive components production.
Equipped with reliable hardware: Japan Yaskawa motor drive, Japan NSK bearings, Taiwan HIWIN or PMI ball screws/linear guideways, and Taiwan LNC or Syntec control systems.
No return-to-origin required during start-up, saving processing cycle time and preventing system interference from limit travel switches.

BST-F263E Specification and Parameters

Item	Unit	Specification
Spindle
Stroke	mm	105
Max. Spindle Speed	rpm	8000
Max. Turning Diameter	mm	φ26
Additional Positive Brake	-	No grade
Spindle Bore Diameter	mm	φ27
Tooling
O.D. Tools Number	ea	5
OD Tool Size	mm	12X12
Front Work Tools Number	ea	4
Front Max. Drilling Diameter	mm	Φ7(ER11)
Front Max. Tapping Diameter	mm	M6(ER11)
Cross Driven Tools Number	ea	4
Cross Driven Tools Max. Speed	rpm	5000
Cross Max. Drilling Diameter	mm	Φ8(ER16)
Cross Max. Tapping Diameter	mm	M6(ER16)
Cross Max. Milling Cutter Diameter	mm	Φ32(ER16)
Motor & Rapid Feed
Spindle Motor	kw	4.8
Cross Driven Tools Motor	kw	0.75
Servo Motor	kw	(X/Z/Y) 0.75
Lubricant Motor	kw	0.25
Coolant Pump	kw	0.85
Rapid Traverse Rate	m/min	X/Y 30, Z 24
Others
Coolant Tank Capacity	L	115
Lubrication Tank Capacity	L	3
Center Height	mm	1050

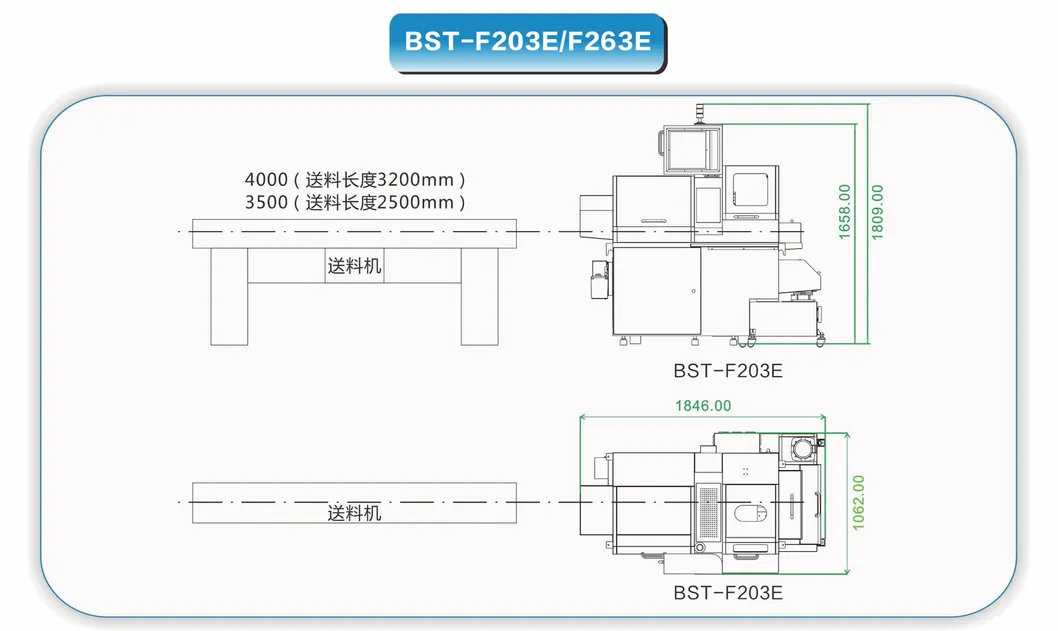

Dimensions (L×W×H)	mm	1850×1065×1800
Machine Weight	kg	1780
Power Consumption	kw	8
CNC Controller	-	Taiwan LNC / Syntec

Product Features

Simultaneous Dual-Spindle Processing: Main spindle and sub-spindle operate concurrently via a dual-channel design, substantially improving output efficiency.
Quick Tool Changes: Designed with a specialized tool holder configuration to expedite tool changes and significantly lower non-cutting time.
Optimized for Slender Shafts: Extremely effective in machining highly detailed, long, small, and custom-profile components.
High Bending Resistance: Integrates a mechanical synchronous rotary guide sleeve to prevent bending or deflection of workpieces during active processing.
Spindle Thermal Control: Utilizes oil-cooling and fan-cooling technologies to control motor spindle temperatures, minimizing machining errors caused by thermal expansion.
High Automation Capability: Fully configurable with oil film bar feeders, oil mist extractors, and high-pressure oil pumps to streamline high-capacity, unattended workflows.

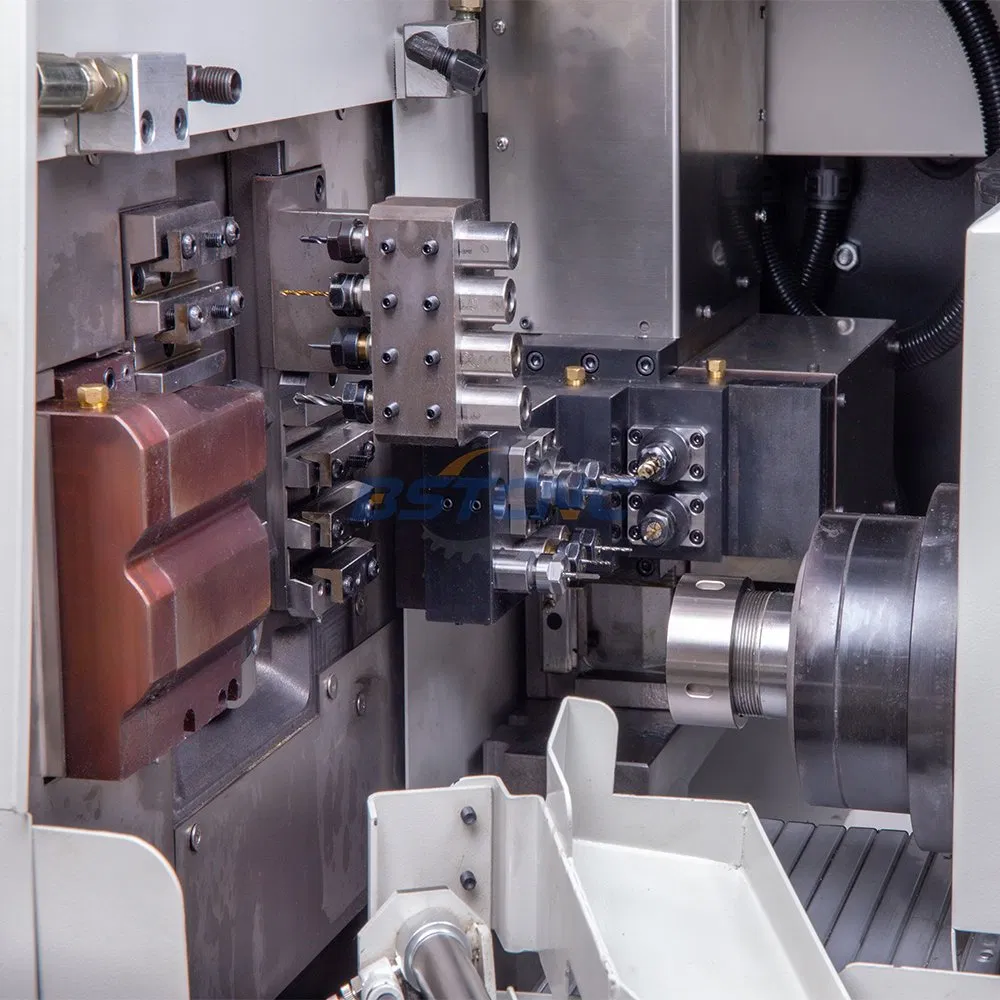

Automatic Swiss Type Mini CNC Turning Lathe Tooling Area

Automatic Swiss Type Mini CNC Turning Lathe Interior Spindle Detail

Automatic Swiss Type Mini CNC Turning Lathe Component Layout

Automatic Swiss Type Mini CNC Turning Lathe Control Panel

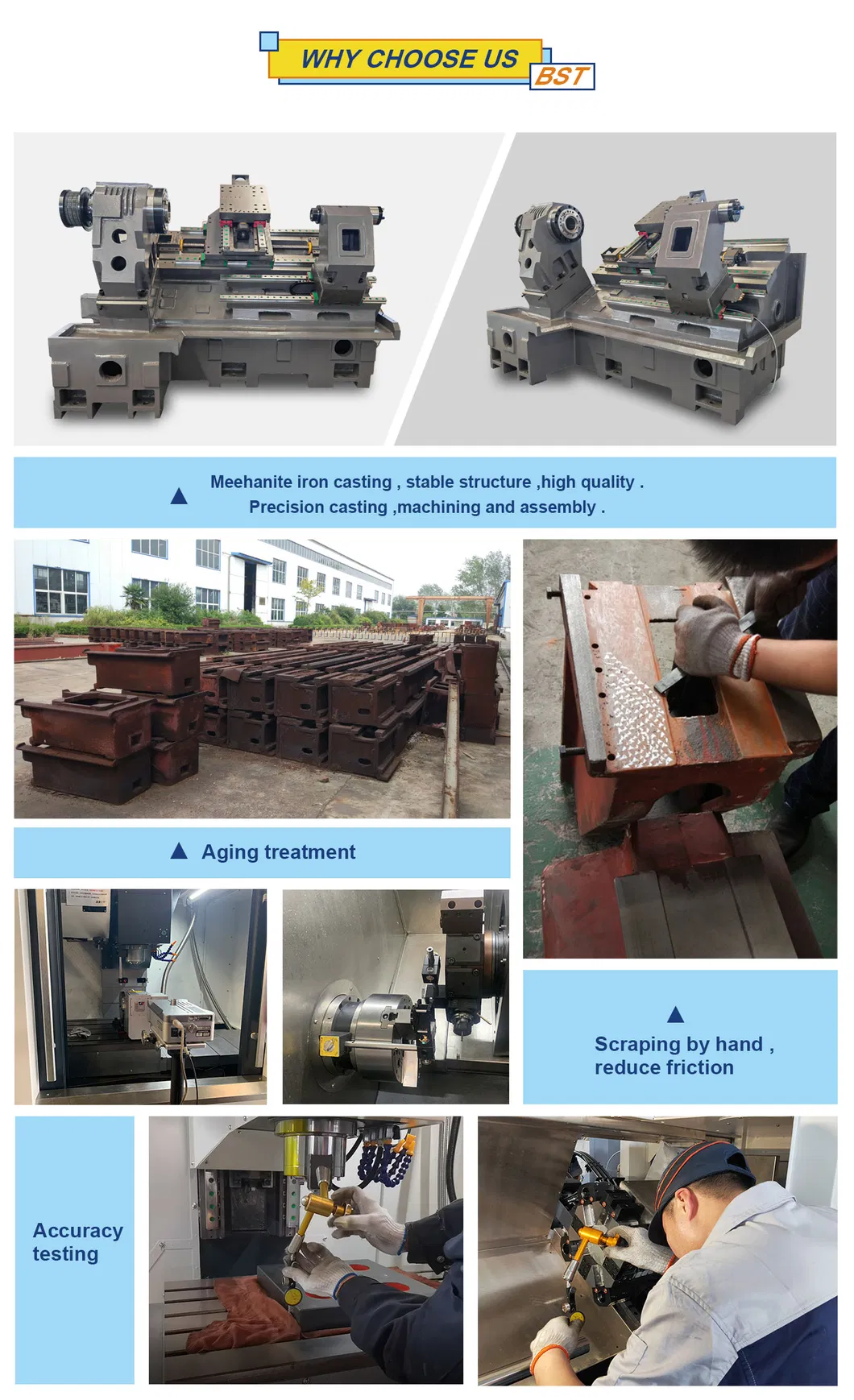

Automatic Swiss Type Mini CNC Turning Lathe Body Casting

Automatic Swiss Type Mini CNC Turning Lathe Assembly Process

Automatic Swiss Type Mini CNC Turning Lathe Factory Testing

Frequently Asked Questions

What processing precision does the BST-F263E Swiss CNC lathe offer?

The BST-F263E provides a high processing precision range of 0.01 to 0.02 mm, making it ideal for high-precision components.

What components are used in the machine's drive and guide systems?

It utilizes premium Japanese Yaskawa motor drives, Japanese NSK bearings, and Taiwanese HIWIN or PMI ball screws and linear guideways. Control options include Taiwan LNC or Syntec systems.

Which industries are most suitable for this turning lathe?

This Swiss-type lathe is widely used in processing micro-axes, automotive and motor accessories, medical equipment parts, electronic components, pneumatic tools, and clock-making industries.

Can the machine process parts using both spindles simultaneously?

Yes, the main spindle and the sub-spindle can process workpieces concurrently. The dual-channel design optimizes cycle times and increases production output.

Does this machine require a return-to-origin reset when turned on?

No. You do not need to return to the original point when switching the machine on or off, saving operational time and avoiding system switch interference.

What is the construction of the machine tool bed?

The bed is integrally cast using high-grade resin sand. This ensures strong seismic resistance and minimal structural deformation, resulting in high rigidity.
