Baoyu Bysk Ck1107D 3 Axis Sliding Headstock Swiss Type CNC Lathe

Customization:	Available
After-sales Service:	Video Technical Support, Online Support
Warranty:	Always Valid

Overview & Basic Info

Model NO.CK1107D

ApplicationMetal

Process UsageMetal-Cutting CNC Machine Tools

Movement MethodLinear Control

Control MethodClosed-Loop Control

Numerical ControlCNC/MNC

Processing Precision0.01~0.02(mm)

PerformanceEconomical CNC Machine

CertificationCE, ISO 9001, ISO14001

ConditionNew

CNC SystemBysk Yz150

Max Bar Diameter7mm

Type3 Axis CNC Swiss Lathe

TravelX, Y, Z

FunctionMetal Turning, Milling, Drilling

Guide Rail FormLinear Guide Rail

Tools Arrangement12 PCS

Turning & Milling Tools8 PCS

Front DrillingChuck 3PCS

Cooling SystemOil Cooling

Motor TypeAbsolute Value Servo Motor

Specification1415*700*1680mm

Production Capacity1000 units/Year

HS Code8458110090

Packaging & Delivery

Package Size2400.00cm * 1600.00cm * 1900.00cm

Package Gross Weight5000.000kg

Transport PackageStandard Wooden Case

Product Description

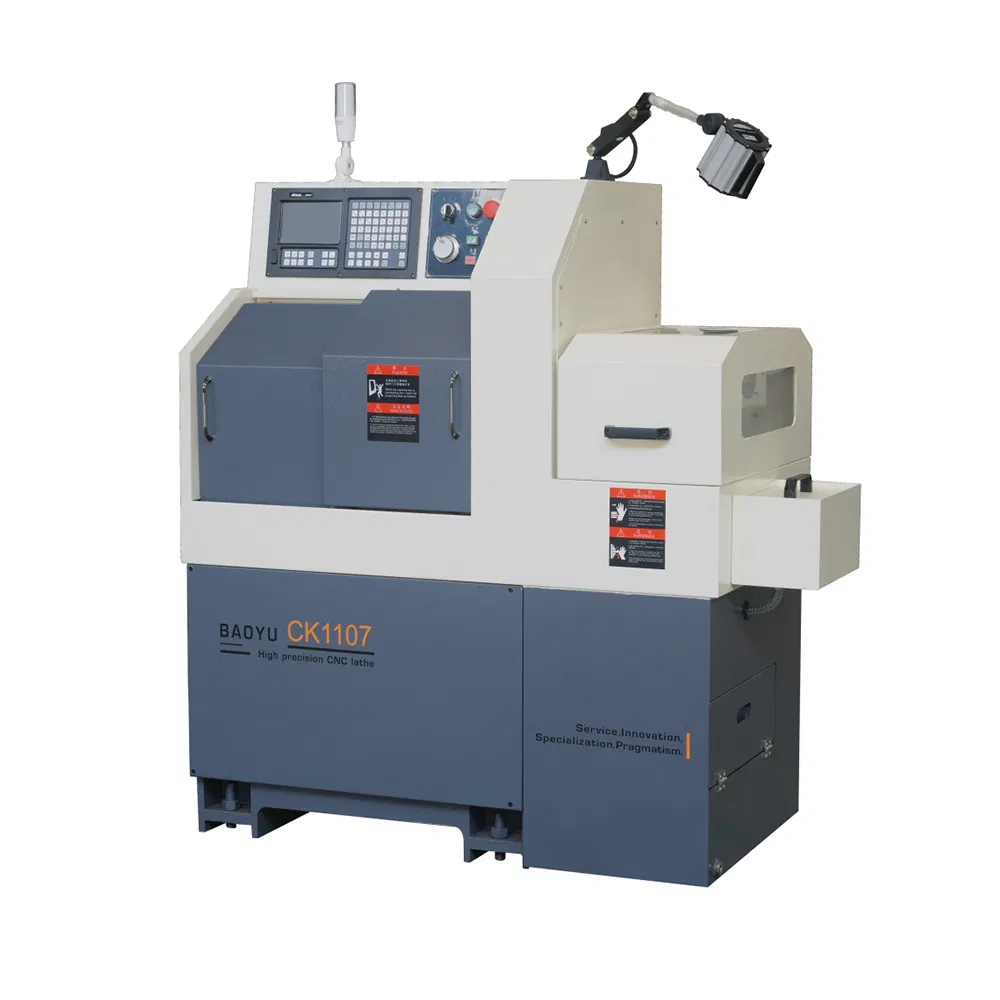

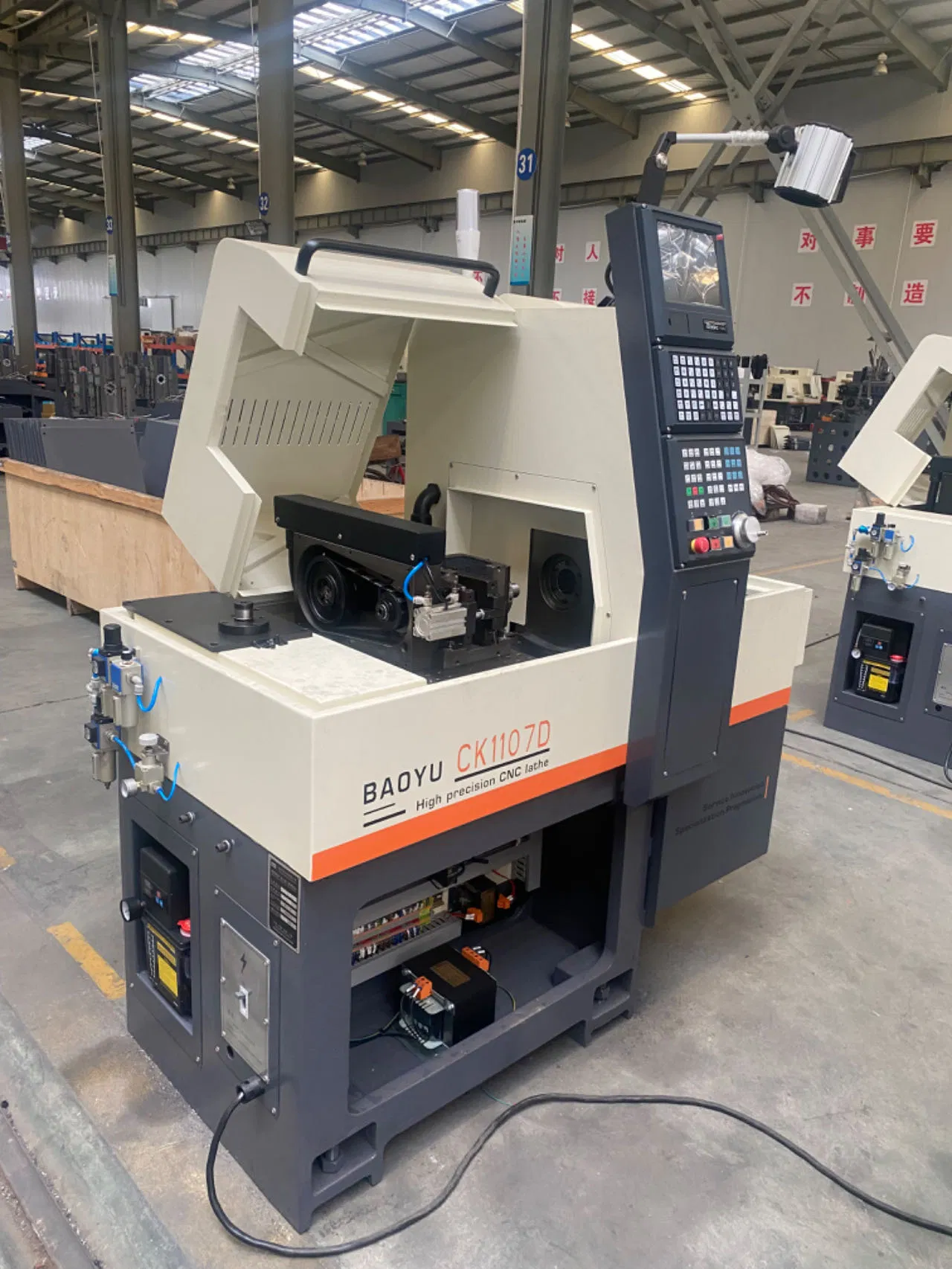

Ck1107D 3 Axis Sliding Headstock Swiss type CNC Lathe

- CK1107D is a 3 axis sliding headstock lathe.

- Suitable for processing profile diameter ≤ Φ 7mm.

- Mainly suitable for Large-scale, Multi-variety and high-precision processing of slender shaft parts with large length/diameter ratio and small, special-shaped parts.

3 Axis Sliding Headstock Swiss Type CNC Lathe

Product Parameters

CK1107 Swiss CNC Lathe Specifications
Power	Rated Voltage	Three-phase AC 380V
	Rated Frequency	50HZ
	Total Input Power	4.5kW
CNC System	Minimum Set Unit	0.001mm
	X/Y/Z Axis Pulse Equivalent	X: 0.0005mm \| Y/Z: 0.001mm
	Maximum Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X/Y/Z Axis Rapid Feed Speed	15000mm/min
	Maximum Bar Diameter	Φ7mm
	Main Spindle Through-hole Diameter	Φ8mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Travel	X Axis Travel	38mm (Diameter)
	Y / Z Axis Travel	Y: 80mm \| Z: 150mm
	X/Y/Z Axis Servo Motor Power	0.4kW each
	Guide Rail Form	Linear Guide Rail
Tooling & Systems	Tools Arrangement / Turning & Milling	12pcs / 8pcs
	Tool Size / Front Drilling	8*8mm / Chuck 3pcs
	Cooling Box / Lubrication Box Capacity	80L / 1.5L
	Input Compressed Air Pressure	0.4--0.6Mpa
Machine Size & Weight	Length * Width * Height	14157001680
Machine Size & Weight	Machine Weight	750kg

CK1107 Configurations
Item	Specification	Origins
CNC System	BYSK150 System	China
Main Spindle Motor	2KW Absolute Value Servo Motor	Inovance
Axis Motors (X/Y/Z)	0.4kW Absolute Value Servo Motor	Inovance
Screw Rod (X/Y/Z)	1852006 / 2212006 / 300*2006	Taiwan Joint Venture
Guide Rail (X/Y/Z)	HGH15	HIWIN/PMI

Detailed Photos

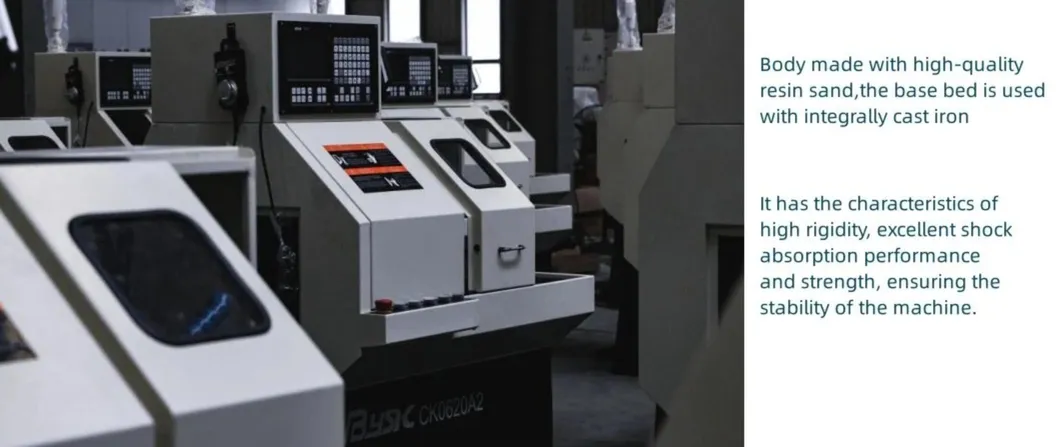

Body Materials

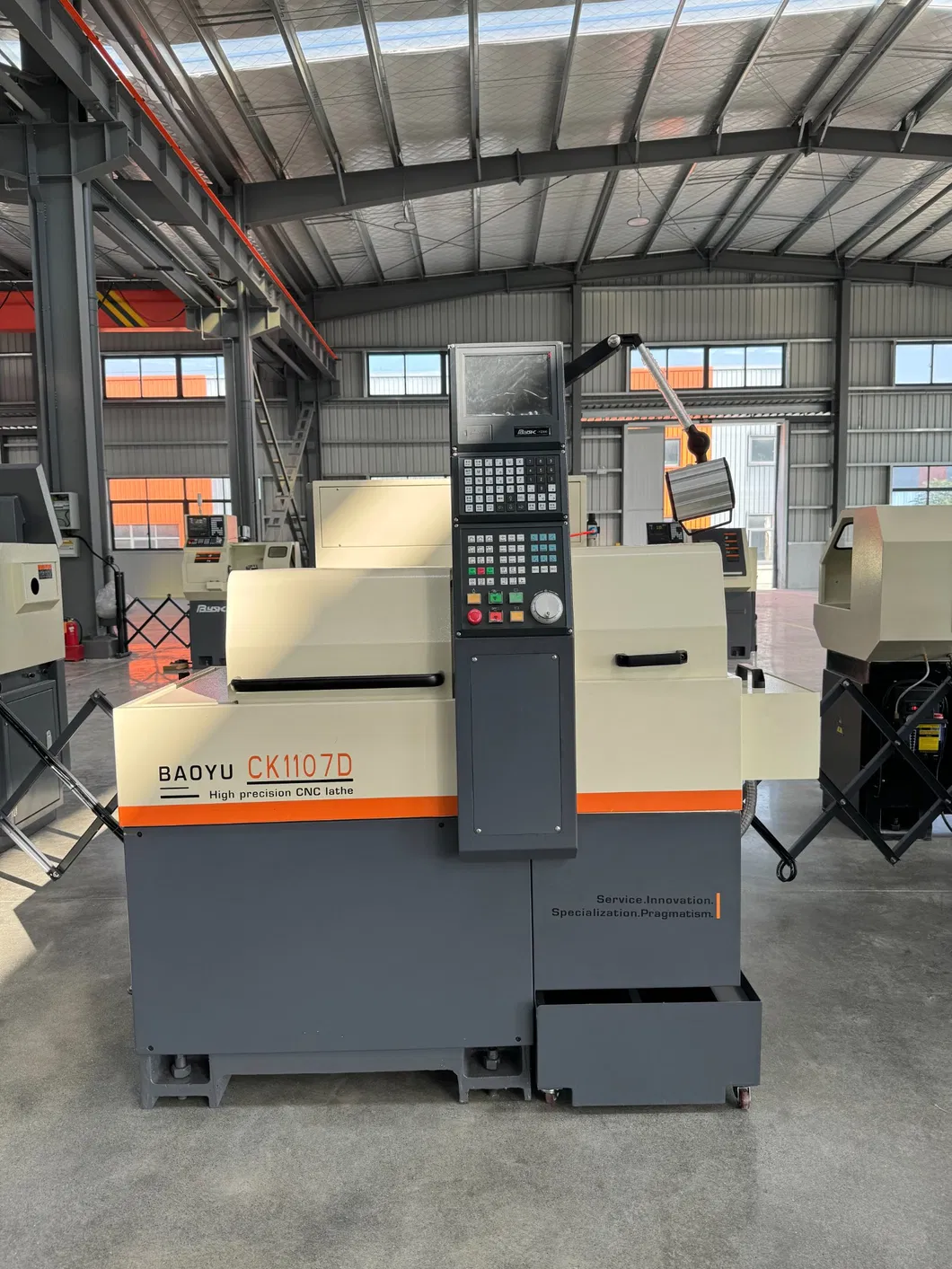

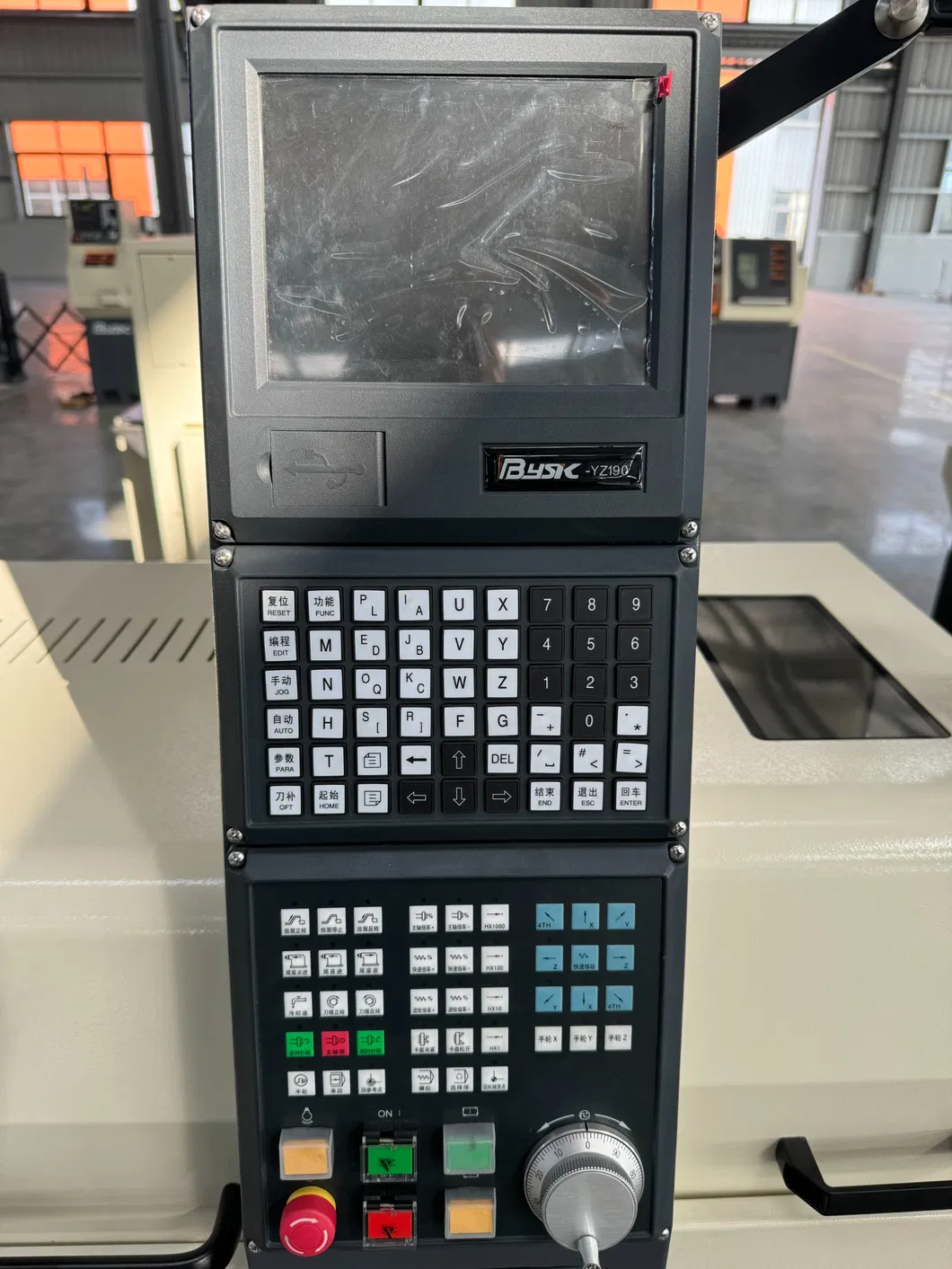

CNC Control System: Complete functions, Easy operate, High cost-effective. Panel can be moved and swiveled.

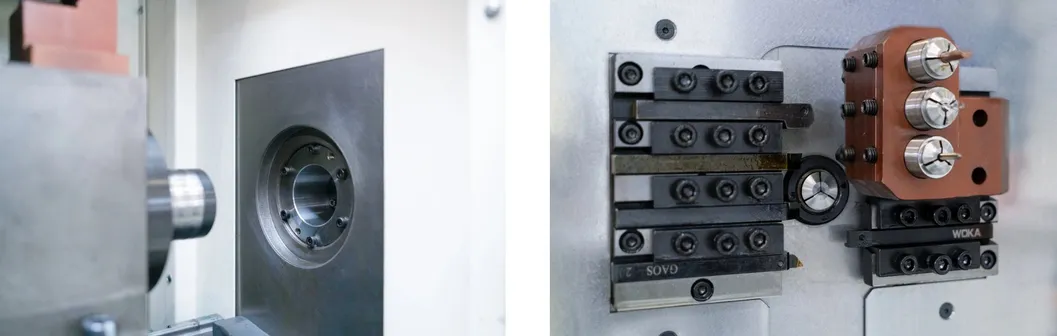

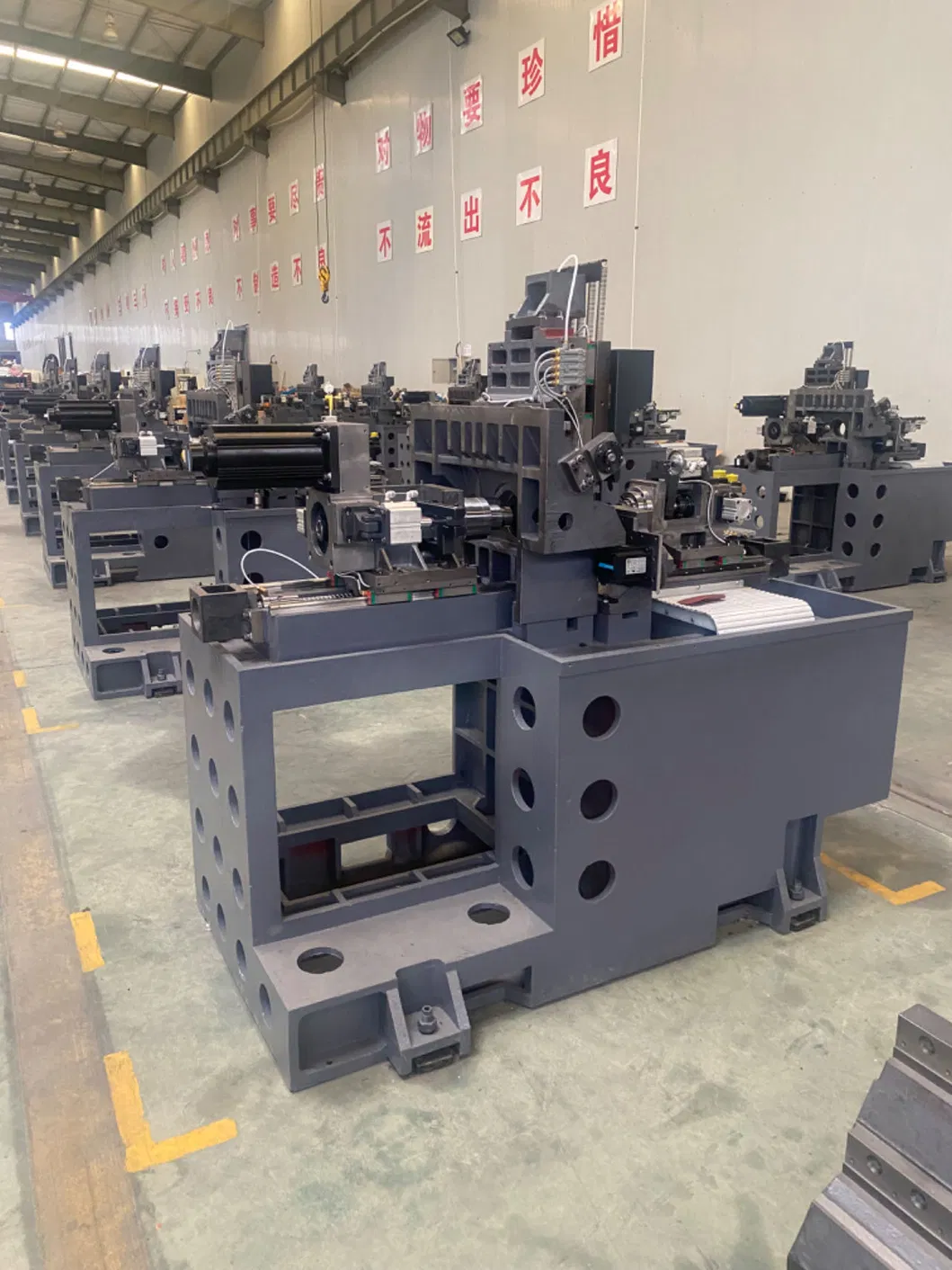

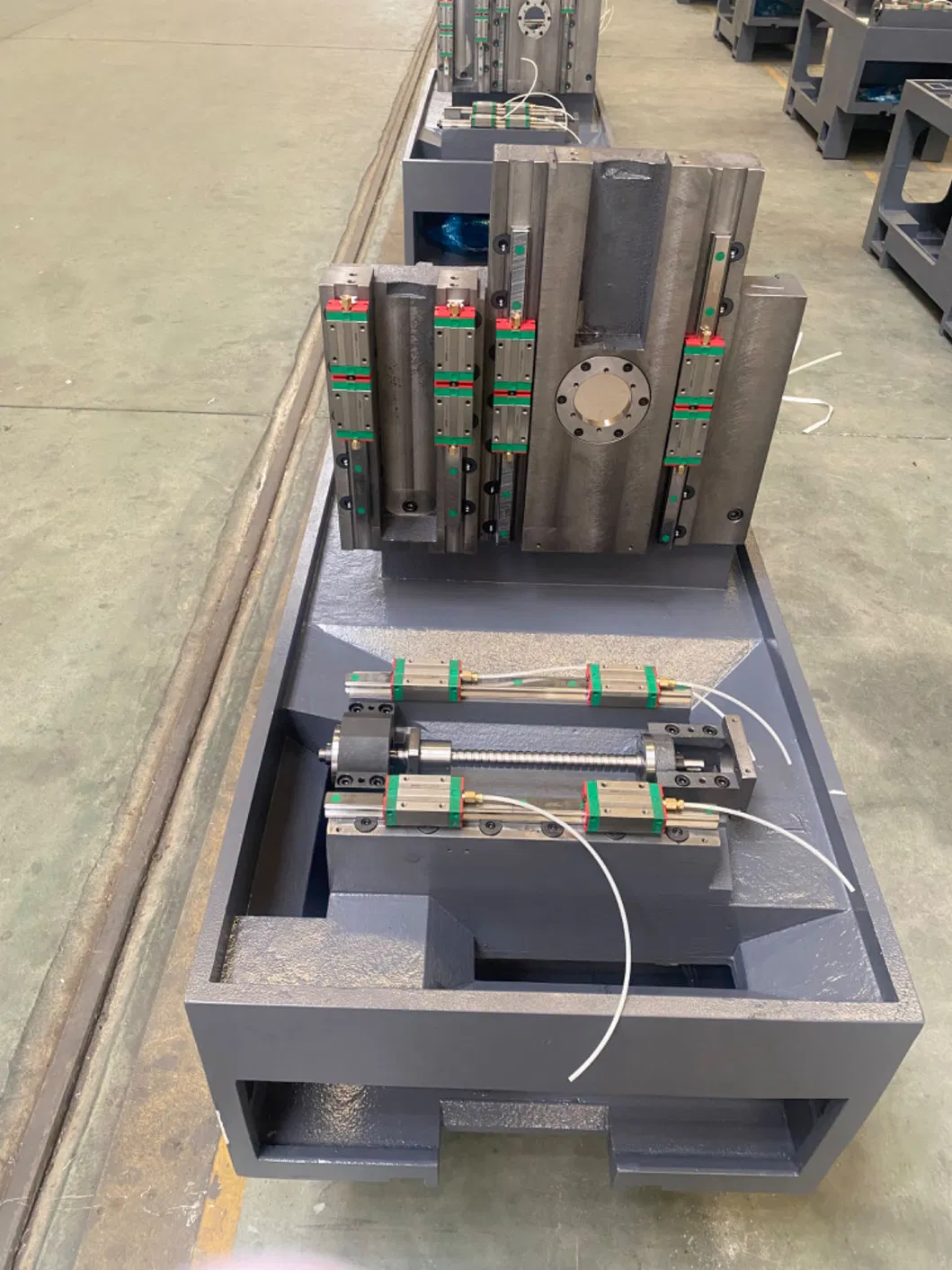

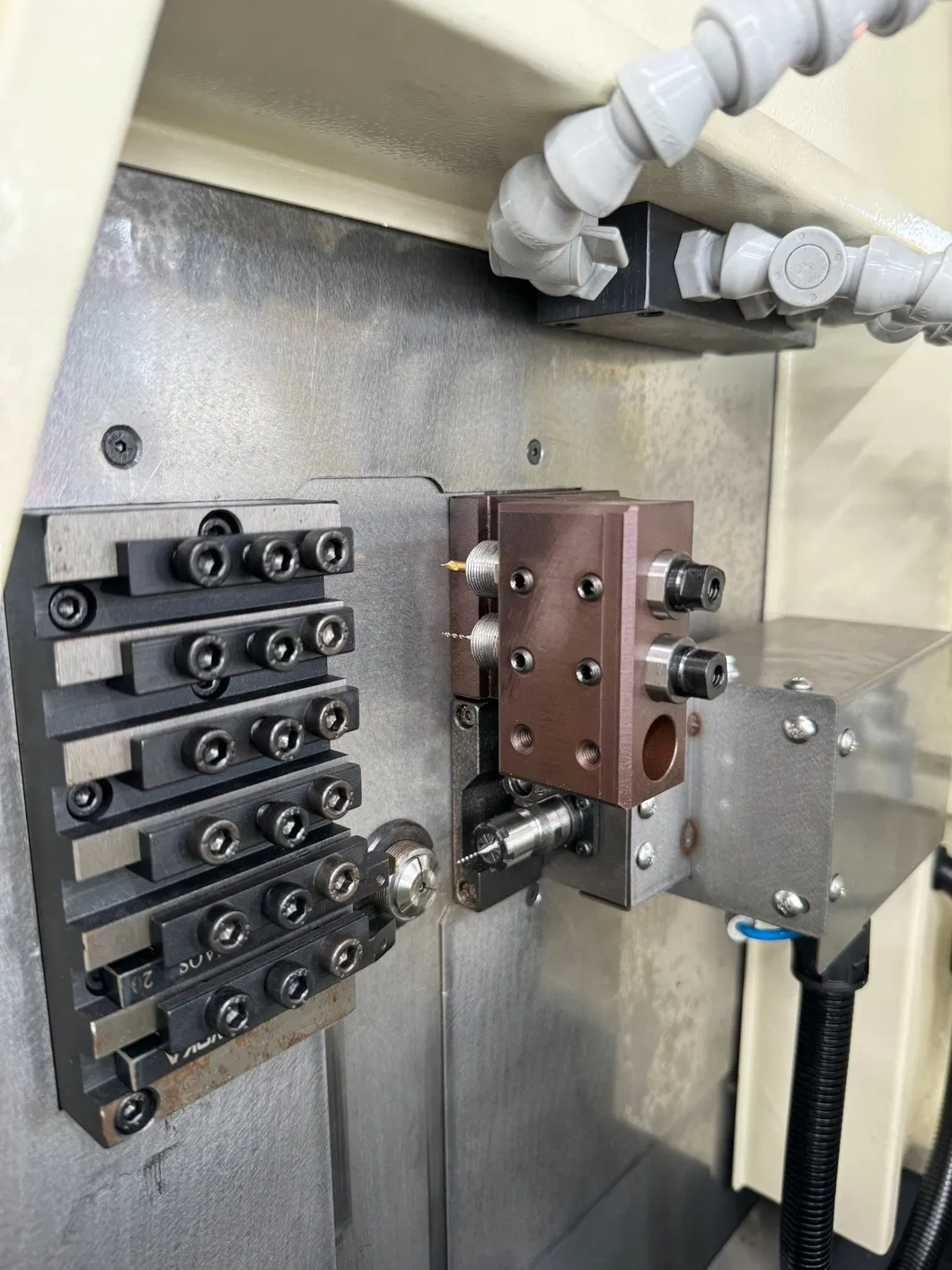

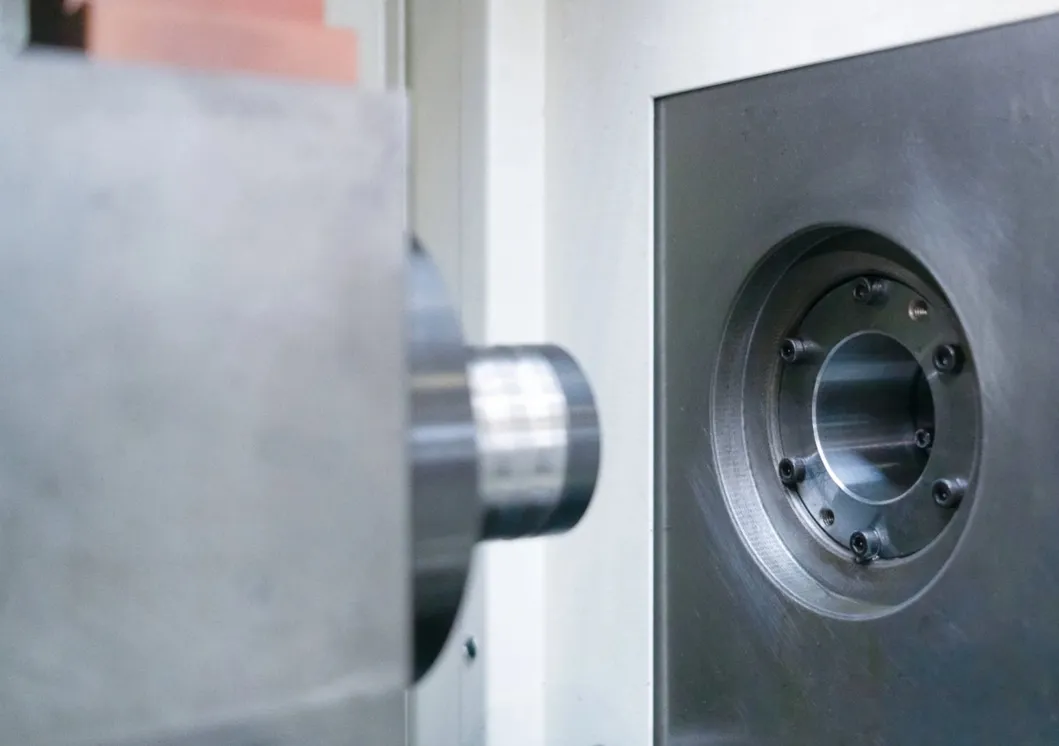

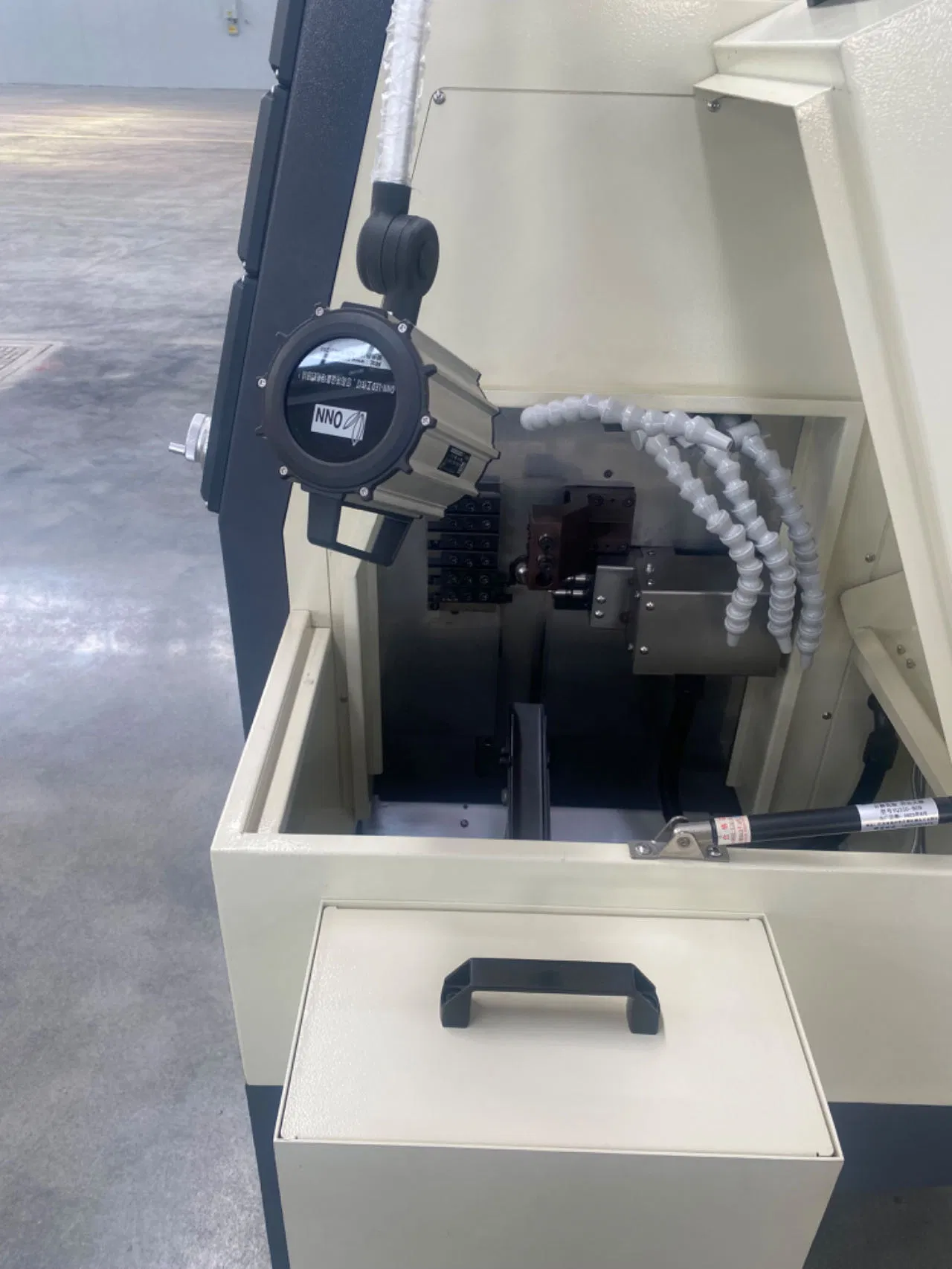

Inner Structure Details

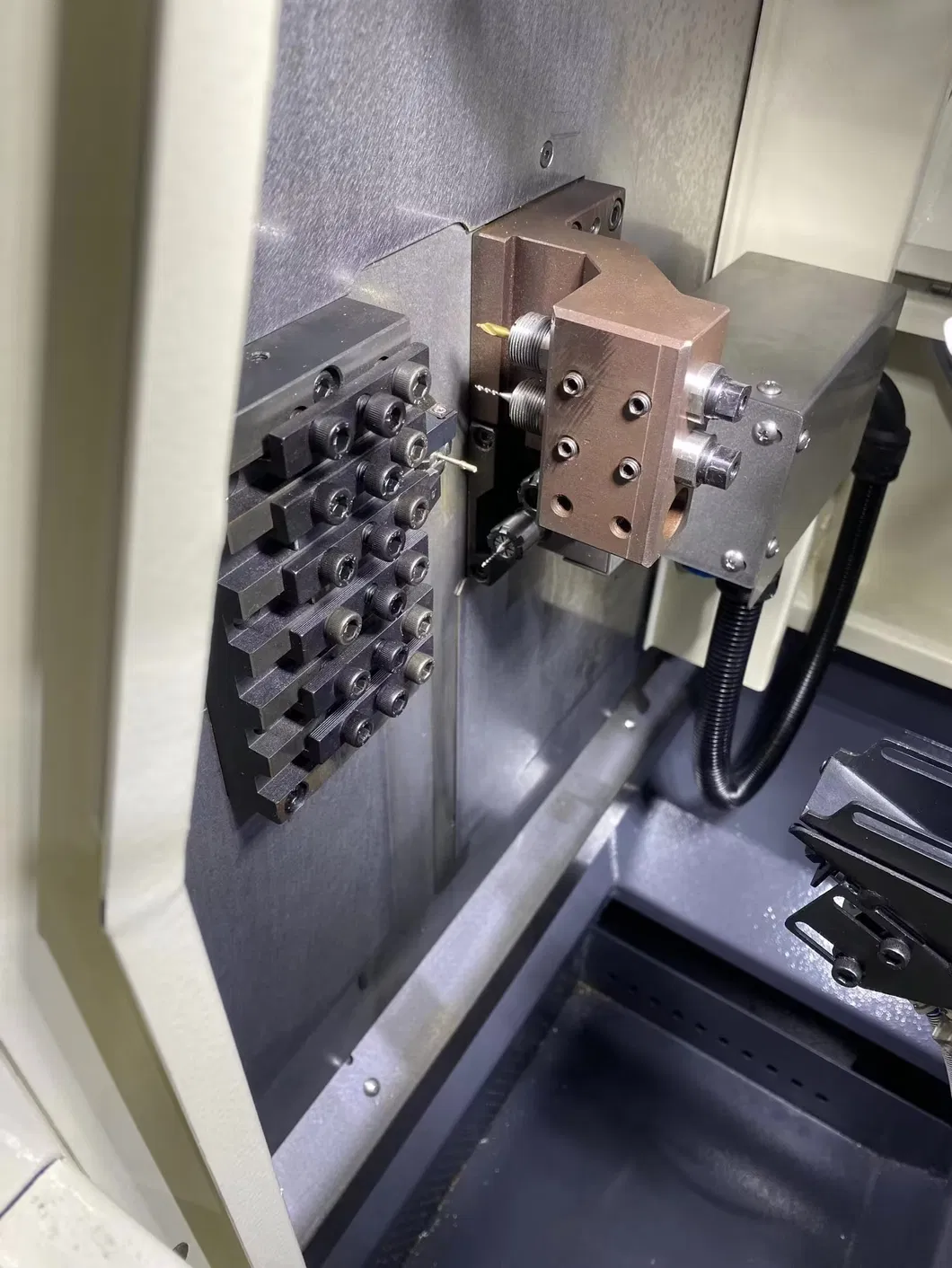

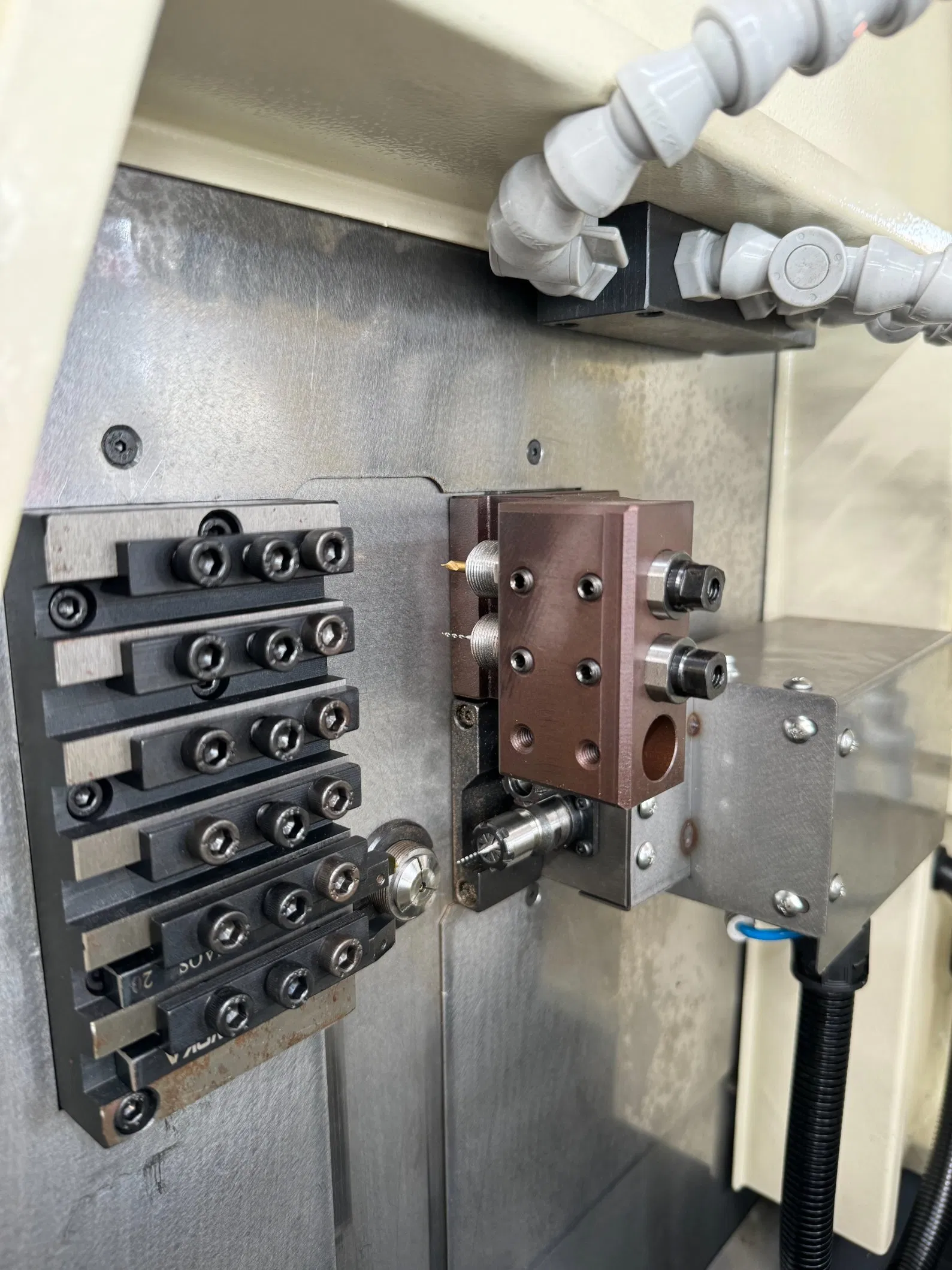

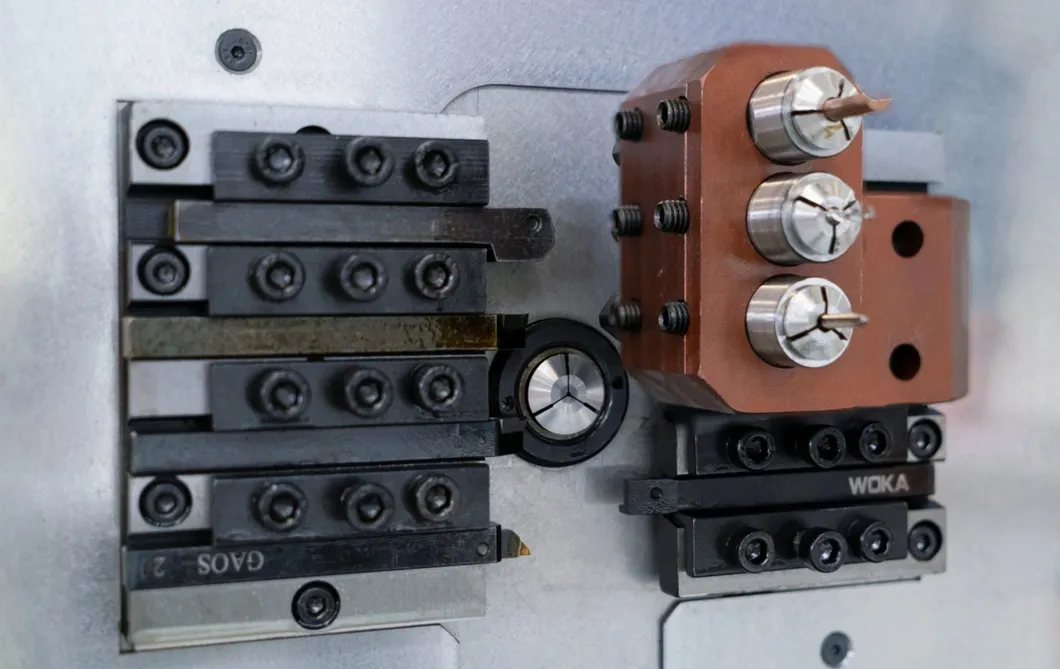

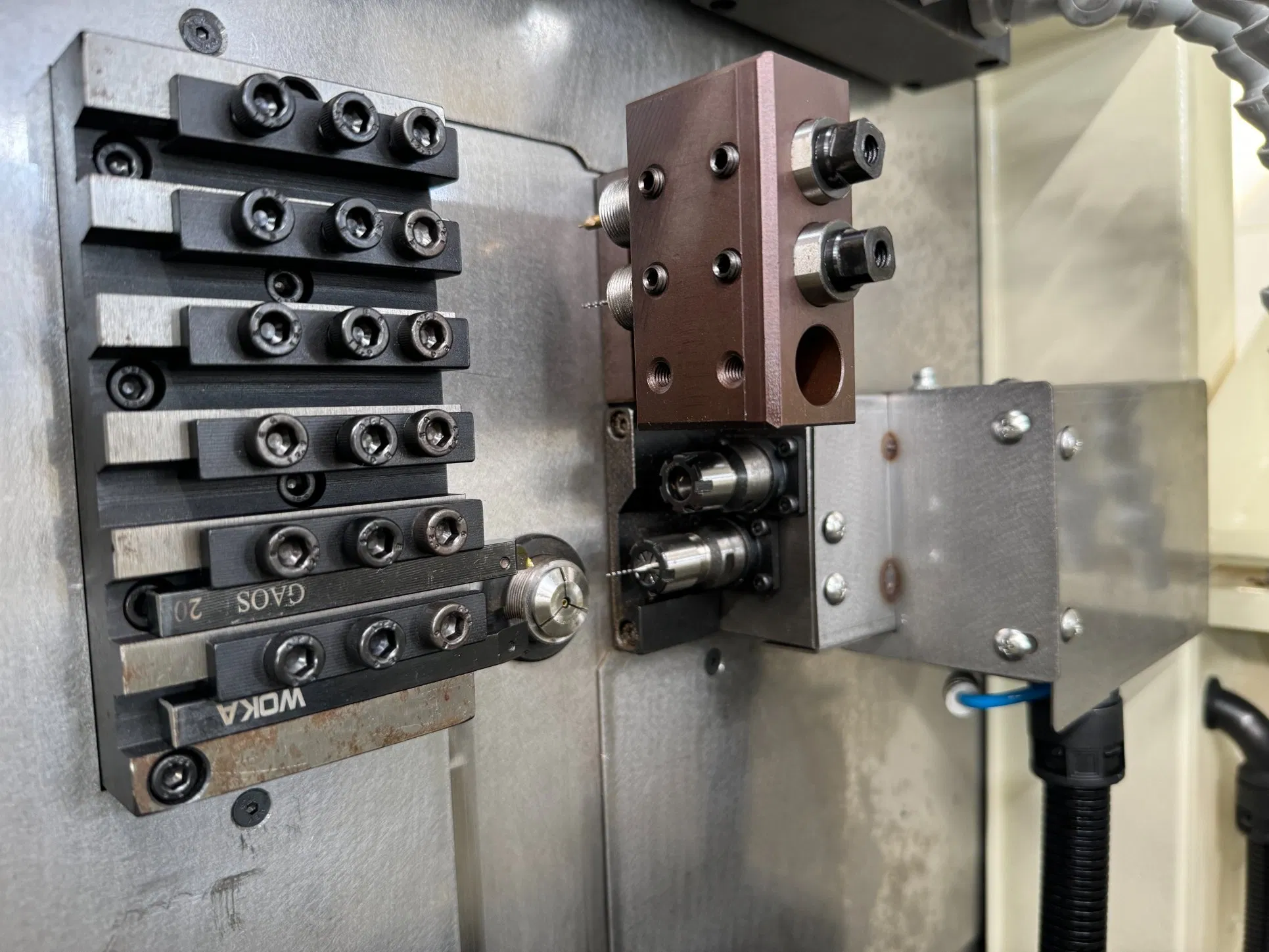

Left and right gang tooling structure: Large quantity, fast tool change speed, and good rigidity.
Targeted Processing: Mainly process all kinds of super slender parts.
Optimized Layout: Reasonable layout, small dimensions, and minimal floor area requirement.
Fixed Guide Sleeve: Can process slender shafts with a length of less than 150mm. Keeps the processed workpieces at relatively high coaxiality and finishing.

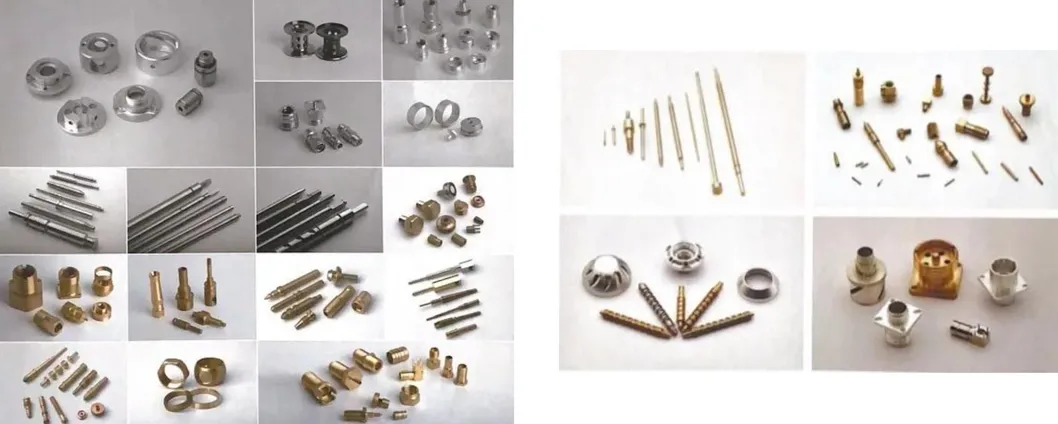

Processed Product Display

Model Selection Suggestions:

Max profile diameter within 7mm: Suggest model B07, CK1107. B07 features a dual spindle configuration, while CK1107 is a single spindle configuration.
Max profile diameter within 13mm: Suggest model B13, CK1113.
Complex-shaped parts (linear/taper/arc threads): CK0620A2 is particularly suitable. Configuring with a center frame allows processing of slender shaft parts.
Precision instrument parts (optics/connectors/motorcycle parts): CK0625A is highly suitable for instruments, electronic connectors, and small hardware.
Multi-functional Turning & Milling: CK32A3 (Turning & Milling CNC Lathe) and CK32A3-B (Dual Spindle variant).
Slant-bed CNC Lathe: X42 is suitable for disk/shaft parts with complex sizes and high precision demands.

Company Profile

A comprehensive high-tech enterprise integrating R&D, Production, Sales & services of CNC systems, CNC machine tools, automatic production lines, Industrial robots, Internet of things and other related products. The manufacturing facilities feature advanced equipment across substantial R&D and production centers.

Specializing in the production of CNC SWISS-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Flat Bed CNC Lathe Machines, Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes, Single spindle CNC Machinery, and Automatic Double-Spindle Lathes. All systems adopt absolute value servo and bus connections. The enterprise holds over 10 invention patents, utility models, and design patents.

Our machines are widely applied in Communication Equipments, Connectors, 5G Products, Mobile Phones, Household Applications, Spaceflight, Medical Devices, Automotive parts, Water Heating, Miniature Shafts, Optical Instruments, Timepieces, and Glasses. The products successfully comply with ISO9001 (Quality Management System), ISO14001 (Environment Management System), and CE certifications.
