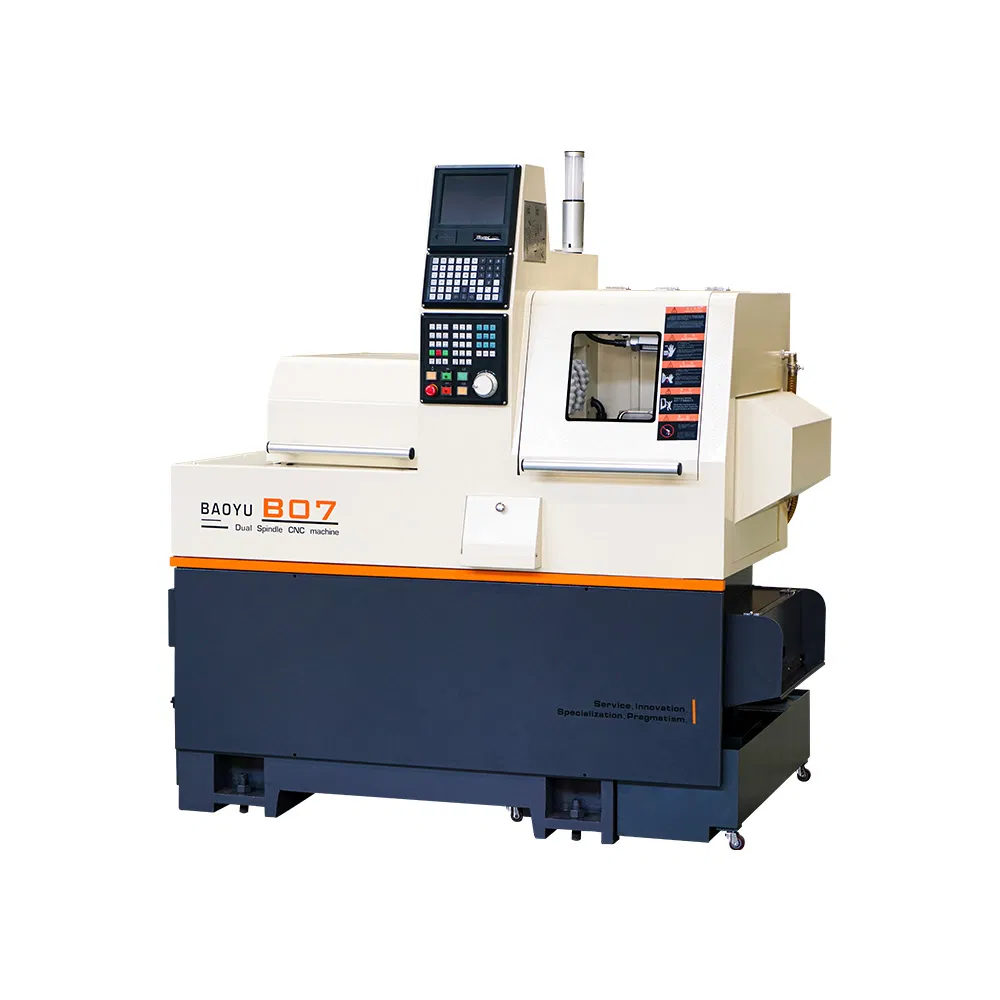

2026 Swiss Type 6axis CNC Lathe B07 Dual Spindle Sliding Headstock Machine

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

Basic Info.

Model NO.B07

ApplicationMetal

Process UsageCNC Machine Tools

Movement MethodLinear Control

Control MethodClosed-Loop Control

Numerical ControlCNC/MNC

Processing Precision0.01~0.02(mm)

PerformanceHigh-End CNC

CertificationCE, ISO 9001, ISO 14001

ConditionNew

CNC SystemYZ190

Max Bar Diameter7mm

Guide BushingFixed/Non-Guide/Rotary

Types6 Axis CNC Swiss Lathe

TravelX1,Y1,Z1,X2,Y2,Z2

Maximum Diameter7mm

Spindle Through-Hole9mm

Spindle Center Height940mm

Guide Rail FormLinear Guide Rail

Cooling SystemOil Cooling

Transport PackageStandard Wooden Case

Specification1660*1030*1700mm

Production Capacity1000units/Year

Packaging & Delivery

Package Size2560.00cm * 1440.00cm * 2000.00cm

Package Gross Weight2100.000kg

Product Description

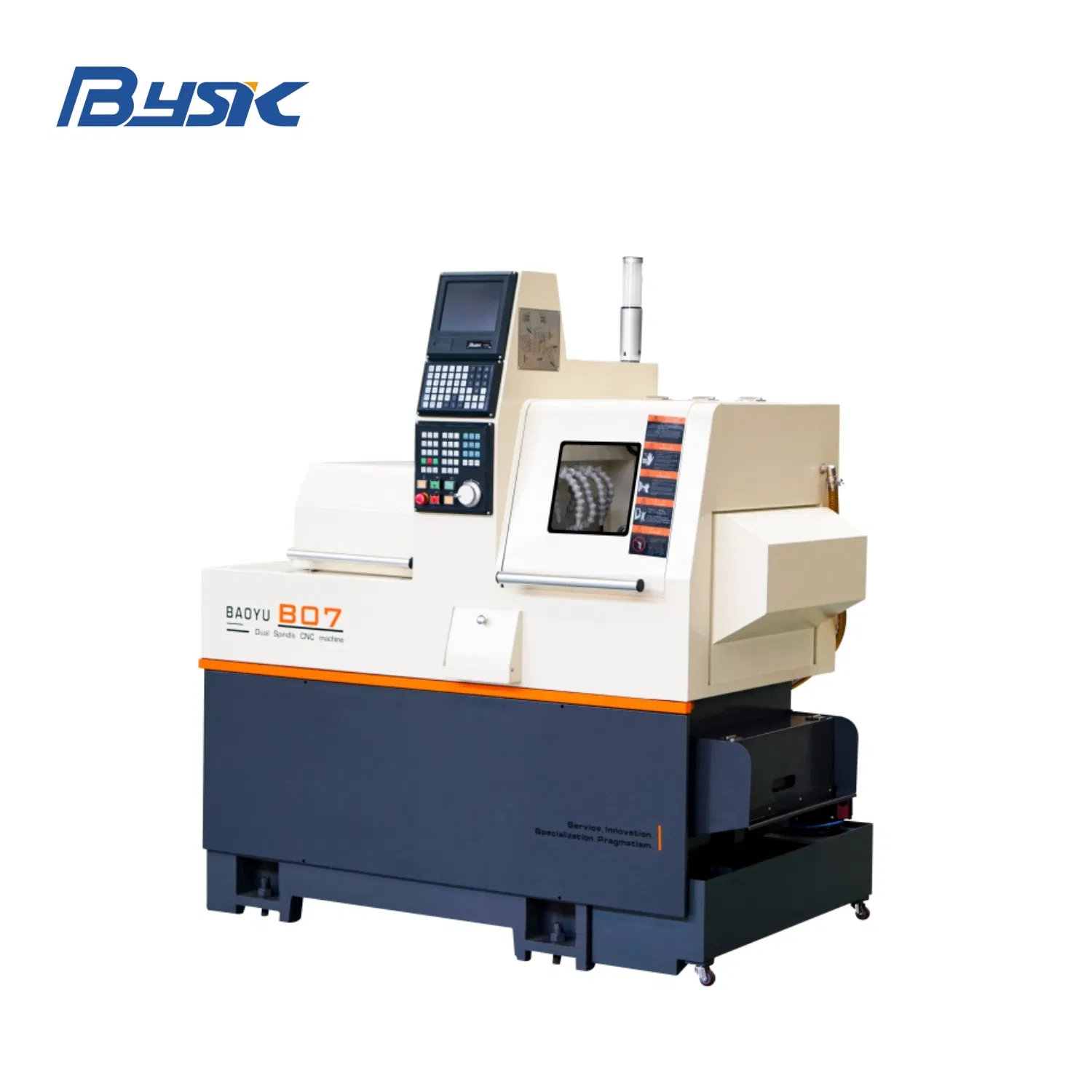

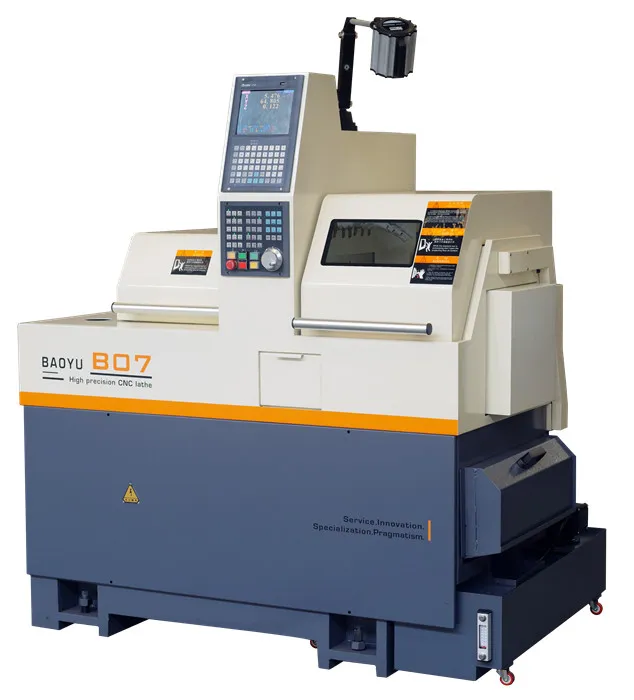

6axis CNC Lathe B07 Dual Spindle Sliding Headstock Machine

Key Model Highlights

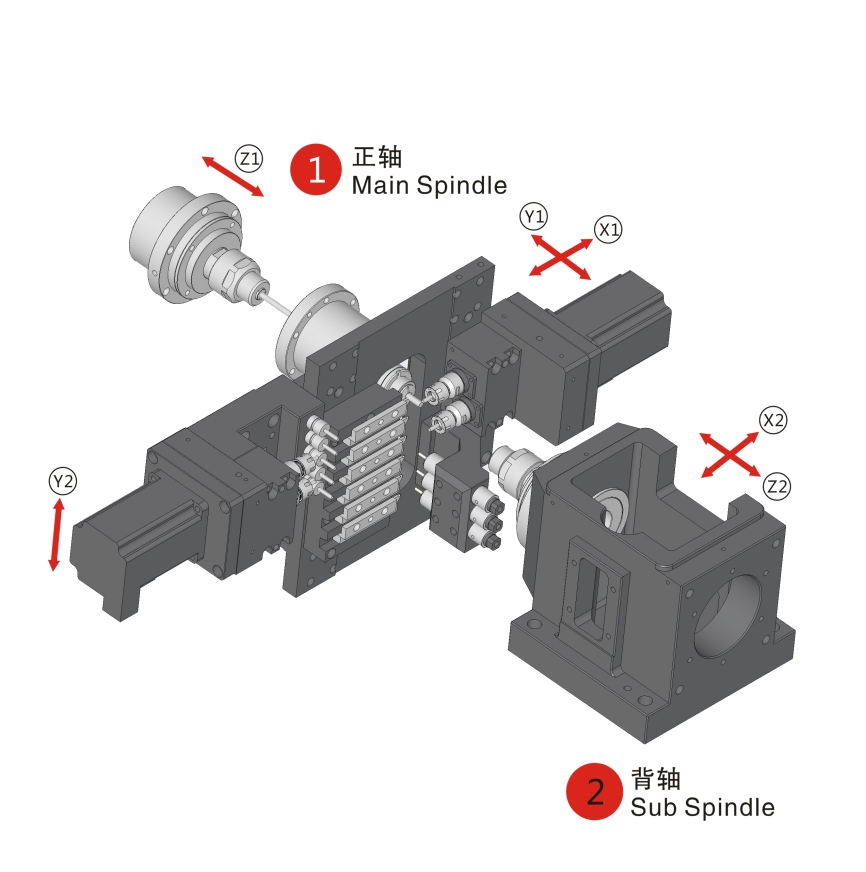

- The B07 model is a sophisticated 6-axis sliding headstock lathe featuring dual spindles, designed for seamless integration into advanced manufacturing environments.
- The main spindle and sub spindle operate simultaneously, ensuring efficient and synchronized processing that enhances productivity and precision.
- Engineered to handle profile diameters of up to Φ 7mm, making it versatile and capable of addressing a broad spectrum of industrial needs.
- Ideally crafted for large-scale, multi-variety, and high-precision machining, perfect for slender shaft parts with extensive length-to-diameter ratios and uniquely shaped components.

Product Parameters

Power & CNC System Parameters
Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	8kW
CNC System	CNC Control System	YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Cutting Speed	1-4000mm/min
	X Axis Rapid Feed Speed	18000mm/min
	Y Axis Rapid Feed Speed	18000mm/min
	Z Axis Rapid Feed Speed	18000mm/min
Main Spindle	Maximum Bar Diameter	Φ7mm
	Main Spindle Through-hole Diameter	Φ9mm
	Main Spindle Center Height from Ground	940mm
	Main Spindle Speed	0-7000r/min
	Main Spindle Motor Power	1.5kW
Sub Spindle	Maximum Clamping Diameter	Φ7mm
	Sub Spindle Speed	0-7000r/min
	Sub Spindle Motor Power	1.5kW

Travel Parameters (1)
Travel	X1 Axis Travel	40mm(Diameter)
	Y1 Axis Travel	100mm
	Z1 Axis Travel	180mm
	X1 Axis Servo Motor Power	0.4kW
	Y1 Axis Servo Motor Power	0.4kW
	Z1 Axis Servo Motor Power	0.4kW

Travel & Tool Specifications (2)
Travel	X2 Axis Travel	340mm(Diameter)
	Y2 Axis Travel	80mm
	Z2 Axis Travel	130mm
	X2 Axis Servo Motor Power	0.4kW
	Y2 Axis Servo Motor Power	0.4kW
	Z2 Axis Servo Motor Power	0.4kW
	Guide Rail Form	Linear Guide Rail
Main Spindle Tools	8*8 Square Tool	6pcs
Main Spindle Tools	6104 Extension Rod	3pcs
Power Head (Main Spindle Side)	ER11	2pcs
	Speed of Rotation	0-6000r/min
	Power	0.4kW
Sub Spindle Tools	6104Extension Rod	5pcs
Power Head (Sub Spindle Side)	ER11	2pcs
	Speed of Rotation	0-6000r/min
	Power	0.4kW
Cooling System	Cutting Oil Motor Power	0.48kW
Cooling System	Cooling Box Capacity	100L
Lubrication System	Motor Power	35W
Lubrication System	Capacity	2L
Machine Size	Length * Width * Height	166010301700mm
Machine Size	Machine Weight	1200kg

Configuration Details
CNC System	YZ190	Configuration Standard
Main Spindle	-	Configuration Standard
Main Spindle Motor	1.5kW Absolute Value Servo Motor	High-Performance Lines
Sub Spindle Motor	1.5kW Absolute Value Servo Motor	High-Performance Lines
X1/Y1/Z1 Axis Motor	0.4kW Absolute Value Servo Motor	High-Performance Lines
X2/Y2/Z2 Axis Motor	0.4kW Absolute Value Servo Motor	High-Performance Lines
Guide Rail	-	High-Precision Guide Rail
Screw Rod	-	Premium Joint Venture

Detailed Photos

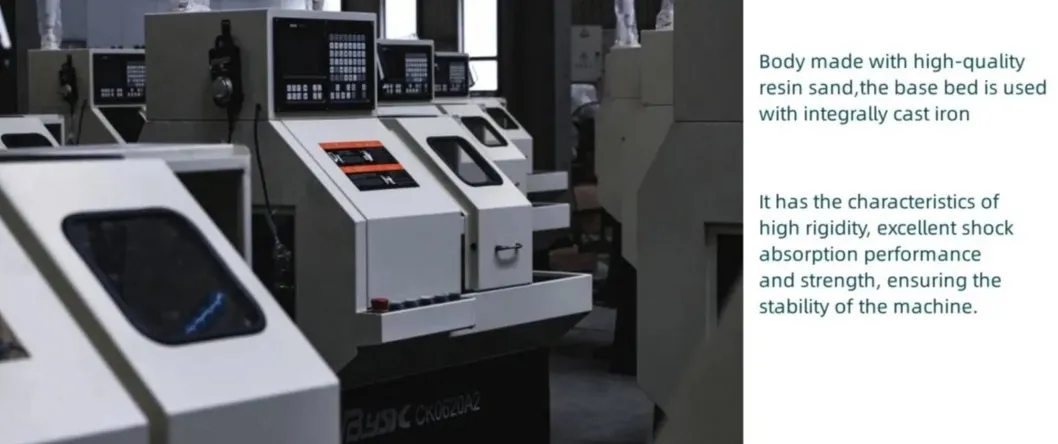

Premium Body Materials

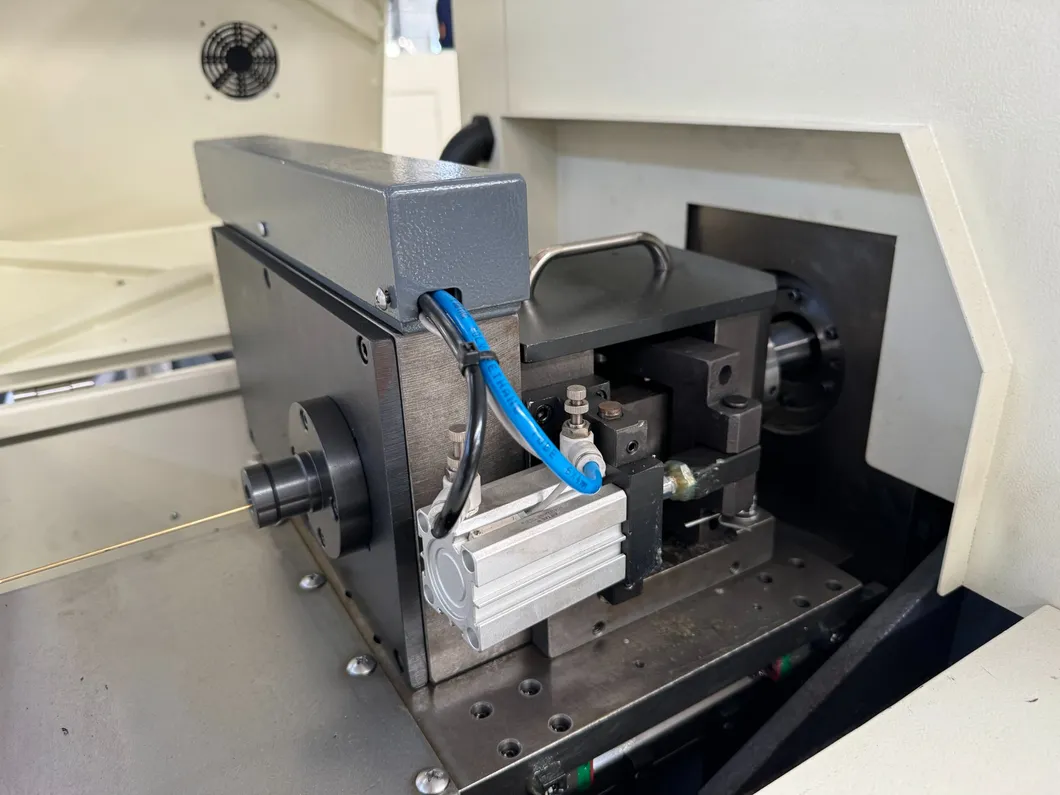

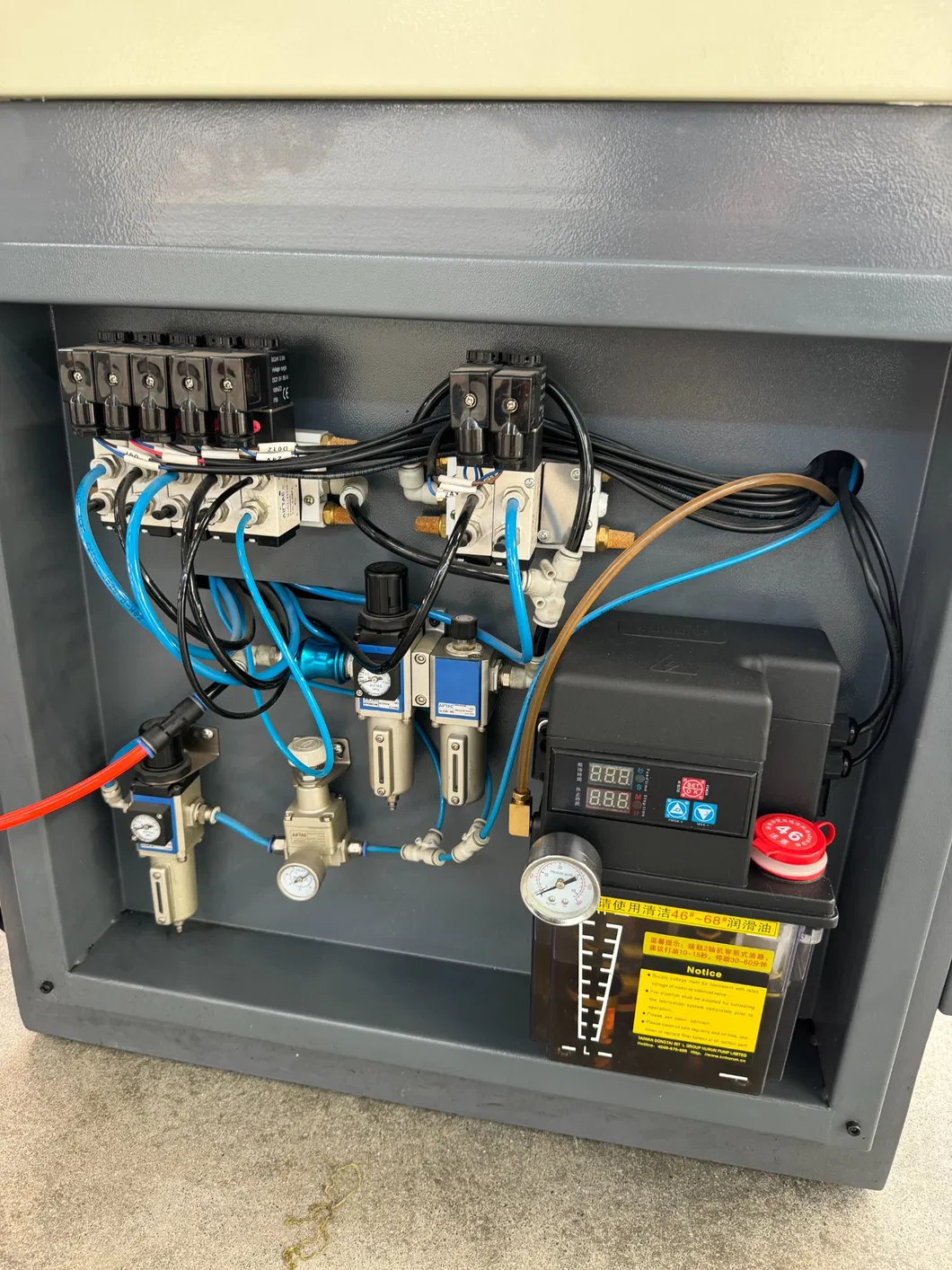

Inner Structure Details

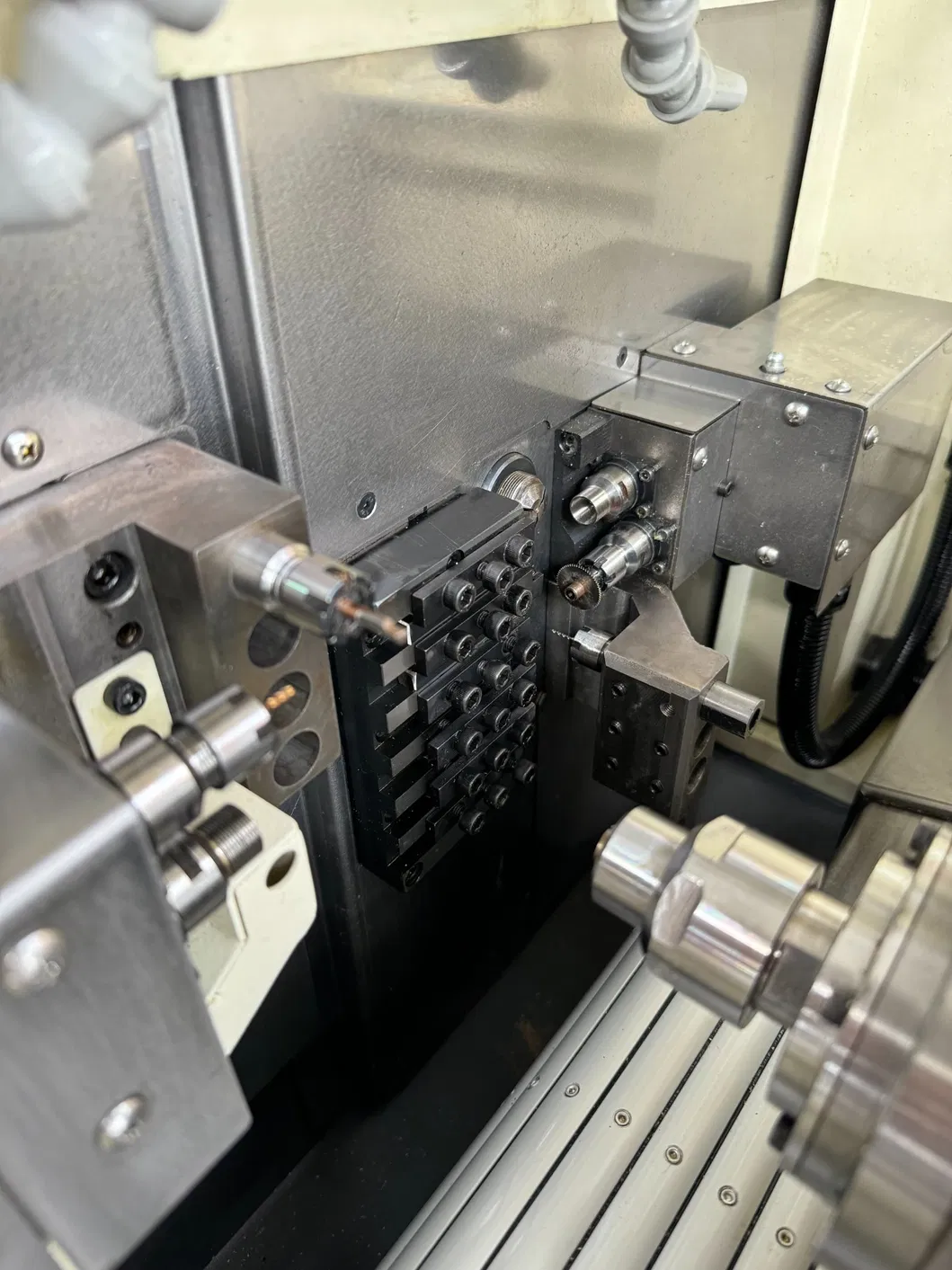

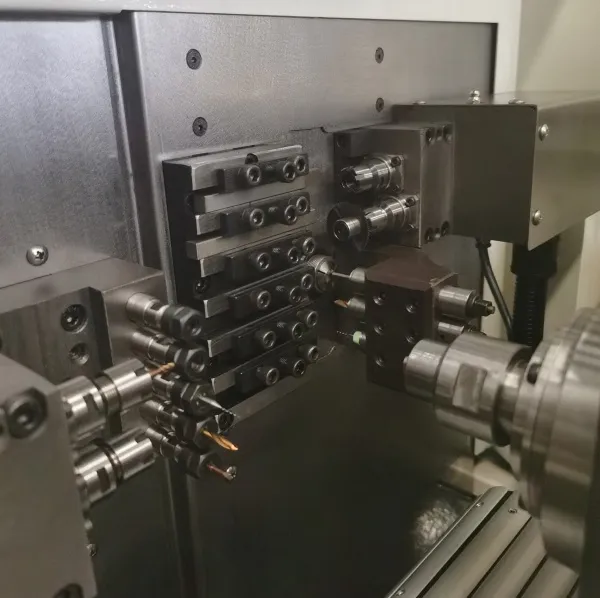

Tooling Architecture: Left and right gang tooling structure ensures large capacity, rapid tool changes, and superior rigidity.
Precision Capability: Primarily designed to process a variety of ultra-fine parts with precision.
Compact Design: Efficient and compact dimensions with minimal floor space usage.
Slender Shaft Performance: The fixed guide sleeve enables processing of slender shafts up to 150mm in length, ensuring high coaxiality and excellent finish on processed workpieces. Ideally suited for turning workpieces with high length-to-diameter ratios.

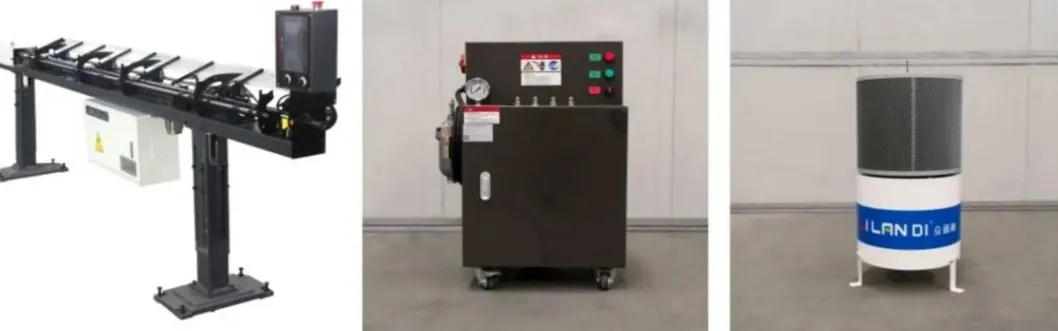

B07 CNC Lathe Configuration: Equipped with an oil film bar feeder, high-pressure oil pump, and oil mist collector to improve overall machining performance and extend the service life of the lathe.

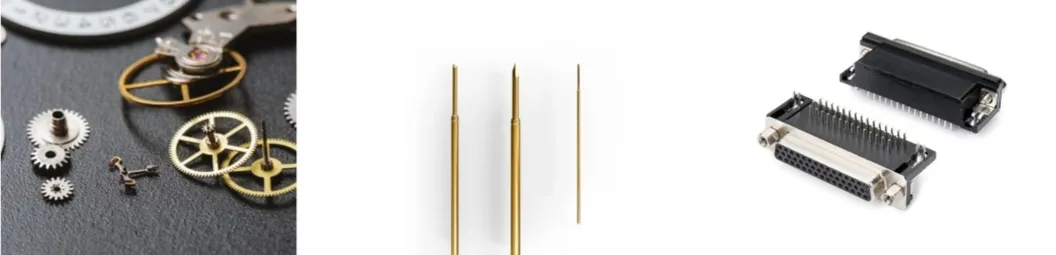

Processed Product Display

Profiles up to 7mm: Recommended model B07 (dual spindle design) or CK1107 (single spindle design).
Profiles up to 13mm: Recommended models include the B13 and CK1113.
Complex-Shaped Processing: The CK0620A2 model excels in machining linear, taper, and arc threads. Equipped with a center frame, it is ideal for slender shafts.
Precision Parts: The CK0625A model is designed for instruments, meters, electronic connectors, optics, automotive, motorcycle components, and small hardware.
Turning & Milling: The CK32A3 serves as a versatile Turning & Milling CNC Lathe, with the CK32A3-B variant providing a dual spindle configuration.
Slant-Bed Performance: The X42 is a slant-bed CNC lathe designed for processing high-precision shaft and disc parts.

For professional recommendation tailored to your needs, please provide your profile drawings.

Production Profile & Capabilities

Specializing in the production of CNC SWISS-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Flat Bed CNC Lathe Machines, Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes, Single spindle CNC Machinery, and Automatic Double-Spindle Lathes. All lathes adopt absolute value servo and bus connection technology.

Holding over 10 patents across inventions, utility models, and designs, the machinery is widely applied in Communication Equipment, Connectors, 5G Products, Mobile Phones, Household Applications, Aerospace, Medical Devices, Automotive, Water Heating, Miniature Shafts, Optical Instruments, Timepieces, Eyewear, and various hardware accessories. These cost-effective systems are ideal for automated batch production.

Operating under advanced quality systems, the manufacturing processes have successfully certified to ISO9001 (Quality Management System), ISO14001 (Environment Management System), Measurement Management System standard, and obtained CE Certificates.

As an independent production enterprise, the ongoing mission is to improve the added value of individual products, providing high-quality solutions, and offering cost-effective machine tools to global markets.

FAQ

Do you accept OEM/ODM?

Absolutely! We warmly welcome both OEM and ODM projects to suit your custom requirements.

How many years of production experience do you have?

We boast over a decade of dedicated production experience. Seasoned technical instructors are available to provide comprehensive guidance and service.

What is the guaranteed delivery time?

Under regular circumstances, our lead time ranges from 30 to 45 working days.

What are the after-sales support options?

Our dedicated technical support team is available 24/7 to resolve questions and ensure smooth machine operation.

What CNC systems are used in your machines?

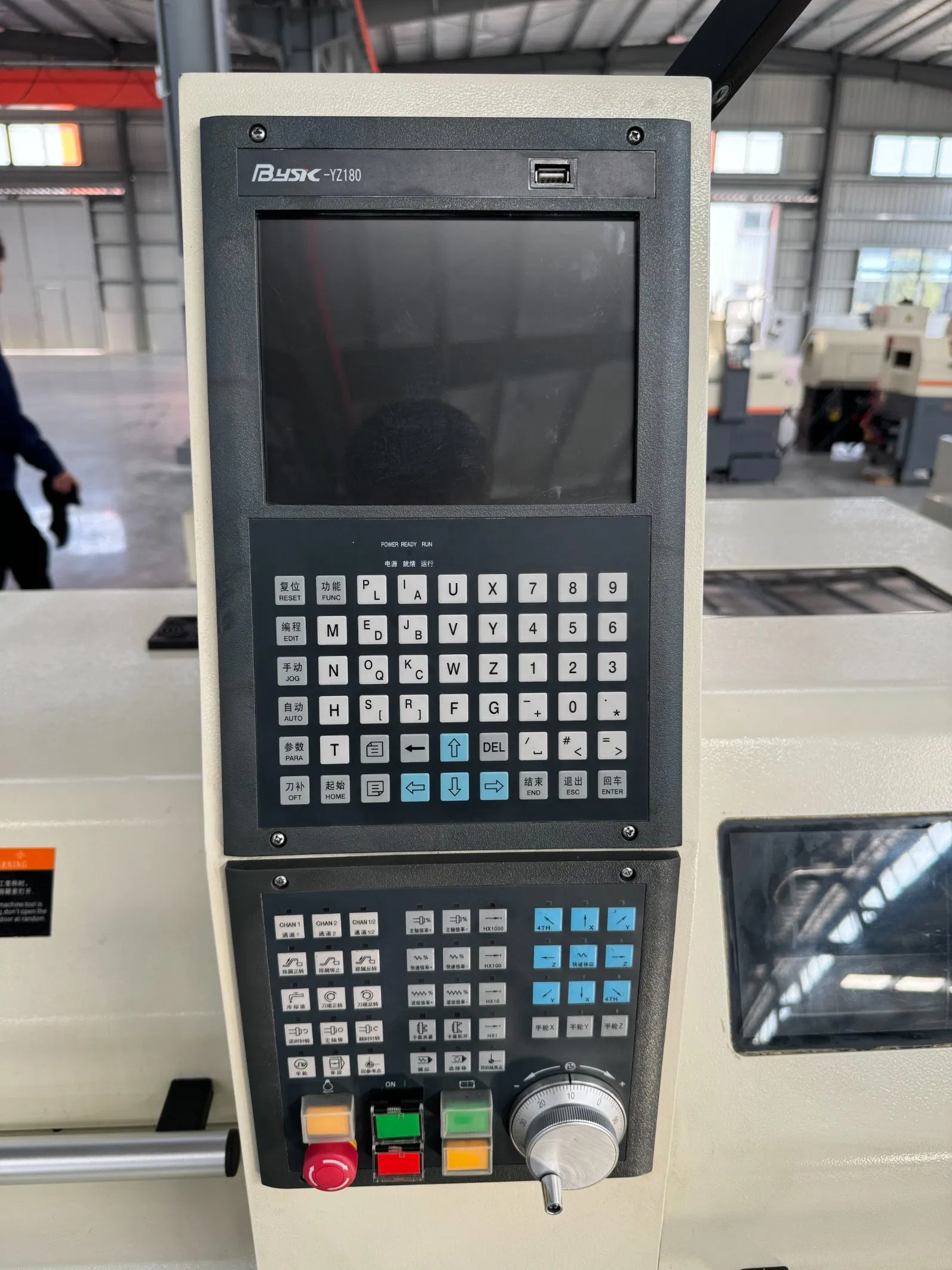

Our standard CNC operating system is the proprietary YZ190, designed for an intuitive user interface and rich functionality. An LNC system is also available as an option.

What materials are the machine bodies made of?

Our machines are constructed using high-quality premium gray cast iron, ensuring maximum rigidity and long-term accuracy.
