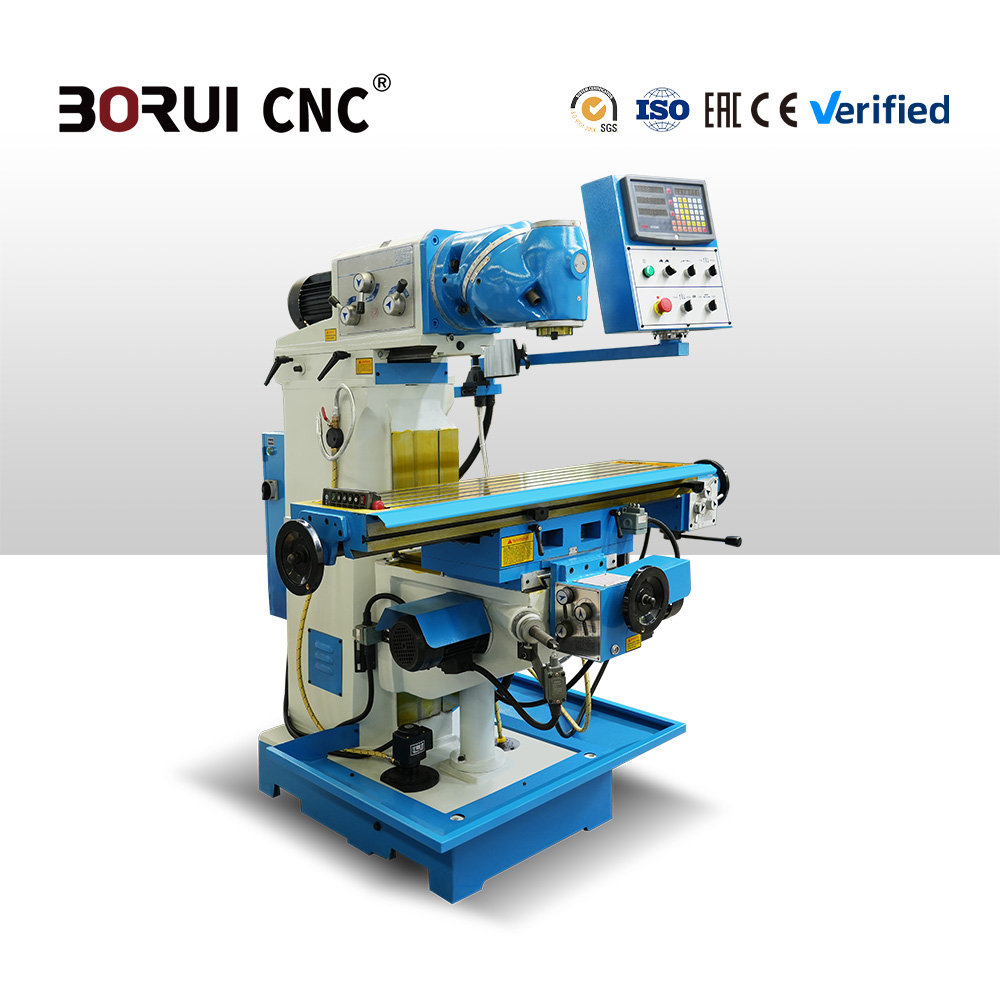

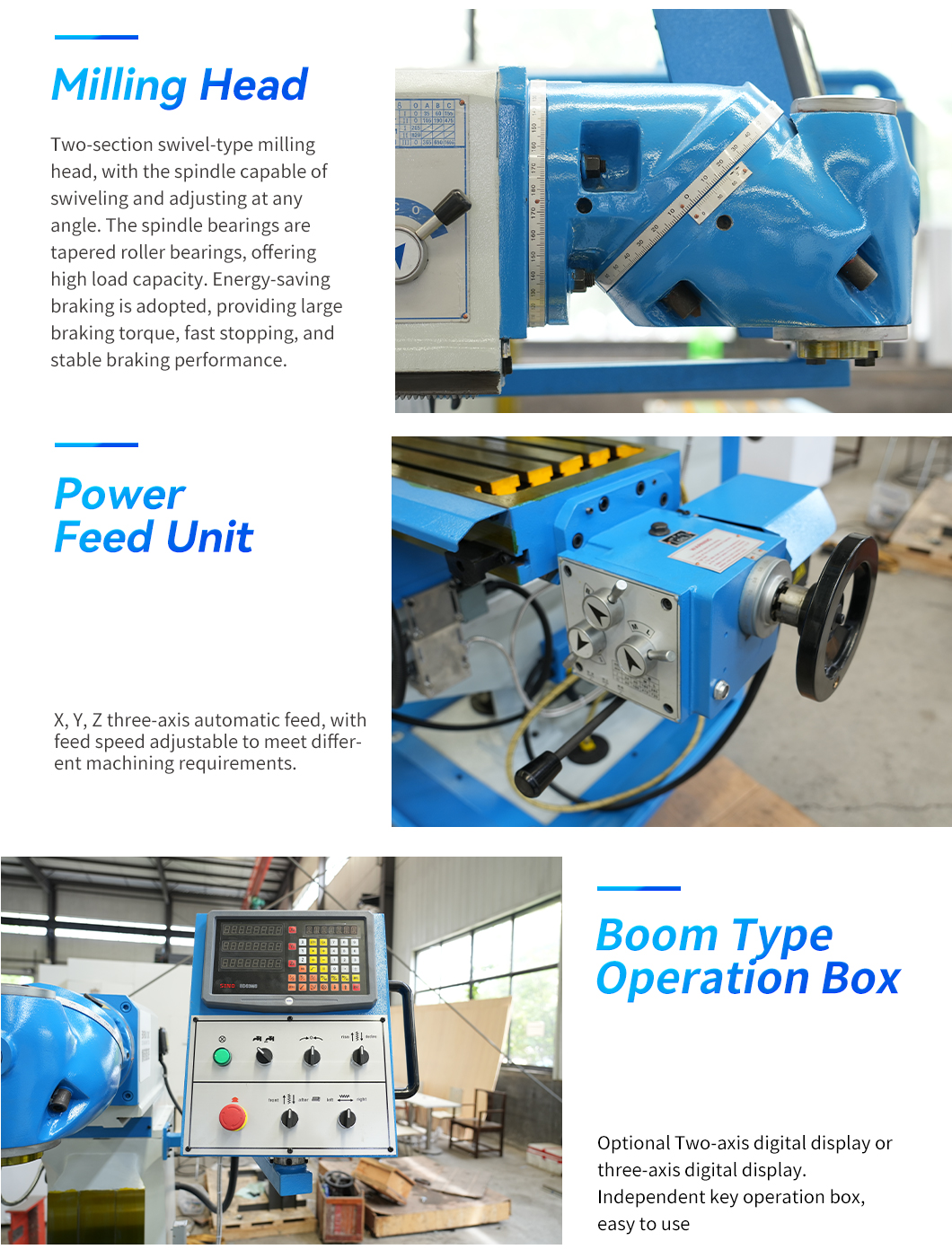

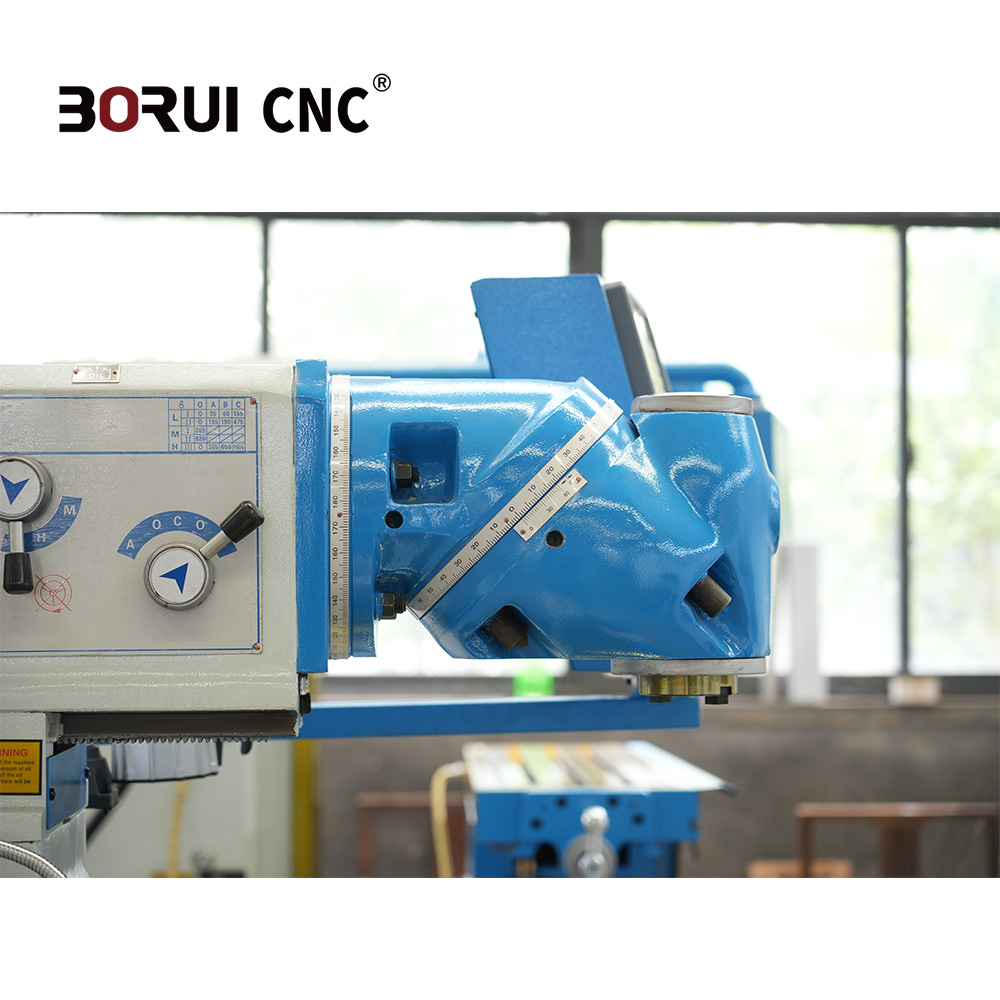

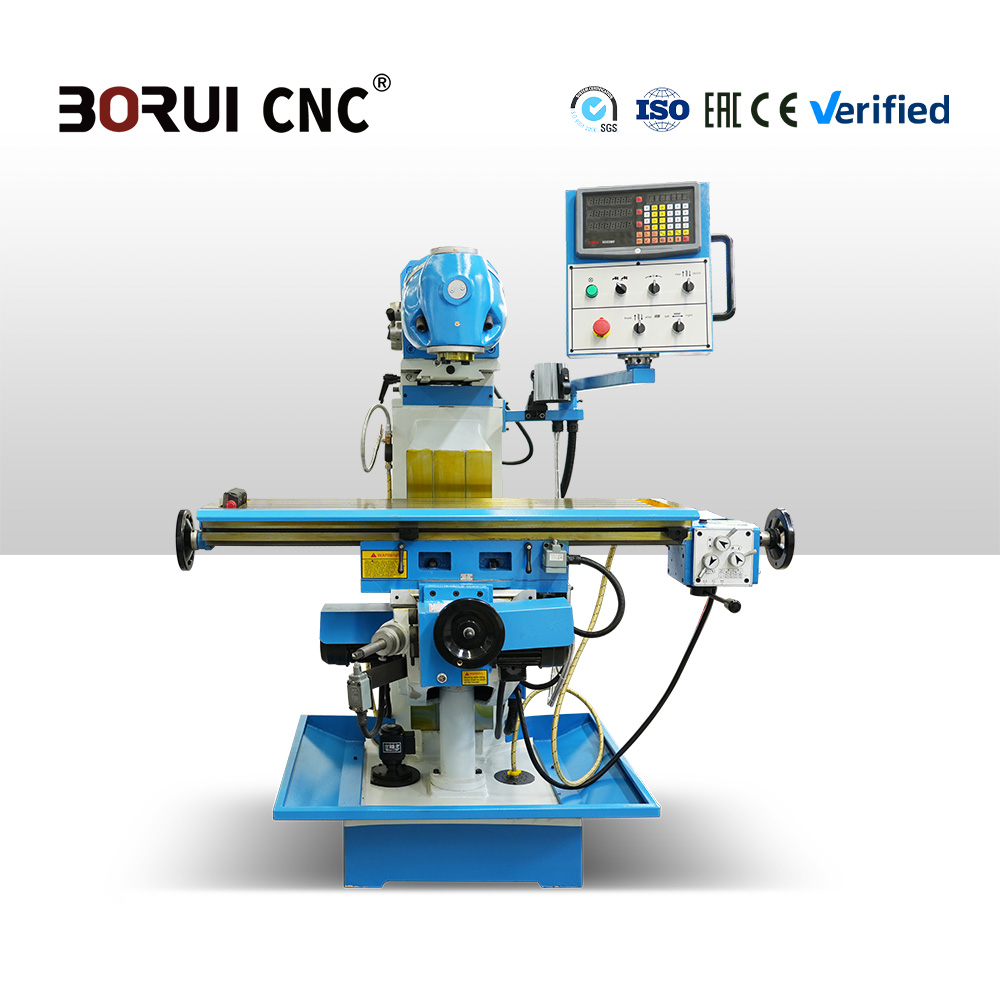

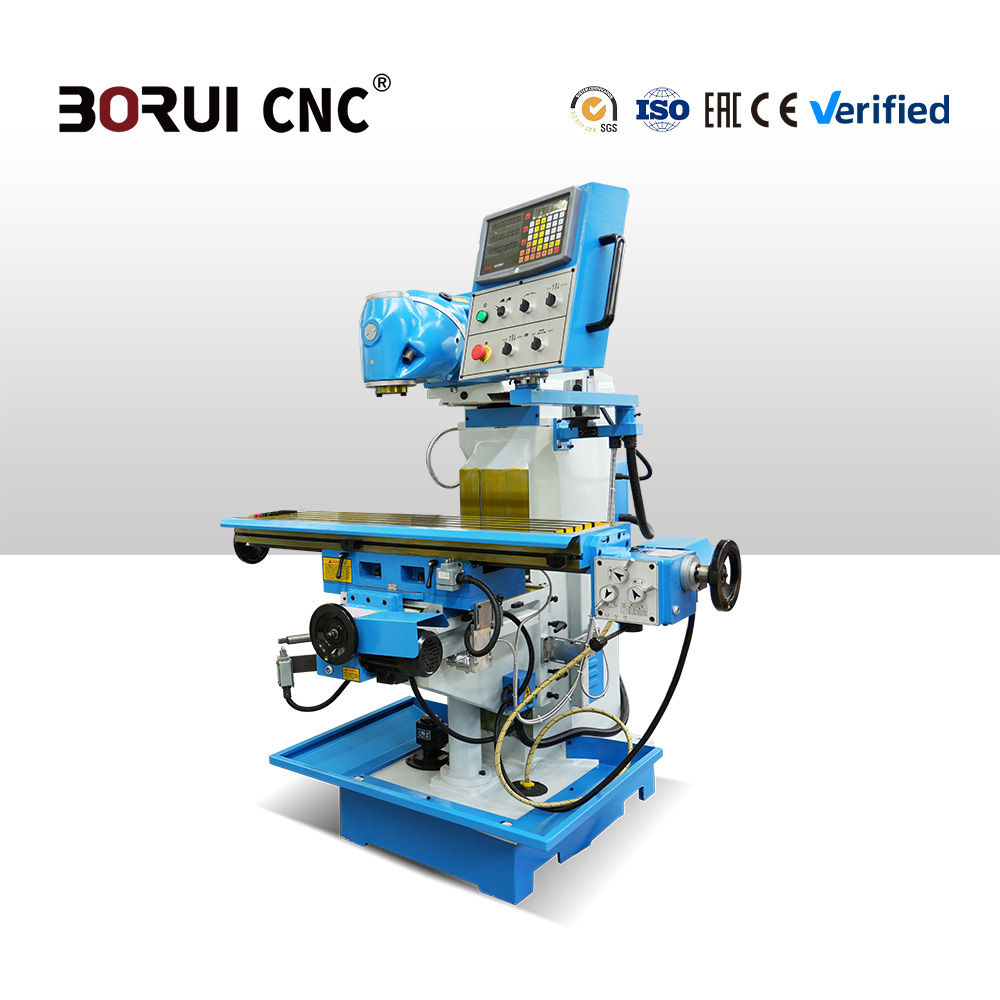

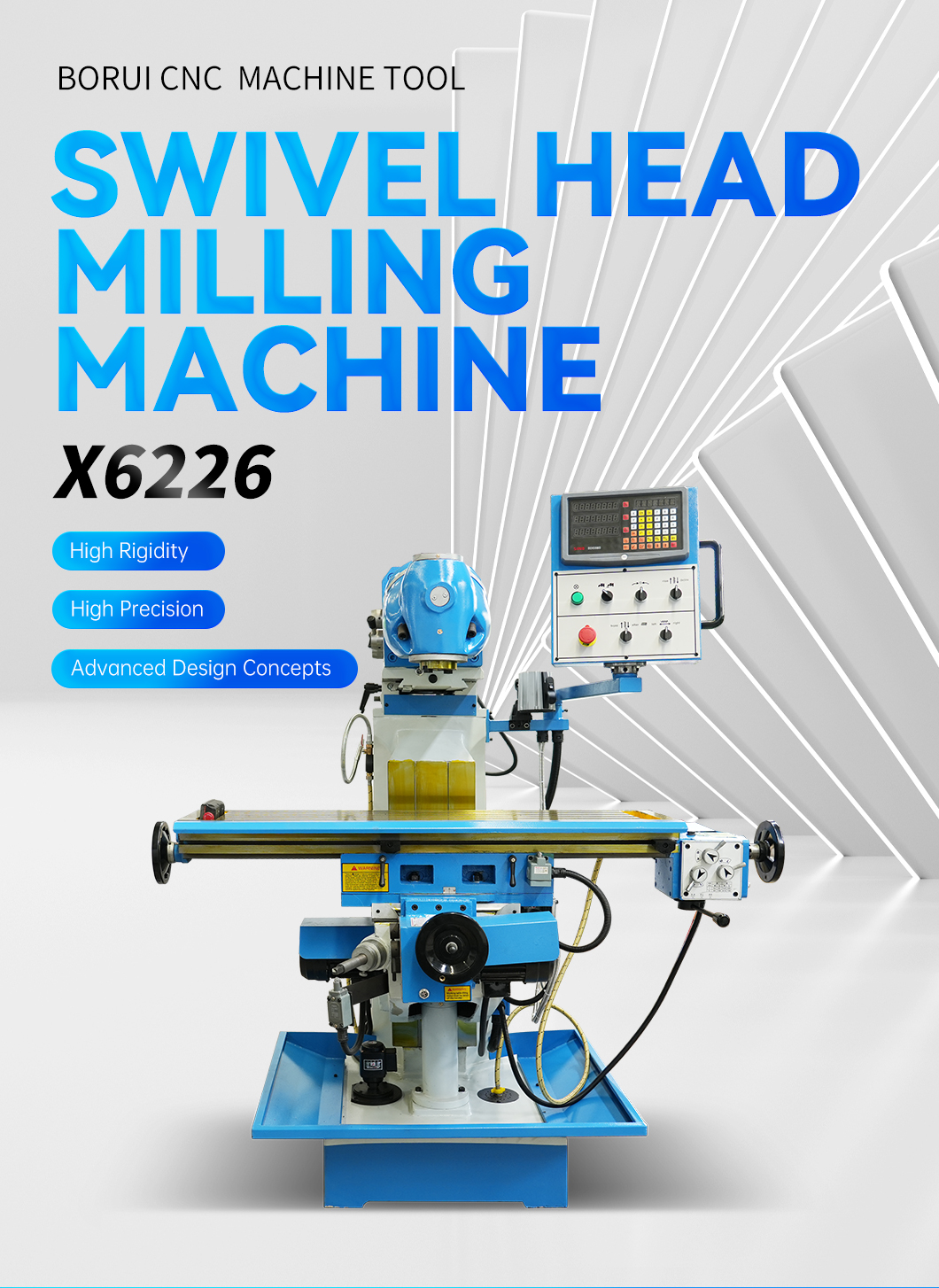

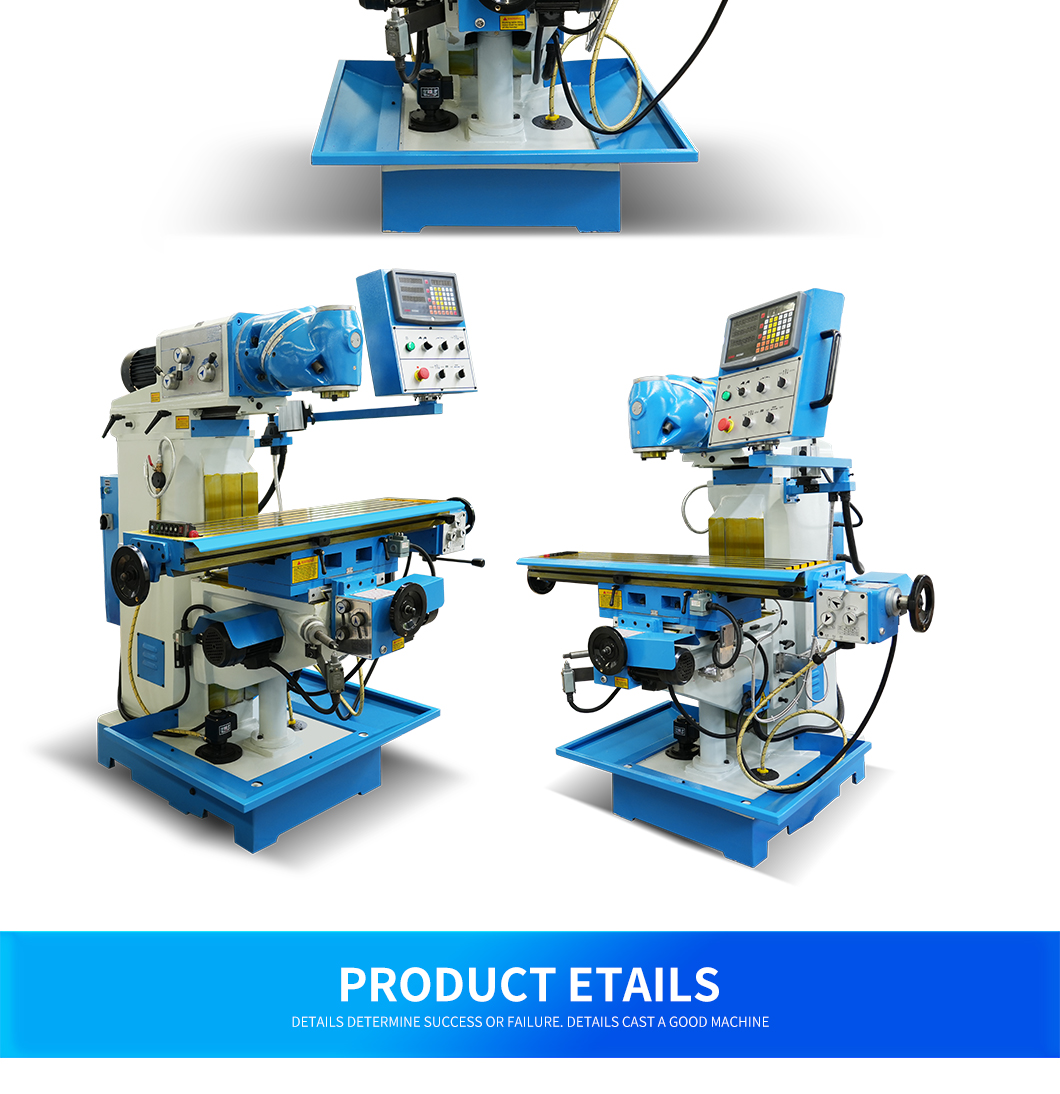

360° swiveling milling head for any-angle machining in one setup.
Vertical and horizontal milling in one machine, saving space and cost.
18-speed geared spindle: 35-1600 rpm for heavy cutting and smooth finishing.

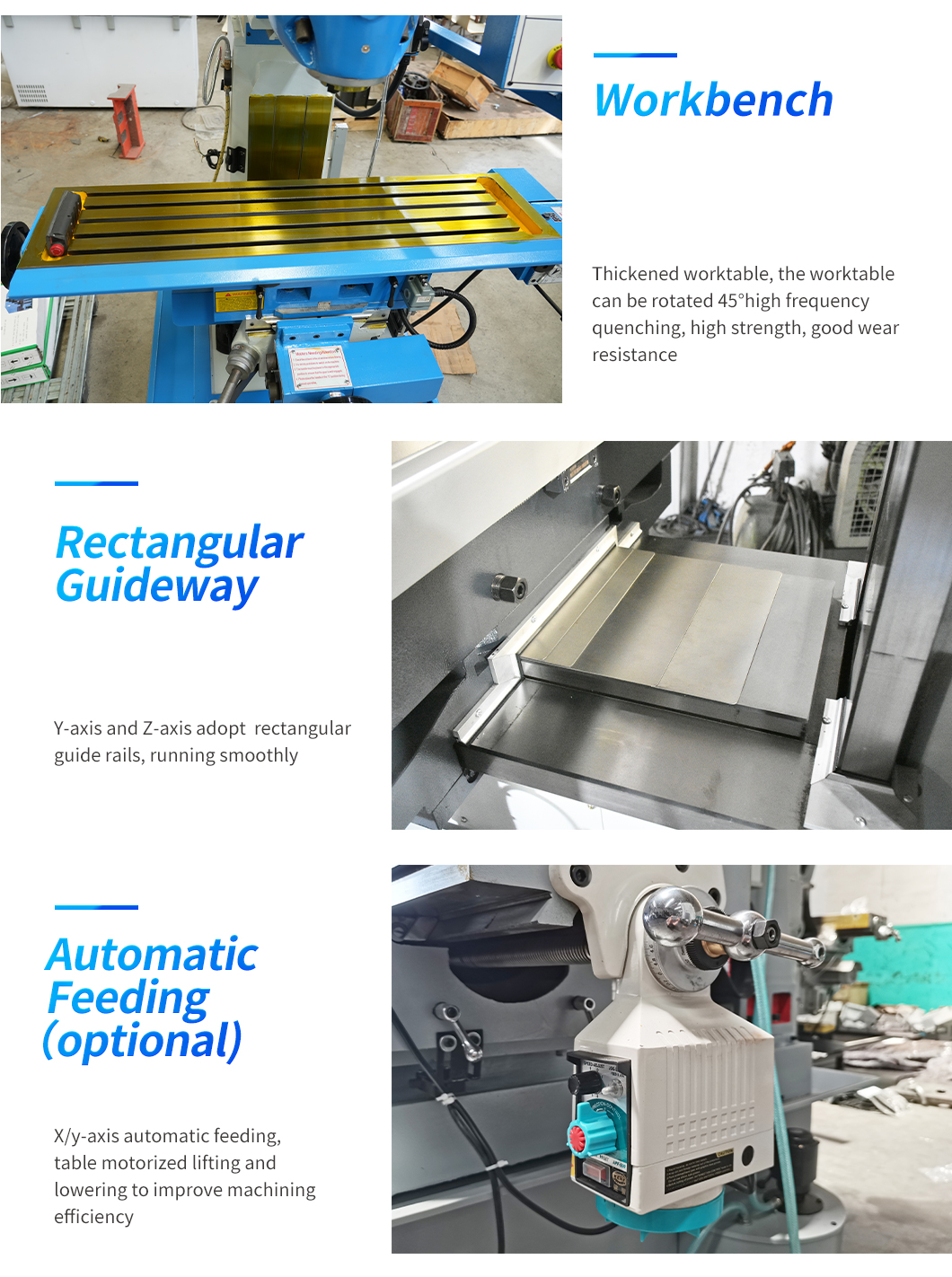

High-strength cast iron with hardened guideways for rigidity and long-term accuracy.
Power feed on X/Y axes; optional Z-axis electric lift for easier operation.

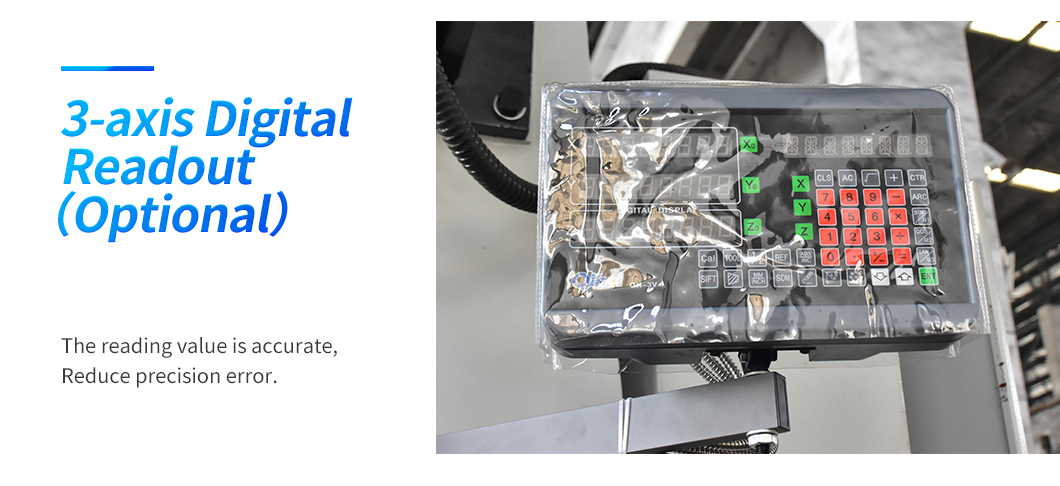

ISO 40 taper accepts standard tools; expandable with DRO, dividing head, or rotary table.

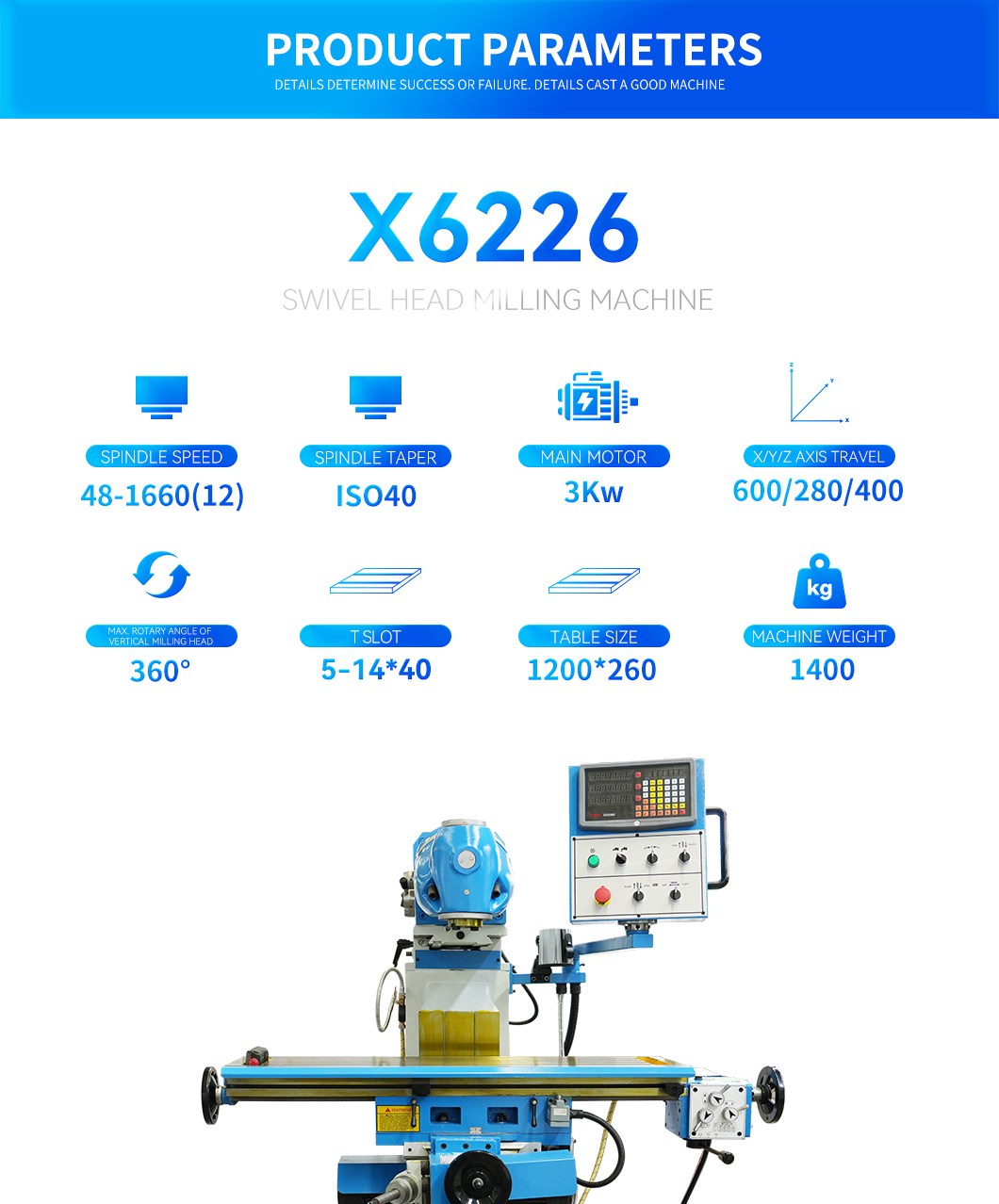

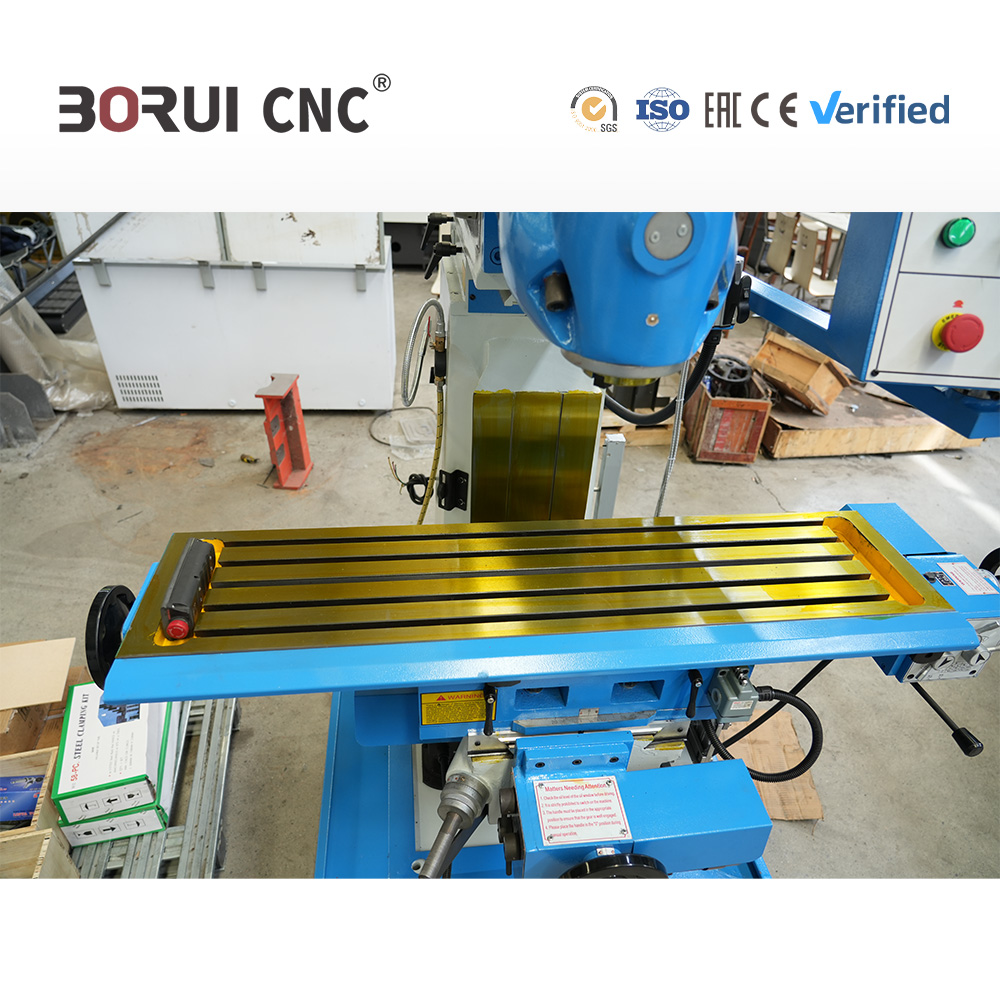

| Specification | Unit | X6226 | X6432 Model |
|---|---|---|---|
| Table size | mm | 1200×260 | 1500×320 |
| Table travel (X/Y/Z) | mm | 600 / 280 / 400 | 1000 / 320 / 400 |
| T-slot (quantity-width-pitch) | mm | 5-14-40 | 3-16-60 |
| Spindle taper | - | ISO40 | ISO40 (vertical) / ISO40 (horizontal) |
| Spindle speed range | rpm | 48-1660 | 48-1660 (vertical) / 40-1300 (horizontal) |
| Distance from spindle nose to table surface | mm | 100-500 | 120-520 |
| Distance from spindle axis to table surface | mm | 0-400 | 0-400 |
| Feed range | mm/min | X: 48-370 (power feed) Y/Z: manual |
X/Y: 22-555 (power feed) Z: electric |
| Milling head swivel range | ° | 360 | 360 |
| Spindle motor power | kW | 3 | 3 (vertical) / 3 (horizontal) |
| Feed motor power | kW | 0.75 | 1.1 |
| Machine weight | kg | 1400 | 2100 |
| Overall dimensions (L×W×H) | mm | 1660×1500×1750 | 2050×1750×2000 |
