AcuTek CNC
1 / 4

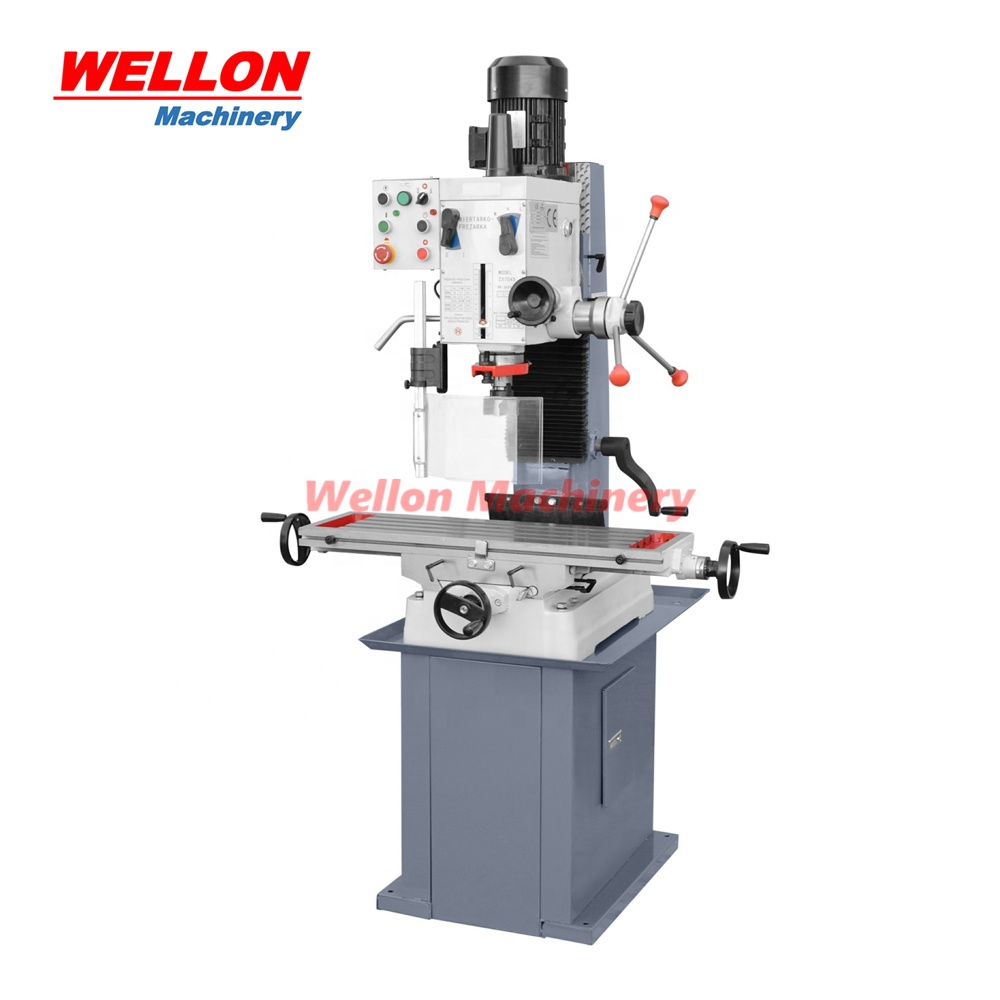

| Parameter Item | Specifications (ZAY7045FG) |
|---|---|
| Max Face mill capacity | 45mm |
| Max End mill capacity | 80mm |
| End milling capacity | 32mm |
| Max. distance from spindle nose to table | 450mm |
| Min. distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | M.T.4 or R8 |
| Step of spindle speed | 6 |
| Range of spindle speed (50Hz) | 80-1250 r.p.m |
| Range of spindle speed (60Hz) | 95-1500 r.p.m |
| Swivel angle of headstock | 90° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor Power | 1.5KW (2HP) |
| Net weight / Gross weight | 325kg / 375kg |
| Packing size | 770×880×1160mm |
We specialize in all kinds of industrial machinery, including CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Manual Lathes, Drilling Machines, Radial Drilling Machines, Sawing Machines, Shaper machines, and more.
We use industry-standard control systems such as Siemens, GSK, and Fanuc. You can select the specific controller according to your operational requirements.
We accept FOB, CFR, and CIF trade terms based on your logistical and shipping preferences.
Please share the specific model or technical parameters you are interested in, and we will provide you with the best price and quality options. Alternatively, you can send us your product target images, and we will recommend the most suitable machine configuration.
Yes, we provide regular progress updates and status reports during the manufacturing phase to keep you informed every step of the way.
