Product Overview

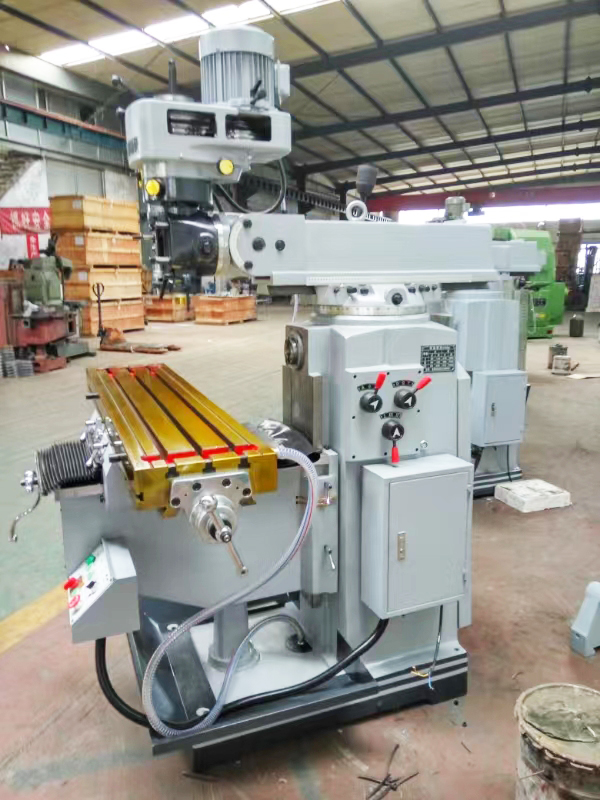

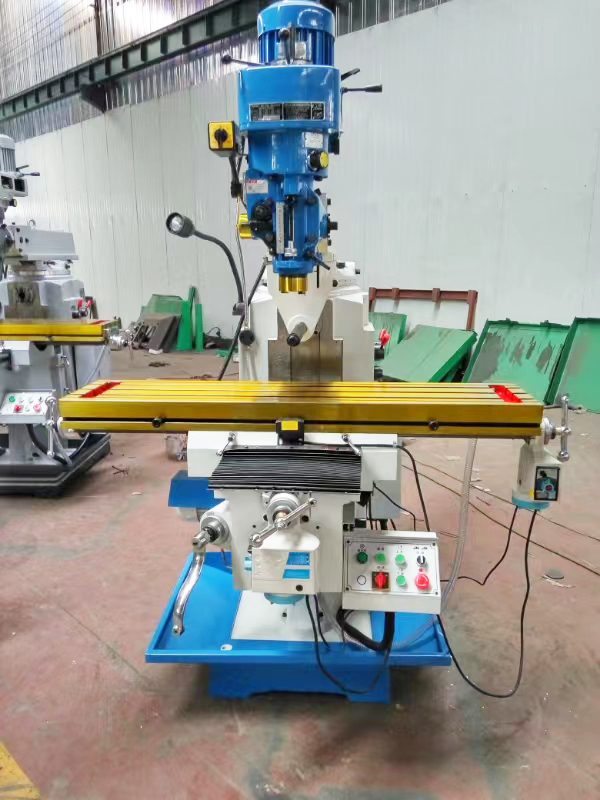

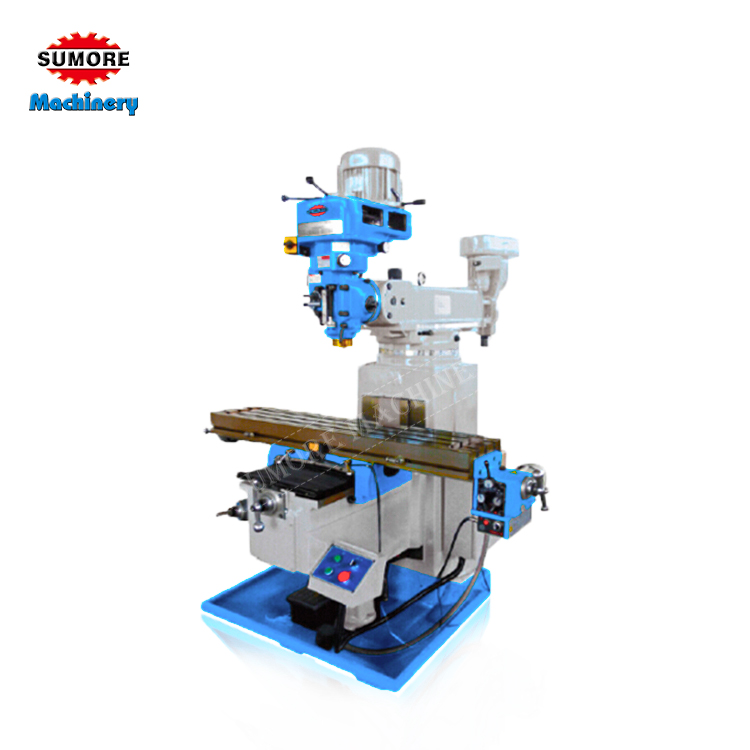

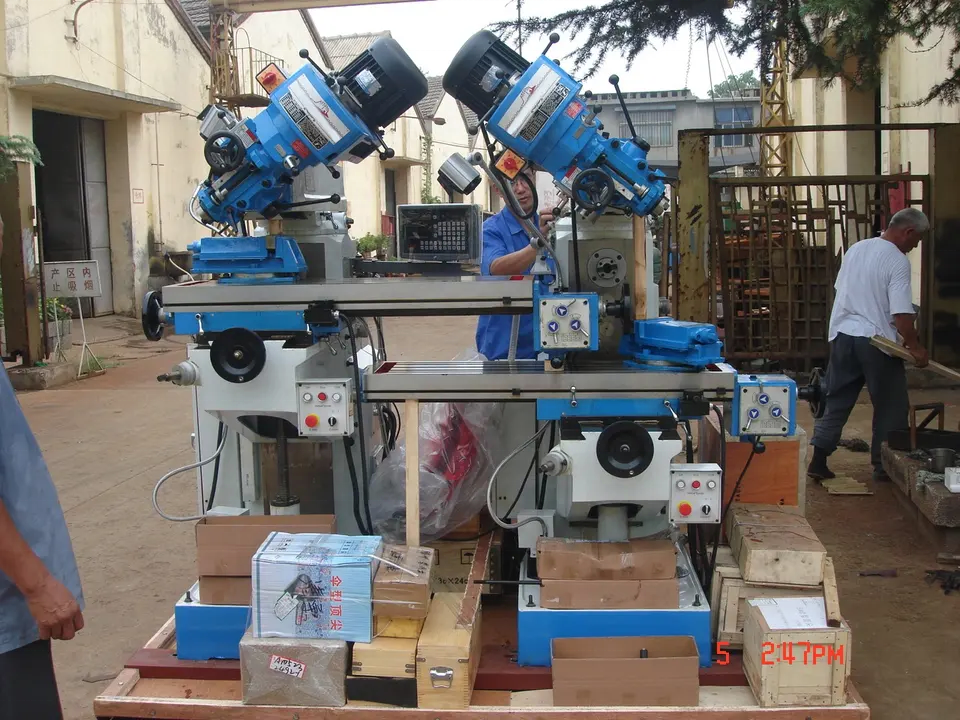

Fresadora Milling Machines SP2242/X6325 Universal Horizontal Medium Duty Fresadora Vertical Metal Turret Milling Machine with 254*1270 / 305*1370 mm worktable

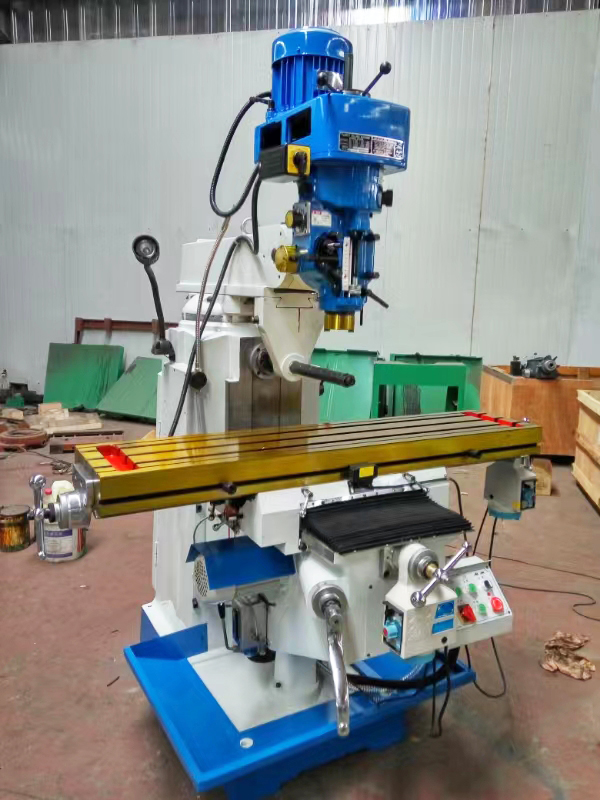

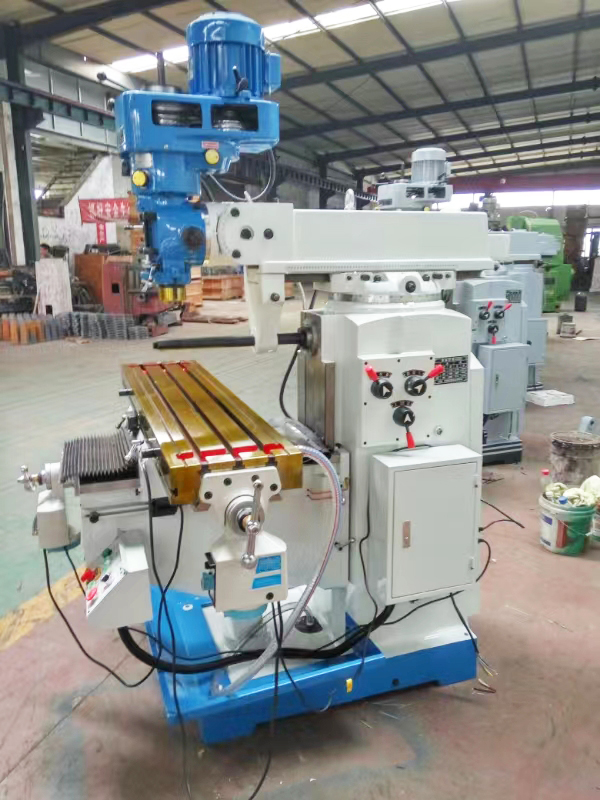

SP2242 turret milling machine is one of our most economic and durable milling machines.
- Double 55° dovetail guide way is adopted on both Y and Z axis.
- The guide way on saddle is lined with TF wearable material. So it is easy to adjust.

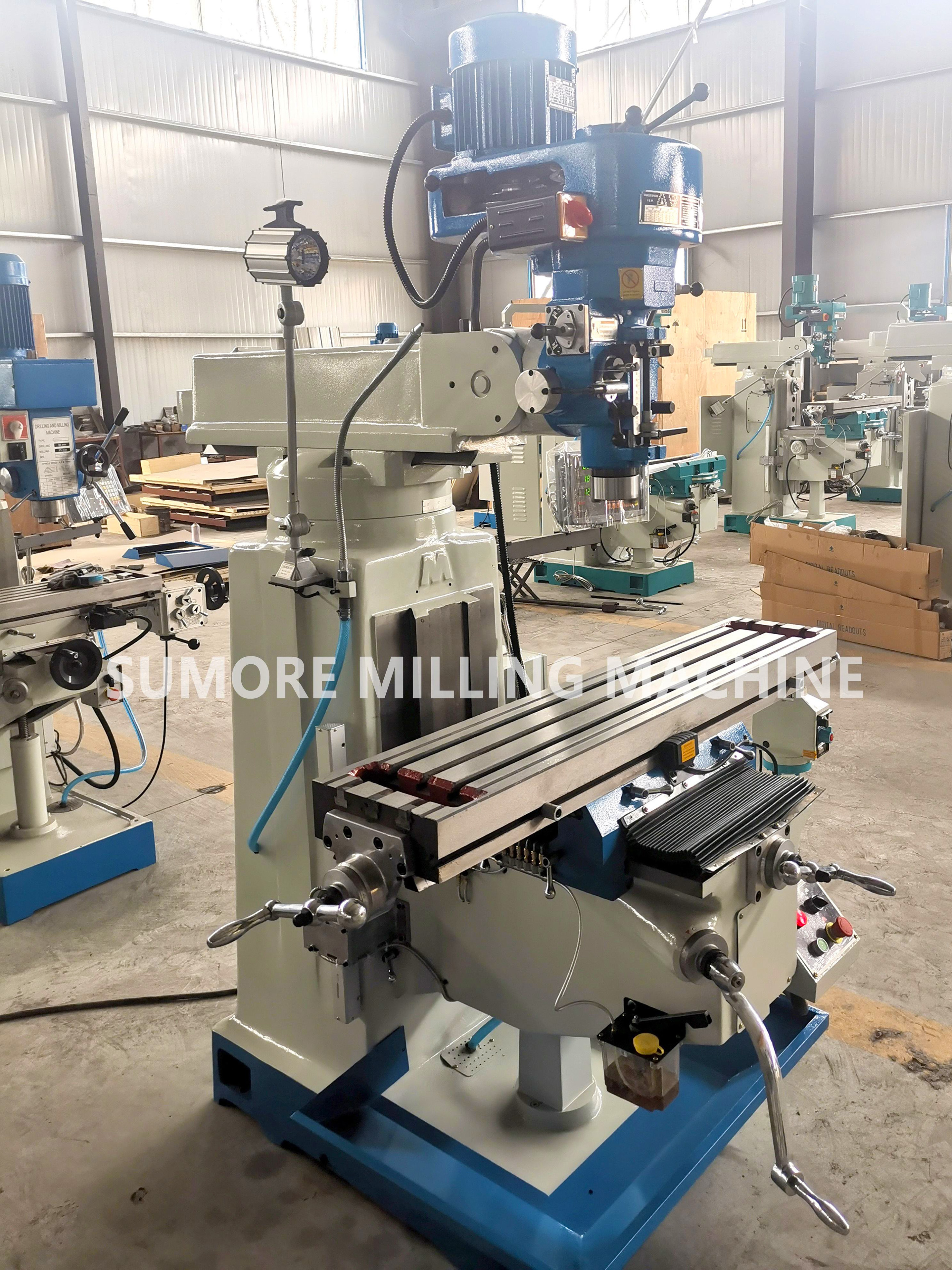

- The worktable surface and 3 axis guide way are hardened and precision ground.

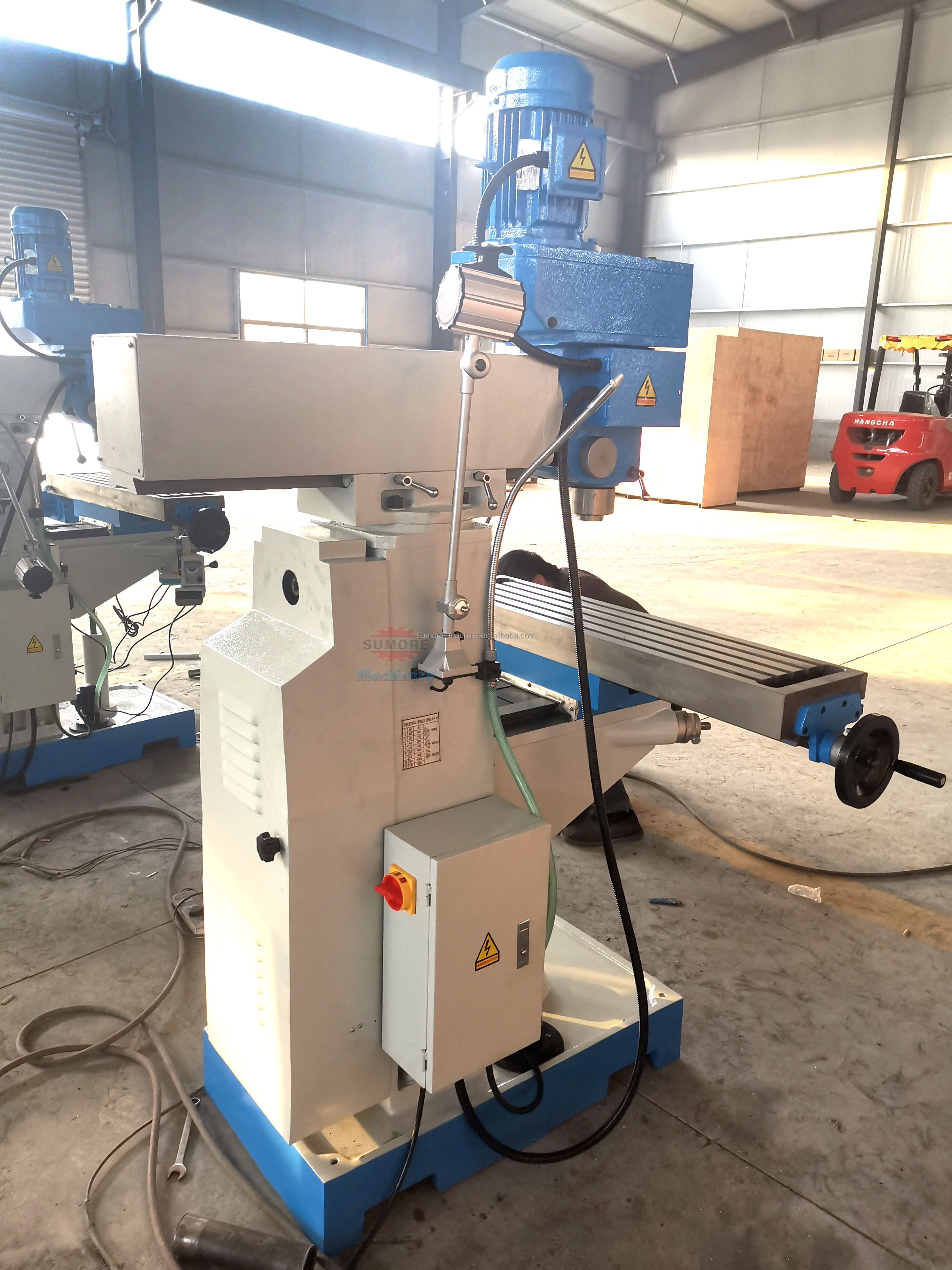

- Gear transmission, high processing efficiency.
- Turret milling head.
- Power feed supplied at extra cost.

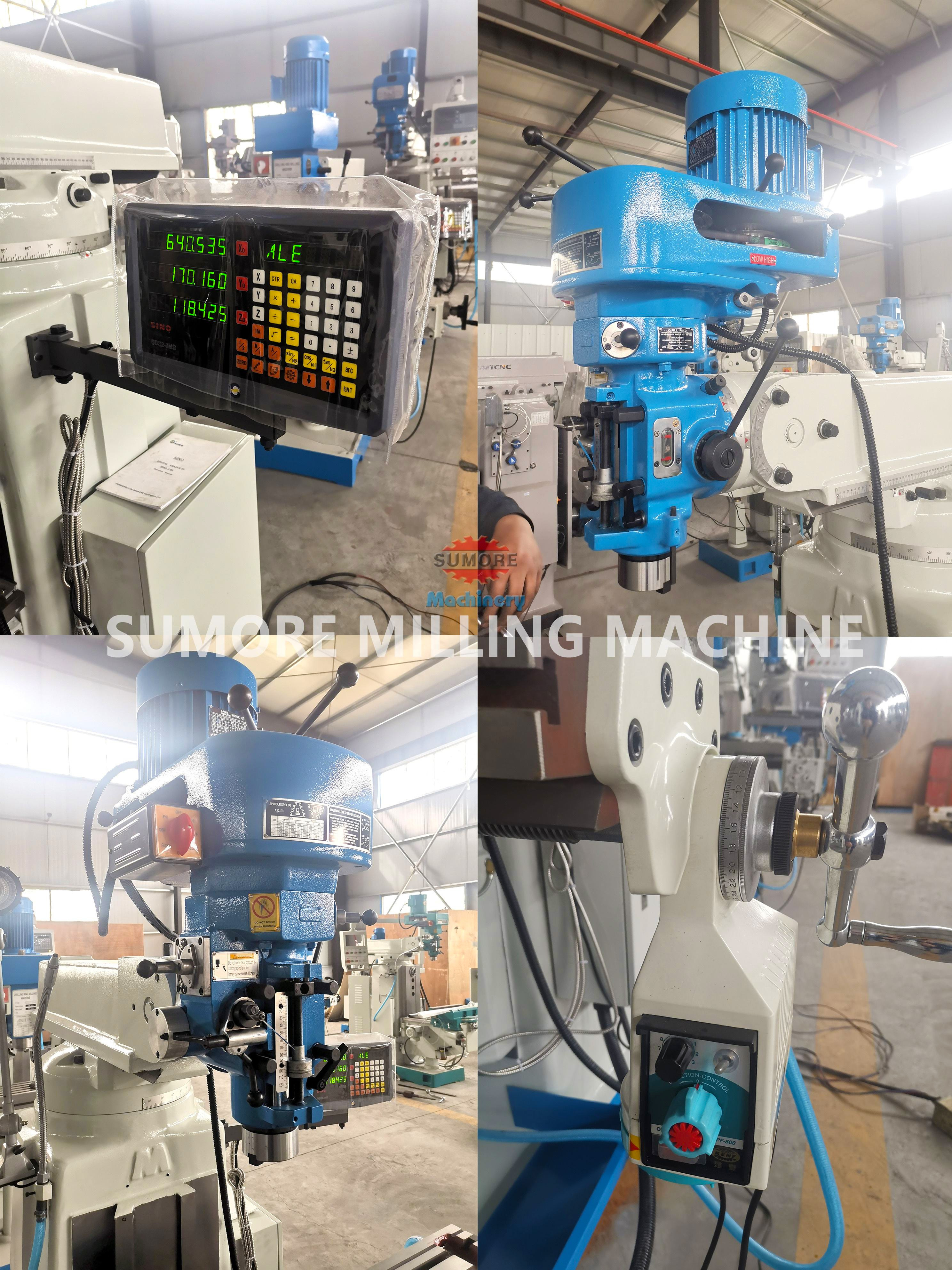

- DRO supplied at extra cost.
Technical Specifications
| Model |
SP2242 |
| Worktable size |
254 x 1,270 / 305 x 1,370 mm |
| Longitudinal travel |
850 mm |
| Cross travel |
400 mm |
| Vertical travel |
420 mm |
| Distance from spindle nose to table surface |
0 ~ 420 mm |
| Spindle speeds |
(16 steps)
80 - 5,440 rpm (V)
65 - 4,200 rpm (H) |
| Spindle taper |
R8 / ISO30 / ISO40 |
| Spindle travel |
127 mm |
| Feeding of quill |
(3 steps) 0.04 / 0.08 / 0.15 mm/rev |
| Head tilt angle |
+/- 45° |
| Swivel angle |
+/- 90° |
| Main motor power |
2,250 / 3,750 W |
| Overall dimension (LxWxH) |
1,616 / 1,766 x 1,550 x 2,080 mm |
| Weight |
1,420 / 1650 kg |
| Keyword |
turret milling machine x6325 |
Exhibitions & Partners
Since establishment, we have participated in various domestic and international exhibitions, maintaining long-term friendly cooperative relationships with global clients.
We have obtained certificates of CE, GS, RoHS, CSA, UL, etc. We have also established business relations with famous companies like Siemens, Fanuc, and other partners within 50 countries all over the world.
Frequently Asked Questions
What kinds of machines can you provide?
We provide a wide range of metalworking machinery, including Manual Lathe/CNC, Manual Mill/CNC Mill, Drill Press, and Machining Centers.
How do you guarantee the quality of the machinery?
We always ensure a pre-production sample is approved before mass production, followed by a strict final inspection before shipment.
What are the main guide way specifications of the SP2242?
Double 55° dovetail guide ways are adopted on both the Y and Z axes. The guide way on the saddle is lined with TF wearable material for easy adjustment.
Are power feed and DRO optional accessories?
Yes, both power feed and Digital Readout (DRO) are supplied at an extra cost according to your requirements.
What spindle taper sizes are available for this turret milling machine?
The turret milling machine supports R8, ISO30, and ISO40 spindle tapers.
What delivery and payment terms are accepted?
We accept delivery terms including FOB, CFR, CIF, EXW, FAS, and FCA. Accepted payment currencies include USD and CNY.
