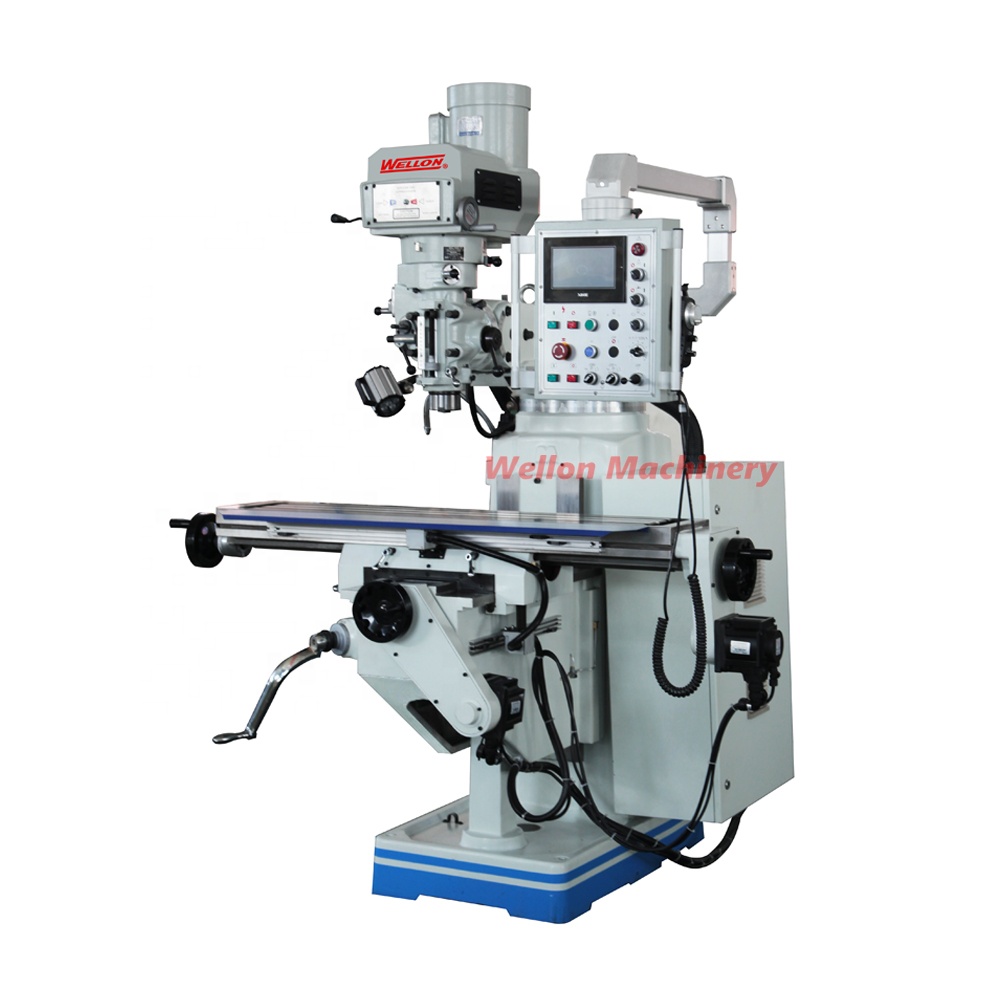

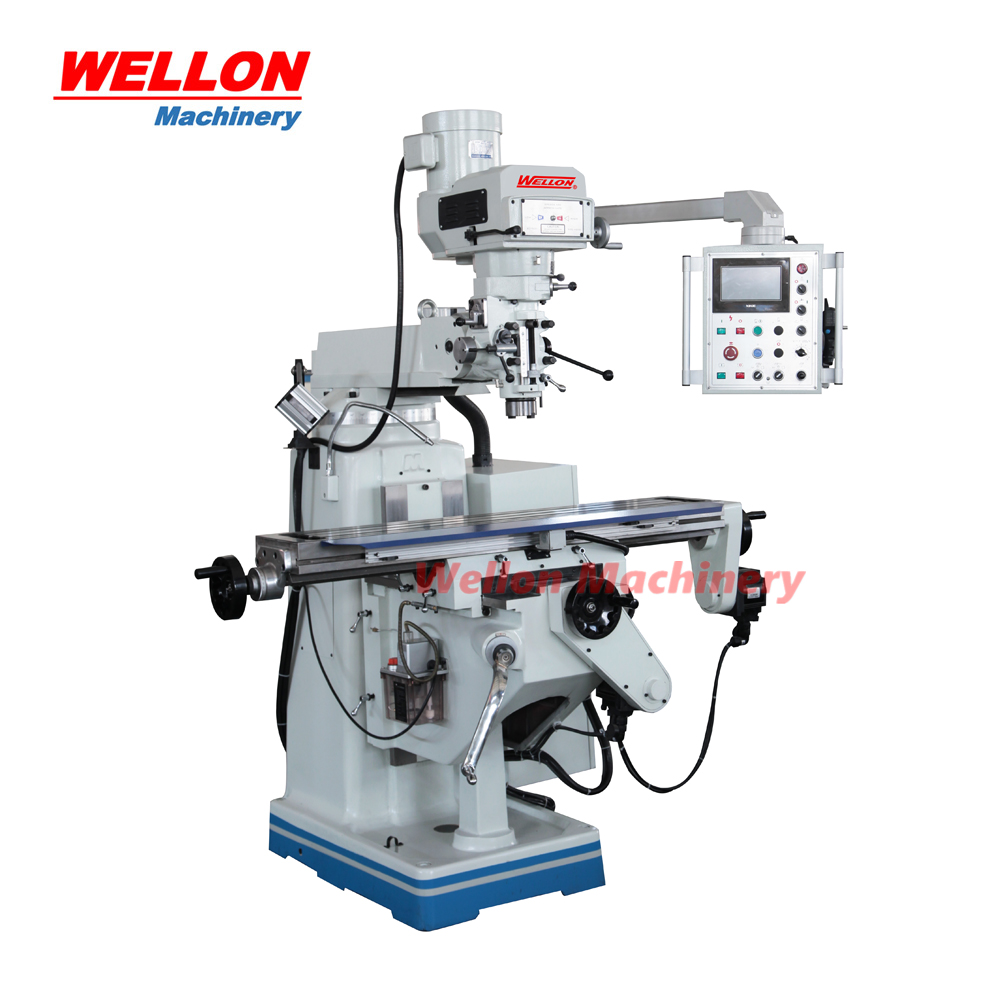

Operates just like a standard turret milling machine. All axis feed can be driven by a manual mechanical handwheel, or via MPG to reduce labor intensity.
Intuitive interface design makes machine setup and program operations straightforward and highly accessible.
Define the start and finish travel points easily on the HMI. Supports automated table movement at feed speeds ranging from 0 to 1500 mm/min.
Supports simple parameter inputs for complex tasks: auto plane cutting, inner/outer square contouring, cylinder/hole machining, and multi-hole line/circle arrays.
| Model | Unit | X6323PLC | X6325PLC | X6330PLC |
|---|---|---|---|---|
| Table size | mm | 230*1067 / 230*1246 | 254*1270 / 254*1370 | 305*1370 / 305*1500 |
| T slot | mm | 3*16 | 3*16 | 3*16 |
| Table loading | kg | 200 | 280 | 350 |
| X axis (table longitudinal) travel | mm | 670 / 850 | 820 / 920 | 800 / 1000 |
| Y axis (table cross) travel | mm | 310 | 380 | 360 |
| Z axis (Table vertical) travel | mm | 390 | 400 | 380 |
| Z axis (Quill move) travel | mm | 127 | 127 | 127 |
| X/Y axis rapid feed | mm/min | 1500 | 1500 | 1500 |
| X/Y axis servo motor | kw | 1 | 1 | 1 |
| Ram travel | mm | 315 | 465 | 500 |
| Distance from spindle to table | mm | 0-390 | 0-400 | 0-380 |
| Spindle speed (Standard 16 steps) | rpm | 50HZ: 60-4500 | 60HZ: 80-5440 | 50HZ: 60-4500 | 60HZ: 80-5440 | 50HZ: 60-4500 | 60HZ: 80-5440 |

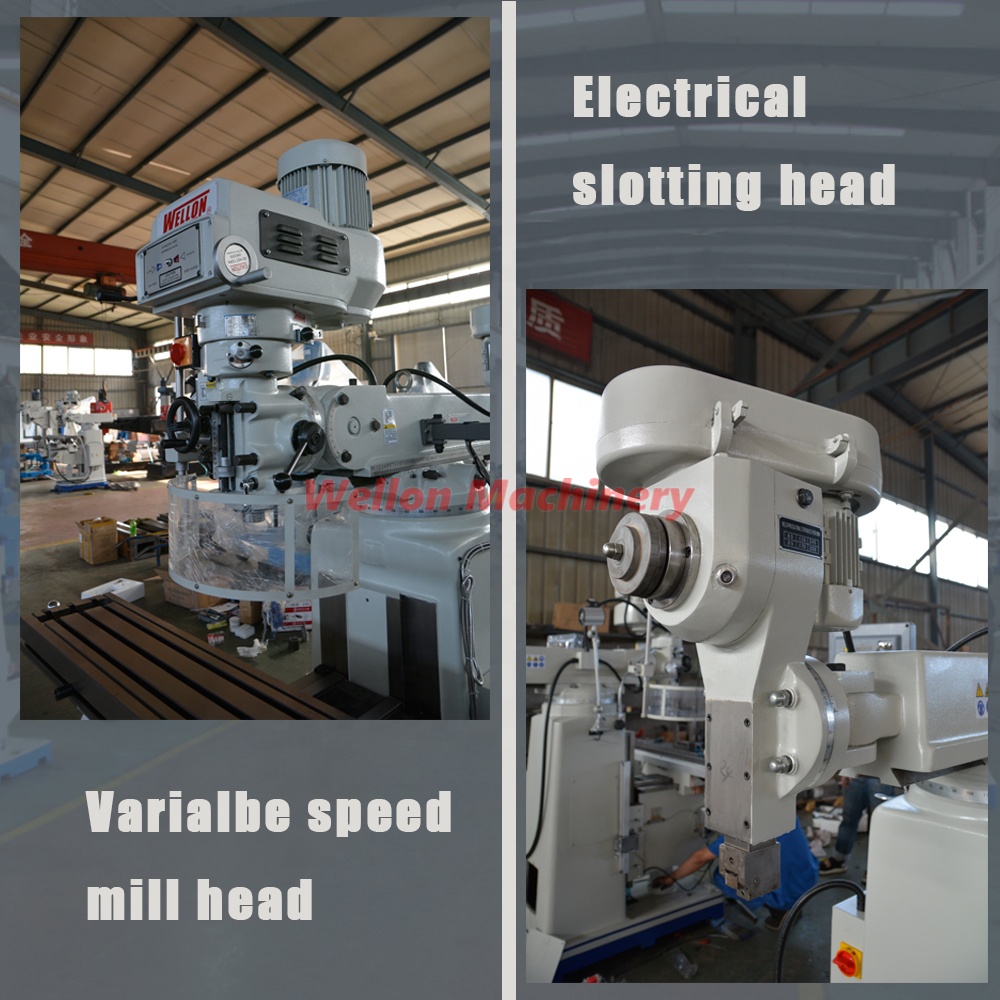

| Spindle speed (Optional Variable) | rpm | 65-4200 | 65-4200 | 60-3750 |
| Spindle taper | - | Standard: R8 | Optional: ISO40 | Standard: R8 | Optional: ISO40 | ISO40 |
| Motor Power | HP | 3 | 3 | 5 |

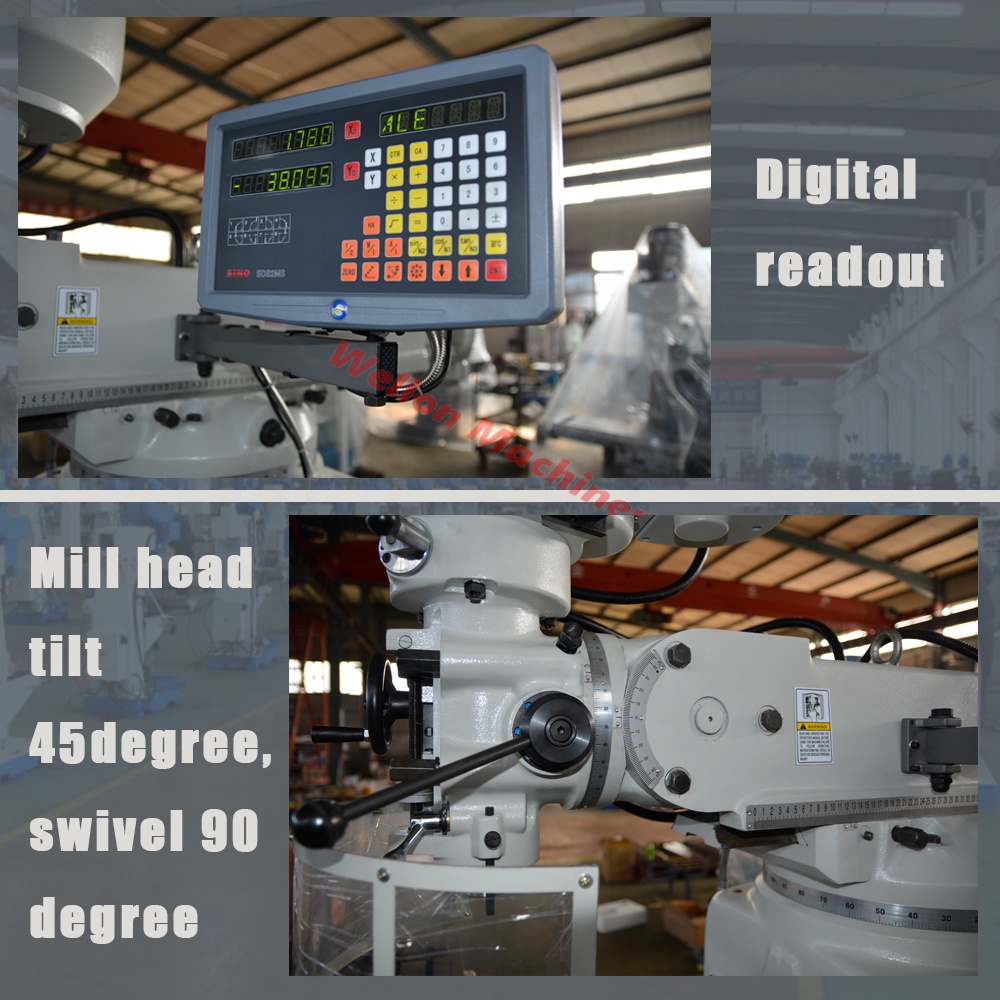

| Head rotating (Swiveling / Tilting) | deg | 90° / 90° | 90° / 90° | 90° / 90° |
| Package size | cm | 165*190*220 | 190*200*223 | 200*200*225 |
| G.W. | kg | 1200 | 1500 | 1900 |
$22000-25000/set
$12000-15000/set
$19000-20000/set
$17000-30000/set

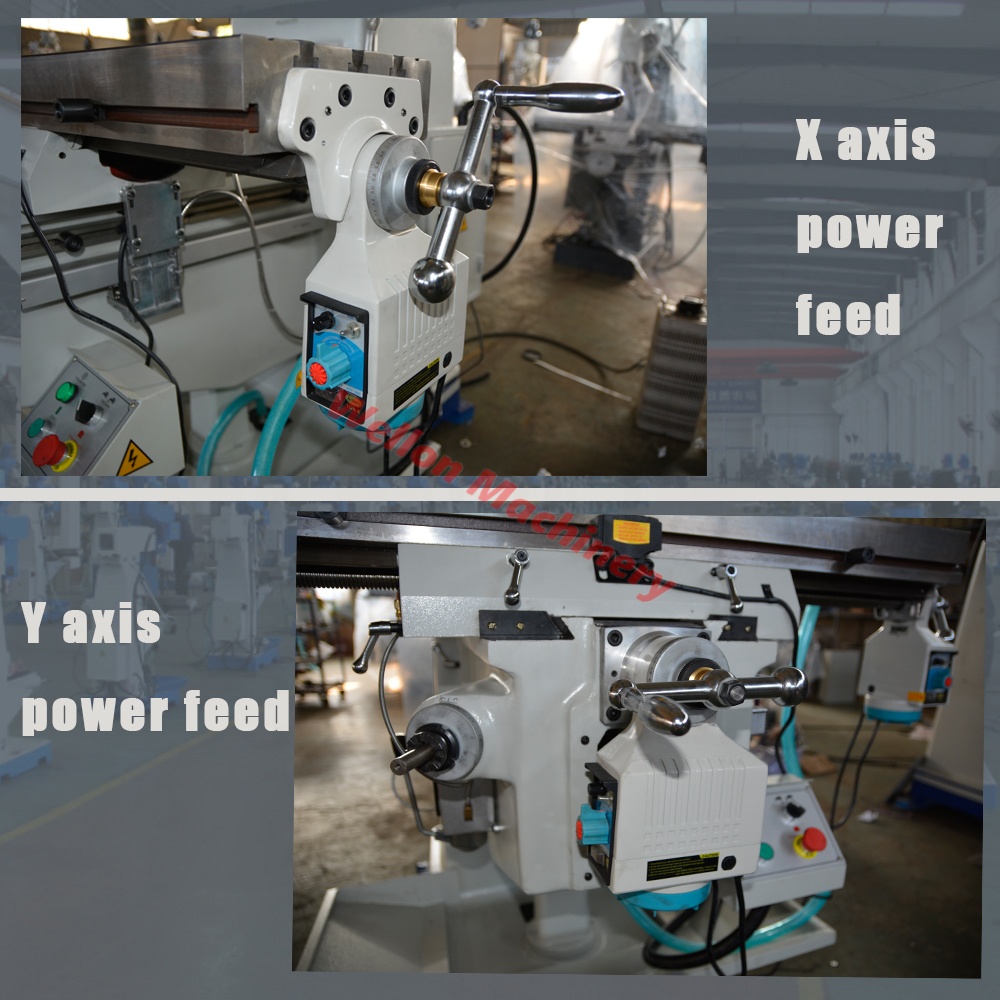

A1: Yes. All axis feeds can be driven manually using mechanical handwheels, operating in the same way as standard turret milling machines. Additionally, you can utilize the electronic MPG handwheel to significantly reduce labor.
A2: The operator can define the start and finish travel parameters on the HMI touch screen interface. The table will then feed automatically between those points at speeds ranging from 0 to 1500 mm/min.
A3: The built-in HMI menu allows operators to quickly program face plane cutting, outer or inner square pockets, cylinder projection or hole milling, and linear/circle multi-hole drilling arrays by entering just a few key parameters.
A4: Once you input the hole layout count and spatial distances, the table will automatically index to the next location as soon as the previous hole is drilled and the quill feeds back up. This pattern continues until all holes in the line or circle are processed.
A5: Differences lie in the table sizes (ranging from 230x1067mm up to 305x1500mm), corresponding axis travel envelopes, ram extensions, gross weights, and motor power outputs (up to 5 HP for the X6330PLC model).
