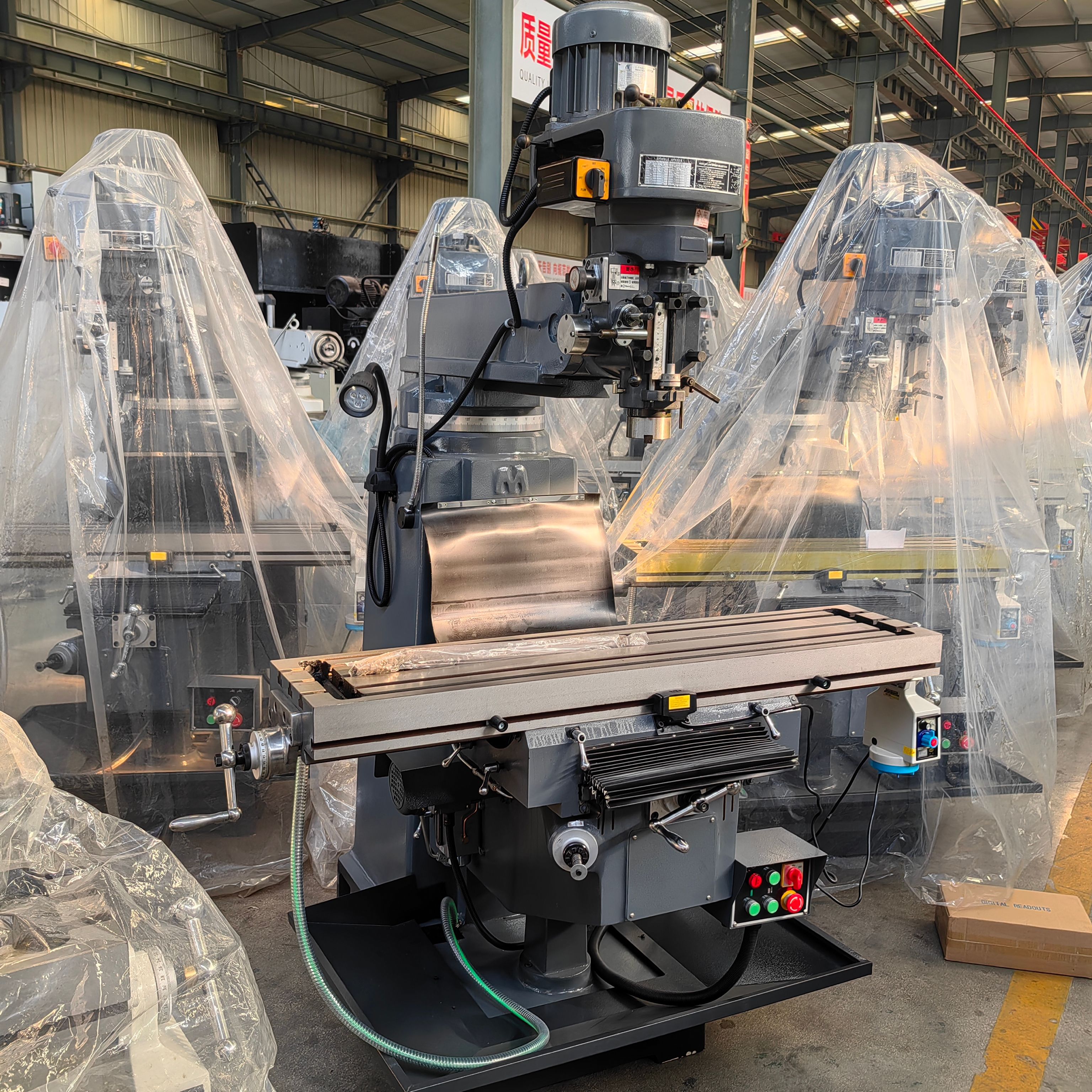

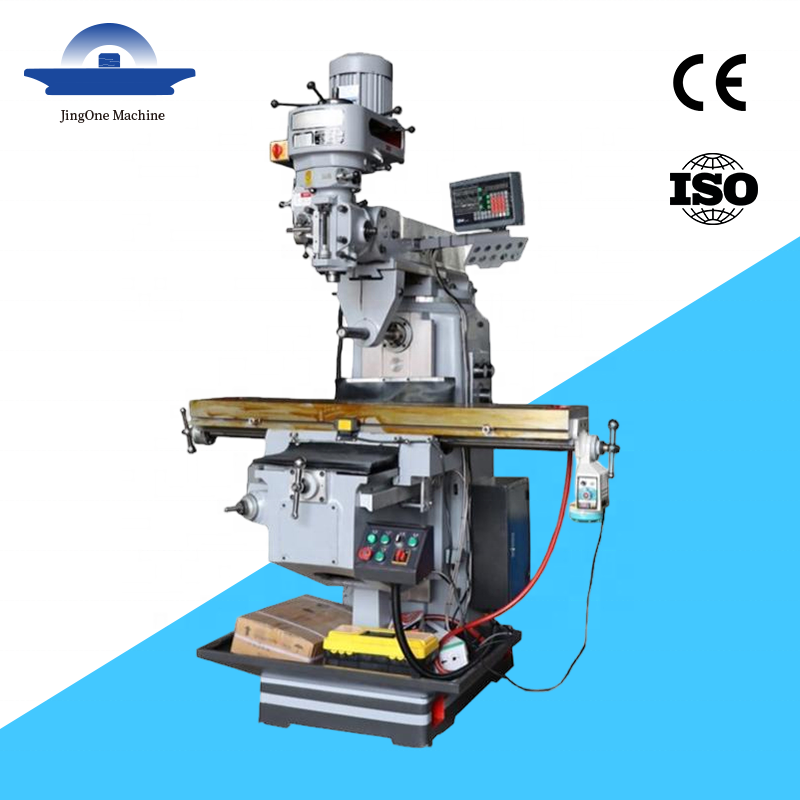

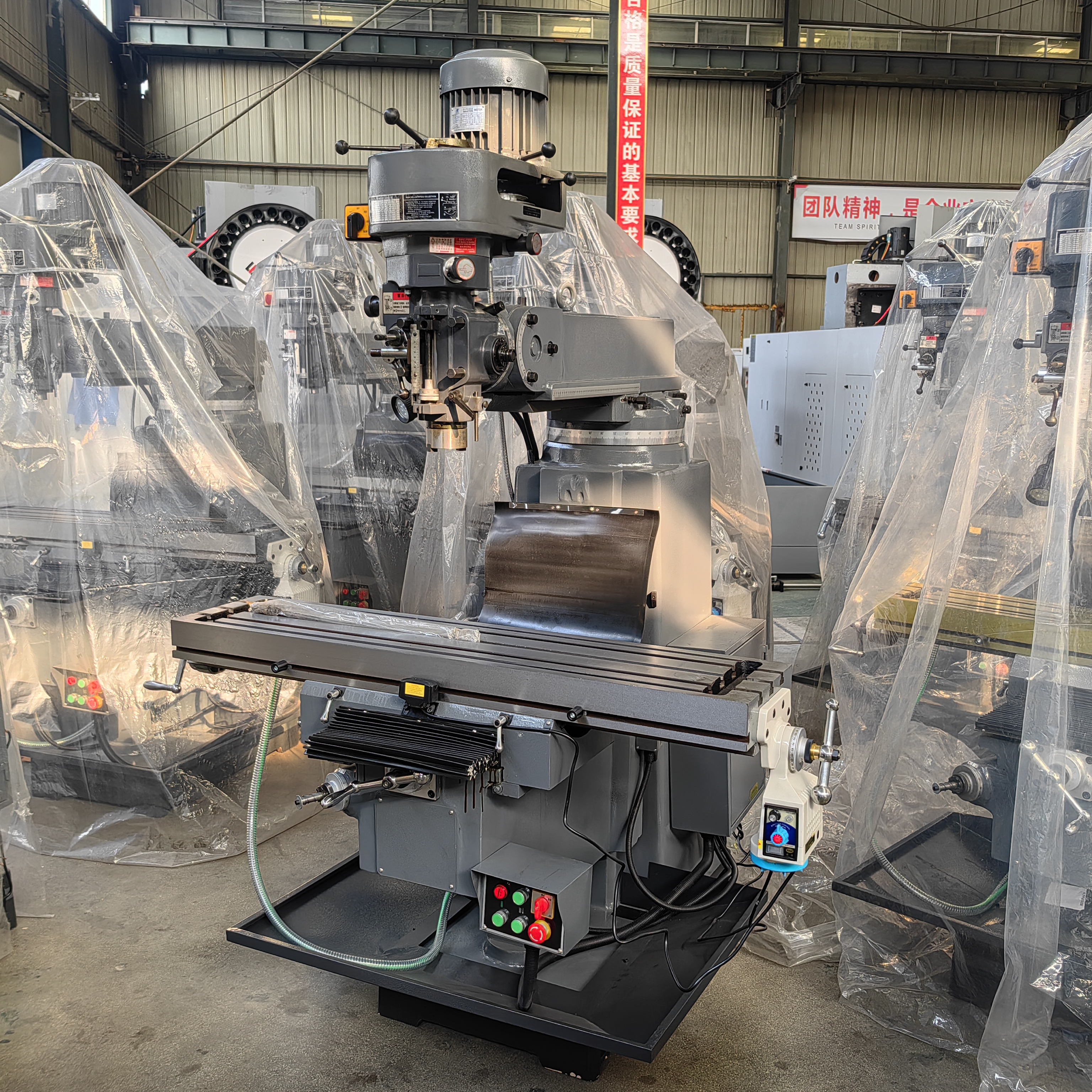

Heavy & Light Duty X6332 Universal Multifunctional Vertical Milling Machine 220V with 3 Axis Universal Milling Machine
| Parameter | X6325 | X6330 | X6333 |
|---|---|---|---|
| Table area (mm) | 254×1270 | 305×1370 | 320×1570 |
| X-axis (mm) | 780 | 880 | 780 |
| Y-axis (mm) | 420 | 420 | 420 |
| Z-axis (mm) | 420 | 420 | 480 |
| Spindle taper | R8 | NT40 | NT40 |
| Spindle travel (mm) | 127 | 127 | 127 |
| Spindle speed | 16 steps | 16 steps | 16 steps |
| Spindle feed (mm) | 0.076/0.003” 0.038/0.0015 0.203/0.008 | ||
| Spindle low speed (r/min) | 66, 110, 175, 270, 550, 930, 1460, 2270 | ||
| Spindle high speed (r/min) | 132, 220, 350, 540, 1100, 1860, 2920, 4540 | ||
| Number of slots x width (mm) | 3X16 | ||
| T-slot spacing (mm) | 65 | ||
| Head motor | 3HP / 2.2KW | 5HP / 3.75KW | 5HP / 3.75KW |
| Lifting motor | - | - | 1/2HP / 400 |
| Maximum workpiece weight (kg) | 300 | 300 | 350 |
| Length * Width * Height (mm) | 1700 * 1680 * 2090 | 1700 * 1680 * 2195 | 1800 * 1780 * 2350 |
| Weight (kg) | 1100 / 1330 | 1380 | 1430 |

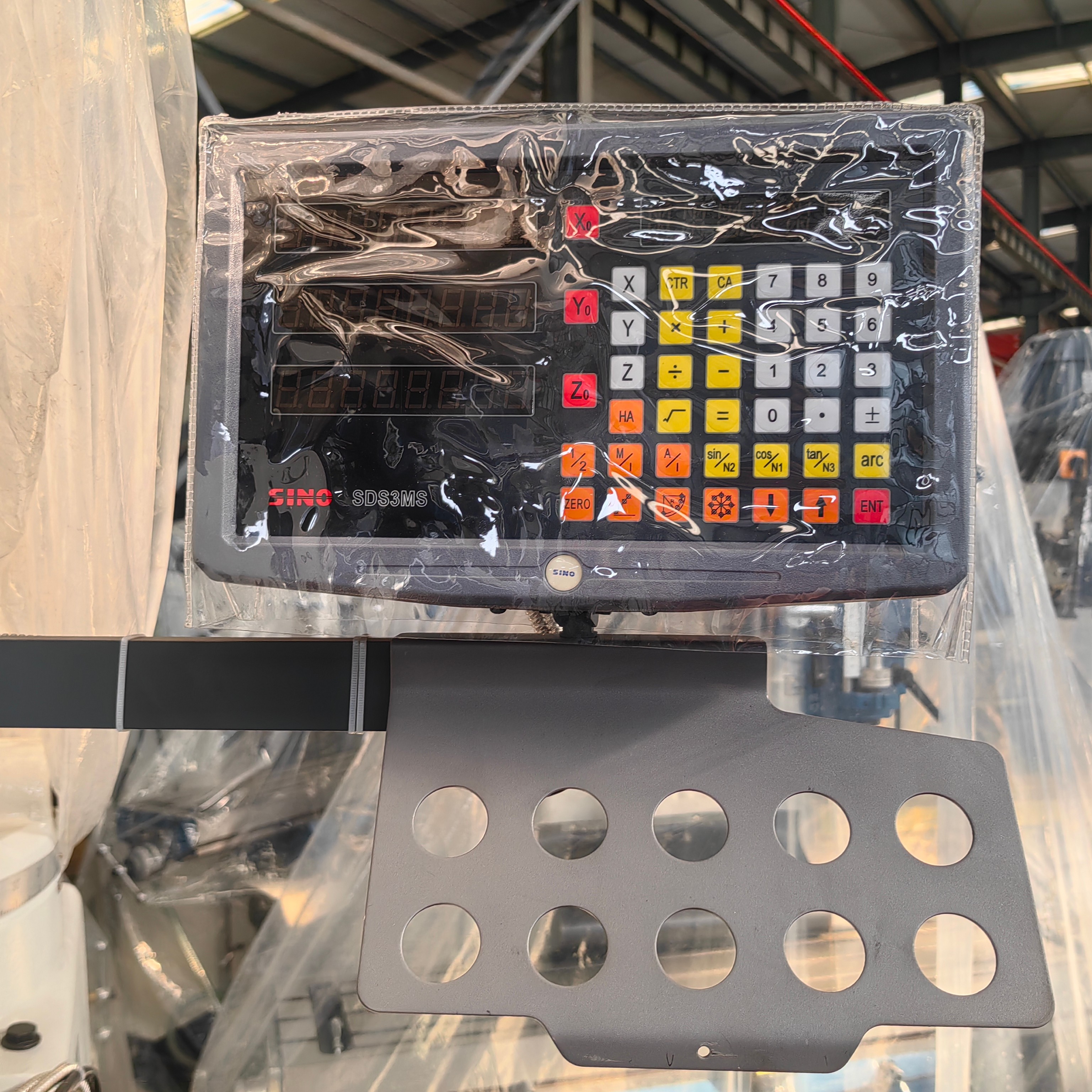

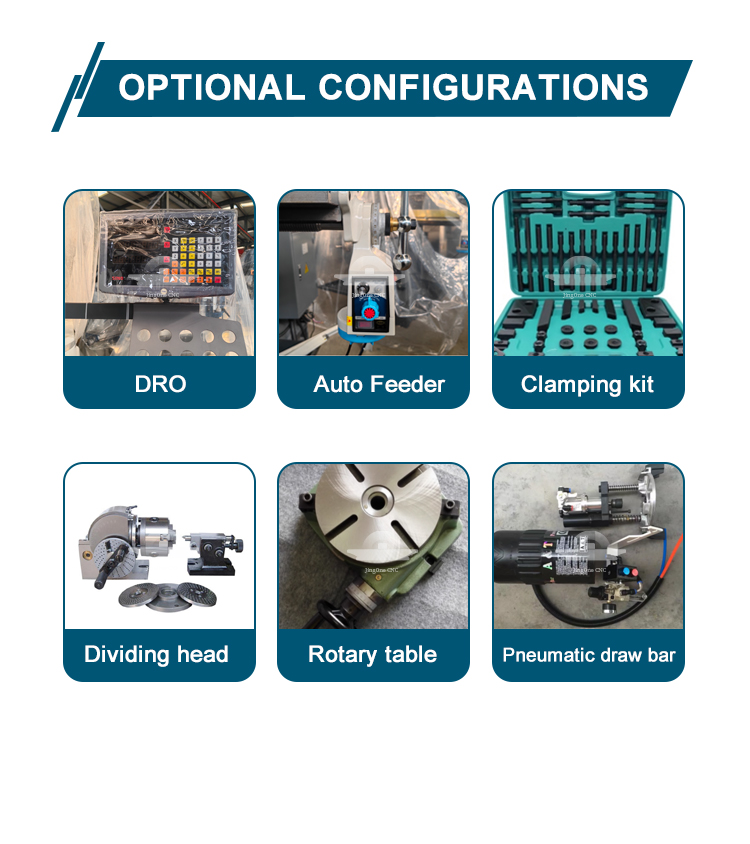

Normally, customers choose to install a three-axis digital display and automatic feeders for the X and Y axes on the turret mill. Other optional configurations include pneumatic drawbars, dividing heads, rotary tables, and combination clamping plates.
Yes, we can assist you in selecting various common accessories such as milling chucks, drill chucks, and combination clamping plates. You can initiate an inquiry for more customization details.

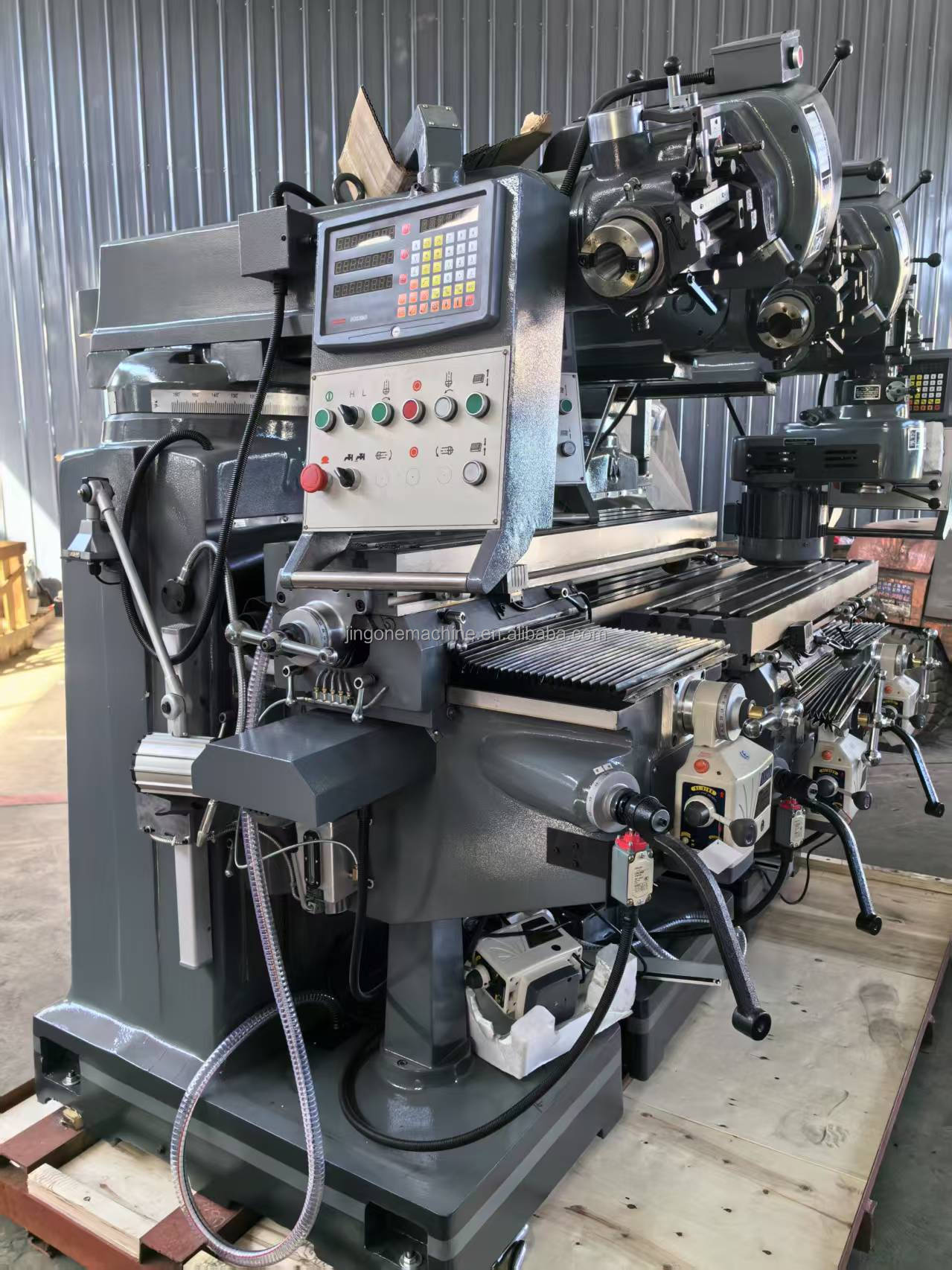

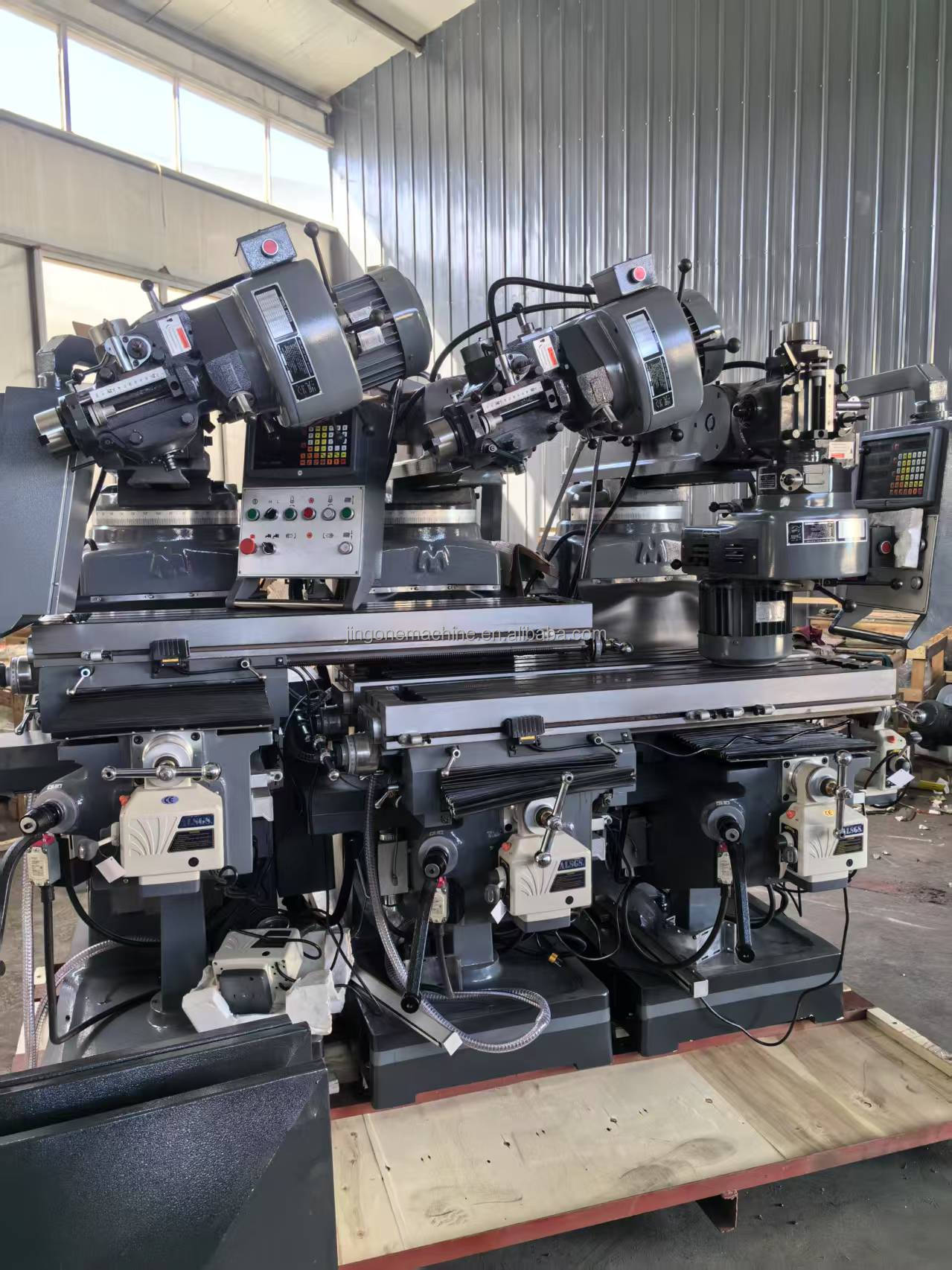

We pack 3 units together to save space. A standard 20-foot container can load up to 6 units, and a 40-foot container can load significantly more to maximize transportation efficiency.

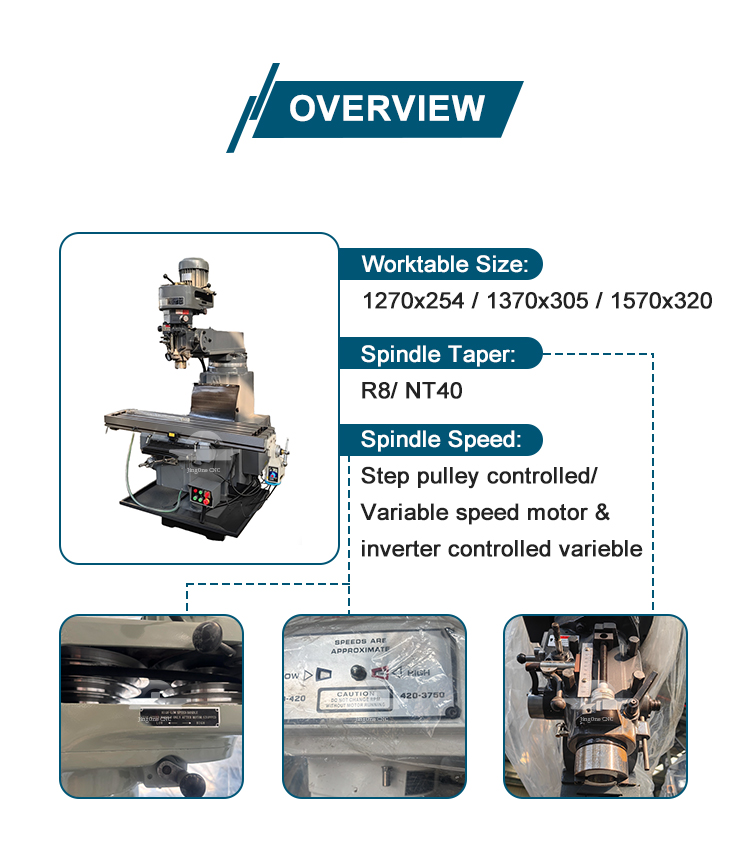

The X6325 model features a table area of 254×1270 mm, the X6330 model features 305×1370 mm, and the heavy-duty X6333 model is equipped with a 320×1570 mm table.
The X6325 model comes standard with an R8 spindle taper, while both the X6330 and X6333 models are configured with a larger NT40 spindle taper.
The maximum workpiece weight capability is 300 kg for both the X6325 and X6330 models, and increases to 350 kg for the larger X6333 model.
