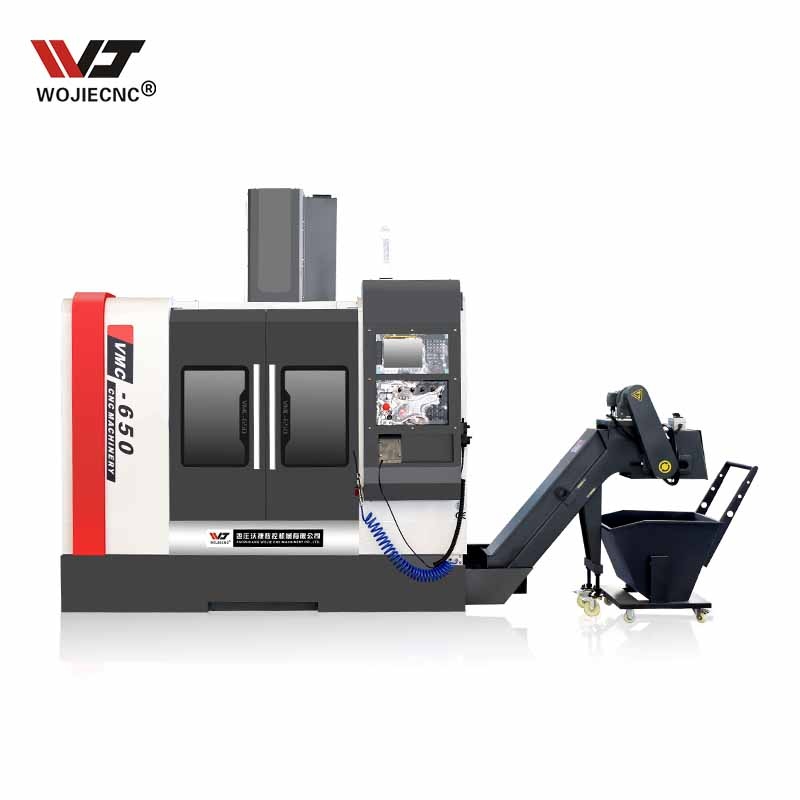

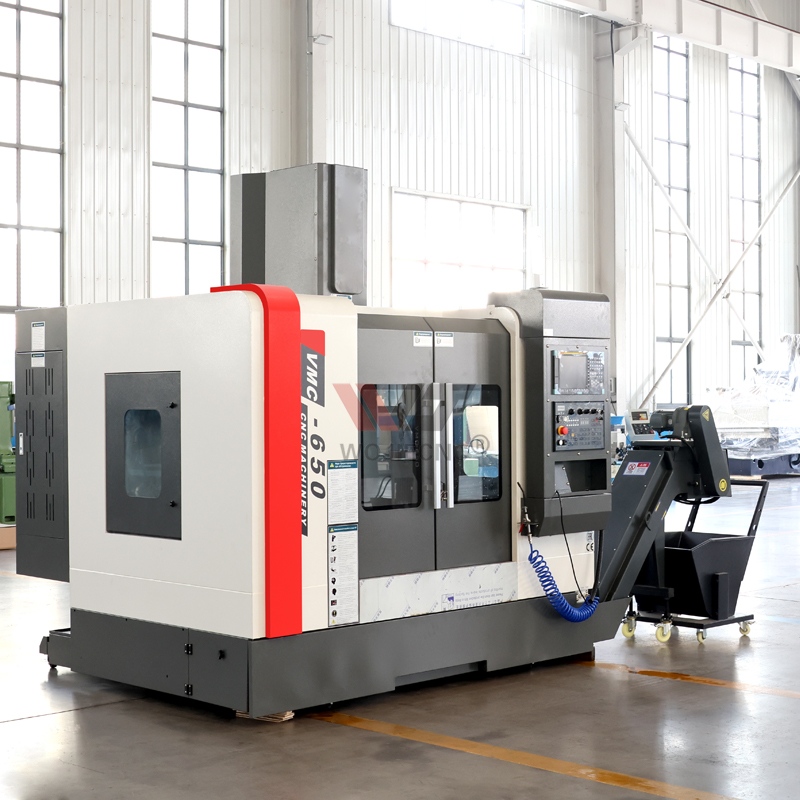

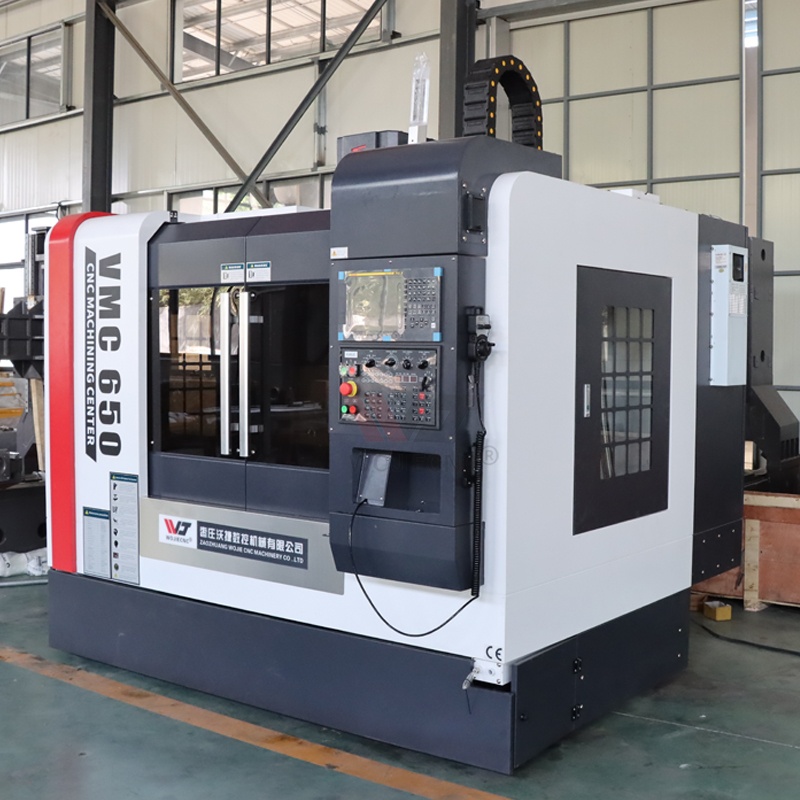

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
| Specifications | Units | VMC650 |
|---|---|---|
| Table size | mm | 900*400 |
| X axis travel | mm | 650 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 400 |
| T slot(number-width*pitch) | - | 3-18*120 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-10000 |
| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 469 |
| Distance between spindle nose and table surface | mm | 100-600 |
| Positioning accuracy | mm | 0.0075 |
| Repeat positioning accuracy | mm | 0.005 |
| Tool magazine | - | Arm 16 |
| Max. tool diameter | mm | φ90 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 3800 |
| Overall dimension(L*W*H) | mm | 2400*2000*2550 |
1. High strength high quality cast iron.
2. Long span bed base and vertical column structure.
1. Spindle taper is BT40.
2. Spindle speed 8000rpm, can change to 10000/12000rpm.
3. Taiwan Spindle passed dynamic balance ISO rating test.
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI.
1. Taiwan precision lead screw.
2. Lead screw bearing use FAG bearing, Coupling R+W directly connected.

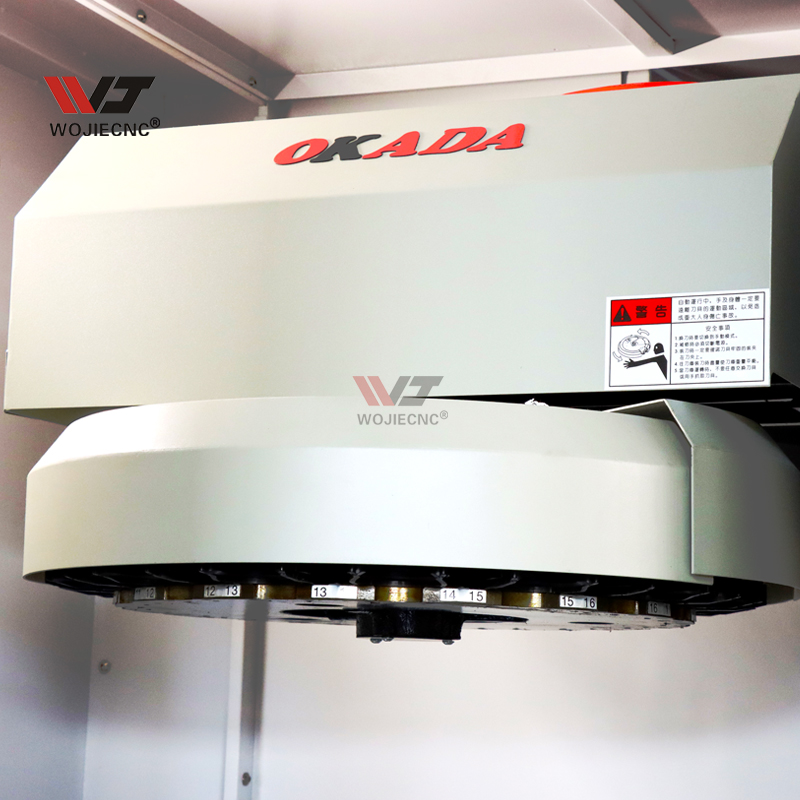

1. Standard 16 tools Hat type, Tool change time 4.5 seconds.
2. Brand: OKADA.
Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better.

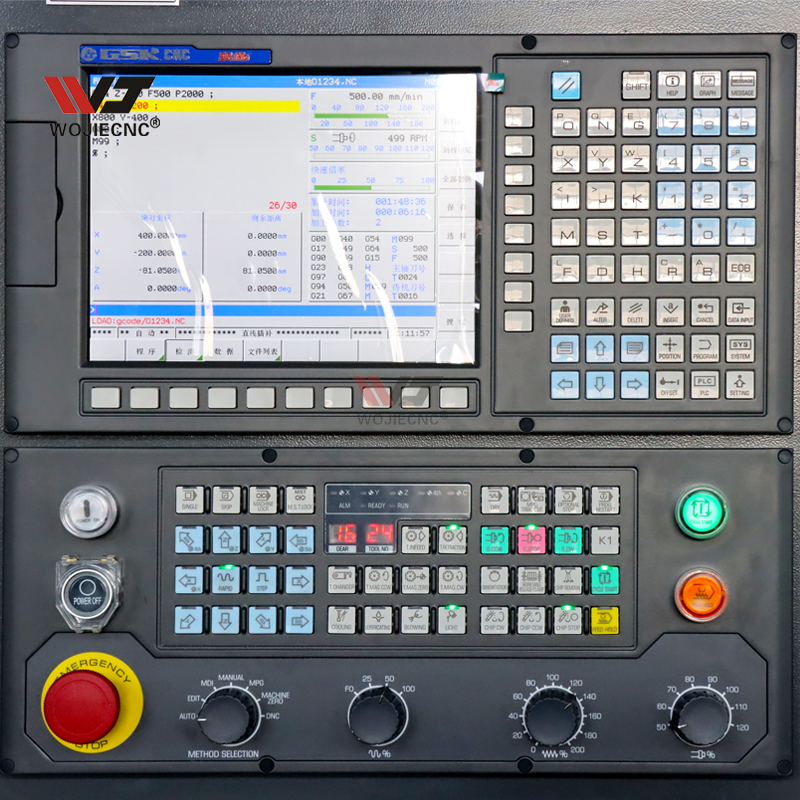

Standard: GSK / KND control.
Optional: Siemens, FANUC, Syntec etc.
1. With safety electrical components.
2. Optional: SCHNEIDER Brand.
Automatic lubrication device.
Standard with AirTAC Pneumatic Components.
A: T/T, 30% initial payment upon order, 70% balance payment before shipment; or irrevocable LC at sight. Once we receive the advance payment, we will begin production. When the machine is ready, we will send pictures for your review before shipping upon receipt of the balance.
A: We specialize in various industrial machines, including CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Manual Lathes, Drilling Machines, Radial Drilling Machines, Sawing Machines, and Shaper machines.
A: For standard machines, production takes about 15 days. Customized or special machines may require a longer duration. Shipping transit times are approximately 30 days to Europe and America, and shorter for Asia or Australia.
A: We accept FOB, CFR, CIF, and other standard international trade terms.
A: The minimum order quantity (MOQ) is one set. The machine comes with a one-year warranty, and we provide lifetime technical service support.
A: All standard machines are packed securely in robust, export-standard plywood cases.
