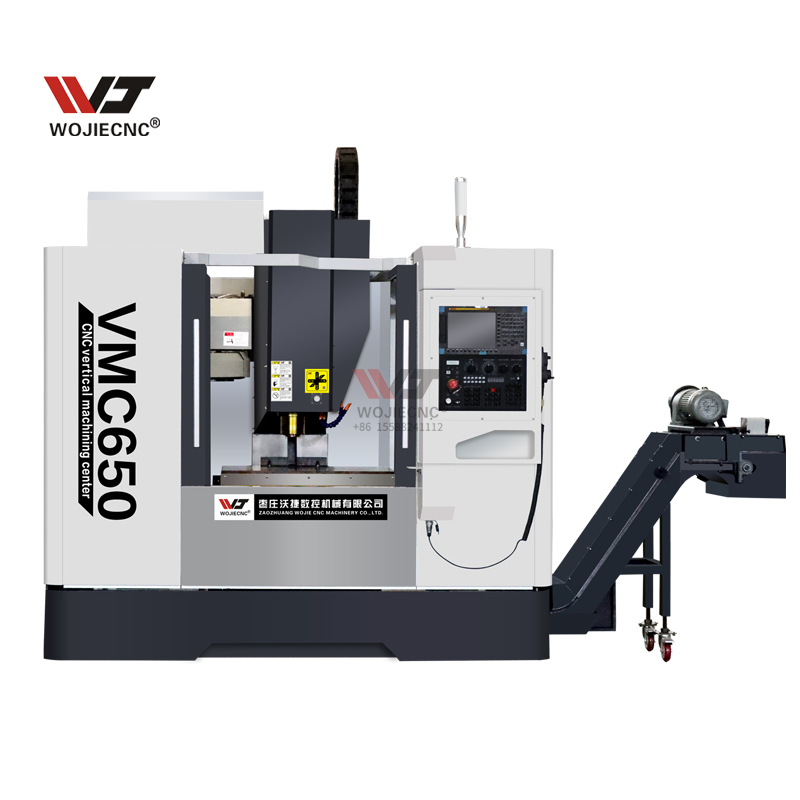

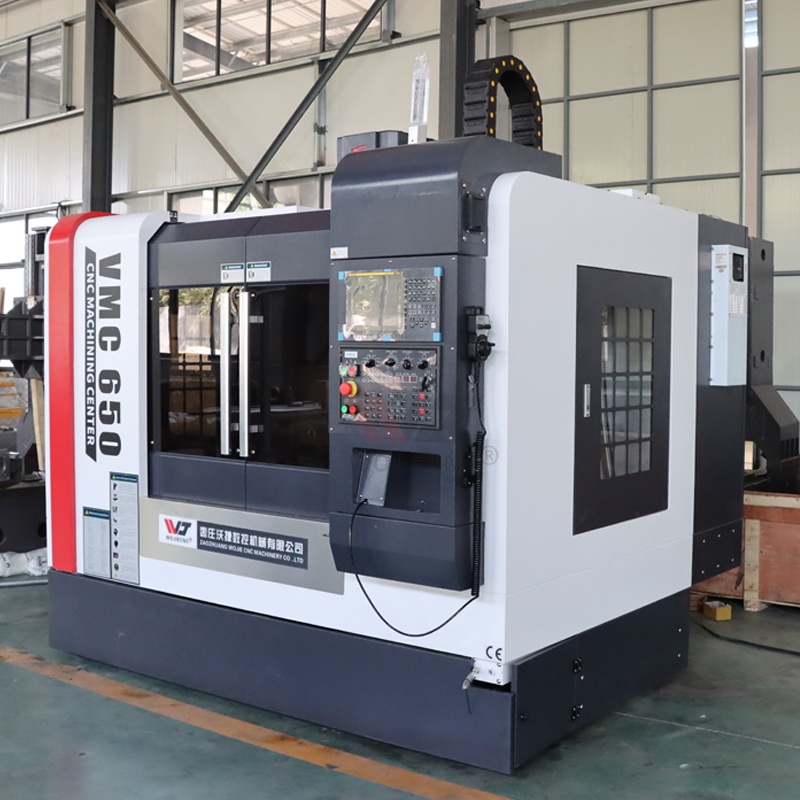

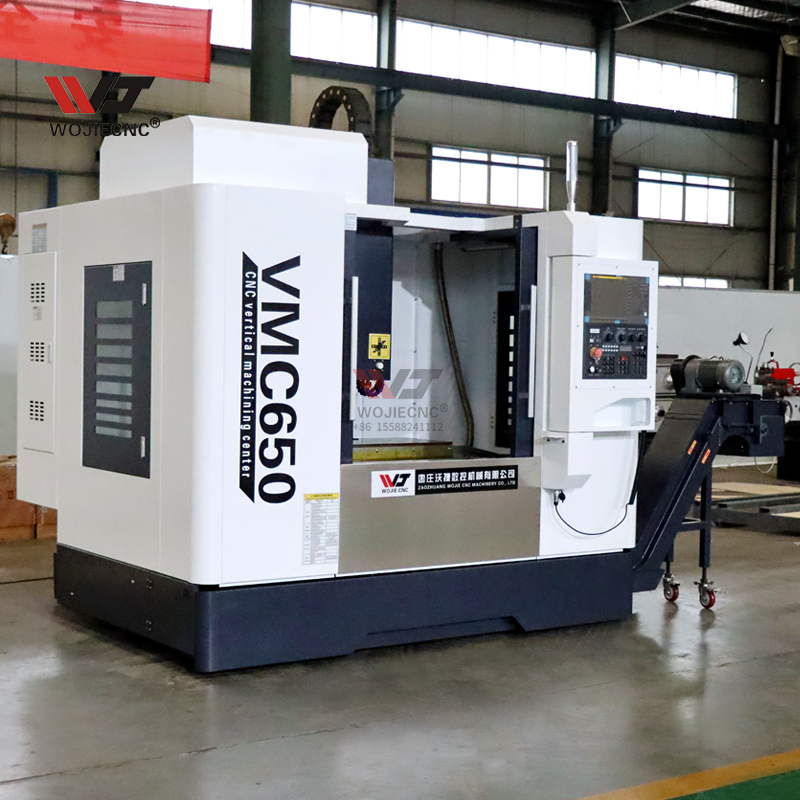

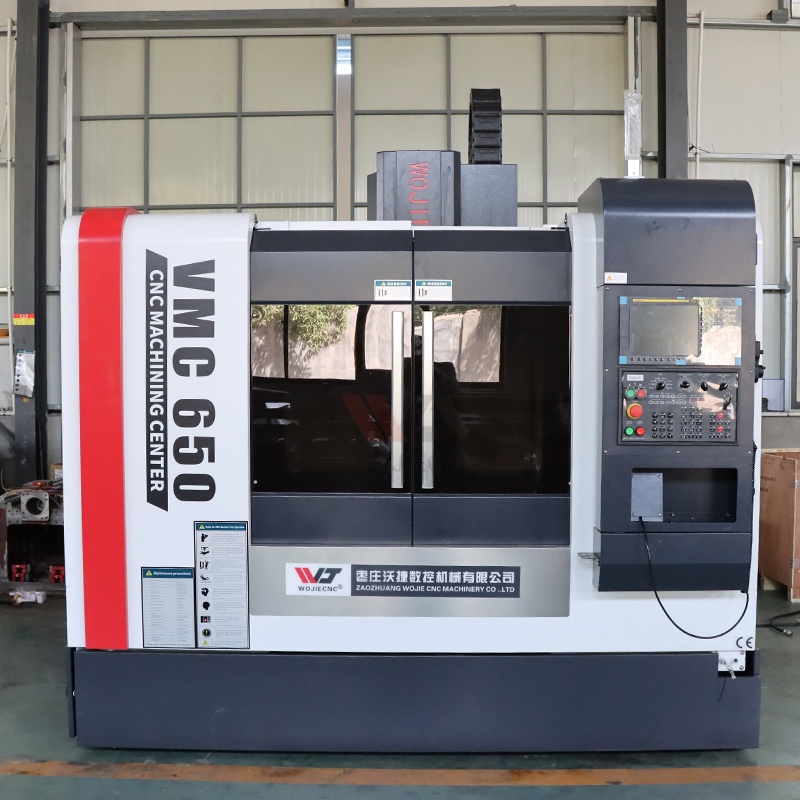

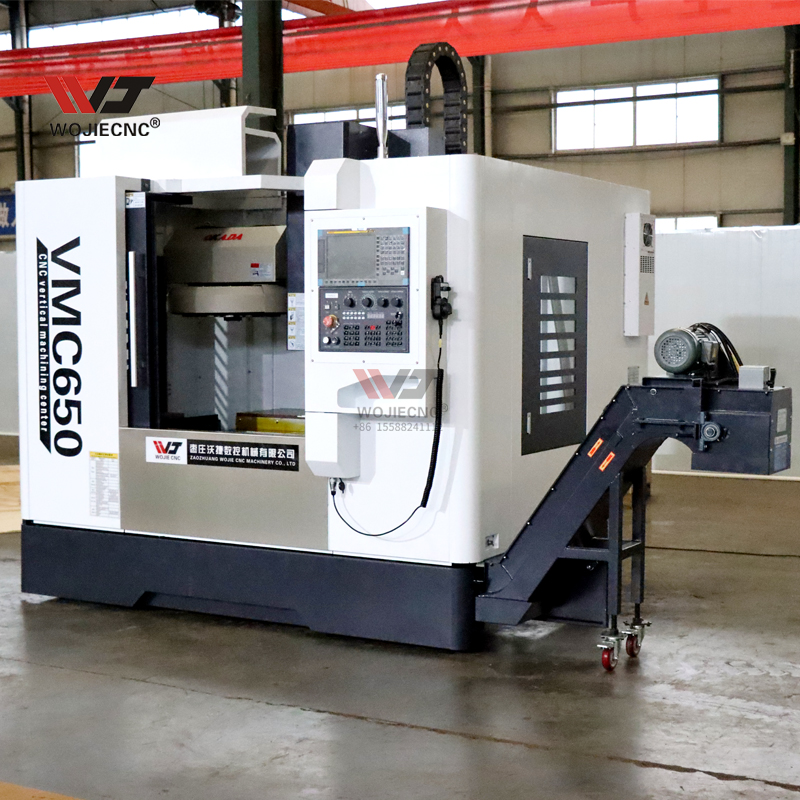

| SPECIFICATIONS | Units | VMC650 |
|---|---|---|
| Table size | mm | 900*400 |
| X axis travel | mm | 650 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 400 |
| T slot(number-width*pitch) | - | 3-18*120 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-10000 |
| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 469 |
| Distance between spindle nose and table surface | mm | 100-600 |
| Positioning accuracy | mm | 0.0075 |
| Repeat positioning accuracy | mm | 0.005 |
| Tool magazine | - | Arm 16 |
| Max. tool diameter | mm | φ90 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 3800 |
| Overall dimension(L*W*H) | mm | 2400*2000*2550 |

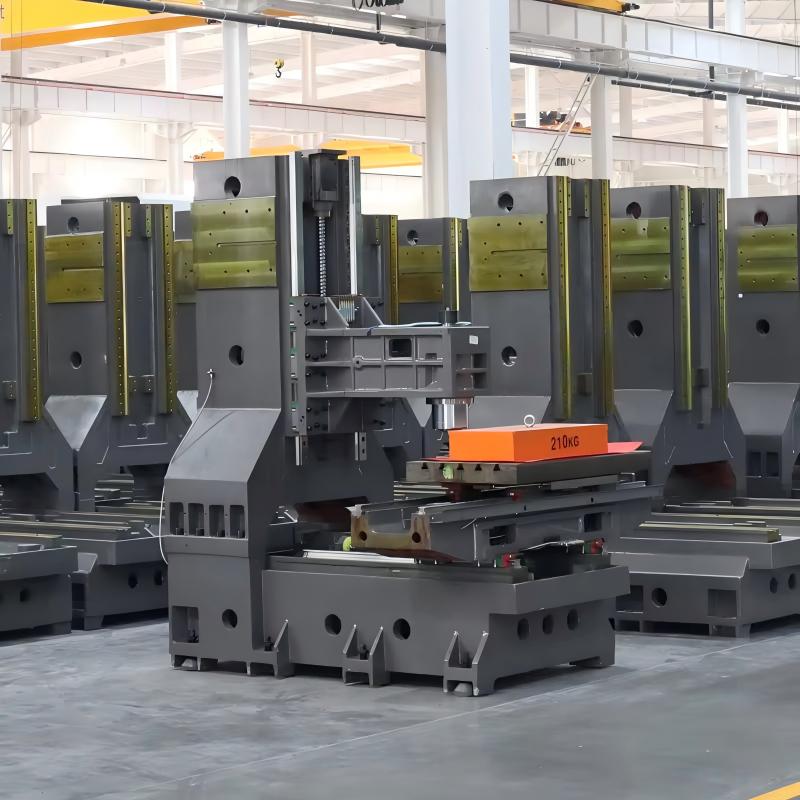

1. High strength high quality cast iron.
2. Long span bed base and vertical column structure.

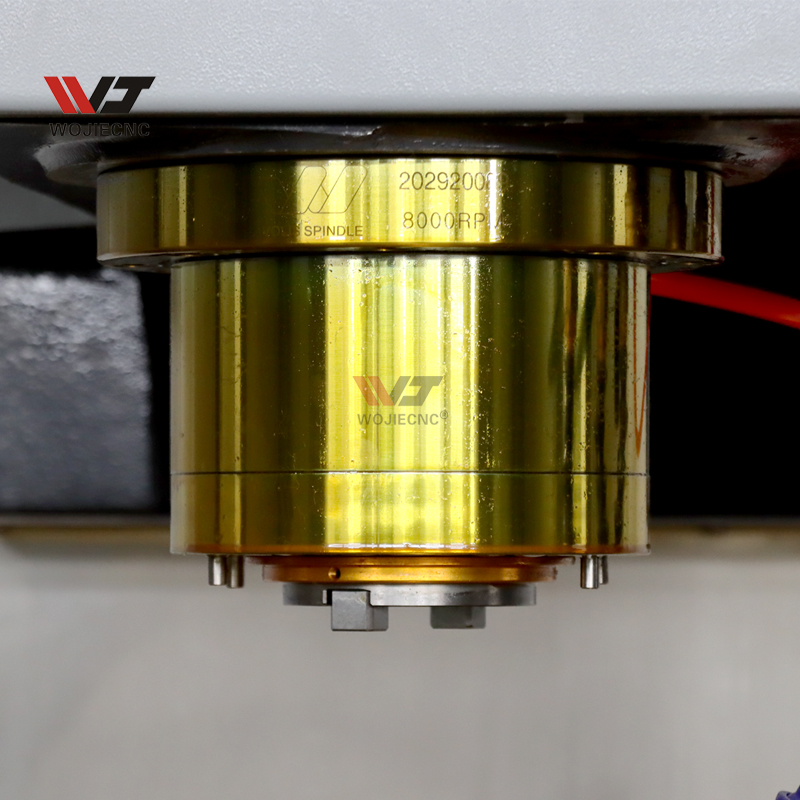

1. Spindle taper is BT40.
2. Spindle speed 8000rpm, can change to 10000/12000rpm.
3. Taiwan Spindle passed dynamic balance ISO rating test.

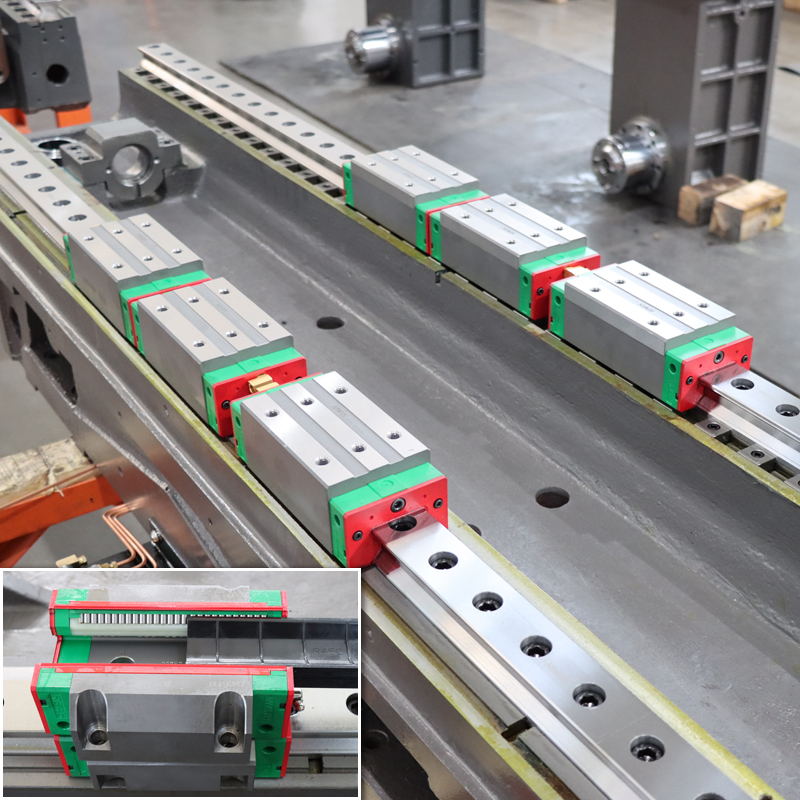

1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI.

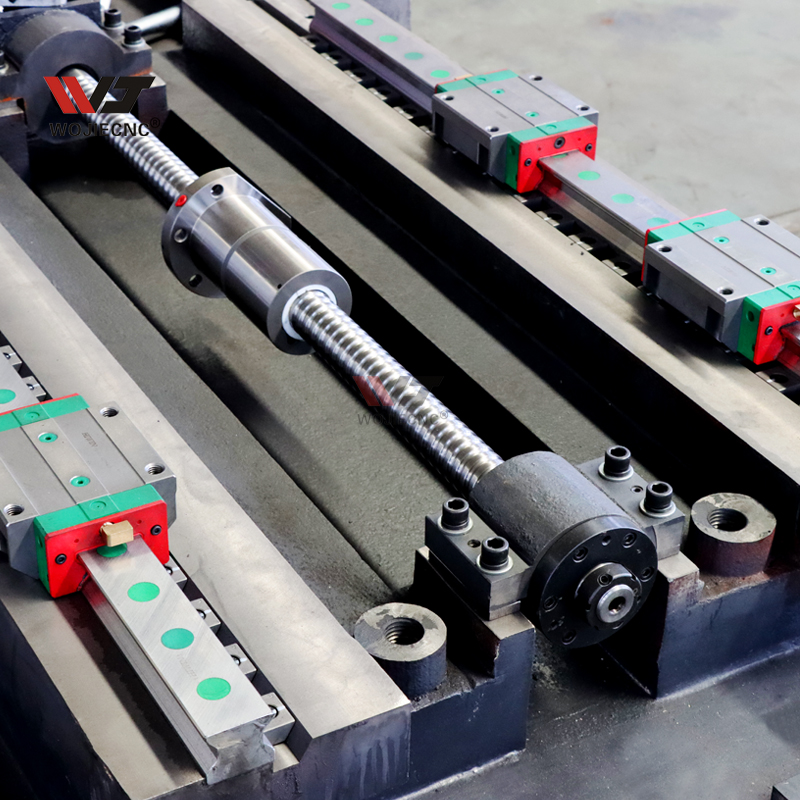

1. Taiwan precision lead screw.
2. Lead screw bearing use FAG bearing, Coupling R+W directly connected.

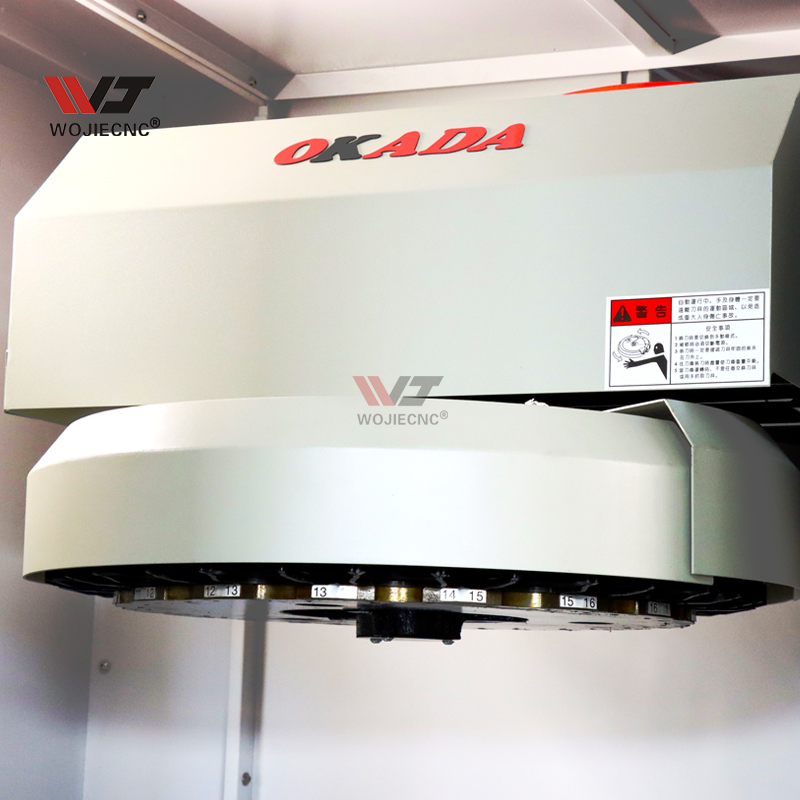

1. Standard 16 tools Hat type, Tool change time 4.5 seconds.
2. Brand: OKADA.

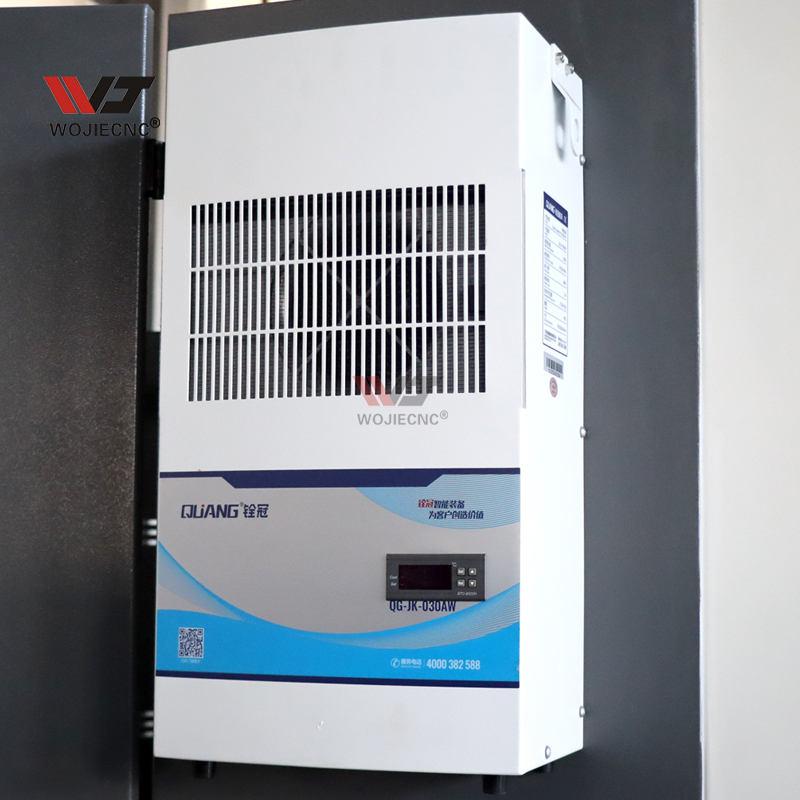

Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better.

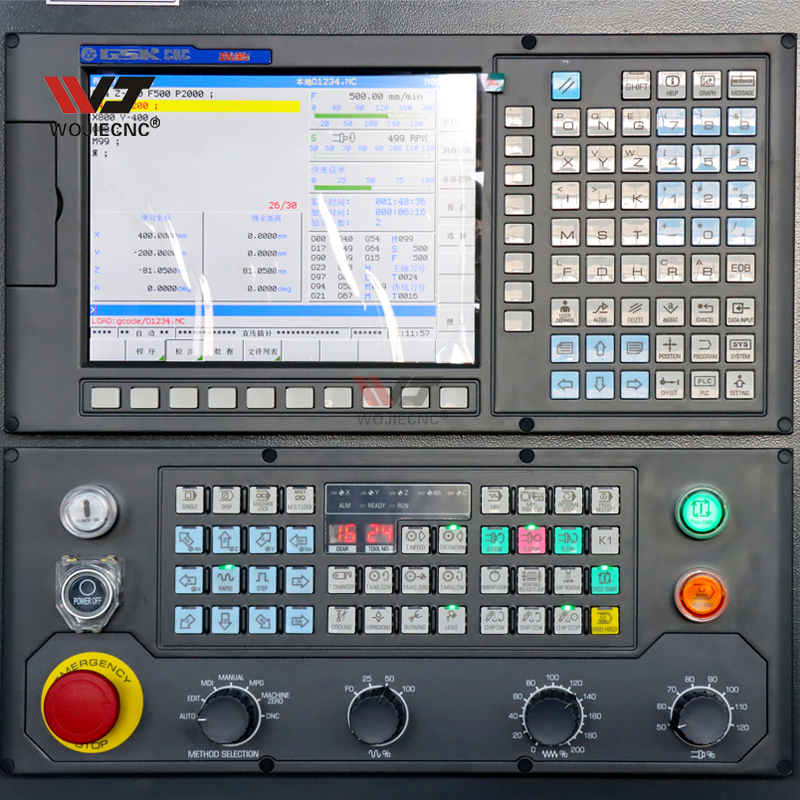

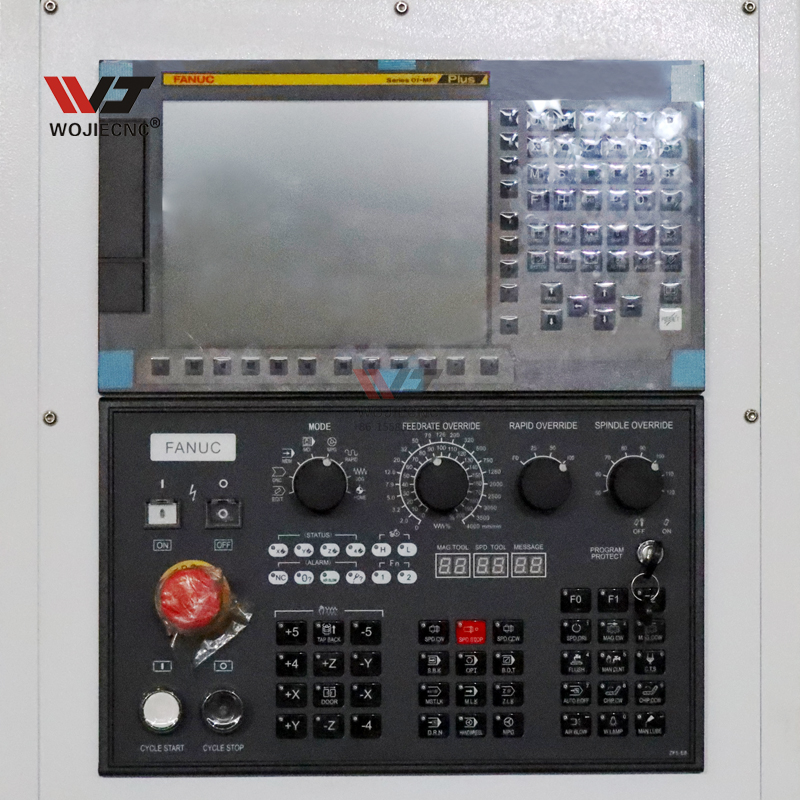

Standard: GSK / KND control.
Optional: Siemens, FANUC, Syntec etc.

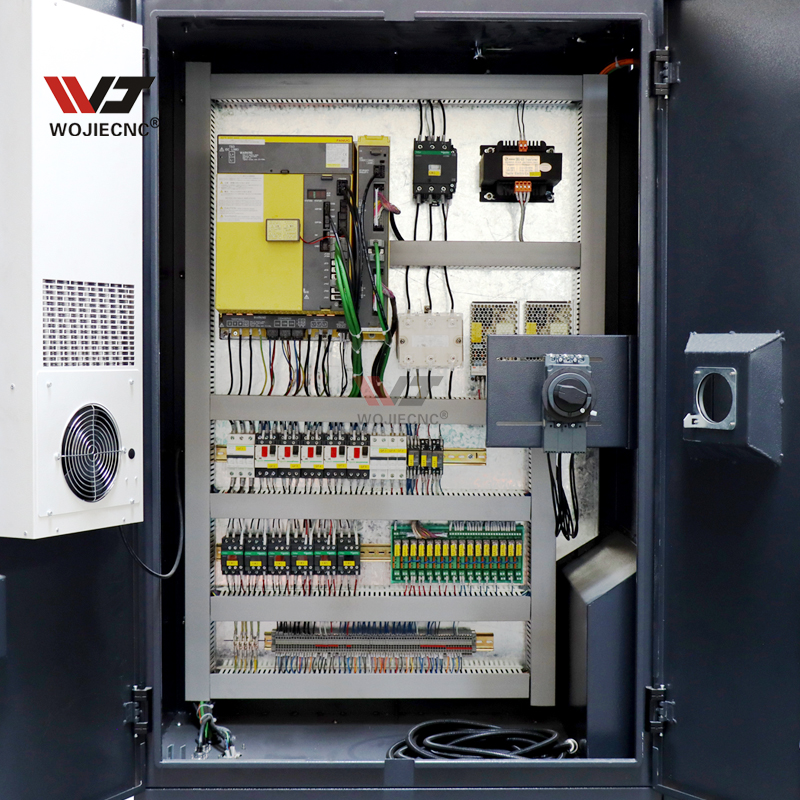

1. With safety electrical components.
2. Optional: SCHNEIDER Brand.

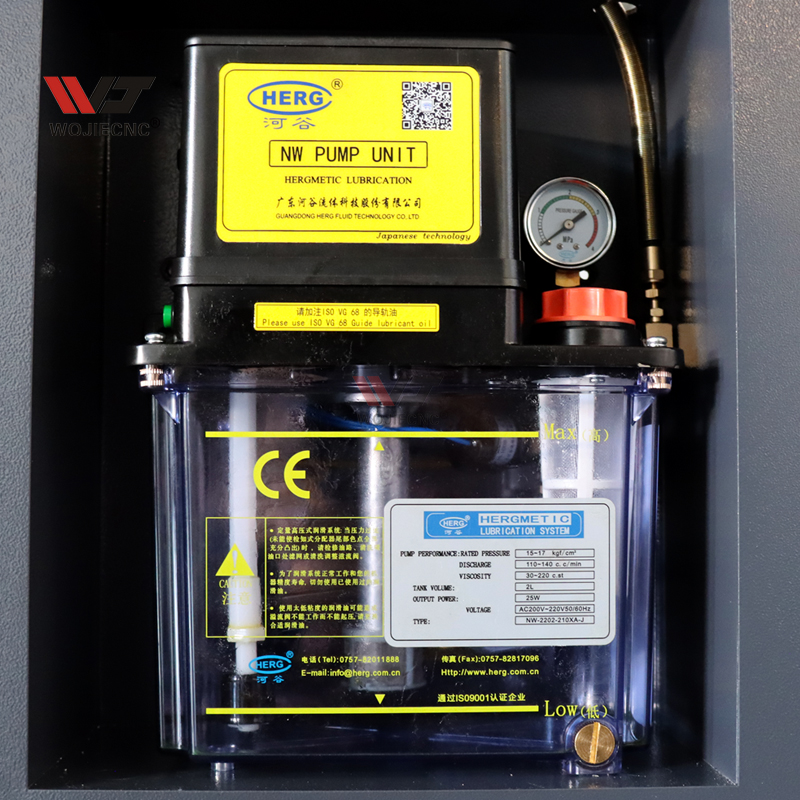

Automatic lubrication device.

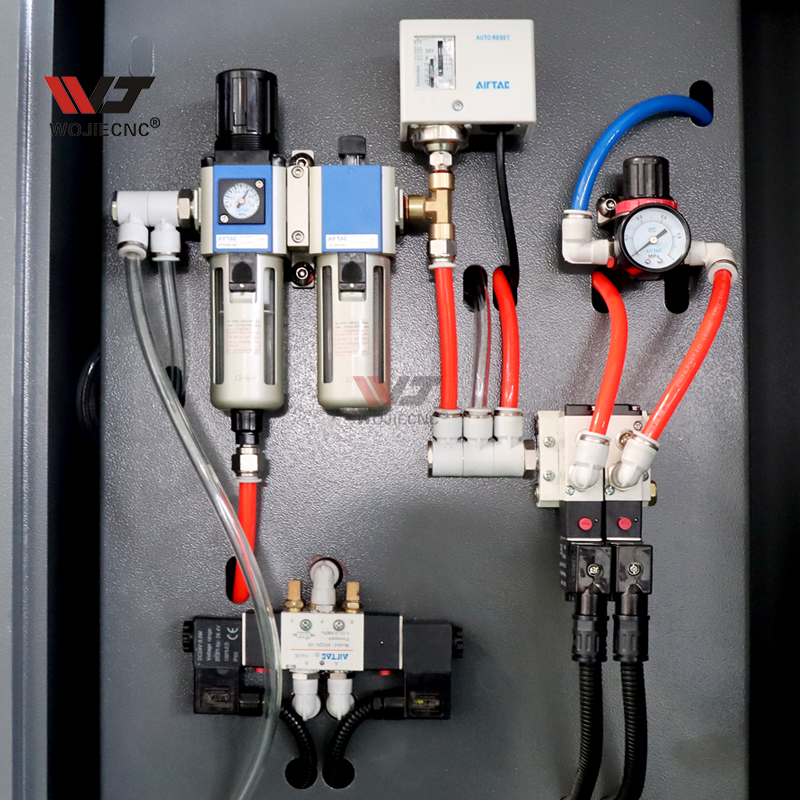

Standard with AirTAC Pneumatic Components.
