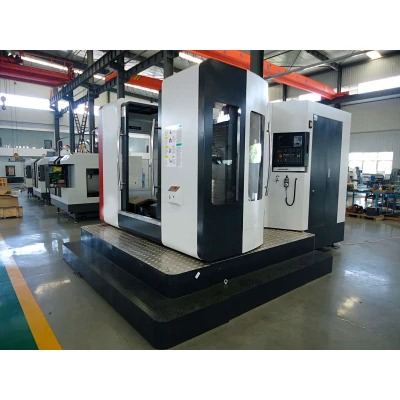

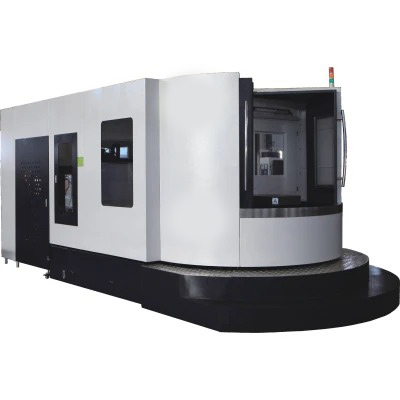

The HMC500 horizontal machining center is a versatile and high-performance machine tool used in various industries for efficient and precise machining operations.

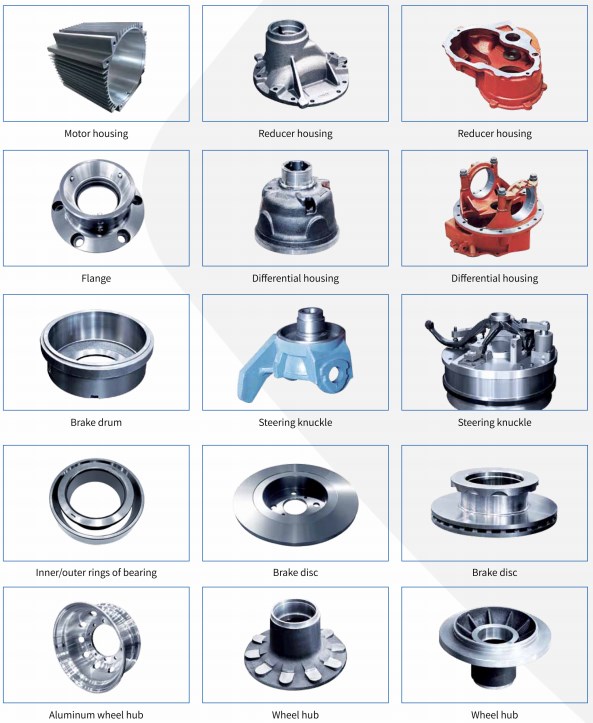

The HMC500 horizontal machining center is widely used in industries such as automotive, aerospace, mold-making, and general machining. It is suitable for various applications, including:
| Specification Item | Unit | HMC63 | HMC500 | HMC500P | HMC630 | HMC630P |
|---|---|---|---|---|---|---|
| Workbench Pallet Type | - | Single pallet | Single pallet | Double pallets | Single pallet | Double pallets |
| Workbench size | mm | 630x630 | 500×600 | 500×600 | 630x700 | 630x700 |
| Max load-bearing capacity | kg | 1200 | 600 | 600 | 950 | 950 |
| Number of workbenches | - | 1 | 1 | 2 | 1 | 2 |
| Table form | mm | 24xM16 threaded hole | 24xM16 threaded hole | 24xM16 threaded hole | 24xM16 threaded hole | 24xM16 threaded hole |
| Spindle centerline to workbench distance | mm | 100 ~ 1000 | 120 ~ 870 | 0 ~ 750 | 120 ~ 870 | 0 ~ 750 |
| Workbench center to spindle end distance | mm | 50 ~ 1080 | 130 ~ 1030 | 130 ~ 1030 | 130 ~ 1030 | 130 ~ 1030 |
| Workpiece rotation diameter | mm | Φ1050 | Φ1380 | Φ950 | Φ1380 | Φ950 |
| Workbench indexing | - | 1° x360 | 1° x360 / 0.001° | 1° x360 / 0.001° | 1° x360 / 0.001° | 1° x360 / 0.001° |
| Platform replacement structure | - | / | / | turn type | / | turn type |
| Workbench exchange time | s | / | / | 35 | / | 35 |
| 3-Axis Stroke and Speed | ||||||
| Stroke (X/Y/Z) | mm | 1050/900/1030 | 1050/750/900 | 1050/750/900 | 1050/750/900 | 1050/750/900 |
| Fast Moving Distance (X/Y/Z) | m/min | 60/60/60 | 30/30/30 | 30/30/30 | 30/30/30 | 30/30/30 |
| B-axis fast movement speed | m/min | 11 | 10 | 10 | 10 | 10 |
| Spindle Specifications | ||||||
| Spindle power (basic configuration) | kw | 18.5-26 | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 |
| Maximum speed (basic configuration) | rpm | 8000 | 6000 | 6000 | 6000 | 6000 |
| Spindle taper hole | - | BT50 | BT50 | BT50 | BT50 | BT50 |
| Spindle inner diameter | mm | 100 | 100 | 100 | 100 | 100 |
| Positioning Accuracy | ||||||
| Positioning accuracy | mm | 0.01 (entire process) | 0.01 (entire process) | 0.01 (entire process) | 0.01 (entire process) | 0.01 (entire process) |
| Repetitive positioning accuracy | mm | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 |
| B-axis indexing accuracy | - | 6″ | 10″ | 10″ | 10″ | 10″ |
| B-axis repeated indexing accuracy | - | 1″ | 5″ | 5″ | 5″ | 5″ |
| Tool Magazine & Dimensions | ||||||
| Tool magazine capacity | T | 40 | 24 | 24 | 24 | 24 |
| Tool selection method | - | Two-way arbitrary | Two-way arbitrary | Two-way arbitrary | Two-way arbitrary | Two-way arbitrary |
| Tool change time | s | 2.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Length * width * height | mm | 6485x3865x3300 | 4800×3700×2850 | 6600×4300×2850 | 4800×3700×2800 | 6600×4300×2850 |
| Machine weight | kg | 18200 | 11000 | 13000 | 12000 | 14000 |

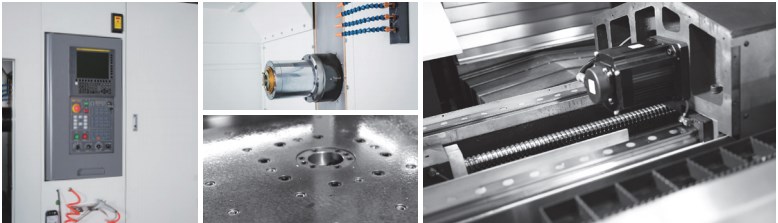

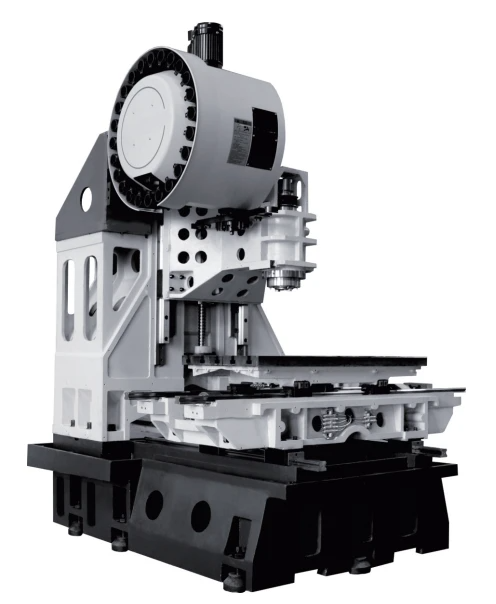

X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped). Suitable for machine tools with heavy cutting loading. Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box / linear guideway.

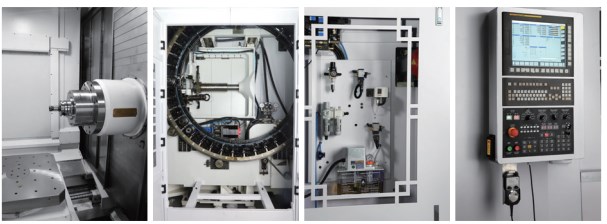

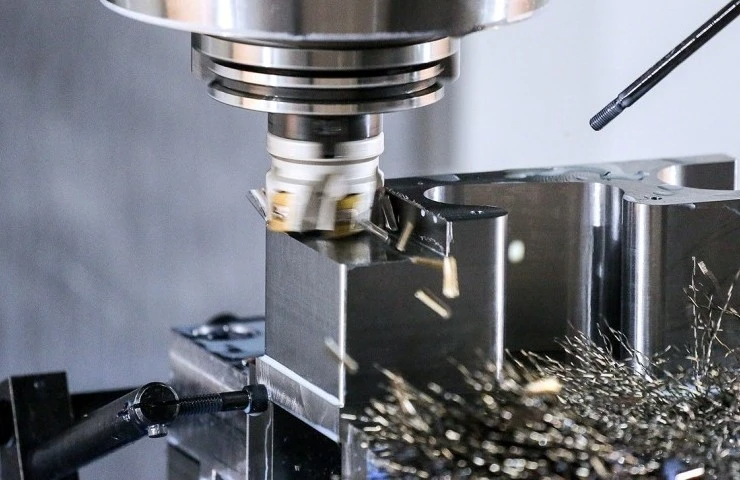

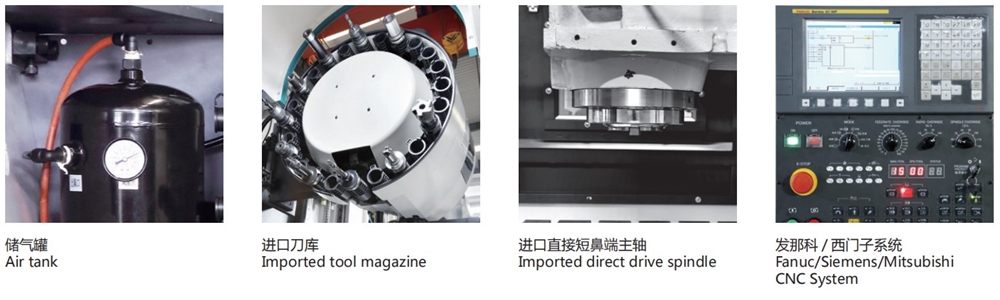

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm. Features a 15/18.5Kw large power motor with high torque of 143Nm. Ultralight spindle headstock and Z axis with counter balance block design.

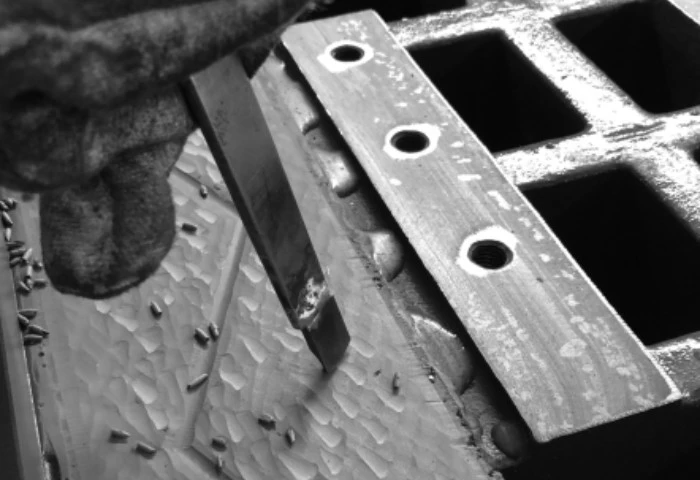

Manual scraping is meticulously used on the main joint surfaces to ensure an effective contact area, enhancing precision retention and assembly quality.

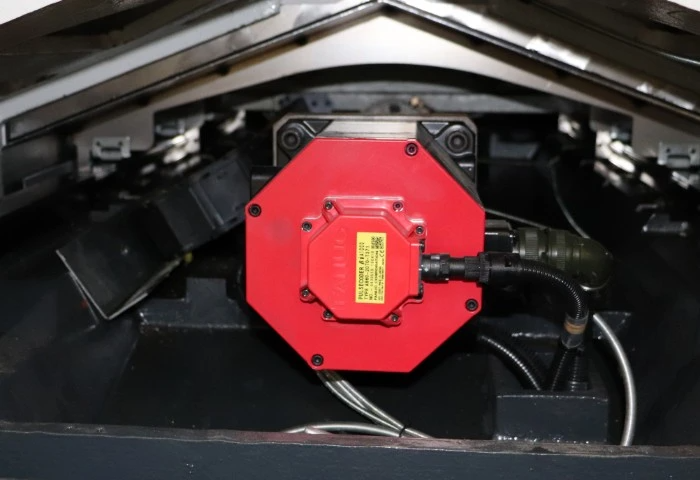

The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy. All servo motors are equipped with absolute encoders to increase efficiency and reliability. The three-axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy.

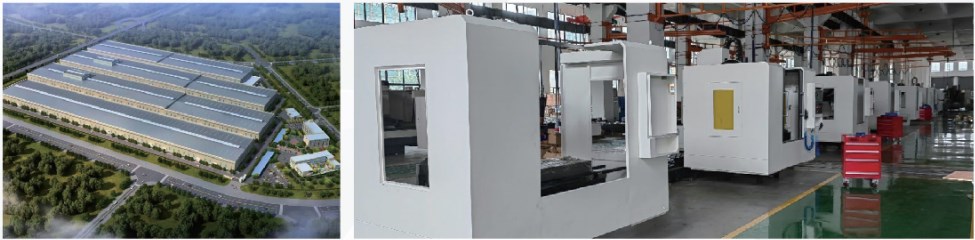

The manufacturing facility is a leading provider of CNC machine tools and intelligent equipment. With advanced CNC machine tool production bases equipped with complete casting production lines, intelligent machine tool assembly lines, and high-end testing equipment, the factory provides high-quality CNC solutions for the industry.
Integrating and optimizing the industrial chain, the facility offers intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services to empower modern enterprises.
We provide customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

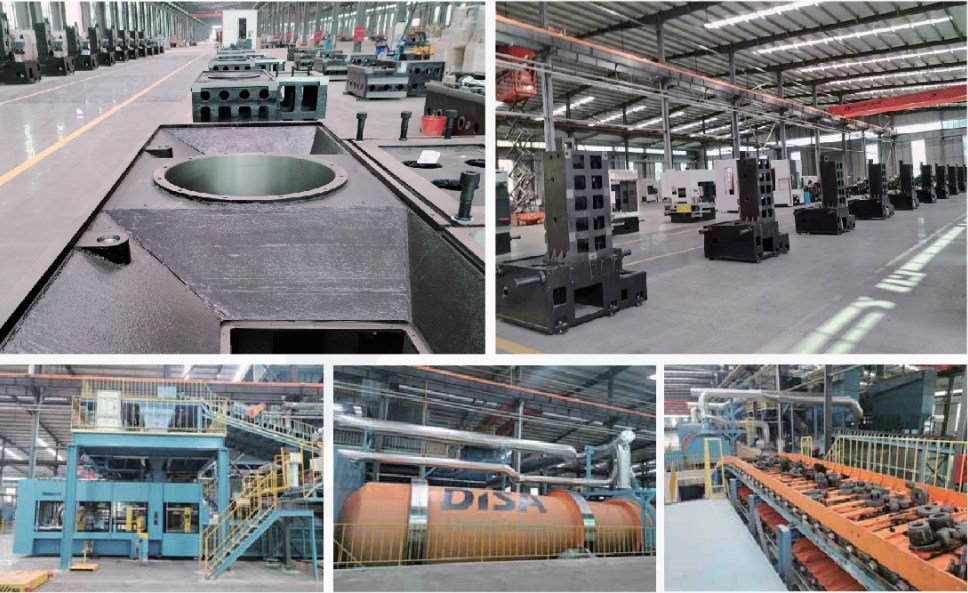

The facility has industry-leading casting production lines such as vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300,000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging, and final assembly to warehousing and distribution.

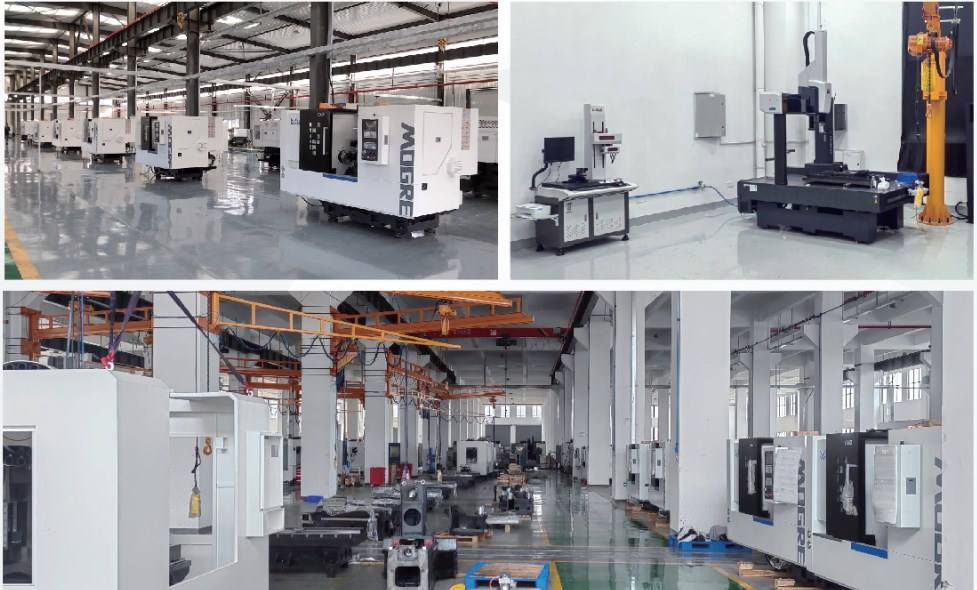

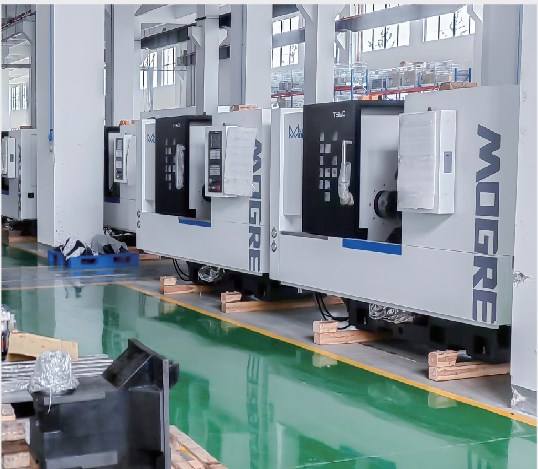

We feature advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as high-performance coordinate measuring machines, profilometers, and laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
