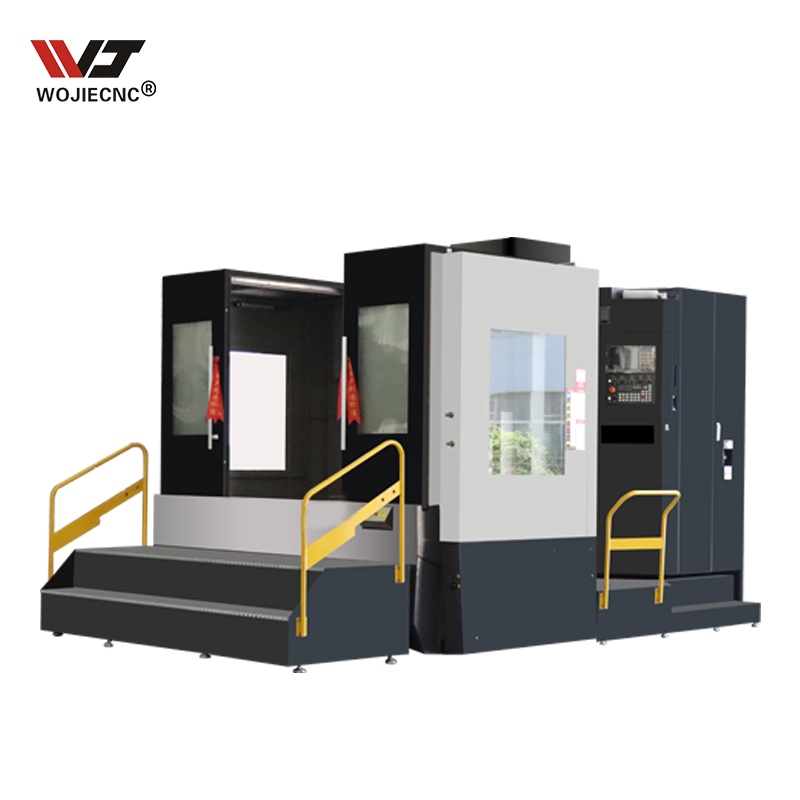

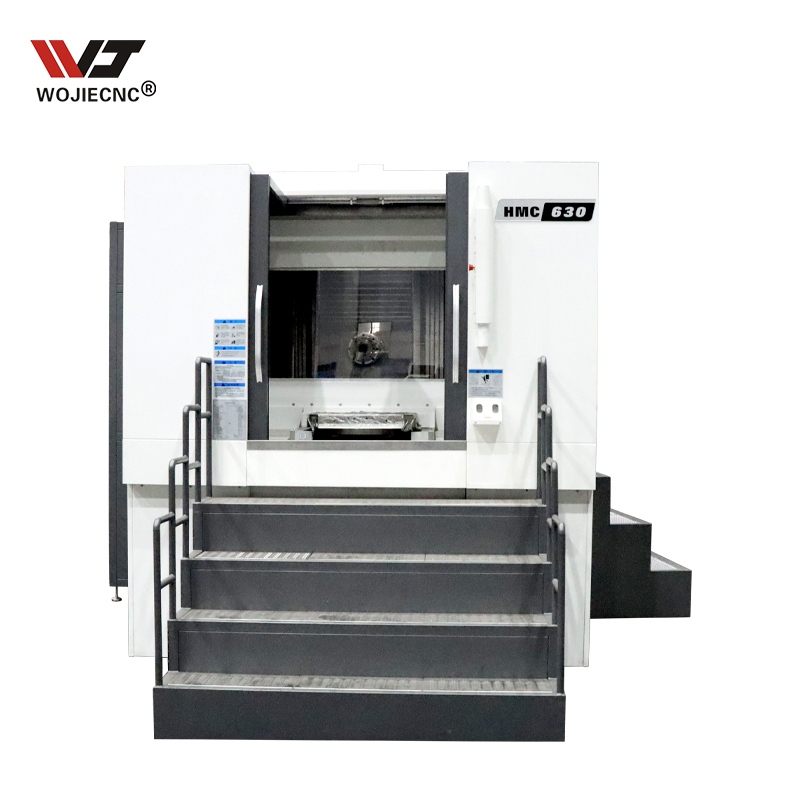

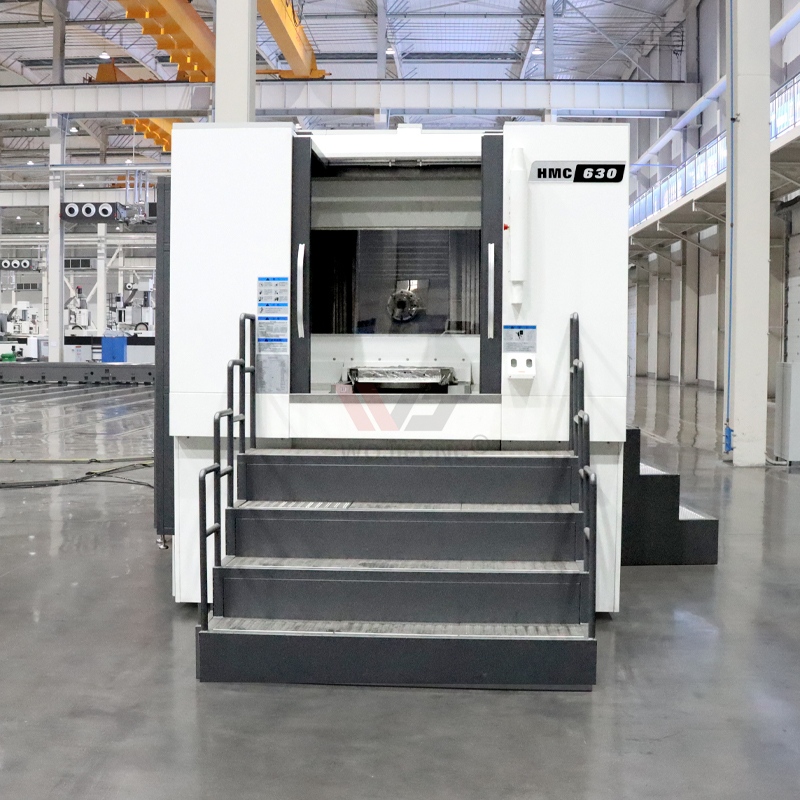

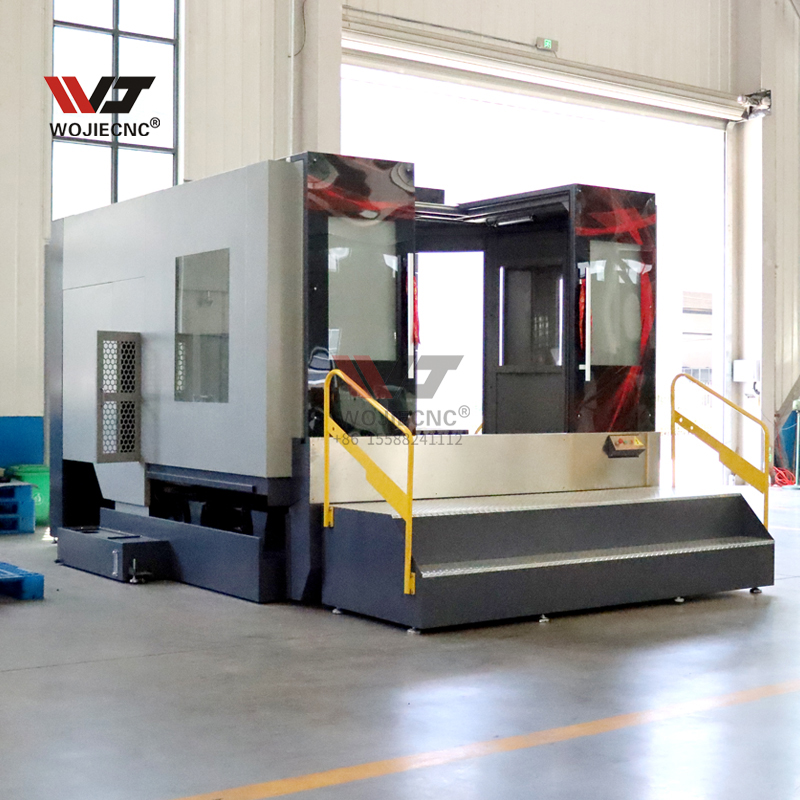

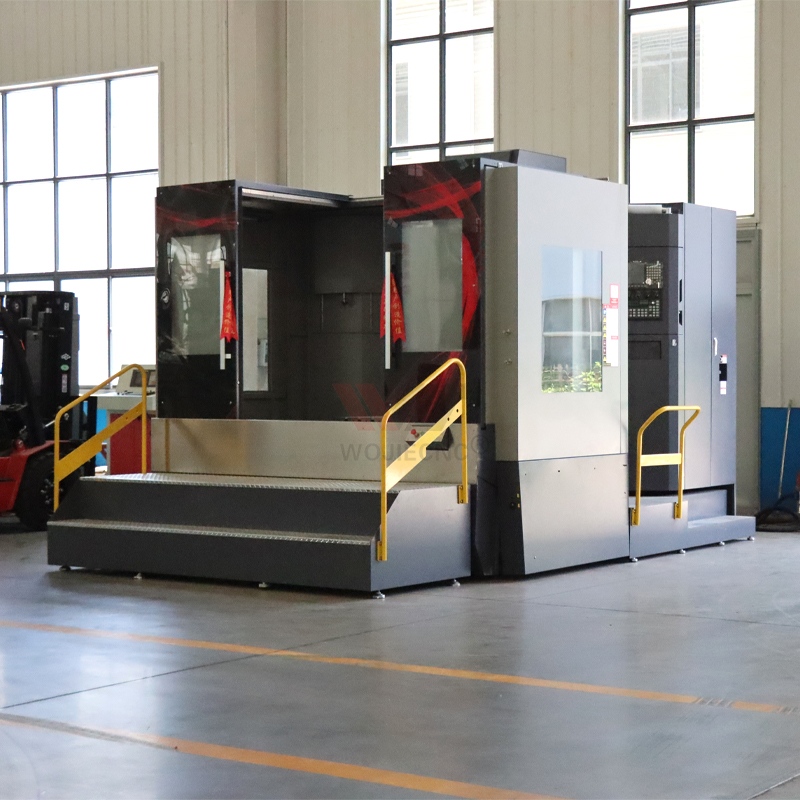

HMC Series CNC horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries. The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
| Model | HMC500 | HMC630 | HMC800 |
| TRAVEL | |||
| X-axis | 800mm | 1100mm | 1300mm |
| Y axis (spindle box lifting) | 650mm | 800mm | 900mm |
| Z axis (column moves forward and backward) | 800mm | 900mm | 1100mm |
| Distance from spindle end face to worktable center | 150-950mm | 145-1045mm | 255-1355mm |
| Distance from spindle center to worktable | 100-750mm | 20-820mm | 30-930mm |
| Feed | |||
| X-axis rapid movement | 24m/min | 24m/min | 20m/min |
| Y axis rapid movement | 20m/min | 20m/min | 20m/min |
| Z axis rapid movement | 20m/min | 20m/min | 20m/min |
| cutting feed | 1-10m/min | 1-10m/min | 1-10m/min |
| Three-axis screw (C3 level grinding) | 4012/5012/4012 | 5012/5012/5012 | 5012/5012/5012 |
| Three-axis linear rail (roller) | 45 /45 /45 | 45/45/45 | 55/55/55 |
| Three-axis servo motor torque (new generation) | 15/28B/28 N.m | 18/28B/28 N.m | 28/35B/35 N.m |
| Three-axis servo motor torque (FANUC) | βiS30/30B/30 | βiS30/30B/30 | βiS40/40B/40 |
| Turntable servo motor torque (new generation) | 15N.m | 18N.m | 28N.m |
| Turntable servo motor torque (FANUC) | βiS12 | βiS22 | βiS22 |
| Worktable | |||
| Workbench area | 500×500mm | 630×630mm | 800×800mm |
| weight capacity | 600Kg | 1500Kg | 2500Kg |
| Minimum segmentation accuracy | One degree per degree/thousandth of a degree | One degree per degree/thousandth of a degree | once a minute |
| T-slot | 5×18×100mm | 5×18×125mm | 5×22×160mm |
| Spindle | |||
| Standard configuration | Belt type BT40-150 | Belt type BT40-150 | Belt type BT40-150 |
| Rotating speed | 8000 rpm | 8000 rpm | 8000 rpm |
| Spindle taper hole | BT40 | BT40 | BT40 |
| Main motor power (new generation) | 11KW | 15KW | 23KW |
| Main motor power (FANUC) | βil12/10000 | βil15/8000 | βilP30/6000 |
| Accuracy | |||
| Positioning accuracy (JIS standard) | ±0.005/300mm | ±0.005/300mm | ±0.005/300mm |
| Repeat positioning accuracy (JIS standard) | ±0.004mm | ±0.004mm | ±0.005mm |
| Other | |||
| weight | 9000Kg | 11000Kg | 14500Kg |
| Overall dimensions (including pedals) | 3340×4480×2700mm | 3600×4680×2800mm | 4400×5400×3500mm |
A: T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready, we will take pictures for you. After we get your balance payment, we will send the machine to you.
A: FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, etc. It depends on your choice.
A: If the machine you order is a standard model, we can have it ready within 15 days. Special customized machines will take longer. The shipping time is about 30 days to Europe and America. If you are from Australia or Asia, the transit time will be shorter.
A: FOB, CFR, CIF or other terms are all acceptable.
A: The MOQ is 1 set, and the warranty period is one year. However, we will offer lifetime service for all our machines.
A: Standard machines will be securely packed in strong plywood cases.
