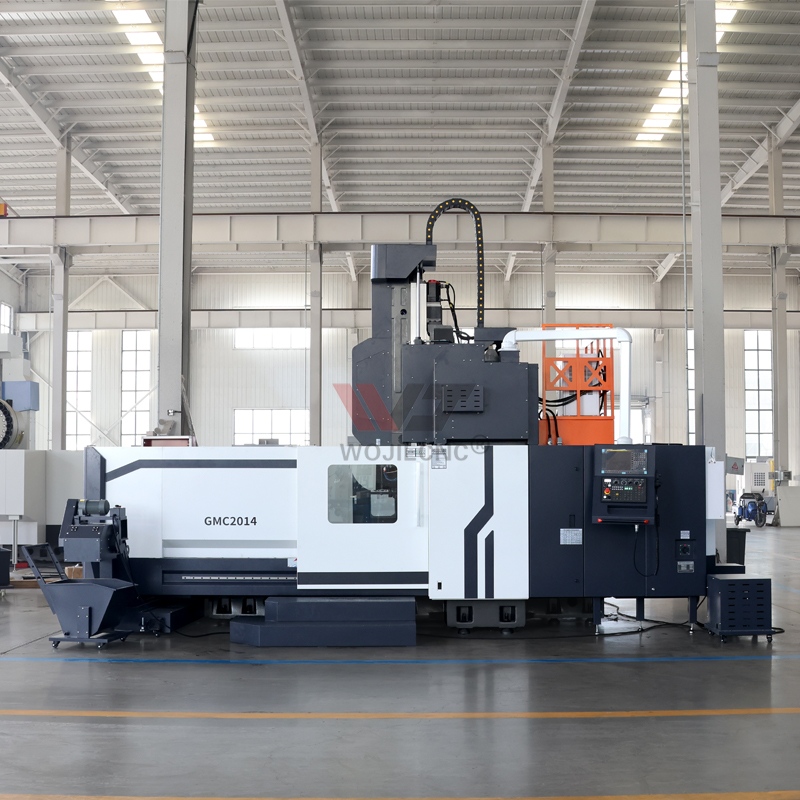

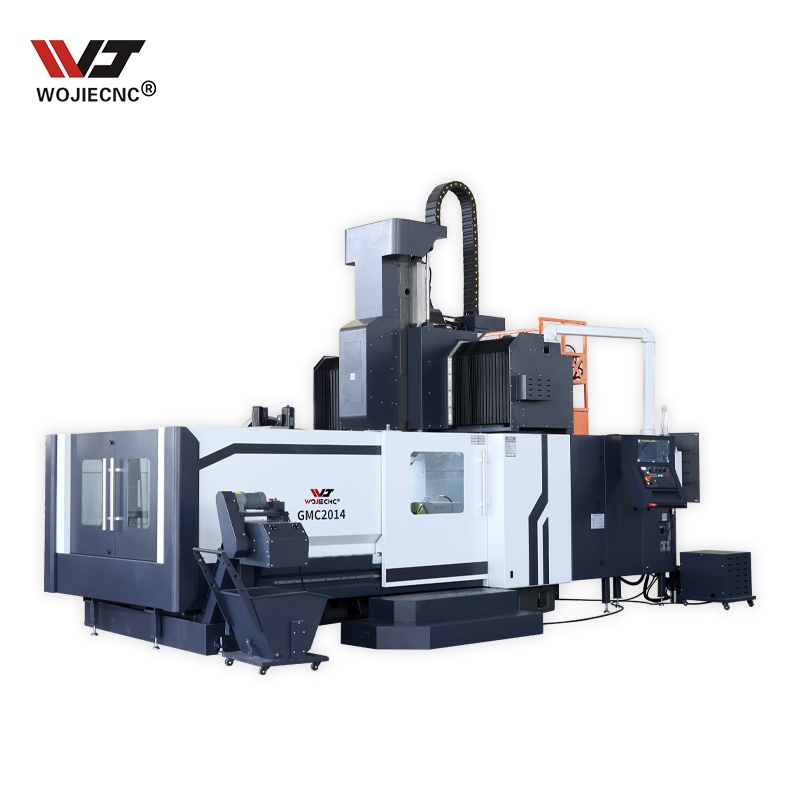

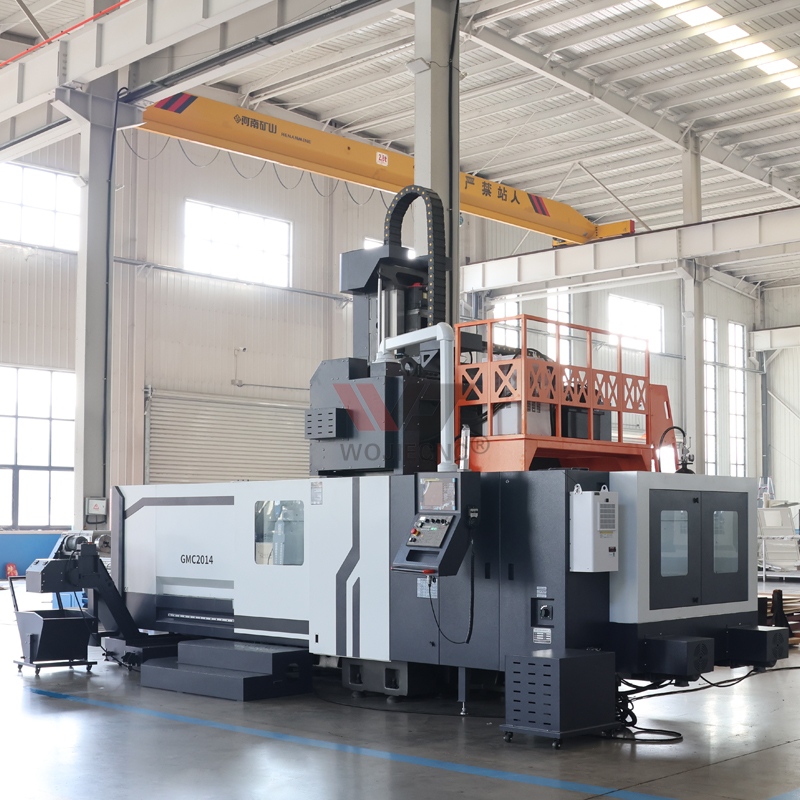

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
| Item | Unit | GMC2014 | |
|---|---|---|---|
| Workbench | Workbench size | mm | 2100*1200 |
| Workbench load | Tons | 4.5 | |
| T-slot width | mm | 7*22*170 | |
| Processing range | X-axis travel | mm | 2000 |
| Y-axis travel | mm | 1500 | |
| Z-axis travel | mm | 800 | |
| Gantry wide | mm | 1500 | |
| Gantry high | mm | 1030 | |
| Distance from spindle end to worktable | mm | 150-950 | |
| Spindle | Spindle taper | BT40 | |
| Speed range | rpm | 12000 | |
| Feed | Cutting feed speed range | m/min | 7 |
| X-axis rapid movement | m/min | 15 | |
| Y-axis rapid movement | m/min | 15 | |
| Z-axis rapid movement | m/min | 10 | |
| System | FANUC | ||
| Motor | Main motor | Kw | 15/18.5 |
| Accessories | Three-axis guide rail specifications (XYZ) | X/Y axis 55# roller linear rails | |
| Z axis rectangular rails | |||
| Accuracy | Positioning accuracy (JIS standard) | mm | ±0.005/300 |
| Repeat positioning accuracy (JIS standard) | mm | ±0.005 | |
| Machine size | mm | 6100*3400*3300 | |
| Machine weight | T | 12 | |
Standard configuration: GSK
Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubishi
1. Taiwan OKADA arm 24 tool magazine.
2. Tool change time only 2-3 seconds.
Standard configuration: BT40-8000 rpm/ BT50-6000 rpm
Optional configuration: 10000/12000/15000/24000rpm
High-frequency quenching for better rigidity.
Standard configuration: 1*Chain chip conveyor
Standard Configuration: 2*Spiral chip conveyor
3-axis linear guide using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.

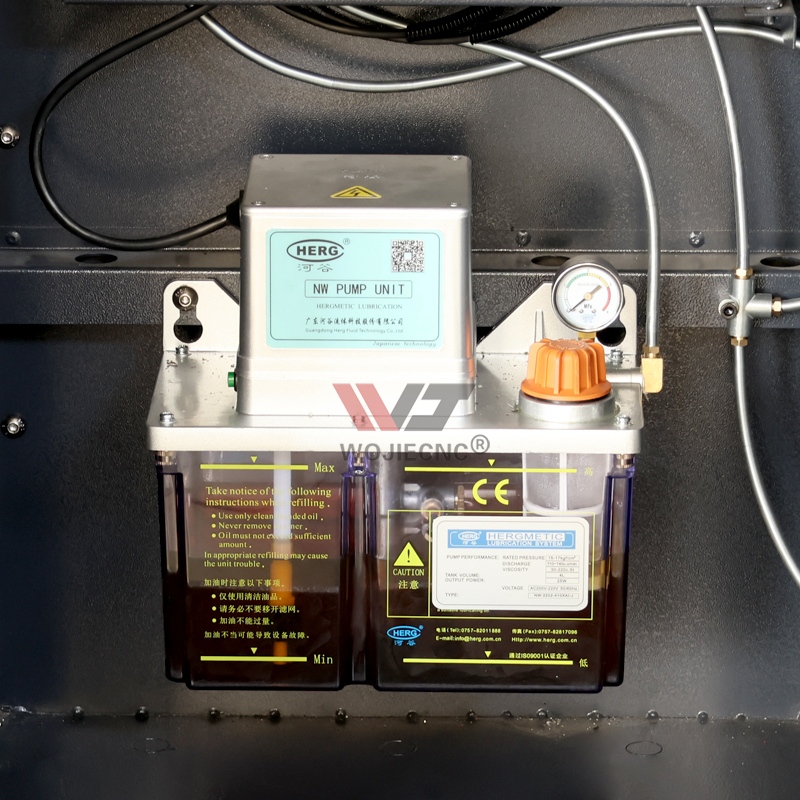

Automatic centralized lubrication device
Standard with AirTAC Pneumatic Components
Standard configuration: Electrical cabinet heat exchanger
Optional configuration: Electrical cabinet air conditioner
Standard configuration: DELIX
T/T, 30% initial payment when ordered, 70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start production. When the machine is ready, we will take pictures for you. After we get your balance payment, we will dispatch the machine.
We are a professional machine tool manufacturer with many years of experience. We mainly produce CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc. Our production carries ISO, CE, and professional quality inspection certificates.
If the machine you order is a standard machine, we can have it ready within 15 days. Special machines may take longer. Shipping time is about 30 days to Europe and America. If you are from Australia or Asia, it will be shorter. You can place your order according to the delivery and shipping schedules.
FOB, CFR, CIF, or other terms are all acceptable.
The MOQ is one set, and the warranty is one year. However, we offer lifetime service support for the machine.
Standard machines are securely packed in heavy-duty plywood cases for safe transit.
