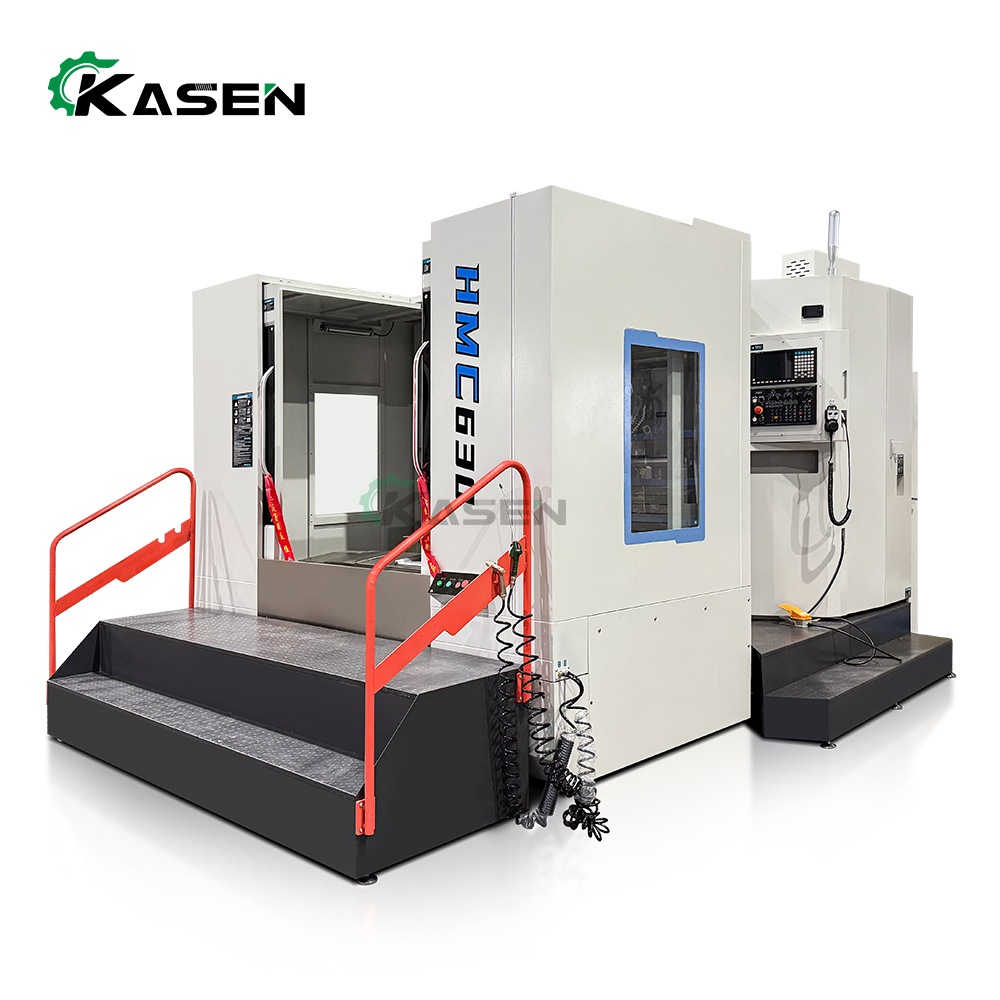

User-Friendly HMC CNC Machine Center HMC800 HMC630 Horizontal Machining Center 3/4/5 Axis Good Performance CNC Milling
Horizontal Machining Center Performance Characteristics

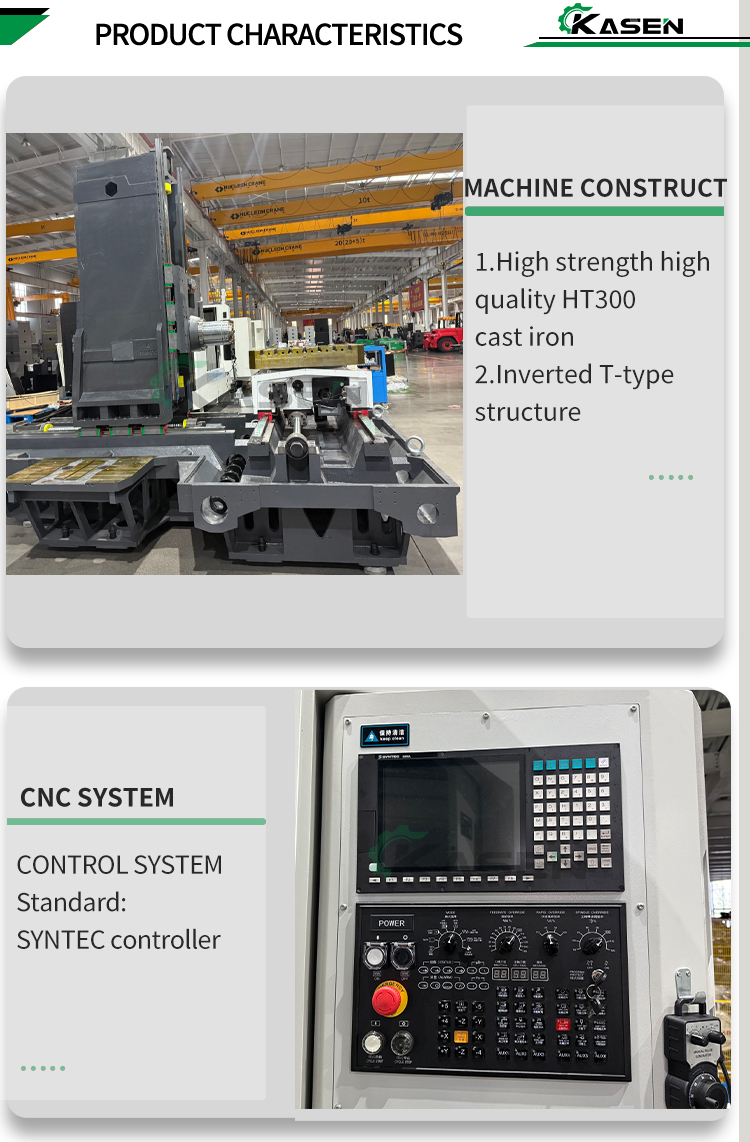

The base adopts the popular inverted "T" type layout, and the overall structure is rigid. The whole stroke does not produce a subversive moment.
The base casting is machined with high-precision five-sided gantry, which can complete five sided milling, drilling and tapping in one setup, reducing the clamping error and improving the machining accuracy.
The lead screw adopts a group of 60° angular contact ball bearings, double support and pre-stretching to ensure the transmission precision roller guide rail, which can withstand heavy load cutting and has good shock absorption.

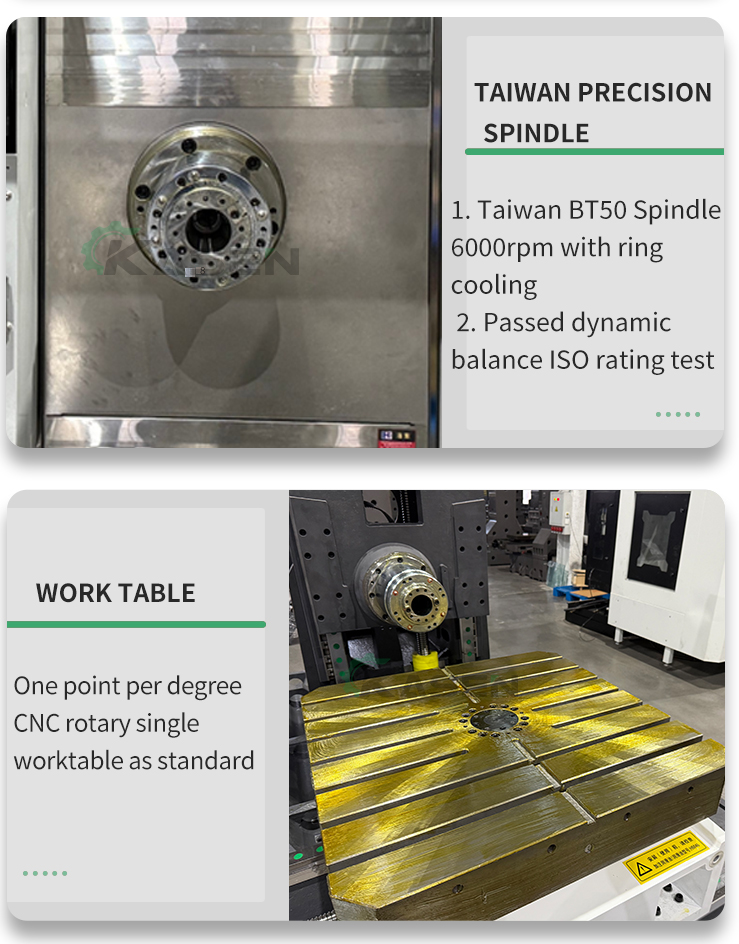

Adopt high-precision spindle with spindle air curtain protection device to ensure stable spindle accuracy and long life.
Adhering to the "Best Machine" purposes, We provides better quality machines more efficient and thoughtful after-sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
Frequently Asked Questions (FAQ)
What are the benefits of the inverted "T" layout base?
The inverted "T" type layout provides a highly rigid structural design. This setup ensures that the machine does not produce a subversive moment throughout the entire stroke, maintaining high stability during heavy-duty cutting operations.
How does the five-sided gantry machining process improve base quality?
The base casting is machined in a single setup using a high-precision five-sided gantry. By completing the milling, drilling, and tapping processes in one setup, clamping errors are significantly reduced, which directly improves final machining accuracy.
What type of spindle protection is equipped on these machining centers?
These machines are equipped with a high-precision spindle featuring an air curtain protection device. This setup prevents contaminants like dust and coolant from entering, ensuring stable spindle accuracy and extending the spindle's service life.
What options are available for the worktable configuration?

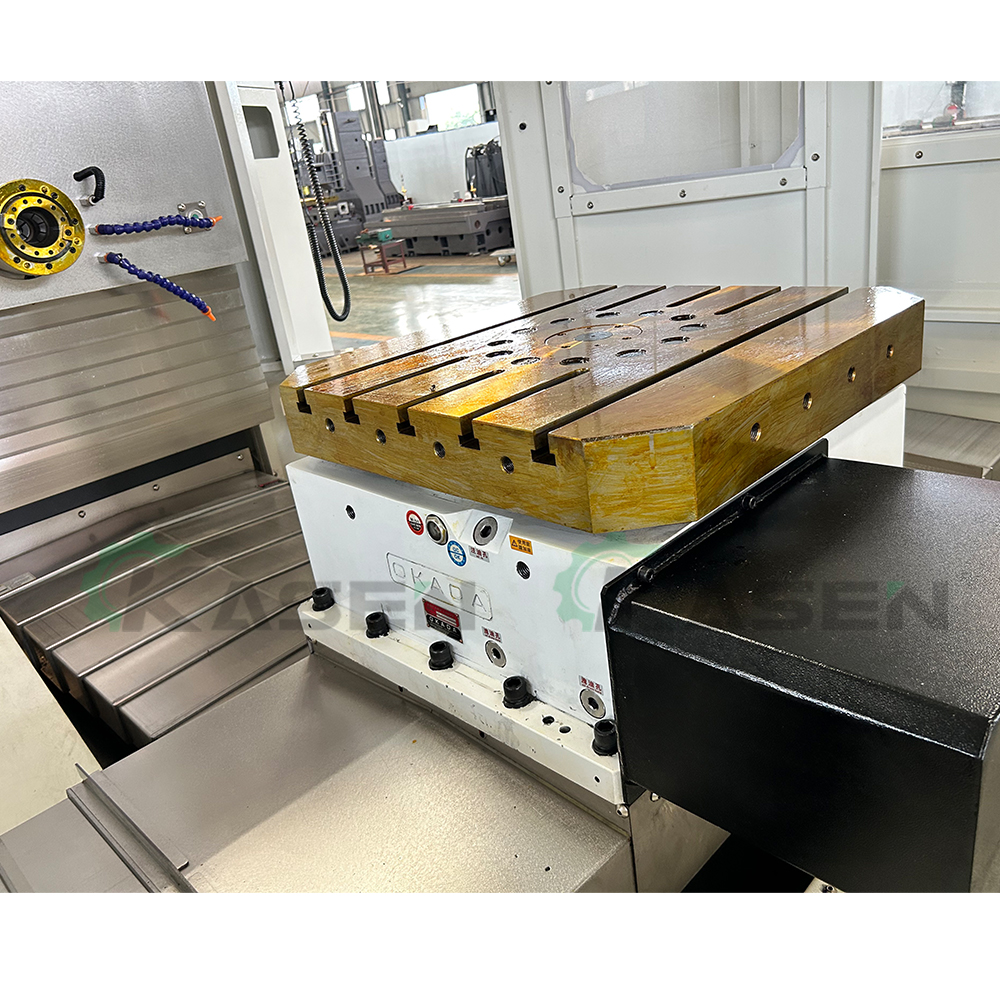

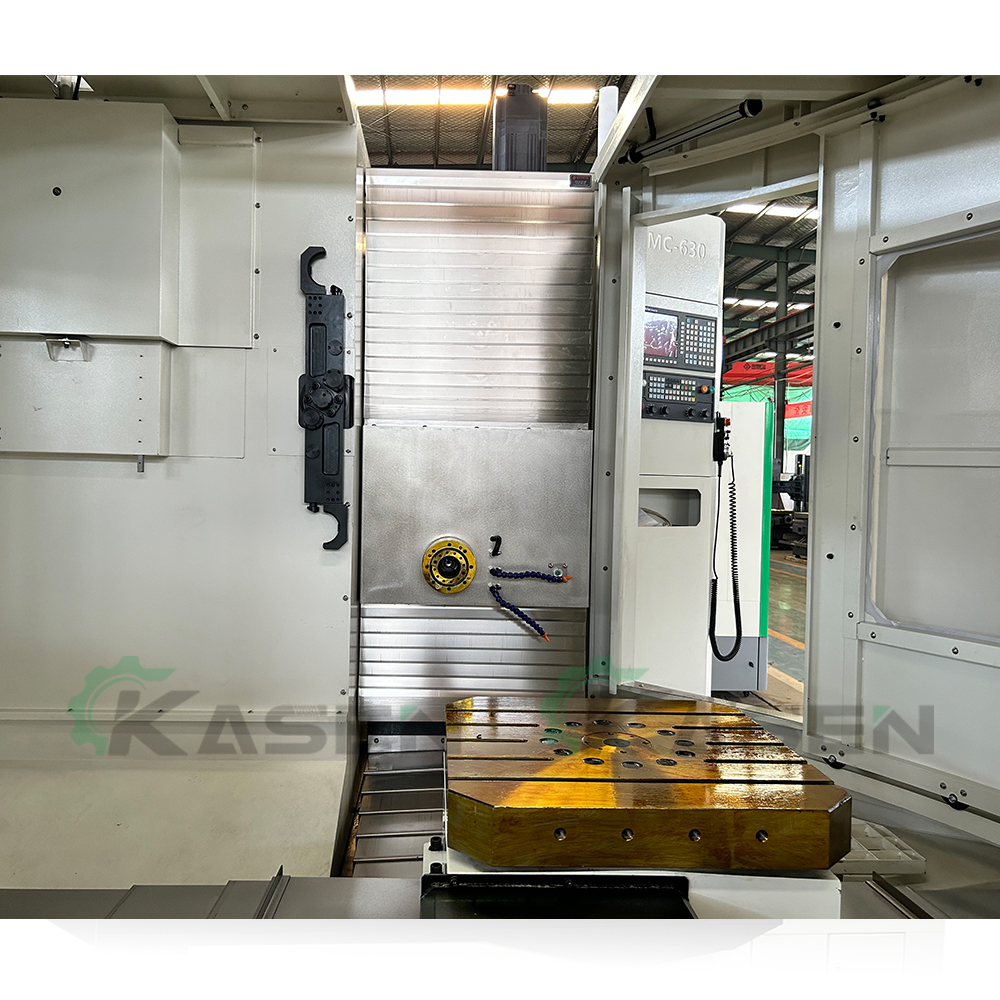

Depending on your specific machining requirements, you can choose from optional configurations such as a CNC rotary table, indexing table, or an exchange table for optimized loading and unloading efficiency.
How does the lead screw configuration ensure precision?
The lead screw utilizes a specialized group of 60° angular contact ball bearings along with double support and pre-stretching. This design guarantees transmission precision on the roller guide rail, offering excellent shock absorption and resistance to heavy cutting loads.
What are the differences in worktable load capacity among the models?
The HMC630 supports a maximum worktable load of 800 kg. For heavier components, the HMC800 and HMC1000 models both support a maximum load capacity of 1500 kg.
