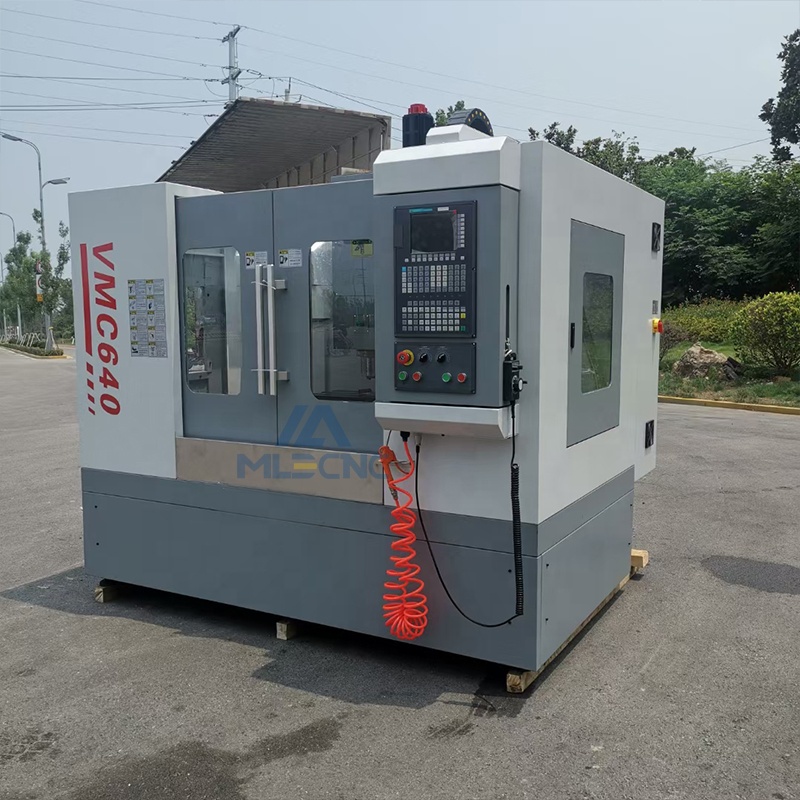

| Specifications | Units | VMC640 | VMC650 |
|---|---|---|---|
| Table size | mm | 800x300 | 800x400 |
| X axis travel | mm | 600 | 650 |
| Y axis travel | mm | 360 | 400 |
| Z axis travel | mm | 450 | 500 |
| Max. worktable load | kg | 300 | 400 |
| T slot (number-width-pitch) | 3-16x110 | 3-18x125 | |

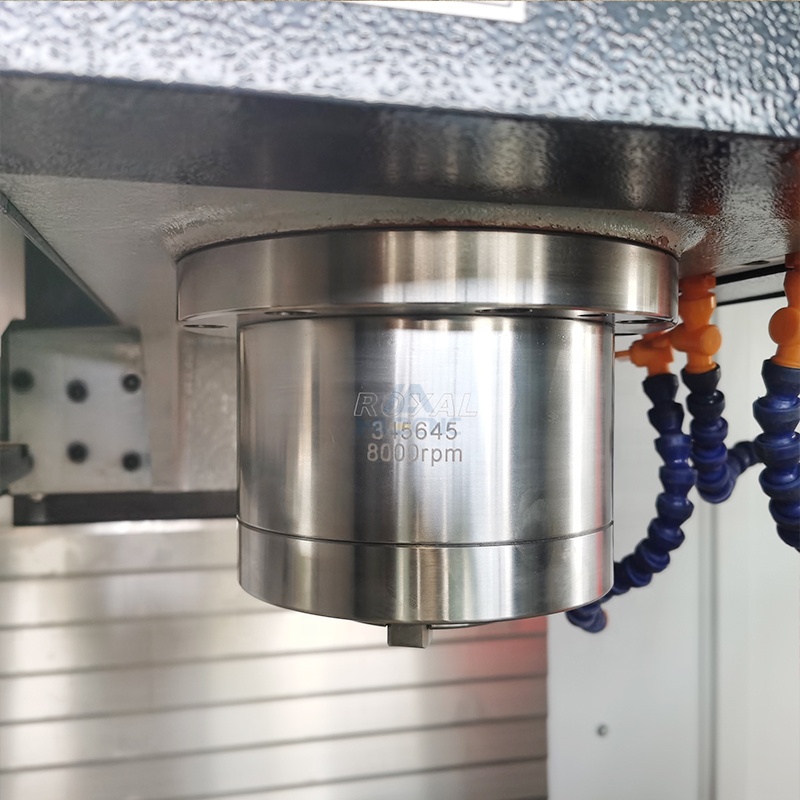

| Max. spindle speed | rpm | 8000 (Optional: 10000) | 8000 (Optional: 10000) |
| Spindle taper | mm | BT40 | BT40 |
| Main motor power | kw | 5.5 | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional: 48/48/36) | 24/24/20 (Optional: 48/48/36) |
| Cutting feed speed | mm/min | 1-10000 | 1-10000 |
| Guide rail type | Linear rail | Linear rail | |
| Distance from spindle axis to column surface | mm | 410 | 469 |
| Distance between spindle nose and worktable surface | mm | 100-550 | 100-600 |
| Positioning accuracy | mm | ±0.0075 | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 |

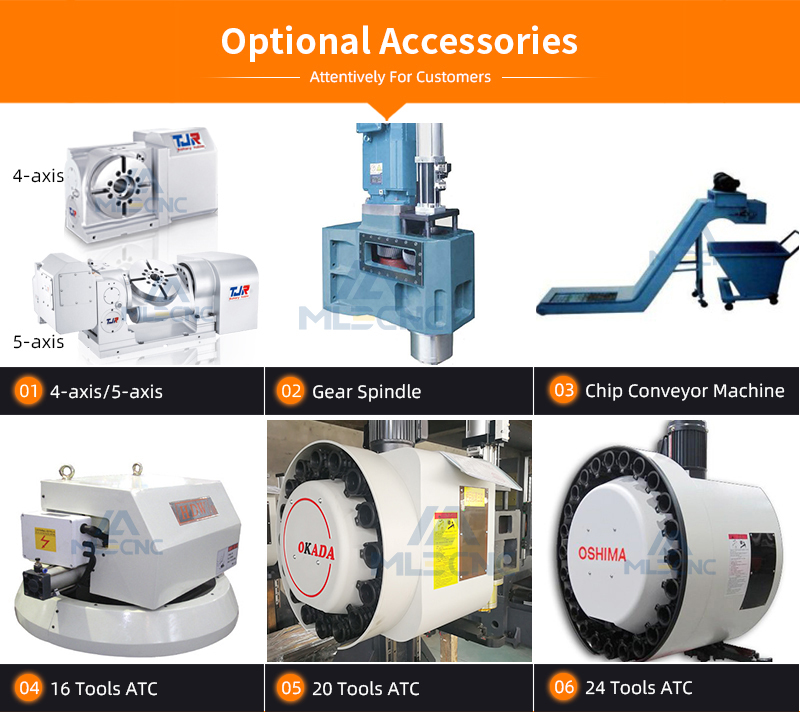

| Tool magazine | 16 Armless (Optional: Arm 24) | 16 Armless (Optional: Arm 24) | |
| Max. tool diameter | mm | φ90 | φ90 |
| Max. tool weight | kg | 8 | 8 |
| Machine weight | kg | 3000 | 4000 |
| Overall dimension | mm | 1900x1700x2100 | 2400x2000x2550 |
We are a professional manufacturer. Our main products are: CNC lathe machine, CNC milling Machine, Vertical Machining Center, Lathe Machine, Milling Machine, Drilling Machine, CNC Plasma Cutting Machine, CNC Machining Center and other metal cutting machine tools. All our products have passed CE, ISO, SGS, and TUV certificates.
We have rich experience in manufacturing and exporting. Our CNC machine tools are exported to Europe, America, Southeast Asia, and other countries and regions. Our technicians can answer your technical questions and, in many cases, resolve them effectively over the phone. In order to provide the best service to customers, we will try our best to give feedback within 24 hours of your request. We follow the "customer first, forge ahead" concept to provide our customers with quality service. Common development, win-win!
When you contact us, a knowledgeable English-speaking sales engineer will be in contact to answer your questions and, in many cases, solve your problem effectively over the phone. In order to provide customers with the best service, whatever your requests—including spare parts posting, quality modifications, price inquiries, or delivery time checks—we will do our best to provide feedback within 24 hours.
