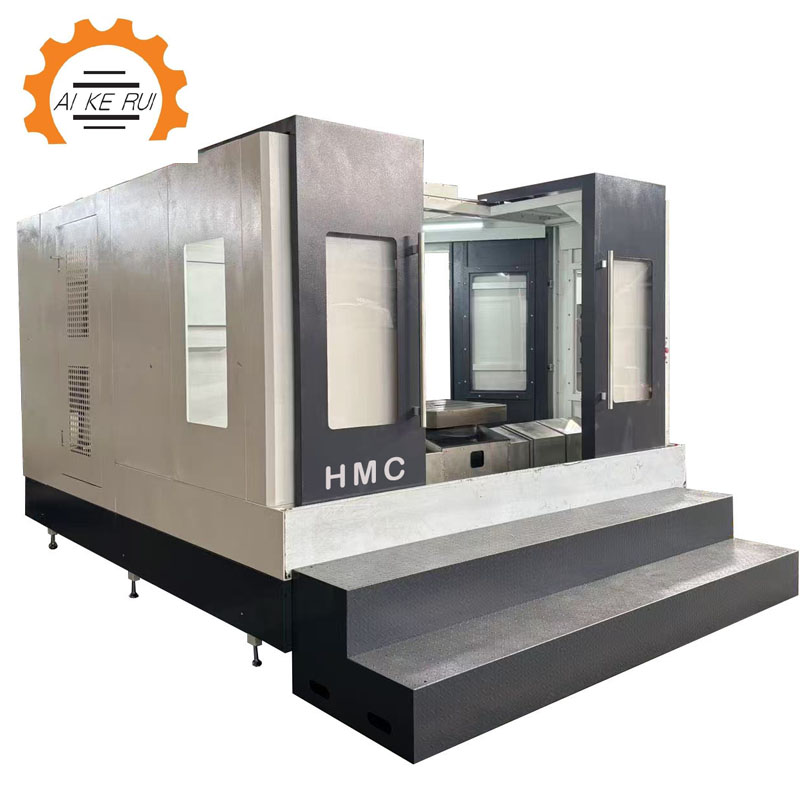

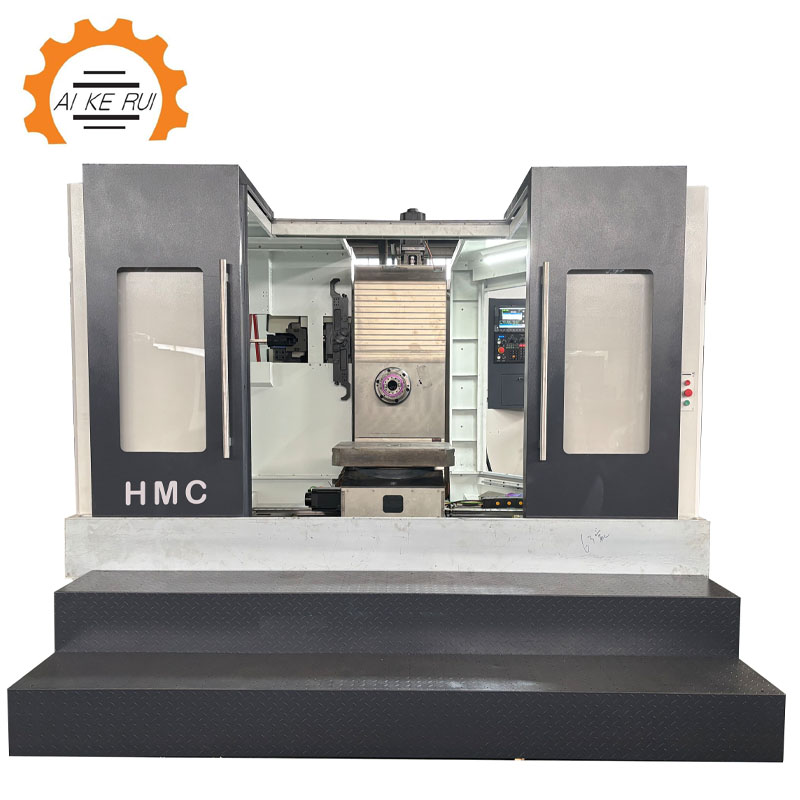

| Specifications | Unit | HMC630 |

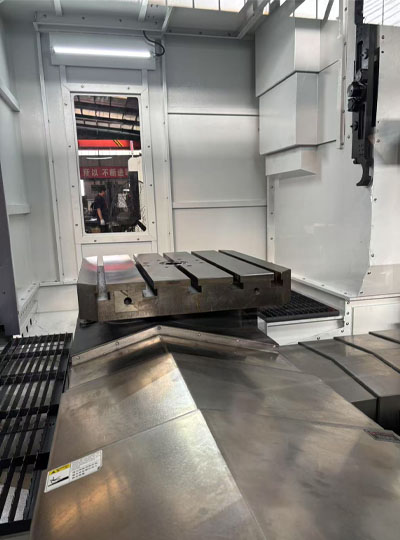

| Table size | mm | 630x630 |
| Table maximum load | kg | 1200 |
| X/Y/Z axis travel | mm | 1050x900x1100 |
| Distance between spindle center and column guide surface | mm | 100-1000 |
| Distance between spindle end face and worktable surface | mm | 120-1220 |
| X/Y/Z Max. feed speed | mm/min | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 24/24/24 |
| The spindle maximum speed | r/min | 6000 |
| The spindle taper hole | type | BT50 |
| Spindle motor | kw | 15 |
| X/Y/Z Guide way type | - | Roller linear guide |
| The workbench T slot | mm | 5-18x100 |
| Repeat positioning accuracy | mm | ±0.01 |

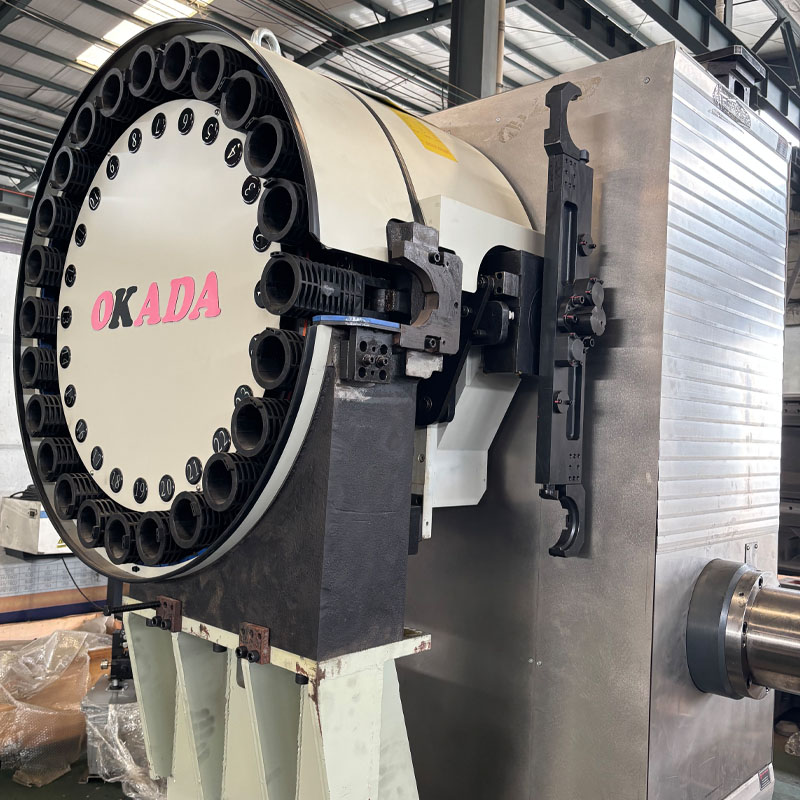

| Tool capacity | - | 24 |
| Maximum tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Machine dimension (L×W×H) | mm | 4200×4500×3100 |
| Net. weight (about) | kg | 10000 |
