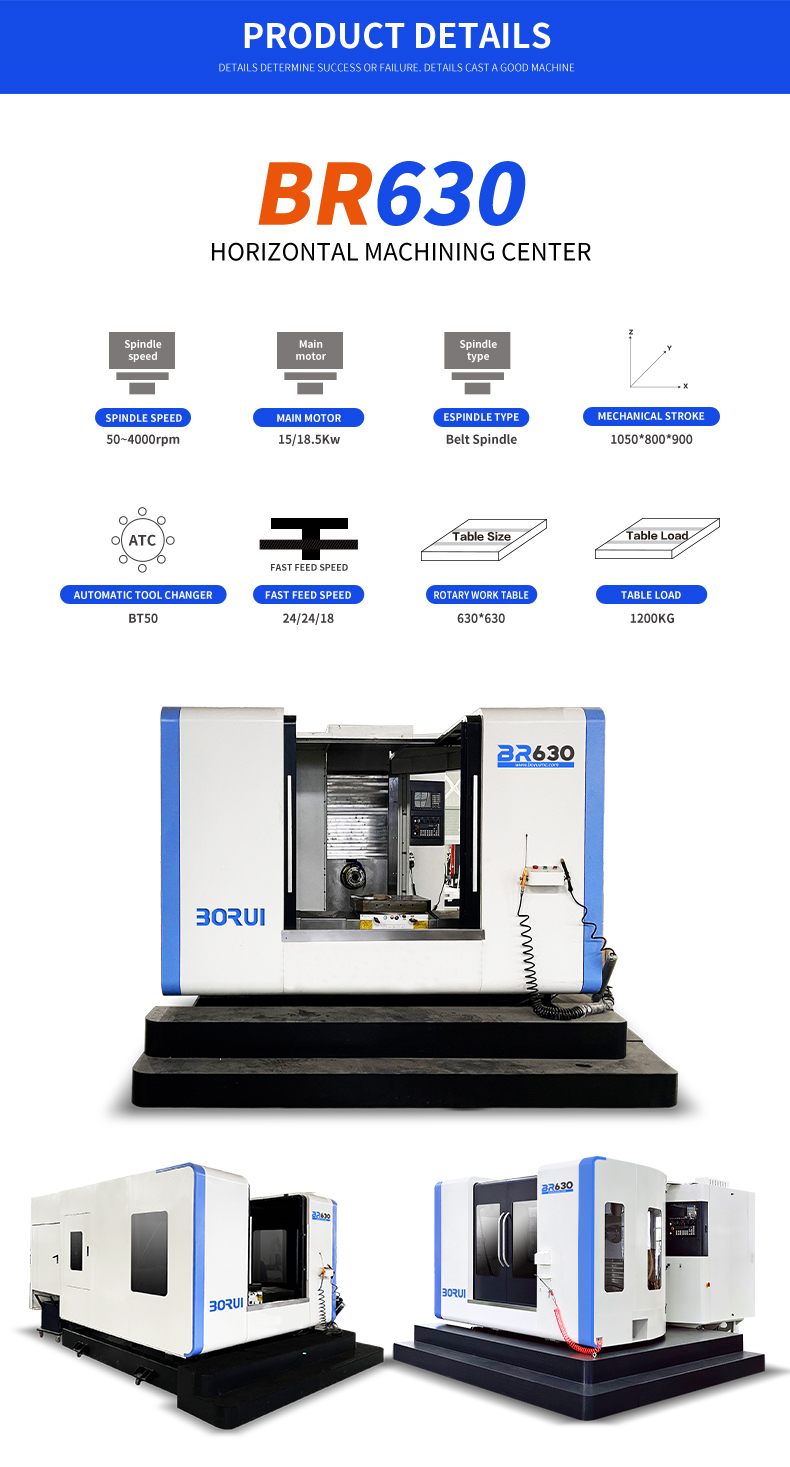

| Description | Unit | VMC630 (Optional double station) |
|---|---|---|
| Table size | mm | 630*630 |
| Table loading | kg | 1200 |
| maximum dimensions of workpiece | mm | 1000×900 |
| Distance from countertop to bottom | mm | 1130 |
| X-axis travel | mm | 1050 |
| Y-axis travel | mm | 800 |
| Z-axis travel | mm | 900 |
| Worktable center to spindle end face | mm | 120~1020 |
| Table surface to spindle center | mm | 80~880 |
| Spindle speed | rpm | 50～4000(Belt 1:2 deceleration) |
| spindle motor | kw | 15/18.5KW |
| Spindle speed change | - | stepless speed |
| taper hole of spindle | - | BT50 |
| Fast feed speed | m/min | Xã€Z:24, Y:18 |
| Feed cutting speed | m/min | 10 |
| positional accuracy | mm | 0.012 |
| repeated positioning accuracy | mm | 0.008 |
| B axis positioning accuracy | - | ±6 |
| B axis repeated positioning accuracy | - | ±2 |
| lead screw | - | X/Y:φ4012 Z:φ5012 |
| guide rail | - | X/Y:45 rollers Z:55 rollers |
| Machine size | mm | 3000×4200×3500 |
| weight | t | 7.8 |
| Ball screw accuracy | C3 grade | - |
| Ball screw diameter x.y.z | mm | 63/50/50 |
| Three-axis lead | mm | 10/12 |
| Motor connection | Direct | - |
| Number of bearings at both ends | Pcs | 6/5/5 |
| Three-axis motor | ||
| x zaxis motor | N.m | 2000 |
| y zaxis motor | N.m | 2000 |
| z zaxis motor (nitrogen balance) | N.m | 2000 (Brake ) |
| Feed rate | ||
| x axis rapid feed rate | mm/min | 15000 |
| Y axis rapid feed rate | mm/min | 15000 |
| Z axis rapid feed rate | mm/min | 12000 |
| Three-axis cutting feed rate | mm/min | 0-10000 |
| Tool (Optional) | ||
| Max. tool length | mm | 300 |
| Max. tool dia | mm | Ø200 |
| Max. tool weight | kg | 15 |
| Tool specification | - | BT50 |
| Tool change time | second | 4 |
| Factory precision | ||
| Positioning | mm | 0.010/1000 |
| Repeat positioning | mm | 0.006/1000 |
| Least input increment | mm | 0.001 |
| Other | ||
| Power Capacity | KVA | 45 |
| Net weight | t | 15 |
| Packing dimensions(L x W x H) | mm | 6000x3000x3500 |
