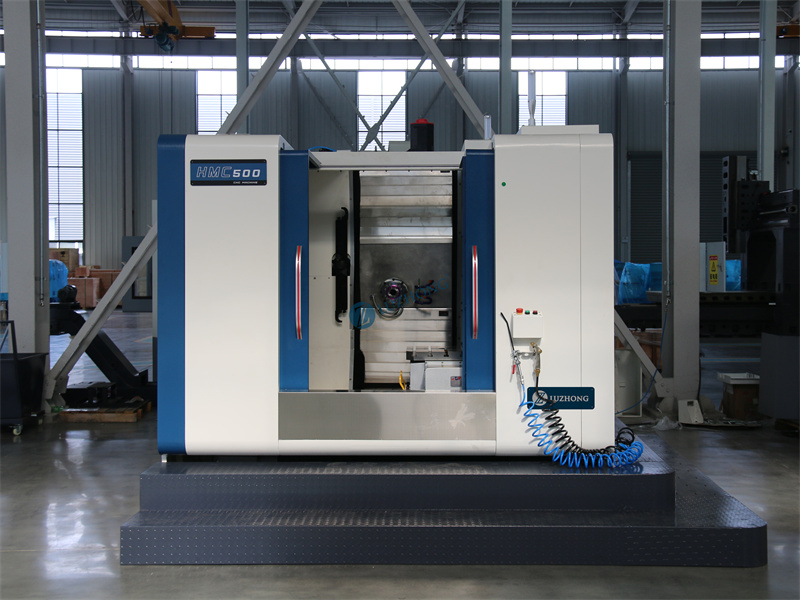

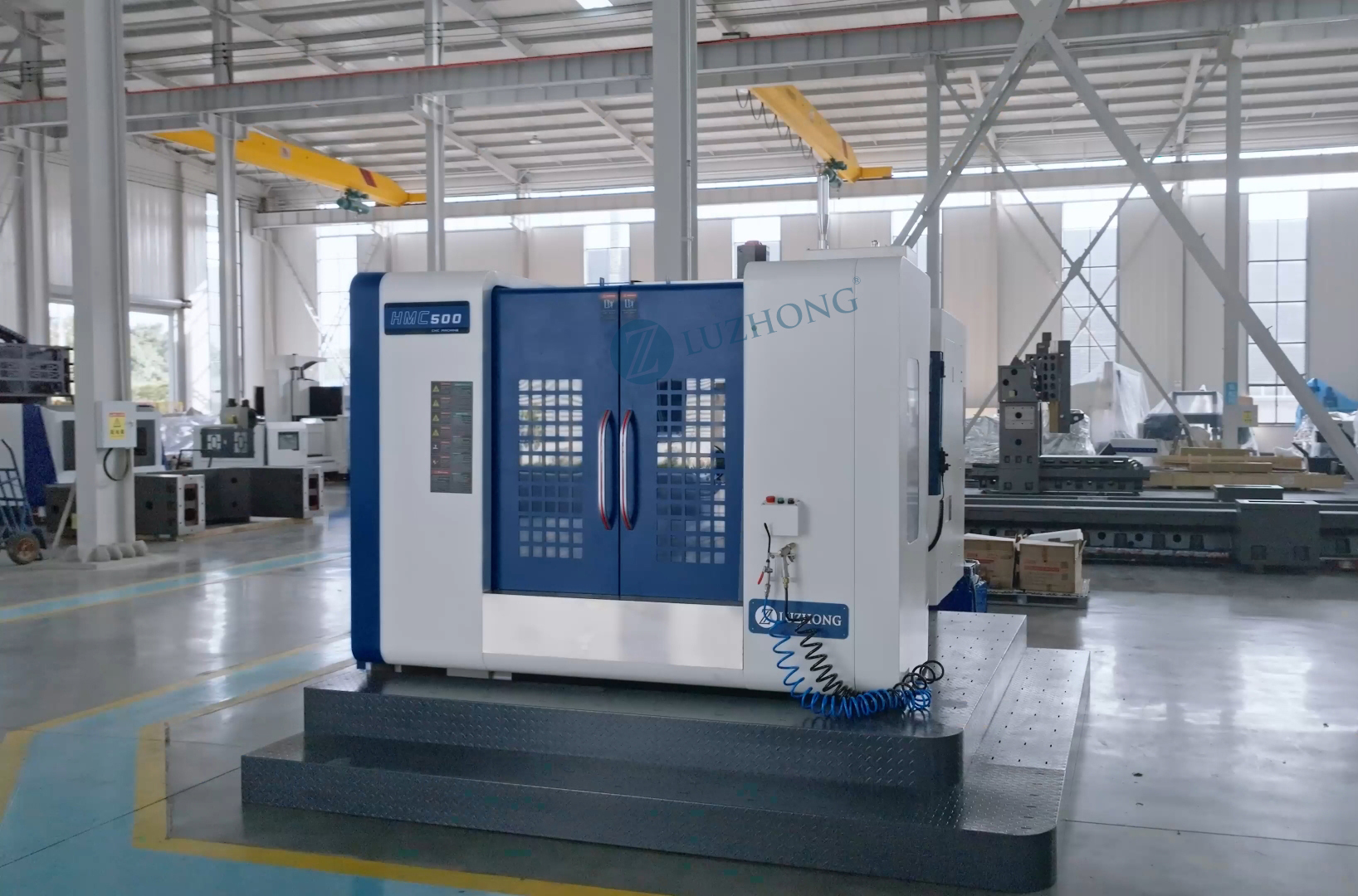

| SPECIFICATIONS | Units | HMC500 |
|---|---|---|
| Table size | mm | 500*500 |
| X axis travel | mm | 800 |
| Z axis travel | mm | 600 |
| Y axis travel | mm | 600 |
| Distance from spindle center to table surface | mm | 100-750 |
| Distance between spindle nose and table center | mm | 150-950 |
| Table quantity | pcs | 1 |
| T slot(number-width*pitch) | mm | 5-18*100 |
| Max. worktable load | kg | 500 |
| Table indexing | ° | 1°*360 |
| Maximum speed of table | r/min | 10 |
| Main motor power | kw | 11/15 |
| Spindle taper | BT40 | |
| Max. spindle speed | rpm | 8000 |
| Cutting feed speed | mm/min | 1-10000 |
| Rapid traverse speed | m/min | 36/32/32 |
| Tool magazine | Arm24 | |
| Max. tool diameter | mm | 112/200 |
| Max. tool length | mm | 400 |
| Max. tool weight | kg | 18 |
| Tool change time (tool to tool) | sec | 3 |
| Machine minimum setting unit | mm | 0.001 |
| X,Y,Z axis positioning accuracy | mm | 0.01 |
| X,Y,Z axis repeat positioning accuracy | mm | 0.005 |
| B axis positioning accuracy | ″ | 10″ |
| B axis repeat positioning accuracy | ″ | 5″ |
| Machine weight | kg | 8500 |
| Overall dimension(L*W*H) | mm | 4650*3250*3000 |

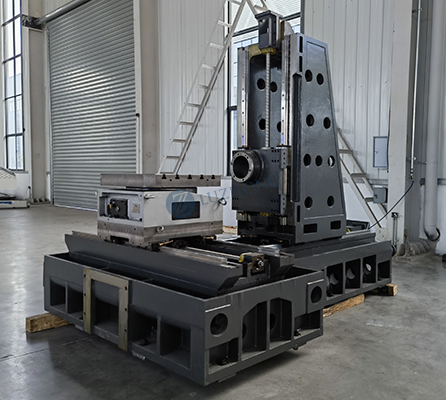

1. High strength high quality HT300 cast iron
2. Inverted T-shaped structure

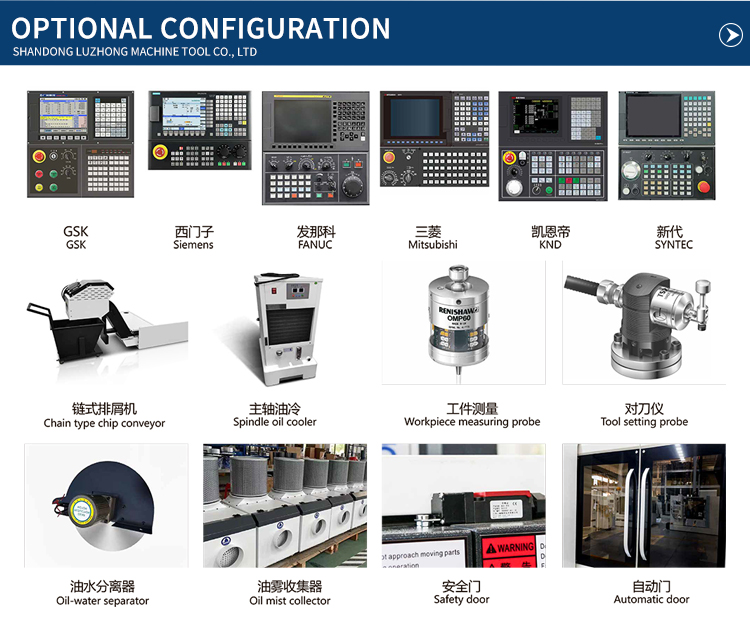

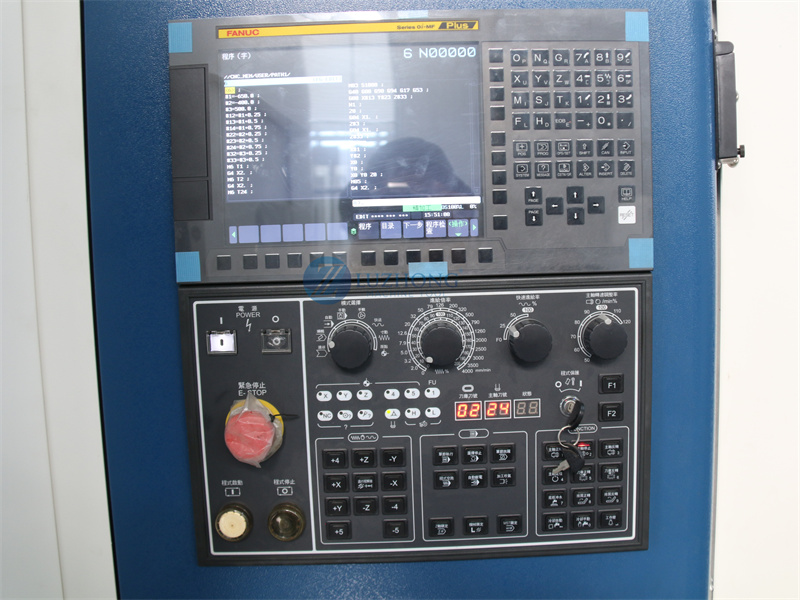

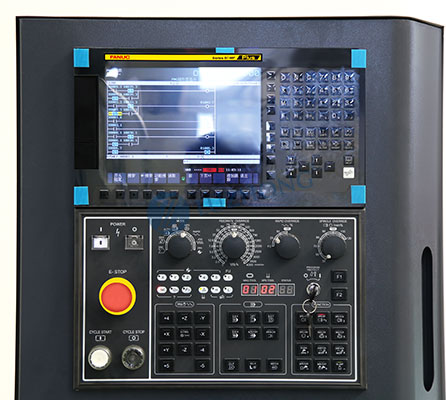

Standard: FANUC controller

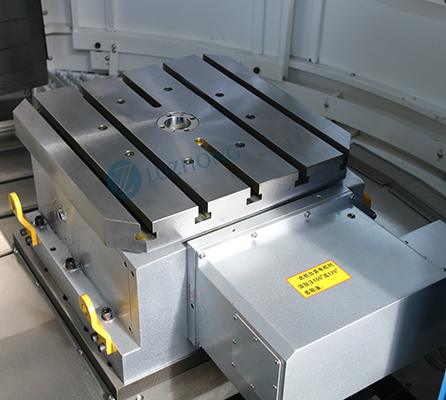

One point per degree CNC rotary single worktable as standard

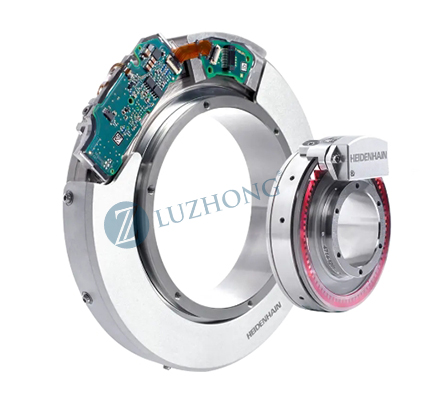

Option 0.001 degree worktable and optical scales to achieve higher positioning accuracy

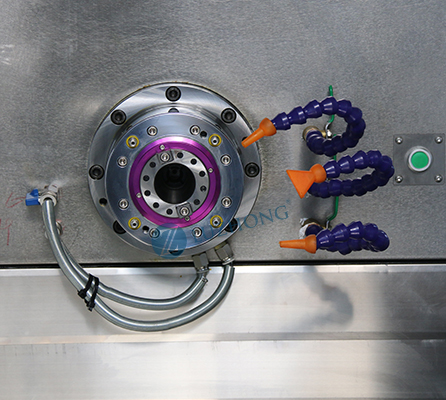

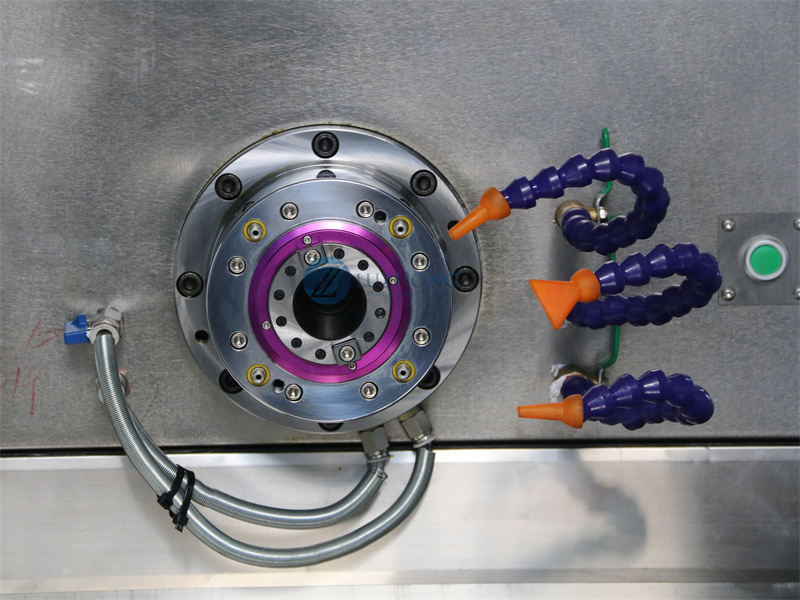

1. BT40 Spindle 8000rpm with ring cooling
2. Passed dynamic balance ISO rating test

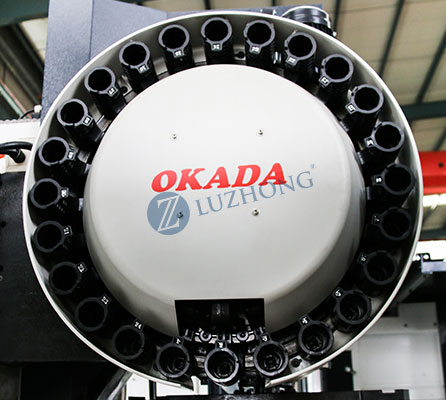

1. Okada arm 24 tool magazine
2. Tool change time only 2-3 seconds

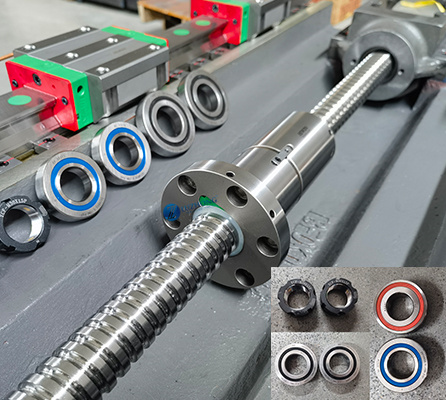

1. Famous brand lead screw
2. Lead screw bearing using SKF or NACHI bearing
3. Coupling directly connected

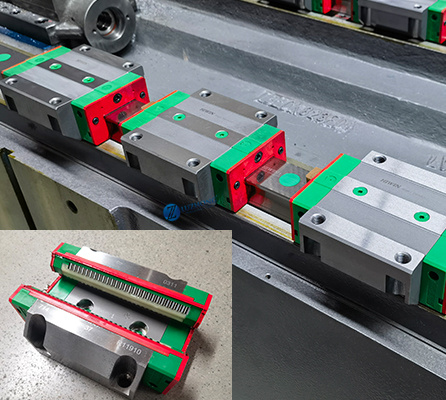

1. High speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI

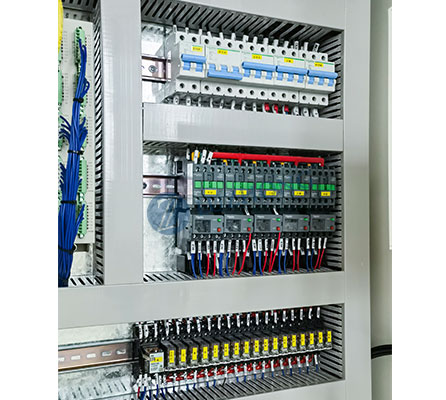

1. With Schneider safety electrical components
2. Quick plug as standard

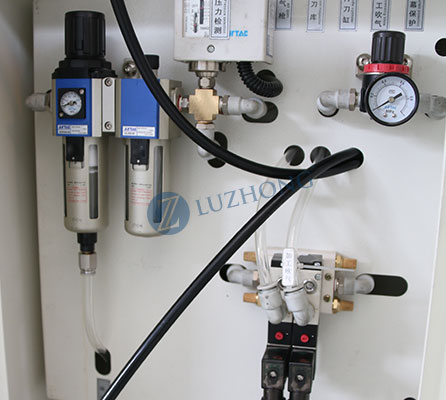

Standard with AirTAC Pneumatic Components

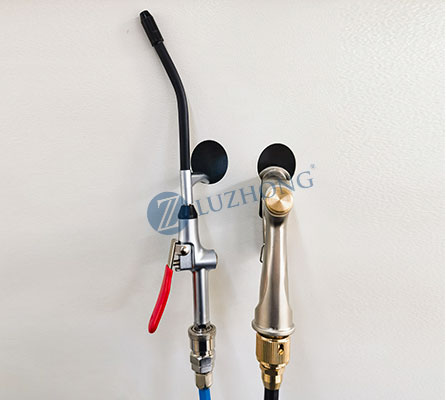

High-pressure air guns and water guns

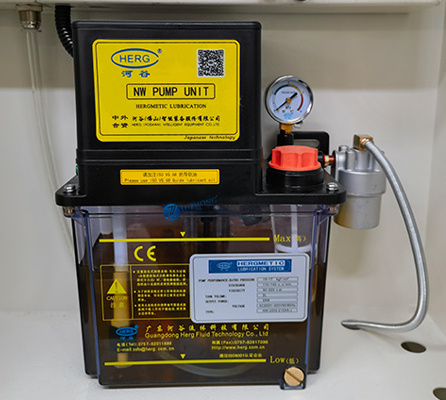

Automatic centralized lubrication device

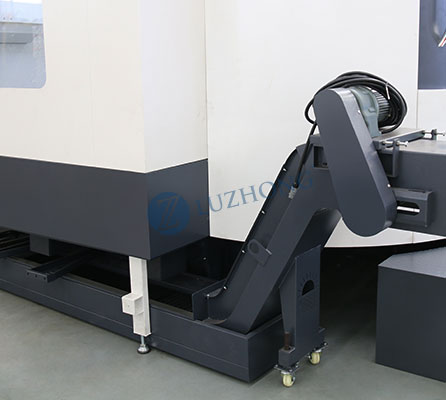

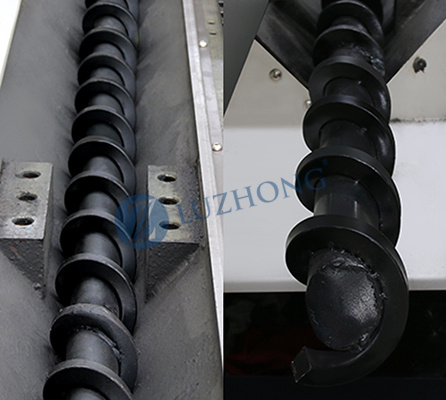

Optional: one chain chip conveyor and two screw chip conveyor

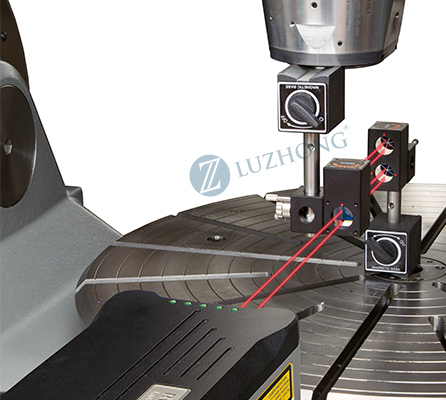

Each machine passed laser interferometer testing

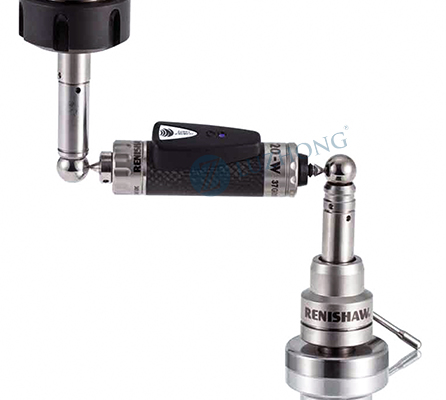

Each machine passed ballbar testing
Standard with BT40 milling chuck
Standard with lock knife block

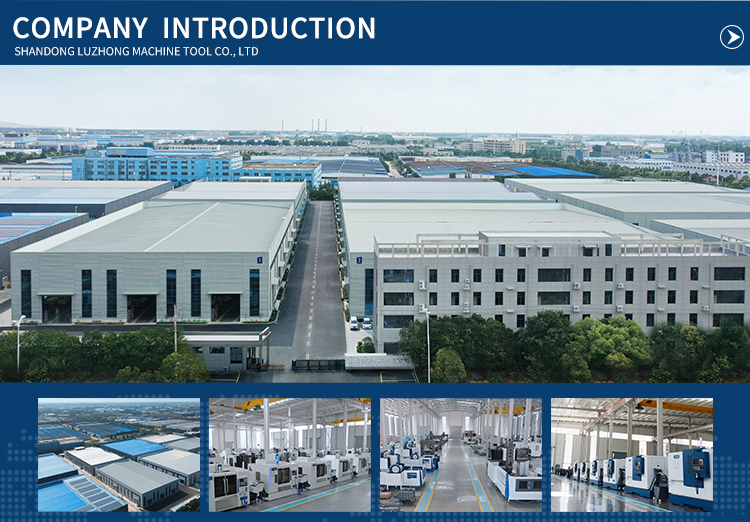

Our factory has obtained many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, South America, Middle East, and Southeast Asia. We provide long-term overseas technical guidance and after-sales service for these countries.
