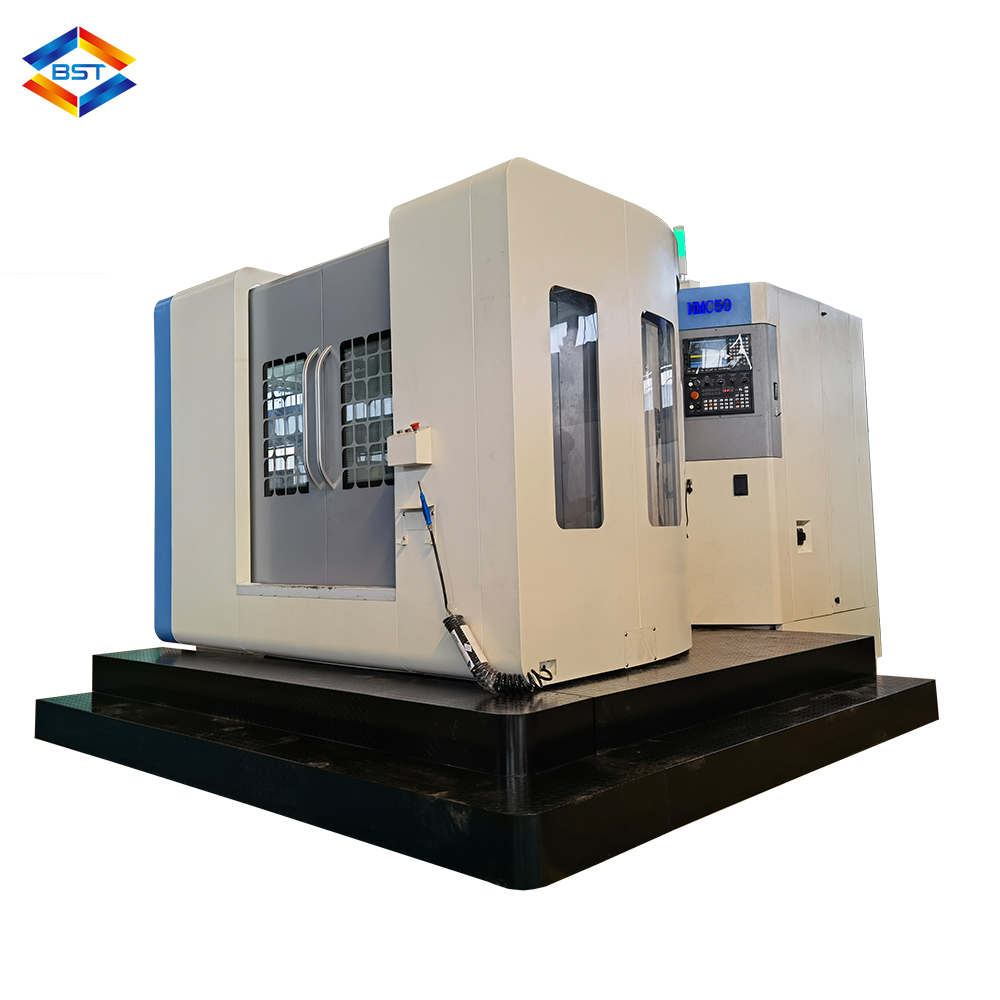

HMC series horizontal machining center adopts an inverted "T-type" structure, and the column adopts a "gantry-type" frame overall structure. The reasonable layout optimizes the chip removal structure and improves the guide rail lubrication and recovery system, enhancing the overall rigidity and appearance quality of the casting. It can be equipped with a 90-degree vertical milling head and a universal milling head, capable of completing complex processes of multi-face machining in one clamping. This series of equipment features high rigidity, high speed, high precision, and high reliability in metal cutting equipment, widely used in automotive, aerospace, electronics industries, and various types of box and shell part processing.
Key Features

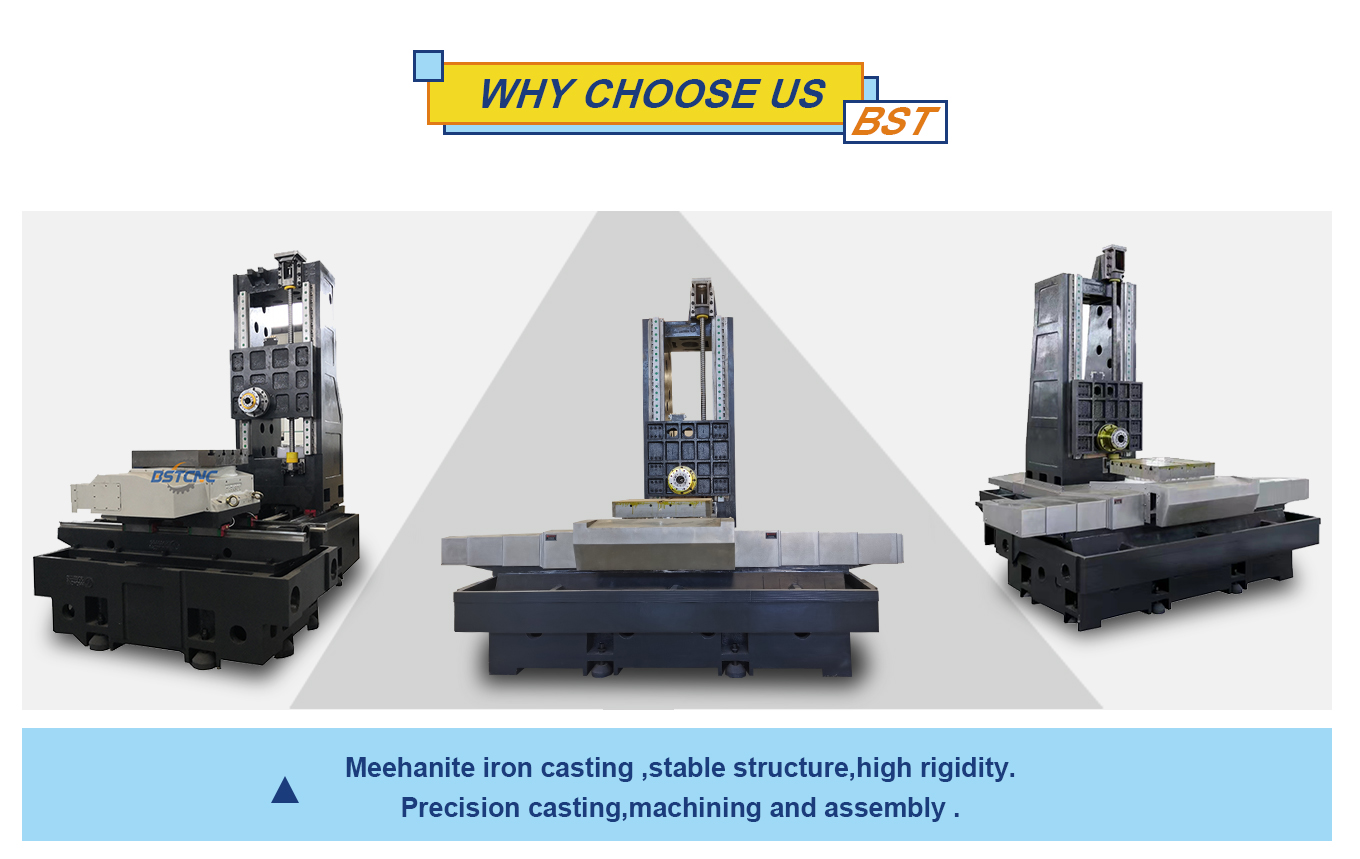

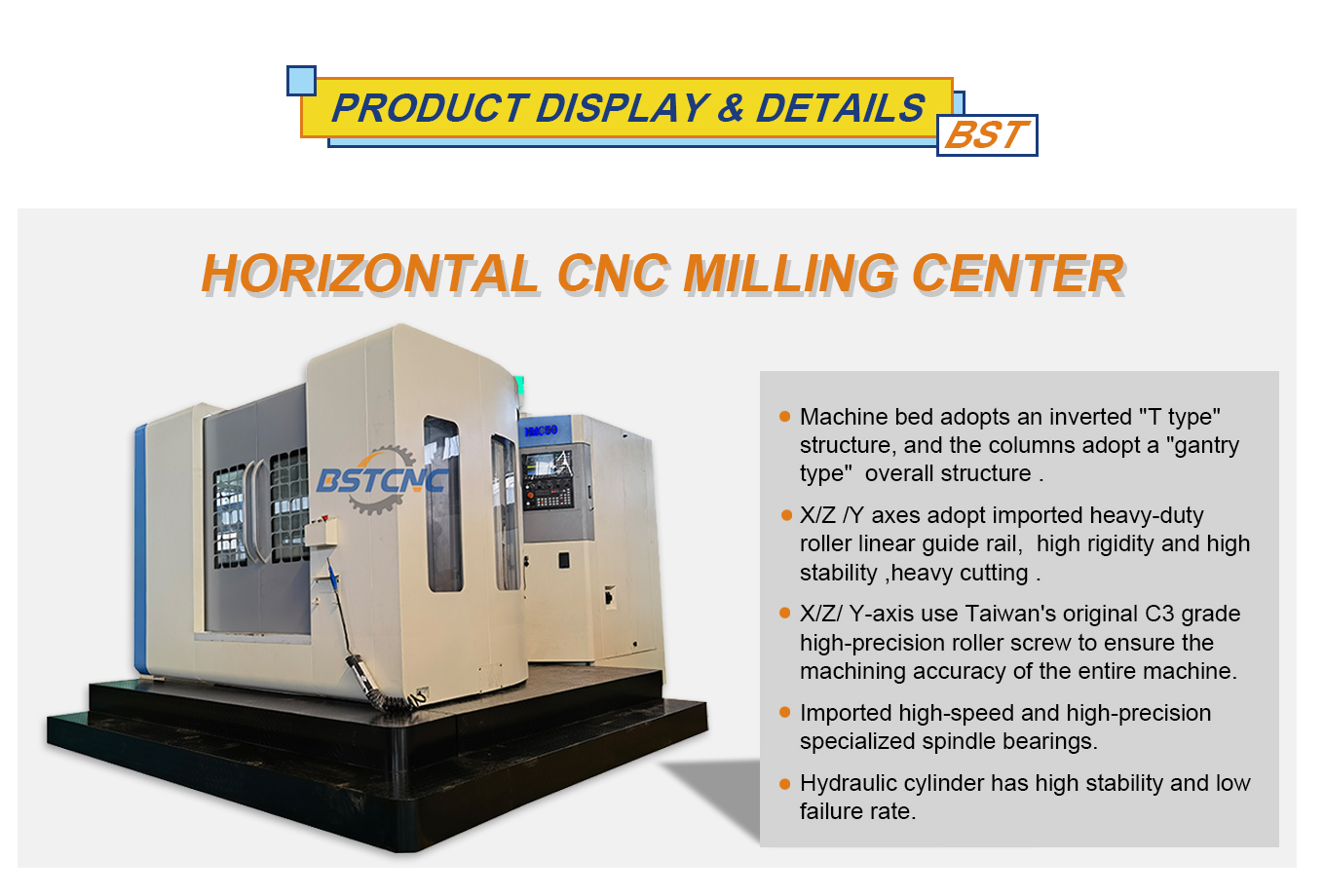

The base adopts a "T" layout, optimized with finite element analysis for the arrangement of ribs in the casting structure, improving overall performance indicators without generating overturning torque throughout the entire stroke.
It uses a high-precision spindle, with a standard speed of 6000rpm, equipped with spindle air curtain protection, ensuring stable accuracy and long service life.
The spindle is driven by a high-power constant torque motor.
It features a high-rigidity roller guide rail structure, combining the heavy cutting rigidity of a hard rail with the fast movement characteristics of a linear guide rail.
The dual-supported pre-tensioned lead screw eliminates transmission backlash and pre-compensates for errors caused by temperature rise.

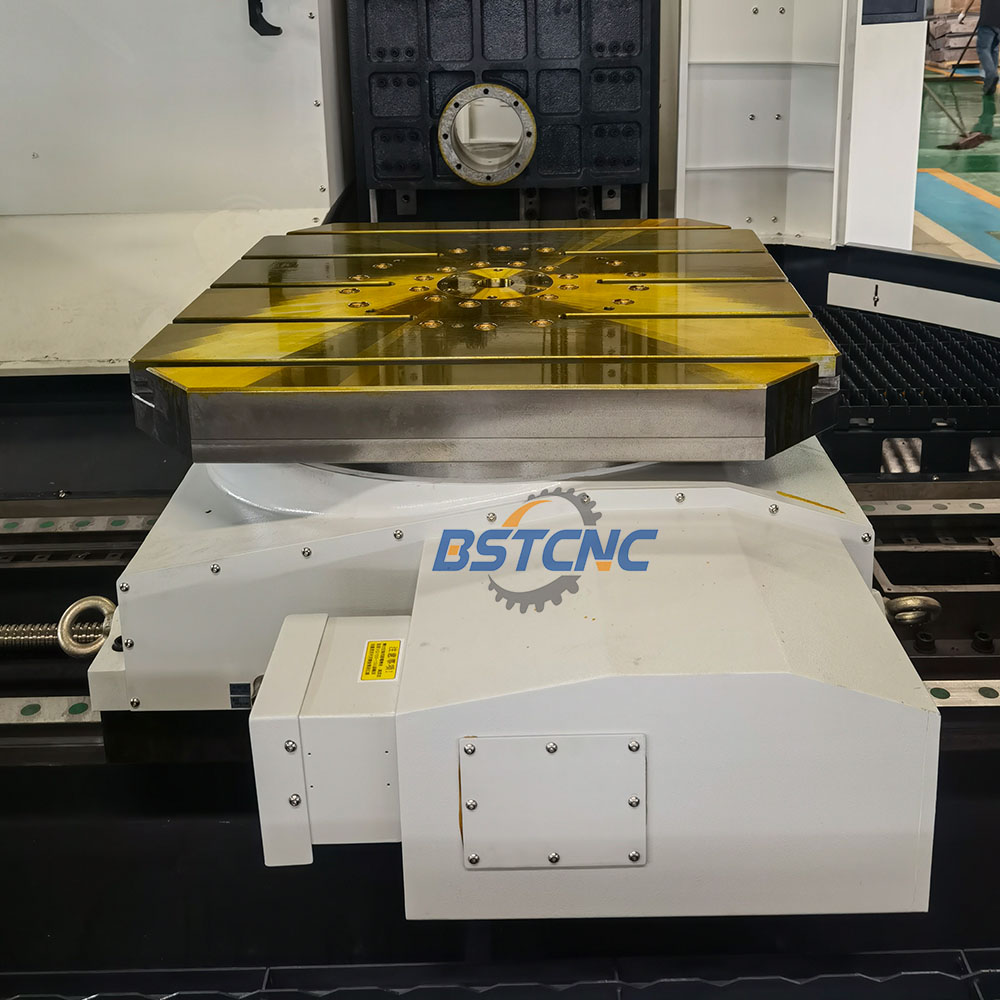

The precision rotary table provides ultra-high positioning and repeatability accuracy, ensuring workpiece machining accuracy.
Technical Specifications
Model
HMC-500
HMC-630
HMC-800
Travel
X axis
800mm
1100mm
1300mm
Y axis (Spindle box lifting)
650mm
800mm
900mm
Z axis (Column forward and backward movement)
800mm
900mm
1100mm
Distance from Spindle nose to worktable center
150-950mm
145-1045mm
255-1355mm
Distance from spindle center to worktable surface
100-750mm
20-820mm
30-930mm
Feed
X rapid feed
24m/min
20m/min
Y rapid feed
20m/min
Z rapid feed
20m/min
Cutting feed
1-10m/min
Three-axis screw (C3 level grinding)
4012/5012/4012
5012/5012/5012
Three-axis linear guide (Roller)
45 /45 /45
45/45/45 (Y 6-sliders)
55/55/55 (YZ 6-sliders)
Three-axis servo motor
SYNTEC
18/28B/28 N.m
18/28B/28 N.m
28/35B/35 N.m
FANUC
βiS30/30B/30
βiS30/30B/30
βiS40/40B/40
Turntable servo motor
SYNTEC
18N.m
28N.m
FANUC
βiS22
βiS30
Table
Table size
500×500mm
630×630mm
800×800mm
Max load
600Kg
1500Kg
2500Kg
Minimum division accuracy
1 degree 1 divide / 1/1000 degree
T slot
5×18×100mm
5×18×125mm
5×22×160mm
Spindle
Type
BT40-150 Belt
BT50-150 Belt
BT50-190 Belt
Spindle speed
8000 rpm
6000 rpm
6000 rpm
Spindle motor
SYNTEC
11/16.5KW, 70Nm
15/22.5KW, 95Nm
15/22.5KW, 143.2Nm
FANUC
βil12/10000
βil15/8000
βilP30/6000
Accuracy
Accuracy (JIS)
±0.005/300mm
Repeatability (JIS)
±0.004mm
±0.005mm
Other
Net weight
9000Kg
11000Kg
14500Kg
Size (With pedal)
3340×4480×2700mm
3600×4680×2800mm
4400×5400×3500mm

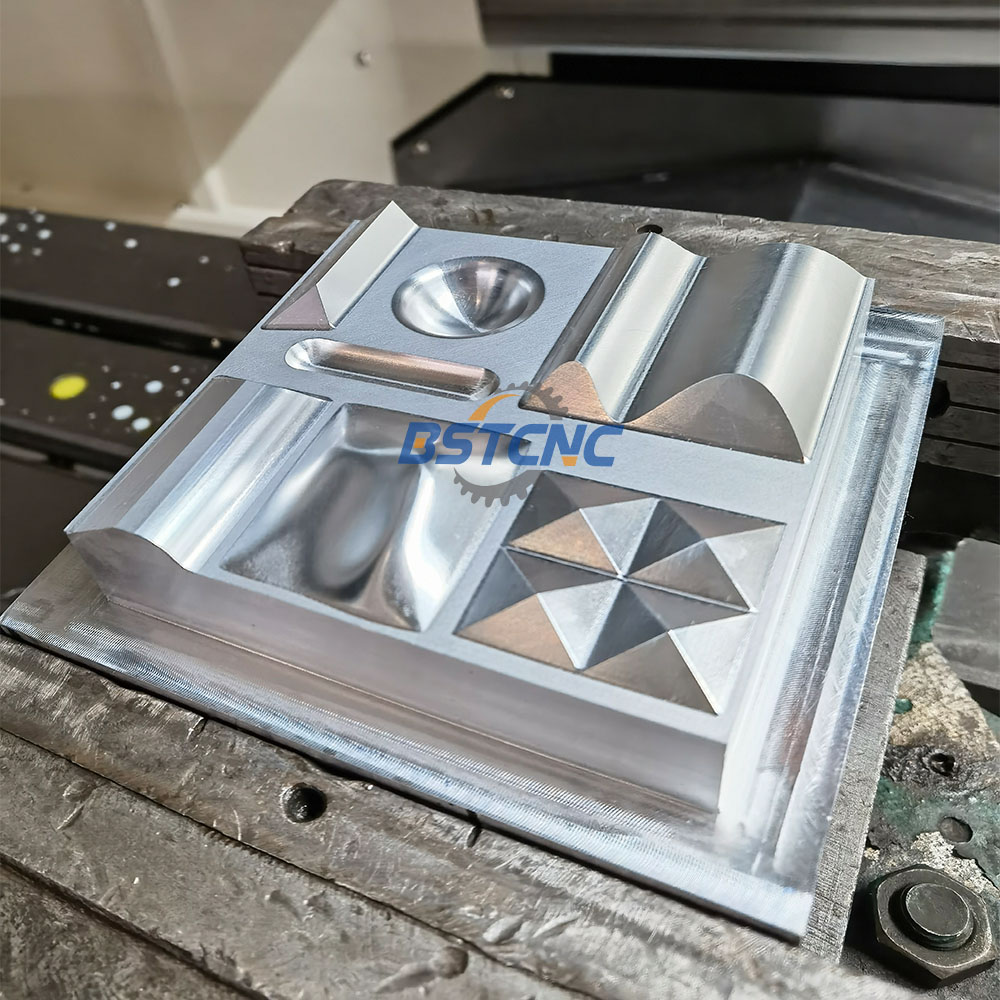

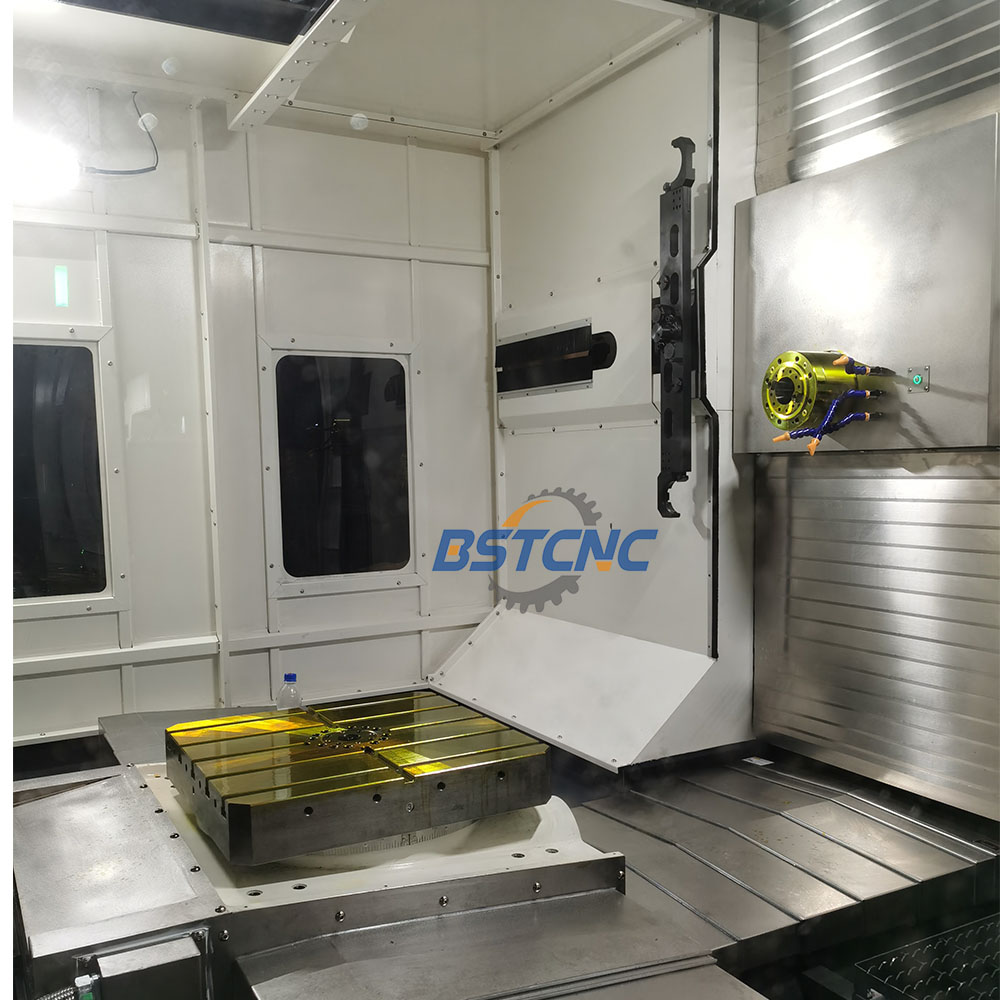

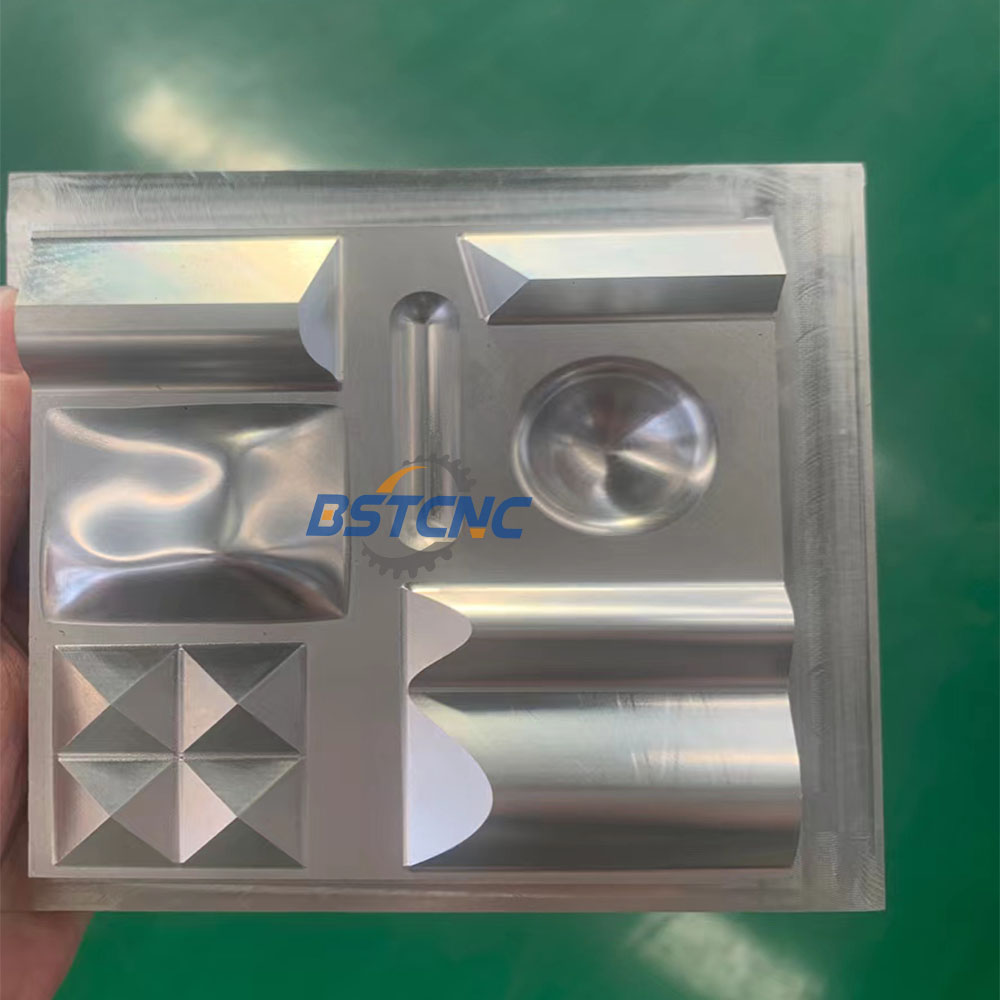

Product Gallery
Frequently Asked Questions
What are the main application fields of the HMC series?
The HMC series horizontal machining center is widely utilized in the automotive, aerospace, electronics industries, and is ideal for various kinds of box and shell part processing.
What kind of structural design does this machining center use?
It adopts an inverted "T-type" base layout alongside a "gantry-type" frame overall column structure. This design optimizes chip removal, guide rail lubrication, and recovery while boosting overall rigidity.
What spindle speeds and options are available for the HMC series?
The HMC-500 comes with a BT40 belt spindle offering speeds up to 8000 rpm. The HMC-630 and HMC-800 models feature heavy-duty BT50 belt spindles running up to 6000 rpm. All setups feature protective spindle air curtains.
How does the HMC series maintain high feed accuracy?
The three-axis system uses high-rigidity roller guide rails and C3 level pre-tensioned lead screws supported on both ends. This design eliminates backlash and compensates for thermal growth errors.
What is the maximum table load capacity for each model?
The maximum load capacity of the rotary tables is 600 Kg for the HMC-500, 1500 Kg for the HMC-630, and 2500 Kg for the HMC-800.
Can the machine perform complex multi-face machining?
Yes. It can be equipped with a 90-degree vertical milling head and a universal milling head, allowing complex multi-face machining operations to be finished in a single setup clamping.
