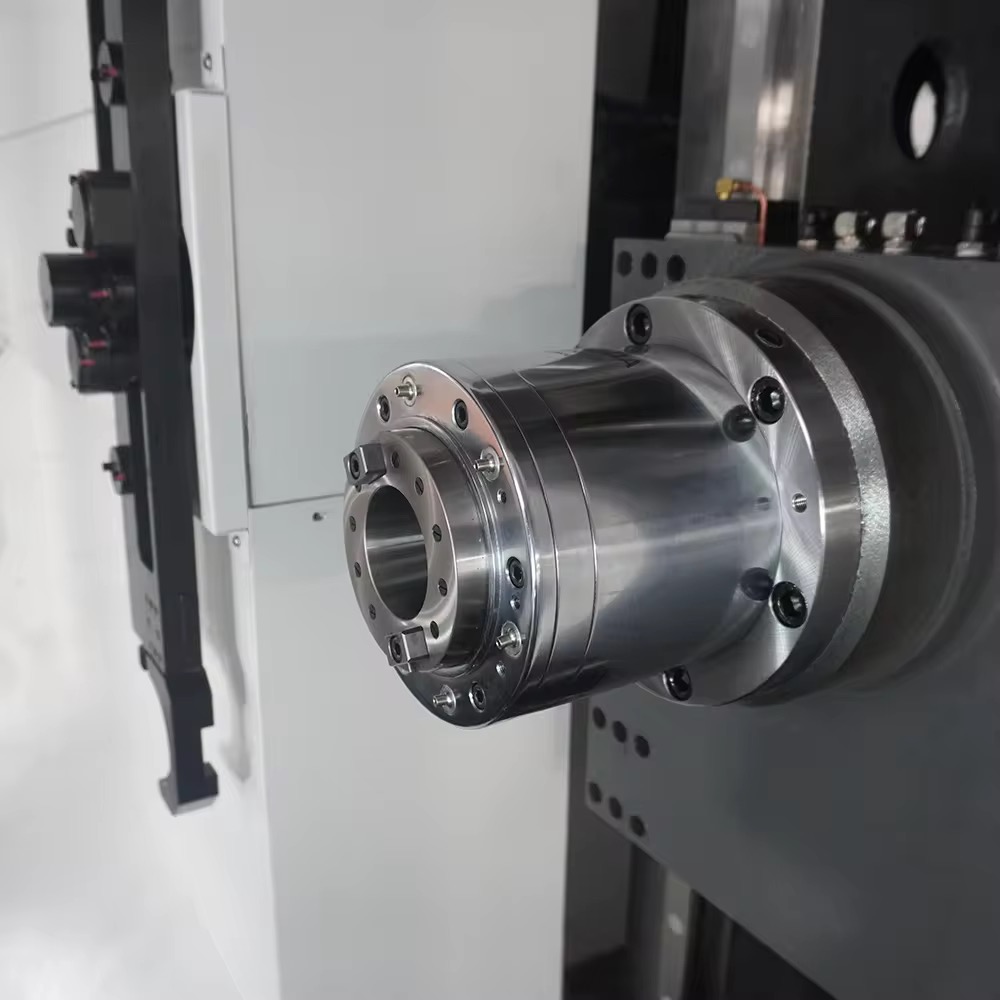

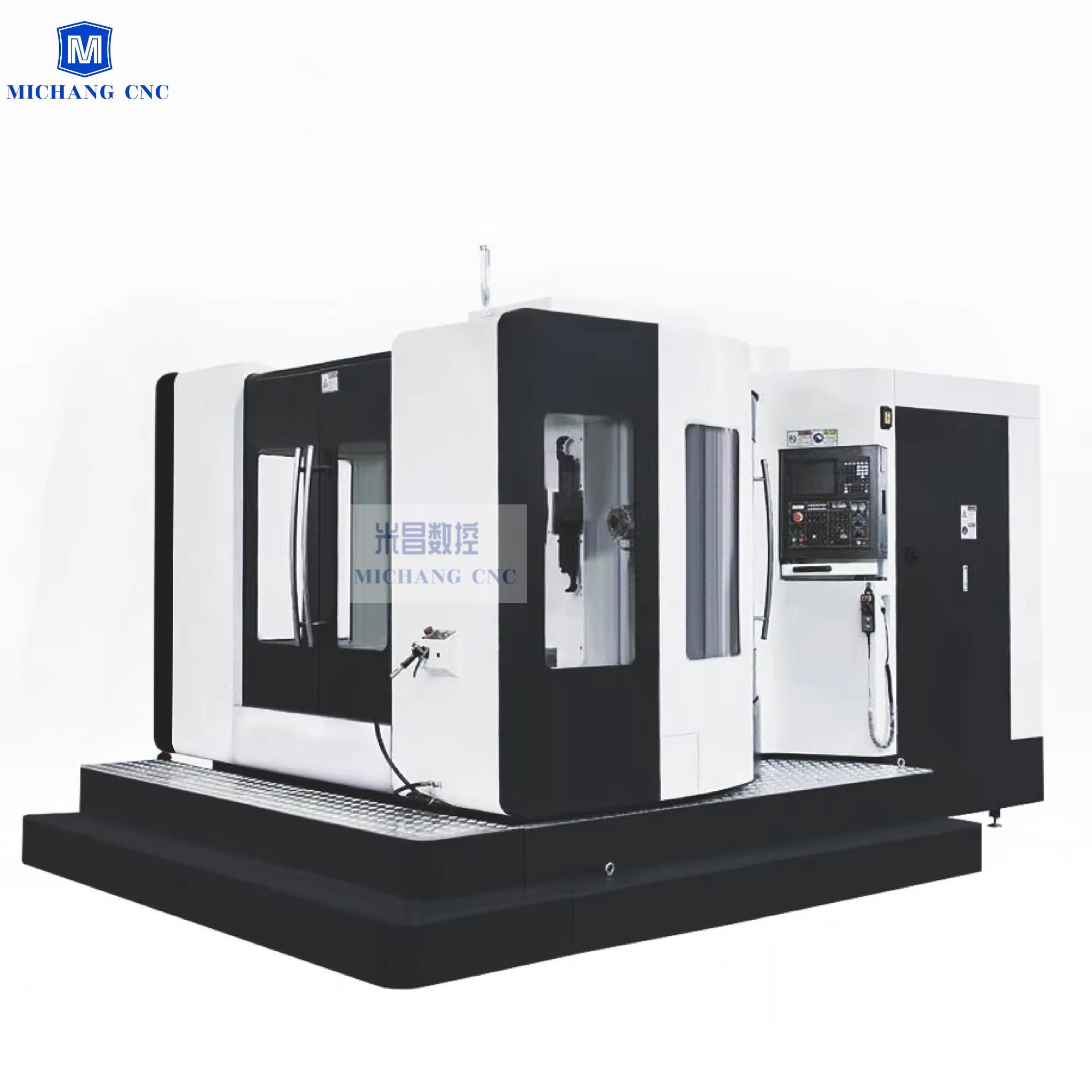

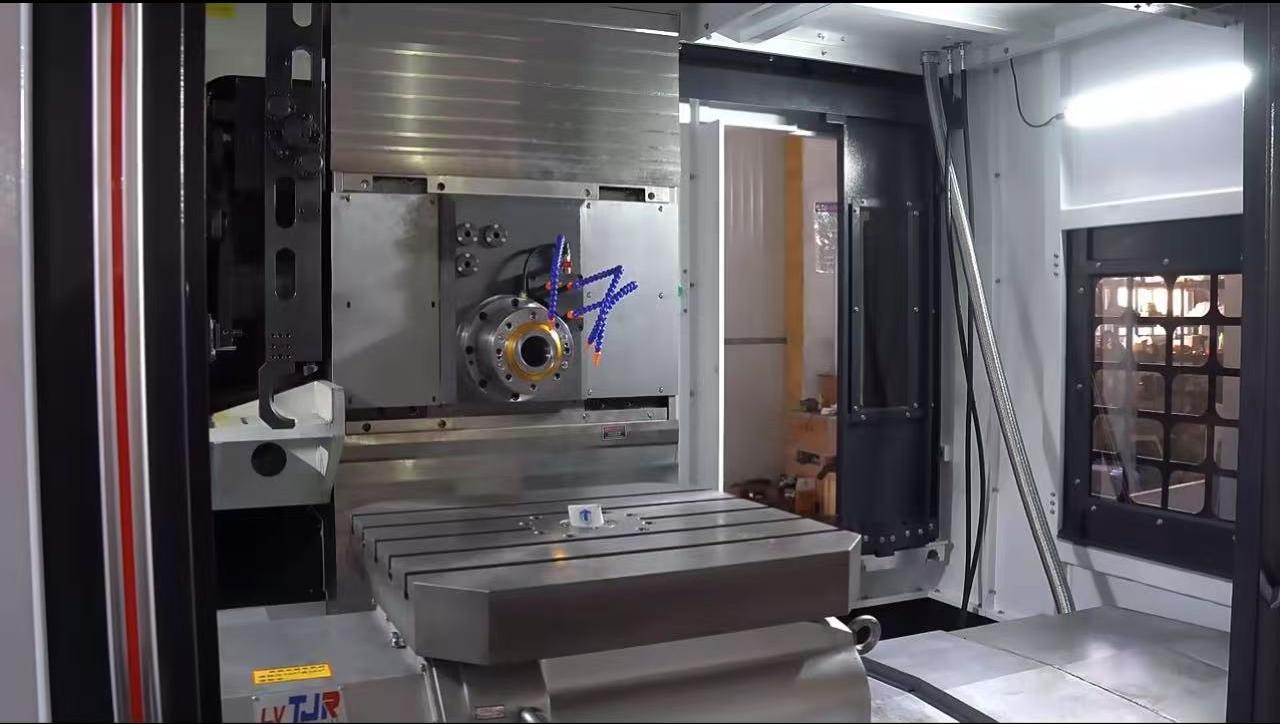

HMC500 CNC Automatic Horizontal Machining Center with BT40 Spindle Taper Fanuc/GSK System Horizontal Milling Machine

1 / 5

HMC500 CNC Automatic Horizontal Machining Center with BT40 Spindle Taper Fanuc/GSK System Horizontal Milling Machine

Send Inquiry

Product Description

Specifications	Units	HMC500
Table size	mm	500*500
X axis travel	mm	800
Z axis travel	mm	600
Y axis travel	mm	600
Distance from spindle center to table surface	mm	100-750
Distance between spindle nose and table center	mm	150-950
Table quantity	pcs	1
T slot(number-width*pitch)	mm	5-18*100
Max. worktable load	kg	500
Table indexing	°	1°*360
Maximum speed of table	r/min	10
Main motor power	kw	11/15
Spindle taper	-	BT40
Max. spindle speed	rpm	8000
Cutting feed speed	mm/min	1-10000
Rapid traverse speed	m/min	36/32/32
Tool magazine	-	Arm24
Max. tool diameter	mm	112/200
Max. tool length	mm	400
Max. tool weight	kg	18
Tool change time (tool to tool)	sec	3
Machine minimum setting unit	mm	0.001
X,Y,Z axis positioning accuracy	mm	0.01
X,Y,Z axis repeat positioning accuracy	mm	0.005
B axis positioning accuracy	-	10
B axis repeat positioning accuracy	-	5”
Machine weight	kg	8500
Overall dimension(LWH)	mm	465032503000

Standard Configuration

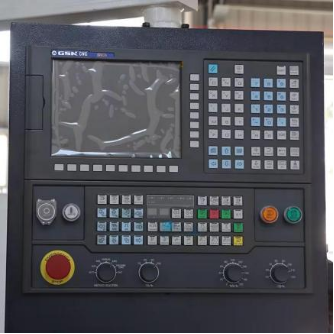

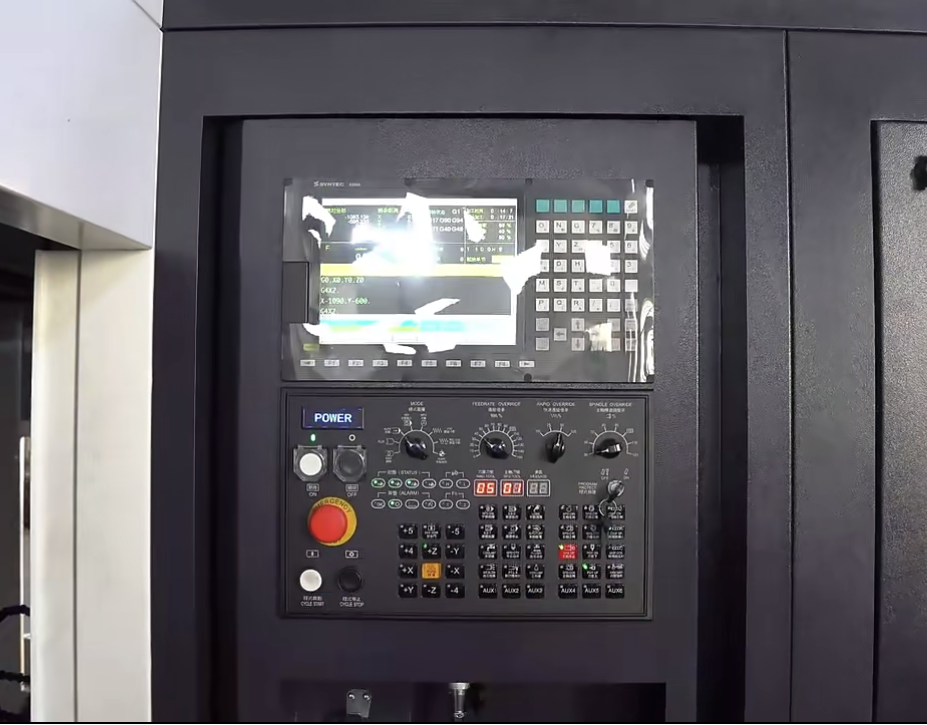

CNC Controller System

Standard: GSK series controller system. Optional: Fanuc, Siemens, Syntec, Mitsubishi controller system.

Spindle Speed

Standard: 8000RPM. Optional: 10000/12000RPM.

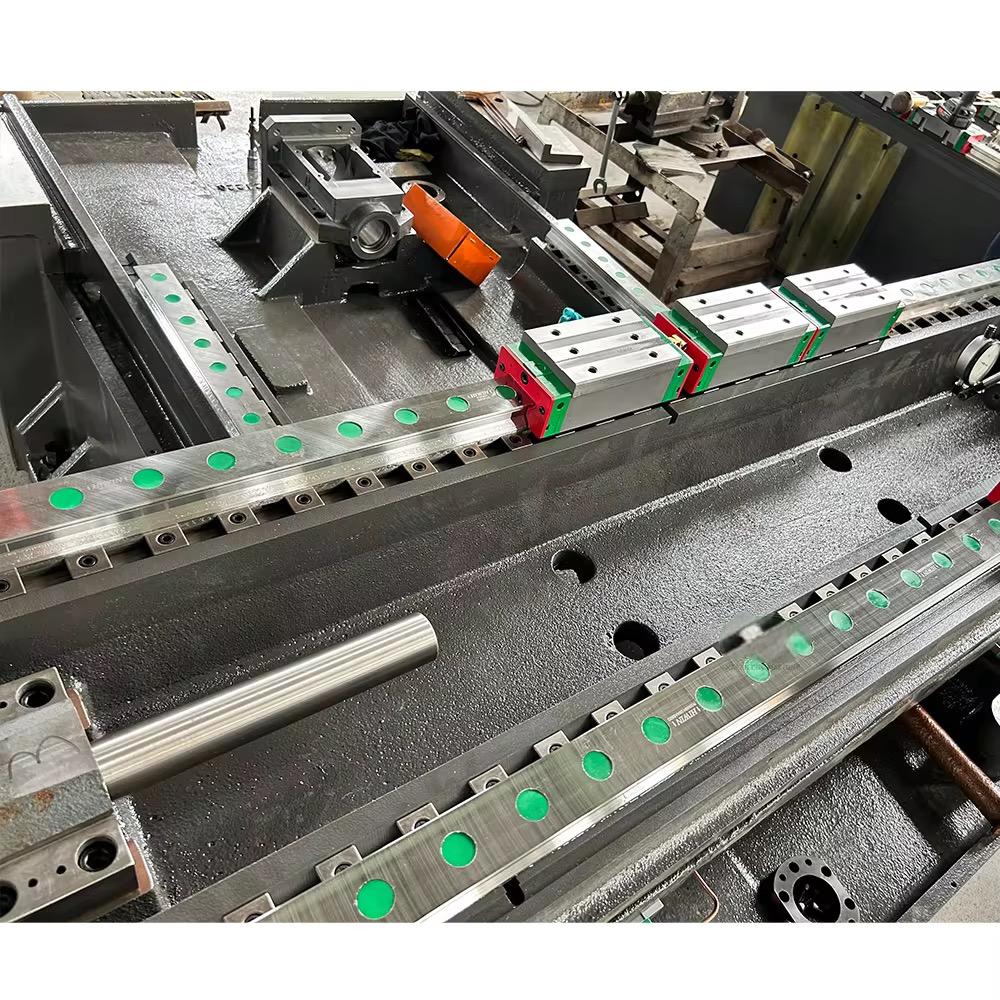

HIWIN Screw Shaft

High-precision linear motion components.

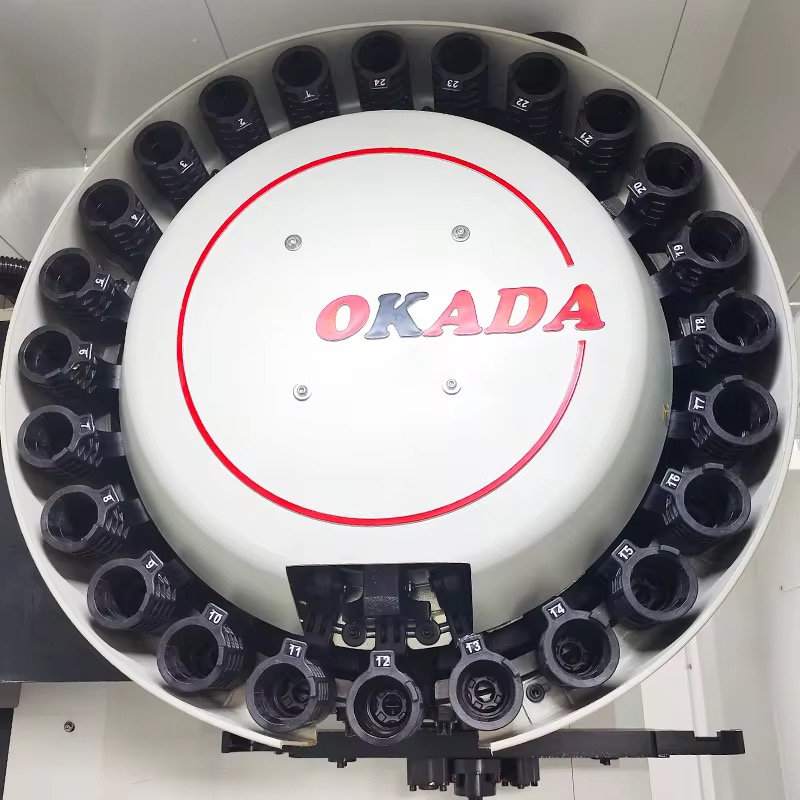

Disc Type Tool Magazine

Standard: 24 position.

Nitrogen Balance Beam

Stable operation and balance structure.

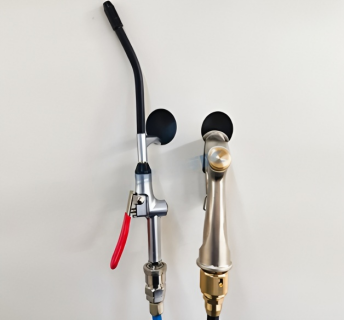

Air Gun and Water Gun

Convenient system cleaning maintenance tools.

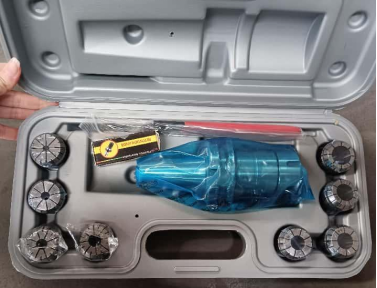

Milling Chuck

High clamping force workpiece tool holding.

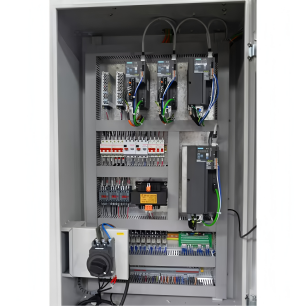

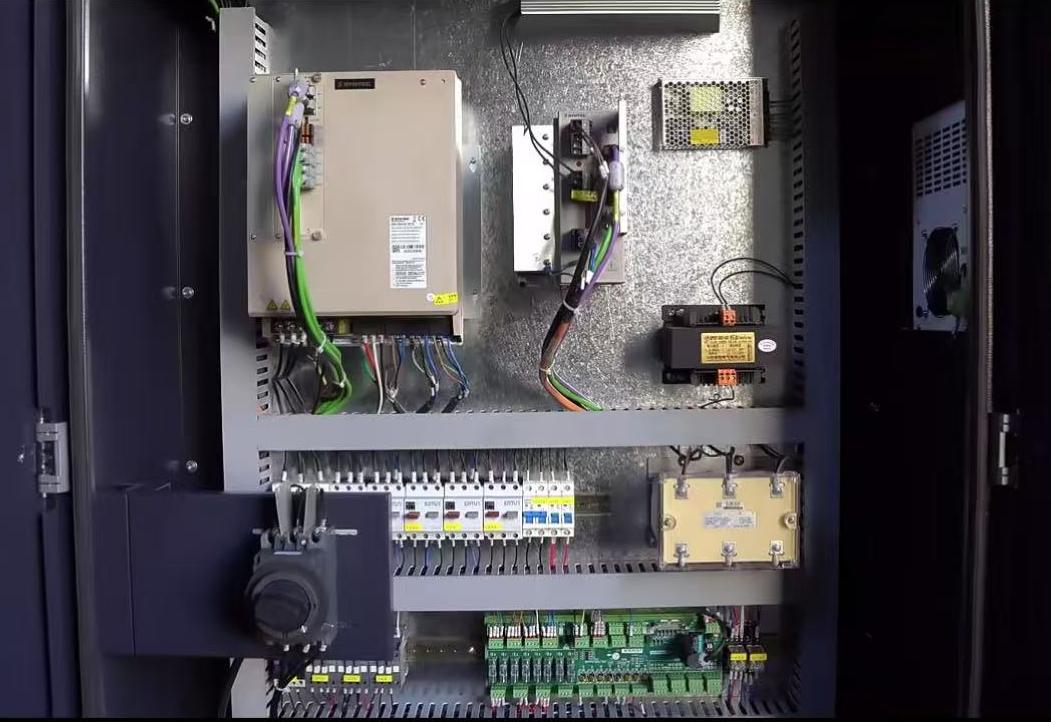

Electrical Cabinet

Standard: GSK brand. Optional: SCHNEIDER/SIEMENS/FANUC/MITSUBISHI brand.

Optional Configuration

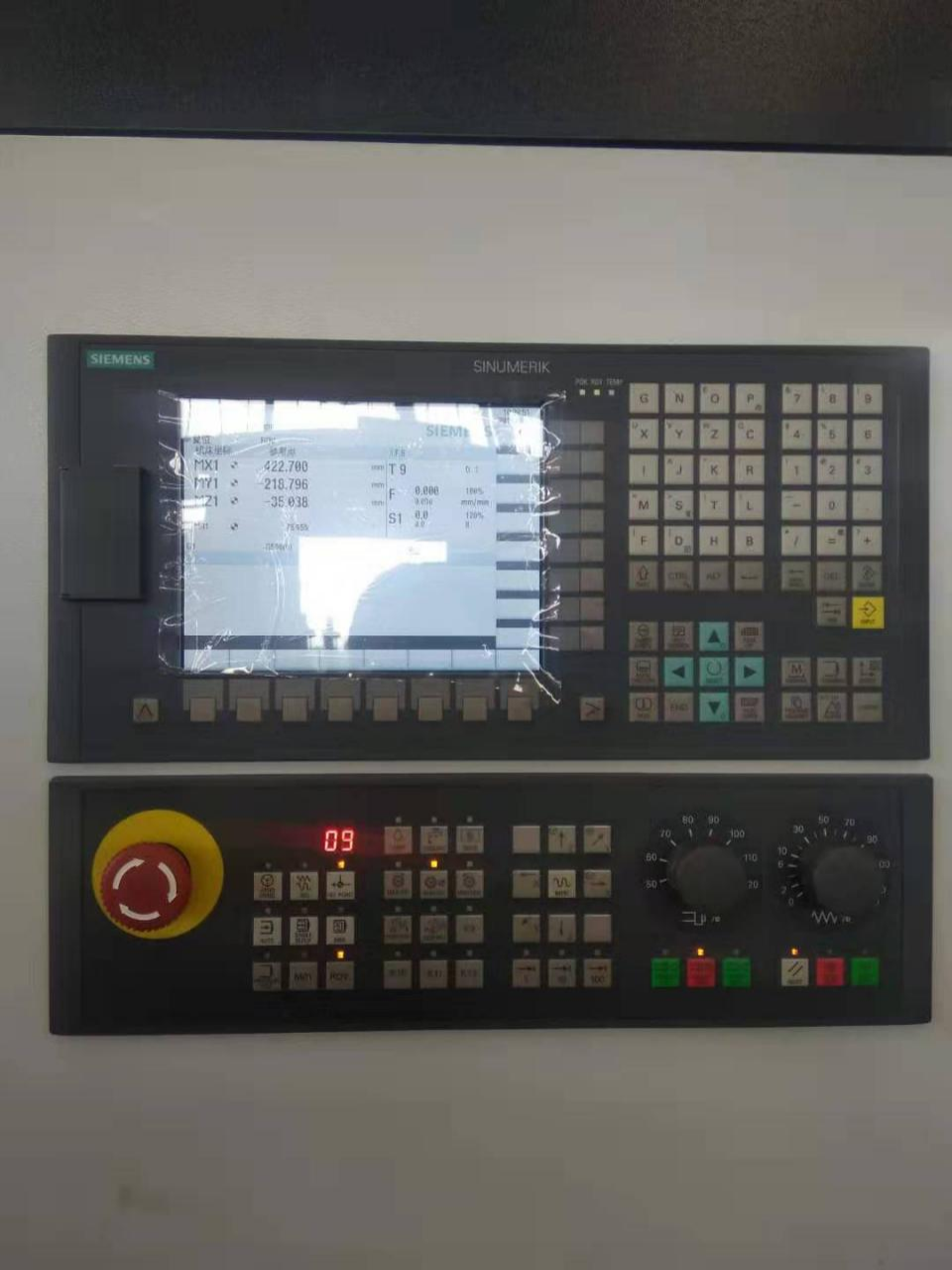

SIEMENS CONTROLLER SYSTEM

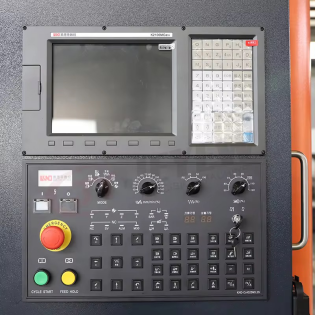

KND CONTROLLER SYSTEM

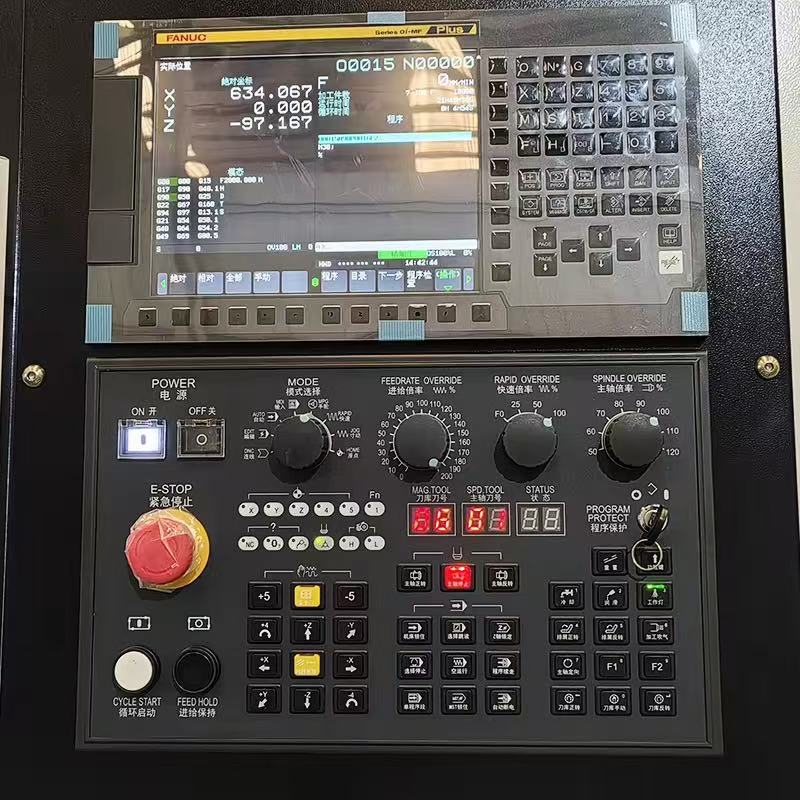

SCHNEIDER/SIEMENS/FANUC/MITSUBISHI Brand

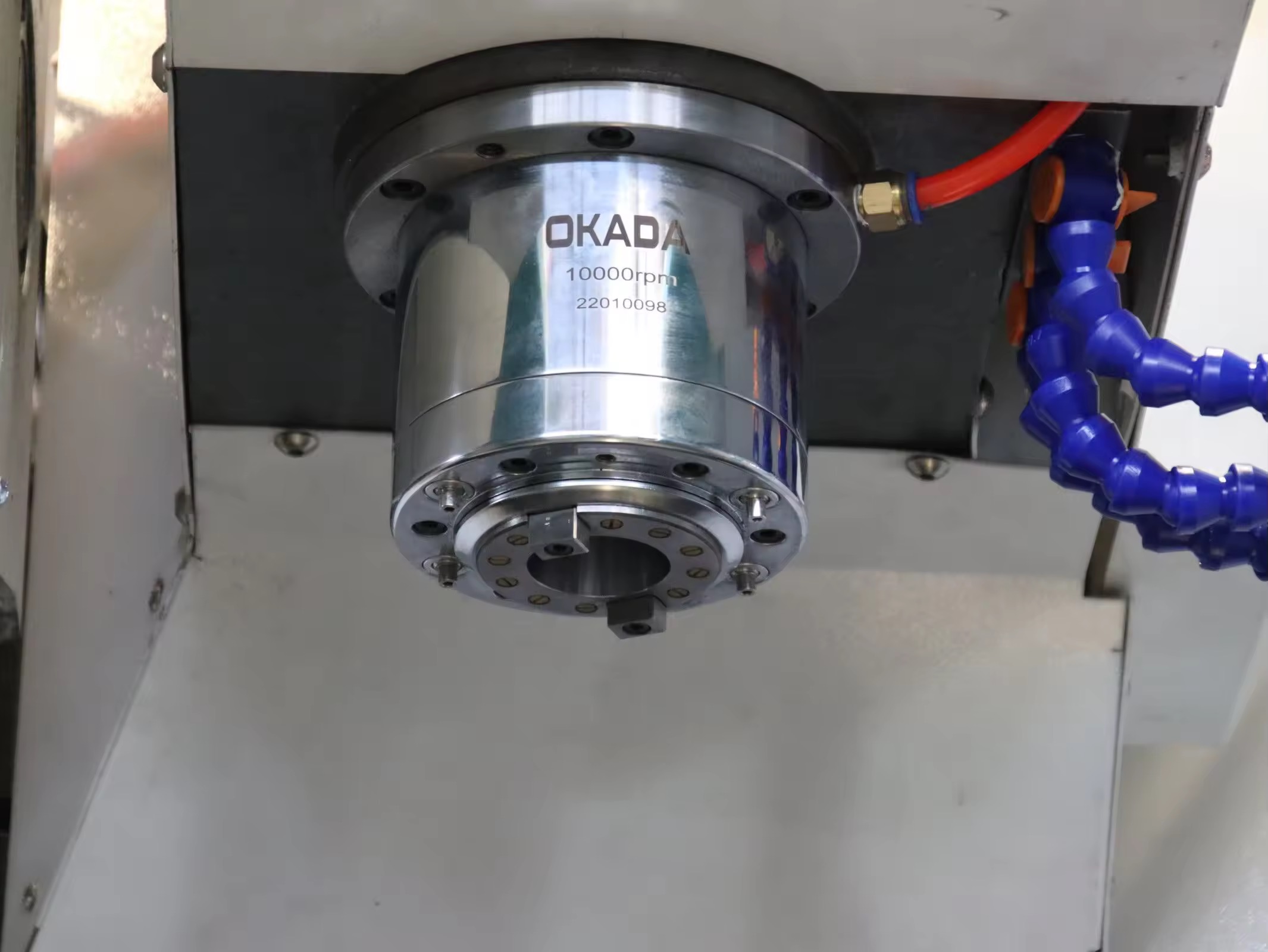

10000/12000RPM SPINDLE SPEED

PET Bottle Making Solutions

Semi-Automatic PET Bottle Blowing Machine / Bottle Making Machine / Bottle Moulding Machine is suitable for producing PET plastic containers and bottles in all shapes.

PET Plastic Container Solutions

Semi-Automatic PET Bottle Blowing Machine / Bottle Making Machine / Bottle Moulding Machine is suitable for producing PET plastic containers and bottles in all shapes.

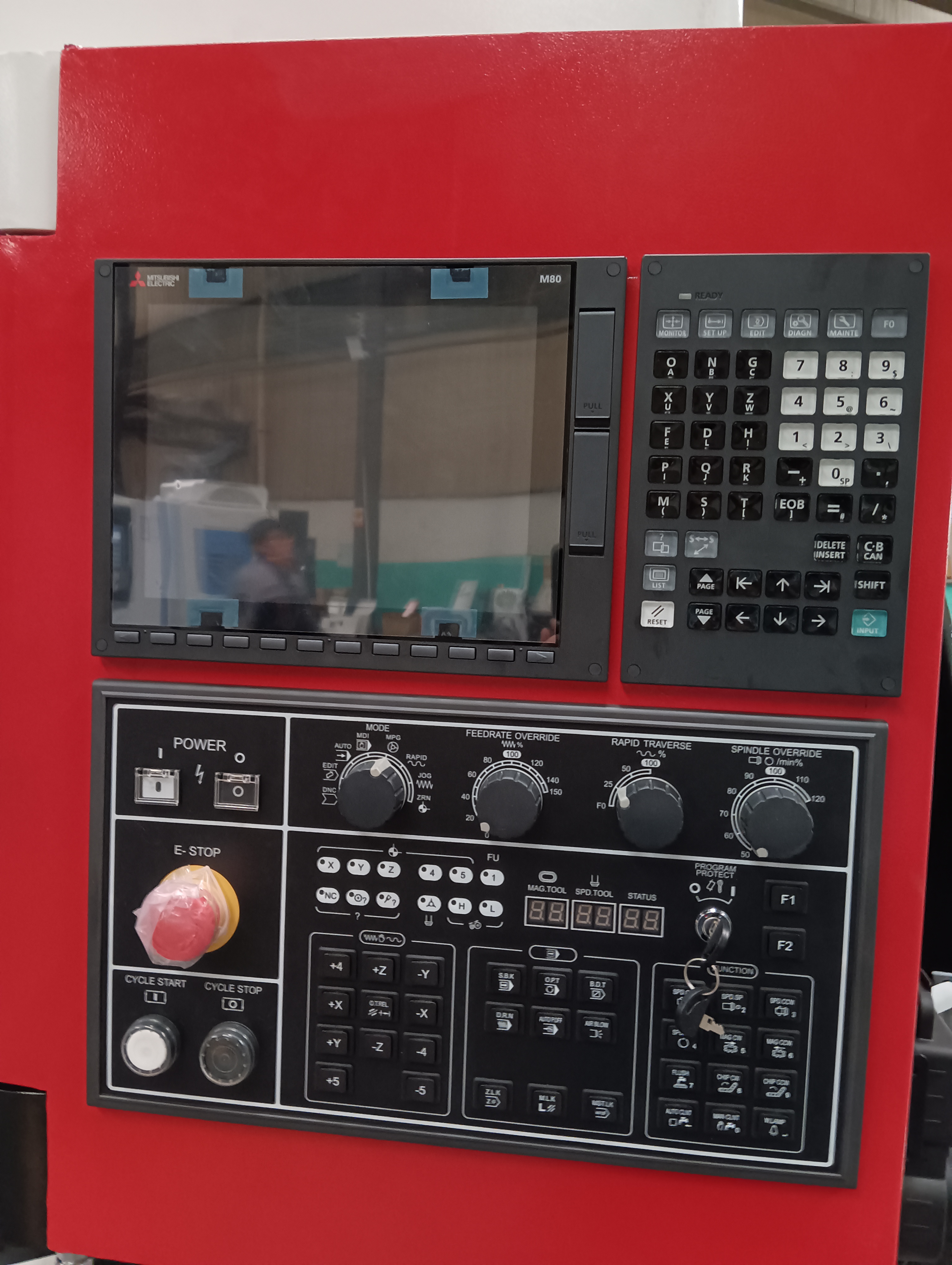

MITSUBISHI CONTROLLER SYSTEM

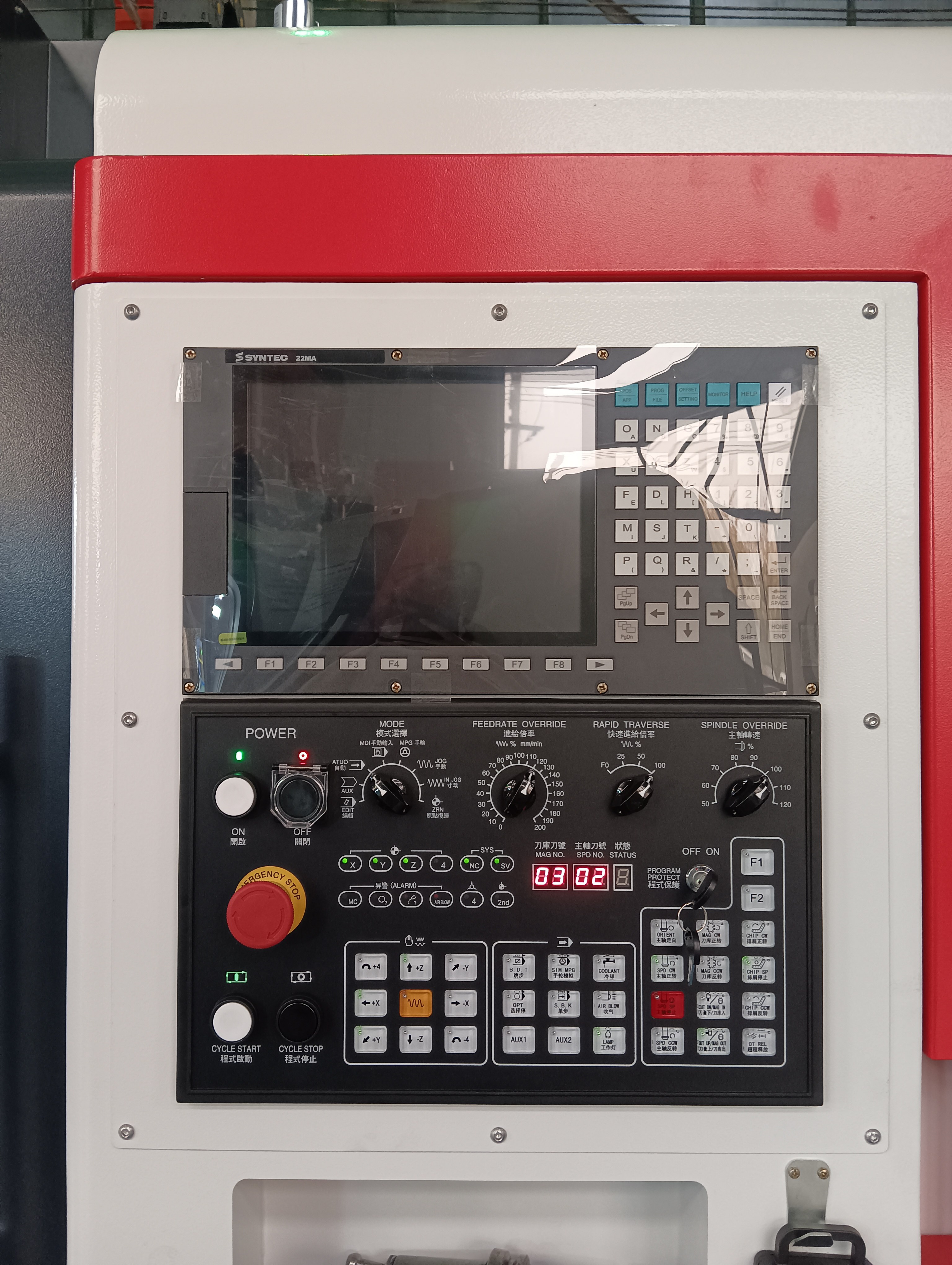

SYNTEC CONTROLLER SYSTEM

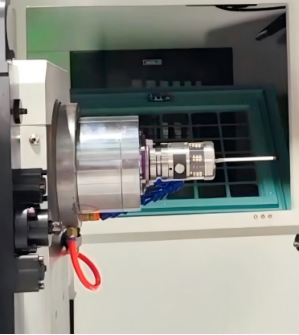

RENISHAW WORKPIECE MEASUREMENT

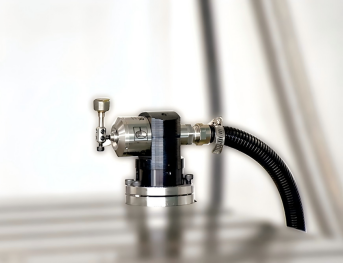

TOOL SETTING INSTRUMENT

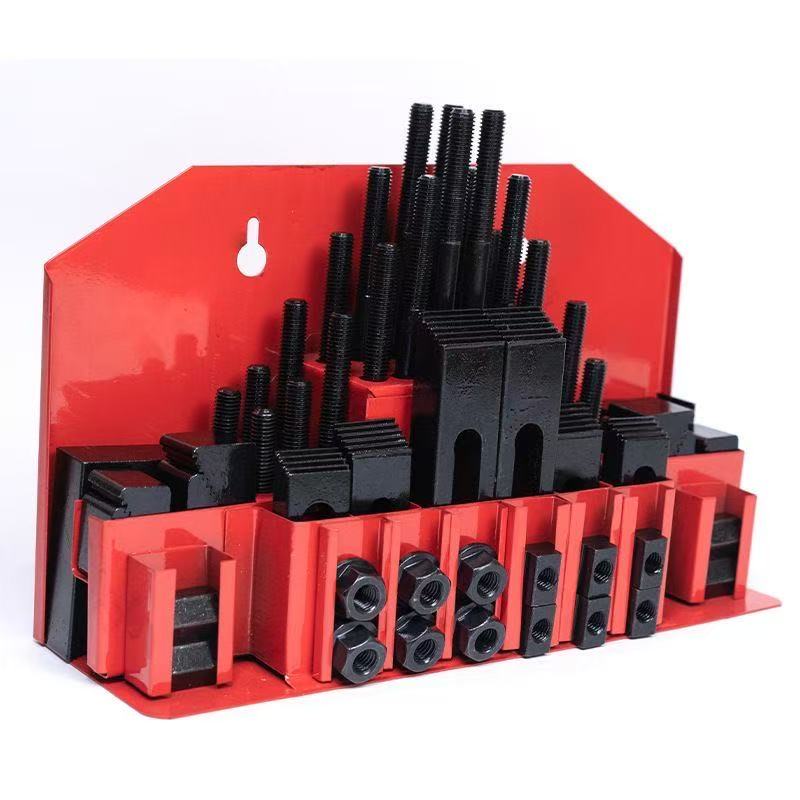

CLAMPING KITS

AUTOMATIC CHAIN CHIP CONVEYOR

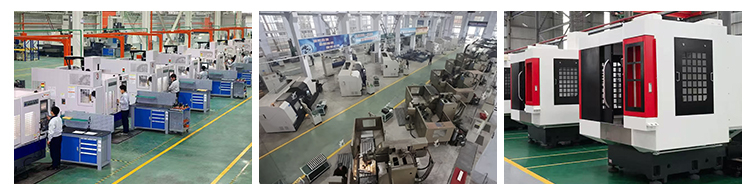

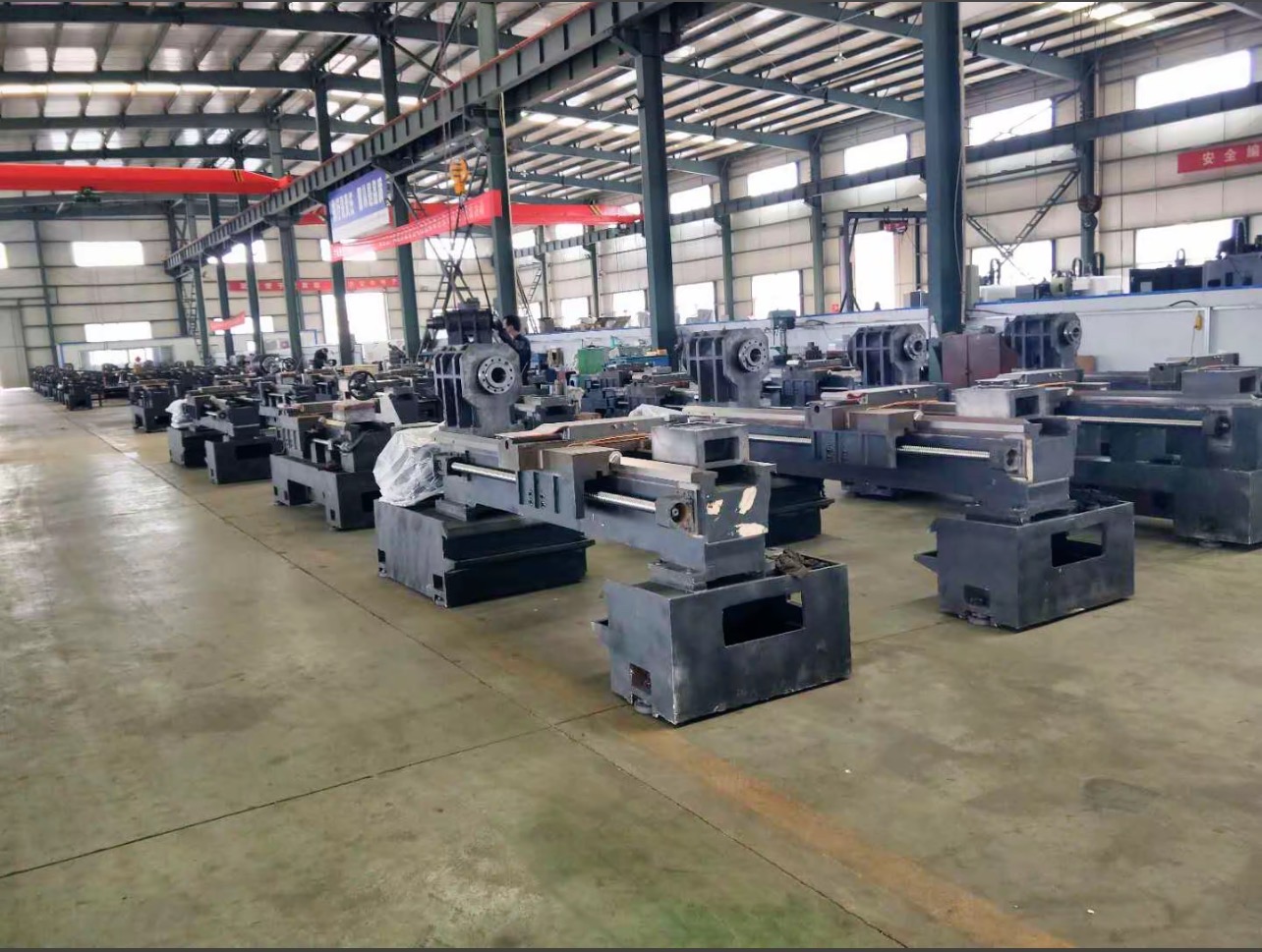

About Our Enterprise

We have over 20 years of experience in exporting machine tools. We have obtained certifications such as CE, ISO, GS, CSA, UL, and are deeply involved in the fields of CNC lathes, machining centers, milling machines, sawing machines, and more. Our enterprise focuses on manufacturing high-precision machine tools, integrating research and development, production, and after-sales service. We are committed to becoming a leading supplier of intelligent machine tool solutions for the global manufacturing industry.

Our Quality Service

1

24-hour high-quality online customer service guidance.
2

High quality after-sales service system and online guidance.
3

Integrated production, research and development, and after-sales service, with high-quality, high-precision, and aesthetically pleasing product quality.

Frequently Asked Questions

1. What is your minimum order quantity and warranty?

The minimum order quantity is one unit, and the warranty period is 1 year.

2. Do you use trade guarantees on online platforms?

Yes, all orders use trade guarantees. We can guarantee the quality of the product and secure your payment.

3. How can I obtain a quotation?

Please tell us the model you need or send us the workpiece drawings, and then we can recommend the most suitable product to you. We will provide you with the best quotation within 24 hours.

4. Are you a trading company or a manufacturer?

We are a factory and have professional technical personnel to provide you with corresponding technical support.

5. How about the delivery time?

Conventional machines are delivered within 30-45 working days, while large or certain special machines may take longer. We will provide you with an accurate response based on the type and configuration of machine you require.

6. What are your payment terms?

T/T, 30% deposit when ordering, 70% balance payment before shipment; or irrevocable letter of credit at sight.

Product Detail

HMC500 CNC Automatic Horizontal Machining Center with BT40 Spindle Taper Fanuc/GSK System Horizontal Milling Machine

Product Description

Related Products

Product Detail

HMC500 CNC Automatic Horizontal Machining Center with BT40 Spindle Taper Fanuc/GSK System Horizontal Milling Machine

Product Description

Related Products

Taiwan VMC 5 Axis 4 Axis CNC Milling Machine CNC Vertical Cnc Machining Center VMC1160

Three-axis Machining Center, CNC Milling Machine For Metal, VMC Machining Center

HMC630 High Precision Small CNC Machining Center CNC Milling Machine For Metal Cutting

ISO9001 Approved GMC2014 CNC Vertical Machining Center For Stainless Steel Auto Parts Manufacturing

HMC630 CNC Horizontal Machining Center 6000RPM High Speed Spindle Heavy Duty Rigid Structure Efficient Mass Multi Surface

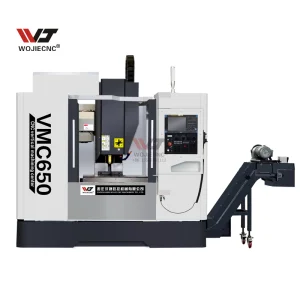

VMC650 Factory Direct Sale Gantry CNC Milling Machine CNC Vertical Machining Center For Metal Cutting

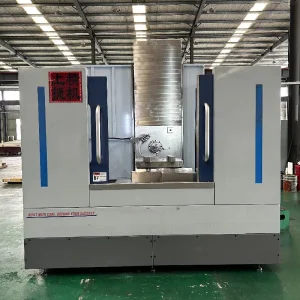

HMC500 High-Speed Horizontal Machining Center, Precision CNC Metal Cutter

Professional CNC Vertical Machining Center For Precision Metalwork With CE 10+ Patents VMC1370

DMTG Good Price Automatic Machining Center HMC CNC Horizontal CNC Milling Machine Center for Sale

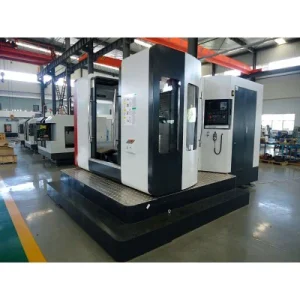

One Pallet HMC500 Horizontal Machining Center Cutting Metal Working Machine CNC Lathe With Semi-Closed Loop Control
