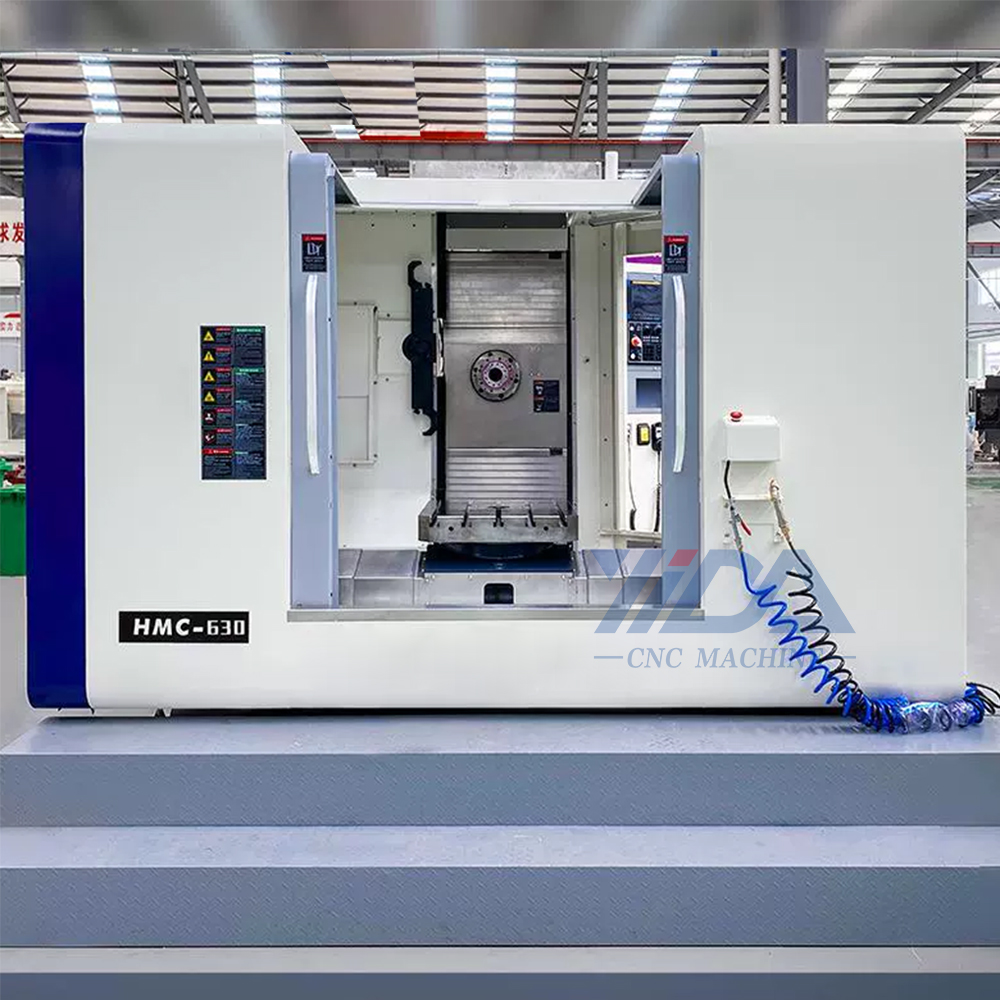

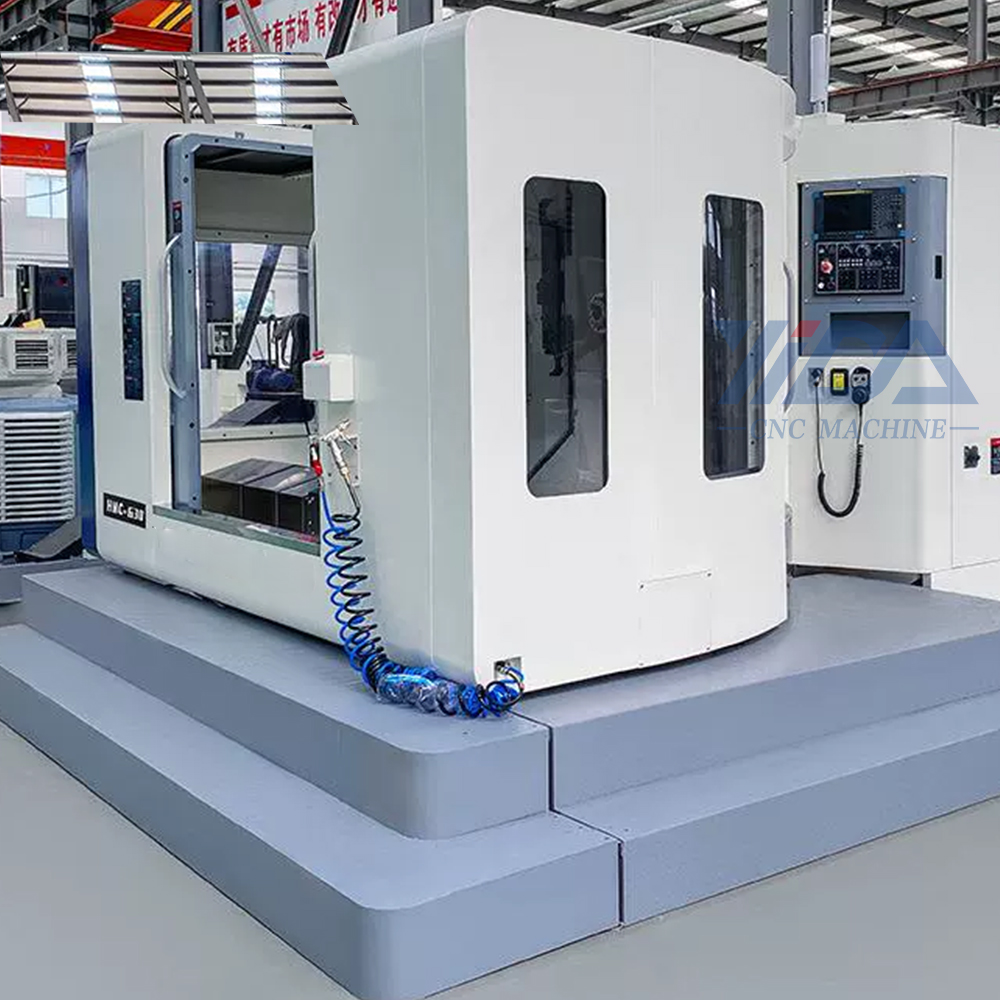

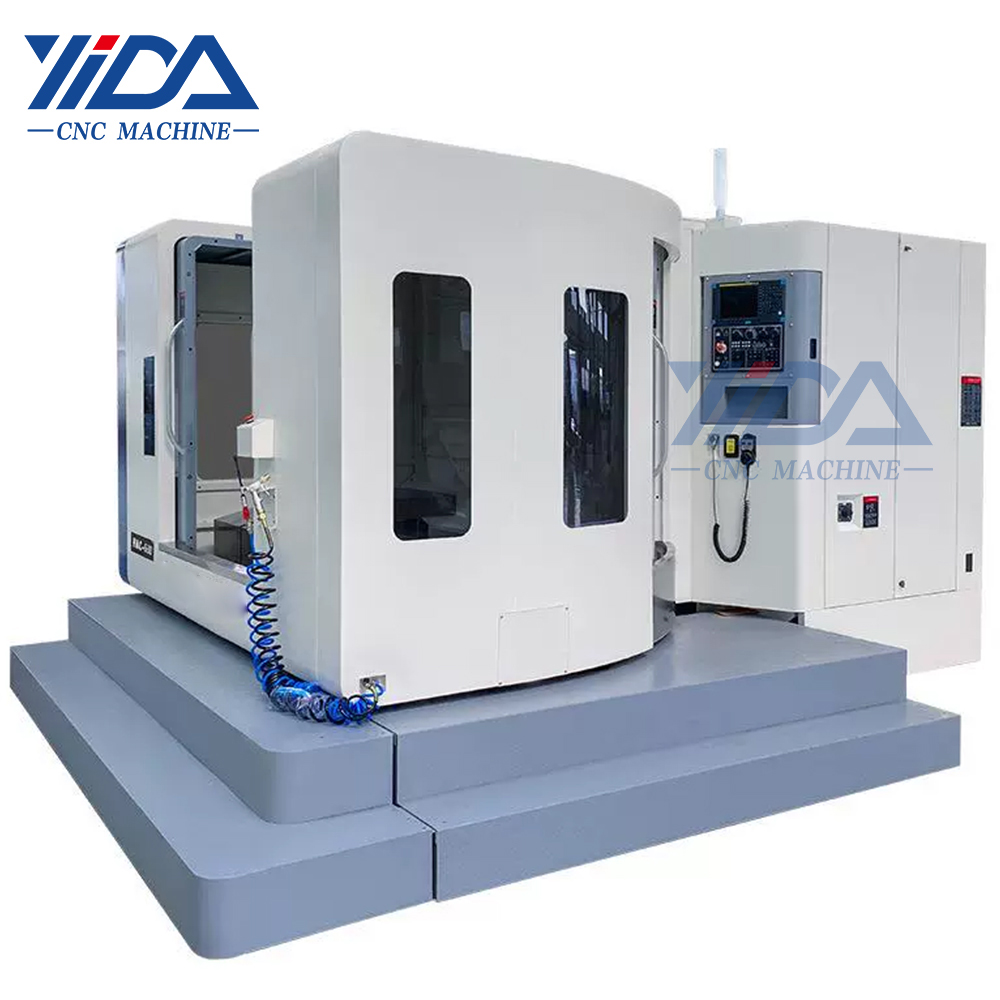

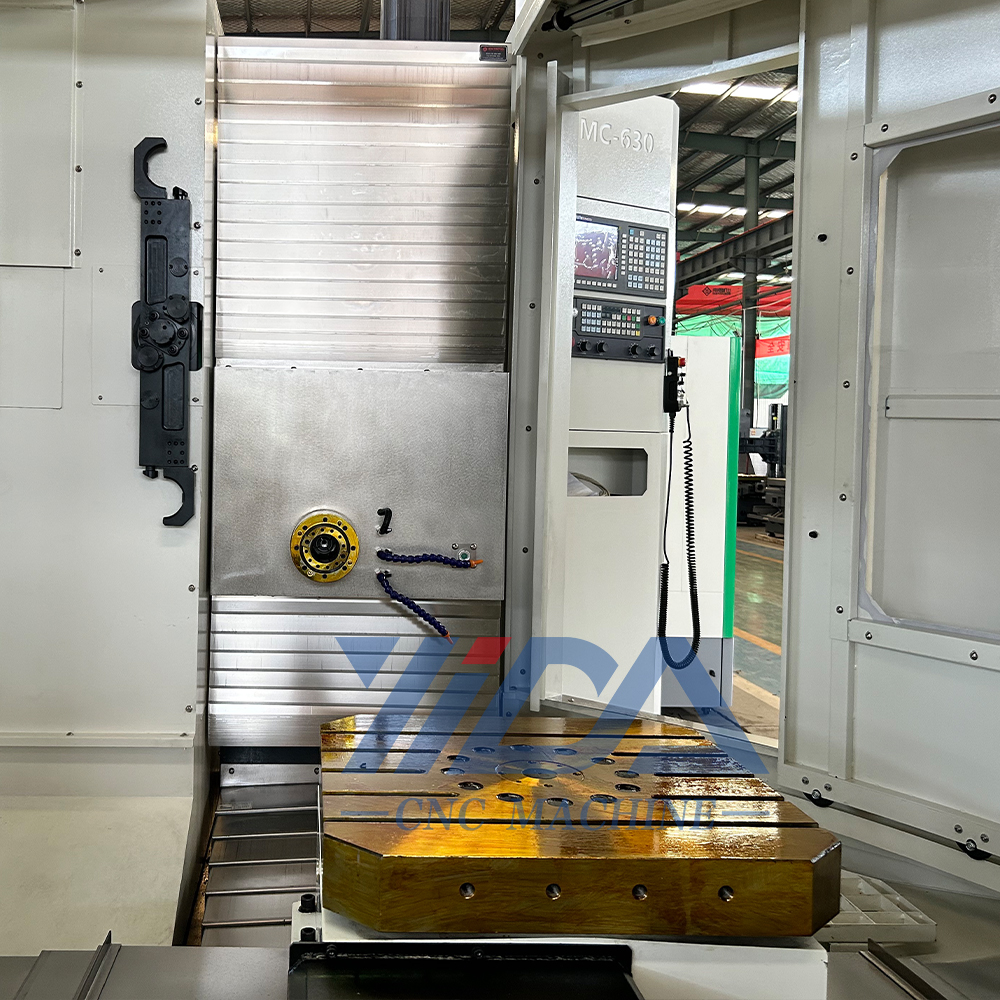

HMC series horizontal machining center is suitable for complex processing of box parts. The tool can be automatically exchanged during the processing. It can perform milling, drilling, reaming, boring, reaming and tapping on four sides at one time. The modern machine tool and control concept and compact structure design ensure high efficiency and high precision processing requirements of single or small and medium batch products.
| Specifications | Units | HMC500 | HMC630 | HMC800 |
|---|---|---|---|---|

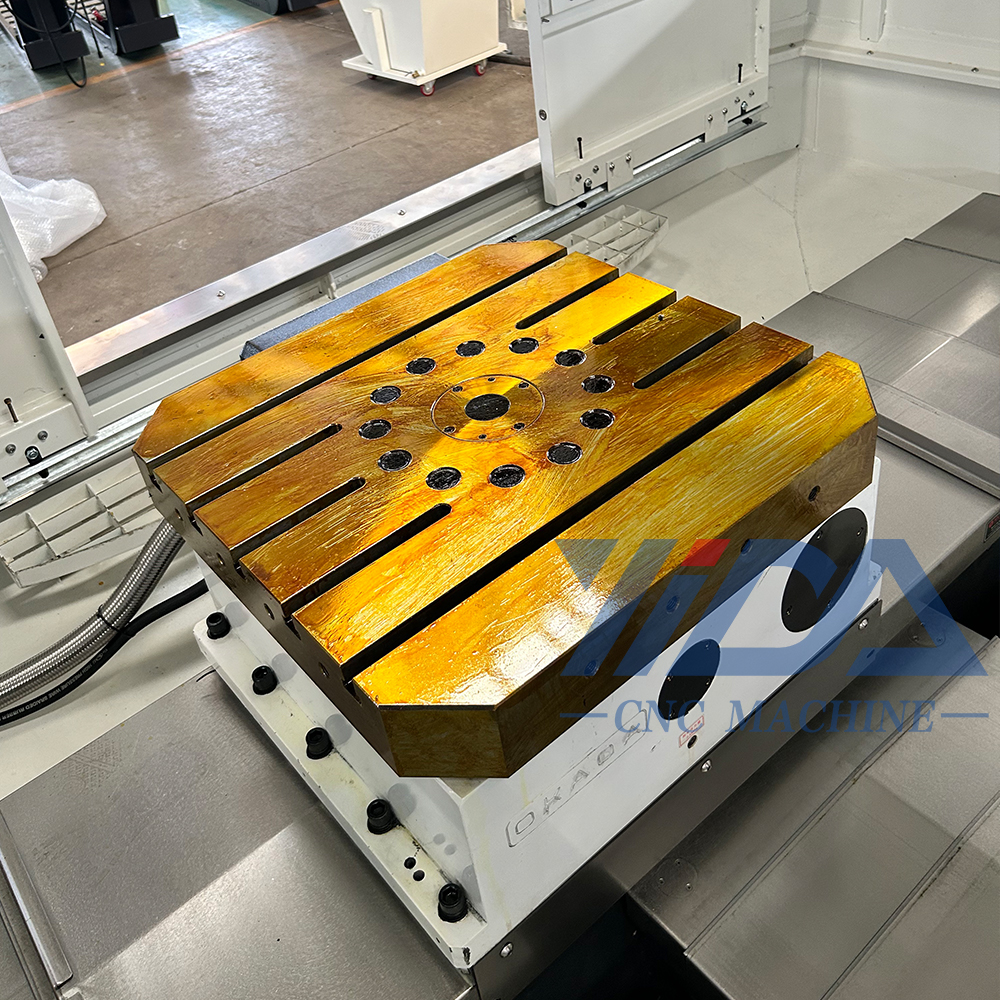

| Table size | mm | 500×500 | 630x630 | 800x800 |
| X axis travel | mm | 800 | 1100 | 1300 |
| Y axis travel(spindle box lift) | mm | 650 | 800 | 900 |
| Z axis travel(column front-rear move) | mm | 800 | 900 | 1100 |
| Max. worktable load | kg | 600 | 1500 | 2500 |
| T slot(number-width-pitch) | 5-18x100 | 5-18x125 | 5-22x160 | |
| Max.dividing position | 1°x360 | 1°x360 | 1°x360 | |

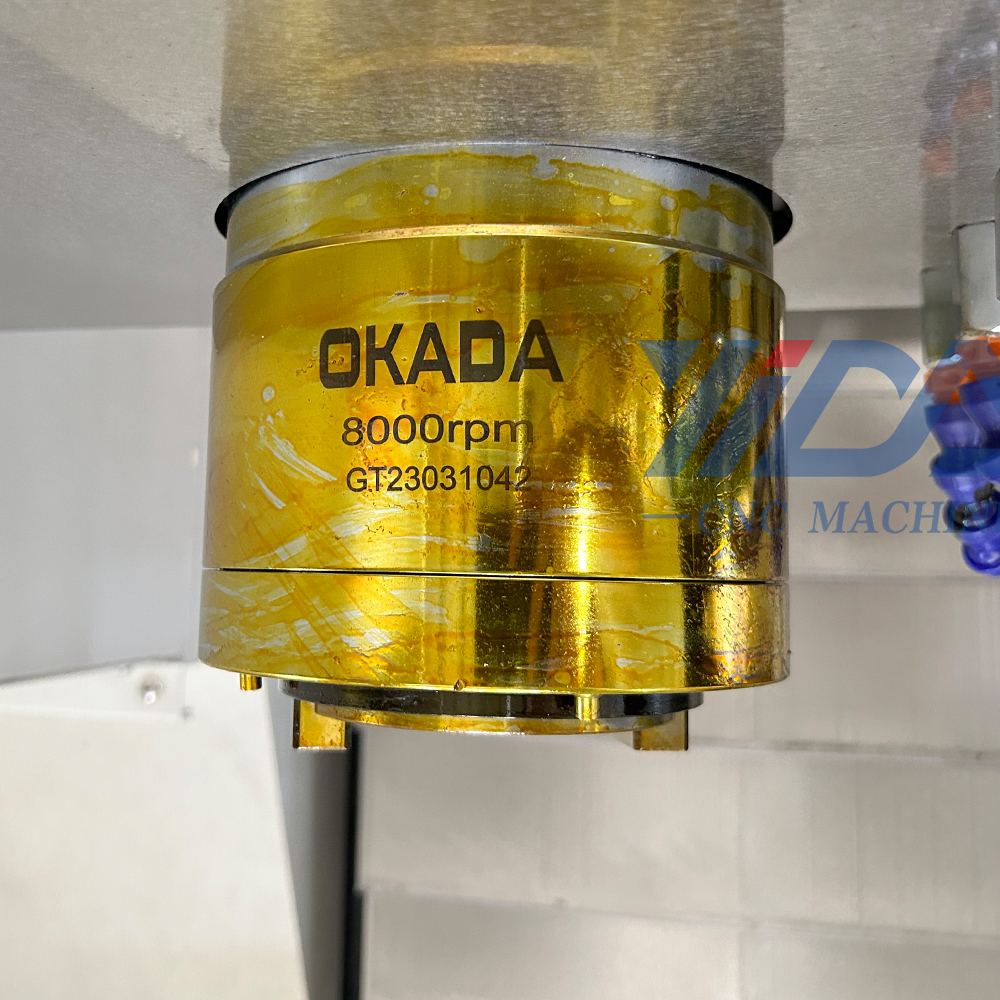

| Max. spindle speed | rpm | 8000 | 6000 | 6000 |
| Spindle taper | mm | BT40-150 | BT50-150 | BT50-190 |
| Main motor power | kw | 11 | 15 | 22 |
| X/Y/Z rapid traverse speed | m/min | 24/20/20 | 24/20/20 | 20/20/20 |
| Cutting feed speed | m/min | 1-10 | 1-10 | 1-10 |
| Guide rail type | Linear rail | Linear rail | Linear rail | |
| Distance between spindle nose and worktable center | mm | 150-950 | 145-1045 | 255-1355 |
| Distance from spindle axis to table surface | mm | 100-750 | 20-820 | 30-930 |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |

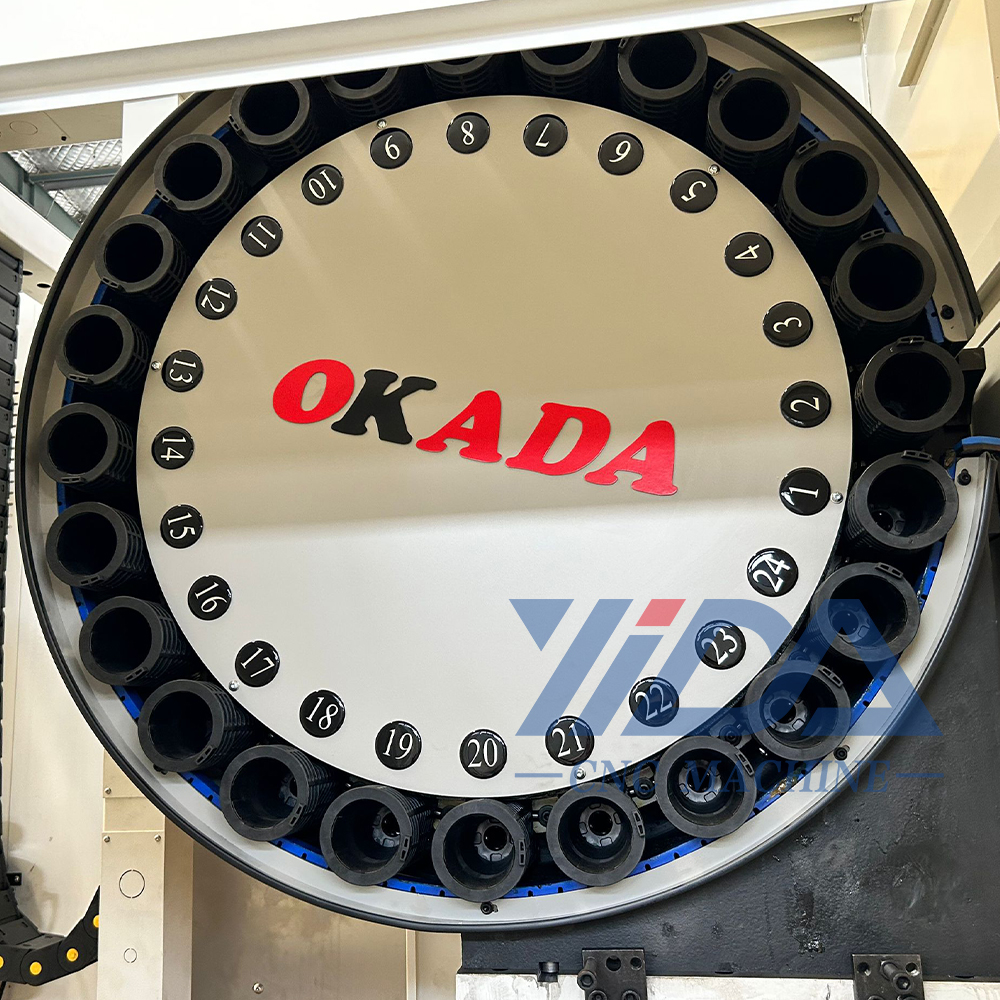

| Tool magazine | Arm 24 | Arm 24 | Arm 30 | |
| Machine weight | kg | 9000 | 11000 | 145000 |
