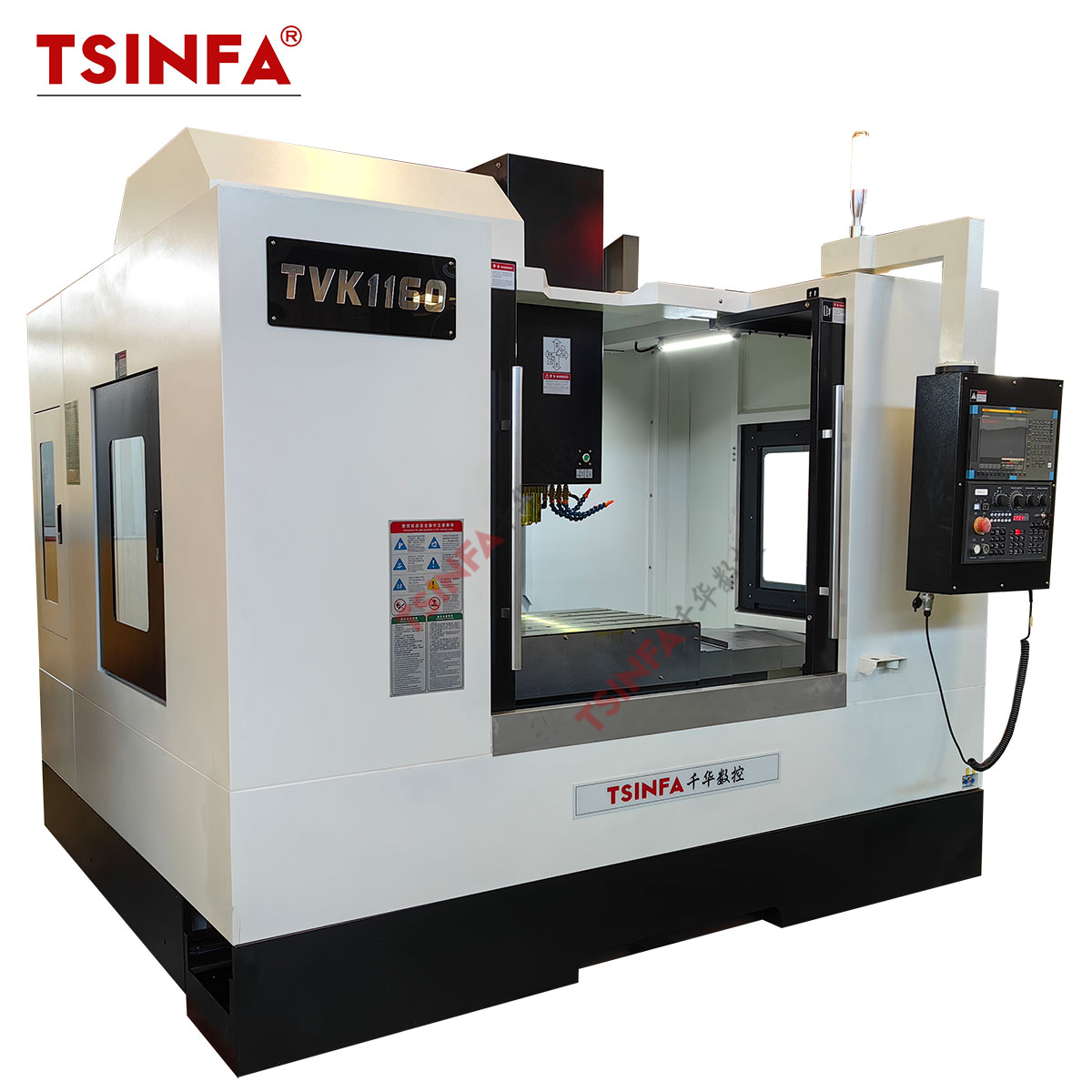

| Specification | Unit | VMC850 | VMC855 | VMC1160 | VMC 1370 |
|---|---|---|---|---|---|
| Table size | mm | 1000*500 | 1000×550 | 1200x600 | 1400x700 |
| T-slot (NO.×width) | mm | 5*18 | 5×18 | 5×18 | 5×18 |
| Max. table load | kg | 500 | 500 | 600 | 1000 |
| Guide rail type | / | X/Y/Z linear Guideway | X/Y/Z Linear Guideway | X/Y/Z Linear Guideway | X/Y/Z Linear Guideway |
| X/Y/Z axis travel | mm | 800*500*500 | 800*550*550 | 1100×600×600 | 1300×700×700 |
| Distance from spindle nose to worktable | mm | 120-620 | 120-670 | 120-720 | 100-780 |
| Distance from spindle center to column | mm | 570 | 580 | 645 | 760 |
| Spindle taper | / | BT40 | BT40 | BT40 | BT40 |
| Spindle speed | rpm | 8000 | 8000 | 8000 | 8000 |
| Spindle motor | kw | 7.5 | 7.5 | 11 | 15 |
| X/Y/Z axis motor | nm | 15/15/22 | 15/15/22 | 18/18/27 | 23/23/27 |
| X/Y/Z axis rapid feed speed | m/min | 48/48/48 | 48/48/48 | 36/36/36 | 24/24/18 |
| Magazine type | / | Disc | Disc | Disc | Disc |
| Magazine Hole Taper | / | BT40-24 | BT40-24 | BT40-24 | BT40-24 |
| Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Repositioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 |
| Overall size (L×W×H) | mm | 2600x2360x2400 | 2650×2100×3030 | 3300x2550x2800 | 3800x2600x2950 |
| Machine weight | T | 4.8 | 5.2 | 6T | 9T |
We specialize in high-end manufacturing and sales of CNC machine tools, machinery, and equipment design, research, and development.
Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC slotting machines, radial drilling machines, CNC cutting machines, boring machines, universal milling machines, and ordinary lathes.
Our mission is to lead in innovation as a machine tool supplier, providing machinery with energy-saving, highly efficient, and appropriate features. To satisfy requirements for customers and to provide convenience for users, to create value for society and to seek happiness for employees are our pursuits. We stick to giving top priority to the interest of customers by innovation of product design and processing technology.
Please share your detailed specifications or product drawings with us, and we will evaluate and choose the best model for your production needs.
Our products cover metal cutting and forming categories, including CNC machining centers, CNC lathes, manual lathes, manual milling machines, sawing machines, and hydraulic press machines.
We support multiple transportation solutions, including DDP, CIF, FOB, and FCA terms to fit your logistical preferences.
Our payment structure is a 30% initial deposit payment when the order is confirmed, and the remaining 70% balance payment prior to shipment.
The MOQ is 1 set. (Only selected low-cost machinery lines require an MOQ higher than 1 set).
We suggest providing the size and material of your workpieces, preferably with technical drawings. If you require a CIF price, please include your destination port.
