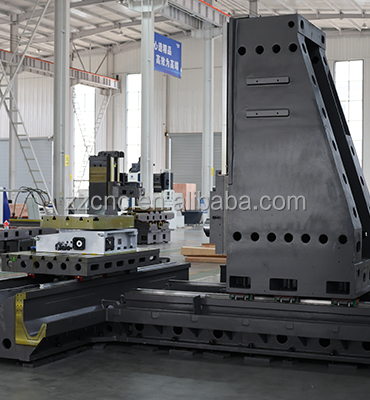

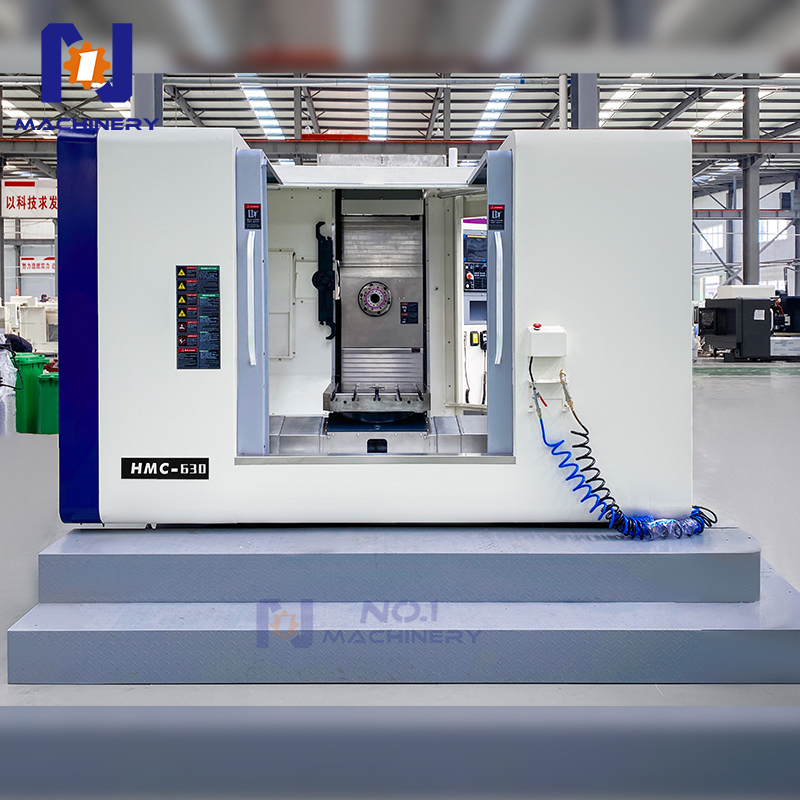

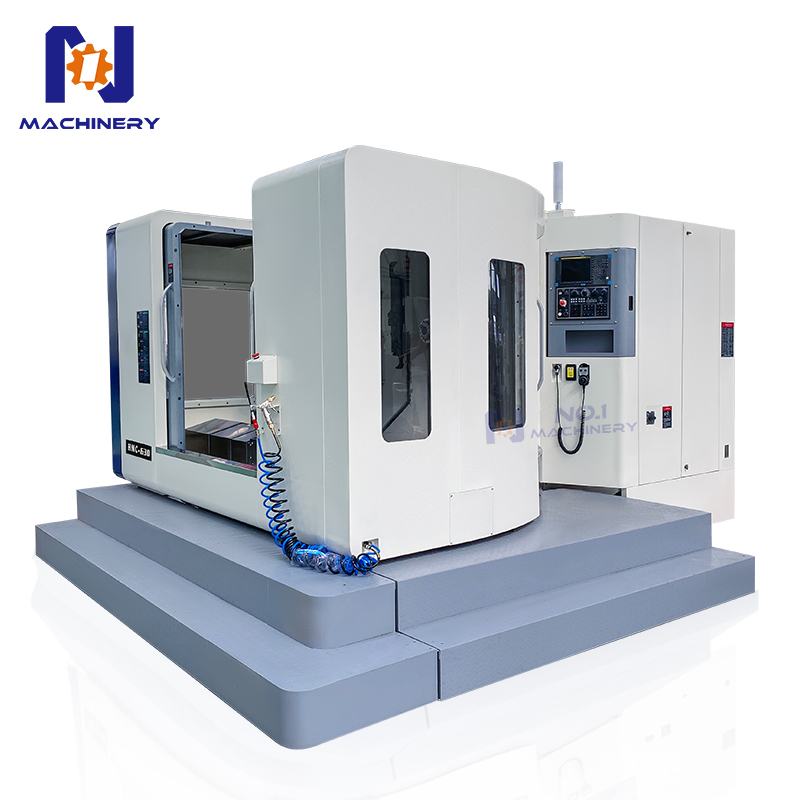

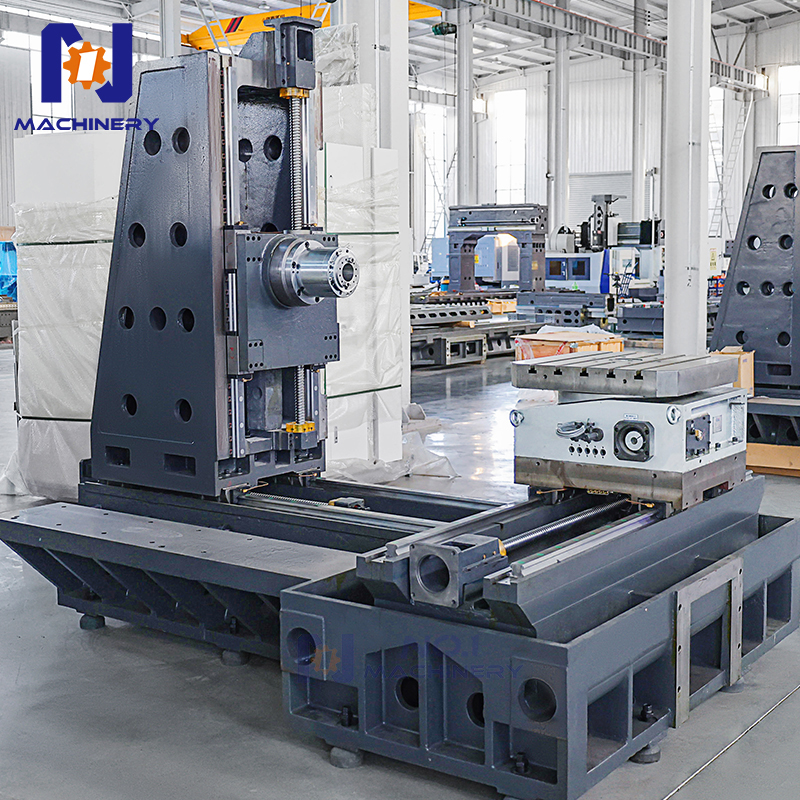

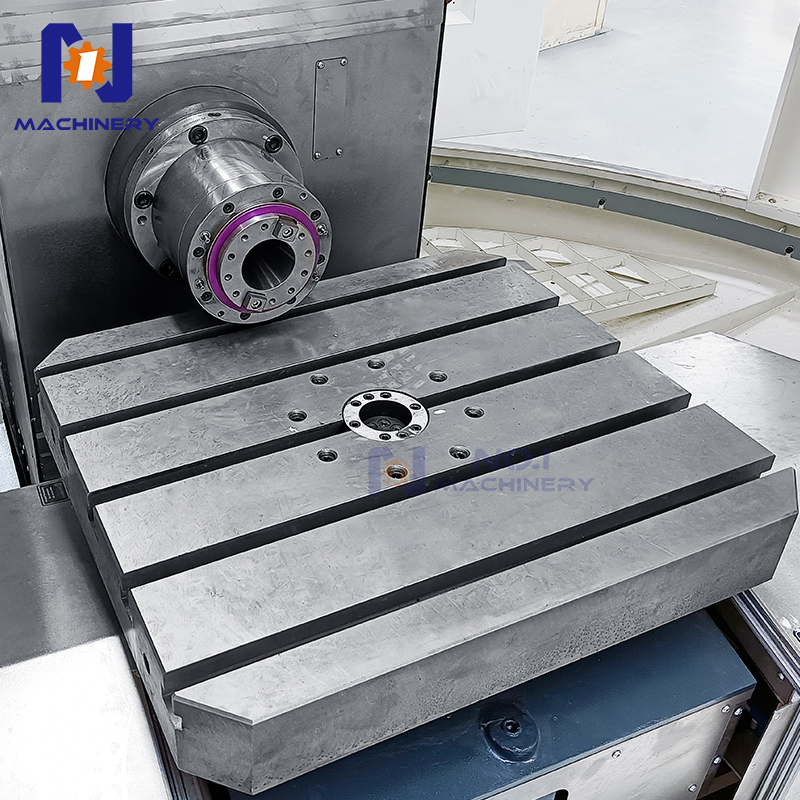

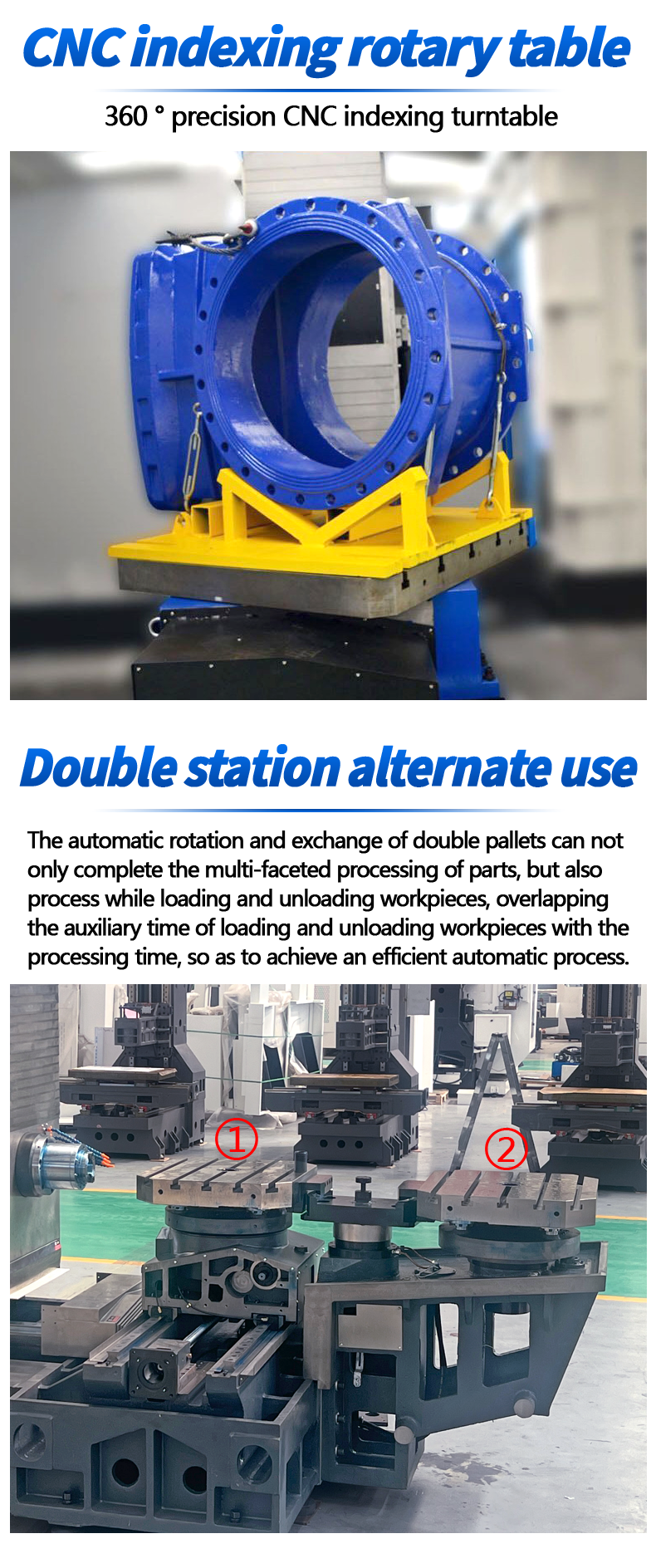

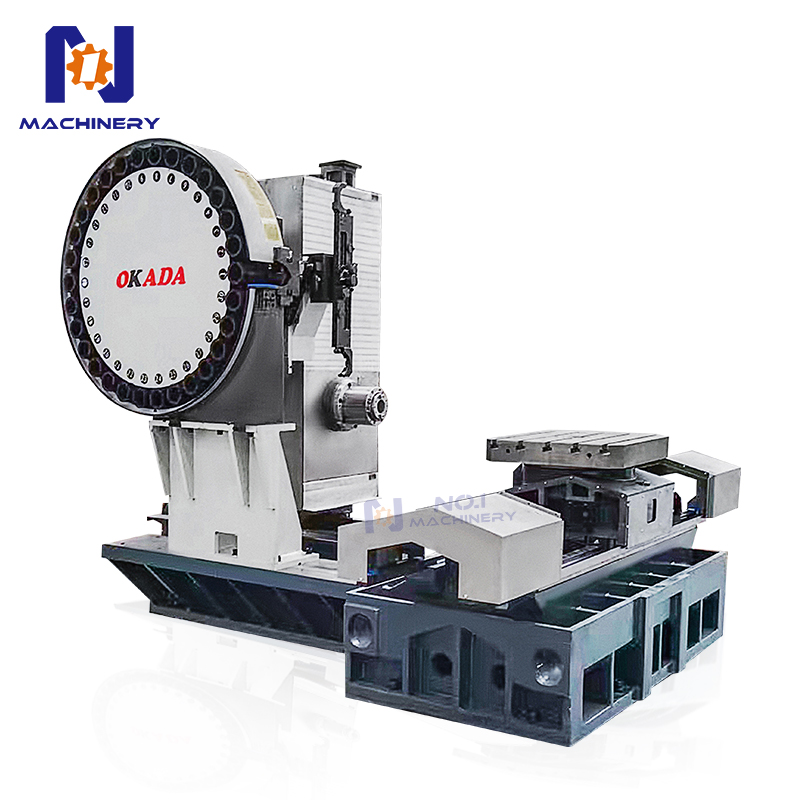

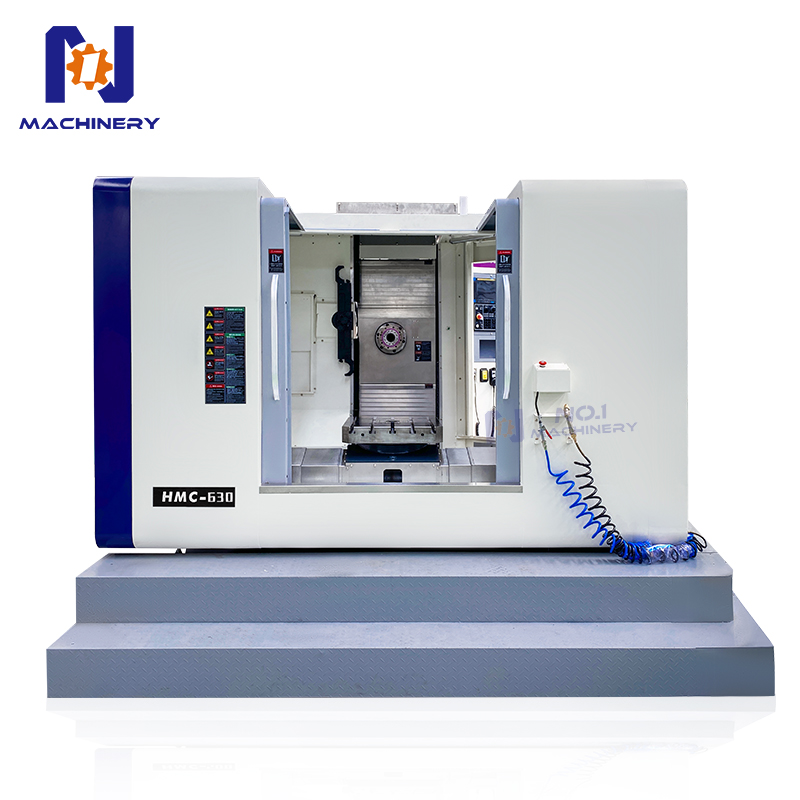

The HMC630 is an inverted T-type horizontal machining center known for its high precision and efficiency in machining various parts. It features a horizontal layout with a transverse movement of the worktable, ensuring stable and reliable machining processes. With its robust machine body and rigid cast iron bed, the HMC630 can handle large workpieces and heavy loads. It is equipped with a high-speed spindle and a tool changer, enabling quick tool changes and enhancing production efficiency. The machine center also boasts multi-axis control capabilities, and the worktable can rotate 360 degrees, enabling complex cutting operations and multi-sided machining.
| Item Model | Unit | HMC630 |
| Size of worktable | mm | 630*630 |
| Table graduation | mm | 1°*360 |
| Maximum load on table | kg | 800 |
| Number of worktables | - | 1 |

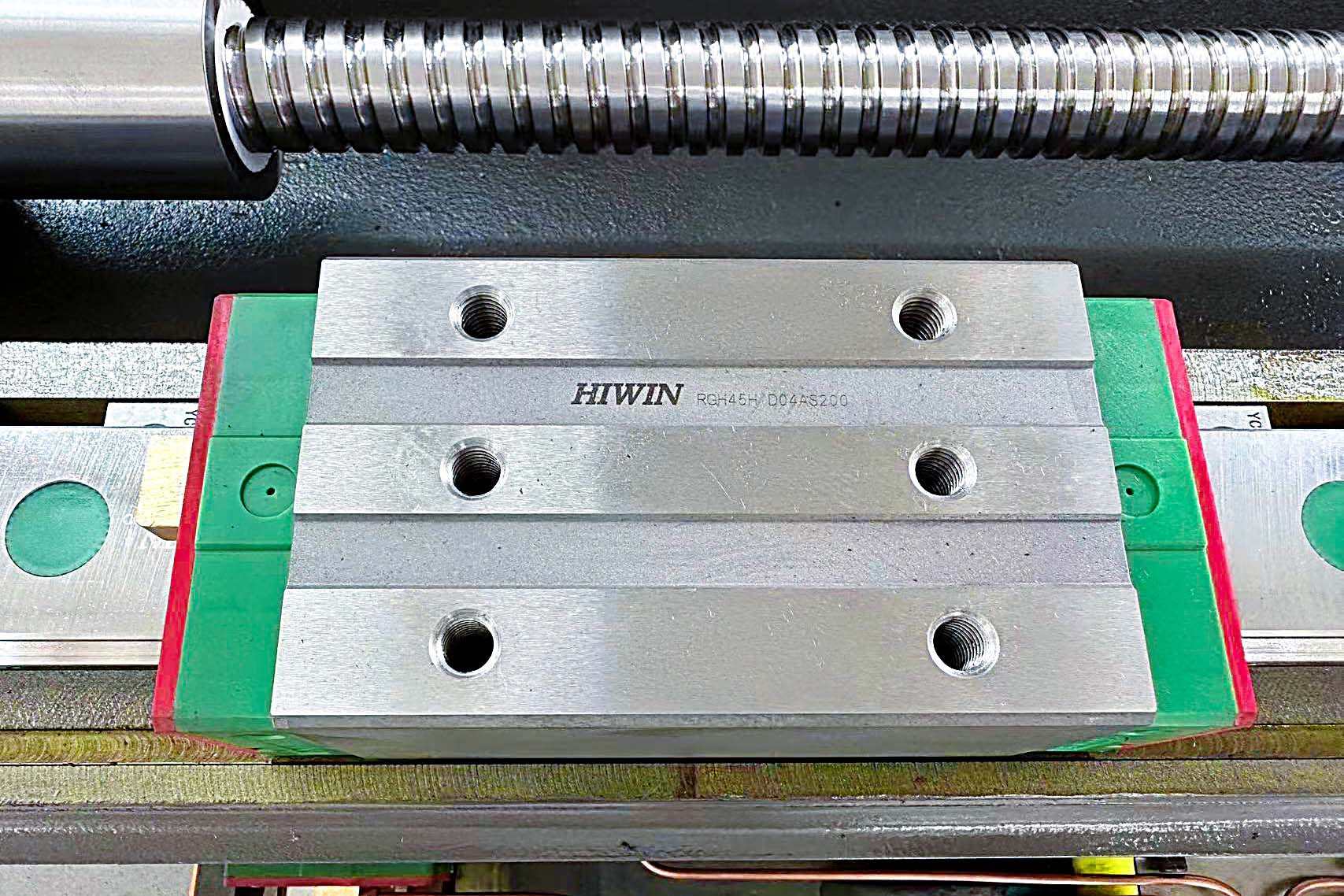

| X/Y/Z rail width | mm | 45/45/45 |
| X/Y/Z screw diameter | mm | 4012/5012/4012 |
| X/Y/Z Axis stroke | mm | 1100*800*900 |
| X/Y/Z motor torque | mm | 18/28/28 |
| Distance from spindle face to table | mm | 120-870 |
| Distance from spindle center to column | mm | 145-1045 |
| Cutting feed rate | mm/min | 1-10 |
| X/Y/Z axis fast feed | mm/min | 24/20/20 |

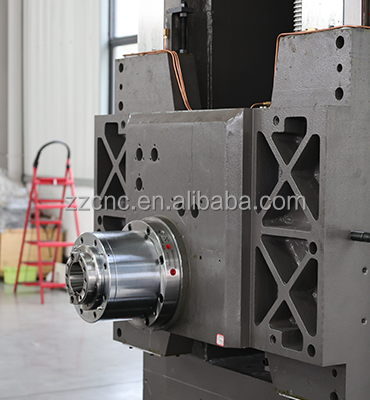

| Spindle en taper | mm | BT50-190 |
| Spindle motor power | kw | 15 |
| Maximum spindle speed | rpm | 6000 |

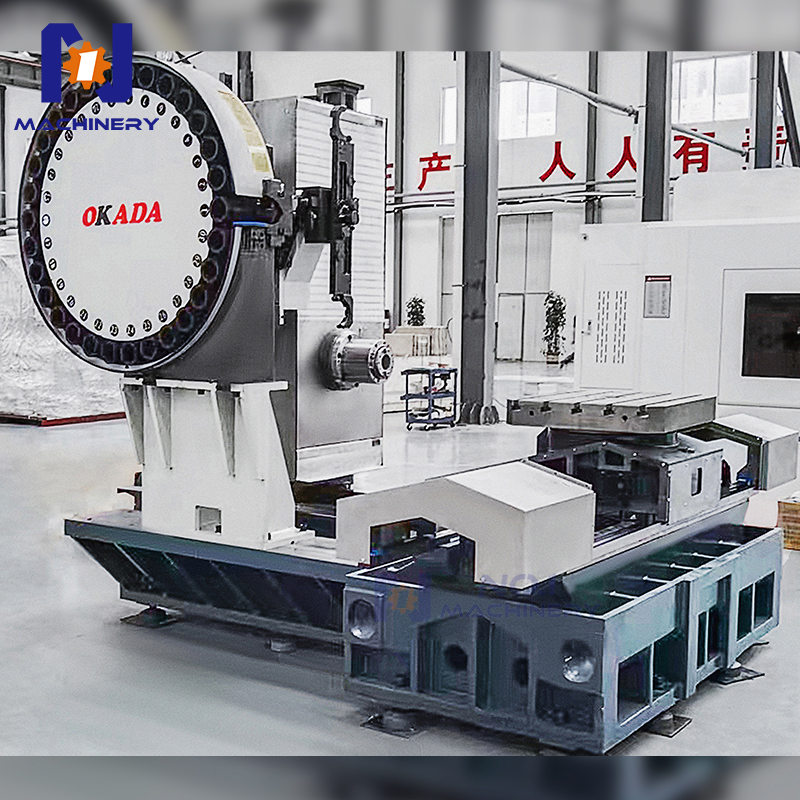

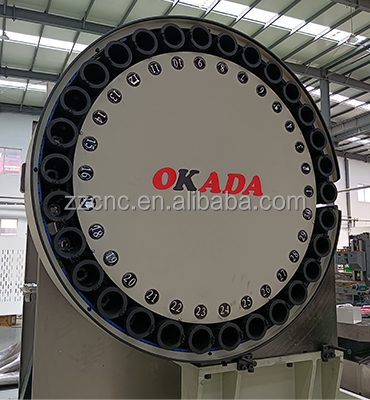

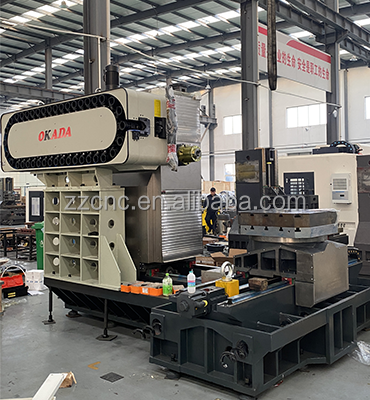

| Form of Tool Magazine | - | Disc/Chain type |
| Maximum tool diameter/weight | mm/kg | 125/300/25 |
| Tool change time | sec | 2.5 |
| Positioning accuracy | mm | 0.008 |
| Repeat positioning accuracy | mm | 0.005 |
| The smallest unit of positioning | mm | 0.001 |
| Weight of machine tool | kg | 11000 |
| External dimensions | mm | 4580*2950*2900 |
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories keep developing and producing innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after-sales service for all customers in the world. Our product range is CNC machines, Lathes, Milling machines, Drilling machines, Grinding machines, Saws, Shapers, Presses, Sheet metal machines, Metal forming machines, and other machine accessories. Since establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price. With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for management. All machines are inspected. We wish to cooperate sincerely with friends all over the world to realize mutual development.
We are a dedicated team of professionals with years of experience exporting high-quality machine tools globally. Our main market coverage includes domestic operations and North America.

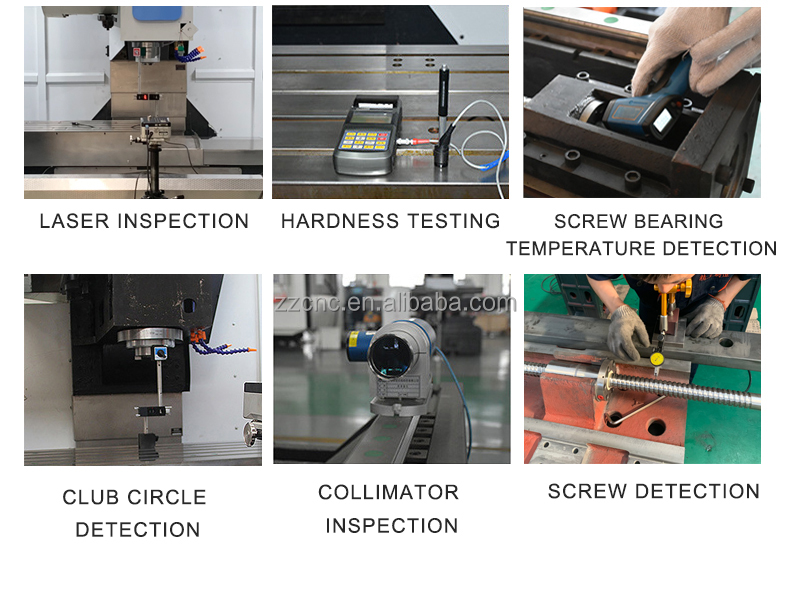

We always maintain quality checks through a pre-production sample before mass production, along with a comprehensive final inspection prior to every shipment.
