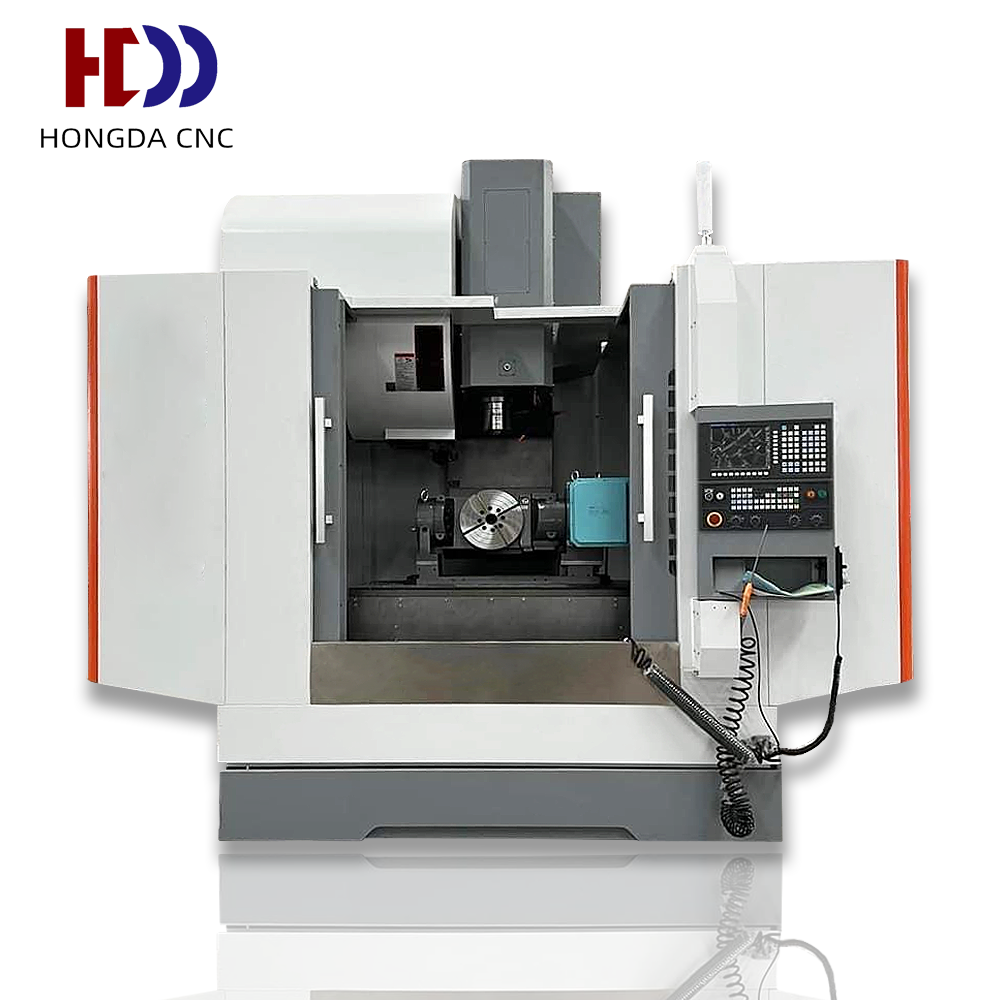

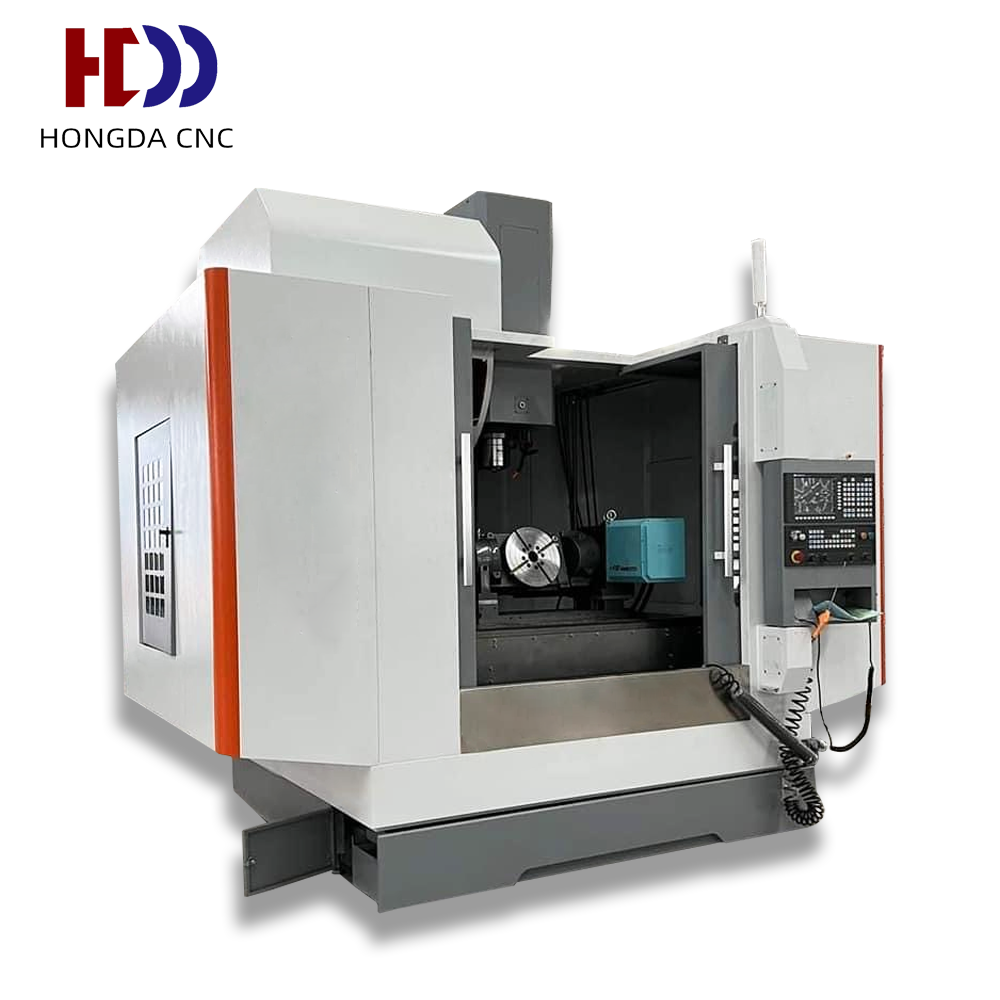

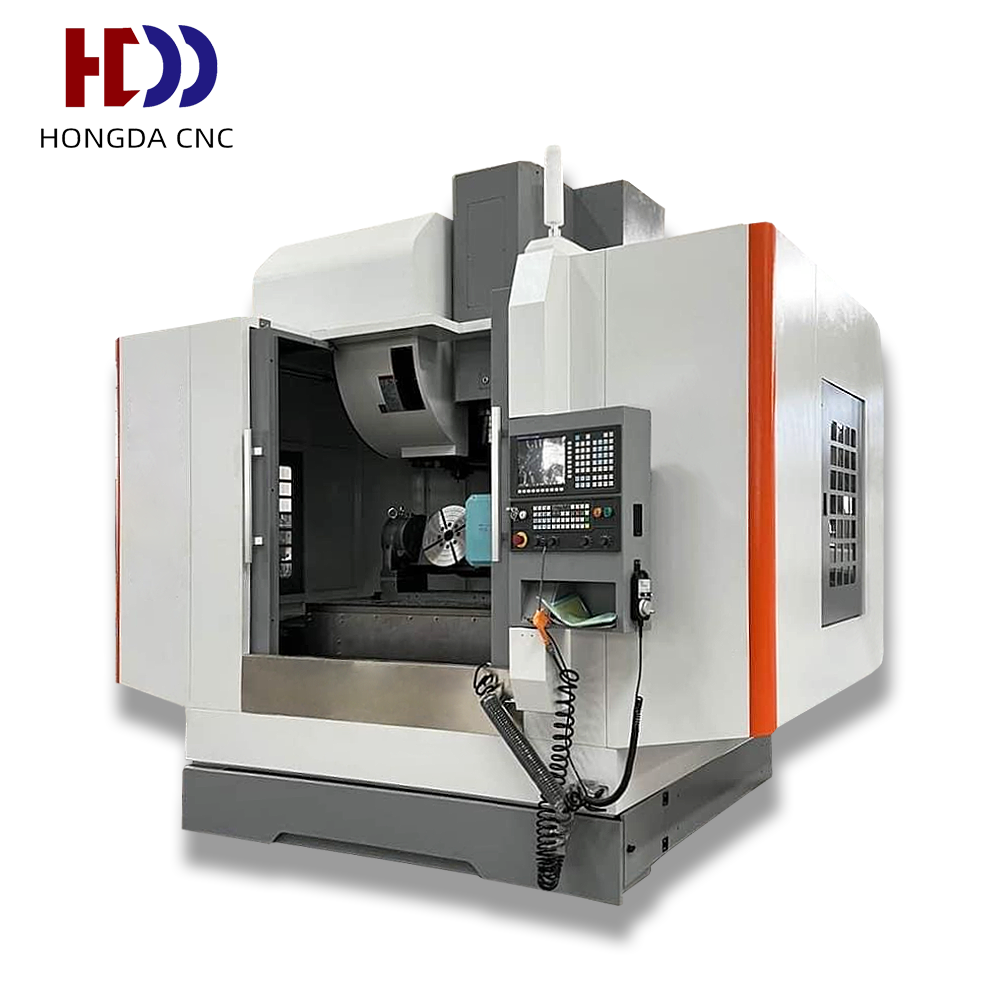

| Specifications | Units | VMC650 |
|---|---|---|
| Table size | mm | 800x400 |
| X axis travel | mm | 650 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 400 |
| T slot(number-width-pitch) | 3-18x125 | |

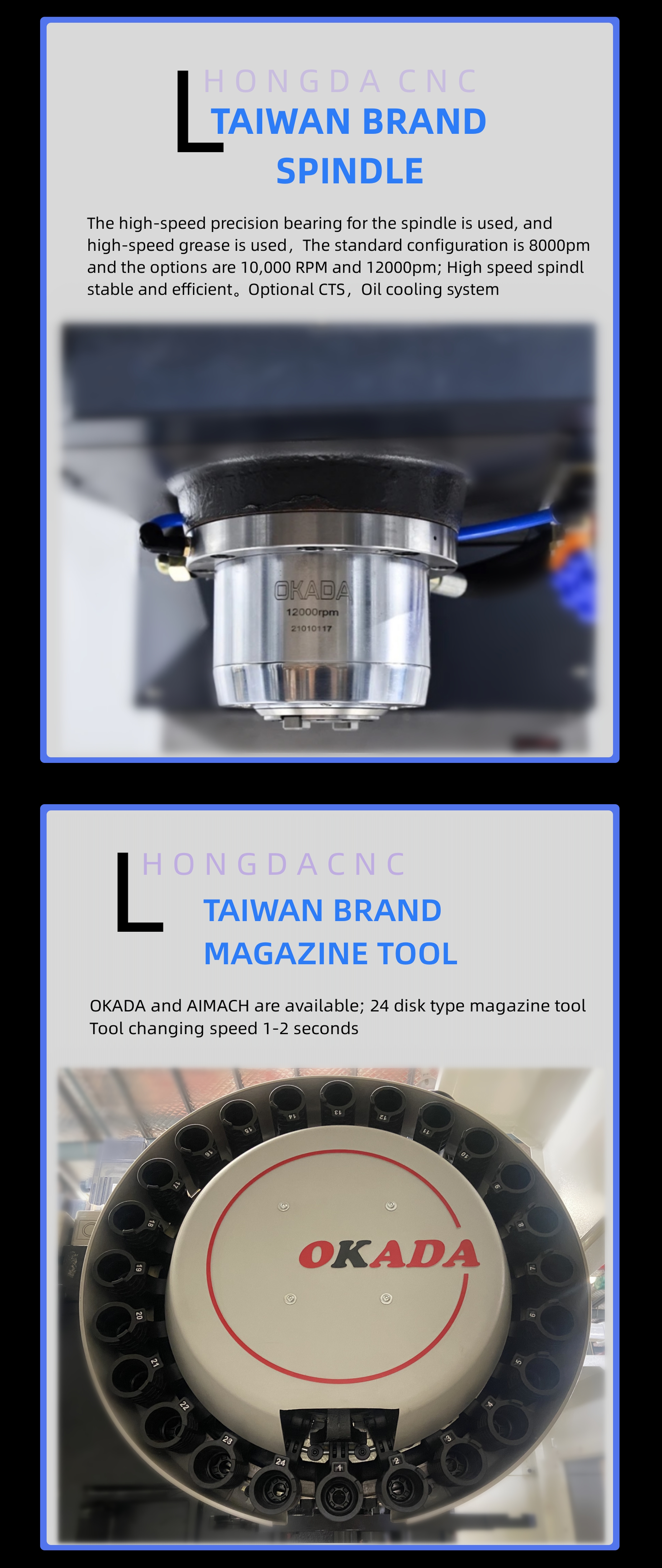

| Max. spindle speed | rpm | 8000(Optional:10000 ) |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional:48/48/36 ) |
| Cutting feed speed | mm/min | 1-10000 |

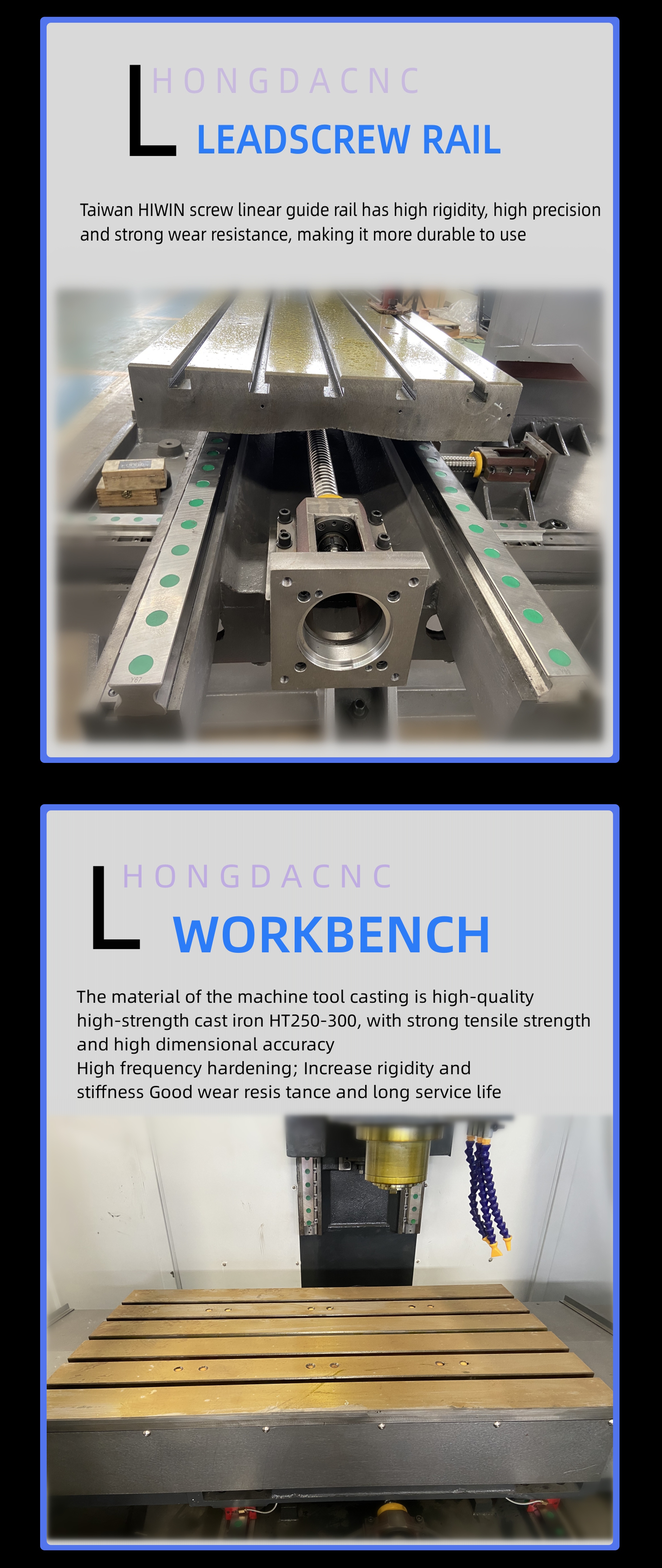

| Guide rail type | Linear rail | |
| Distance from spindle axis to column surface | mm | 469 |
| Distance between spindle nose and worktable surface | mm | 100-600 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | 16 Armless/(Optional: Arm 24 ) | |
| Max. tool diameter | mm | φ90 |
| Max.tool weight | kg | 8 |
| Machine weight | kg | 4000 |

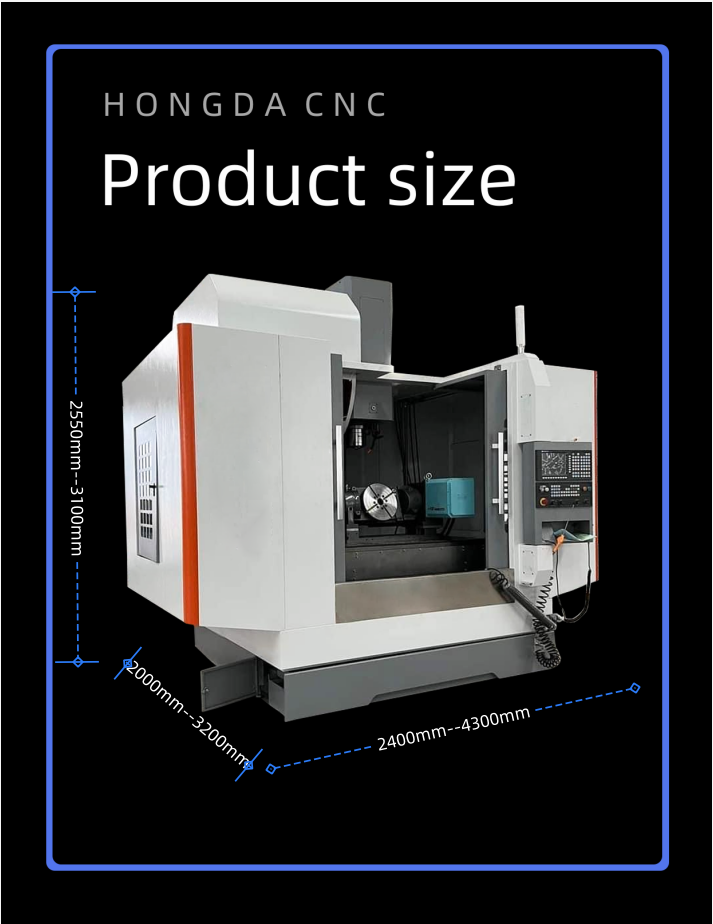

| Overall dimension | mm | 2400x2000x2550 |
