We don’t just build machines; we deliver precision. By utilizing Taiwan's leading spindle and ball screw technology alongside German R+W couplings and Japanese NSK bearings, our CNC centers offer a 30% higher stability rating than standard models. The high-quality resin sand casting ensures the machine frame remains distortion-free for decades, making it a reliable workhorse for your most demanding projects. (Price varies based on CNC system, spindle speed, and optional accessories. Please contact our sales for a tailored quotation and technical support.)

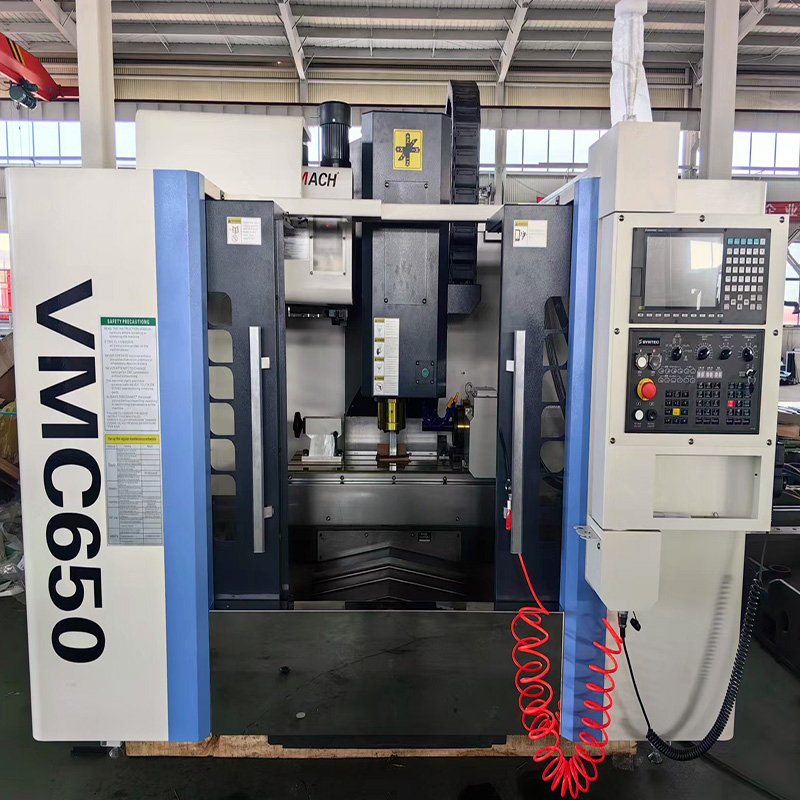

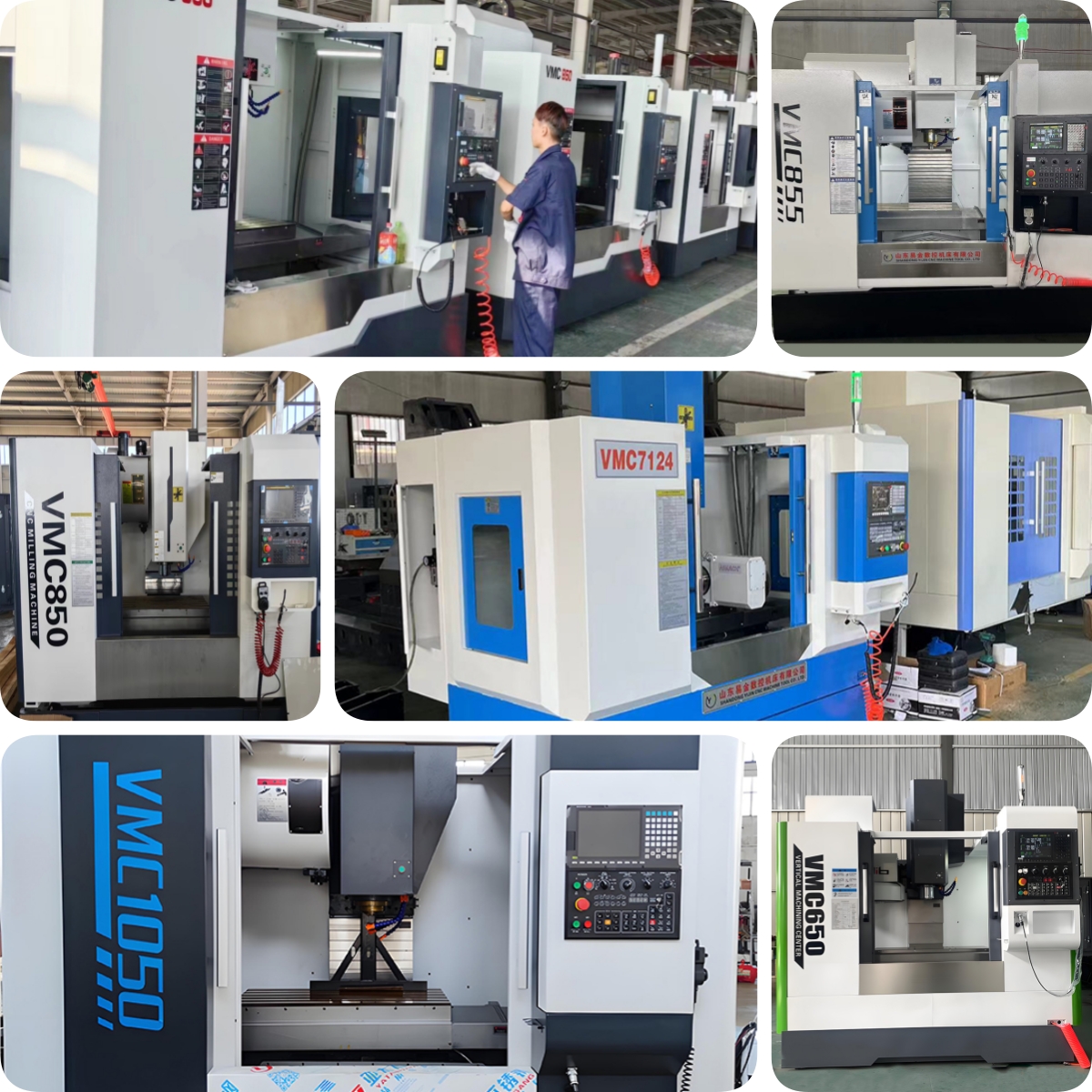

VMC650 vertical machining center is mainly used for the processing of complex parts, such as aircraft components, automotive parts, and electronic components. The machine adopts a cast iron structure and a high-strength spindle, which can ensure the stability and accuracy of the machine. (As it is a customized product, the price is subject to the actual quotation after communication.)
| Item | VMC7124 | VMC650 | VMC850 | VMC855 |
|---|---|---|---|---|
| X/Y/Z axis travel (mm) | 520/320/430 | 900/460/480 | 800/500/500 | 800/550/550 |
| Table size (mm) | 800*260 | 1000*420 | 1000*500 | 1000*550 |
| Spindle end face to workbench (mm) | 80-510 | 120-600 | 120-620 | 120-670 |
| Spindle center to column surface(mm) | 420 | 430 | 560 | 540 |
| X/Y/Z axis rapid movement(m/min) | 24/24/20 | 24/24/20 | 24/24/20 | 24/24/20 |
| Cutting feed mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Max load (kg) | 200 | 400kg | 500kg | 600kg |
| t-slot (mm) | 3-18-90 | 3-16-90 | 5-18-90 | 5-18-90 |
| Spindle diameter(mm) | 120 | 120 | 140 | 150 |
| Spindle taper | BT40-120 | BT40-120 | BT40-140 | BT40-150 |
| Main motor power(kw) | 3.7 | 5.5 | 7.5 | 7.5 |
| Weight (kg) | 2100 | 3200 | 4900 | 5500 |
| Dimensions(L*W*H)(mm) | 2200*1800*2250 | 2400*1800*2550 | 2400*2200*2500 | 2600*2450*2650 |
| Positioning accuracy(mm) | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeat positioning accuracy(mm) | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Spindle speed(RPM) | 8000/10000/12000 | |||
| Item | Standard Configuration (Included) | Optional Configuration (Upgrade Available) |
|---|---|---|
| Enclosure | Full Cover Protective Shield | — |
| Spindle System | 8,000 RPM Belt-Drive Spindle | 10,000 / 12,000 RPM Direct-Drive Spindle |
| Tool Magazine | 12/16/24 Automatic tool changer magazine (ATC) | 24 T Disc Type Manipulator ATC |
| Control System | (Default Configuration) | FANUC / Siemens / Mitsubishi / GSK / Syntec |
| Cooling & Cleaning | Water Tank & Worktable Cleaning Gun | CTS (Coolant Through Spindle) 30Bar |
| Chip Management | Clean Air Gun | Automatic Chain-Type Chip Conveyor |
| Lubrication | Automatic Self-Lubrication System | — |
| Precision Control | Spindle Air Curtain & Dust Control | Spindle Oil Cooler / Nitrogen Balance Device |
| Axis Expansion | — | 4th / 5th Axis CNC Rotary Table |
| Safety & Light | Working & Warning Lights (Triple Color) | — |

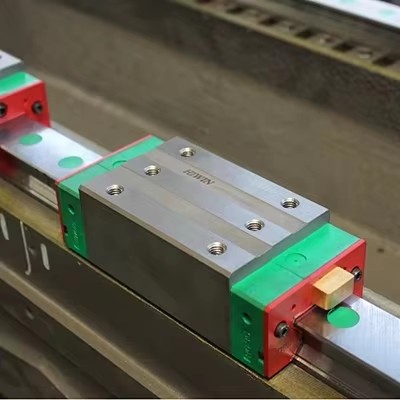

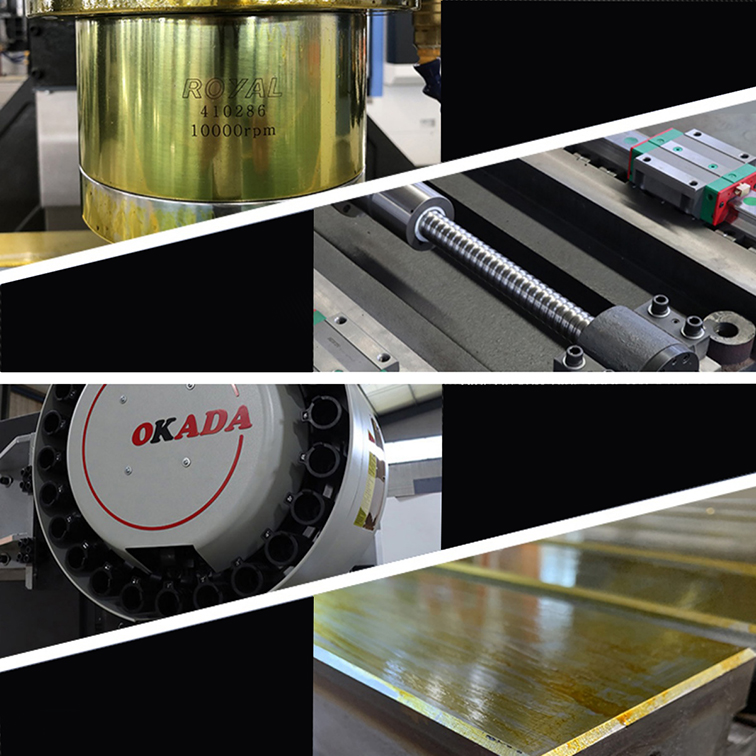

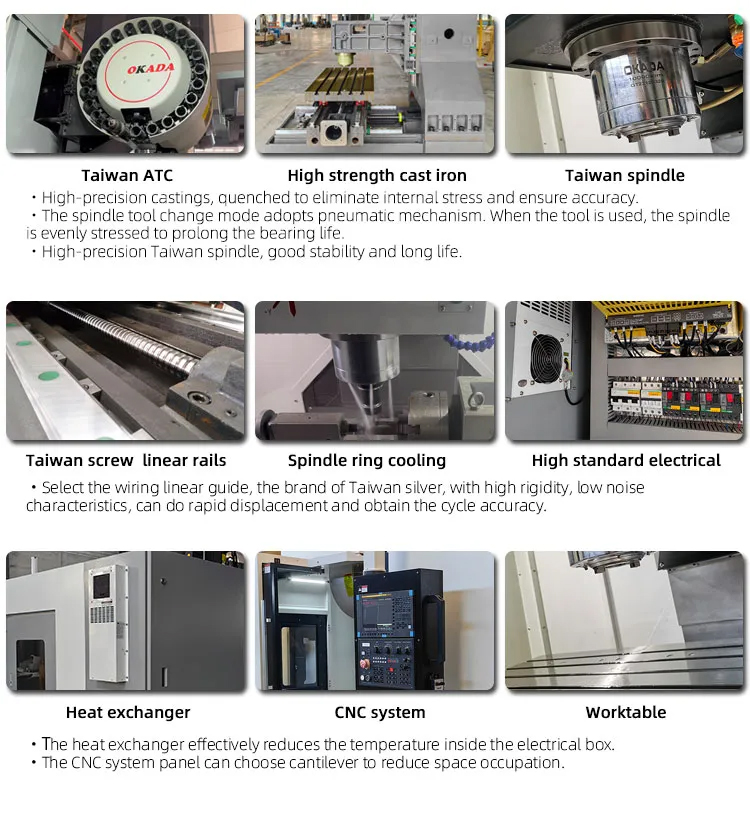

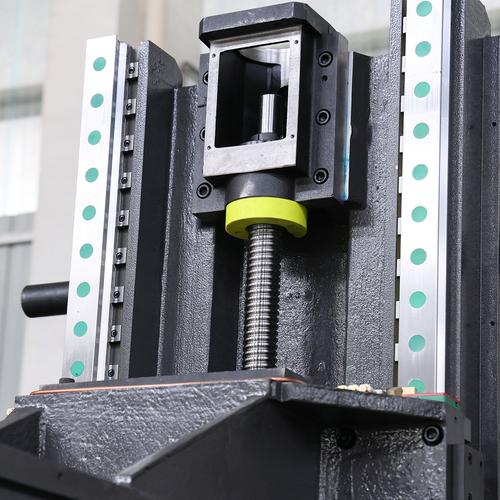

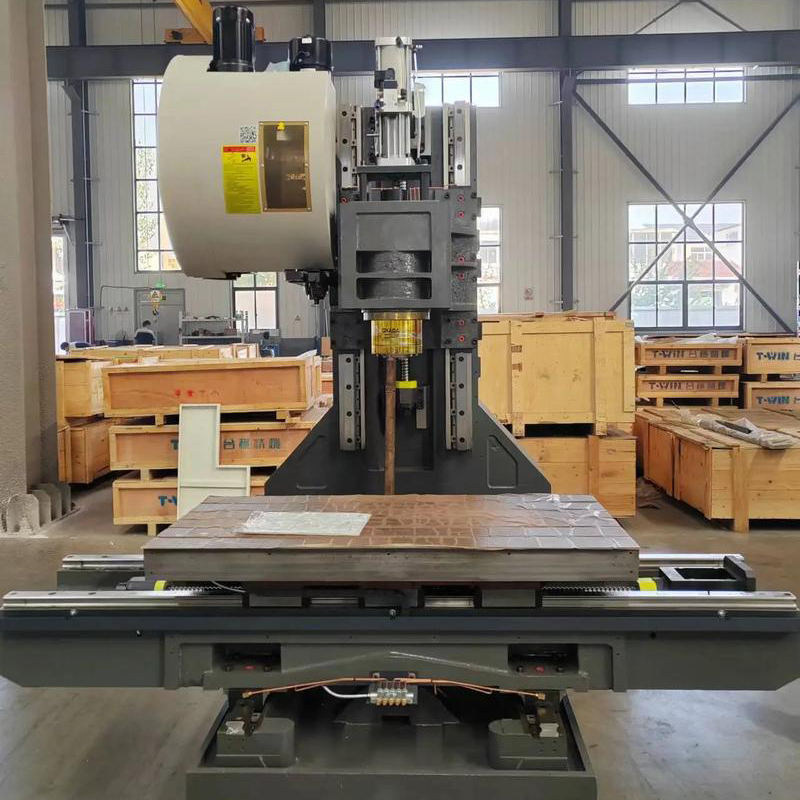

Taiwan HIWIN roller type linear guide rail, with fast spindle and worktable movement speed and high accuracy.

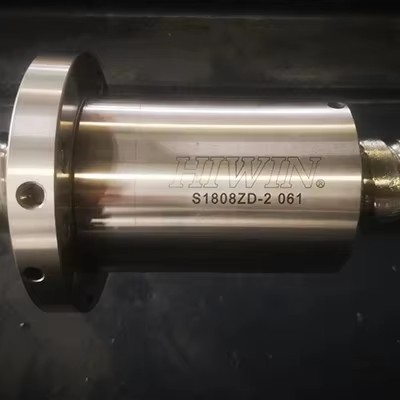

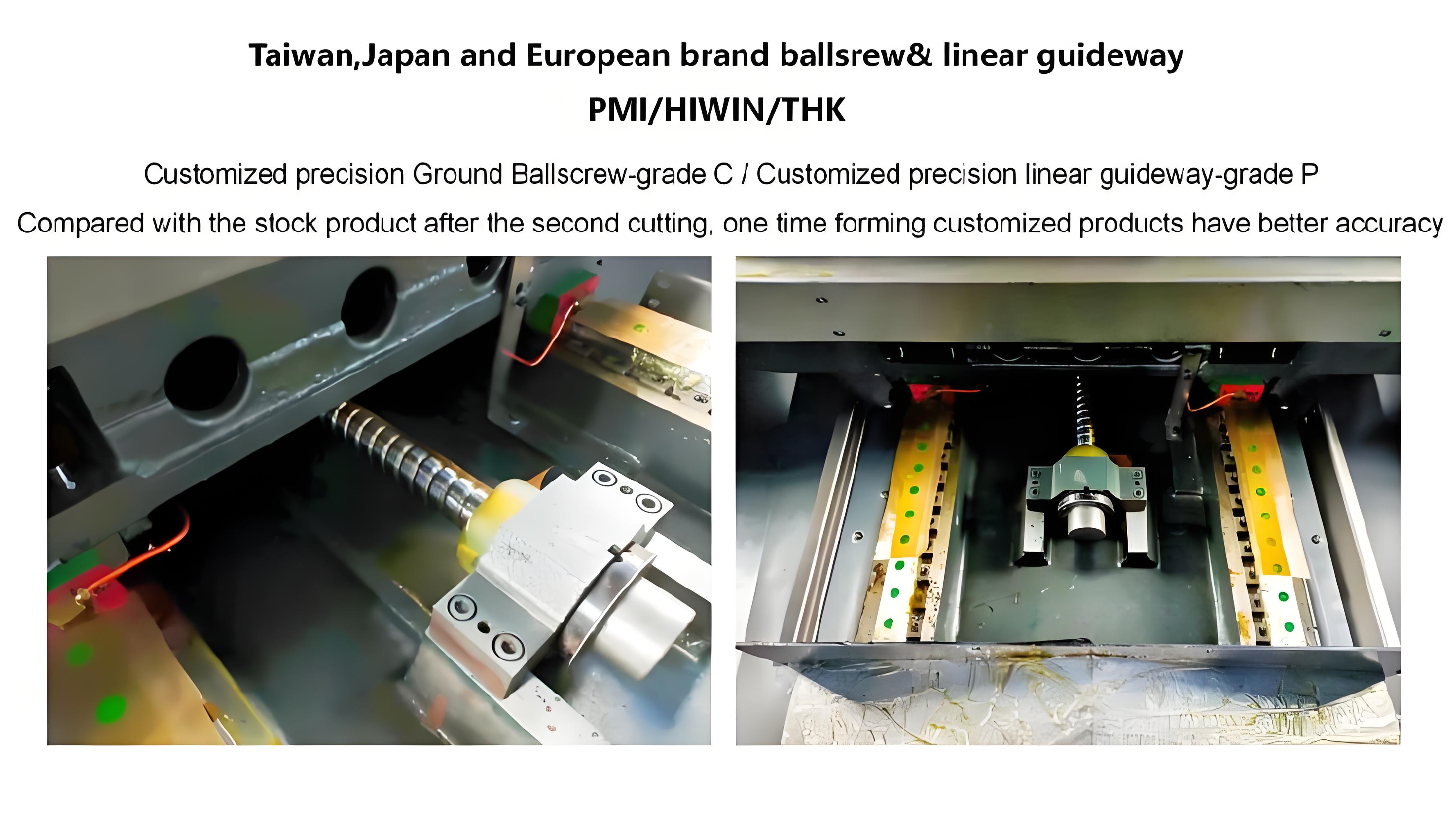

Taiwan HIWIN/SHAC C3 ball screw, low noise, high accuracy, and wear-resistant.

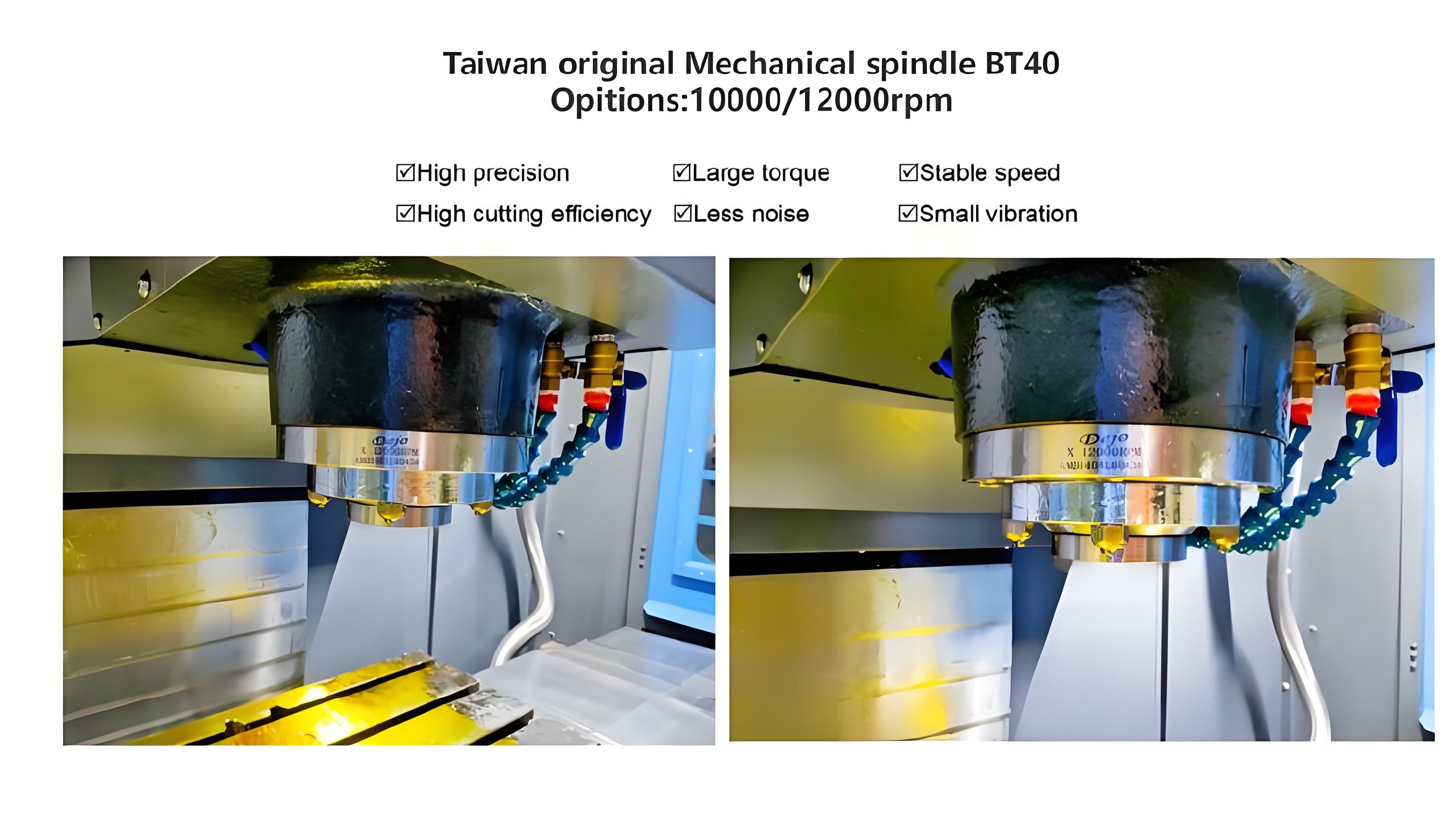

Using Taiwan famous brand high-speed, high-precision, high-rigidity spindle unit, strong axial and radial bearing capacity, speed up to 10000rpm (12000RPM direct drive spindle).
It can be selected according to different processing requirements. Different Operating Systems. Choose Excellent system to achieve high accuracy and stable operation.

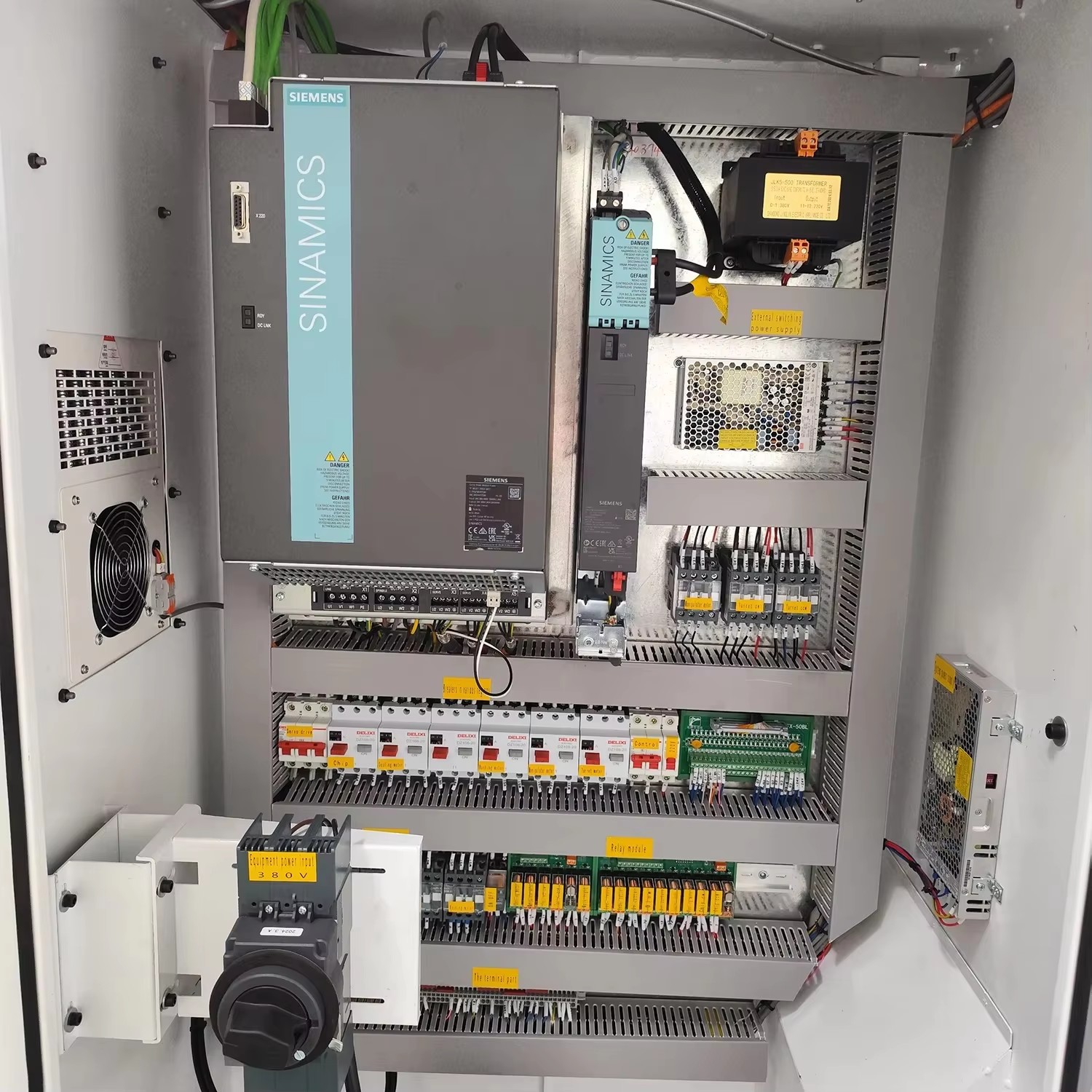

System original driver, using Schneider electrical components.

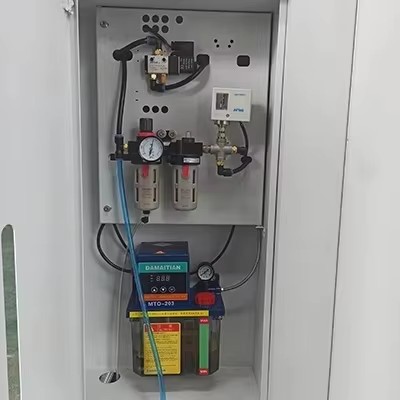

Positive displacement lubrication pump, intermittent oil supply, automatic lubrication of each part.

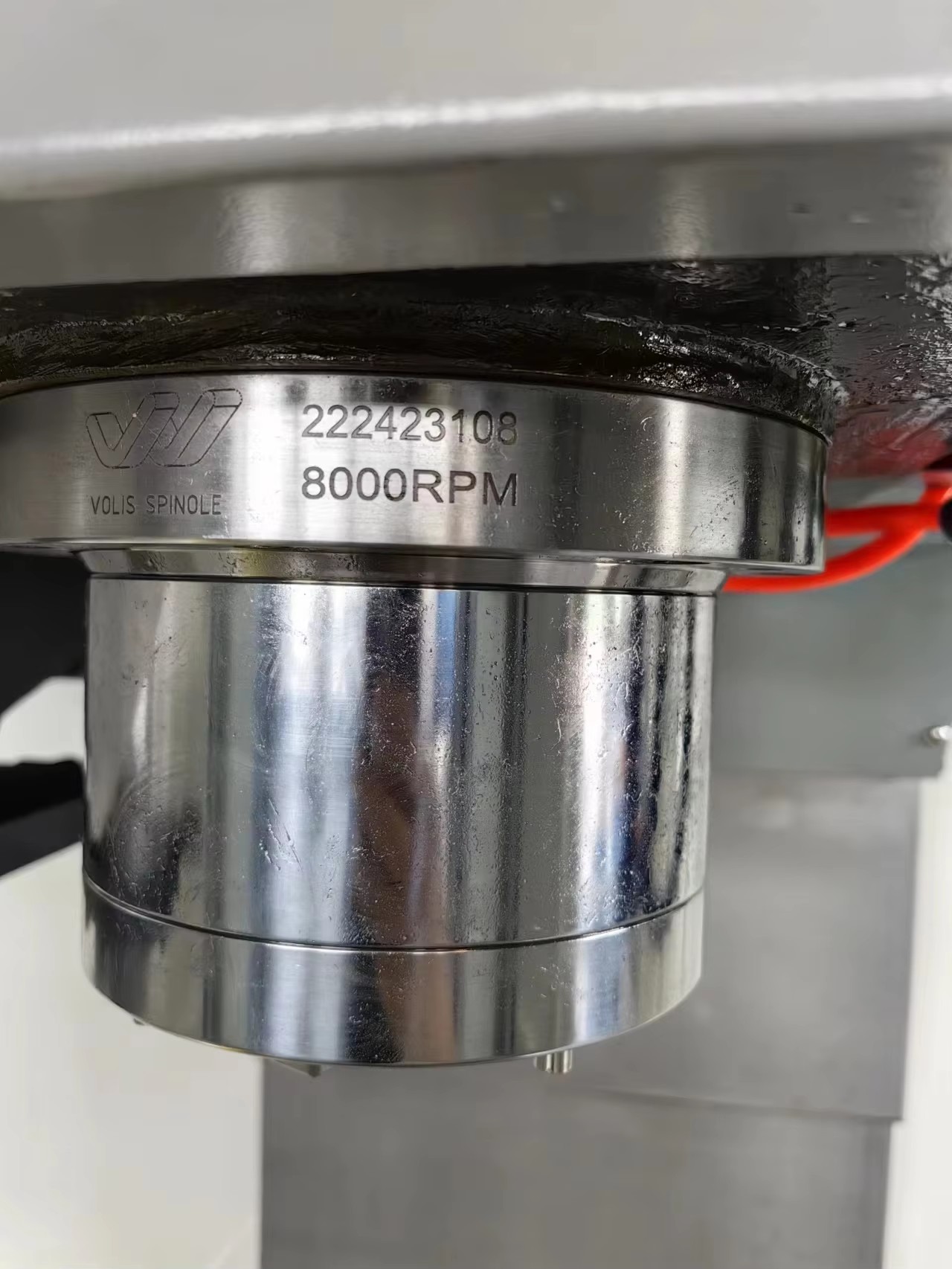

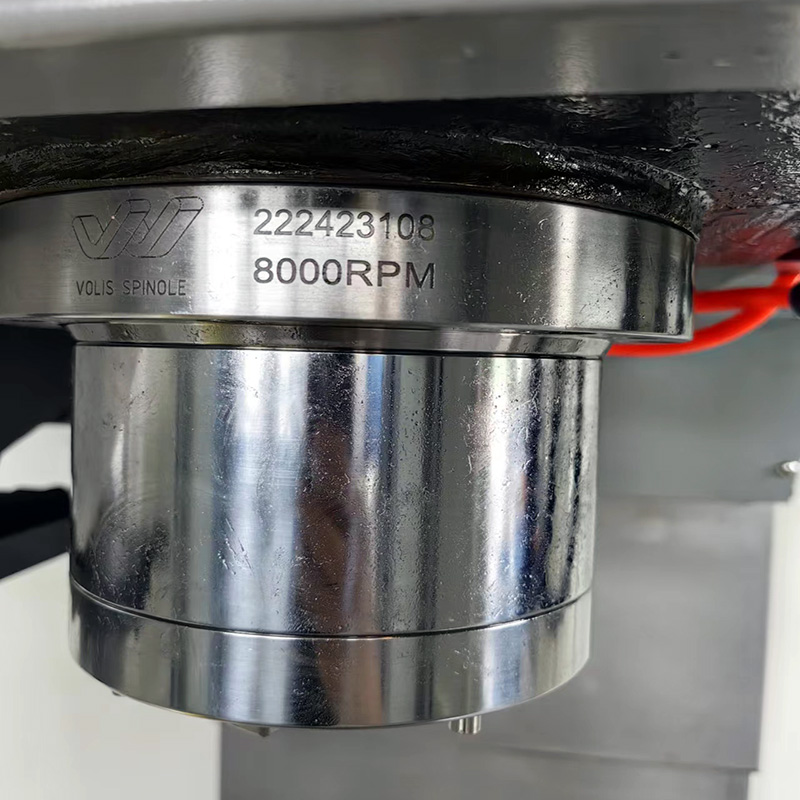

Taiwan spindle, choose 8000/10000 rpm belt spindle or 12000 rpm direct connected spindle, with high spindle accuracy and low noise.

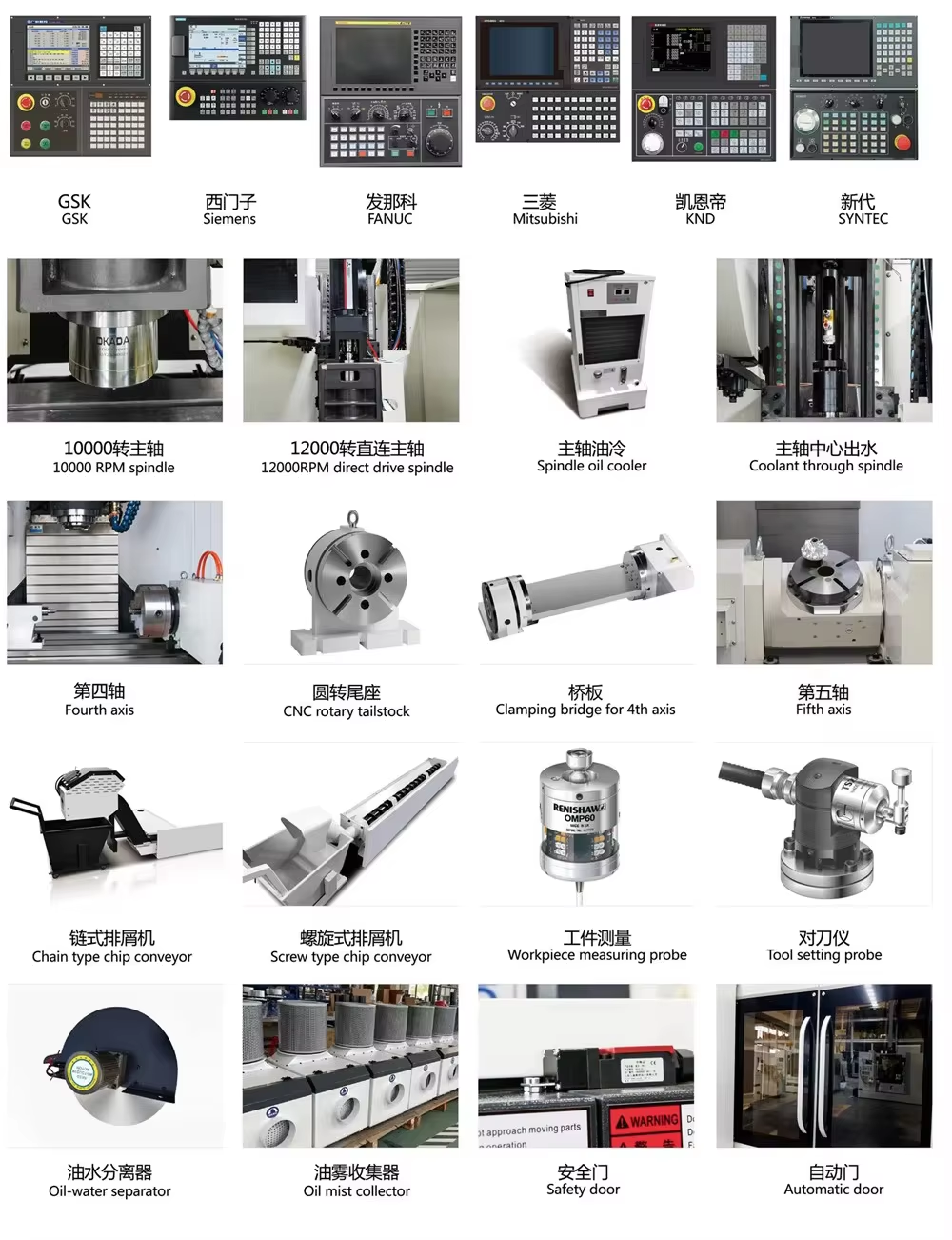

CNC controller options: Siemens, Mitsubishi, Fanuc, GSK, Syntec etc.

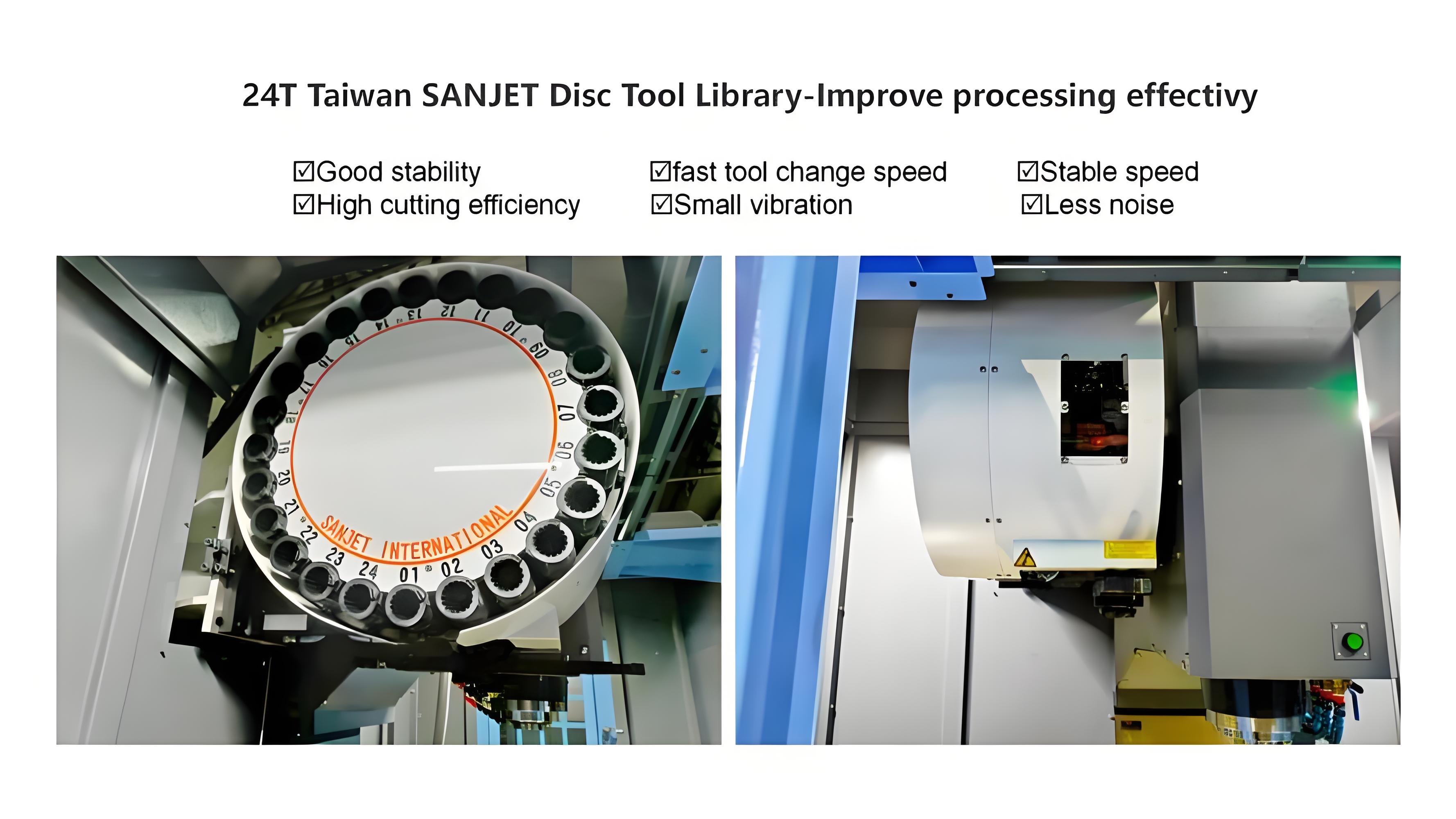

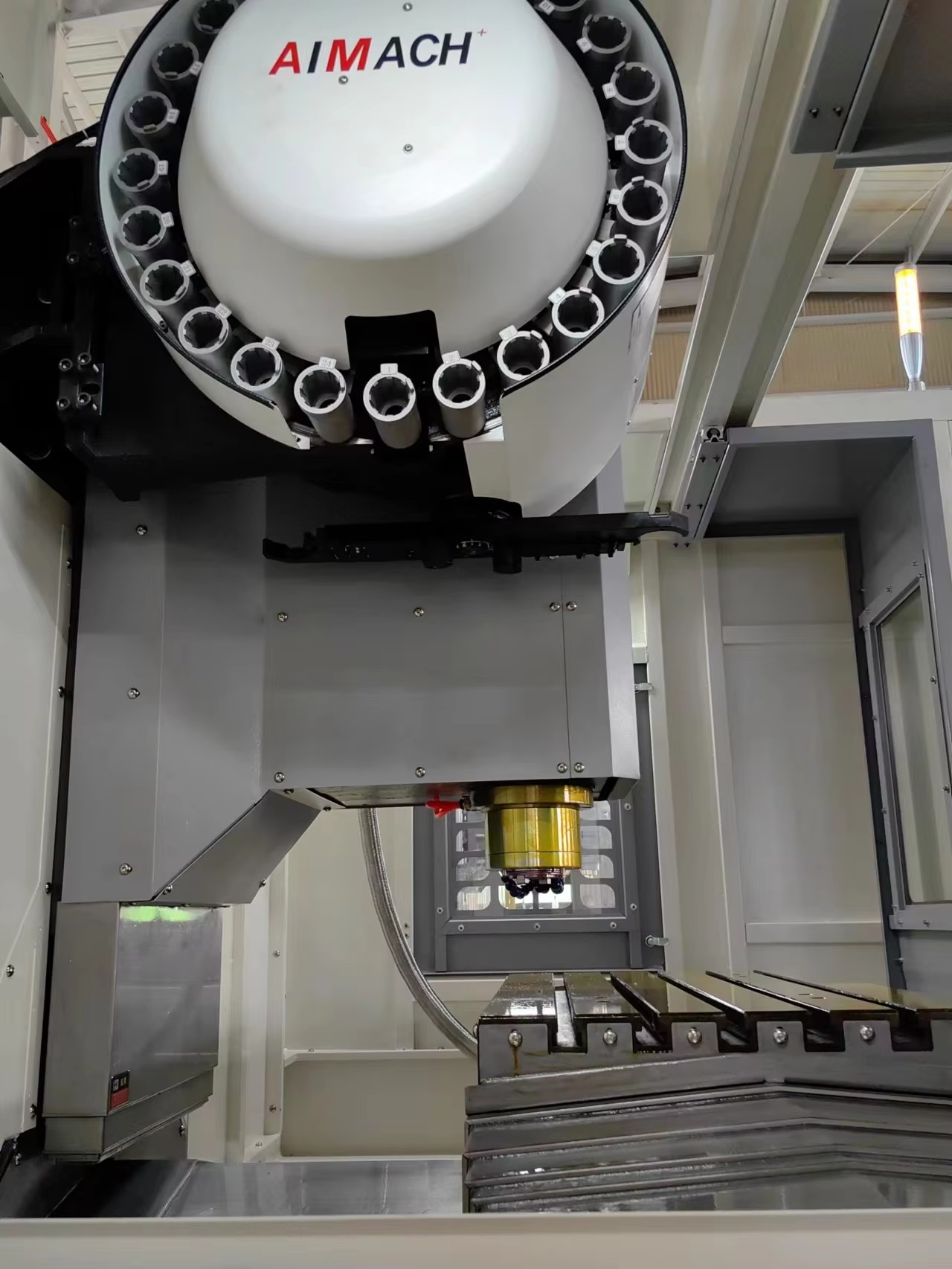

Taiwan 12/16 armless type magazine, 24 Disc type magazine, ATC change time 2 s, stable and high efficiency.

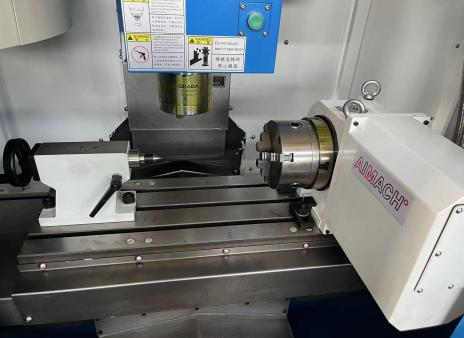

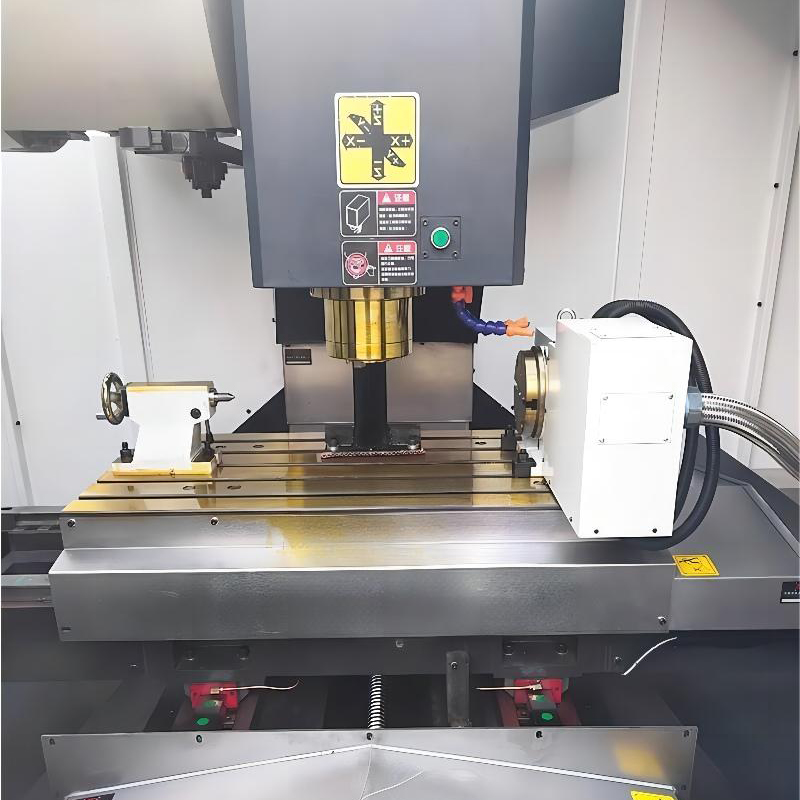

Can choose from bridge deck four axis or chuck type four axis.

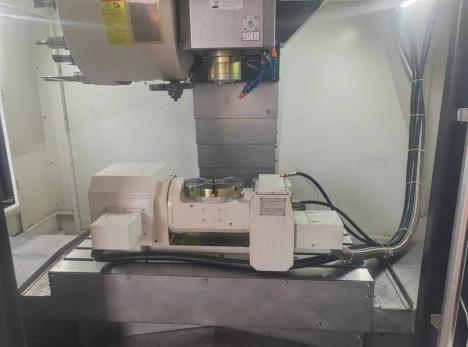

Five axis four linkage or five axis five linkage, the five linkage requires the tool tip to follow.

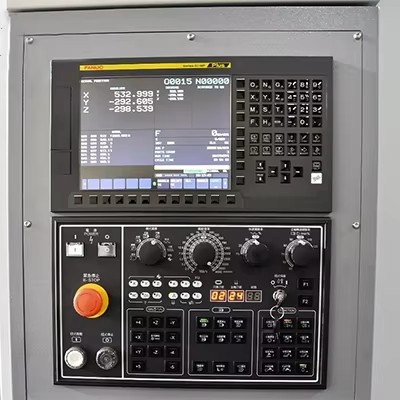

FANUC 0i MF PLUS

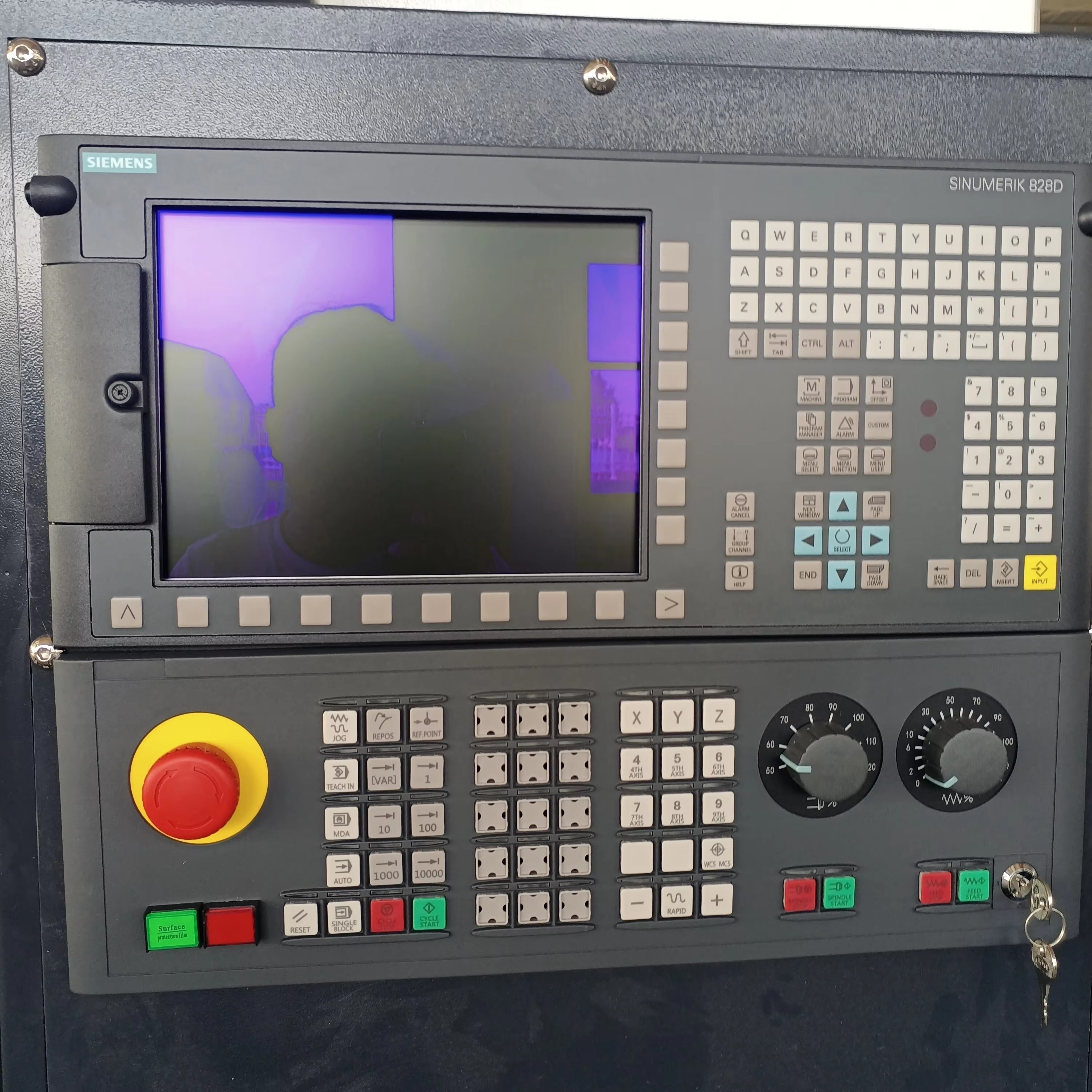

Siemens 808D or 828D system

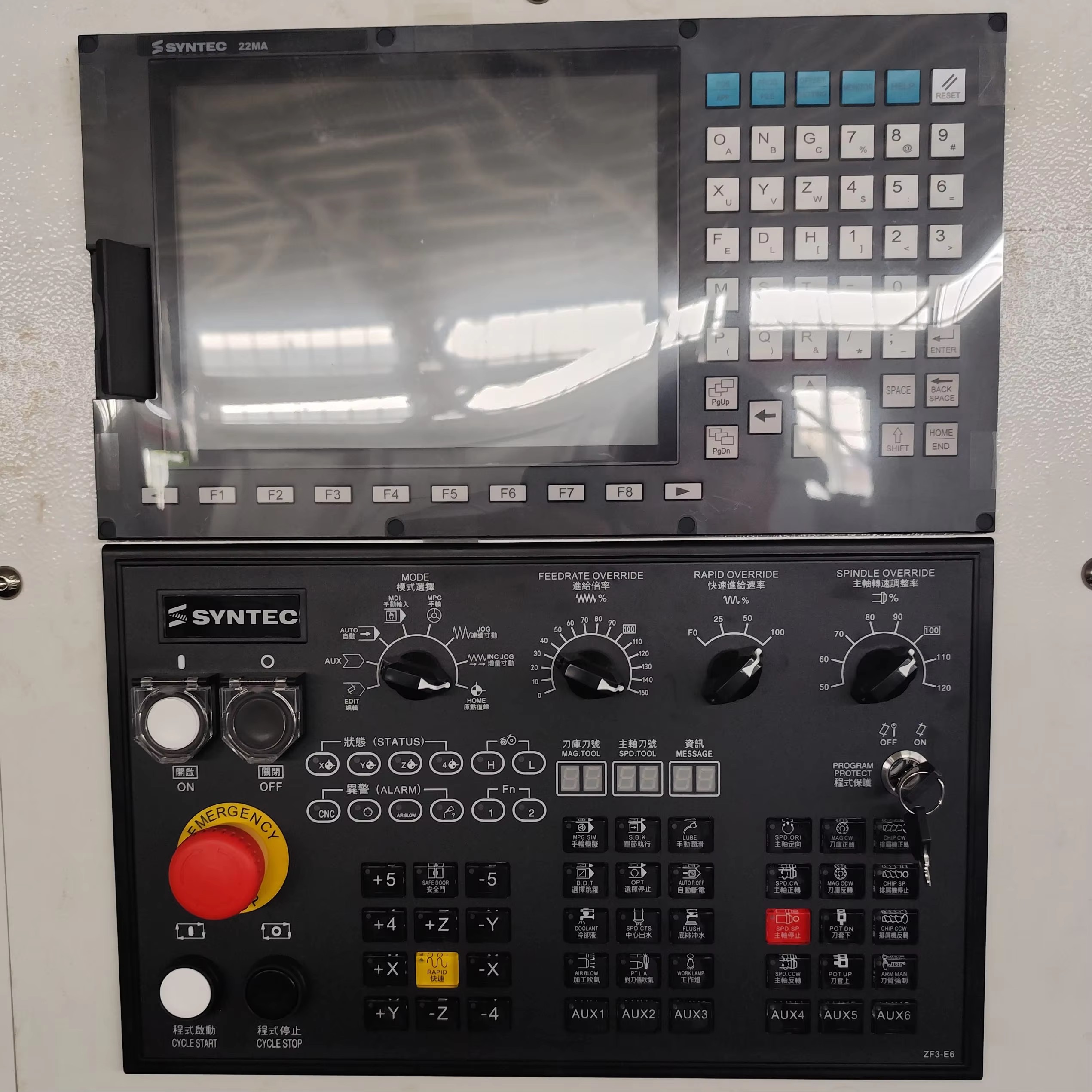

SYNTEC 22MA system

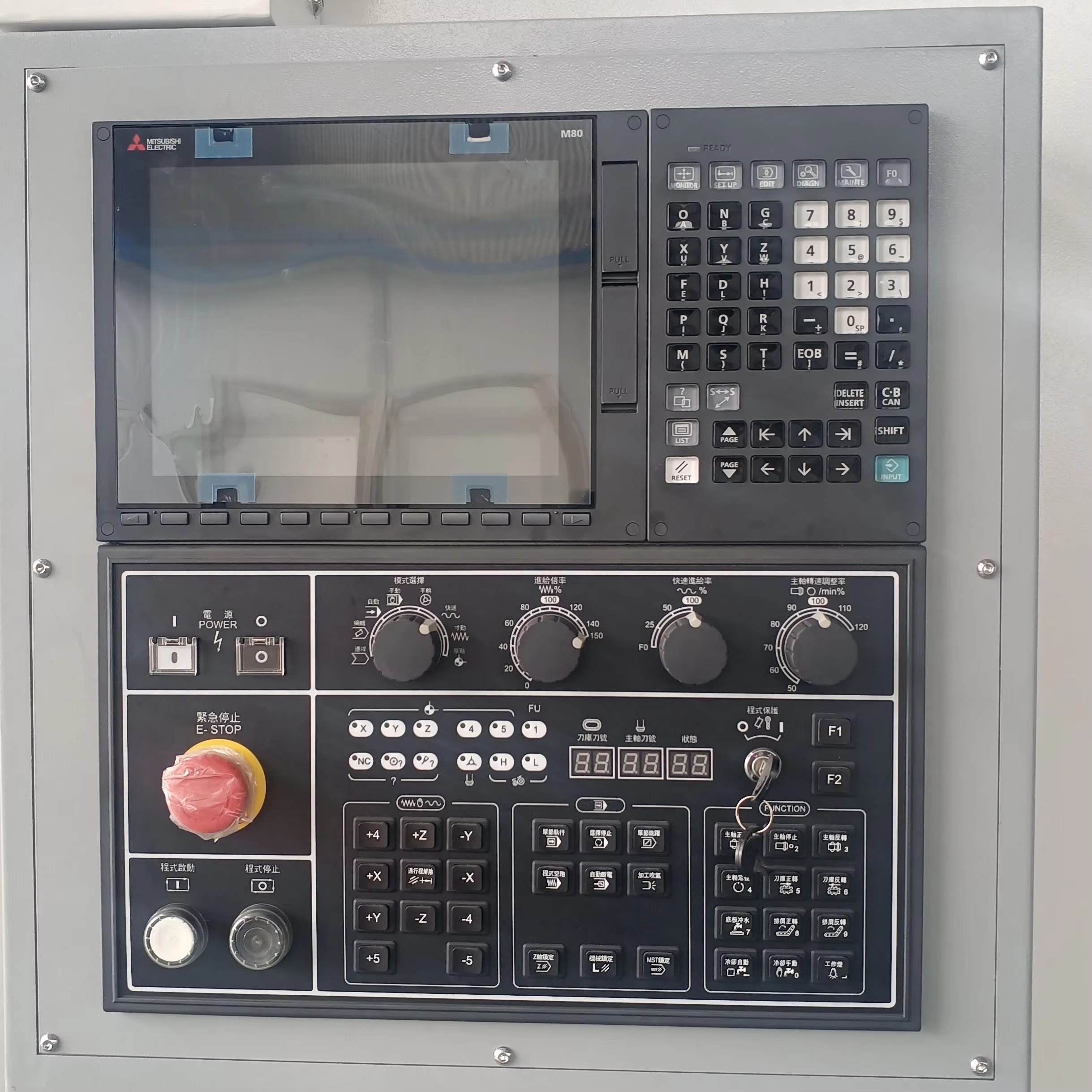

Mitsubishi M80 system

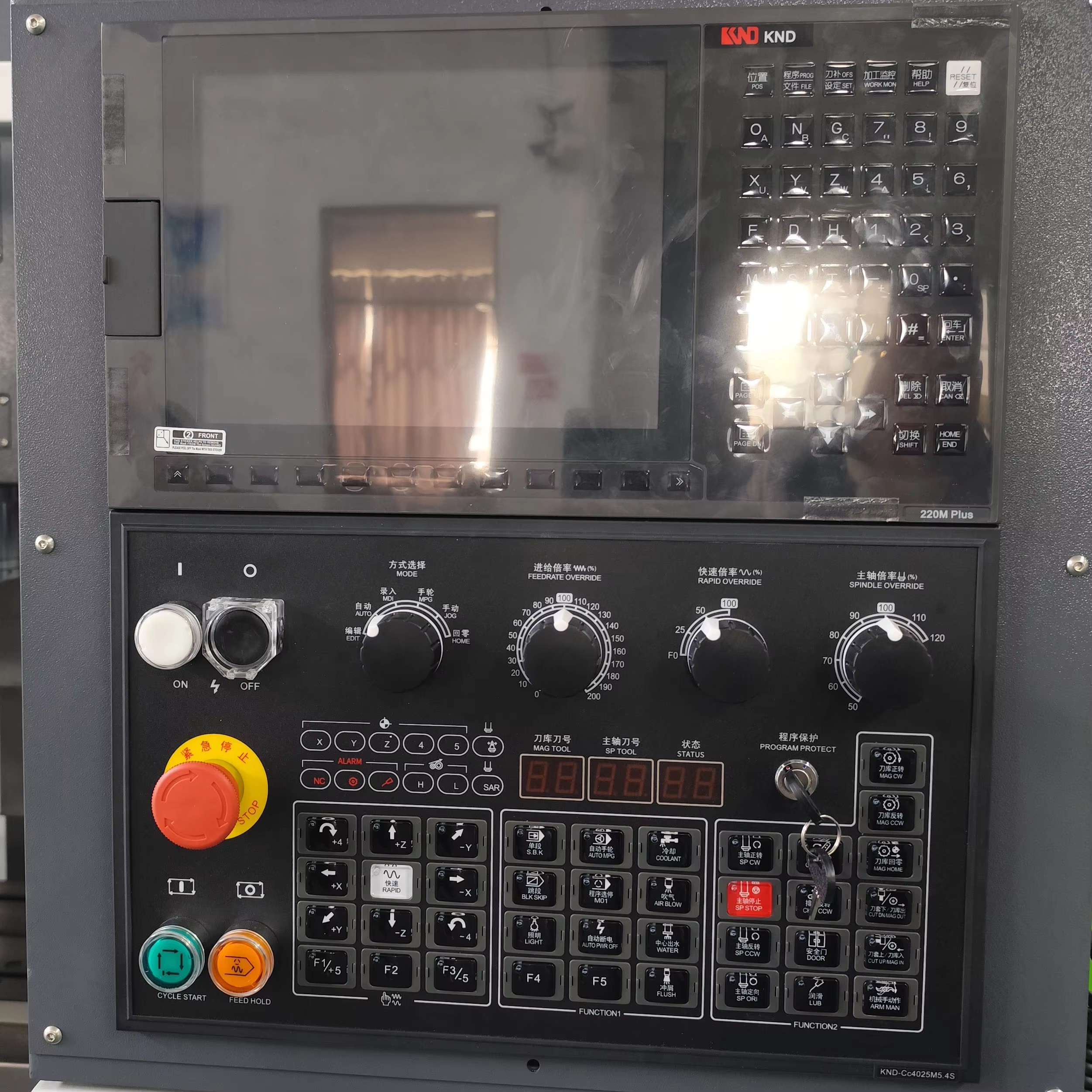

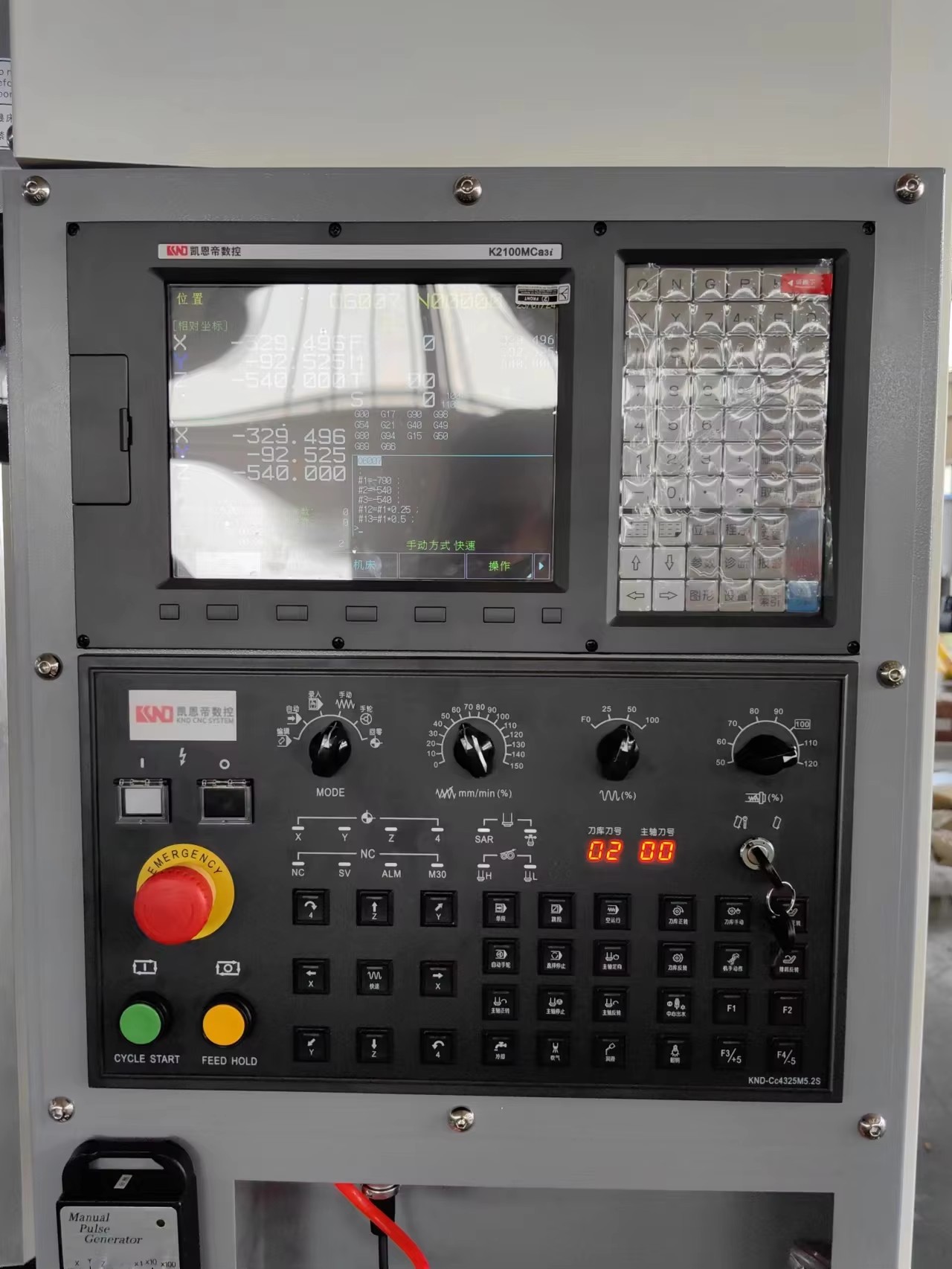

KND 220 M PLUS system

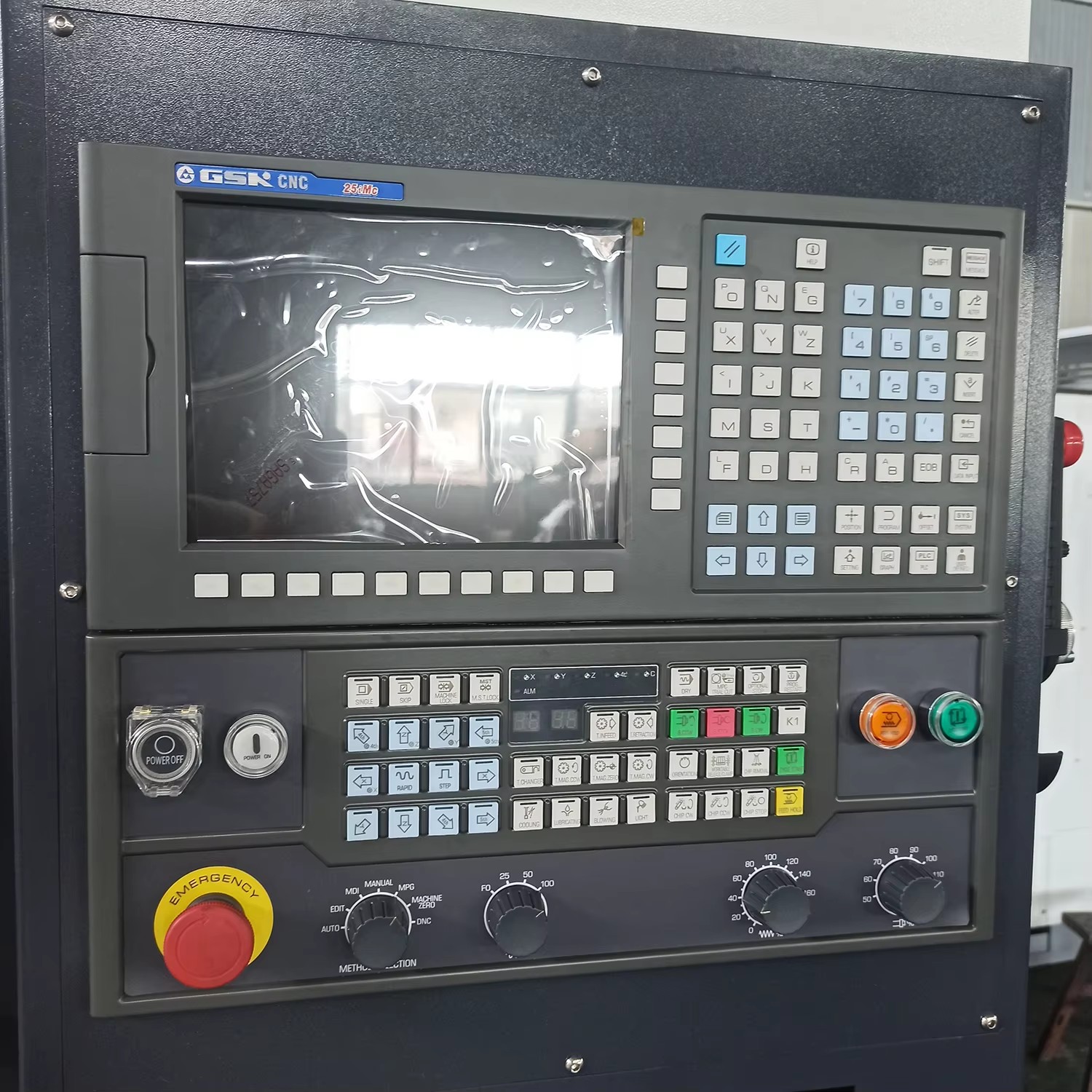

GSK 25i system
All the above products have passed CE, SGS certificates.
