2026 High Precision 5 Axis CNC Milling Machine With ATC For Small Metal Components

Product Description

CNC Machine Main View

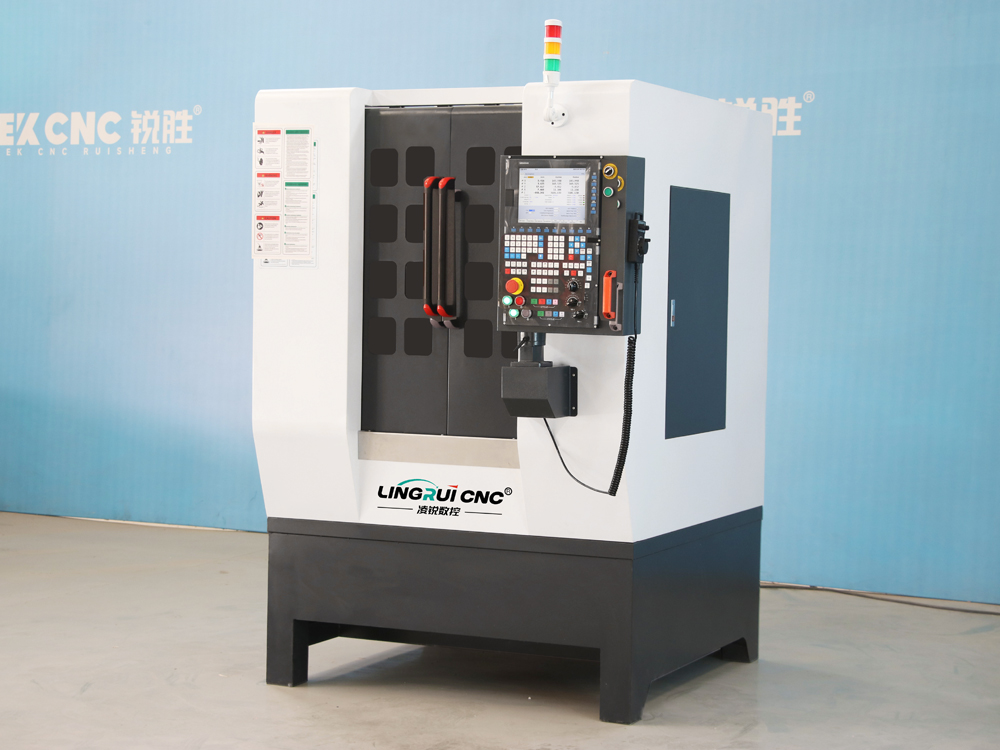

Machine Photos

Machine Photo View 1
Machine Photo View 2
Machine Photo View 3

Product Parameters

Parameters Diagram
ModelLR-6060-5S
TravelX: 600mm Y: 600mm Z: 400mm A: 0-130° C: 360°
BedHeavy-duty thickened cast iron bed
GantryHeavy-duty integrated gantry
Spindle3.5KW high-speed water-cooled automatic tool change spindle
Spindle Speed6000-24000rpm
Tool MagazineFlip-top linear tool magazine
Tool Holder TypeNBT30 ER32 φ20
Rotary Axis5-axis trunnion-type rotary axis (100mm diameter)
Drive ModeWeihong 750W bus absolute value servo motors *3 + multi-axis servo driver
Transmission ModeHigh-precision TBI ball screw
GuidewaysTaiwan Hiwin 25 high-precision linear square rails / flange sliders
CablesPure copper high-flexibility cables
Frequency ConverterFuling Inverter
WorktableHeavy-duty T-slot worktable
Electrical ComponentsSchneider circuit breakers, surge protectors, AC contactors, etc.
Lubrication SystemFully automatic lubrication and oil maintenance system
Operating VoltageAC380V/220V 50/60Hz
Air Pressure≥0.6Mpa
Compatible SoftwareArtcam, Type3, AutoCAD, CDR, SolidWorks, UG, PowerMill, etc.
Engraving InstructionStandard G code, u00, mmg, plt
Security SystemXYZ three-axis all photoelectric limit
Repeat Positioning Accuracy±0.02mm
Engraving Accuracy0.01mm
Max. Rapid Traverse Speed18000mm/min
Max. Working Speed35000mm/min
Dimensions1400*1800*2100mm
Weight1450kg

Detailed Features

Water-Cooled Spindle
3.5KW high-torque water-cooled automatic tool changer spindle, 24000r/min speed, NBT 30 tool holder, ER25 tool clip, adjustable speed, water circulation cooling, high cooling efficiency, can work continuously for 24 hours.
Linear Tool Changer
The flip-top linear automatic tool changer can hold five different tools at a time. During machining, it automatically changes tools according to machining requirements, saving tool change time and improving workpiece machining efficiency.

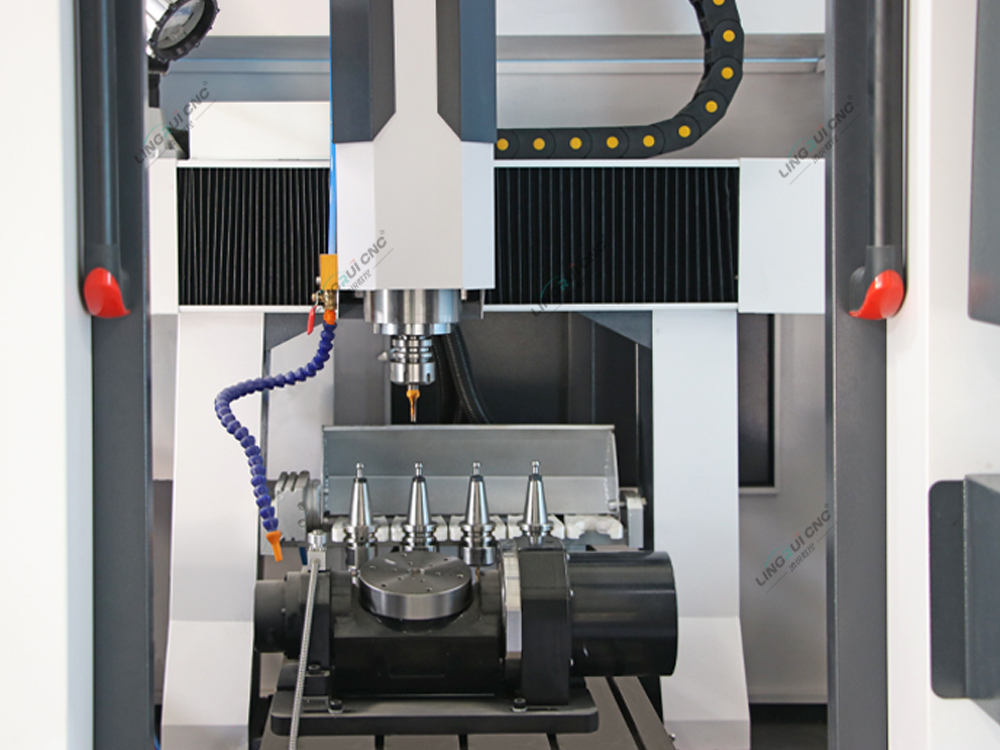

Five-Axis Rotary
The detachable cradle-type five-axis rotary axis is bolted to the T-slot worktable. The cradle-type rotary axis uses an integral structure to precisely integrate two rotary axes, ensuring minimal torsional and bending deformation and achieving high-precision machining.

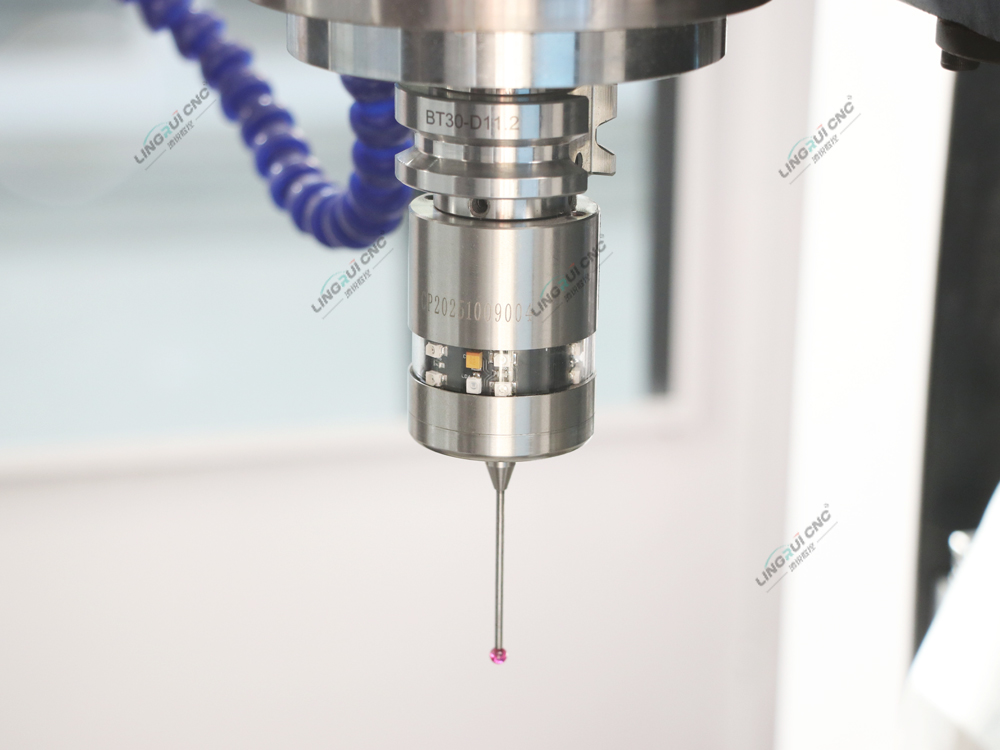

Optical Signal System
Using infrared optical signal transmission, it is used to detect the workpiece position and has functions such as automatic centering and workpiece measurement. It accurately matches the positioning and measurement requirements of precision metal processing and is suitable for processing various precision parts, effectively ensuring processing accuracy.
Control System
Equipped with the control system, it supports five-axis operation, multiple language interface displays, and is compatible with various CAD/CAM software, making it easy to operate.
Pulse Handwheel
The five-axis pulse handwheel allows for precise control of the spindle or tool movement to the target position. When used in conjunction with a control system, it can achieve advanced functions such as handwheel simulation and is easy to use.
Automatic Tool Setter
The contact-type automatic tool setter, in conjunction with the control system, can automatically calibrate tools of different lengths, eliminating the need for manual tool calibration, making it convenient to use and saving tool calibration time.
Water Chiller
Equipped with a constant-temperature water chiller, it can keep the coolant temperature at a fixed value with temperature control accuracy to ±1°C, effectively reducing the spindle operating temperature and enabling continuous operation 24 hours a day.
Multi-Axis Servo Drive
The bus multi-axis servo drive system, using the industrial bus protocol, offers higher real-time performance and high response bandwidth, effectively ensuring contour accuracy in complex surface machining. Its compact, integrated multi-axis design simplifies wiring, debugging, and maintenance.
Protective Covers
The X-axis is equipped with an accordion-style protective cover, the Y-axis with a steel plate telescopic protective cover, and the Z-axis with a sheet metal protective cover. These features effectively prevent debris, dust, cutting fluid, and other contaminants from entering the guide rails and lead screws, ensuring long-term machine accuracy, extending machine lifespan, and reducing failure rates.

Sample Display

Application Materials:

Copper, aluminum, steel, iron, stainless steel, aluminum alloy, light alloy, wood, plywood, MDF, PVC board, acrylic, engineering plastics, epoxy resin, ABS, PP, PE, jade, crystal, graphite, bakelite, carbon fiber, stone, foam, and various other metallic and non-metallic materials.

Application Industries:

Aerospace: Impellers, engine casings, wing-body structures, landing gear structures, aircraft parts, panel structures, wall panels, slide rails, etc.

Automotive and New Energy: Engine housings, gearbox housings, battery trays, motor housings, automotive wheel hubs, motor end covers, brake discs, steering knuckles, control arms, gears, ratchet wheels, splined shafts, etc.

Mold Industry: Injection molds, stamping molds, die-casting molds, biscuit molds, chocolate molds, food molds, copper motherboards, etc.

Hardware Industry: High-end door locks, hinges, gearbox housings, valve bodies, valves, connectors, fasteners, etc.

Medical Devices: Implants, surgical instruments, imaging equipment stands, collimators, endoscopic lens barrels, metal-framed lights.

Precision Components: Watch cases, watch parts, speaker housings, mobile phone housings, mobile phone frames, eyeglass frames, etc.

CNC Samples Showcase

Manufacturing Capacity

Manufacturing Factory Facility

Our facility represents a premier manufacturing infrastructure established with a total investment of RMB 300 million. Over the past 19 years, the enterprise has accumulated rich engineering and production expertise, partnering with leading industrial factories and supplying high-quality OEM equipment for international markets globally. Dedicated to delivering advanced, cost-effective, and highly practical CNC machinery, our manufacturing plant encompasses 12 modern production workshops spanning over 100,000 square meters.

Utilizing high-end processing machinery from top global brands, the thermal treatments and fabrication workflows comply with strict international quality norms. Key elements including the structural integrity of the machine bed and drive transmission interfaces are developed internally to achieve maximum operational reliability.

CNC Manufacturing Line

Our production ranges across complex CNC hardware arrays, including high-performance CNC woodworking lathes, industrial CNC Routers, high-speed machining centers, precision fiber laser cutting tools, and laser marking stations. These installations are optimized for diverse industries processing timber, stone, structural steel, and composite polymers.

Industrial Assembly Area

Supported by an experienced workforce of over 1,500 qualified assembly technicians, 300+ technical after-sales engineers, and 300+ sales representatives, we provide tailored integration and machinery service support globally, catering effectively to your precise mechanical processing requirements.

Global Partnerships & Customer Cases

With near two decades of development, we have served over 10,000 corporate clients globally across numerous engineering disciplines, earning widespread market satisfaction. Our products are engineered to support both experienced technicians and novice operators with reliable efficiency.

Customer Inspection 1
Customer Inspection 2

Company Certifications

Quality Certifications

Frequently Asked Questions

1. Are you a factory or trading company?

We are a certified manufacturing factory equipped with official export licenses.

2. Do you offer OEM services?

Yes, we provide extensive OEM customization services backed by 19 years of production history and global supply contracts.

3. What after-sales support do you provide?

We offer a 3-year warranty covering the complete machine. Technical support features a guaranteed 12-hour response time and 24/7 online diagnostics.

4. How do I select the most appropriate CNC system?

Kindly share your raw material specifications, finished product geometry, and target throughput. Our design engineers will suggest the most balanced setup based on decades of production experience.

5. Do you assist with machine assembly and installation?

All machinery undergoes complete quality validation and parameters configuration before shipping. Standard packages include illustrated operations manuals and instruction videos. On-site technical setup is available worldwide upon request.

6. Can machines be customized?

Yes, custom structural and functional configurations are fully supported by our engineering team to align with specific processing goals.
