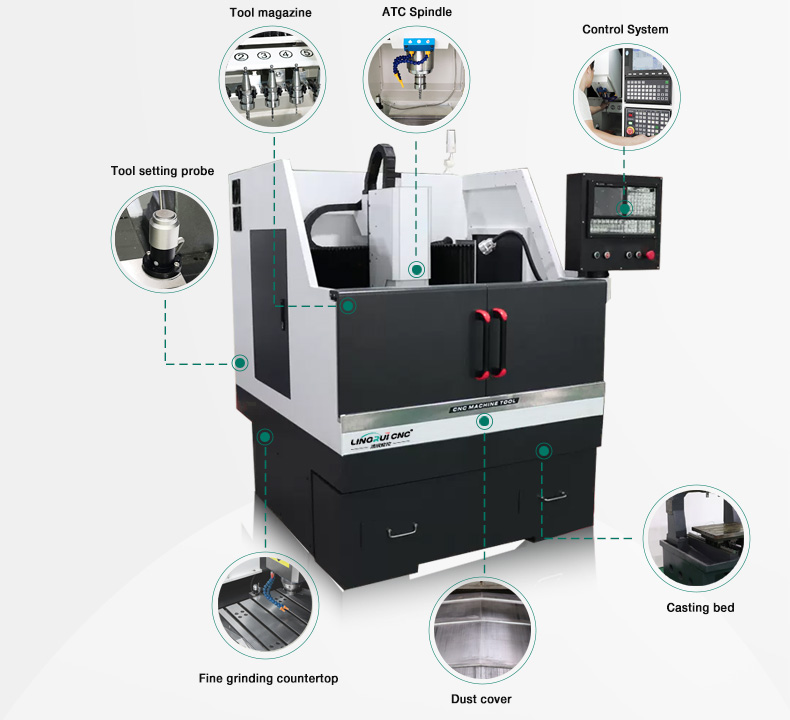

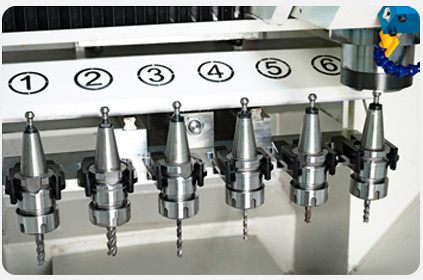

Inline tool change magazine, BT30 tool holder, simple operation, fully automatic tool change, improved processing efficiency (optional).

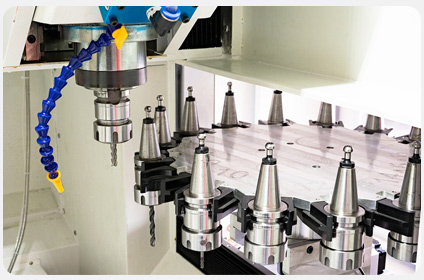

Disc-type tool change magazine, BT30 tool holder, smooth tool change, can support 16 tool positions, more tool positions, good sealing (optional).

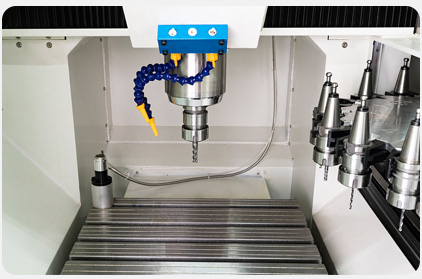

Using BT30 automatic tool changing spindle, it can perform heavy metal cutting, drilling, tapping, surface finishing, and fully automatic tool changing.

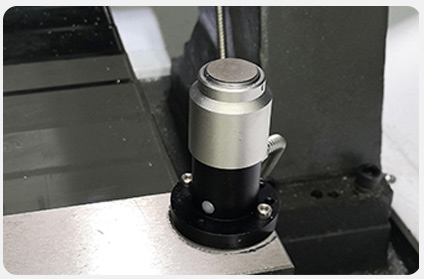

Use the fully automatic tool setting instrument to automatically set the tool when switching between different tools. It is easy to operate and more efficient.

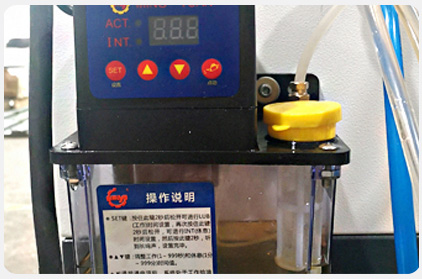

The electric lubricating oil pot can automatically lubricate the machine guide rails and slide blocks, making machine maintenance easier.
It adopts EU standard integrated control system, and the button switch adopts well-known brand, which is easy to operate and has a long service life.

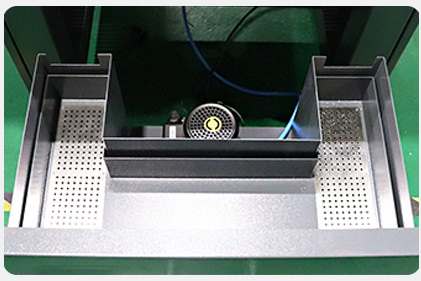

The cutting fluid filtration system can effectively filter out the processing chips in the cutting fluid, making it safer to use.

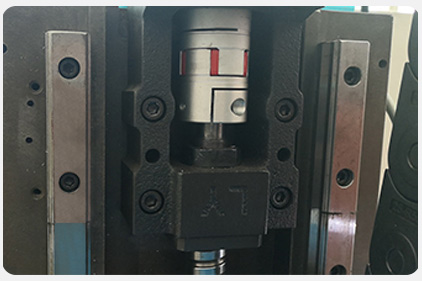

The integrated motor seat bearing unit module uses a plum blossom coupling to connect the ball screw, which has higher processing accuracy.

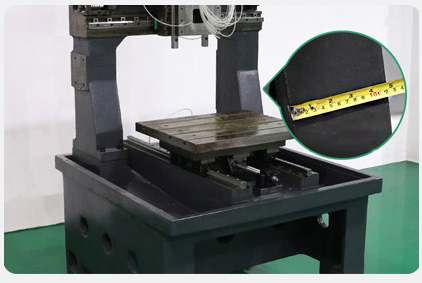

One-piece casting bed has stable precision, better wear resistance, high strength and better load-bearing capacity.

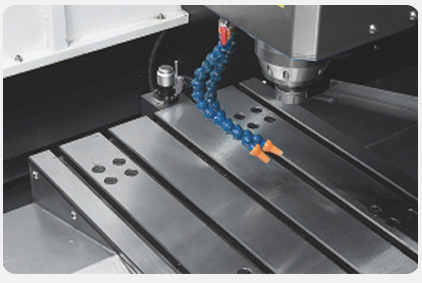

The T-slot tabletop is ground with fine steel, making it more stable during processing.

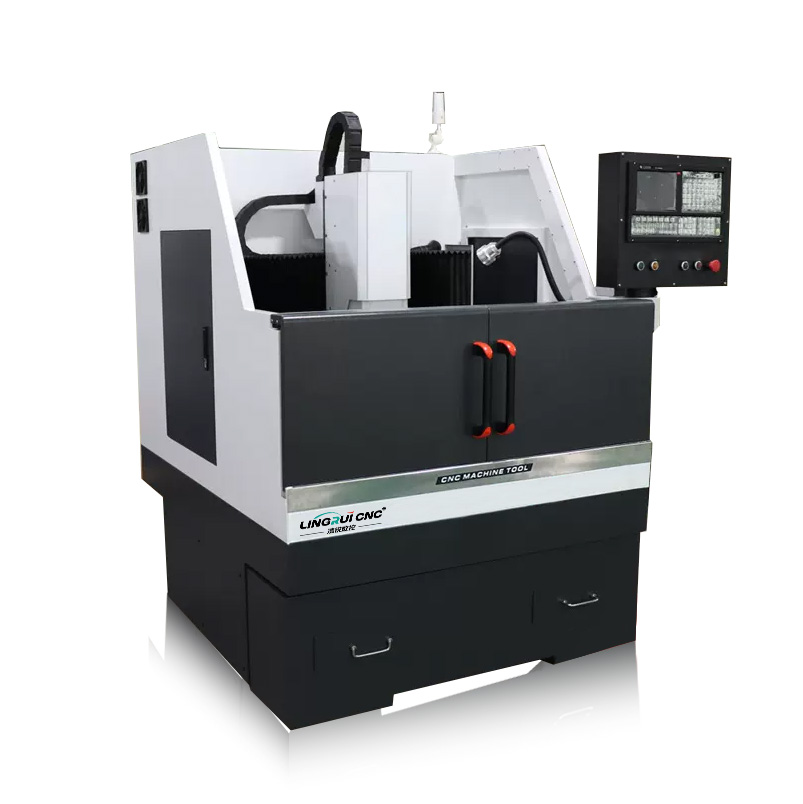

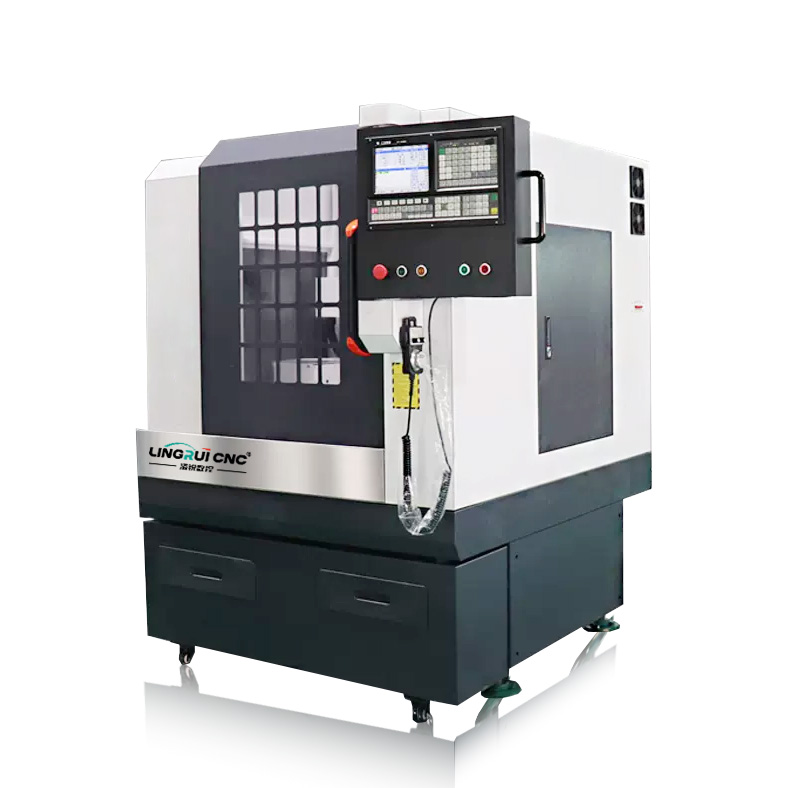

| Model | LR-600D | LR-600 |
| Positioning accuracy | 0.01mm | 0.01mm |
| Repeatability | 0.008mm | 0.008mm |
| X/Y Verticality | 0.015mm | 0.015mm |
| Effective travel | 550×600×200mm | 600×600×200mm |
| Working desk size | 640×640×40mm | 640×640×40mm |
| Spindle nose to worktable | 50-250mm | 50-250mm |
| Fast moving speed | ≤10000mm/min | ≤10000mm/min |
| Spindle power | 5.5KW Tool changing spindle | 4.5KW |
| Spindle speed | 0--24000rpm (Infinitely variable speed) | 0--24000rpm (Infinitely variable speed) |
| Tool handle specifications | BT30-ER25 | ER25/ER20 |
| Tool magazine | Semicircular fully enclosed servo tool magazine | None |
| Tool holder capacity | 6 Bundle | None |
| Air pressure | ≥0.8MPa | None |
| Drive System | 750W Absolute servo | 750W Absolute servo |
| Control System | Science Source Mc1000 | Science Source Mc980 |
| Guide | Taiwan P class | Taiwan P class |
| Screw | Taiwan grinding screw | Taiwan grinding screw |
| Supply voltage | AC380V | AC380V |
| Body material | HT250 Aging treatment | HT250 Aging treatment |
| Machine weight | 1150KG | 1100KG |
| Machine tool dimensions | 1300×1600×1980mm | 1300×1600×1980mm |
| Optional items | The fourth axis/Weihong, Xindai (Baoyuan) system | |

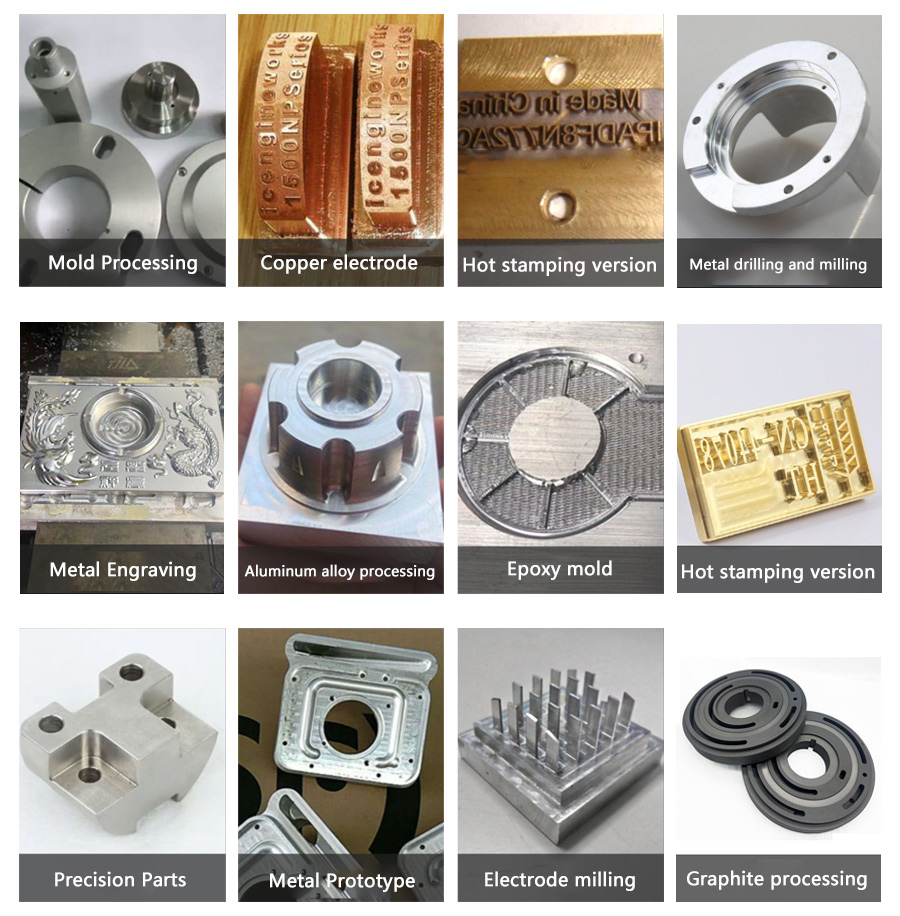

| Scope of application | Precision carving of hardware parts, hot stamping plates, fonts, glue molds, copper males, electrodes, etc. | |
We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Are you a factory or a trading company?
We are a factory with an export license.
Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype.
How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
Can the machine be customized according to my requirements?
Yes, customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
