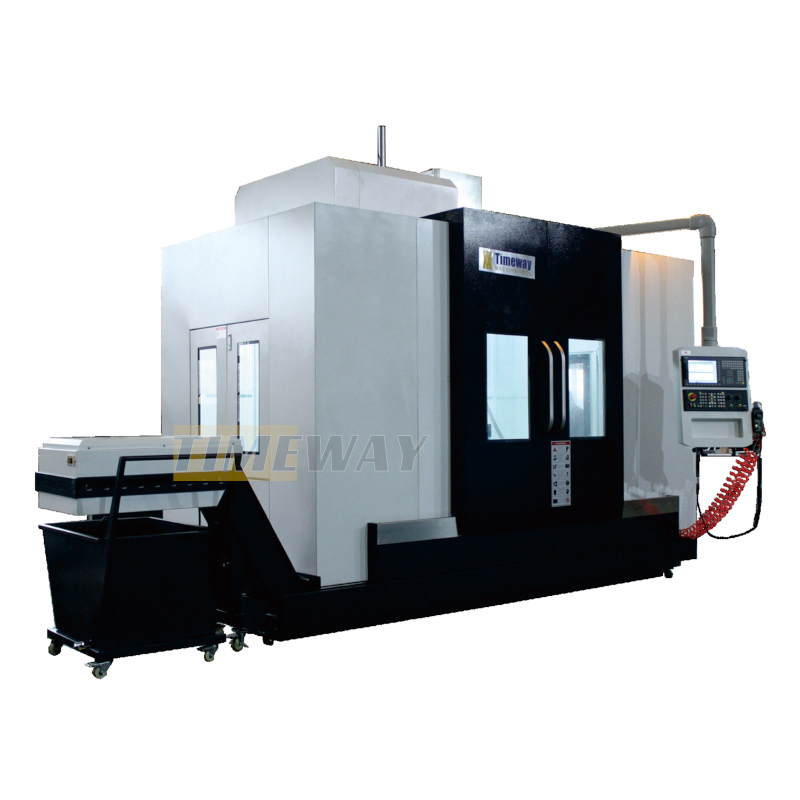

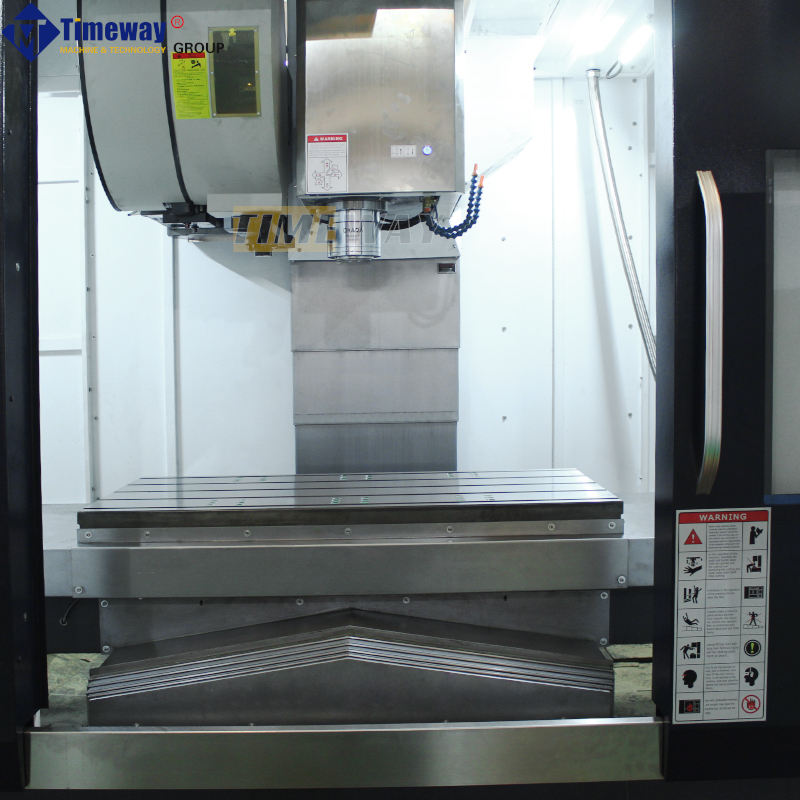

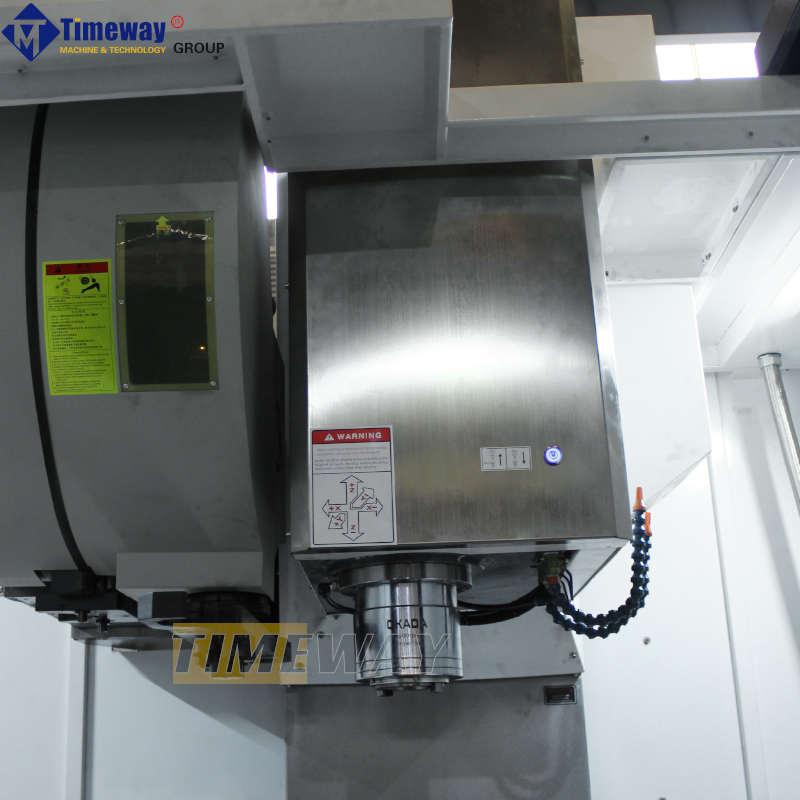

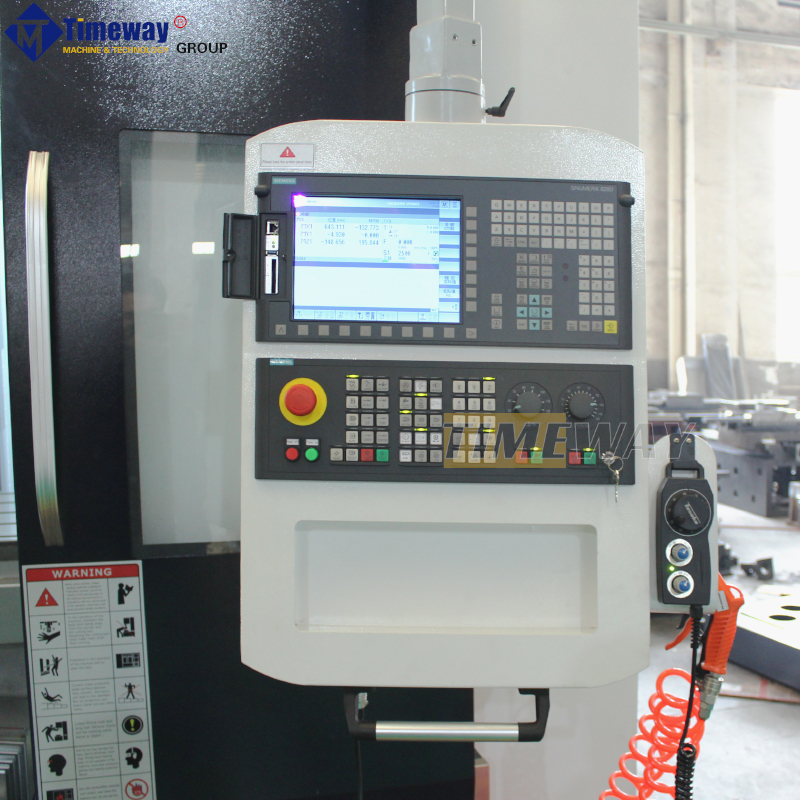

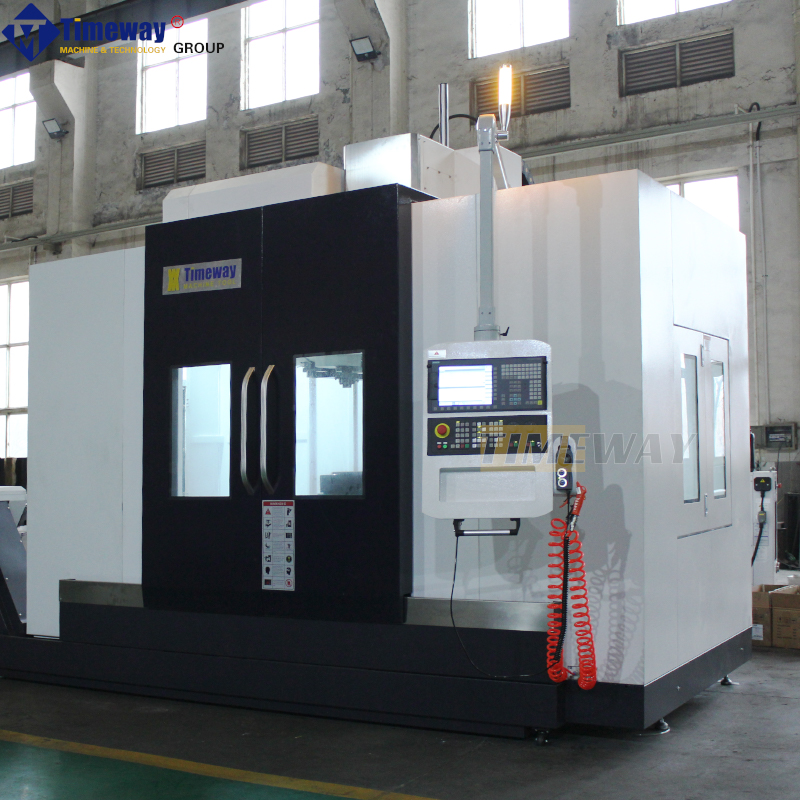

Machine Details
| SPECIFICATION |
UNIT |
VMC1370G |
VMC1580G |
| X-axis travel |
mm |
1300 |
1500 |
| Y-axis travel |
mm |
700 |
800 |
| Z-axis travel |
mm |
700 |
700 |
| Distance spindle nose to table |
mm |
150–850 |
150–850 |
| Distance spindle center to column |
mm |
785 |
855 |
| Table size |
mm |
1400×700 |
1600×800 |
| Loading capacity |
kg |
1200 |
1400 |
| Spindle taper |
/ |
BT50 |
BT50 |
| Spindle speed |
r/min |
6000 |
6000 |
| Main motor power |
kw |
15/18.5 |
15/18.5 |
| X/Y/Z-axis rapid feed speed |
m/min |
24/24/24 |
24/24/24 |
| X/Y/Z-axis positioning accuracy |
mm |
±0.012 |
±0.012 |
| X/Y/Z-axis repeat positioning accuracy |
mm |
±0.008 |
±0.008 |

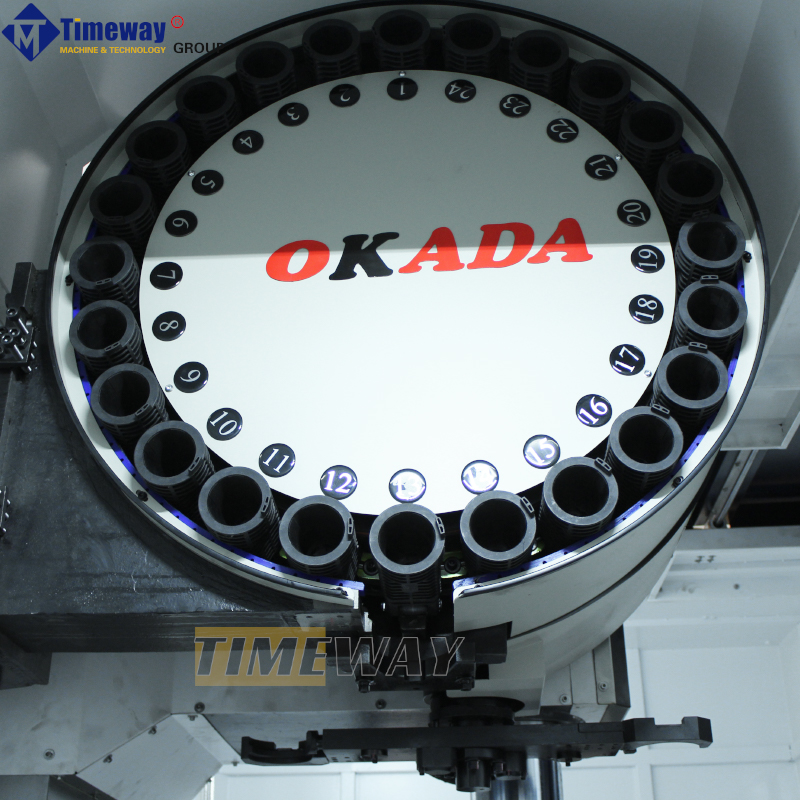

| ATC style |
/ |
Disc |
Disc |
| ATC capacity |
tools |
24 |
24 |
| Machine weight |
kg |
10000 |
12000 |
Our Services
-
✔
Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
-
✔
Quick action and reply for the technical questions at any time in the whole life of the machine.
-
✔
Overseas after service center available in some region.
-
✔
Engineer overseas service available on the requirement of customer (relative cost born by customer).
Company Introduction

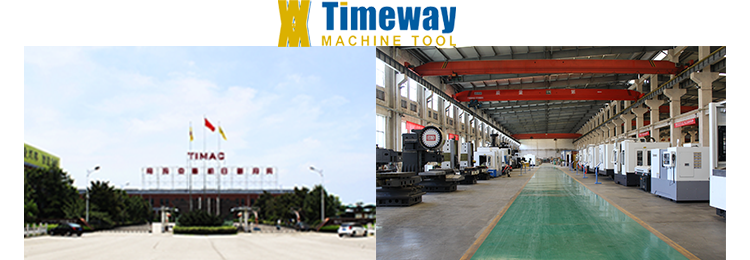

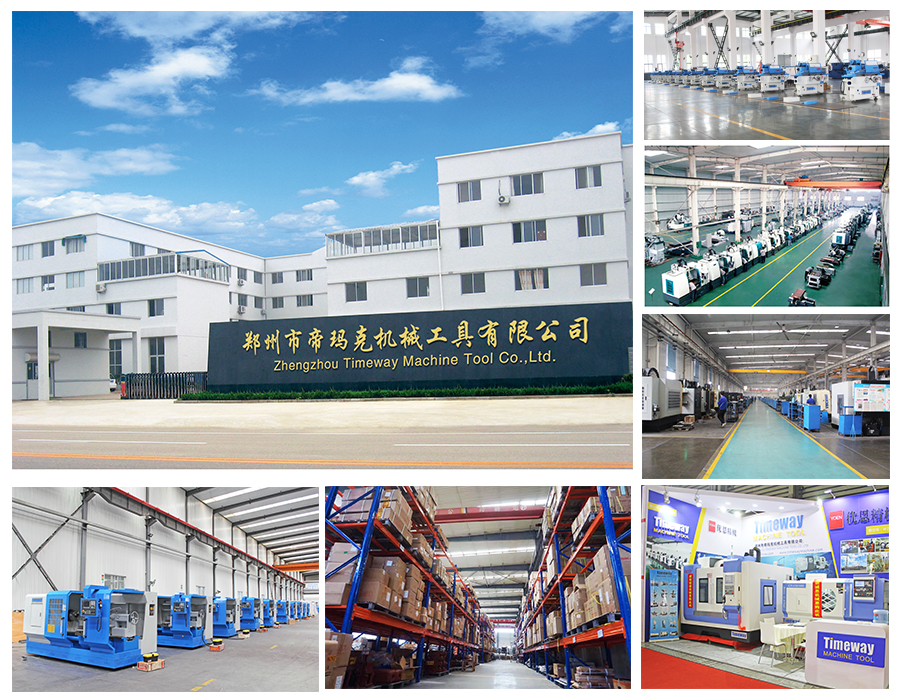

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services. Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
We are a professional machine tool manufacturing enterprise. The main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in the machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products.
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

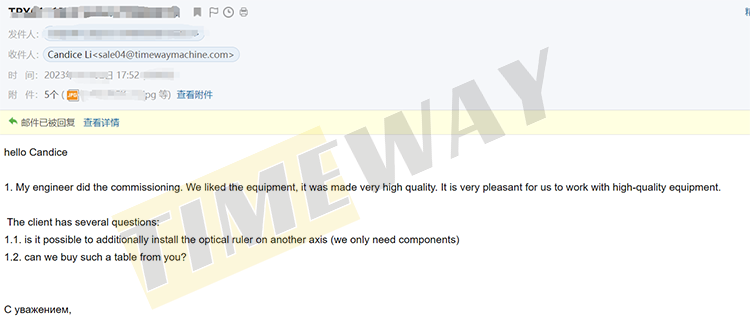

Client Feedback
One-Stop Shopping

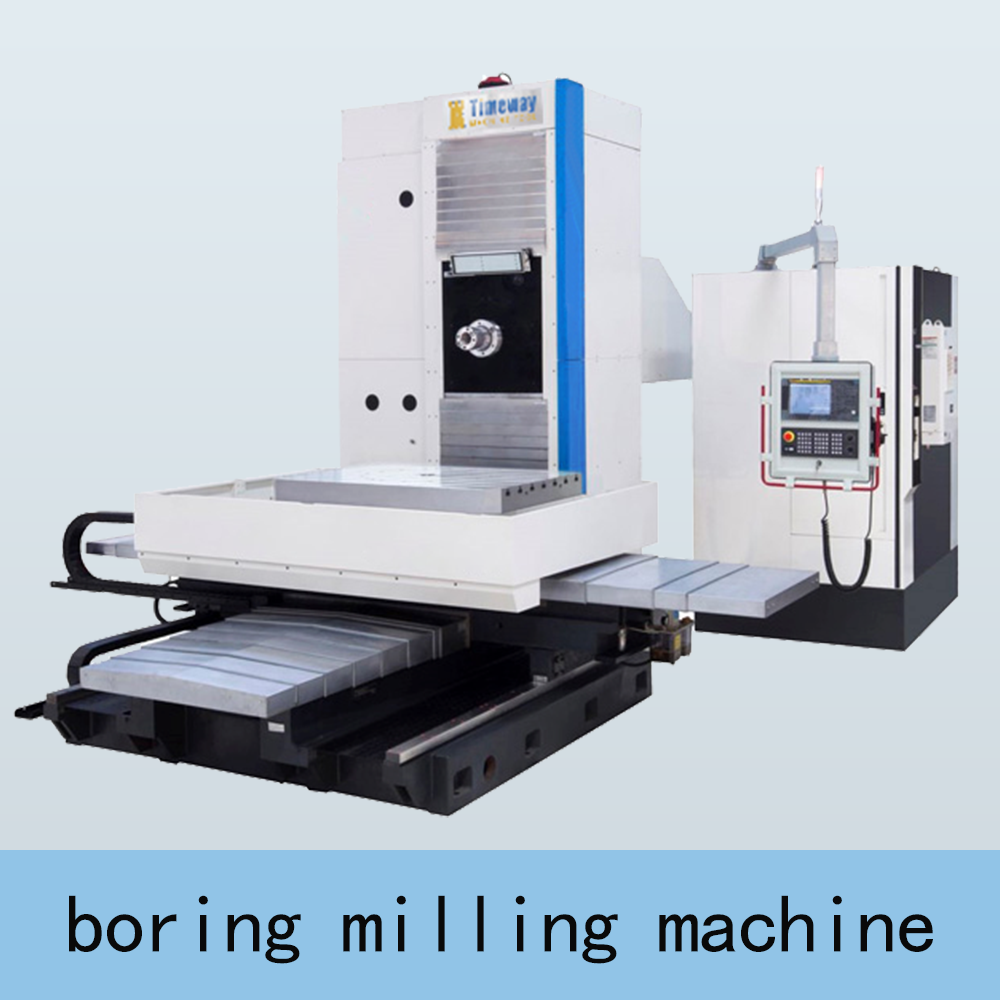

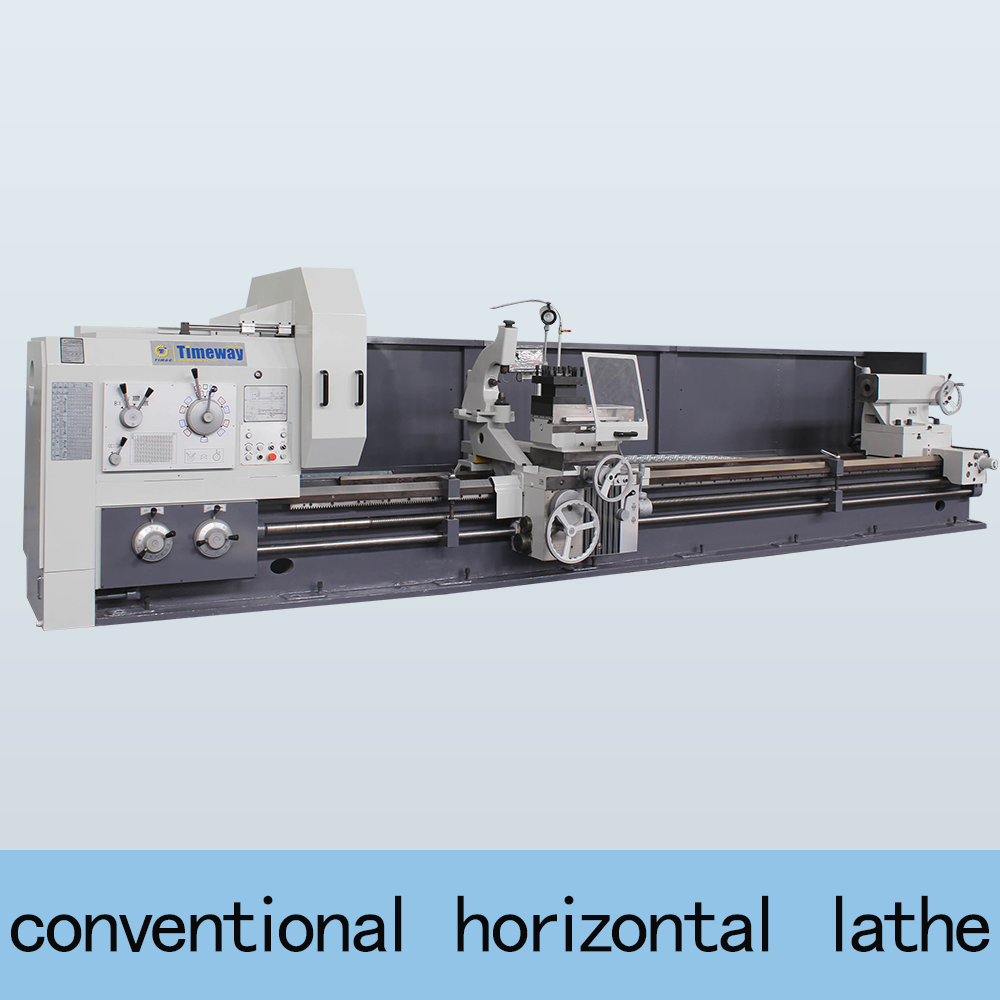

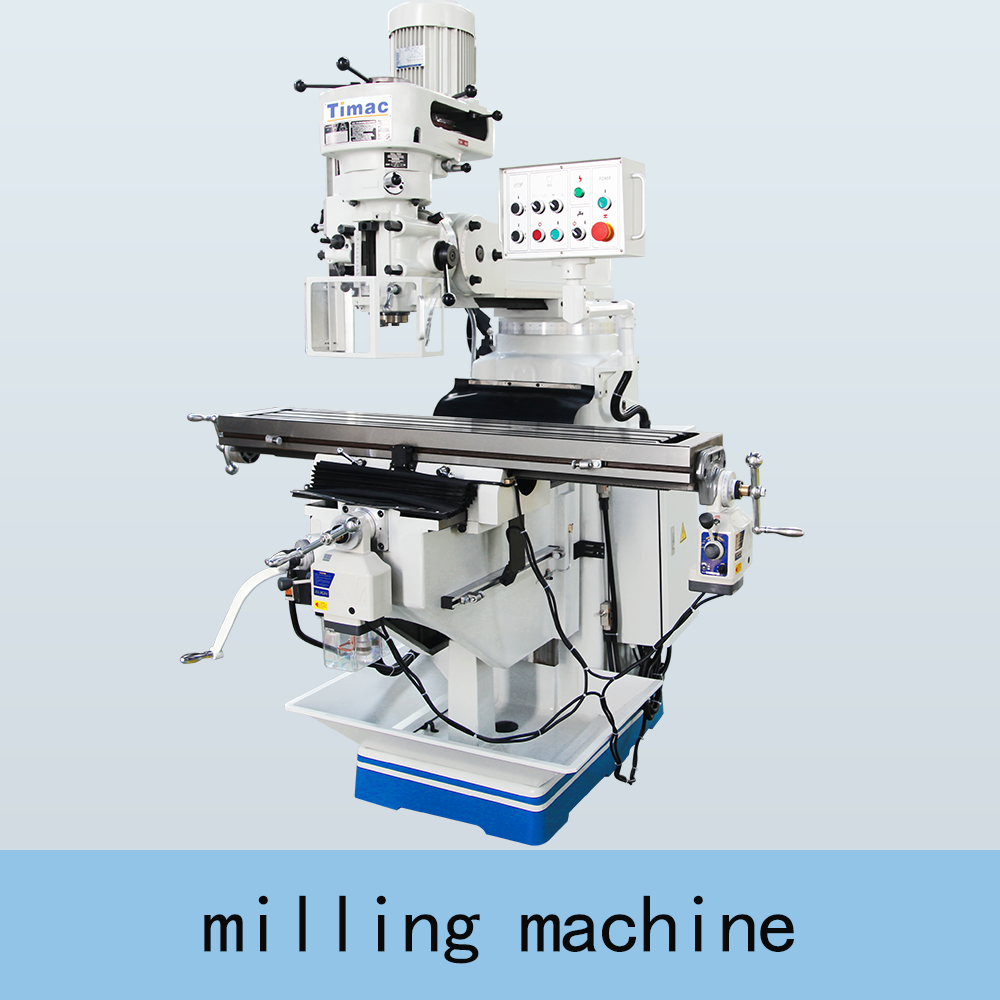

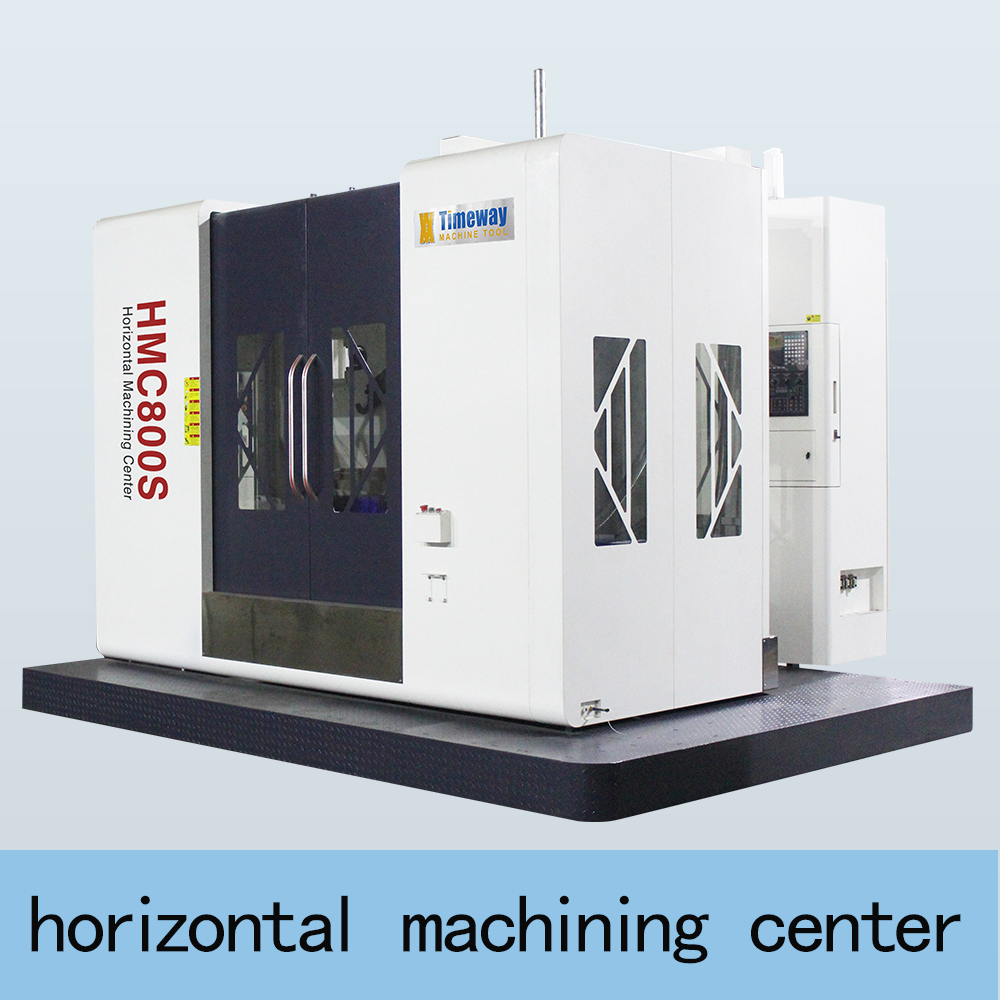

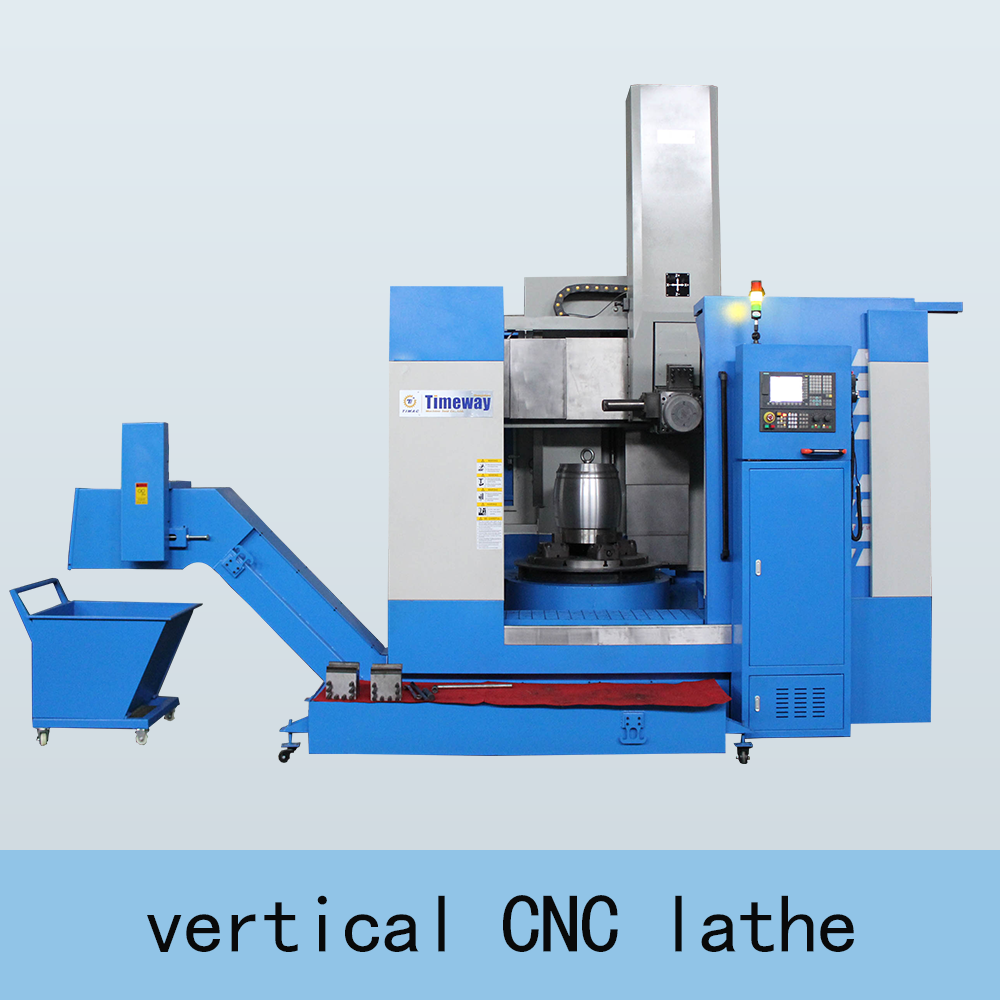

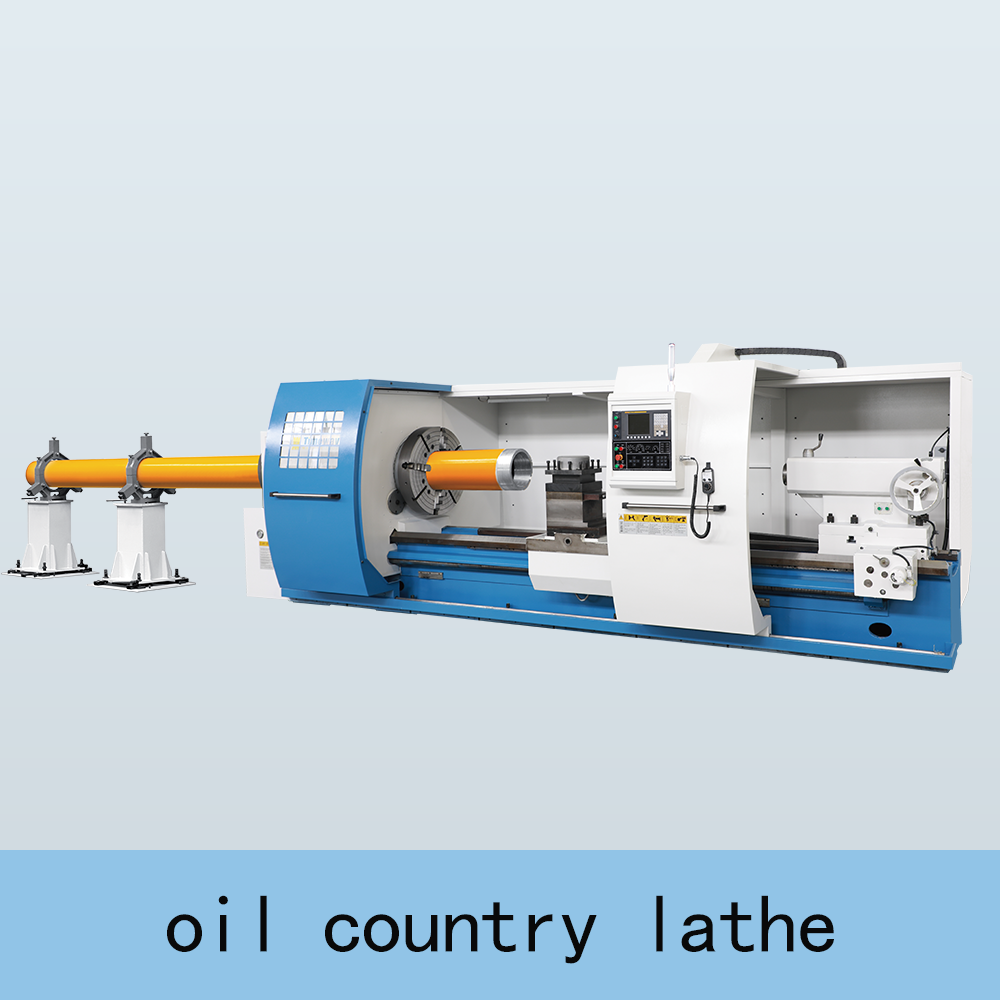

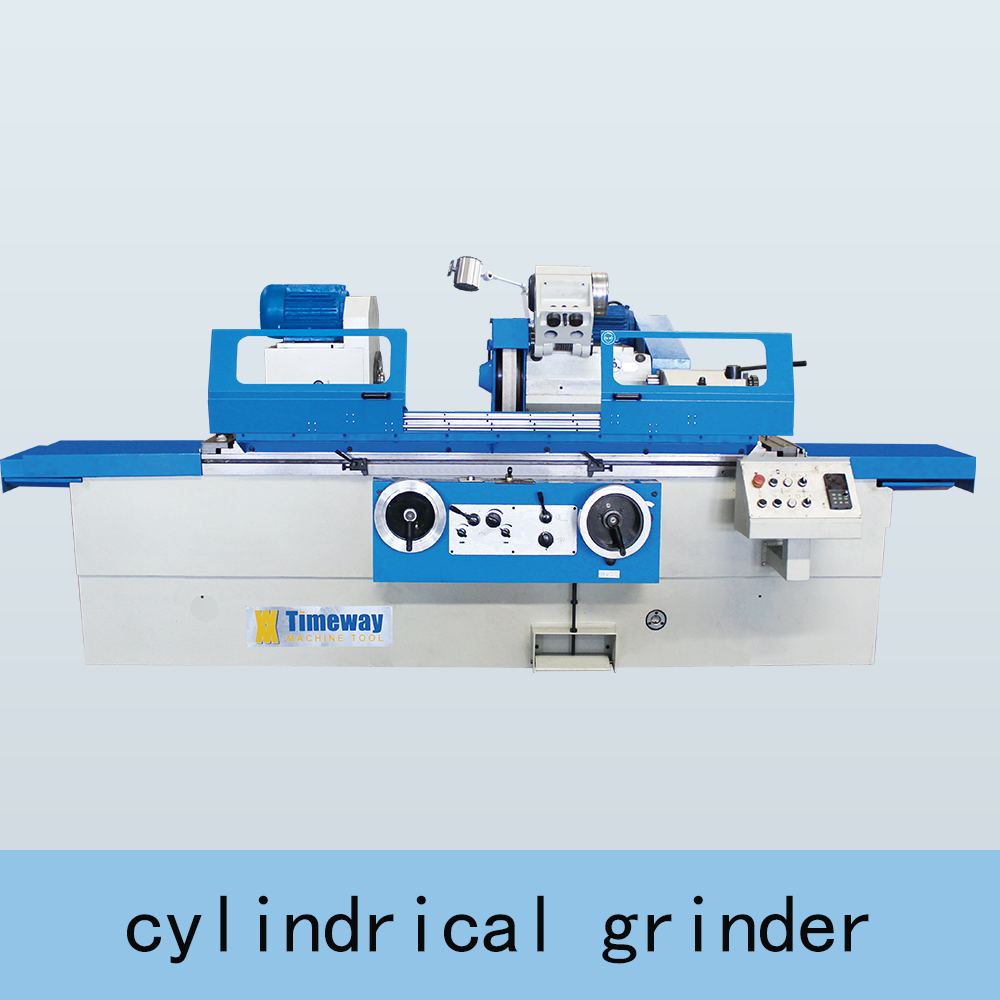

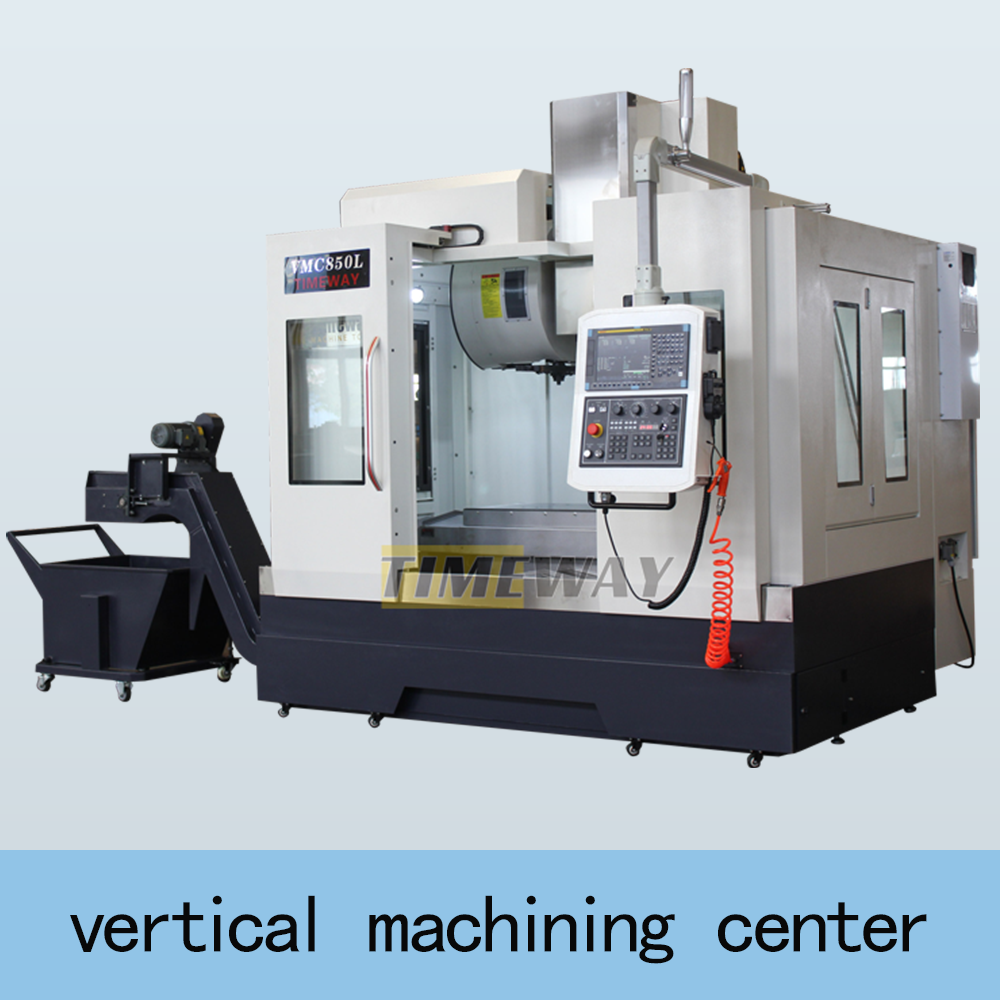

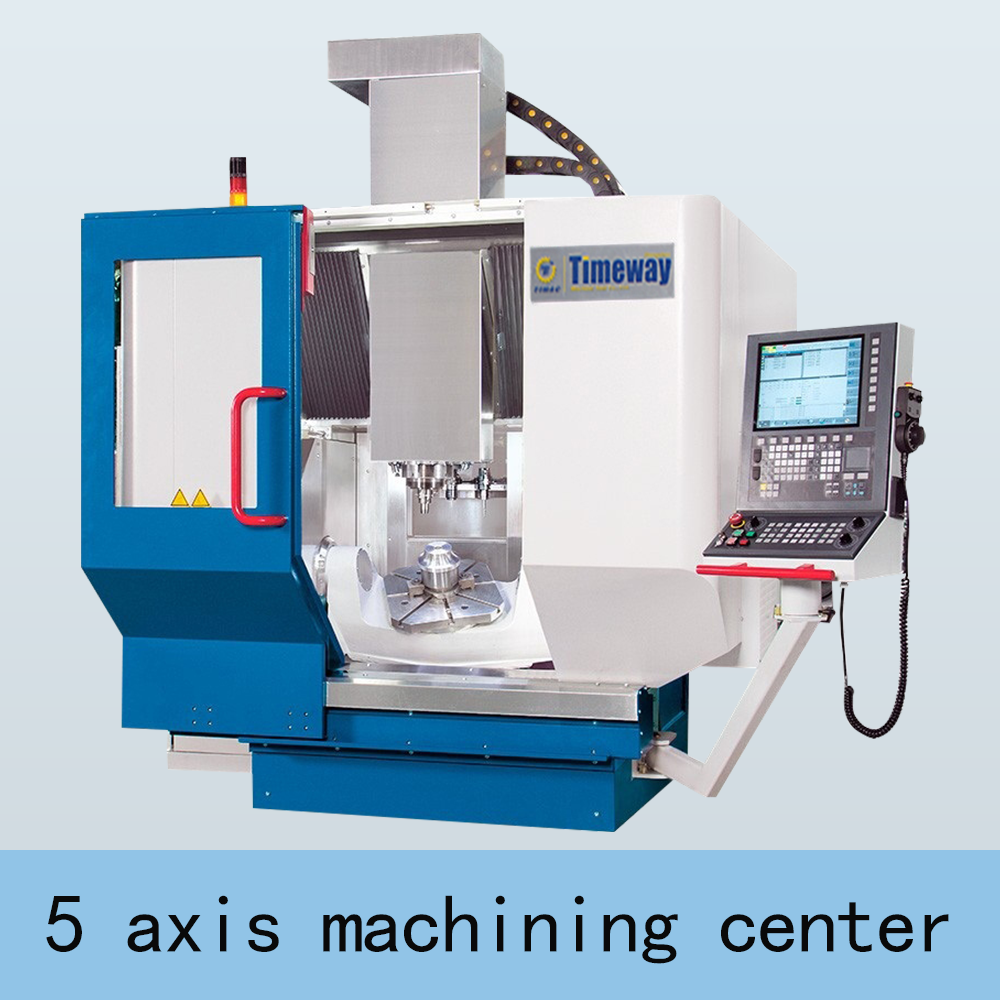

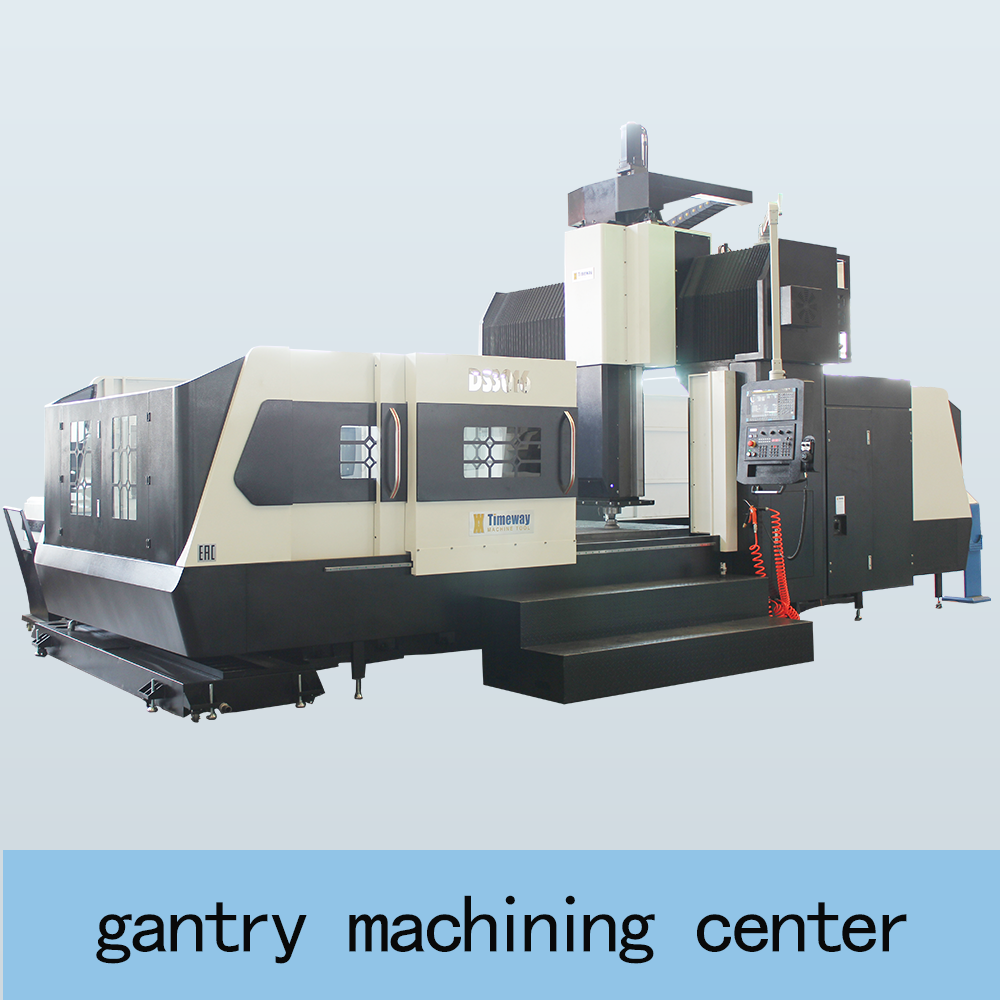

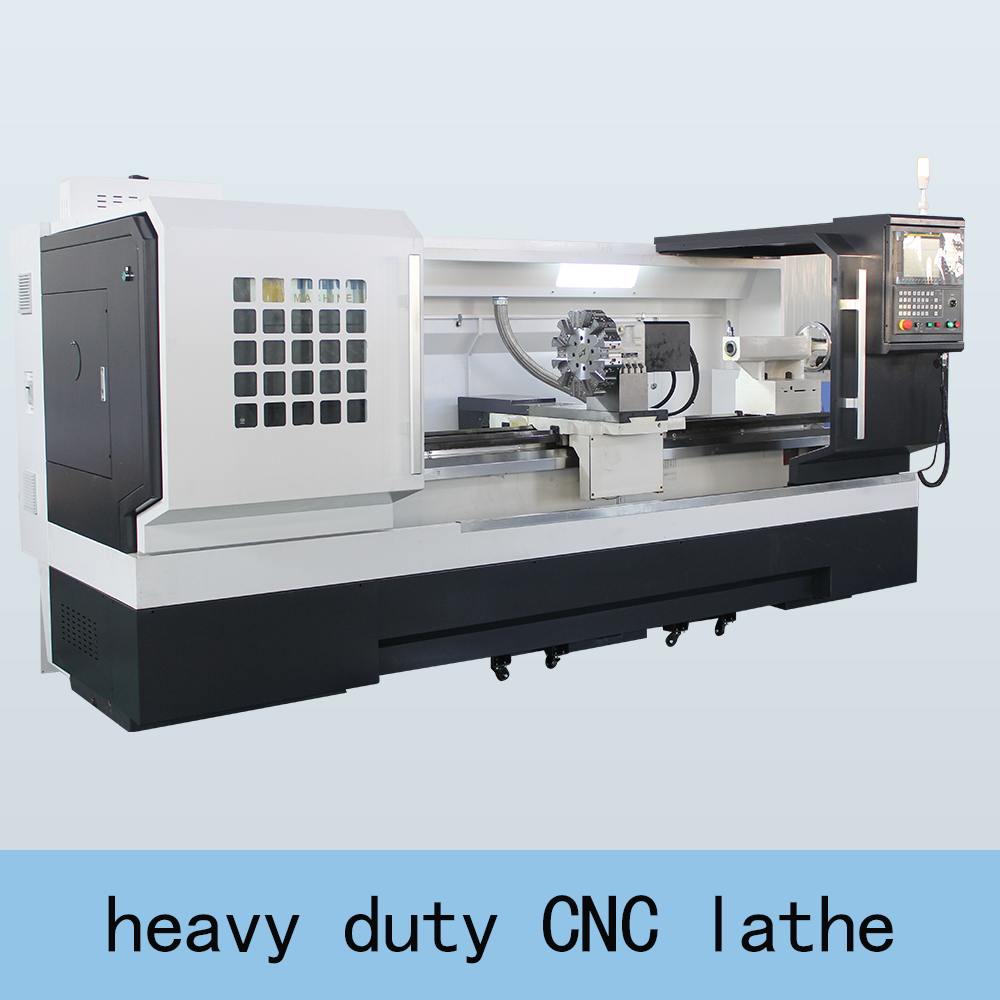

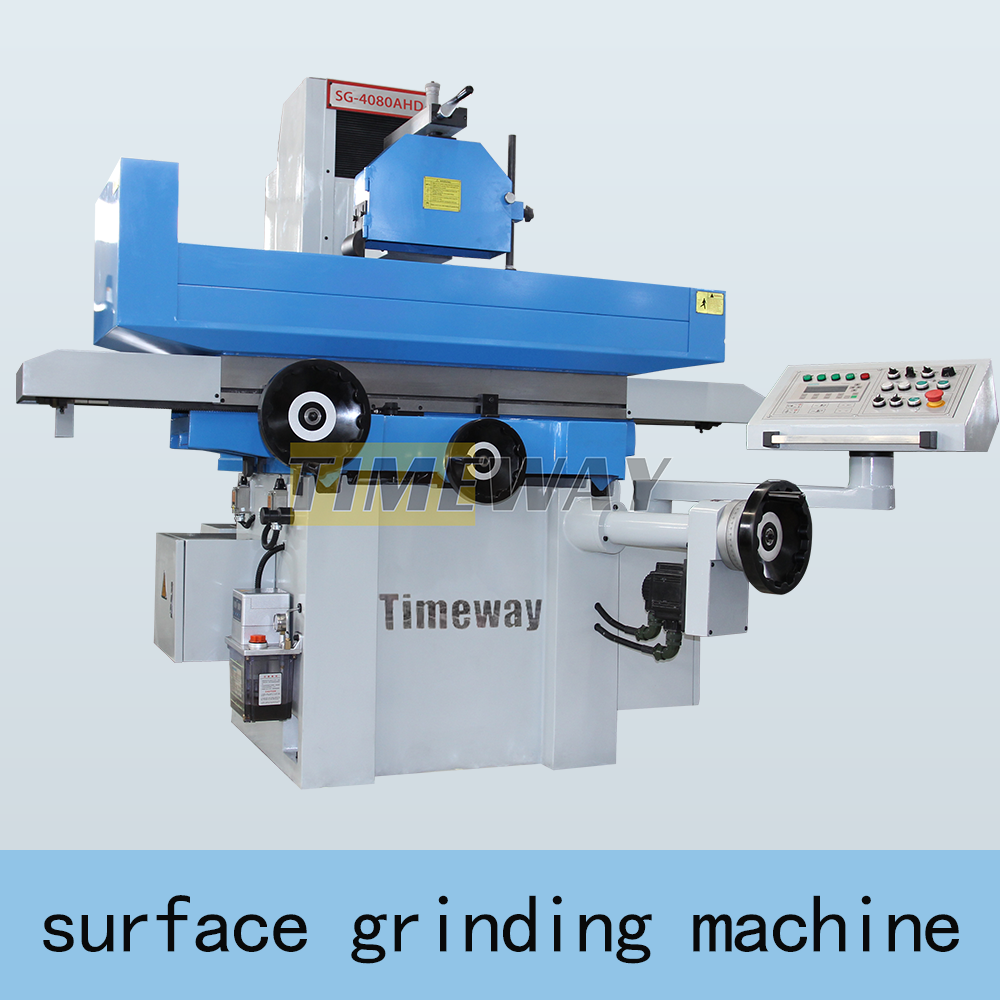

Featured Products Gallery
Frequently Asked Questions
Why choose our machinery?
1. High quality with competitive pricing;
2. Professional R&D team and 25 years of export experience;
3. Machinery exported to more than 60 countries;
4. CE and ISO Certificates;
5. 24 Hours online customer service;
6. 12 months quality warranty; and
7. Overseas engineers available for complex issue resolution.
Do you have QC or any safety standards for your machinery?
Yes, we have established a highly strict quality control department to inspect and guarantee exceptional build quality before shipment.
What is the Minimum Order Quantity (MOQ)?
Our MOQ is 1 set. (Only a few selected low-cost auxiliary machines may require a larger minimum order quantity).
What are your accepted payment terms?
We support several flexible payment methods:
(1) T/T with 30% advanced payment, and 70% balance payment paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, and other major transfers.
How does the machinery warranty work?
Our warranty period is one year after delivery. Even beyond the warranty period, we will provide lifetime service and technical assistance for all machines.
Can you provide custom configurations for specific requirements?
Yes, in addition to standard equipment, we design and manufacture various special-purpose machines according to unique customer demands, providing technical upgrading and transformation services in the machine tool field.
