| Item | Name | ALGMC1825 | Brand / Details |
|---|---|---|---|

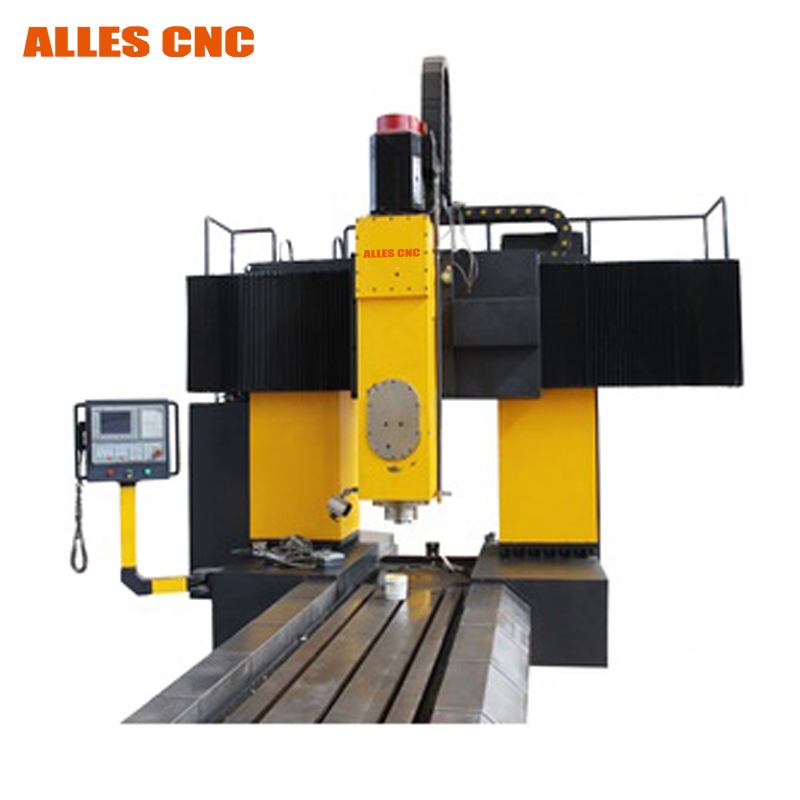

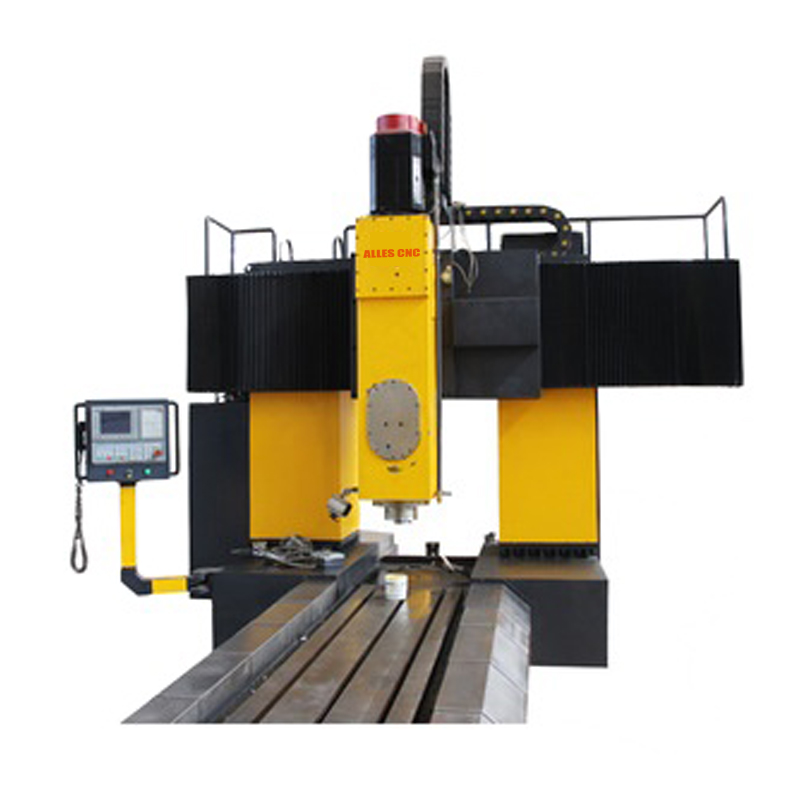

| Structure type | Fixed beam gantry structure | Resin sand cast iron | |
| Gantry width (mm) | 1880 | ||
| Worktable | Worktable load (KG) | 6000 | |
| Worktable size (mm) | 1800*2500 | ||
| T-slot width | 22mm | 12 piece | |
| X.Y.Z Axis | Travel (mm) | 1800*2500*700(Optional) | |
| X axis guide (beam) | HGW55CA2R Roller | Taiwan HIWIN | |
| Y axis guide | HGW55CA2R Roller | Taiwan HIWIN | |
| Z axis guide | Hard track | ||
| Y axis screw | 6310 | Taiwan TBI, Taiwan PMI | |
| X axis screw | 5010 | Taiwan TBI, Taiwan PMI | |
| Z axis screw | 4010 | Taiwan TBI, Taiwan PMI | |
| X.Y axis fast moving speed (no load) (mm/min) | 10000 | ||
| Z axis fast moving speed (mm/min) | 7000 | ||
| Fastest processing speed (mm/min) | 6000 | ||
| Positioning accuracy (mm) | +-0.01/300 | ||
| Re-positioning accuracy (mm) | +-0.01 | ||
| Spindle | Spindle motor power | 15KW Servo | FOTON or CTB |
| Spindle motor speed (r/min) | 0-6000 | ||
| Spindle form | Mechanical spindle | ||
| Spindle model brand | BT50 | Taiwan JIANCHUN | |
| Cooling form | Water cooling | ||
| Nasal end to table distance (about) (mm) | 150-850 | ||
| Main electrical components | Frequency converter | 15KW | SIFANG |
| Controller | 21MA | Taiwan SYNTEC | |
| Servo motor | X3000W Y3000W Z4400W |
||
| Japan YASKAWA 7 series absolute value | |||
| Hand wheel | Original | ||
| 24W power module | 150W | Taiwan MW | |
| Relay | Schneider | ||
| Breaker | Schneider | ||
| 24V relay | Omron | ||
| Tool cooling pump | 120W | ||
| Screw guide oil pump | 60W | ||
| Double spiral | 200W | ||
| Rear chain | 500W | ||
| Dimensions | L*W*H (m) (About) | 7.5*3.0*3.7 | |
| Machine weight (About) (T) | 24 |
