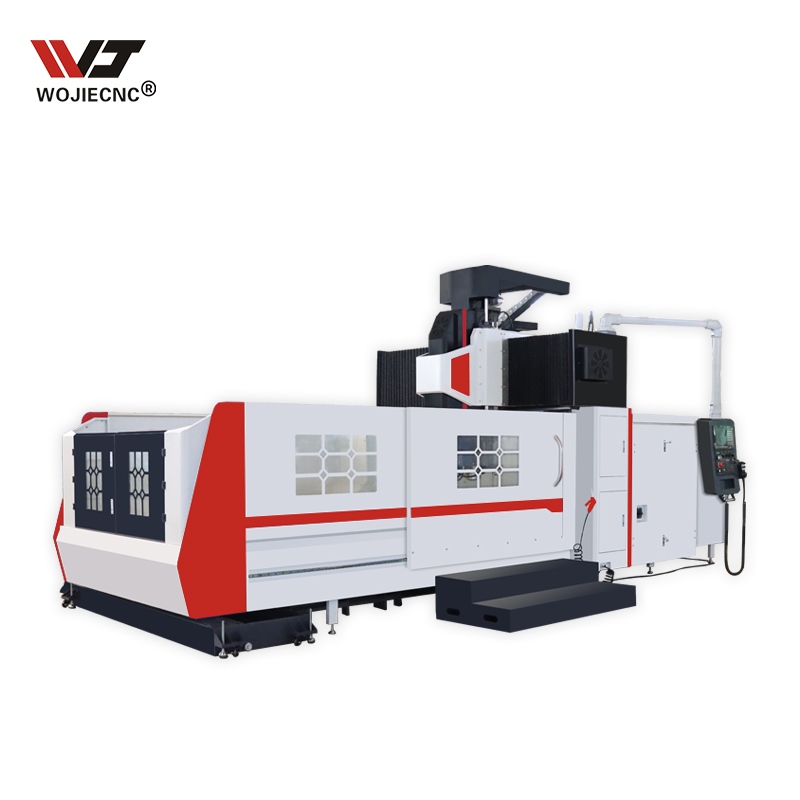

GMC2016 Gantry Type Double Column CNC Milling Center Stainless Steel 3 Coordinate Machining Center

1 / 5

GMC2016 Gantry Type Double Column CNC Milling Center Stainless Steel 3 Coordinate Machining Center

Send Inquiry

Product Description

Product Application

This machine is suitable for processing machinery and mold manufacturing field of gantry machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

Product main technical specifications

Parameters	GMC2016
X axis (transverse movement of worktable)	2000mm
Y axis (saddle longitudinal movement)	1600mm
Z axis (ram vertical lifting)	1000mm
Distance from spindle end face to worktable (when BT40)	100-800mm
Gantry width	1650mm
X-axis rapid movement	20m/min
Y axis rapid movement	20m/min
Z-axis rapid movement	20m/min
cutting feed	1-10m/min
Three-axis screw (C3 level grinding)	5012/5012/5012
Workbench area	2200 × 1300mm
Spindle motor	22kw
weight capacity	3000Kg
T-slot	7 × 22 × 165mm
Standard configuration	Belt type BT40-150
Rotating speed	8000 rpm
Spindle taper hole	BT40
Positioning accuracy (JIS standard)	±0.005/300mm
Repeat positioning accuracy (JIS standard)	±0.005mm
weight	Approx. 22000Kg
Dimensions	Approx. 5600 × 3300 × 2900mm

Standard Accessories

GSK System
24 Arm type tool magazine
Taiwan spindle BT40
Chain chip conveyor
Spiral chip conveyor
Automatic lubrication system
Cooling system
Heat Exchange
Pneumatic system
Full Cover machine enclosure

Optional Accessories

System: FANUC, Siemens, GSK etc
4 axis or 5 axis
Spindle center coolant
Higher speed of Spindle
Air conditioner
Gear Box

Detailed Images

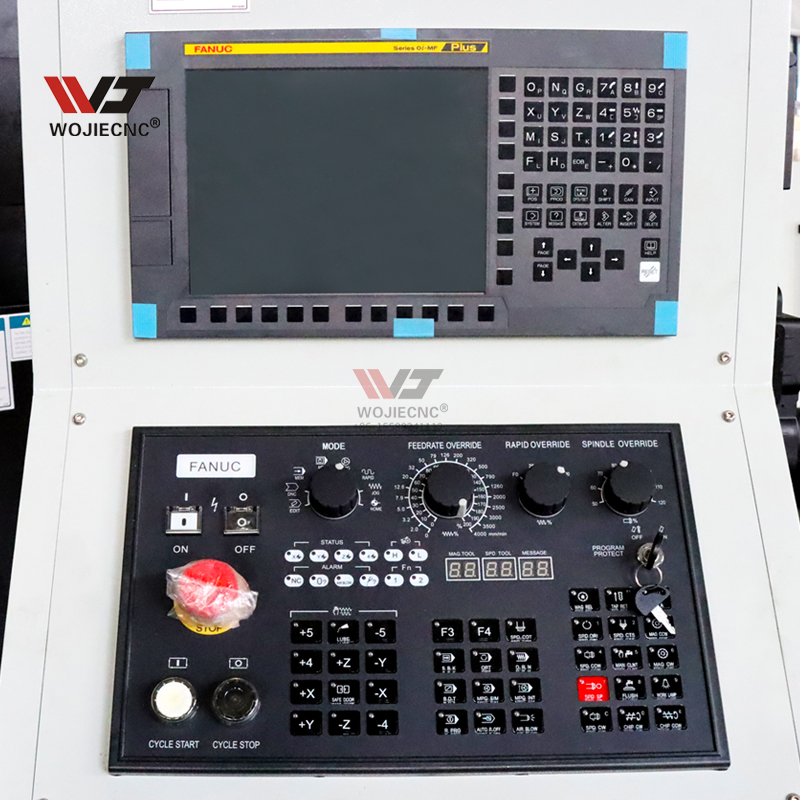

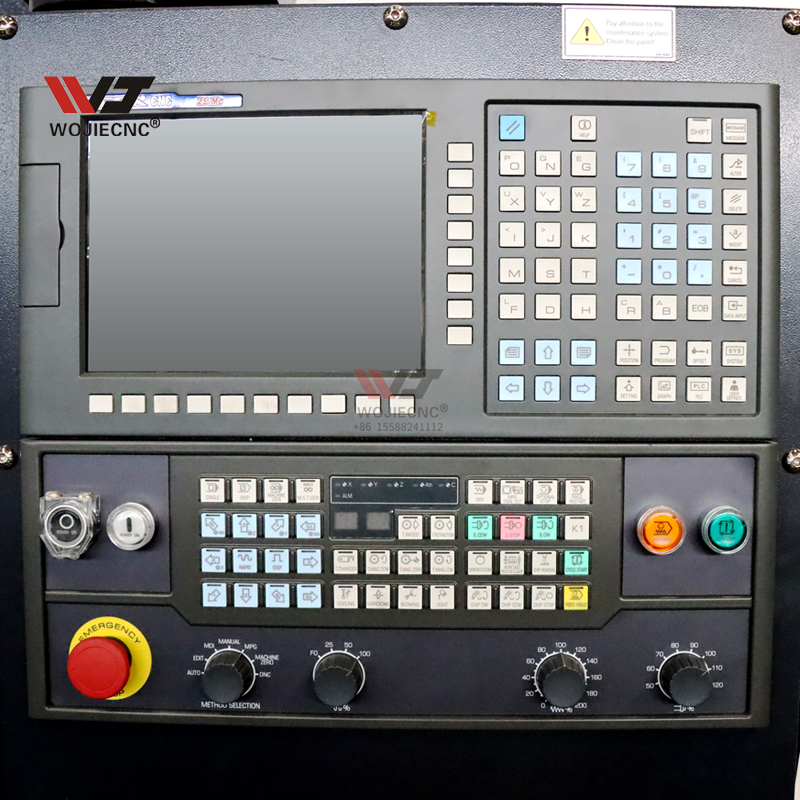

CONTROL SYSTEM

Standard configuration: GSK
Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubishi

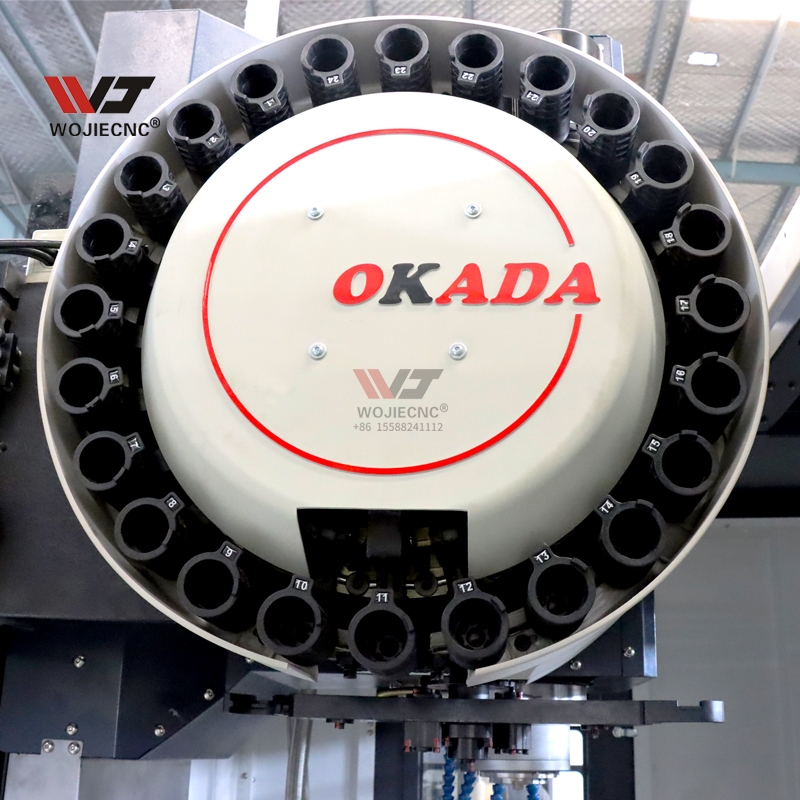

TAIWAN TOOL MAGAZINE

1. Taiwan OKADA arm 24 tool magazine.
2. Tool change time only 2-3 seconds.

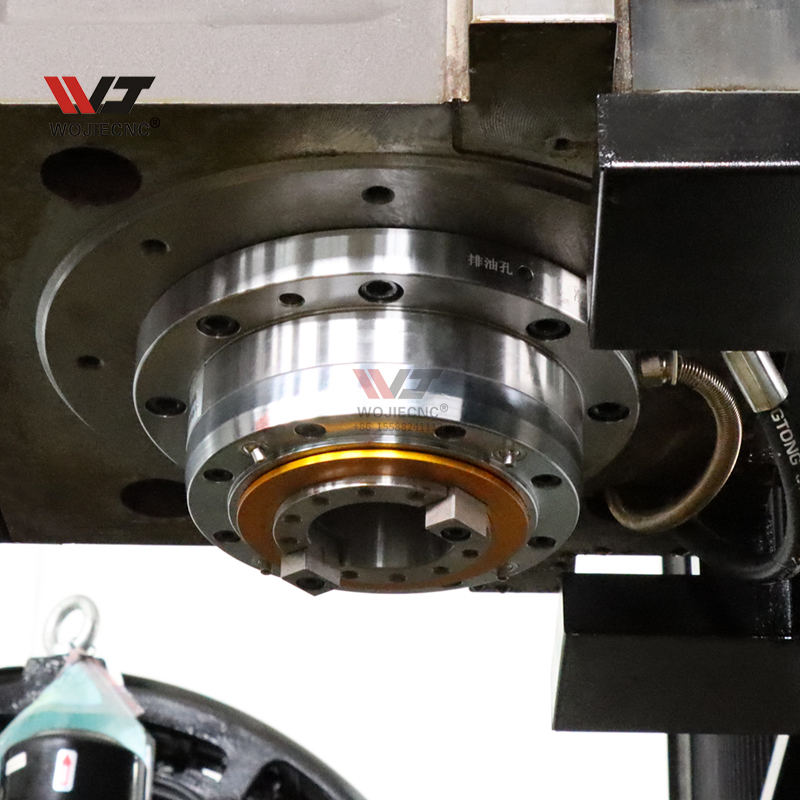

TAIWAN SPINDLE

Standard configuration: 8000 rpm
Optional configuration: 10000/12000/15000/24000rpm

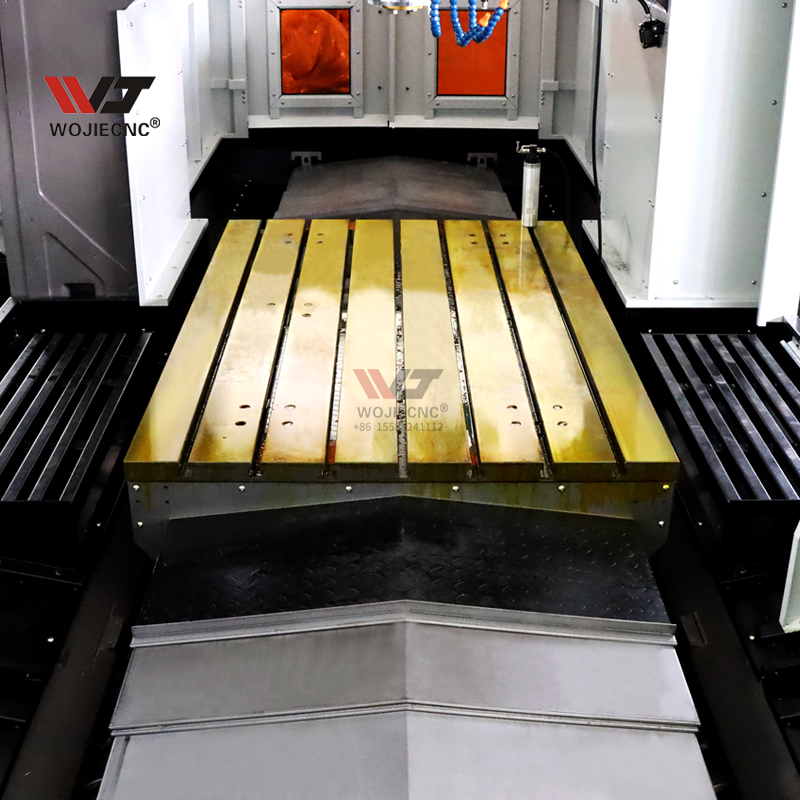

WORKBENCH

High-frequency quenching for better rigidity.

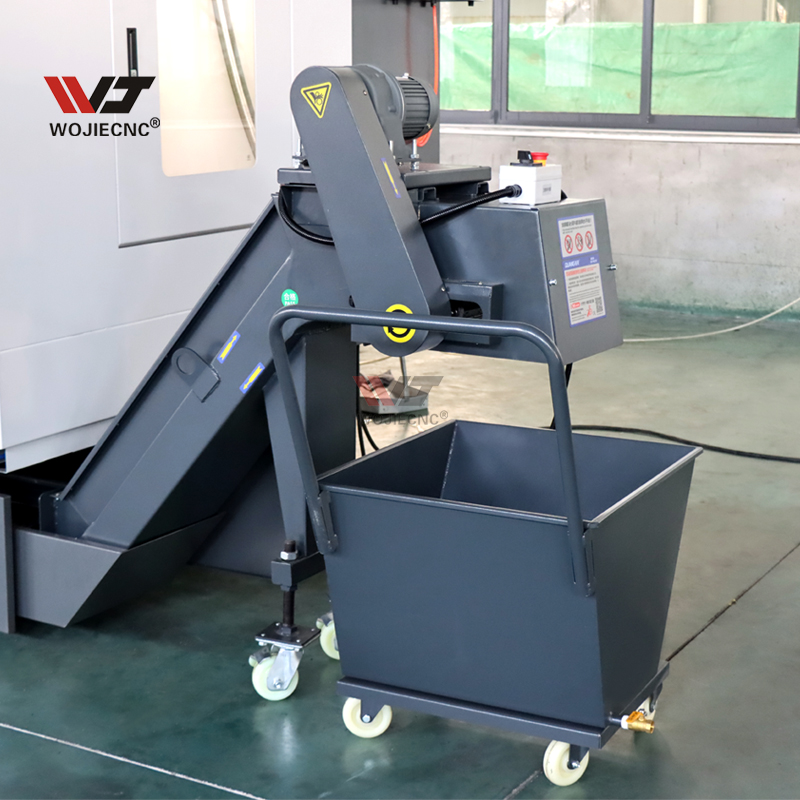

Chain Chip Conveyor

Standard configuration: 1*Chain chip conveyor

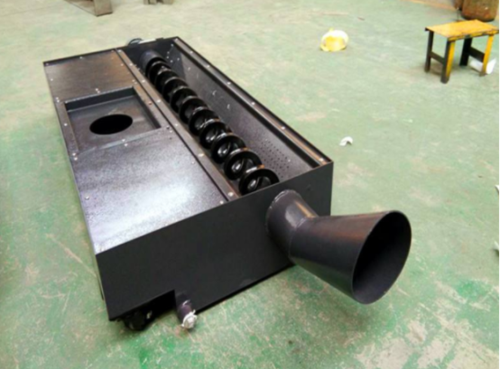

Spiral Chip Conveyor

Standard Configuration: 2*Spiral chip conveyor

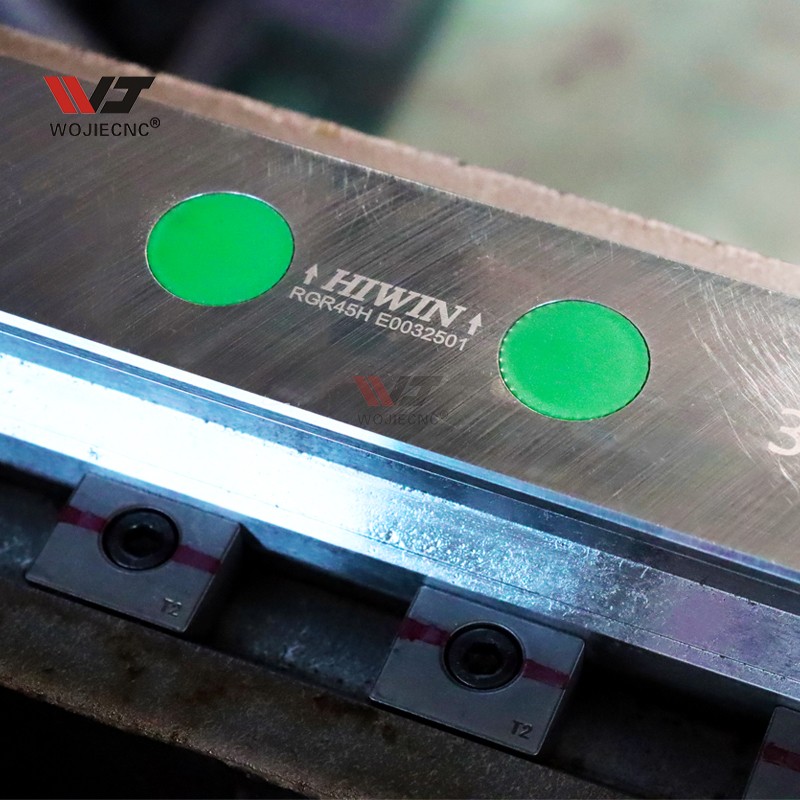

TAIWAN LINEAR GUIDE WAY

3-axis linear guide using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.

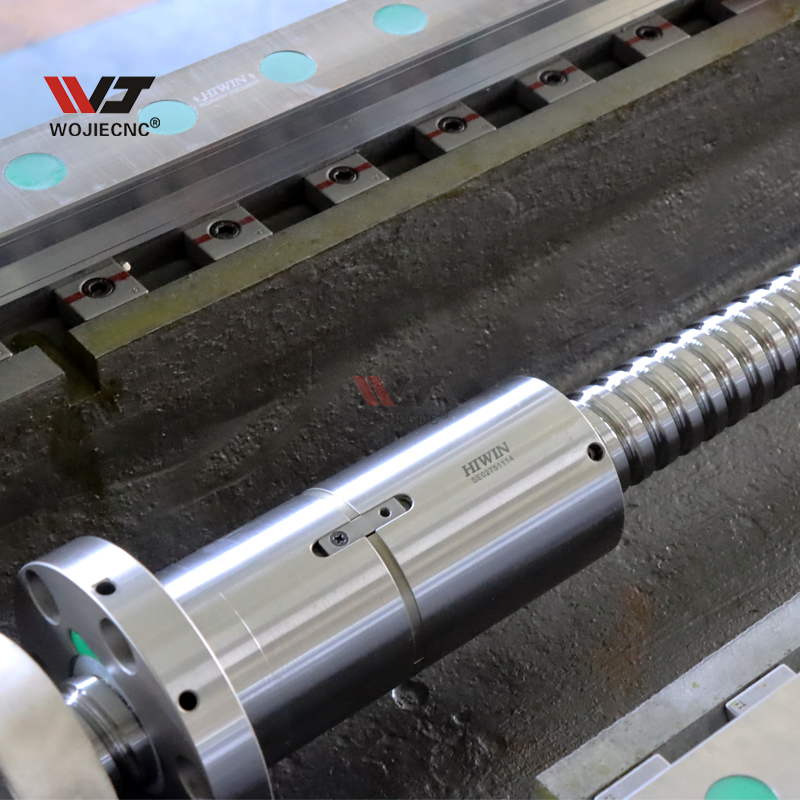

TAIWAN BRAND SCREW

3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.

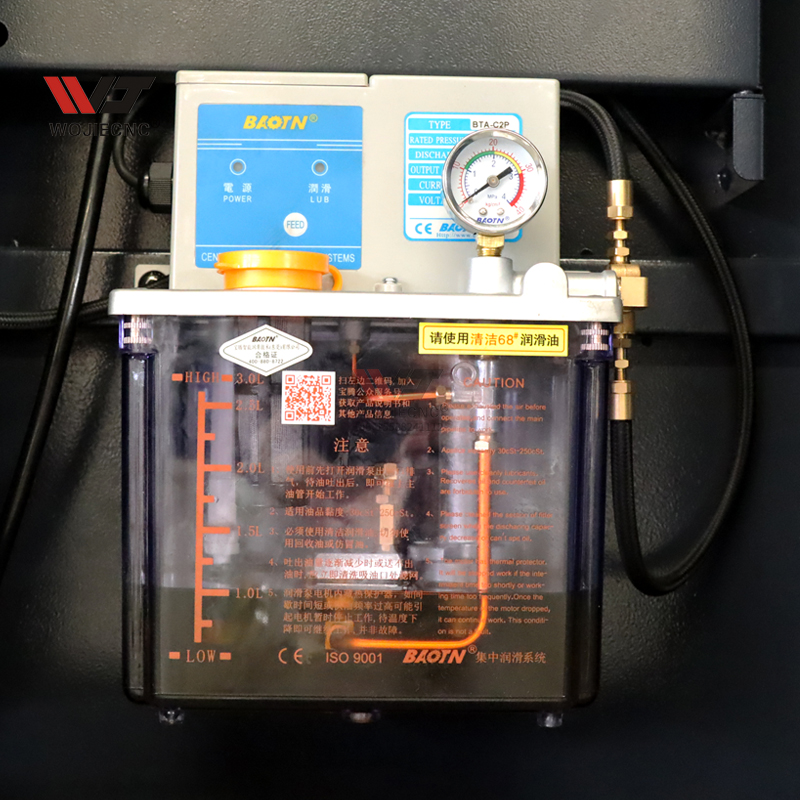

LUBRICATION SYSTEM

Automatic centralized lubrication device.

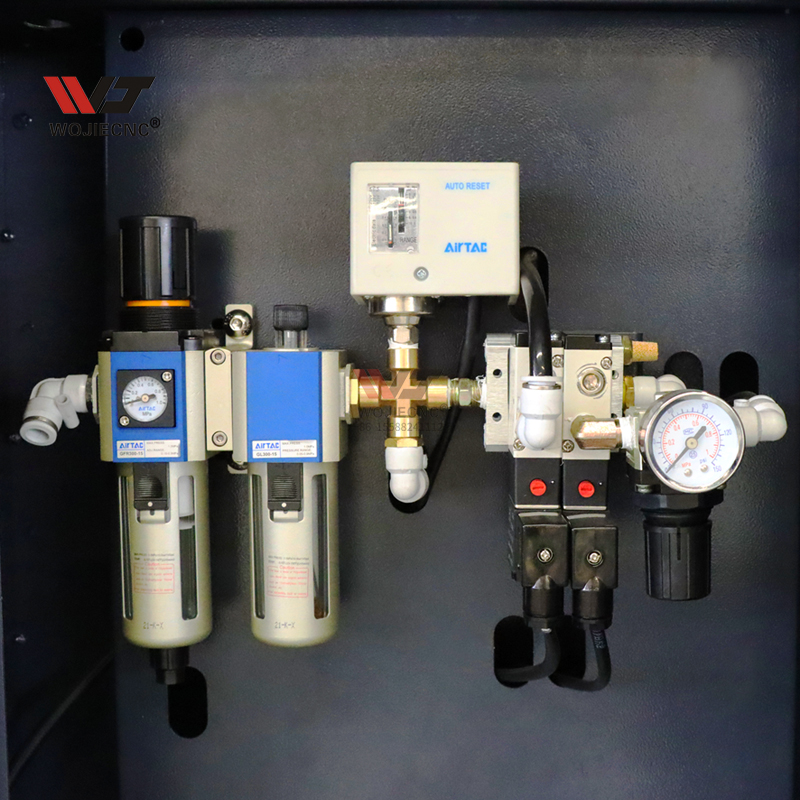

PNEUMATIC COMPONENTS

Standard with AirTAC Pneumatic Components.

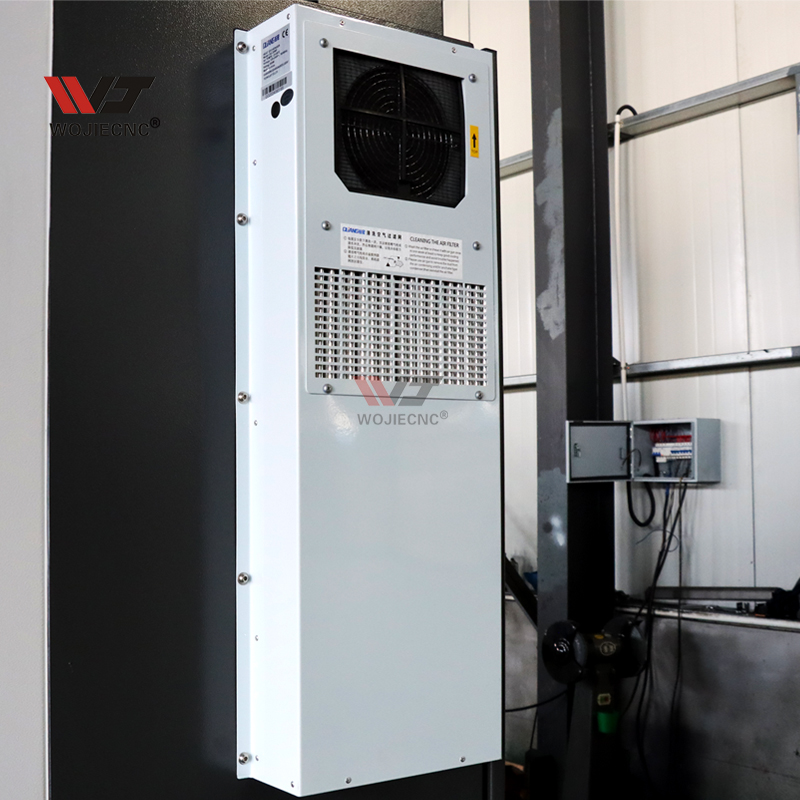

HEAT DISSIPATION DEVICE

Standard configuration: Electrical cabinet heat exchanger
Optional configuration: Electrical cabinet air conditioner

ELECTRIC BOX

Standard configuration: DELIX

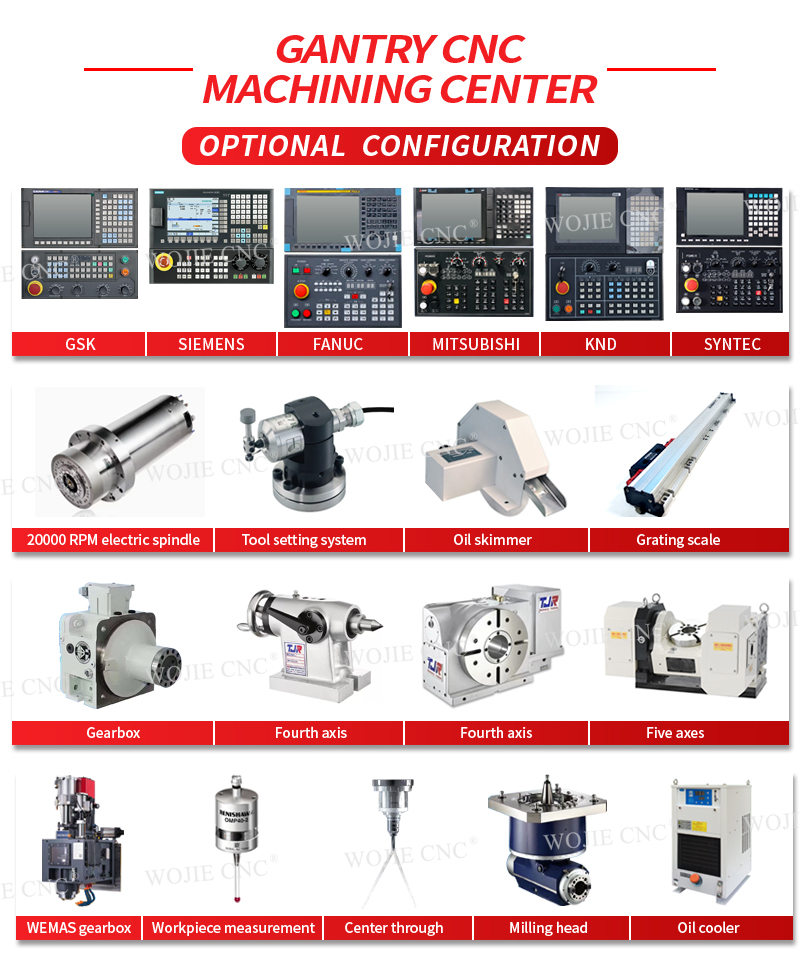

Optional Configurations

Factory Strength & Quality Control

More than 60,000m² of the factory with more than 150 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience factory.
24 hours online service at any time.
Trade with customers in more than 150 countries around the world.
Cooperate with Famous Brands, such as SIEMENS, FANUC, SYNTEC, etc.
Support ODM & OEM configurations.
Warranty period is 24 months.

Product Packaging

Frequently Asked Questions

Q What are the payment terms?

We accept T/T (30% initial payment upon order, 70% balance payment prior to shipment) or Irrevocable LC at sight. Once we receive the initial payment, production will begin. Upon completion, detailed photos and video updates of your machine will be provided before final balance payment and shipment dispatch.

Q What types of machine tools are produced?

We specialize in manufacturing a comprehensive range of professional machinery, including CNC milling machines, vertical machining centers (VMC), CNC lathes, conventional milling machines, standard lathes, and hydraulic presses. All products conform to ISO and CE quality standards.

Q When is the estimated delivery time?

Standard configured machines are typically ready for shipment within 15 days. Customized or specialized builds may require additional time. Sea transit time generally ranges around 30 days to Europe and North America, and significantly less for Asian or Australian ports.

Q Which trade terms are supported?

We support standard international trade terms including FOB, CFR, CIF, and other standard delivery terms based on customer requirements.

Q What is the MOQ and warranty coverage?

The Minimum Order Quantity (MOQ) is 1 set. All machines come with standard warranty coverage alongside lifetime technical support to ensure long-term productivity.

Q How are the machines packaged for transport?

Machines are packed securely in standard export-grade heavy-duty plywood cases designed to offer maximum protection against moisture, dust, and mechanical impacts during transport.
