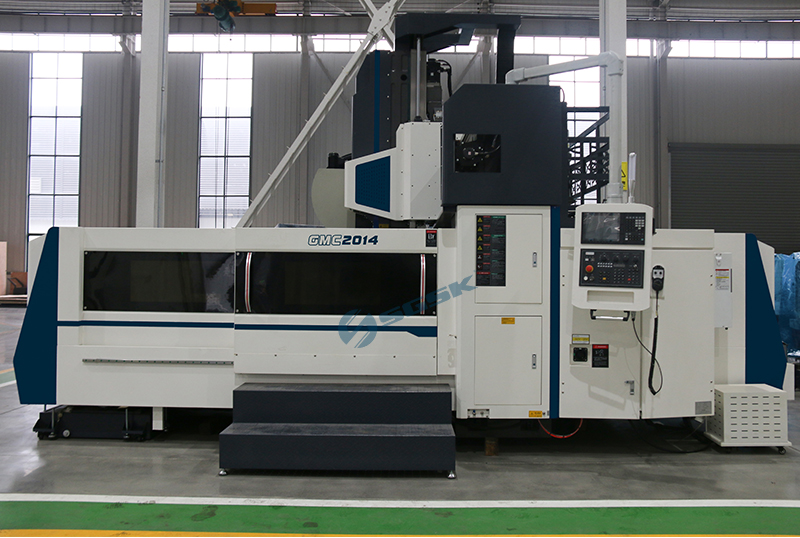

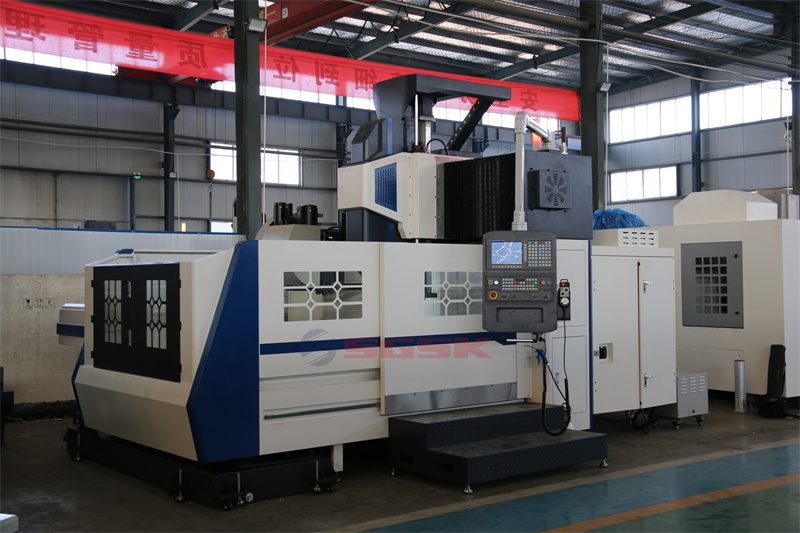

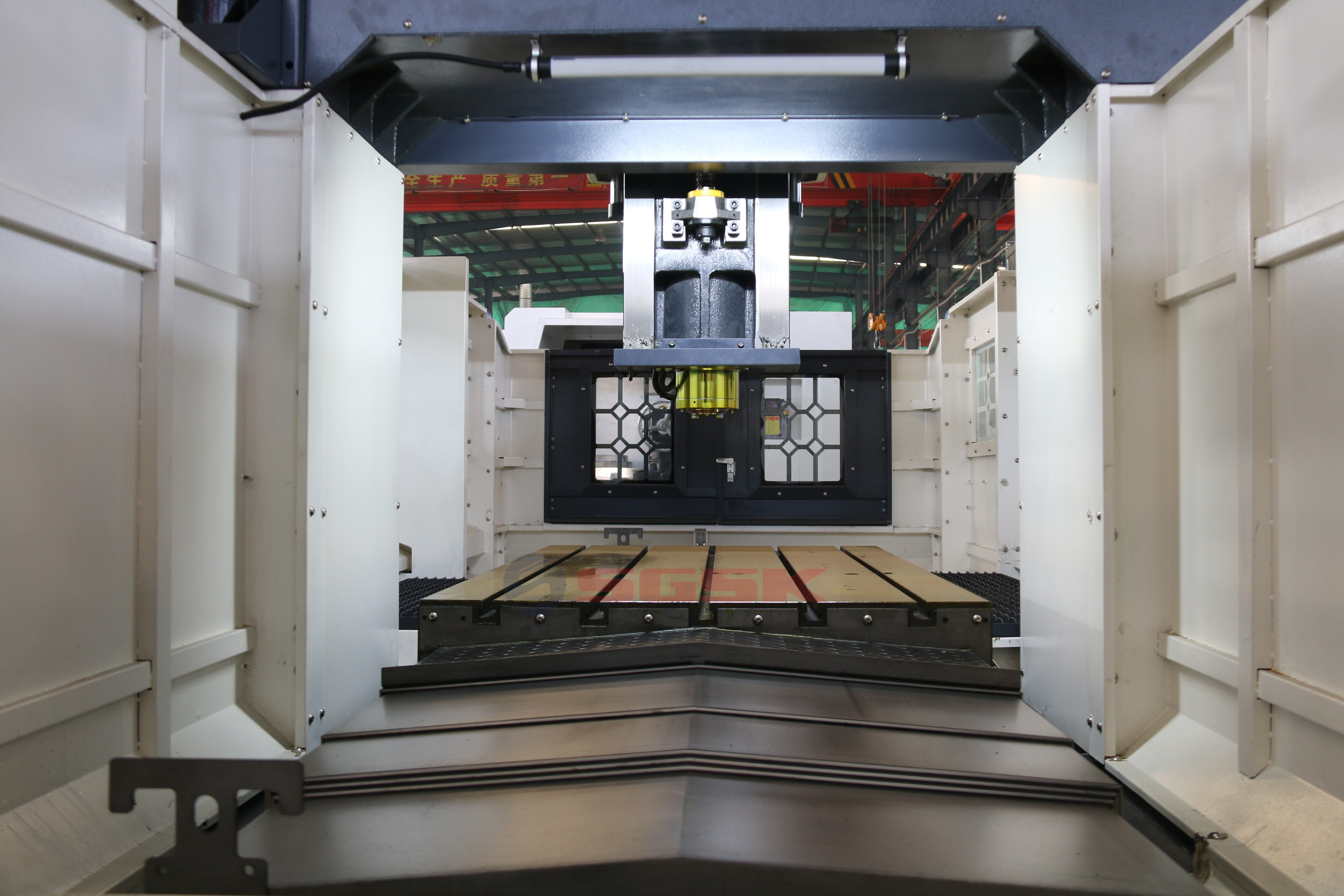

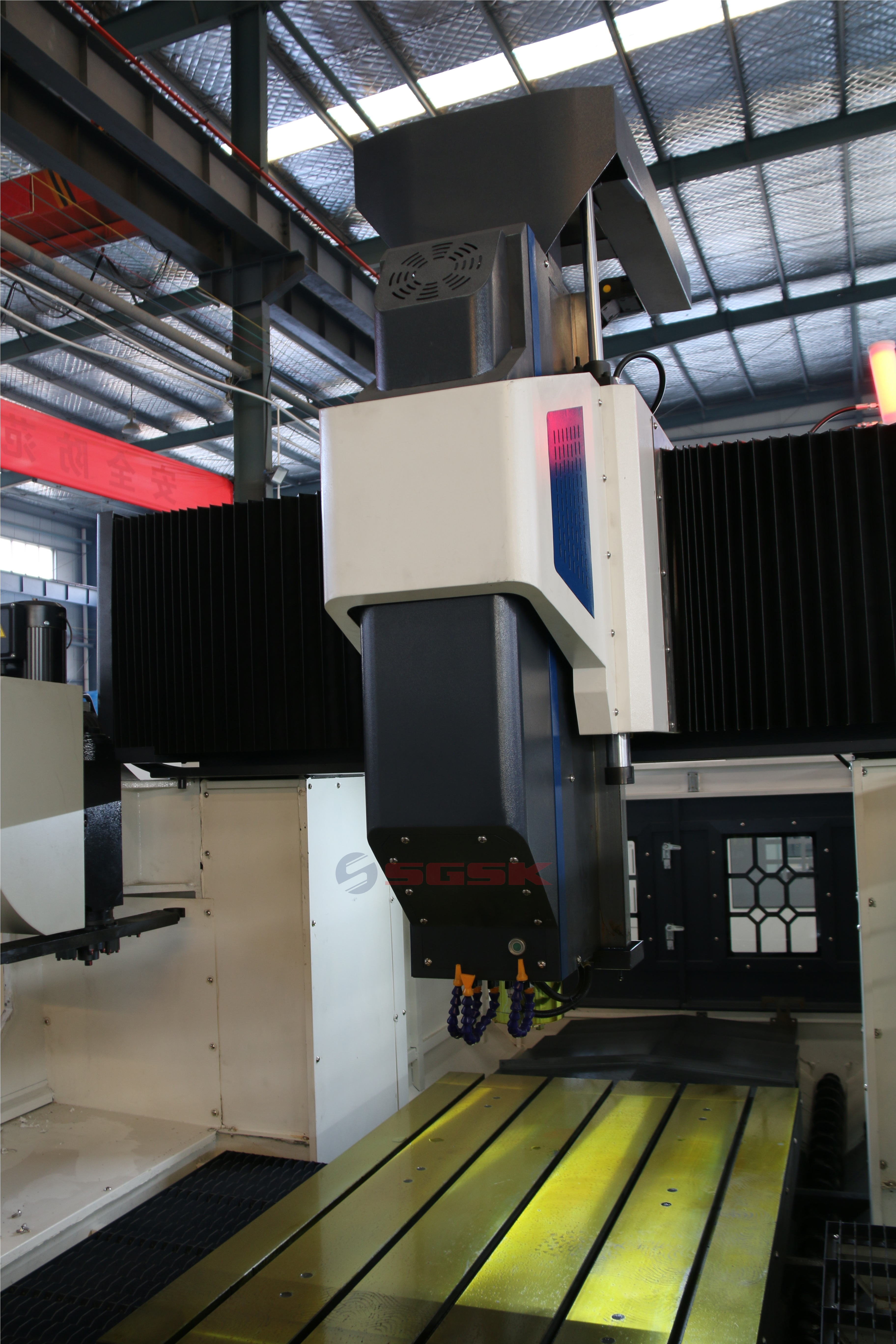

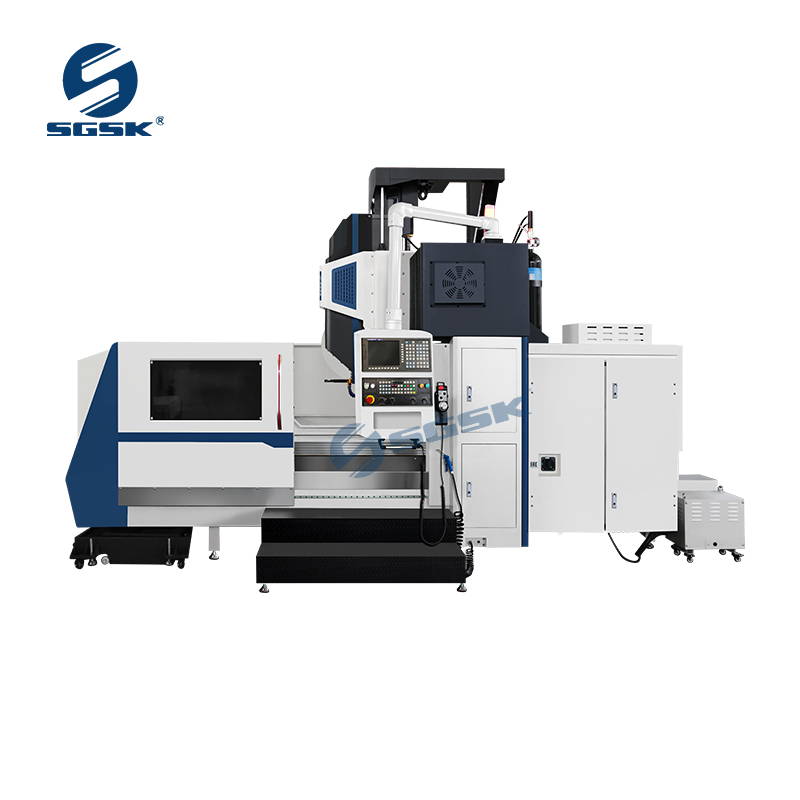

Factory Direct Heavy Duty Cnc Milling Machine GMC2012 Cnc Gantry Type Milling Machine BT50 for Mold
Products Description
| SPECIFICATIONS |
Units |
GMC2014 |
GMC2514 |
GMC3014 |
GMC2016 |
| Table size (W*L) |
mm |
1200*2100 |
1200*2600 |
1200*3100 |
1400*2100 |
| X axis travel |
mm |
2000 |
2500 |
3000 |
2000 |
| Y axis travel |
mm |
1500 |
1500 |
1500 |
1700 |
| Z axis travel |
mm |
800 |
800 |
800 |
800 |
| Gantry width/passing height |
mm |
W:1500/H:1030 |
W:1500/H:1030 |
W:1500/H:1030 |
W:1700/H:1080 |
| Table load |
t |
3.5 |
4.5 |
5.5 |
4 |
| Distance between spindle nose and table surface |
mm |
150~950 |
150~950 |
150~950 |
200~1000 |
| T slot (number-width*pitch) |
- |
7-22*170 |
7-22*170 |
7-22*170 |
7-22*200 |
| Spindle taper |
- |
BT50 /190 |
BT50 /190 |
BT50 /190 |
BT50/190 |
| Spindle speed |
r/min |
6000 |
6000 |
6000 |
6000 |
| Rapid traverse speed |
m/min |
15 |
15 |
15 |
15 |
| Cutting feed speed |
m/min |
10 |
10 |
10 |
10 |
| Main motor power |
kw |
15/18.5 |
15/18.5 |
15/18.5 |
15/18.5 |
| Tool magazine |
- |
Arm24 |
Arm24 |
Arm24 |
Arm24 |
| Positioning accuracy |
mm |
X/Y 0.0075 Z 0.015 |
| Repeat positioning accuracy |
mm |
0.005 |
| Overall dimension (L*W*H) |
mm |
6700*4200*4200 |
7700*4200*4200 |
8700*4200*4200 |
7200*4500*4300 |
| Machine weight (about) |
t |
17.5 |
19.5 |
21.5 |
18.5 |
Key Components & Features

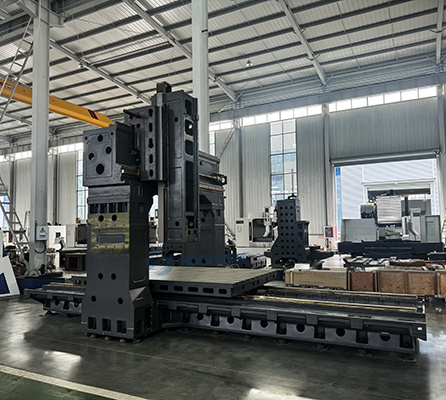

Machine Construct
High strength high quality HT300 cast iron

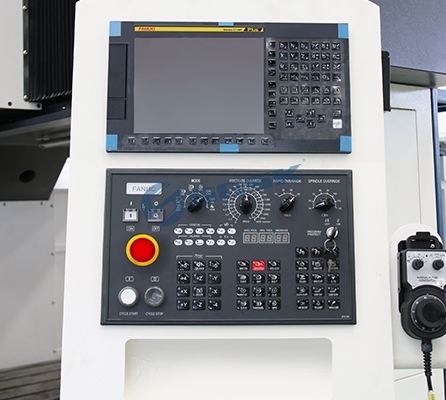

Control System
Standard: FANUC

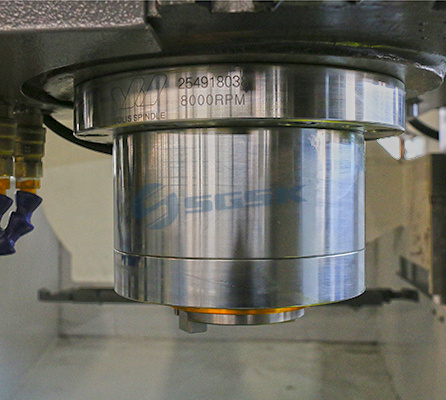

Spindle
1. TAIWAN precision spindle.
2. BT40 spindle 8000rpm.

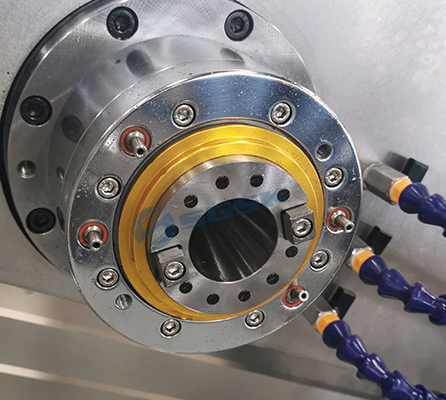

Spindle Ring Cooling
Standard with Spindle ring cooling function.

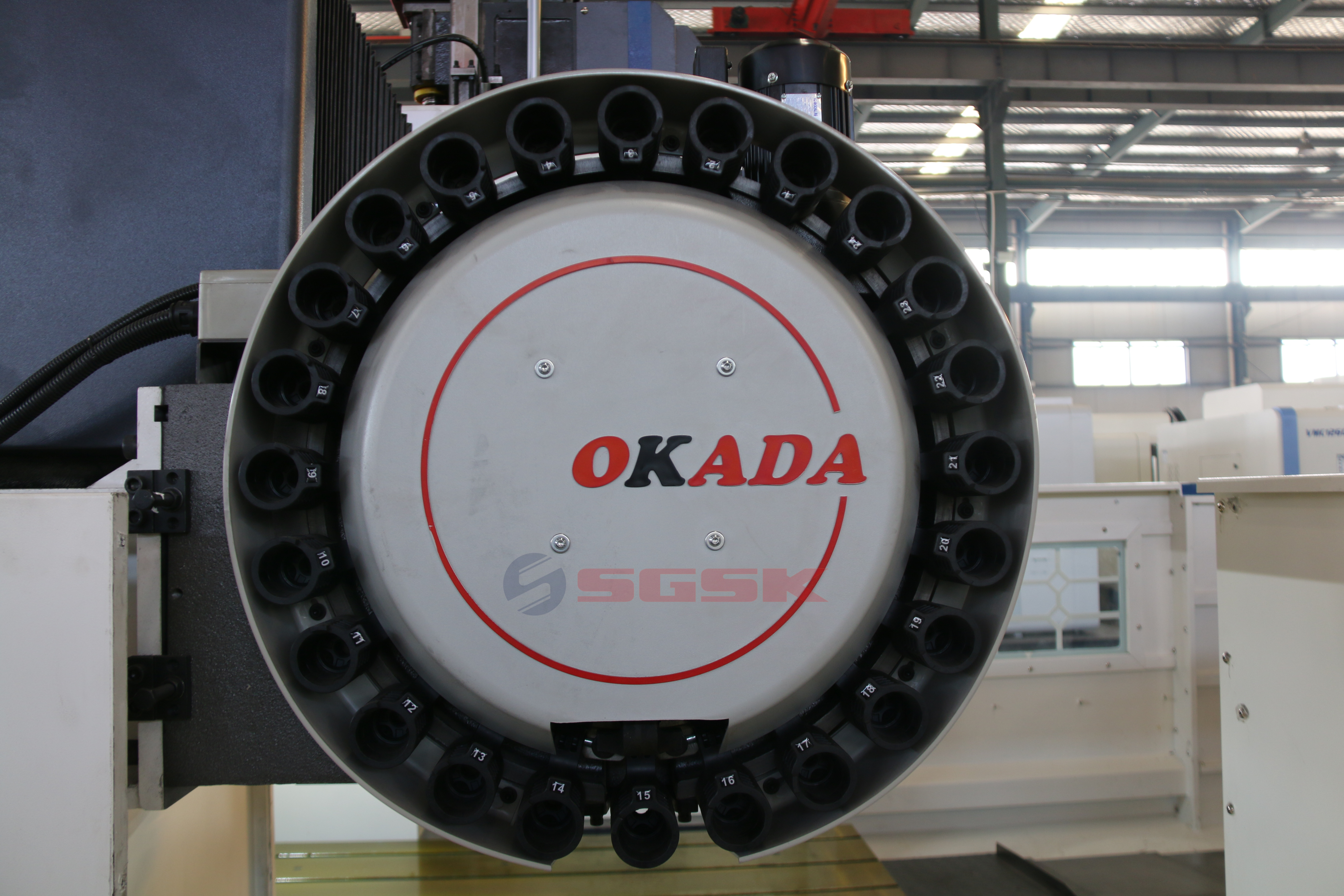

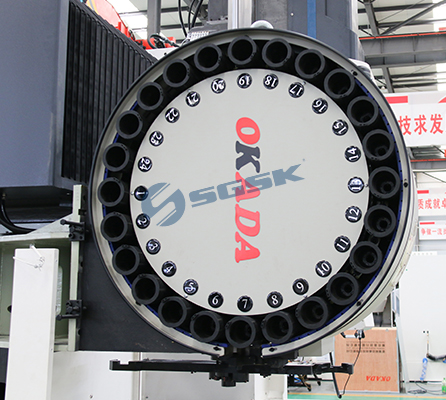

Taiwan Tool Magazine
1. Taiwan OKADA arm type 24 tool magazine.
2. Tool change time only 3 seconds.
Lead Screw
1. Taiwan precision lead screw.
2. Imported bearings.
Guiderail
3 axis linear rail

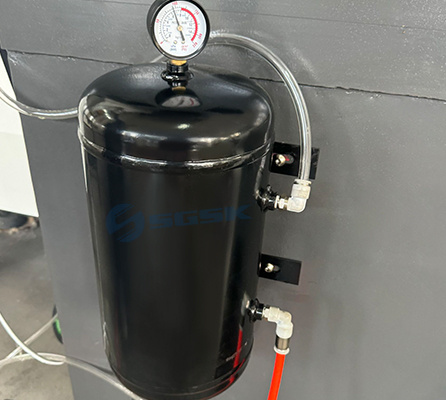

Air Storage Tank
Automatic centralized lubrication device.

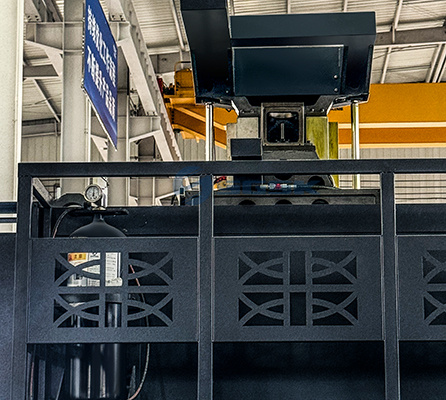

Nitrogen Balance Cylinder
Standard with nitrogen balance cylinder for machine counterweight
Air Gun & Water Gun
High-pressure air guns and high-pressure water guns

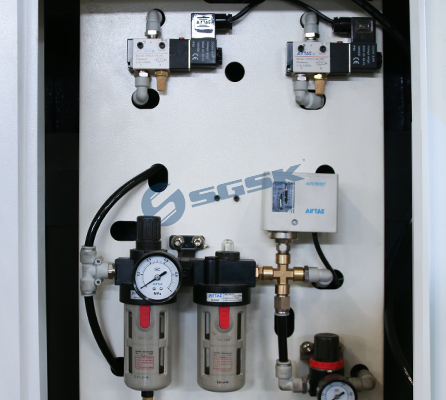

Pneumatic Components
Standard with AirTAC Pneumatic Components

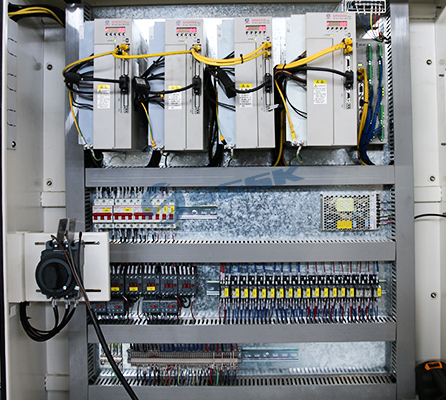

Schneider Components
1. With Schneider safety electrical components
2. Quick plug as standard
Air Conditioner
With Industrial electrical cabinet air conditioner for better cooling.
Lubrication System
HERG Automatic centralized lubrication device

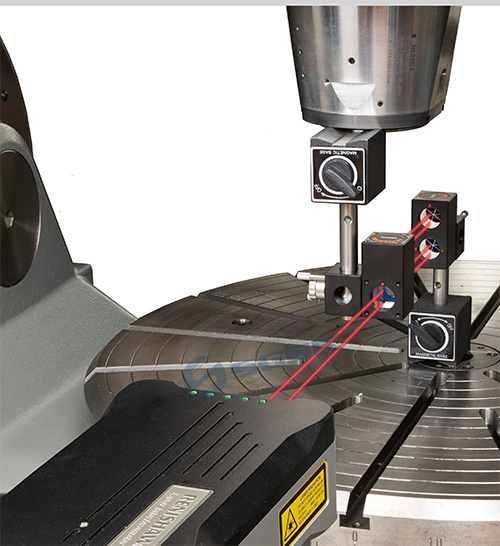

Laser Testing
Each machine passed Renishaw laser interferometer testing

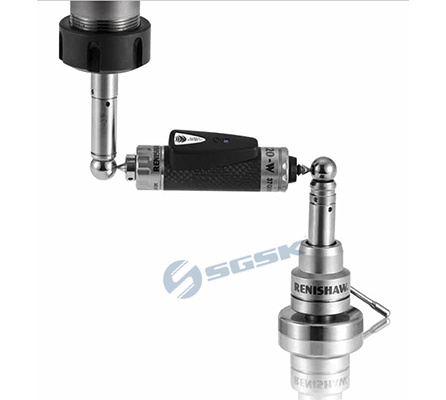

Ballbar Testing
Each machine passed Renishaw ballbar testing
BT50 Milling Chuck
Standard with BT50 milling chuck.
Locking Knife Block
Standard with lock knife block.

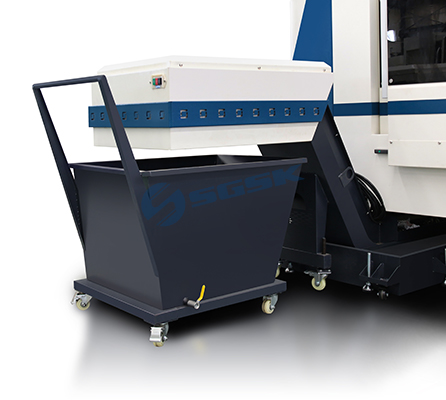

Chip Conveyor
2 screw type chip conveyor and 1 Chain type chip conveyor
Frequently Asked Questions
What is your minimum order quantity and warranty?
MOQ is one set, and the warranty period is 18 months.
What CNC system do you use?
We support FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, etc. It depends on your selection.
When is the delivery time?
For conventional machines, we will deliver within 30-45 working days after receiving your deposit. Special machines may take longer, and we will confirm details with you accordingly.
What is the packaging of the machines?
Standard packaging for the machines consists of iron pallets wrapped with plastic film.
How can I choose the most suitable machine?
Please provide your machining requirements or the required machine size, and we can recommend the best model. Alternatively, you can select the exact model yourself or send us your product drawings for expert selection assistance.
What are your payment and trade terms?
For trade terms, we accept FOB, CFR, CIF, or others. Payment terms are T/T (30% initial payment when ordered, 70% balance payment before shipment) or Irrevocable LC at sight.
