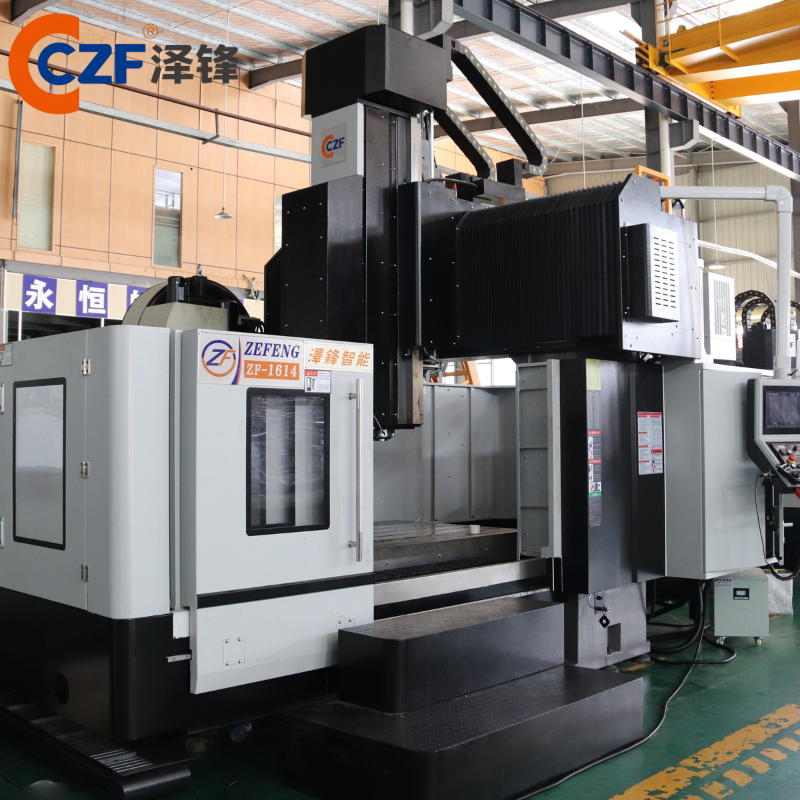

Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
1 / 5
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center
Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center

Heavy-Duty CNC Gantry Milling Machine ZF-1614 FANUC Control System BT50 Single Spindle Gantry Machining Center

Send Inquiry

Product Description

Technical Equipment
⚙️ Technical Parameter
Specification Unit ZF-1614
Three axis travel mm 1600*1400*700
Workbench size mm 1700*1200
The maximum load-bearing capacity of the workbench kg 3000
Distance from spindle nose to worktable mm 150-850
Three axis motor power kw 4.5/4.5/4.5
XYZ axis rapid feed m/min 36/36/36 (48/48/48)
Controller - Standard Configuration: Mitsubishi M80VB system
Optional Configurations: Mitsubishi M80VA system, Fanuc system, Siemens system, HNC system, Sinumerik system
Specification of spindle end - BT50
Spindle speed r.p.m 24000
Spindle motor power kw 22
Air compression specifications kg/c 6-7bar
Size mm 4786*3625*4204
Weight kg 15200
💡 The mechanical specifications are subject to change with the increase in quality!

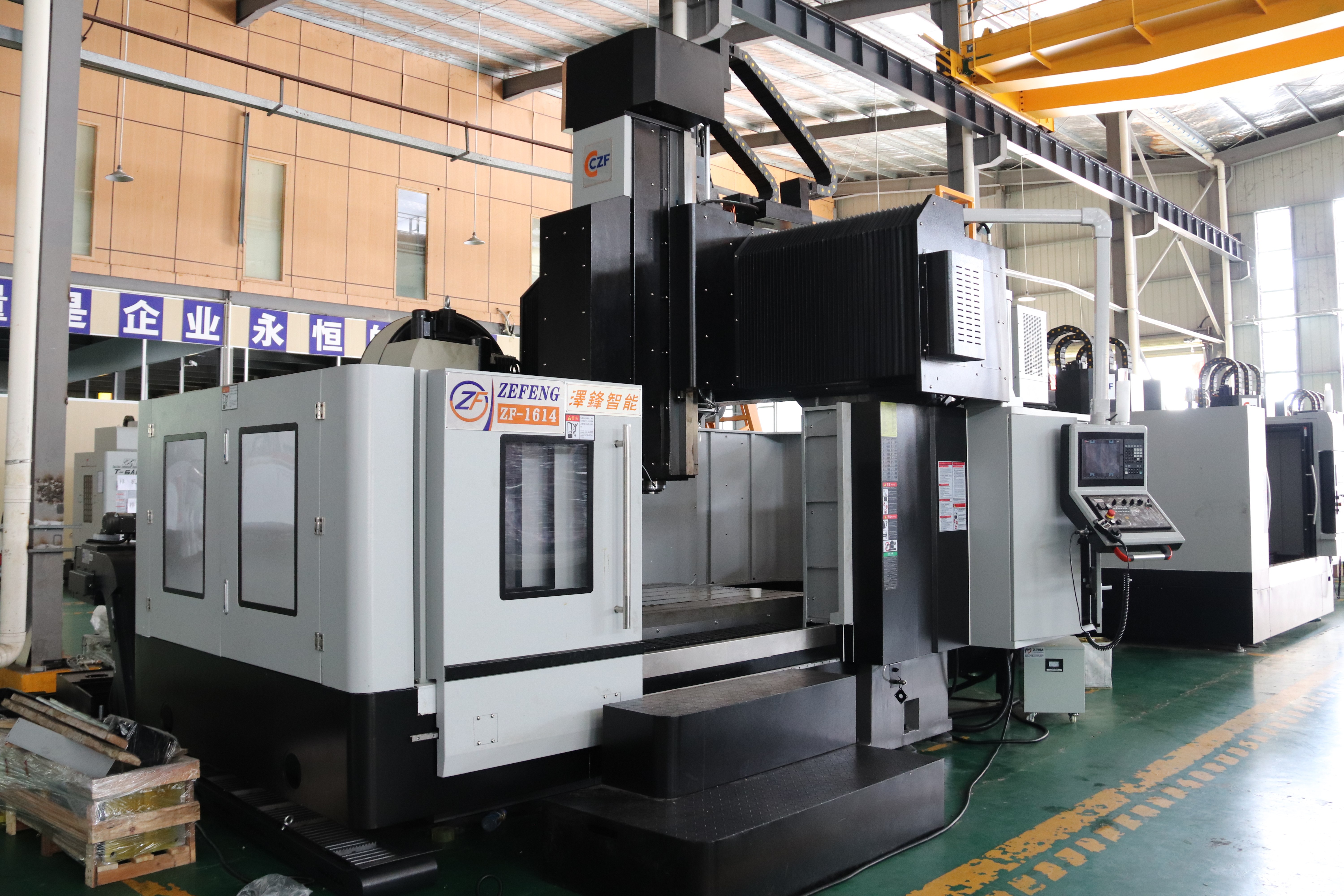

Machine Detail 1

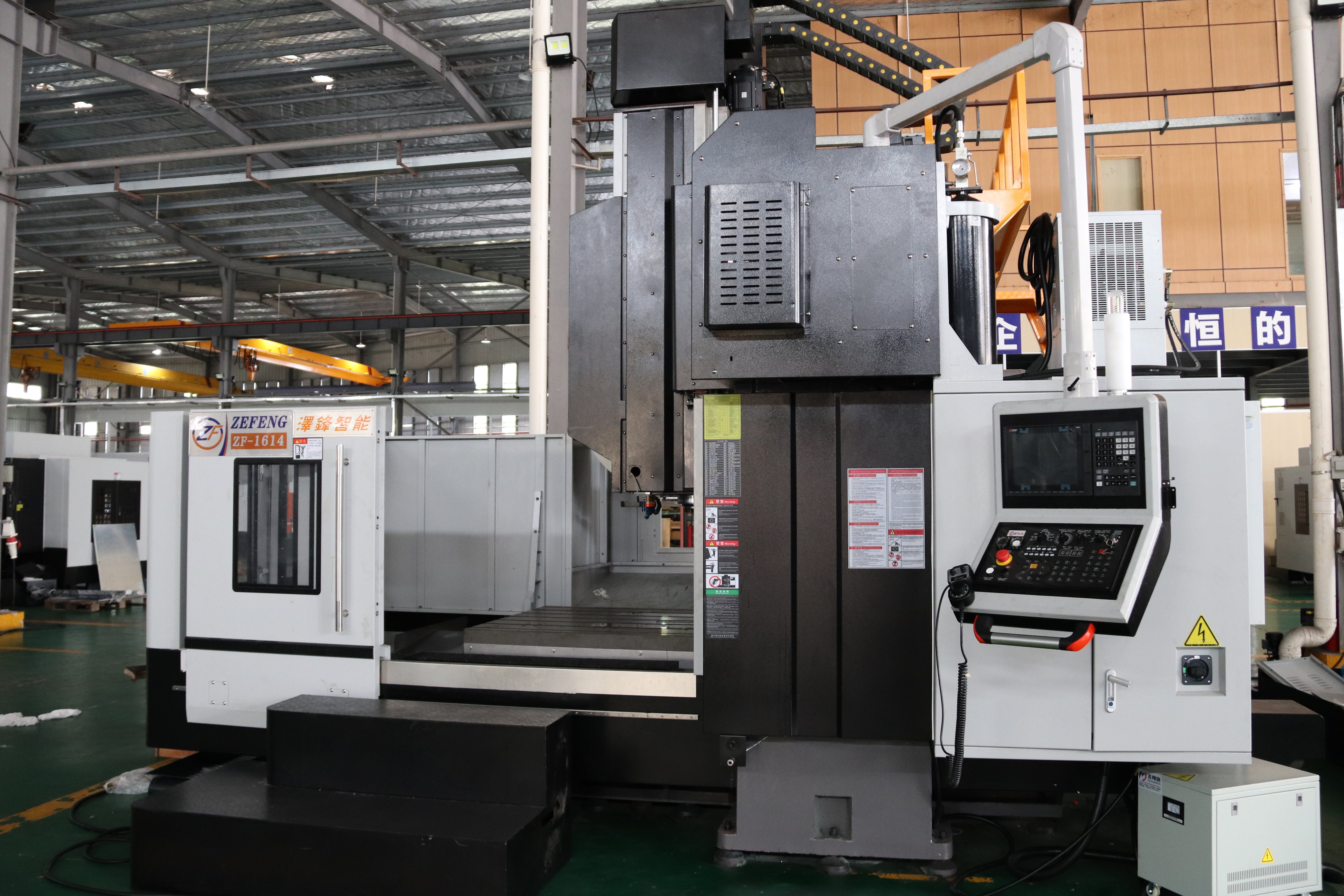

Machine Detail 2

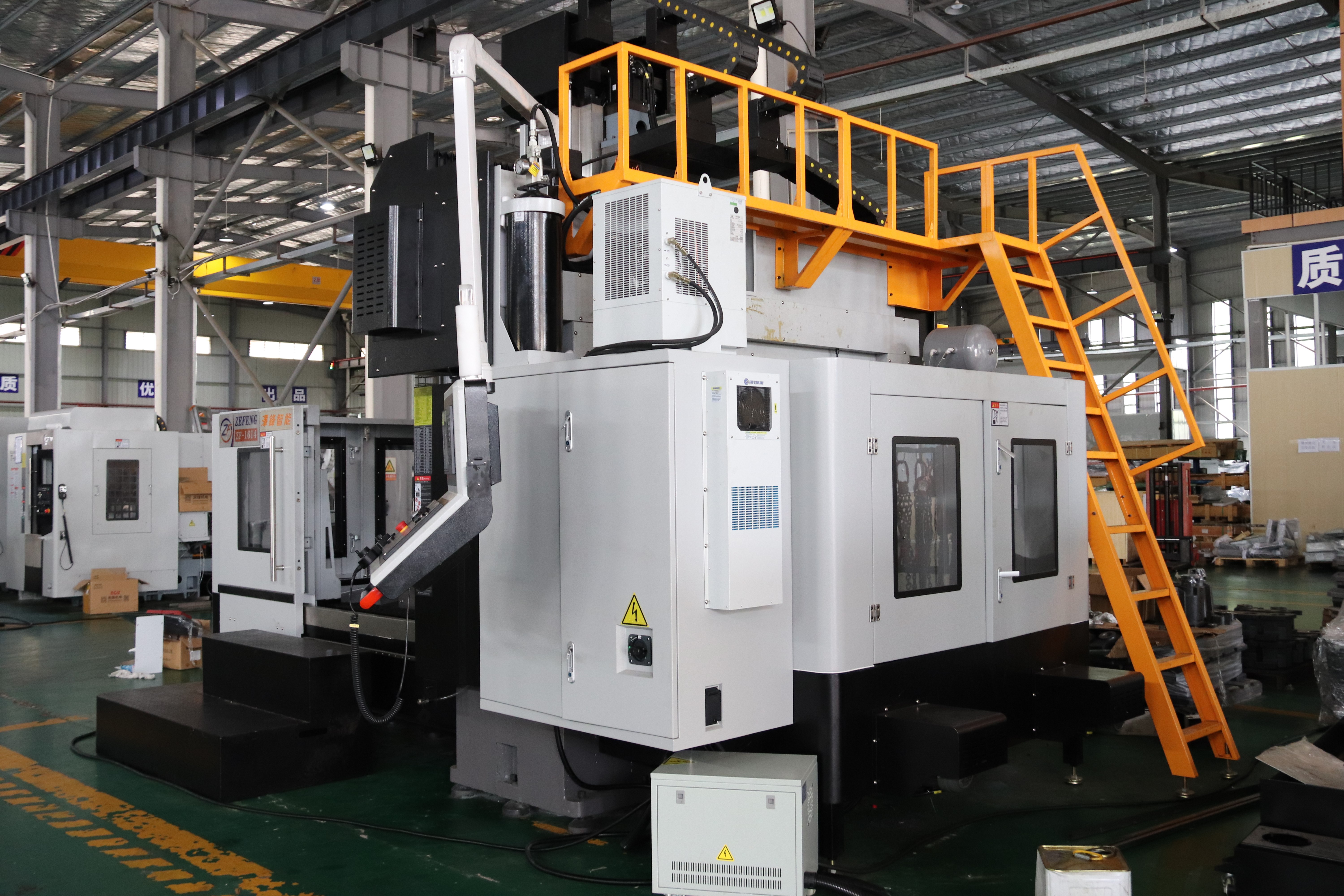

Machine Detail 3
Processing View 1
Processing View 2
Processing View 3
Factory Overview 1
Factory Overview 2
Factory Overview 3
Production Process 1
Production Process 2
Production Process 3
Product Quality Showcase
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
❓ Frequently Asked Questions
Q: How to choose the most suitable machine?
Please provide your specifications, and we can select the best model for you, or you can choose the exact model. You can also send us the product drawings, and we will select the most suitable machine for you.
Q: What are your payment terms?
A 30% down payment after signing the contract and a 70% payment before shipment can be discussed based on your specific situation.
Q: Can you provide customized services?
Yes, we can. Please provide the specifications of the machine you need and let us know your requirements.
Q: What is the warranty period for the machine?
The machine warranty period is 12 months from the date of receiving the goods.
Q: Is your machine tool a 3-axis, 4-axis, or 5-axis machine?
We have 3-5-axis machine tools, and we need to know the dimensions you require, including the 4th and 5th rotary tables, NC controller, motor brand and model, so we can provide you with an accurate quotation.
Q: Can your engineer come to our site to assist with machine installation and debugging?
Yes, our engineers can travel to your location. The round-trip airfare and accommodation expenses will be covered by you.
